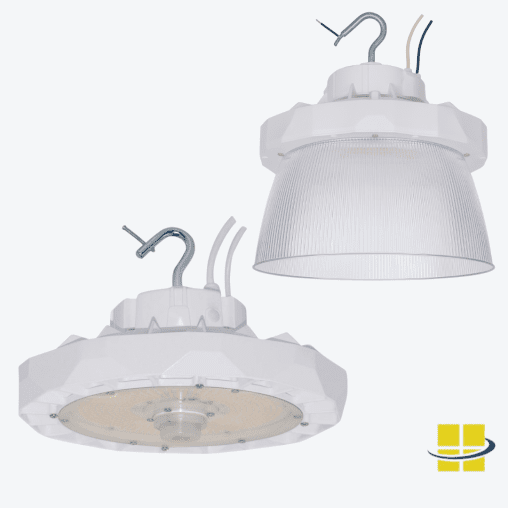

HIIO LED High Bay, Selectable Kelvin and Wattage 100/120/150

$139.87

HIIO LED high bays have selectable Kelvin: 4K, 45K, or 5K and selectable Wattage: 100, 120, or 150w with the flick of a switch. The glare-reduction polycarbonate lens and 80+CRI LEDs combine to provide outstanding illumination. With a superior heavy-duty die-cast aluminum housing construction. IP65 wet location rating and 6KV surge protection are standard, HIIOs will provide virtually maintenance-free performance for years.

Selectable Kelvin and Watts: Get the exact Kelvin and the amount of light that you want with the flick of a smart controller switch. It’s 0-10v dimmable too

Glare Reduction: Glare reduction polycarbonate lens and 80+ CRI LEDs combine for superior visibility

Superb Durability: Features die-cast aluminum housing with heat sinking, IP65 wet location rating, 6KV surge protection, and a shatterproof polycarbonate lens

Click here for information on the HIIO Occupancy and Daylighting Microwave Sensor Modes.

Lead Time: 5 to 7 Day Production, plus Shipping

In Stock

  • Maximize energy savings and the life of the lights by adding an occupancy sensor
  • Do you need the HIIO to stay on when the power goes out? If yes, add the Emergency Power Supply.
  • Total

Specifications

Weight 8 lbs
Dimensions 14 × 14 × 9 in
Availability

5 to 7 Day Production, plus Shipping

Light Source

, ,

Available Finishes

White

Color Rendering Index (CRI)

80+

Housing

Die cast aluminum housing

Light Source Included

LED Array Included

Listings

CuL Listed, DLC Listed, IP65, UL

Light Source Lumens

19,800

Mounting

Hook Mount

Product Family

HIIO

System Watts

100, 120, 150

Voltage

120v, 208v, 240v, 277v

Warranty

5-Year Limited Warranty

Product Description

HIIO LED High Bay Features:

  • Selectable Wattage
    • 100/120/150w
  • Selectable Kelvin
    •  4000K, 4500K, 5000K
  • Diameter: 9.67″ – 245.5mm
  • Height: 5.83″ – 148mm not including hook mount
  • White finish
  • UL, DLC, and CUL listed for damp locations
  • RoHS compliant
  • IP65 rated
  • Die-cast aluminum body
  • Next-generation LED chip
  • 0-10v Dimmable
  • 6KV surge protector
  • Acrylic reflector, AL reflector
  • Type V distribution
  • 80+ CRI
  • Built-in heat sink
  • Built-in die-cast aluminum hook for a strong and easy installation
    • optional S hook or 3/4″ pendant adapter
  • Optional bi-level motion sensor for easy installation and additional utility cost savings
  • Quick-disconnect cable – allows for separating the driver from the LED module for easy maintenance
  • Ease access for wattage and CCT tuning
  • Lumen output:
    • 125 LPW
    • 19,800 lumens
  • Easy opening for maintenance
  • Optional 120-277v occupancy sensor
  • -40° C starting temp



HIIO LED High Bay Options:

  • 120-277v OCC sensor
