Calculating lighting amps is crucial for safe and efficient projects. This guide covers the basics of amperage, its relationship to voltage and wattage, and practical steps for measuring the amperage of your lights.

Key Takeaways

    • Amperage is crucial in lighting systems to prevent overloads and ensure safety; it dictates how much electric current flows through a circuit.
    • Calculating amperage involves using the formula Watts / Volts = Amps, allowing for accurate load assessments for various light fixtures.
    • Always verify calculated amperage with actual measurements using tools like multimeters to ensure system safety and compliance with electrical codes.

Understanding Amperage in Lighting Systems

Amperage is the lifeblood of any electrical system, dictating how much electric current flows through a circuit. When it comes to lighting installations, understanding amperage is the key to ensuring both safety and efficiency. Accurate amperage calculation prevents circuit overloads, which are not only inconvenient but also pose serious electrical hazards.

Consider a scenario where you’re installing multiple light fixtures in your home. Each fixture adds to the overall load on the circuit, and without proper calculation, you could easily exceed the circuit’s capacity, leading to potential overheating or even fire hazards. Understanding amperage helps you select the right wire gauge and breaker ratings, ensuring your setup is both safe and compliant with electrical codes.

Understanding the basics of amperage, voltage, and wattage provides a solid foundation for more advanced calculations and installations. This knowledge is not just for electricians; anyone involved in lighting projects will benefit from understanding these concepts.

What is Amperage?

At its core, amperage measures the flow of electric current in a circuit. Think of it as the volume of electricity moving through your wires. Just as water flows through pipes, electricity flows through wiring, and amperage quantifies this flow. It’s measured in amps, and knowing how many amps are required for your lighting setup is crucial for ensuring everything runs smoothly.

Consider the analogy of water pressure and volume – voltage is like the pressure pushing the water, while amperage is the volume of water flowing through the pipe. The higher the amperage, the more electric current is flowing, and the more powerful your lighting system can be. Understanding this concept is the first step in creating a safe and efficient lighting project.

How Amperage Relates to Voltage and Wattage

The relationship between amperage, voltage, and wattage is fundamental to grasp. These three elements are interconnected, influencing how your light fixtures operate. The formula Watts / Volts = Amps is crucial here. For example, an LED bulb rated at 10 watts will draw approximately 0.083 amps when powered at 120 volts.

High voltage reduces the amount of current drawn by a fixture, which means you can run more lights on the same circuit without overloading it. Conversely, lower voltage increases amperage, affecting your wiring and breaker sizing.

This delicate balance between watts, volts, and amps ensures your lighting system is both effective and safe.

Calculating Amperage for Light Bulbs and Fixtures

Now that you have a solid understanding of amperage, voltage, and wattage, it’s time to dive into the practical side of calculating amperage for your light bulbs and fixtures. Understanding the amperage draw of each fixture is crucial for planning your lighting setup and avoiding overloads.

To determine the amperage of a light fixture, simply divide its wattage by the voltage supplied. This straightforward calculation is the foundation for ensuring your electrical system can handle the load.

Whether you’re dealing with incandescent bulbs, LED bulbs, or other types of lighting, this basic formula remains the same and is universally applicable.

Using Ohm’s Law to Calculate Amperage

Ohm’s law is your go-to tool for calculating amperage. This fundamental principle states that current (I) equals power (P) divided by voltage (V), represented as I = P / V. Applying this formula allows you to calculate the amperage for any given light fixture, ensuring you know exactly how many amps are required.

For example, if you have a 120-watt light bulb operating on a 120-volt circuit, the calculation would be 120 watts / 120 volts = 1 amp. This simple yet powerful formula ensures you can accurately determine the electrical load of your lighting fixtures, making it an indispensable tool for any lighting project.

Practical Examples of Amperage Calculation

Let’s put theory into practice with some real-world examples. A 60-watt incandescent bulb operating at 120 volts will draw approximately 0.5 amps. On the other hand, an LED bulb rated at 15 watts will consume about 0.125 amps when plugged into a 120-volt system. These examples illustrate how different types of bulbs require different amounts of current, helping you plan your lighting setup more effectively.

Calculating amperage helps determine the electrical load of your fixtures, which is crucial for safety and efficiency. These practical examples enable you to confidently apply amperage calculation principles to your own projects, ensuring a smooth and safe installation process.

Determining Total Amperage for a Lighting System

When it comes to an entire lighting system, knowing the total amperage is vital for ensuring safety and preventing circuit overload. Each light bulb and fixture adds to the overall load, so it’s essential to calculate the total draw to avoid overloading your electrical circuits. Light bulbs with a power rating between 10 and 100 watts typically draw between 0.08 and 0.8 amps at 120 volts.

Consider a setup with multiple fixtures – calculating the combined amperage helps distribute power efficiently and ensures your circuit can handle the load. Proper planning and calculation prevent potential electrical hazards and keep your lighting system running smoothly.

Summing Amperage for Multiple Fixtures

To find the total draw, add the amperage ratings of each individual fixture on the circuit. For instance, if you have three (3) fixtures drawing 0.5 amps each, the total draw would be 1.5 amps. This simple addition ensures you know exactly how much current your circuit needs to handle.

Knowing the total amperage is crucial for ensuring the safety of the electrical circuit. It allows you to plan accordingly and select the appropriate circuit breaker and wiring to handle the load without risking overload or fire hazards.

Considering Circuit Breaker Ratings

Choosing the right circuit breaker rating is essential to protect against overloads and ensure safe operation of the lighting system. To determine the appropriate breaker, ensure it can handle the total amperage plus an additional 25% margin for safety. For example, a system with 6 fixtures at 480 watts each on a 277-volt circuit requires at least a 15A breaker.

Exceeding a breaker’s amperage limit will cause it to trip, shutting off power to the lights and preventing potential hazards. This safety mechanism ensures that your circuits are not overloaded, maintaining the integrity of your electrical system.

Practical Tips for Safe and Efficient Lighting Installations

Safety and efficiency are paramount in any lighting installation. Understanding amperage helps in determining the efficiency of light fixtures and ensures you’re not underestimating the required draw. Lower amperage in LED lighting systems often indicates greater energy efficiency, making them a smart choice for both residential and commercial projects.

To streamline the installation process, proper planning is essential. Using a lighting layout tool can help you visualize the setup and ensure everything is correctly placed and wired. Adhering to both national and local electrical codes is crucial to ensure safety and legality in large-scale lighting projects.

Choosing the Right Wire Gauge

Selecting the appropriate wire gauge is critical to handle the amperage without risking overheating. The American Wire Gauge (AWG) system helps determine the right wire size, where a smaller gauge number indicates a larger diameter wire suitable for higher current. For typical household lighting circuits, 14-gauge wire is rated for up to 15 amps, making it standard for light fixtures.

Higher amperage ratings require larger wire diameters to prevent overheating and possible fire risks. Regular verification of amperage measurements can enhance safety and prevent electrical issues, ensuring the wiring matches the amperage to avoid overheating.

Avoiding Common Mistakes

Avoiding common mistakes in lighting installations is crucial for safety and efficiency. Underestimating the amperage draw of lighting fixtures can lead to circuit overloads and safety issues. It’s important to use the correct breaker size to prevent electrical failures and hazards.

Verifying current calculations helps identify potential discrepancies that could lead to unsafe conditions in electrical installations. Being thorough and cautious ensures a safe and efficient lighting setup.

Using Tools to Measure and Verify Amperage

Using tools to measure and verify amperage is essential for maintaining accuracy and safety in your electrical work. Measuring amperage in live circuits ensures that your calculated values are correct and that your system is safe. Tools like multimeters are invaluable for this purpose, providing precise measurements to validate your calculations.

Always prioritize safety when using these tools and make sure to validate your calculations with practical measurements, ensuring the integrity of your electrical system.

How to Use a Multimeter to Measure Amperage

A multimeter is a crucial tool for measuring electrical parameters like voltage, resistance, and amperage, allowing for accurate diagnostics in electrical circuits. To measure amperage, set the multimeter to the appropriate amperage setting, connect the probes correctly, and take the reading while ensuring all safety precautions are followed.

After obtaining the measurement, double-check by turning off the circuit and using a different multimeter setting to verify the reading. This step ensures the safety of the circuit and the accuracy of your measurement.

Verifying Your Calculations

Cross-checking calculated amperage with actual measurements helps ensure the accuracy of your electrical system setup. Comparing calculated values with actual measurements helps identify discrepancies in amperage and allows for necessary adjustments.

This verification process is crucial for confirming the accuracy and safety of your electrical designs. Regularly verifying your calculations ensures that your lighting system operates efficiently and safely.

Planning for Large-Scale Lighting Projects

When planning large-scale lighting projects, it’s essential to consider the specific lighting requirements of the environment, taking into account factors such as layout, purpose, and energy efficiency. Best practices include assessing the site, selecting appropriate fixtures, and evaluating energy consumption.

Large-scale lighting projects require careful consideration of fixture types, layout, and energy efficiency to ensure adequate illumination and minimize costs. Understanding amperage draw is crucial for ensuring electrical systems can handle the load of LED sports lighting installations.

Calculating Amperage for Sports Lighting

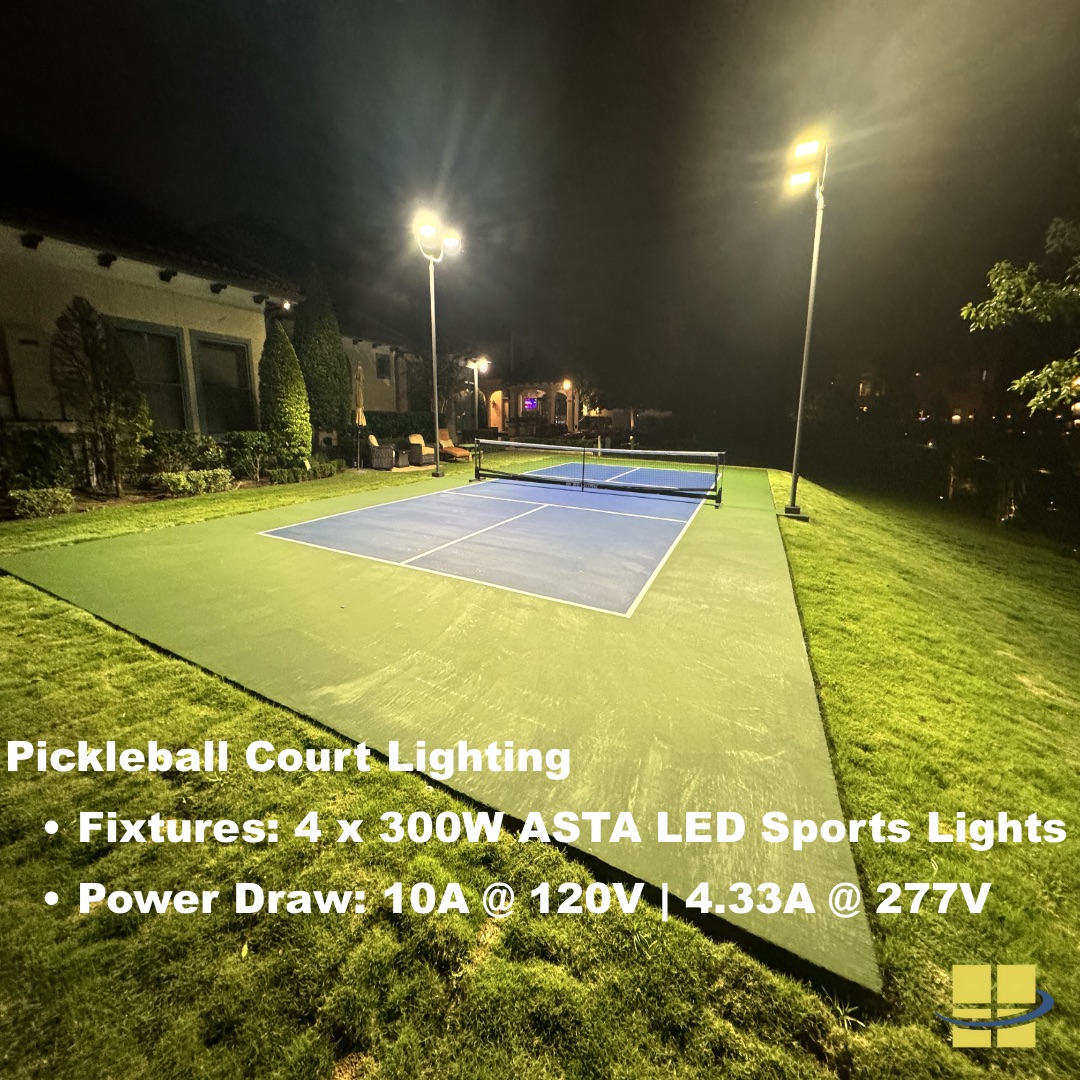

Calculating amperage for sports lighting involves understanding the wattage of each fixture and the total number of fixtures. Most sports lighting operates at 120V, 208V, 240V, or 277V. To determine the total amperage for a sports lighting system, multiply the amps per fixture by the total number of fixtures. For example, if each fixture draws 2 amps and you have 10 fixtures, the total draw would be 20 amps.

Understanding these calculations ensures that the electrical system can handle the load and prevents overloading. Proper planning and calculation are essential for large-scale lighting projects, ensuring safety and efficiency.

Ensuring Compliance with Electrical Codes

Adhering to national and local electrical codes is essential for ensuring safety and compliance in lighting installations. Understanding these codes helps prevent potential hazards related to overheating and overloading circuits. Selecting the correct wire gauge according to amperage is critical to meet electrical code requirements and avoid overheating.

Common mistakes that can lead to code violations include using inappropriate wire sizes and incorrect breaker ratings. Calculating the total amperage of a lighting system ensures circuits are not overloaded, which is a requirement of electrical codes. Using tools to measure and verify amperage helps ensure compliance with calculated values, contributing to safe practices.

Summary

Understanding and calculating lighting amperage is crucial for creating safe and efficient electrical systems. By mastering the basics of amperage, voltage, and wattage, and applying practical tools like Ohm’s Law and multimeters, you can ensure your lighting projects are well-planned and hazard-free.

From small residential installations to large-scale sports lighting projects, accurate amperage calculation and adherence to electrical codes are essential. With the knowledge and tools outlined in this guide, you are now equipped to tackle any lighting project with confidence and precision, ensuring safety and efficiency every step of the way.

Calculating Lighting Amps Frequently Asked Questions (FAQs)

How do I calculate the amperage for my lighting fixtures?

To find the amperage for your lighting fixtures, just divide the wattage by the voltage. For instance, a 60-watt bulb on a 120-volt circuit uses 0.5 amps.

Why is it important to sum the amperage for multiple fixtures?

It’s crucial to sum the amperage for multiple fixtures to avoid overloading the circuit, preventing hazards like overheating and tripped breakers. Keeping an eye on this helps ensure safety in your space.

How do I choose the right circuit breaker rating?

To choose the right circuit breaker rating, make sure it can handle at least 25% more than your calculated amperage. This way, you’ll ensure safety and avoid overloads.

What wire gauge should I use for my lighting installations?

For your lighting installations, 14-gauge wire is typically what you want for up to 15 amps, which is perfect for most household lighting circuits. If you need to support higher amperage, just switch to a thicker wire.

How can I verify my calculated amperage?

To verify your calculated amperage, simply use a multimeter to measure the actual current in the circuit and compare it to your calculations. This will help ensure everything is accurate and safe!
