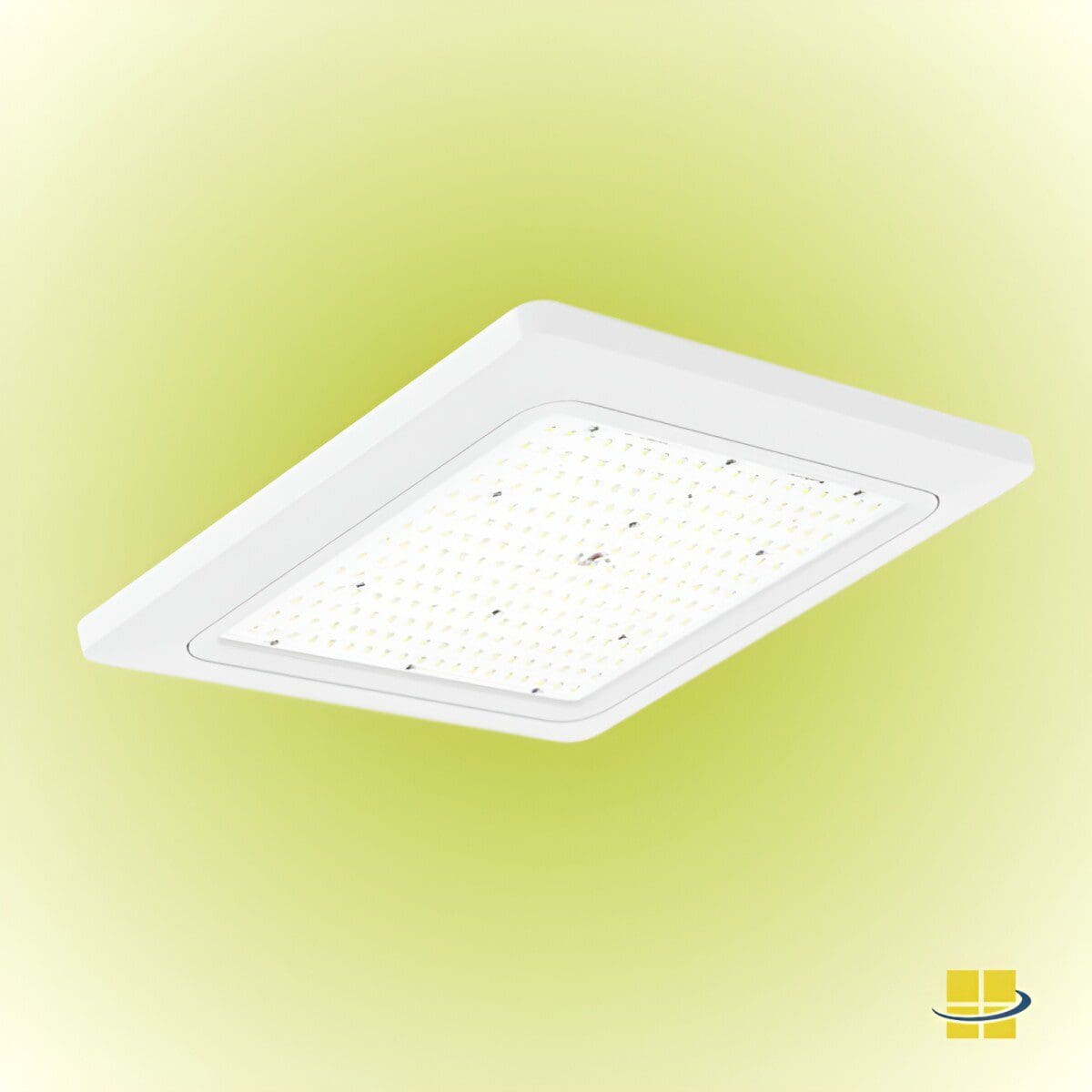

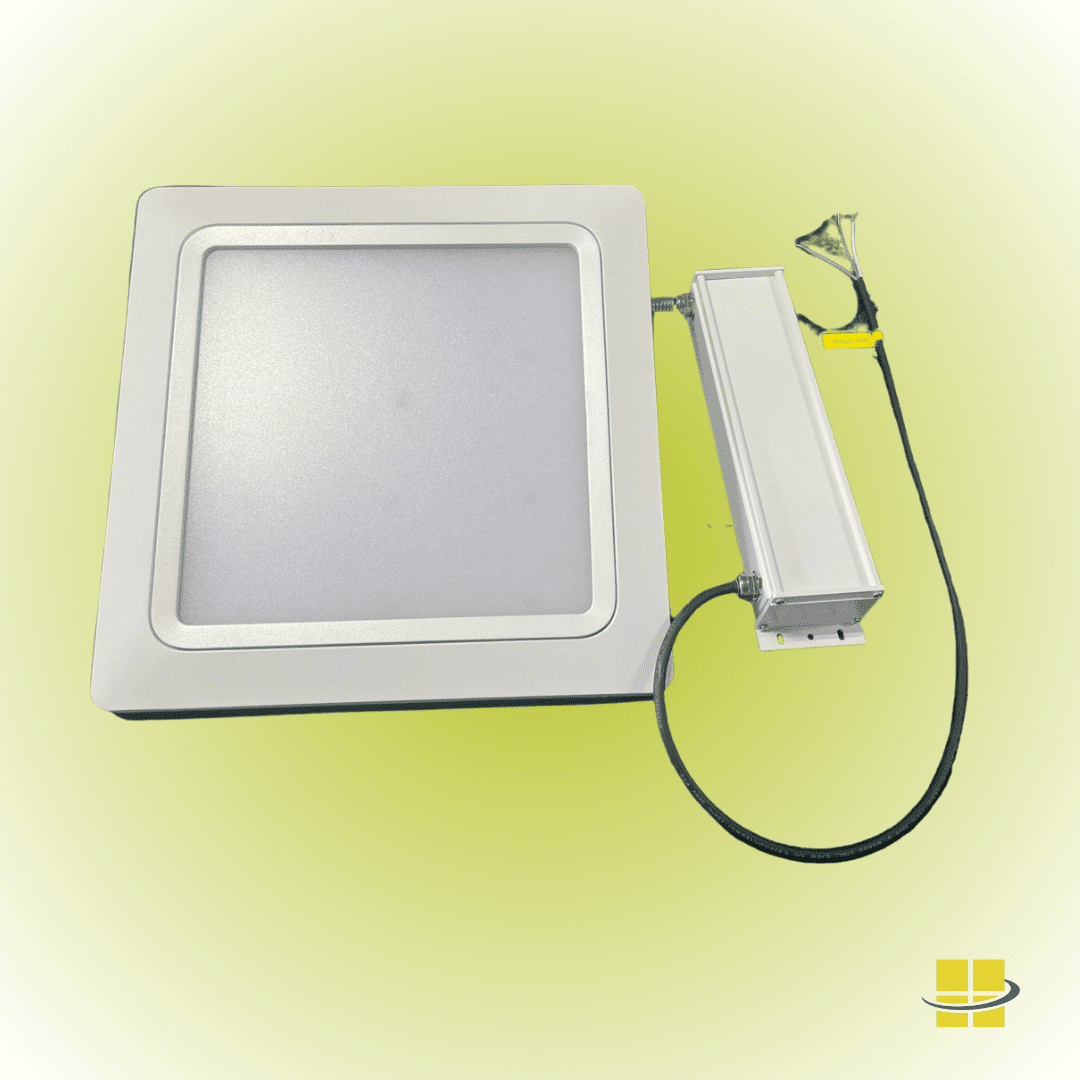

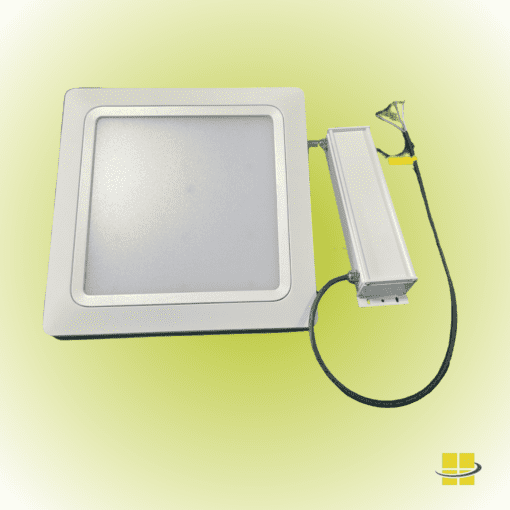

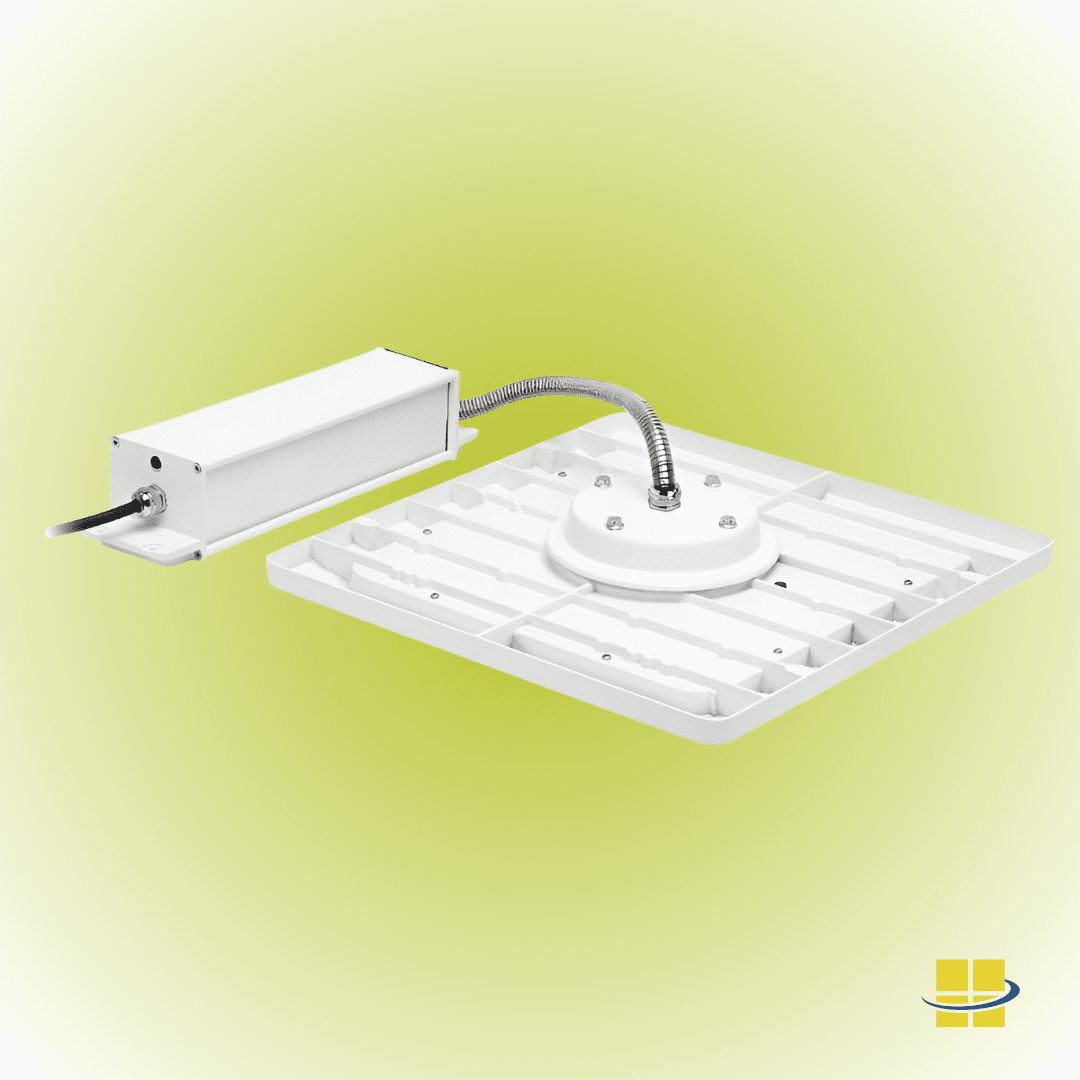

FLAT top view

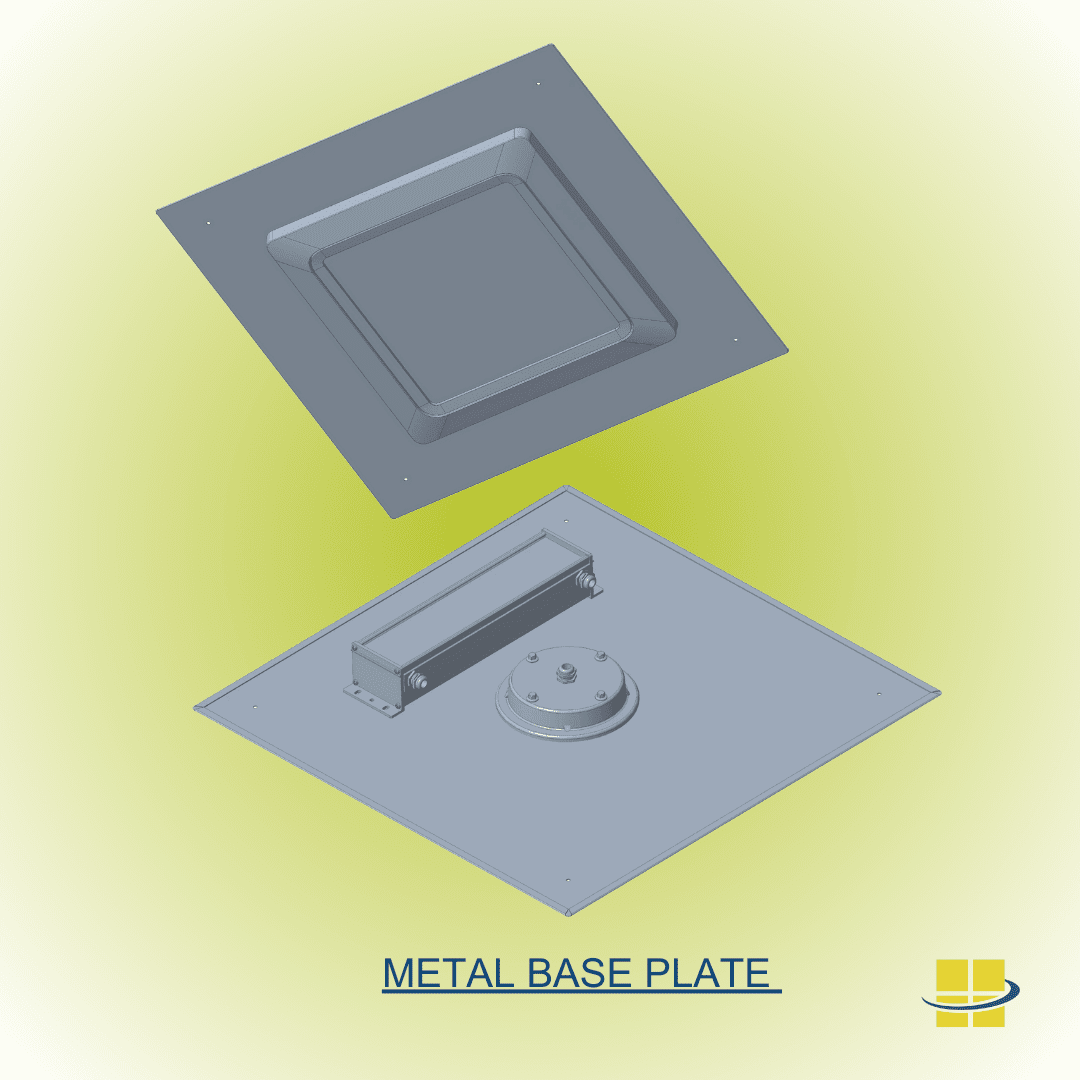

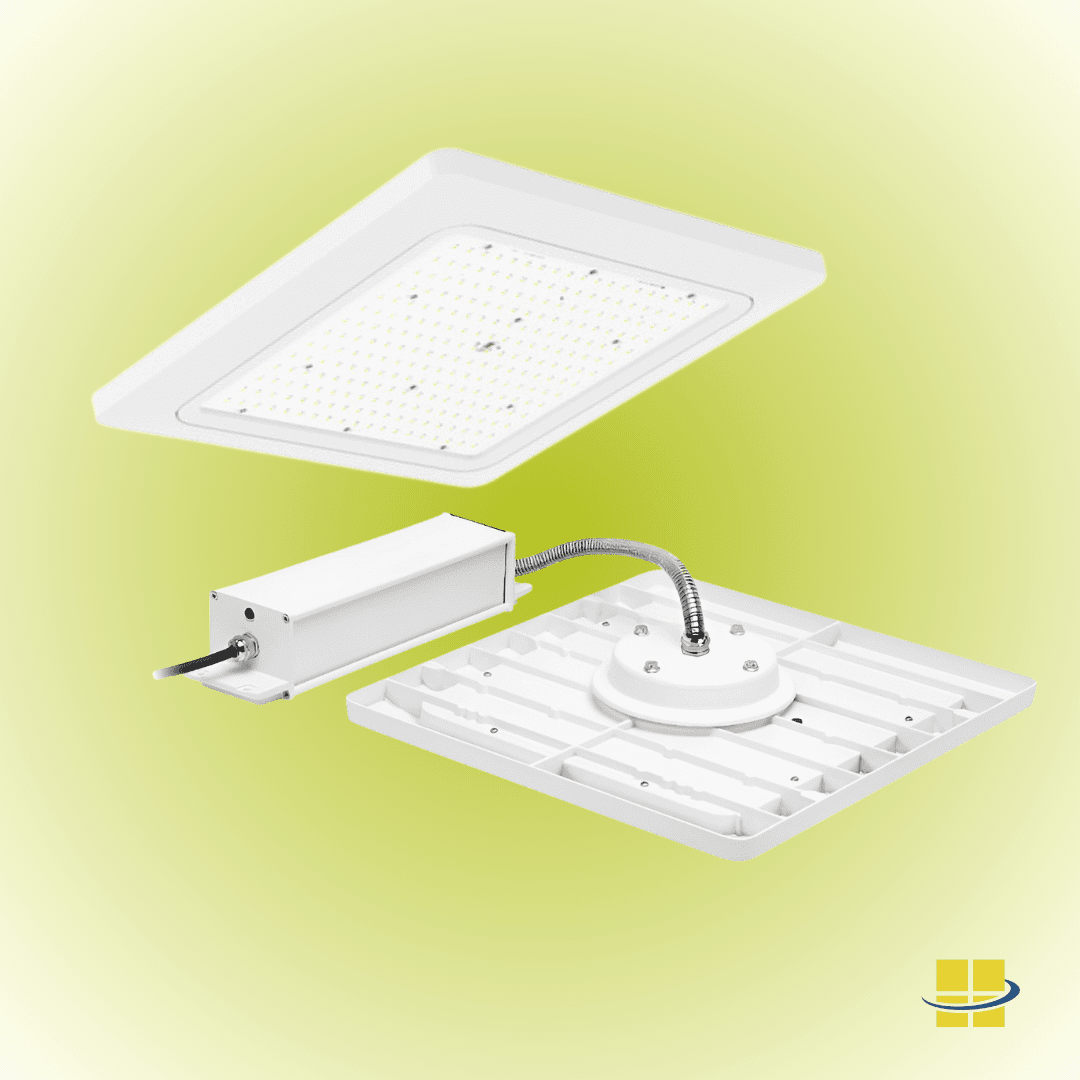

Metal Base Plate for FLAT 120 & 160 no uv

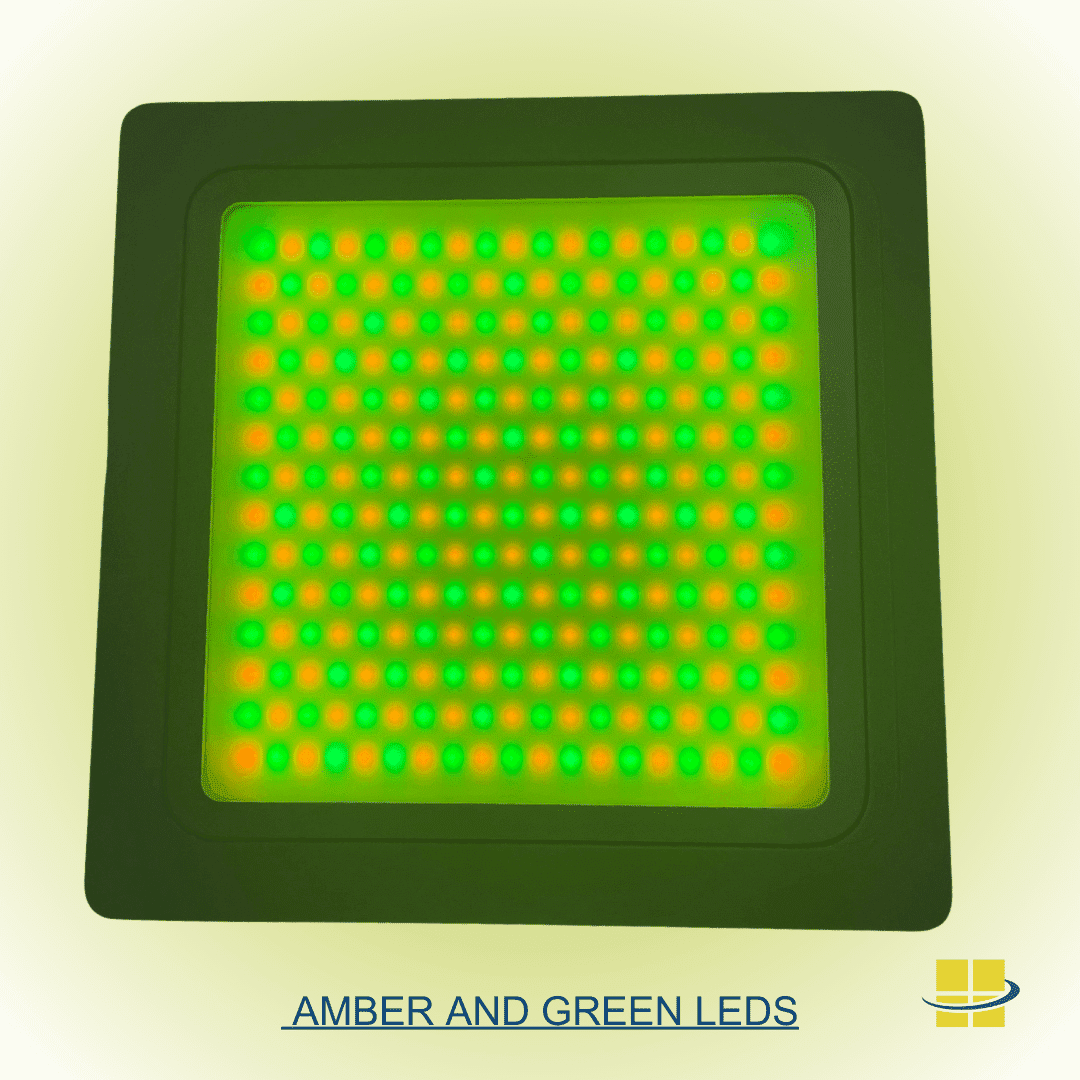

LEDs

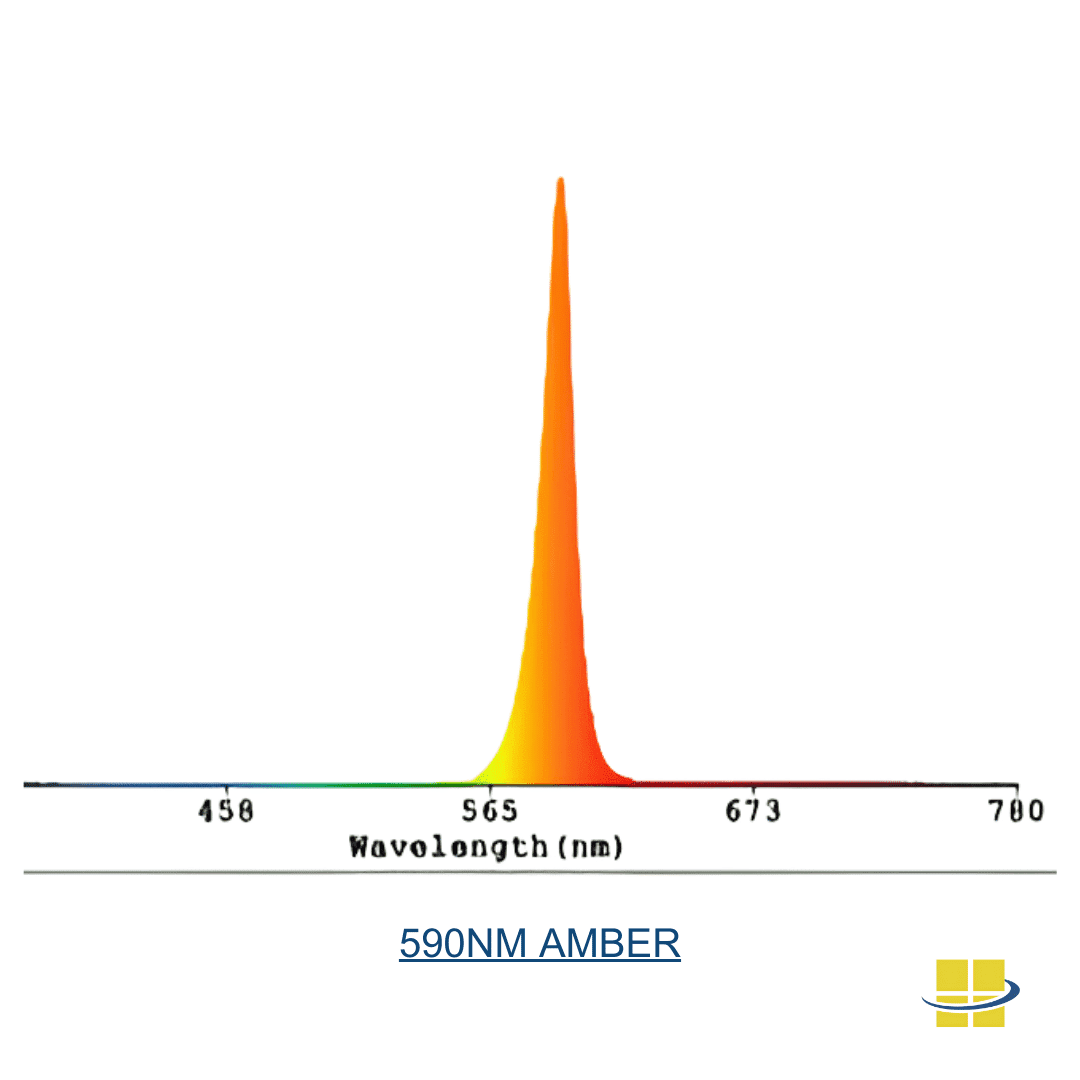

590nm Amber spectrum

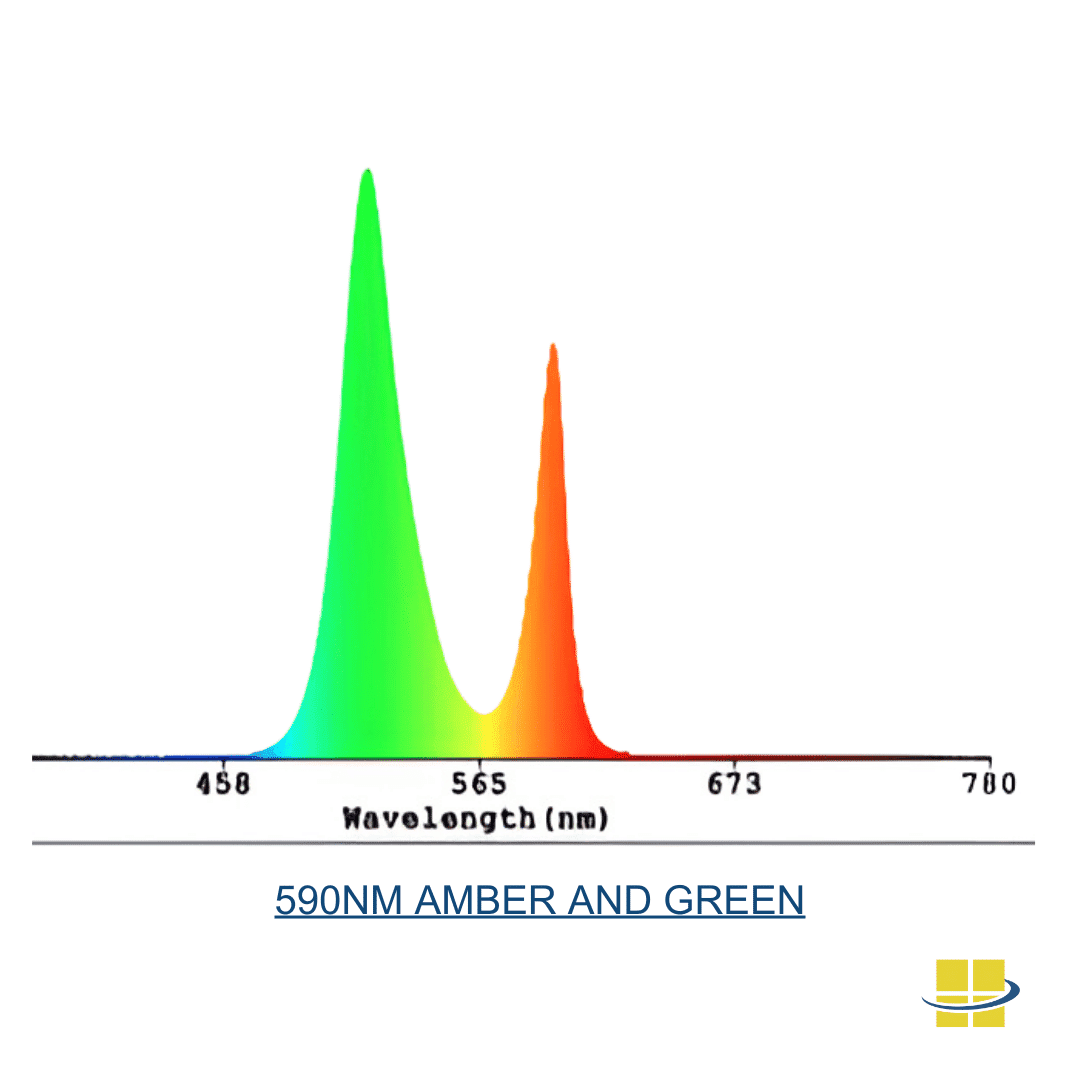

590nm Amber and Green Spectrum

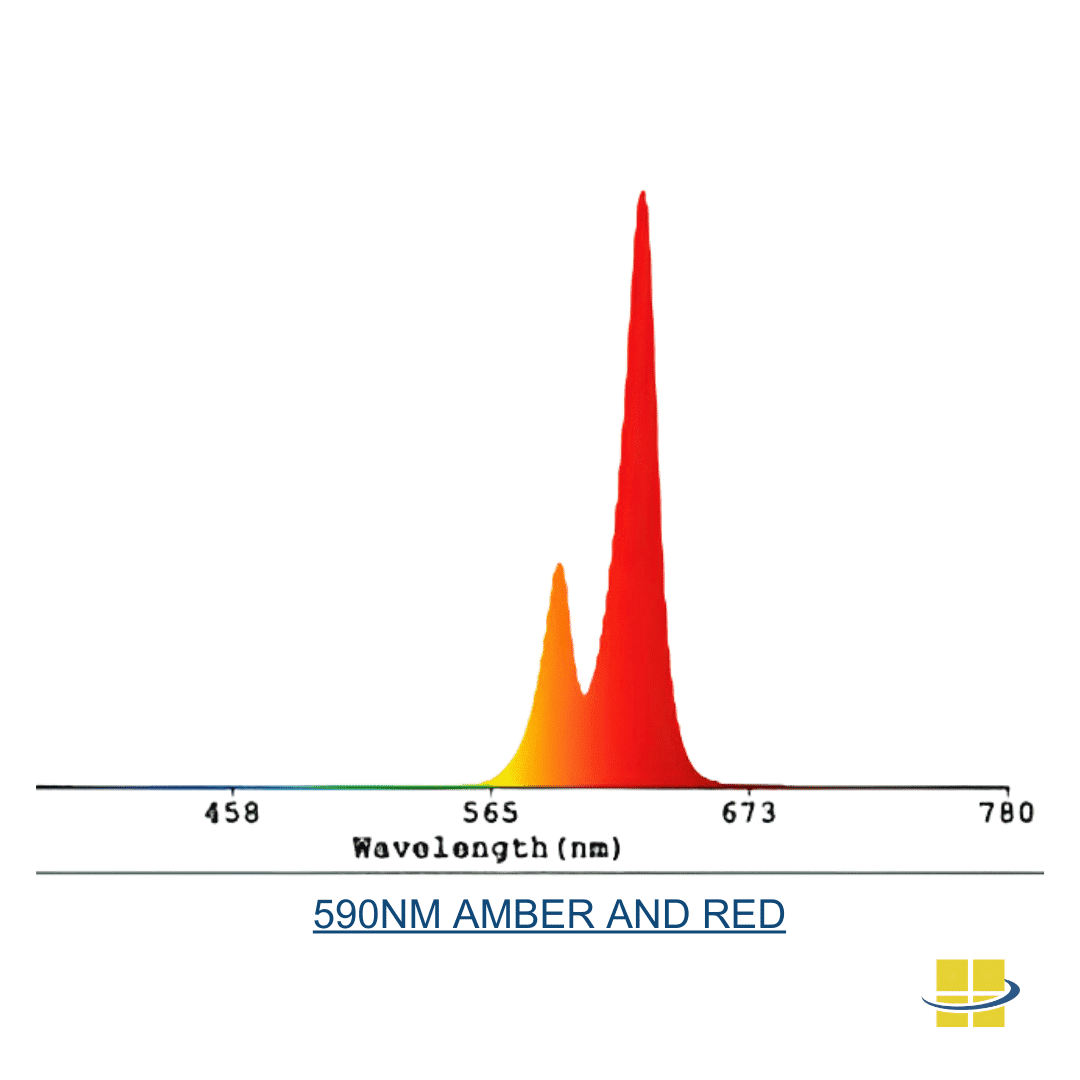

590nm Amber and Red

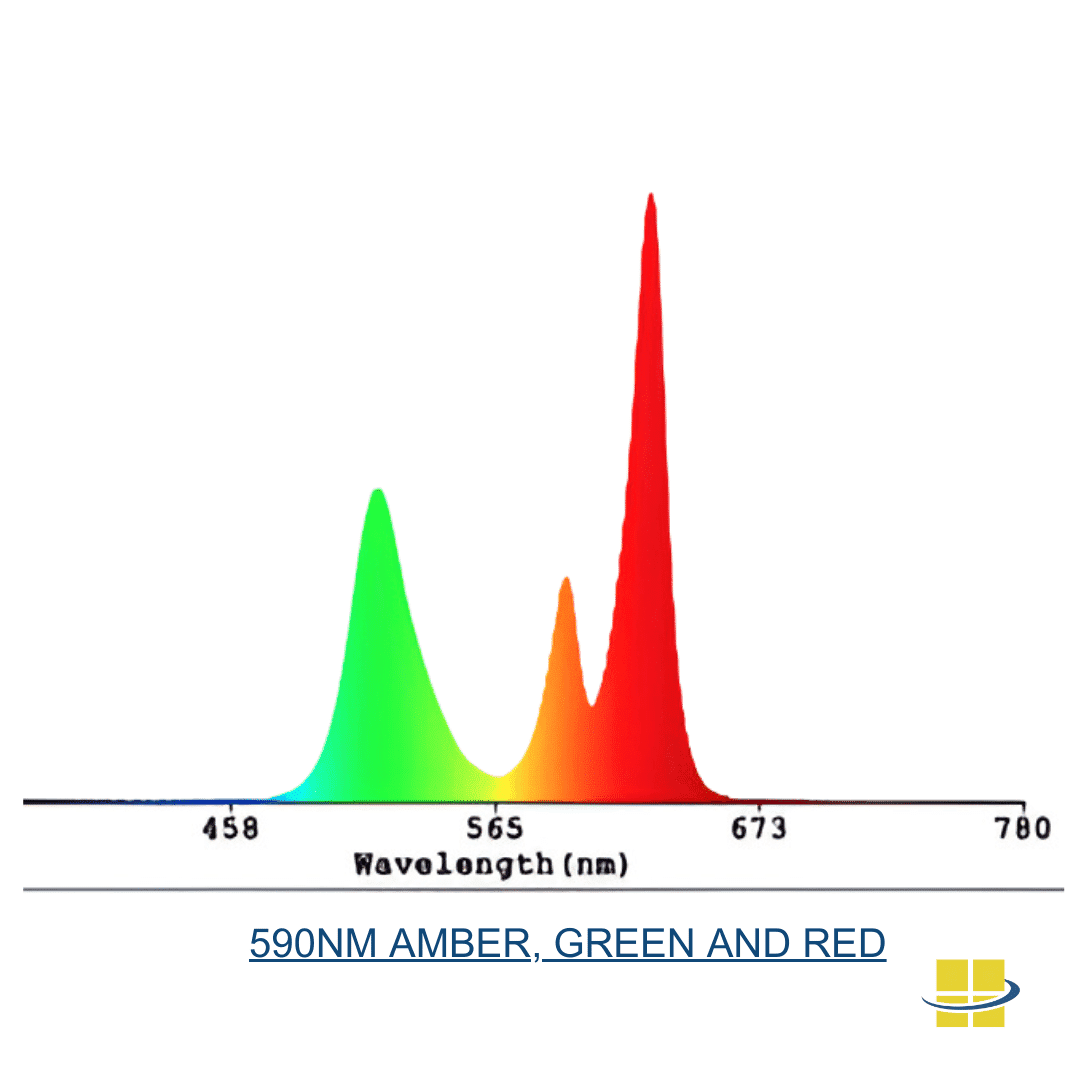

590nm Amber, Green and Red

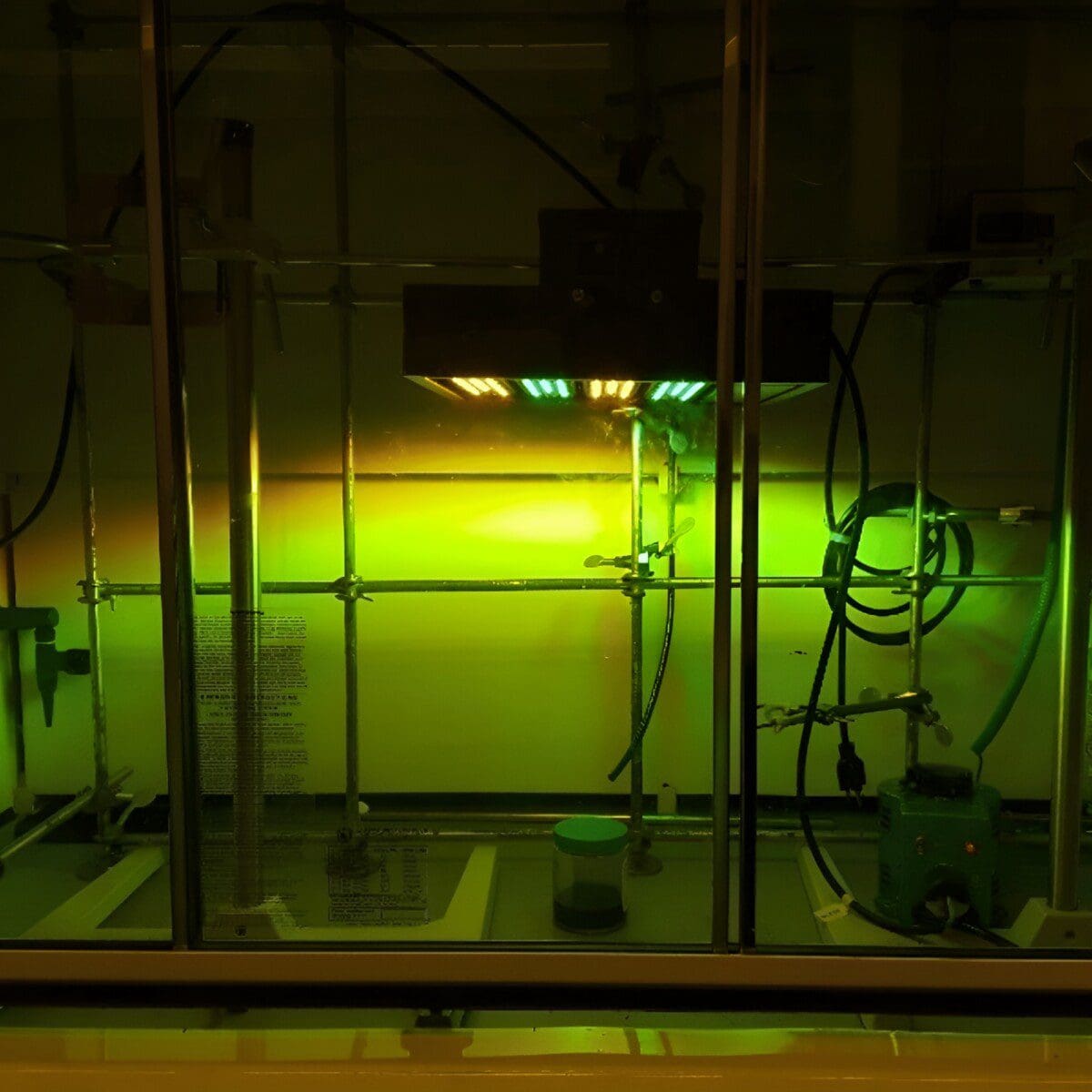

Indepndent-fortune-test-1 (1)

FLAT 160 No UV – No Light Below 450nm LED Flush Mount Light

$799.87

Superior Work Environment: No UV and no light below 450nm provide expansive broad-spectrum illumination, ensuring a production environment free from UV lights. Utilizing consistent LED spectrum, eliminates the risk of compromised production, ensuring stability and uninterrupted processes. No flickering lights guarantee a seamlessly lit space, promoting focus and productivity.

Compact Design: Tailored for limited ceiling space, this fixture significantly reduces the necessary area by 50% or more. This allows for enhanced light emission or additional space for other ceiling equipment. Specifically crafted for constrained environments, our 2’x2′ troffers are ideal solutions for arid ceilings, ensuring efficient utilization of spatial limitations.

Next-Genration Standards: Compatible with virtually all control systems, this luminaire caters to the needs of research and production facilities to reduce energy consumption or comply with regulations such as CA Title 24. Equipped to seamlessly integrate with various controls, including 1-10 V dimming, occupancy sensors, DALI, Frequent on/off cycles, and a Dimming driver, ensure consistent performance and adaptability to diverse control requirements.

The first icon provides the product specifications, while the remaining ones delve into the different light spectrums and distribution data. For additional support, contact an Access Fixtures lighting specialist at 800-468-9925.

Lead Time: 6 to 8 Week Production, plus Shipping

In Stock

  • Refer to the icons above for detailed information on the light spectrums.
  • Clear Glass Lens is the standard lens that allows the maximum amount of light without any obstruction or diffusion. Clear PC Lens is a durable transparent thermoplastic material, able to withstand various harsh environments. Frosted PC Lens serves to diffuse the light emitted by reducing glare and creating a softer, more even illumination.
  • 0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.
  • Choice of pre-drilled holes for simple installation.
  • Ensure the panel is appropriately sized for your commercial-grade ceiling.
  • Recommended for any place that has fluctuations in voltage and power surges. LED lights should never be on the same circuit as HID lights or machinery.
  • Maintain No UV illumination during power outages.
  • Maximize energy savings and the life of your NO UV fixture by adding a programable microwave Sensor.
  • FLAT are manufactured with a 3' power cord exiting the light fixture. You may need add additional length to the power cord.

  • Total

SKU: AF88XCML160E-NoUV Categories: , ,

Specifications

Weight 34 lbs

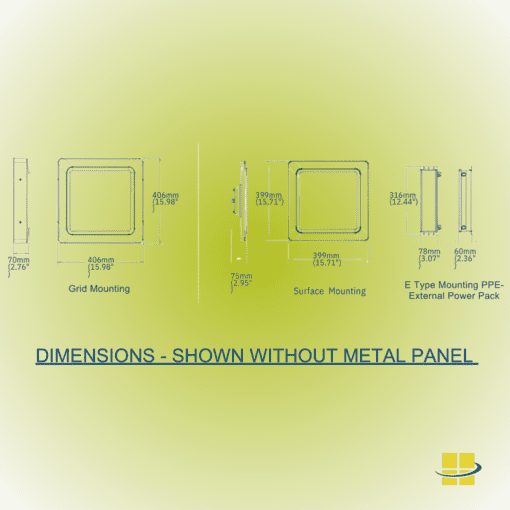

Dimensions 23.75 × 23.75 × 1.5 in
Availability

6 to 8 Week Production, plus Shipping
Available Finishes

White
Ballast/Driver

700mA Driver
Features

Flicker Free, No UV (No light under 450nm)
Housing

Flush mount easy hang bracket, Powdercoat finish, Die cast aluminum housing
Landing Page Attribute (LPA)

No UV
Lens

Clear polycarbonate lens, Frosted polycarbonate lens, Clear flat glass lens
Light Source

Light Source Included

LED Array Included
Light Source Lumens

23200
Listings

IP67, ASTM B117/ISO 9227:2012, CB, CE, CuL Listed, DLC Listed, ENEC, ErP, IK08, RoHS, UL Listed
Mounting

Ceiling Grid – heavy-duty commercial ceiling grid only
Rated Life

70,000 Hours
System Watts

160
Vendor Code

AF88XCML160
Voltage

120v, 277v, 347v, 480v
Voltage Filter

120v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty, Optional 10-Year Limited Warranty

Product Description

Features and Benefits

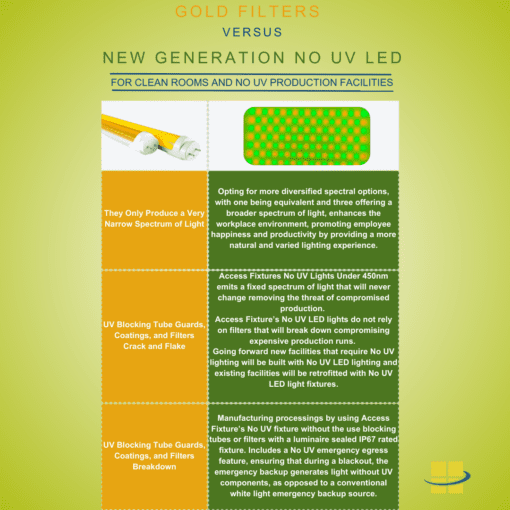

  • No UV  light: Dedicated LEDs don’t emit UV or light under 450nm, without the use of BLocking Tubes and Filters
  • High lumens: Complies with the illumination standards mandated by corporate guidelines and OSHA requirements.
  • Maximize ceiling space: Given the constrained ceiling space due to heavy-duty equipment, the FLAT and FLYT fixtures diminish the required area by 50% or more, allowing for increased light emission or creating additional space for other ceiling equipment. Specifically designed for grid ceilings, our 2’x2′ troffers accommodate these spatial limitations.
  • Broadest spectrum known: Choosing from a range of spectral options, including one equivalent and three broader spectrums of light, improves the workplace ambiance, fostering employee satisfaction and productivity through a more natural and diverse lighting experience.
  • Built ready for controls: Numerous research and production facilities aim to decrease energy consumption or adhere to regulations like CA Title 24. FLAT and FLYT are equipped for nearly all controls, encompassing 0-10 V dimming, occupancy sensors, and DALI. These fixtures remain unaffected by frequent on/off cycles or dimming, ensuring consistent performance.
  • Leading edge diffuser: The FLAT and FLYT feature three types of lenses, Clear Glass or Clear Polycarbonate or a Frosted Polycarbonate lens to provide a uniform and/or softened distribution of light to vertical and horizontal surfaces.
  • 70,000-hour L70 life: Long life and virtually no maintenance.
  • IP67 sealed for Clean rooms: The luminaires are sealed from dust and debris and rated L70 at 70,000 hours – Low to no maintenance.

Ready for Gridded Ceiling Installation

Considering limited ceiling space due to robust overhead equipment, FLAT and FLYT fixtures reduce the necessary area by 50% or more, enabling enhanced light emission or the creation of additional space for alternative ceiling equipment. Tailored for grid ceilings, our 2’x2′ troffers are purpose-built to accommodate these spatial constraints.

Important note: The FLAT and FLYT require support from threaded rods or aircraft wires due to the significant weight of this fixture.

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your Project?

Conducting a photometric analysis involves tailoring a computer simulation to a specific project. Regardless of the lighting needs, utilizing a photometric analysis provides a clear method for quantifying light levels before finalizing a procurement decision. This service furnishes essential metrics, including average footcandles at different heights, max/min (uniformity) ratios, minimum footcandles, light trespass levels, and more. Following the generation of the report, a lighting specialist will walk you through each page, ensuring a comprehensive understanding of the results. For additional information on acquiring a photometric analysis for your project, please reach out to us at 800-468-9925.

Are you prepared to purchase the FLAT 120 No UV – No Light Below 450nm LED Troffer Light, or would you like to consult with a lighting specialist?

You have the option to conveniently place your order online by clicking here. Alternatively, for additional information, feel free to contact us at 800-468-9925. If your project involves multiple fixtures, inquire about potential quantity discounts. Our team of approachable and knowledgeable lighting specialists is ready to assist, ensuring you have the necessary information to confidently purchase fixtures.
