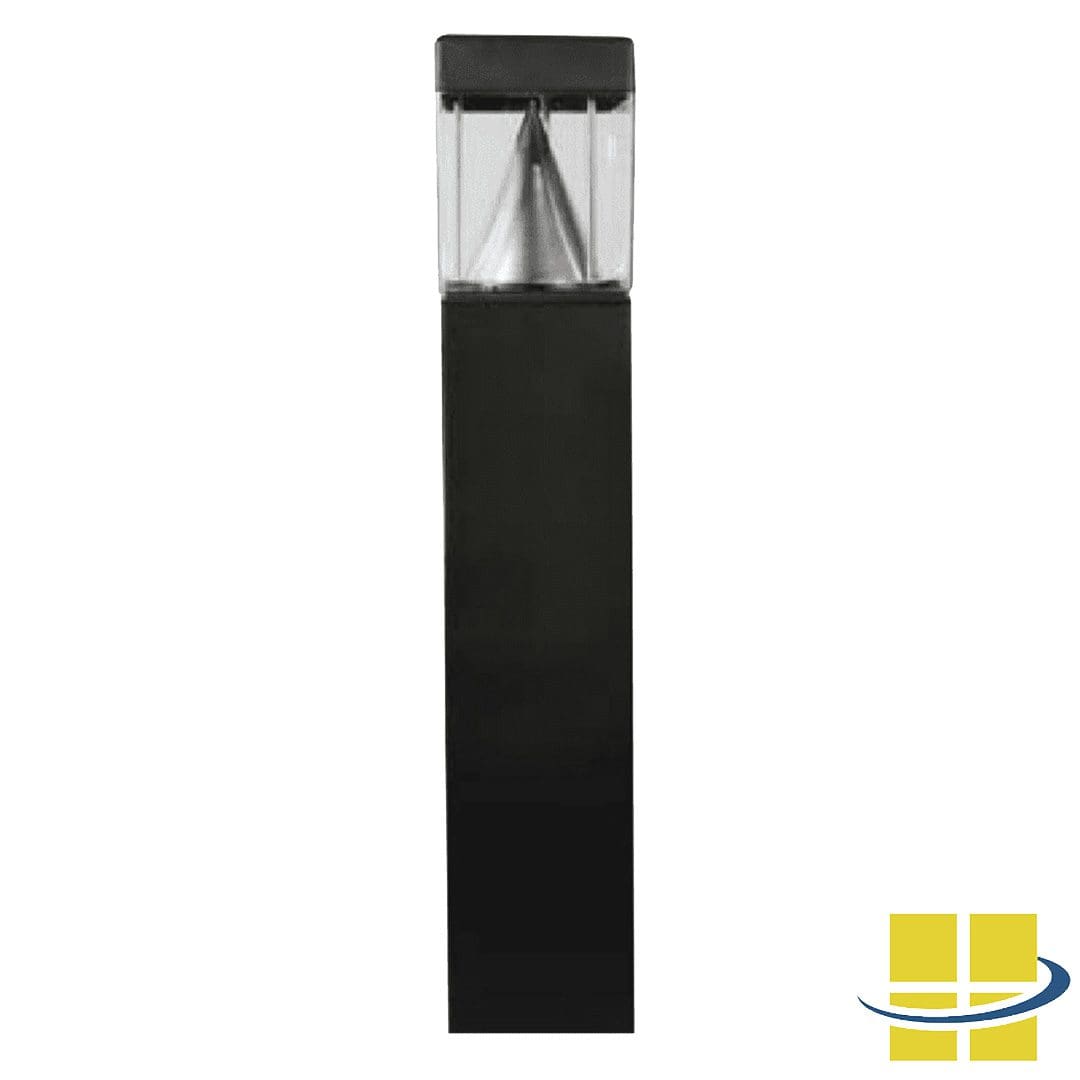

CONA 17w Cone Reflector Square LED Bollard Light, EXTREME-LIFE

$649.87

The CONA square LED bollard light features a cone reflector making it an excellent way to light pathways, retail centers, schools, office buildings, industrial parks, and more. CONA comes standard with an extruded aluminum housing, 0-10v dimming, vandal-resistant screws, and standard internal surge protection. This fixture is available with a number of options such as lens, finish, and controls to ensure you find the best solution for your space.

EXTREME-LIFE: CONA features EXTREME-LIFE L70 @ 147,000 hours, providing years of virtually maintenance-free performance.

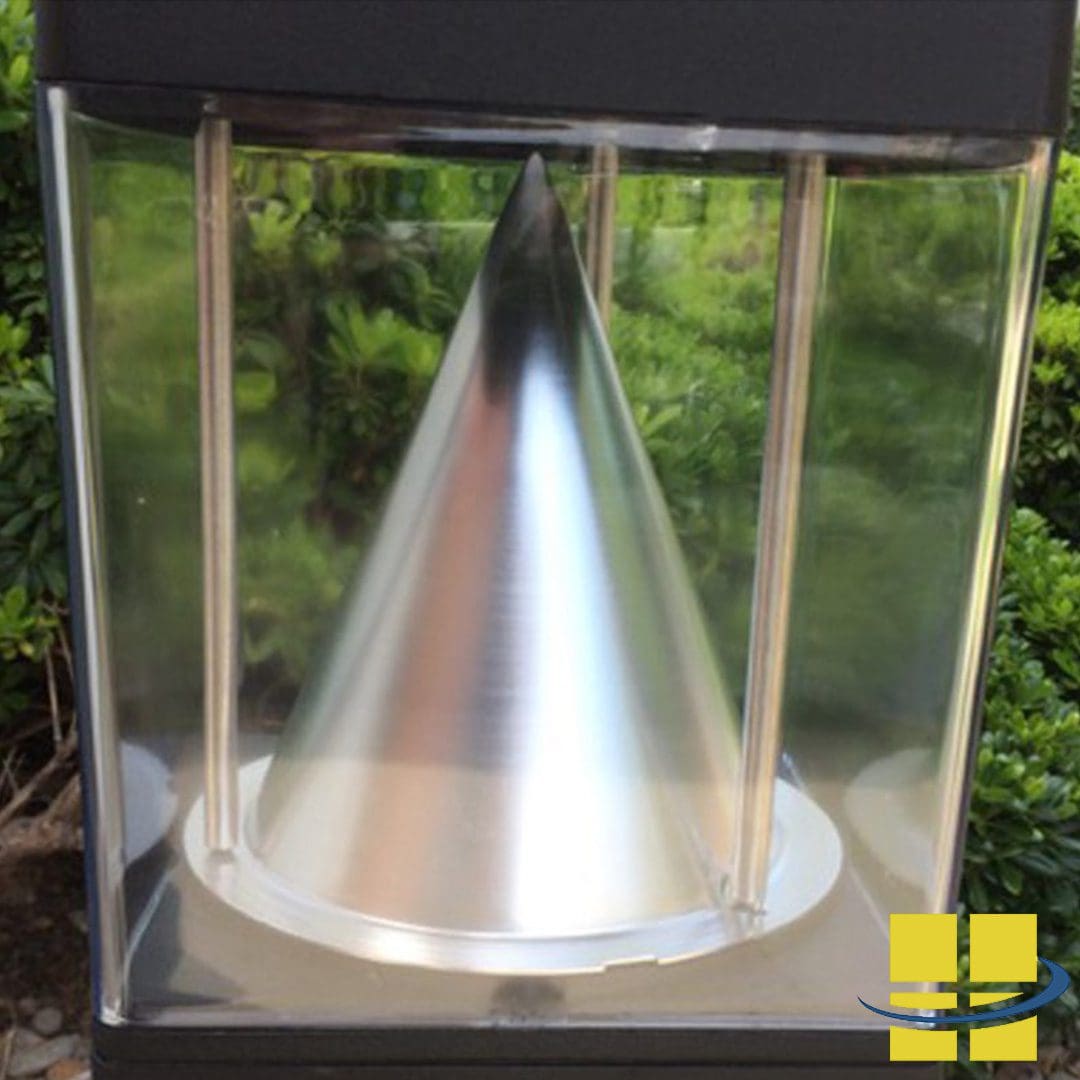

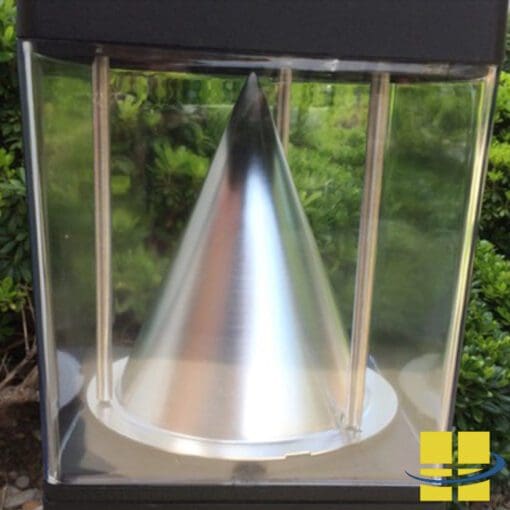

Cone Reflector: This bollard light reflects light down and around the unit in a 360-degree pattern, maximizing efficiency.

Durable Construction: CONA is CSA and IP65 rated against water jets, features a vandal-resistant lens, and an extruded aluminum housing that provides maximum life and durability


Buy American Act Compliant

Lead Time: 7 to 10 Day Production, plus Shipping

In Stock

  • Total

Specifications

Weight 22 lbs
Dimensions 7 × 7 × 41.375 in
Availability

7 to 10 Day Production, plus Shipping

Available Finishes

Black, Bronze, Custom RAL

BUG Rating

1, 3, 1

Housing

Extruded aluminum housing with flush-mount base and vandal-resistant screws. Internal driver tray.

Lens

Clear polycarbonate lens, UV-Stabilized Polycarbonate Opal Vandal-Resistant

Light Source

, ,

Light Source Included

LED Array Included

Light Source Lumens

1,641

Listings

CSA – listed for wet Locations, IP65

Mounting

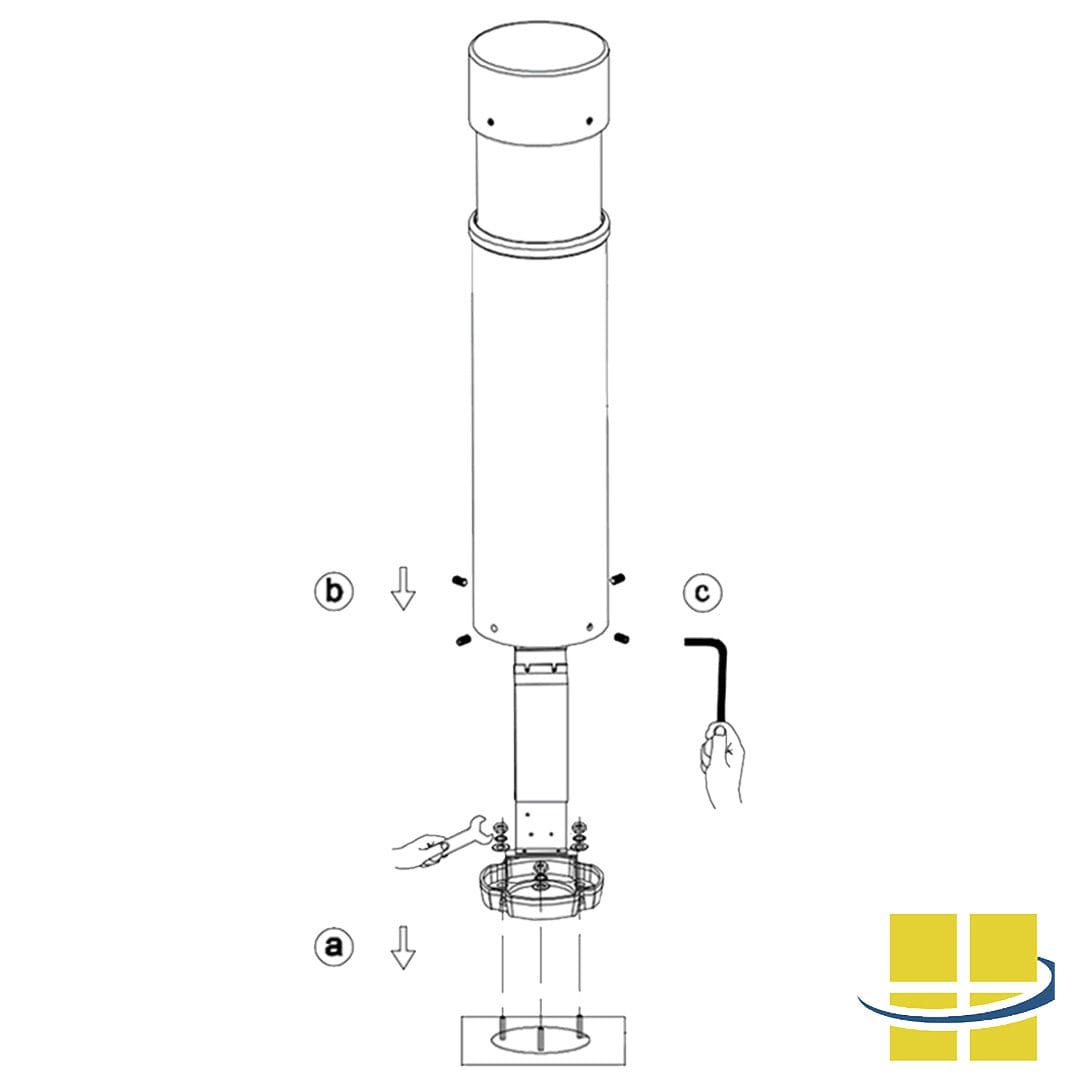

Mounting kit with anchor bolts Included.

Rated Life

147,000 Hours

Reflector

Cone Reflector

Size

7"

Style

Cone Reflector, Square

System Watts

17

Voltage

120v, 208v, 240v, 277v, 347v

Warranty

5-Year Limited Warranty

Product Description

Features

  • 17w integrated LED
  • Bronze, black, or custom RAL colors are available
  • 3000K, 4000K, or 5000K
  • 7″ Diameter, height:
    • 42″, 36″ or 30″
  • Extruded aluminum housing with flush mounting base and vandal-resistant screws
    • Mounting kit with 8″ zinc-plated anchor bolts included
  • CSA list for wet locations
  • IP65-rated
  • ANSI/UL 1598, 8750

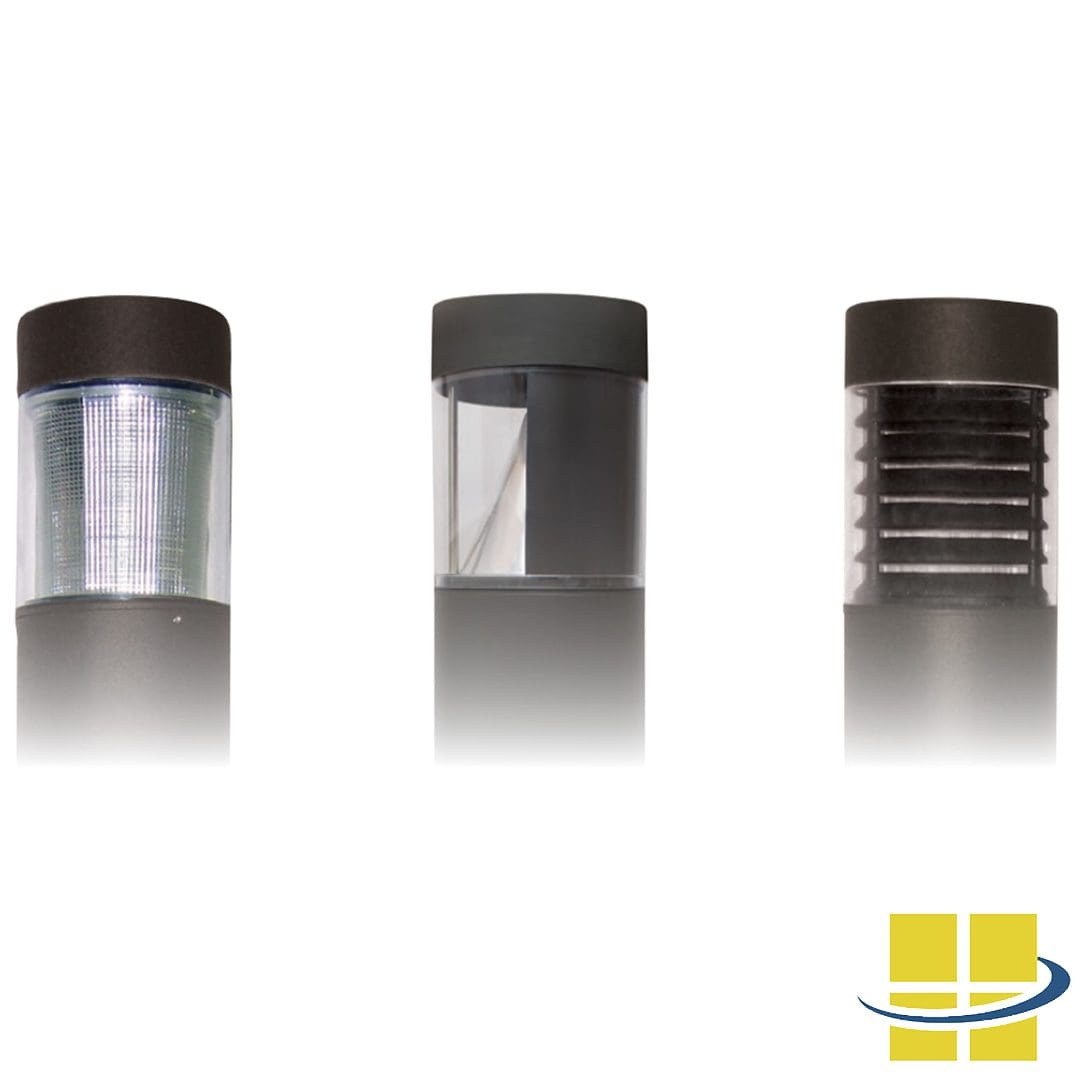

  • Clear Prismatic Borosilicate Glass Refractor, Specially Designed Cone Reflector, or Internal Louvers
  • Textured architectural bronze or black powder coat finish over a chromate conversion coating
  • Clear UV-Stabilized polycarbonate or Opal UV-Stabilized polycarbonate vandal-resistant lens
  • BUG Rating: 1, 3, 1
  • Electronic driver 120-277, 50/60Hz or 347v, 50/60Hz
  • Standard internal surge protection 2kV
  • Dimmable 0-10v
  • Type V lens
  • EXTREME LIFE – L70 @ 147,000 hours
  • Up to 1,641 lumens
  • 5-Year Warranty for -40°C to +40°C Environment.

Options

  • Choice of Finish: Bronze, Black, or custom RAL colors available upon request
  • Standard (42″) or custom height down to 30″
  • Choice of shipping anchor bolts ahead of time or with bollard light
  • GCFI Outlet
  • Surge protection
  • Choice of 3000K, 4000K, or 5000K
  • Shielding options
  • Backup battery

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

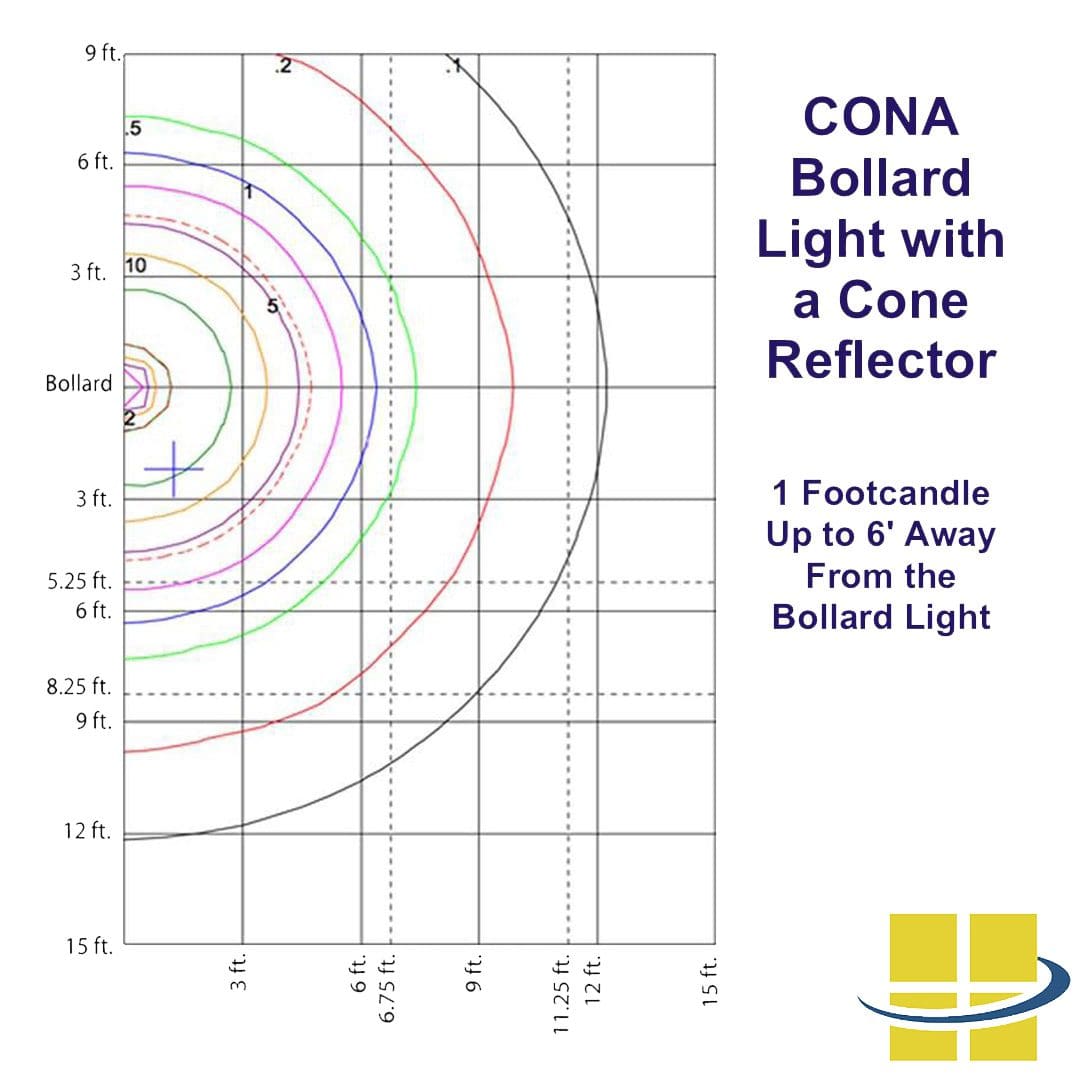

Need a Photometric Analysis for Your LED Bollard Light Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric study include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
