This 4-pole tennis with lights package includes everything you need for elite, competition-level tennis lighting. It will illuminate standard 78′ x 36′ tennis courts to an average of 70 foot candles. Full photometric analysis available. Select your preferred CRI and Kelvin temperature using the menu below. When you order this package, you’ll receive:
(4) 461-Watt LED Sport Light Fixtures with 60-Degree Beam Spreads
(4) 461-Watt LED Sport Light Fixtures with 40-Degree Beam Spreads
(4) Four-Light Bullhorn Mounts
(4) 30-Foot, 5″ x 5″, 7-Gauge Steel Poles
(8) Adjustable Slip Fitter Mounts for Easy Aiming & Tilting
(4) Two-Piece Steel Base Covers
(4) Base Plates & Mounting Templates
(16) 33″ Pole Anchor Bolts
This package comes in bronze only. Click on the “Description” Tab below for more information. Click here to view the full photometric analysis. Give us a call at 800-468-9925 and we’ll be happy to answer any additional questions.

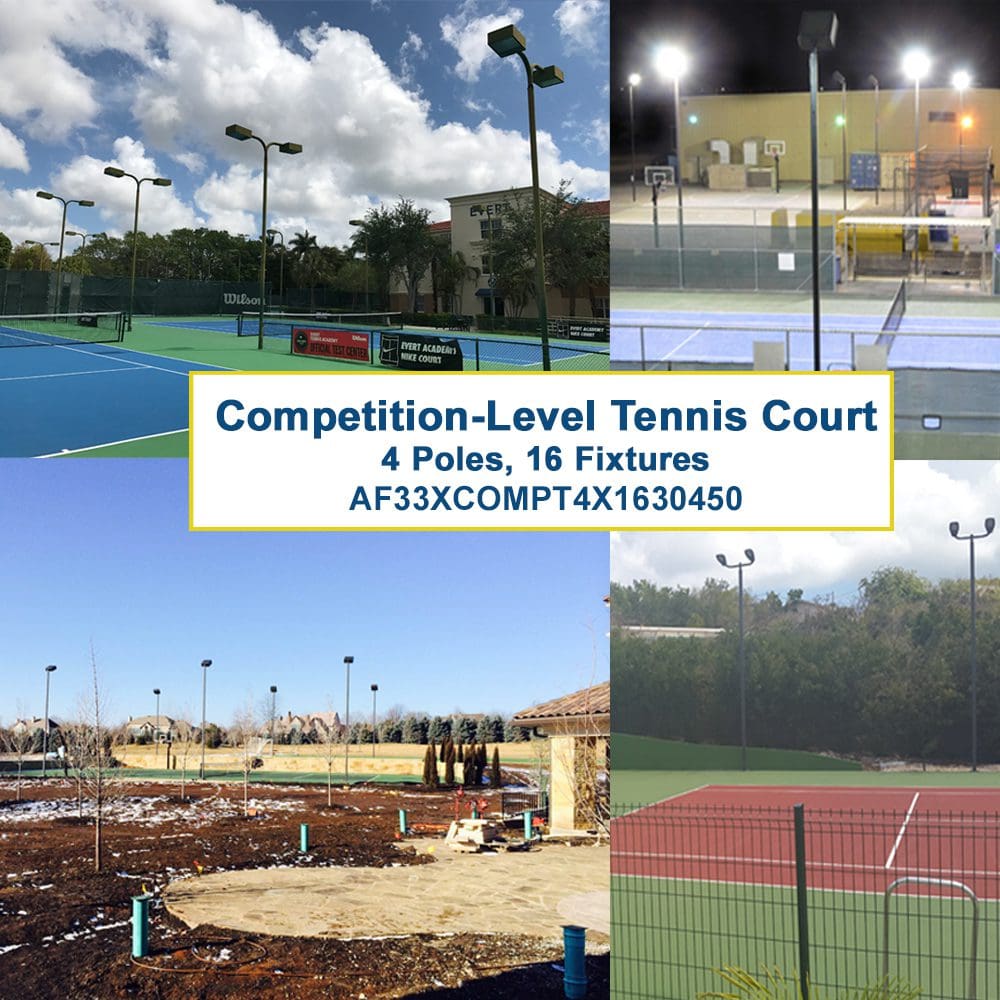

This 4-Pole Tennis with Lights Package is designed for competition-level tennis courts.
To have an Access Fixtures lighting specialist walk you through the complete photometric report, call us at 800-468-9925.
It is designed for standard 78’ x 36’ tennis courts with 21’ serving areas and 12’ between the doubles line and the edge of the court.
This package has four poles set off the corners of the court. Poles are set 5 feet off of the court.
Read below for more information about the light levels, poles, mounts, and fixtures used in this 4-Pole Tennis with Lights Package.
The Light Levels
Competition-level tennis courts attract elite players who require top-quality lighting. This court in particular is designed to provide the superb light levels necessary for high-skill, high-speed play. While games may not be televised, competition court lighting packages should meet the needs of fast-paced, high-intensity tennis matches.

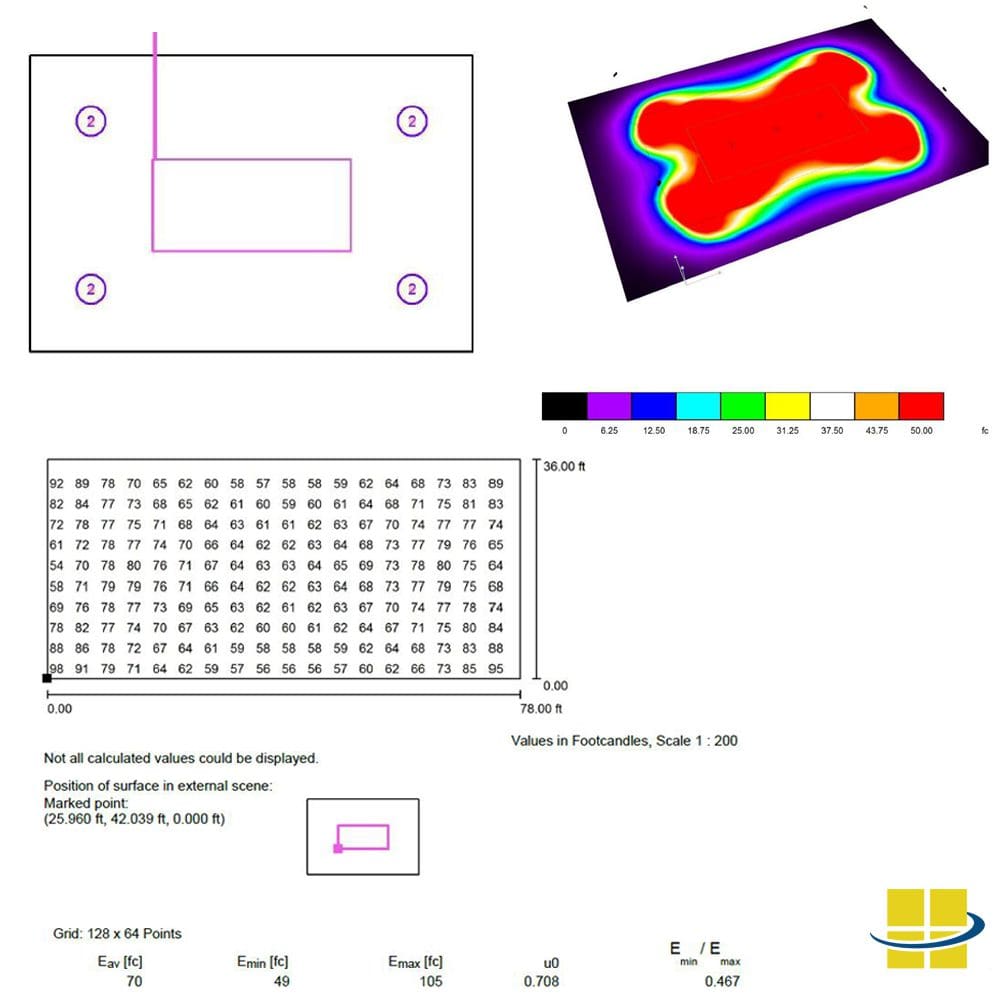

This 4-Pole Tennis with Lights Package illuminates the playing area of the court to an average of 70 foot candles. It achieves a maximum foot candle reading of 105 and does not go below 49 foot candles. It achieves a max/min (uniformity) ratio of 2.14, which means its light is evenly spread across the entire playing area.

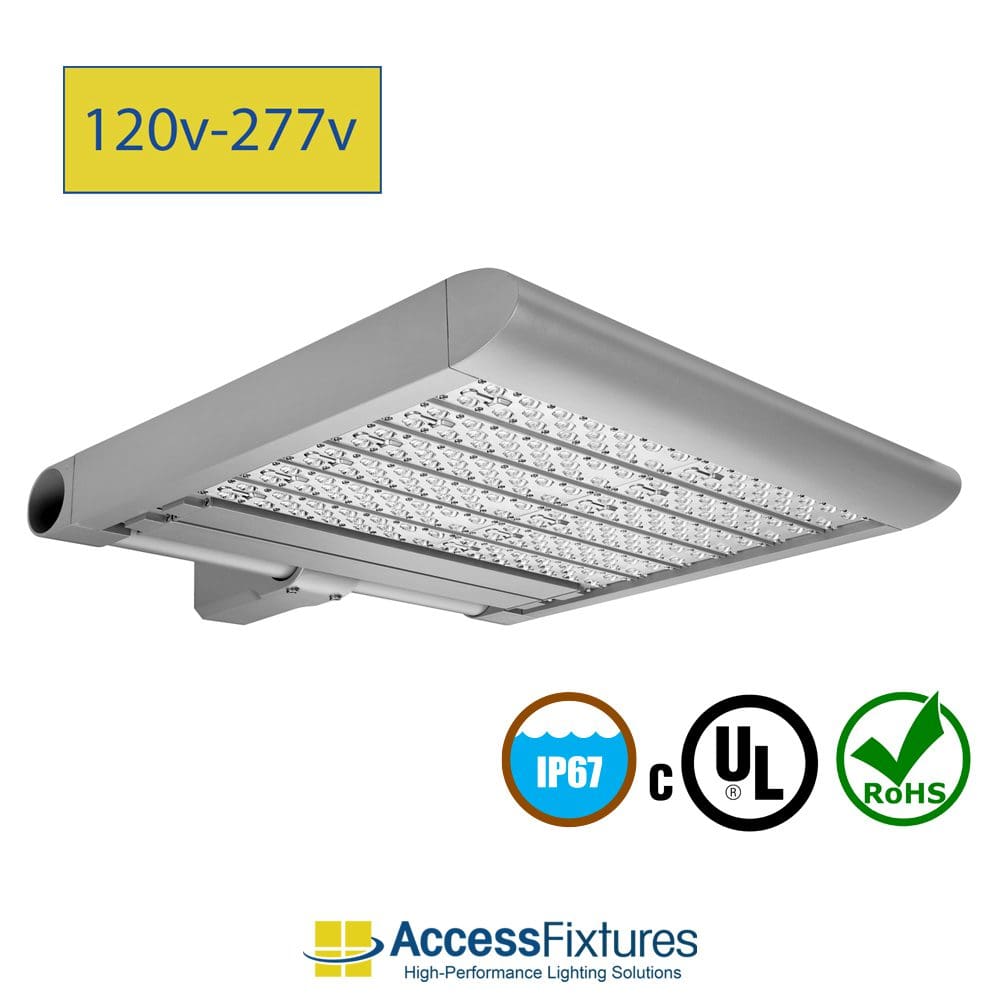

The Fixtures
The 461w-Watt LED Sport Light Fixtures used in this tennis court package are L70 rated for an astounding 200,000+ hours.

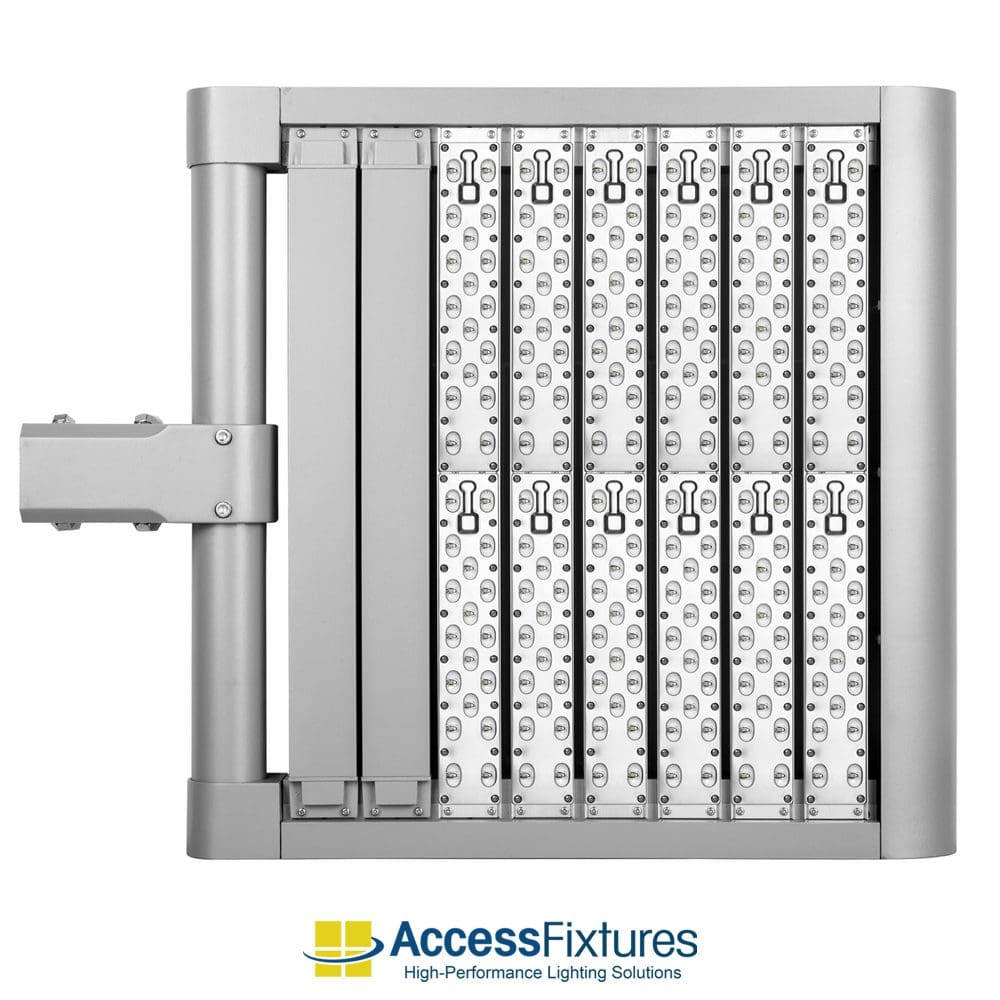

The 4-Pole Tennis with Lights Package uses high-powered, long-lasting LED sport lights. Full specs of each of these fixtures below.
System Wattage: 461
Light Source Wattage: 450
Light Source Lumens: 62,235
Rated Life (L70): 200,000+ Hours
Beam Spread: (4) 60 Degrees, (4) 40-Degrees
Weight: 40.54 Pounds

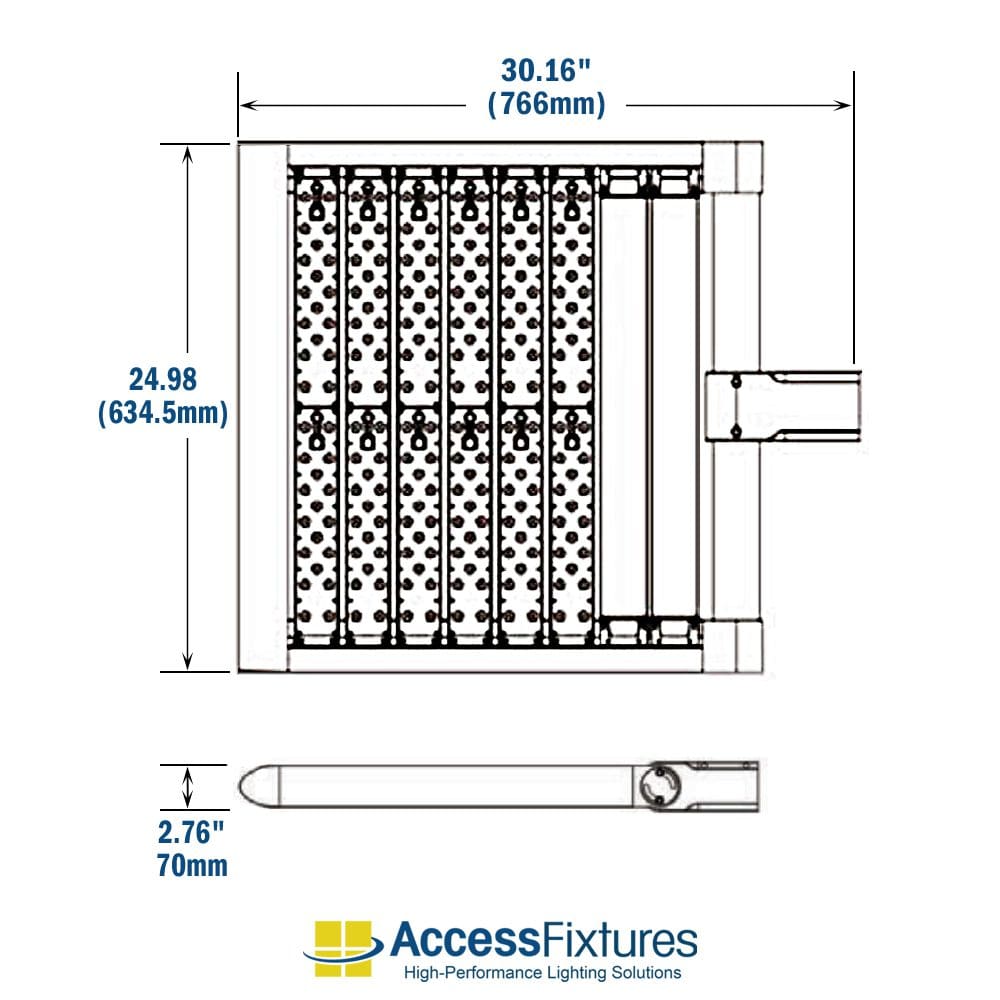

Dimensions: 30.16″ x 24.98″ x 2.76″
Housing: Die-cast aluminum housing with corrosion-resistant polyester powder. Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012. Modular LED design with IP67 rating.
Listings: IP67, UL Listed, CuL Listed, RoHS
Voltage Compatibility: 120-277v
Dimming: Yes. 1-10v dimming standard in all fixtures.
Warranty: 5-Year Warranty
If you have additional questions about the fixtures used in this package, call us at 800-468-9925.
The Poles
The 461-Watt LED Sport Light Fixtures used in this tennis package have a narrow profile for better suitability in high-wind environments.
The 4-Pole Tennis with Lights Package uses steel poles. We always have the full specs of each of these poles below. If your tennis court is located in a high-wind area (e.g., Florida, Louisiana, Georgia, the Caribbean), make sure to ask us about EPA ratings and wind tolerances of each setup. Installations in these areas often require poles with thicker walls, materials like aluminum or composite, or tapered designs. Our engineers can provide this data and the necessary poles for any location, but as these changes affect lead time and pricing, it is best to call first.
Pole Height: 30 Feet
Direct Burial or Bolt-In: Bolt-In
Number of Anchor Bolts: 4
Anchor Bolt Dimensions: M22 x 33”
Base Plate Dimensions: 11” (L) x 11” (W), 1” (Thickness)
Base Plate – Anchor Bolt Circle: 10.6”-12” (Diameter)
Hand Hole: Cast-iron-reinforced hand hole with cover
Specifications: Conforms to ASTM-A 500 Grade B. Minimum yield strength of 46,000 PSI.
For more information about the poles used in this package, call 800-468-9925 or send us an email at [email protected].
The Mounts
The square steel poles used in this package feature textured, architectural bronze finishes. They ship complete with anchor bolts, base covers, base plates, and mounting templates.
The fixtures in this package utilize built-in slip fitter mounts that make for easy aiming and tilting.
To effectively and securely mount four fixtures on each pole, this package comes with bullhorn brackets (one for each pole). The bullhorns secure to the pole tenon and the fixtures secure to the “horns” of the bullhorn. Bullhorns add two feet to the mounting height of the fixtures.
The Lead Time
Everything in this 4-Pole Tennis with Lights Package typically ships in 2-4 weeks. The fixtures are custom-built to order but we are almost always able to meet or beat this estimated window. We’ll ship your poles from the factory location closest to you.
Stock does fluctuate, so call 800-468-9925 for an exact lead time.
Do You Have More Questions about the 4-Pole Tennis with Lights Package?
We want to make sure you buy in confidence and select the right court for your particular project. If you have any questions or would like a lighting specialist to walk you through the options, give us a call today. You can also email us at [email protected].

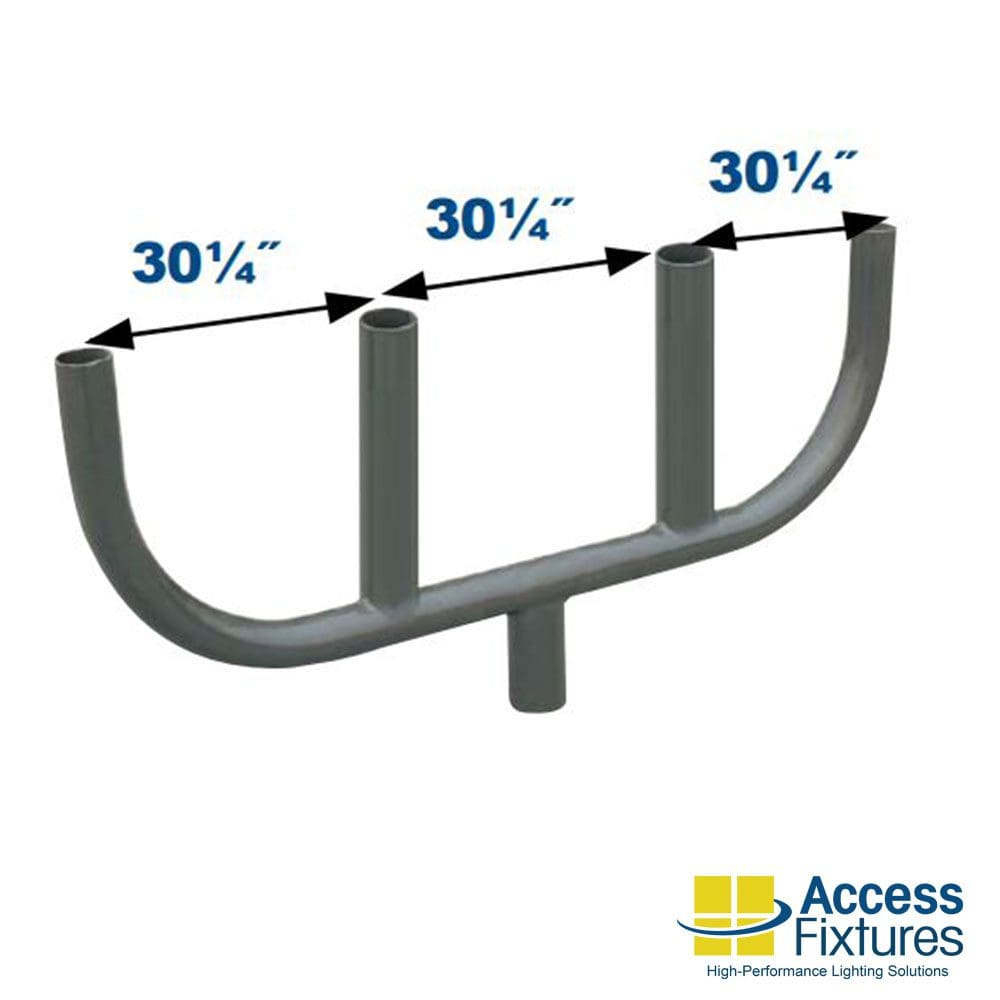

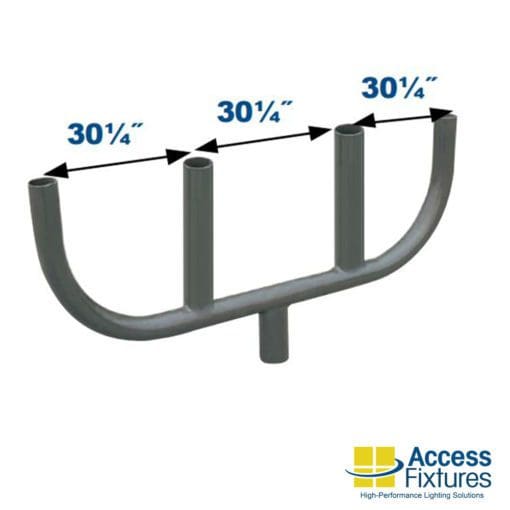

The Four-Light Bullhorn Bracket secures to the 2 3/8″ pole tenon and allows you to make the most use out of each pole. It adds 2′ to the mounting height of the fixtures, too, which helps improve light distribution.
LED Tennis Court Lighting Packages from Access Fixtures
At Access Fixtures, we want to make illuminating your tennis court(s) as simple as possible. Our lighting specialists, photometric engineers, and designers have all come together to build comprehensive LED tennis court packages with everything you need to achieve the exact kind of light you need.
Not all tennis courts need the same lighting. We’ve designed packages for housing authorities in Texas, collegiate and high school courts from Florida to Washington, public courts in New York, backyard courts across the United States and the Caribbean, and just about everything in between; while there are standard layouts, few tennis courts have the same needs. Some require a specific number of poles, a specific pole layout, specific fixtures, and—most often—light levels catered to a specific level of play. We’ve designed our tennis court packages to fit every tier of play from recreational, club, competition, to NCAA-level tournaments.
Call 800-468-9925 to discuss your project with an Access Fixtures lighting specialist. We look forward to hearing from you.
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.
