BAA SHOB 9 LED Wall Pack

$109.87

Design and Construction The SHOB wall pack features a stamped galvanized back plate with a white powder-coat finish and UV-stabilized polycarbonate front housing. It includes a clear prismatic lens and a 120V photocell for auto on/off.

Application and Compliance Ideal for mounting heights of 8-12 feet in various outdoor settings, this fixture is BAA Compliant, ETL listed for wet locations, ANSI/UL compliant, IP65 rated, and ADA compliant.

Performance and Efficiency Designed to replace up to 70W MH/HPS systems, offers high luminous efficacy and lower energy consumption. It supports a voltage range of 120-277V, includes 2kV surge protection, and features 0-10V dimming for precise light output control.



In Stock

WP9 & WPC8 Easyled

  • Total

SKU: AF33XWP9Q1X7U5K Categories: ,

Specifications

Weight 10 lbs
Dimensions 15 × 7 × 4 in
Available Finishes

Bronze, Custom RAL
Availability

2 to 4 Week Production, plus Shipping
BUG Rating

0, 3, 1
Color Rendering Index (CRI)

80+
Housing

Galvanized back plate, Polycarbonate front housing
Lens

Clear prismatic polycarbonate lens
Light Source

Light Source Included

Lamp is included.
Light Source Lumens

679
Listings

CSA: Listed for wet locations, IP65
Mounting

Mounts over 4-inch electrical box
Product Family

SHOB
Rated Life

187,000 Hours
System Watts

9.2
Voltage

120v, 208v, 240v, 277v
Warranty

5-Year Limited Warranty
Style

Forward Throw

Product Description

BAA SHOB 9 LED Wall Pack with Photocell, EXTREME-LIFE Features:

  • Stamped Galvanized Back Plate with White Powdercoat Finish. Molded UV-Stabilized Polycarbonate Front Housing.
  • Mount Directly Over a 4˝ Recessed Outlet Box. Threaded Stem and Nut Included.
  • 5000K
  • LED Array: 7w
  • System Watts: 9w
  • Voltage: 120-277v
  • 679 lumens
  • 75 LPW
  • Clear UV-stabilized polycarbonate Prismatic Lens
  • BUG Rating: B:0, U:3, G:1
  • Type 5 optics
  • (CRI) of 80+ color rendering index
  • CSA listed for wet locations
  • IP65 rated
  • L70 @187,000 hours
  • Electronic Driver, 120-277V, 50/60Hz; Less Than 20% THD and PF>0.90.
  • 10  lbs.

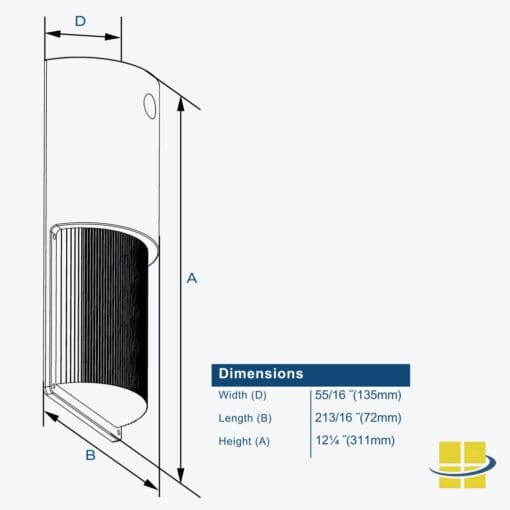

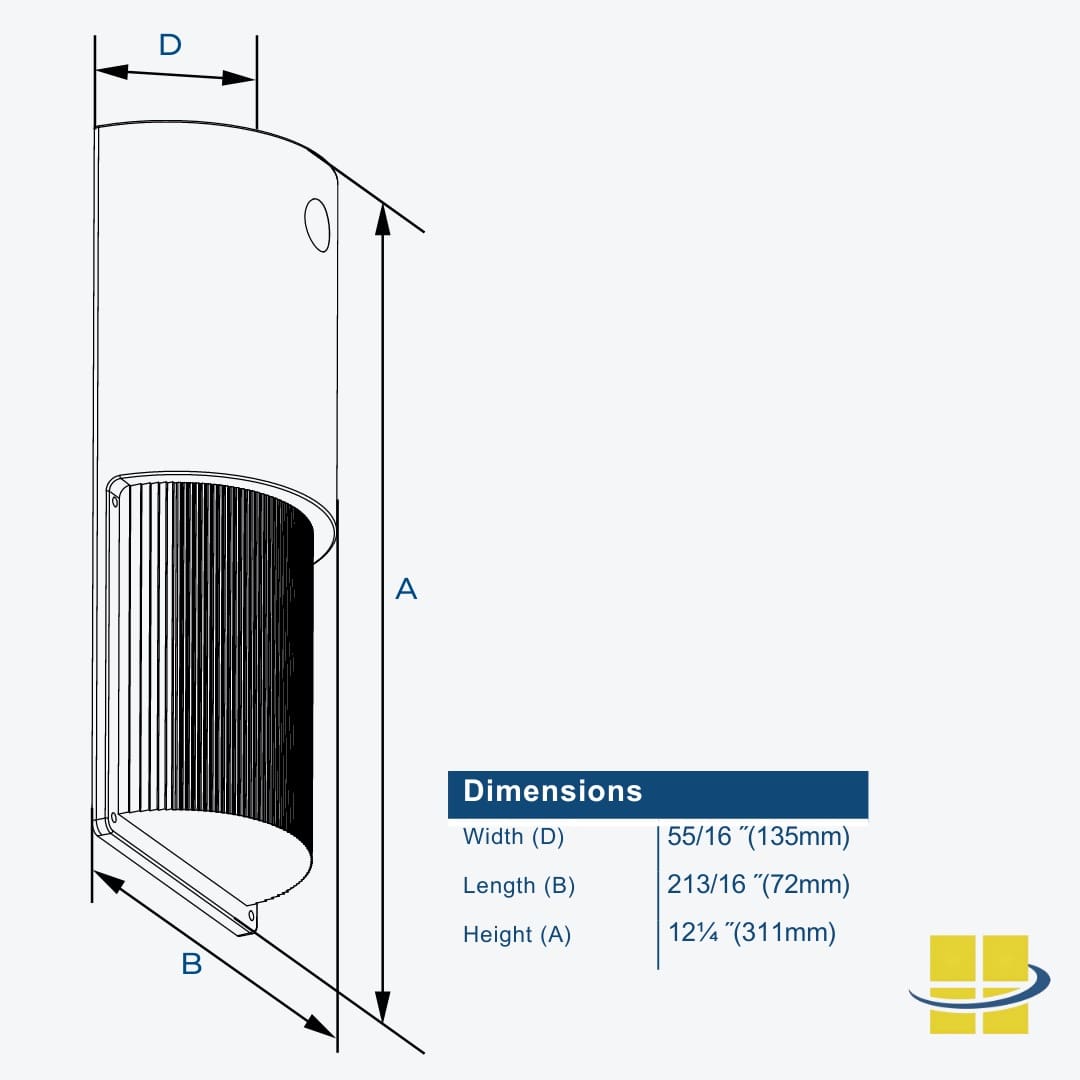

  • 12.23″ x 5.31″ x 2.81″
  • 5-year warranty

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

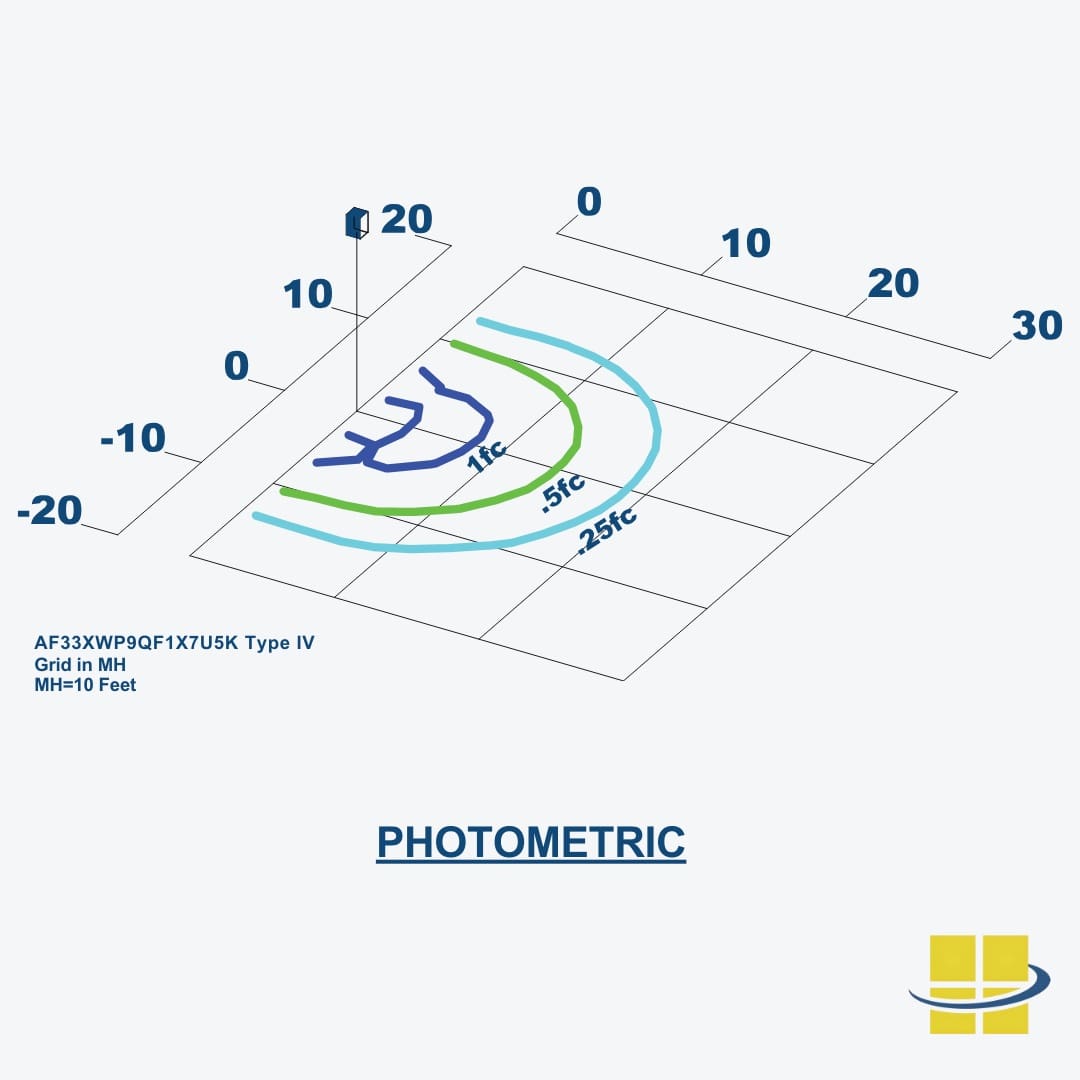

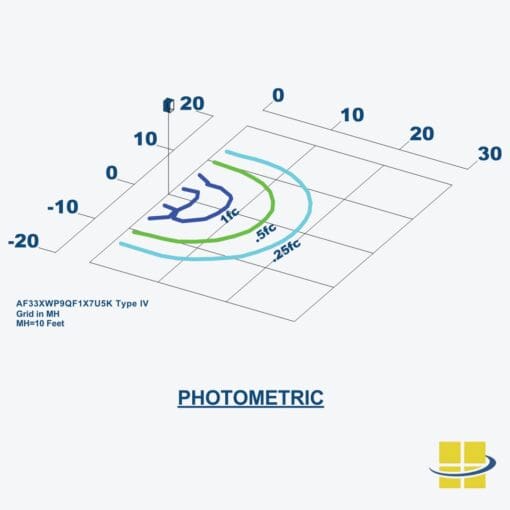

Need a Photometric Analysis for your SHOB 9 LED Wall Pack with Photocell, EXTREME-LIFE Project?

A photometric analysis offers a straightforward way to assess light levels before purchasing your project. The report includes average and minimum footcandles, uniformity ratios, spacing, and light trespass information. Additionally, the cost of the study is refundable upon purchasing the fixtures. If you need any additional help feel free to contact our Lighting specialists at 800-468-9925. They are here and available to assist you with any lighting queries you may have!

Ready to Order or Speak to a Lighting Specialist?

While you can easily place your order online, we’re just a call away at 800-468-9925 if you need more details or a helping hand. Do you have a big project in mind where you need multiple fixtures? Don’t hesitate to ask us about quantity discounts! Our team of friendly lighting specialists is here and ready to assist. Let’s light up your project together with confidence!
