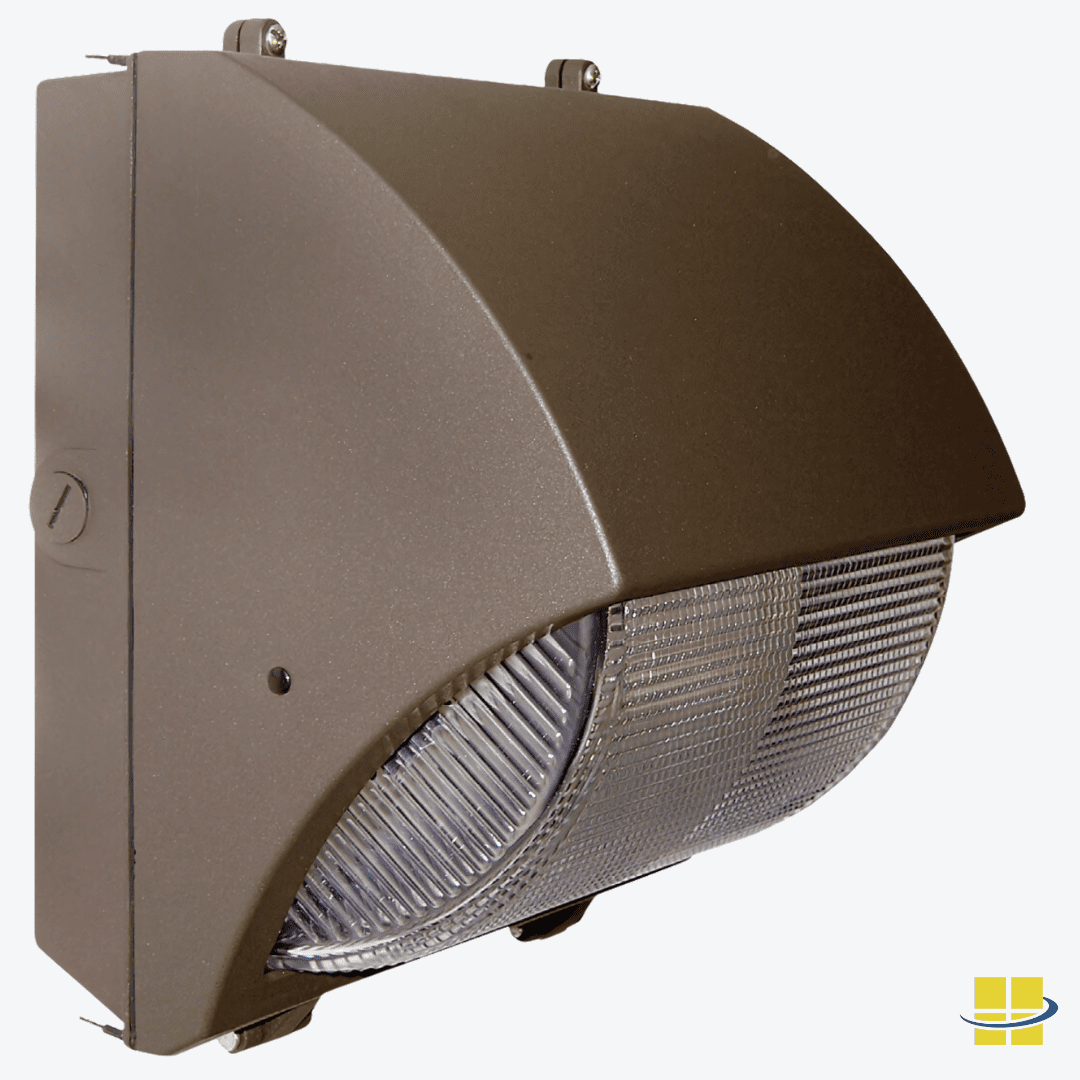

ACCO 37 LED Forward Throw Wall Pack, EXTREME-LIFE

$229.87

The ACCO 37 LED Forward Throw Wall Pack, EXTREME-LIFE—an ideal lighting solution for a diverse range of environments. From industrial parks and schools to airports and medical facilities, this fixture is designed to meet the unique needs of various settings. With its wide-spread forward throw light arc, it effectively illuminates large exterior spaces while minimizing direct glare. Optimal performance is ensured with a recommended mounting height of 12′ to 18′, tailored to specific light levels and uniformity requirements.

EXTREME-LIFE: The ACCO 37 Forward-Throw Wall Pack boasts an impressive L70-rated life of 129,000 hours, ensuring years of hassle-free and maintenance-free use.

Durable and Waterproof: With its die-cast aluminum housing, ACCO is CSA-listed and holds an IP65 rating, making it suitable for wet locations.

Prismatic Glass Lens: The prismatic borosilicate glass lens incorporated in the design gently diffuses light, creating a soft illumination that effectively diminishes glare. This fixture design not only enhances the visual comfort of the lighting but also contributes to a more pleasant and ambient environment by prevention harsh glares.


Buy American Act-compliant

Lead Time: 7 to 10 Day Production, plus Shipping

In Stock

  • Total

SKU: AF33XWPA15QF1X37 Categories: , ,

Specifications

Weight 13 lbs
Dimensions 15 × 15 × 8 in
Availability

7 to 10 Day Production, plus Shipping
Available Finishes

Bronze, Custom RAL
BUG Rating

1, 3, 3
Housing

Gasketed front frame, NIckel plated stainless steel hardware, Die cast aluminum housing
Lens

Clear prismatic glass lens
Light Source Included

Aluminum Boards
Light Source

, ,

Light Source Lumens

5,465, 5,571, 5,665
Listings

CSA – listed for wet Locations, IP65
Mounting

Power supplied via electrical box or 1/2-inch conduit, Includes template for mounting directly over 4-inch electrical box
Mounting Height

12ft, 30ft
Product Family

ACCO
Rated Life

129,000 Hours
System Watts

37
Voltage

120v, 208v, 240v, 277v, 347v
Warranty

5-Year Limited Warranty

Product Description

Features

  • Forward throw/semi-cutoff wall pack fixture
  • 37w system watts
  • 3000K, 4000K, 5000K
  • Mounting height: 12′ – 30′
  • CSA-listed for wet locations
  • IP65-rated
  • Prismatic borosilicate glass lens
  • BUG Rating: B:1, U:3, G:3
  • Features die-cast aluminum hinged and gasketed front frame and housing
  • Bronze finish (architectural bronze powder coat over a chromate conversion coating to inhibit corrosion and give the fixture a decorative, metallic finish)
  • Safety cable to prevent glass impact during installation
  • 120-277v
  • 0-10v dimmable driver
  • Lumen output:
    • 3000K: 5,465
    • 4000K: 5,571
    • 5000K: 5,665
  • L70 rated at 129,000 hours
  • Mounts directly over a 4″ recessed outlet box; Can also use a 1/2″ surface conduit
  • 11 1/8″ x 12″ x 7 7/8″
  • 5-year warranty

Options

  • Finish color
  • 120-277VAC 10KA Surge Suppressor
  • 347-480VAC 10KA Surge Suppressor

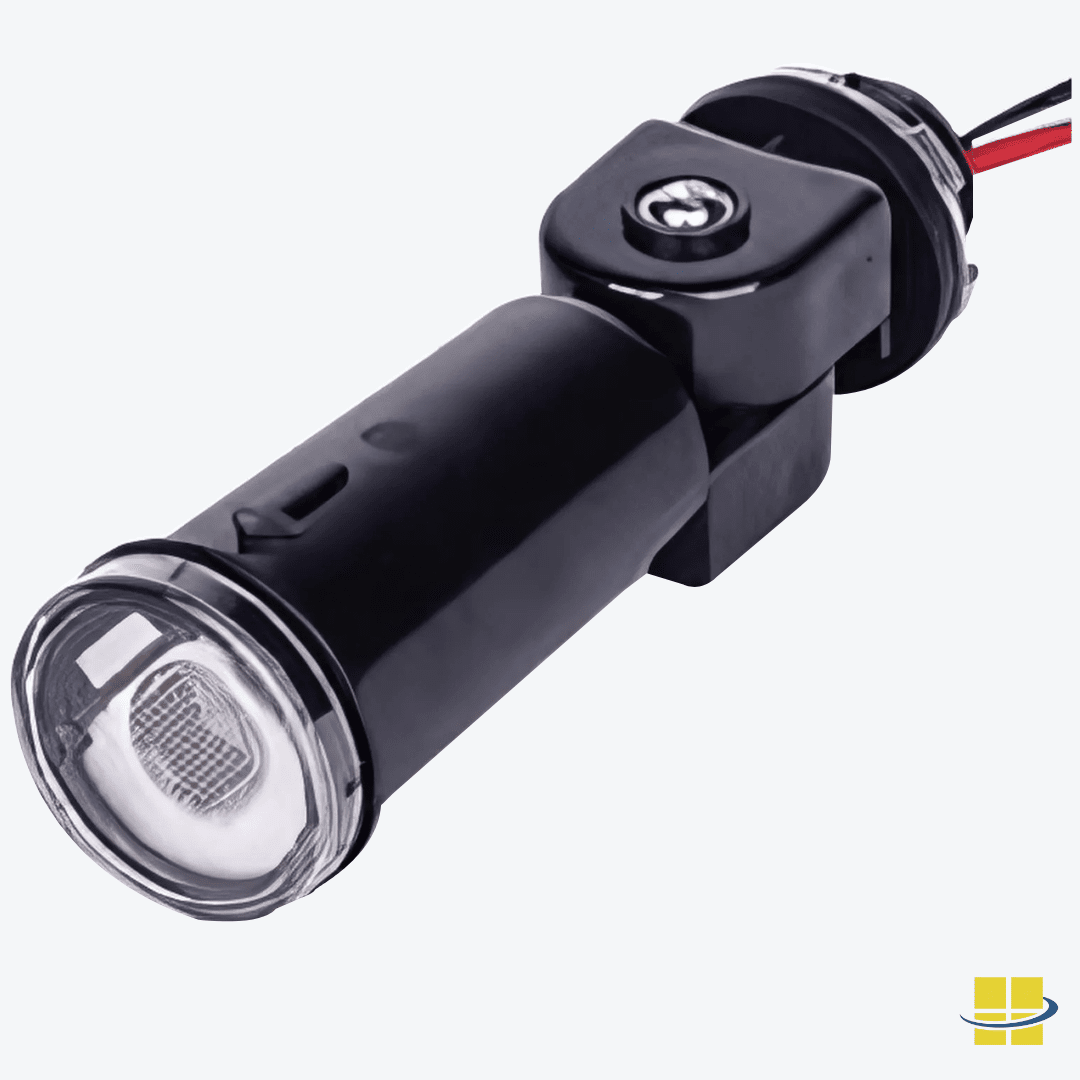

  • Pencil Photocell, 120-277VAC

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your ACCO 37 LED Forward Throw Wall Pack Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order ACCO 37 LED Forward Throw Wall Pack or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
