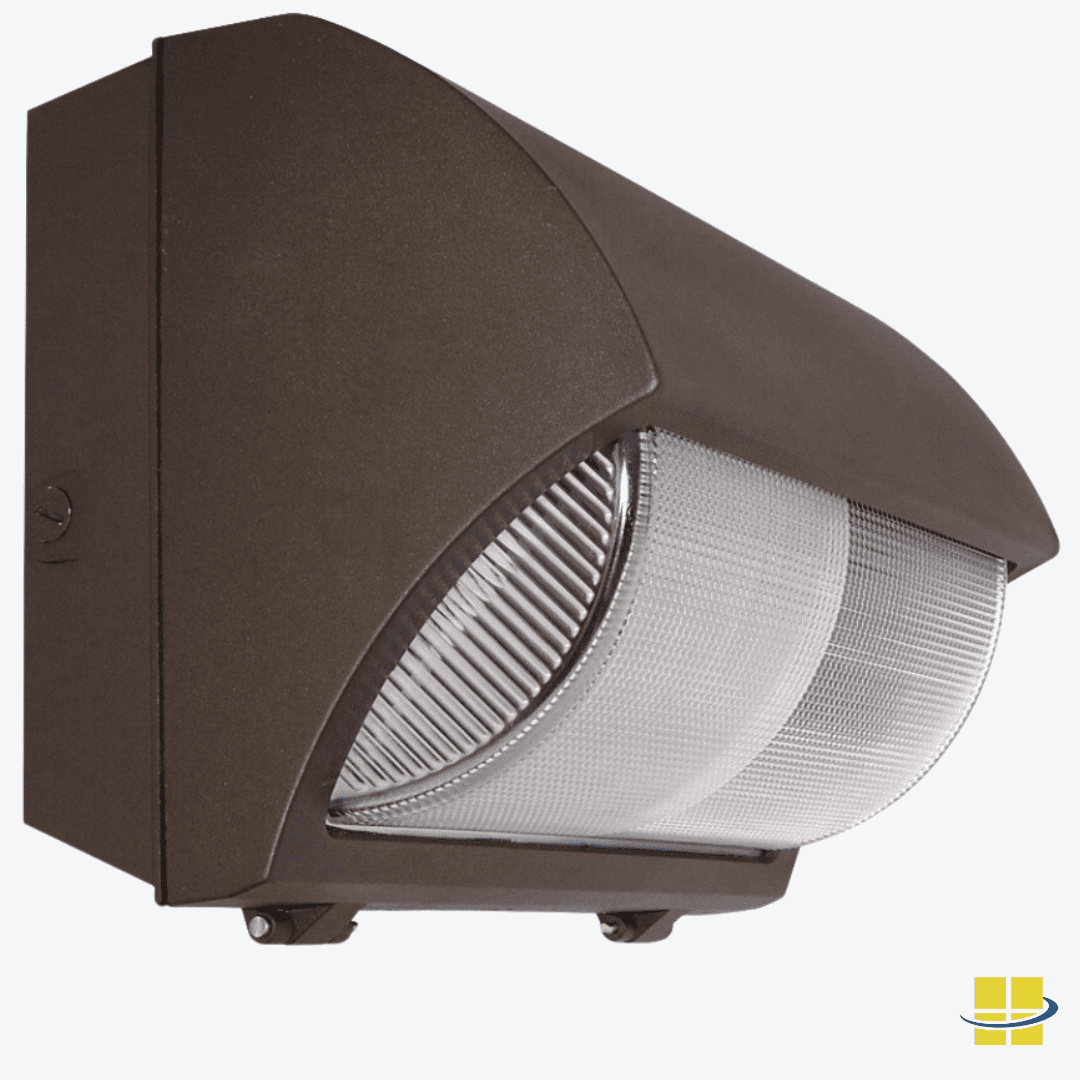

ACCO 58 LED Forward Throw Wall Pack, EXTREME-LIFE

$299.87

The ACCO 58w LED Forward Throw Wall Pack, EXTREME-LIFE is an ideal fixture for industrial parks, schools and universities, airports, retail centers, public transit facilities, office buildings, medical facilities, and more. ACCO throws light in a wide forward arc, making it perfect for lighting large areas outside of buildings, and provides lower direct glare with increased efficiency. Based on light level and uniformity requirements, the recommended mounting height is between 18′ and 30′.

EXTREME-LIFE: ACCO 58w forward-throw wall pack features an impressive L70-rated life of 144,000 hours which assures years of maintenance-free use.

Durable and Waterproof:  Featuring a die-cast aluminum housing, ACCO is CSA-listed and IP65-rated for wet locations.

Prismatic Glass Lens: A prismatic borosilicate glass lens softly diffuses light and prevents glare.


Buy American Act Compliant

Lead Time: 7 to 10 Day Production, plus Shipping

In Stock

  • Total

SKU: AF33XWPA25QF1X58 Categories: ,

Specifications

Weight 15 lbs
Dimensions 15 × 18 × 8 in
Availability

7 to 10 Day Production, plus Shipping
Available Finishes

Bronze, Custom RAL
BUG Rating

1, 3, 3
Housing

Gasketed front frame, NIckel plated stainless steel hardware, Photocell adaptable, Die cast aluminum housing
Lens

Clear prismatic glass lens
Light Source

Light Source Included

Aluminum Boards
Light Source Lumens

8,880
Listings

CSA: Listed for wet locations, IP65
Product Family

ACCO
Rated Life

144,000 Hours
System Watts

69
Voltage

120v, 208v, 240v, 277v, 347v
Warranty

5-Year Limited Warranty

Product Description

Features

  • Forward throw/semi-cutoff wall pack fixture
  • 58w system watts
  • 5000K
  • Mounting height: 18′ – 30′
  • CSA listed for wet locations
  • IP65-rated
  • Prismatic borosilicate glass lens
  • BUG Rating: B:1, U:3, G:3
  • Features die-cast aluminum hinged and gasketed front frame and housing
  • Bronze finish (architectural bronze powder coat over a chromate conversion coating)
  • Custom RAL color available – speak to one of our lighting specialists
  • Safety cable to prevent glass impact during installation
  • 120-277v
  • 0-10v dimmable driver
  • Lumen output:
    • 5000K: 8,880
  • L70-rated at 144,000 hours
  • Mounts directly over a 4″ recessed outlet box; Can also use a 1/2″ surface conduit
    • Includes easy-hang two hands-free wall-mounting plates with a leveling device on the back.
  • 16.5″ x 10.5″ x 13″
  • 5-year warranty

Options

  • Finish color
  • 120-277VAC 10KA Surge Suppressor
  • 347-480VAC 10KA Surge Suppressor

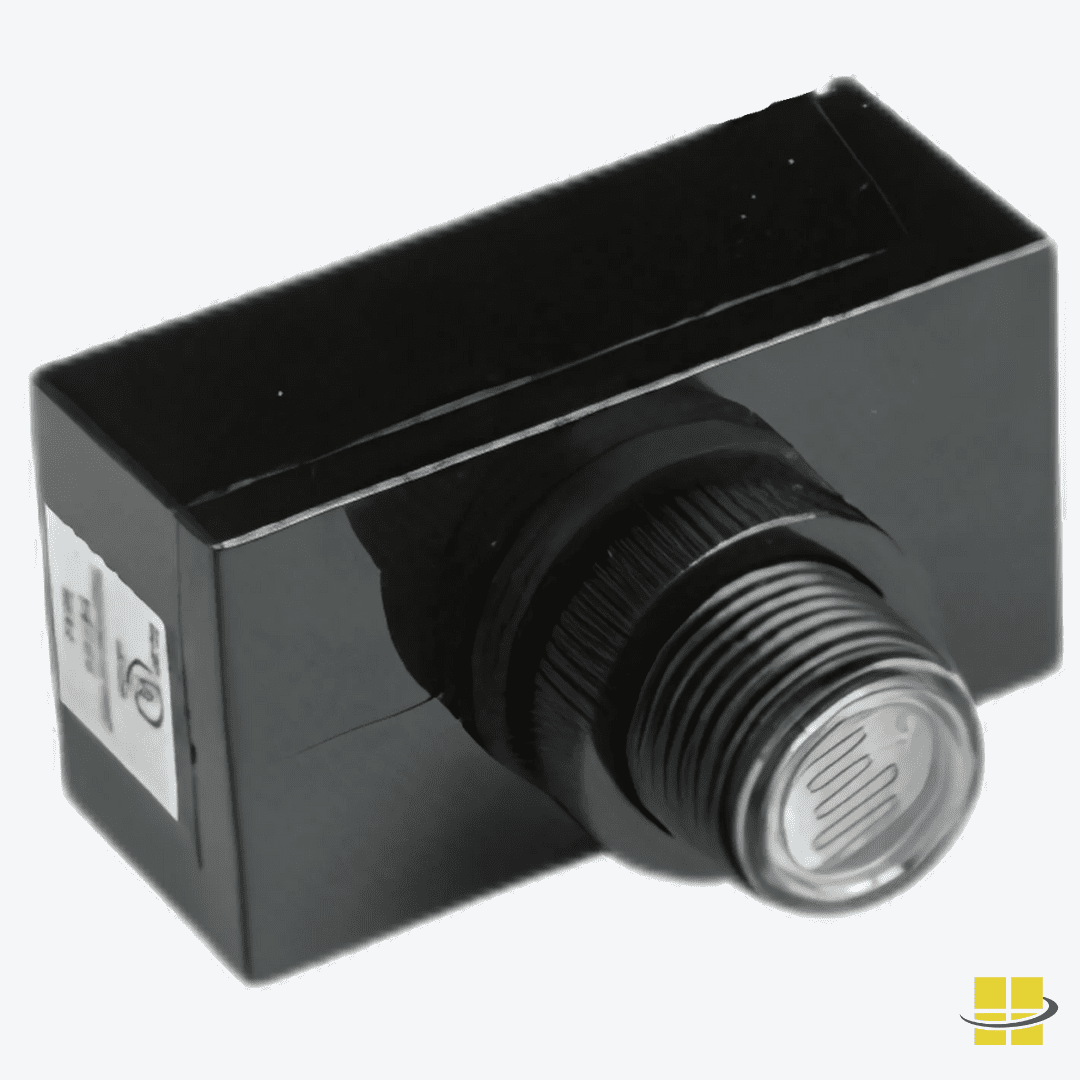

  • Button Photocell, 120-277VAC

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

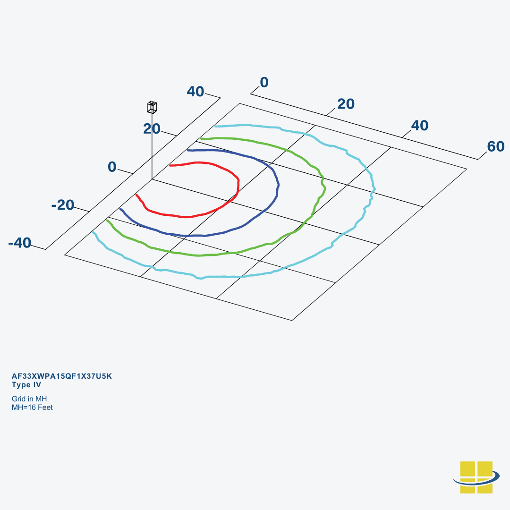

Need a Photometric Analysis for Your ACCO 58w LED Forward Throw Wall Pack Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order ACCO 58w LED Forward Throw Wall Pack or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
