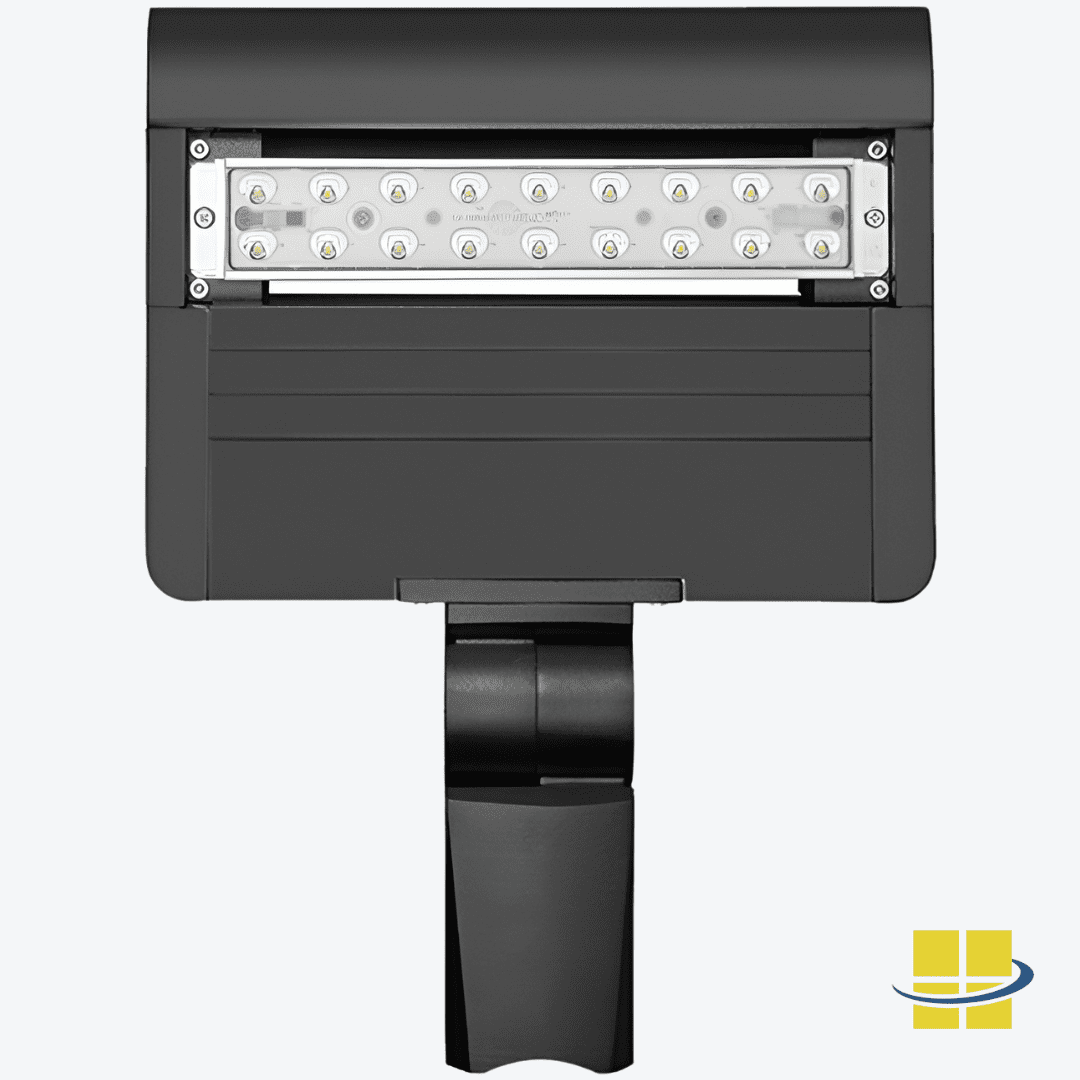

APTA 60 Marine Grade EXTREME-LIFE LED Sports Light

$399.87

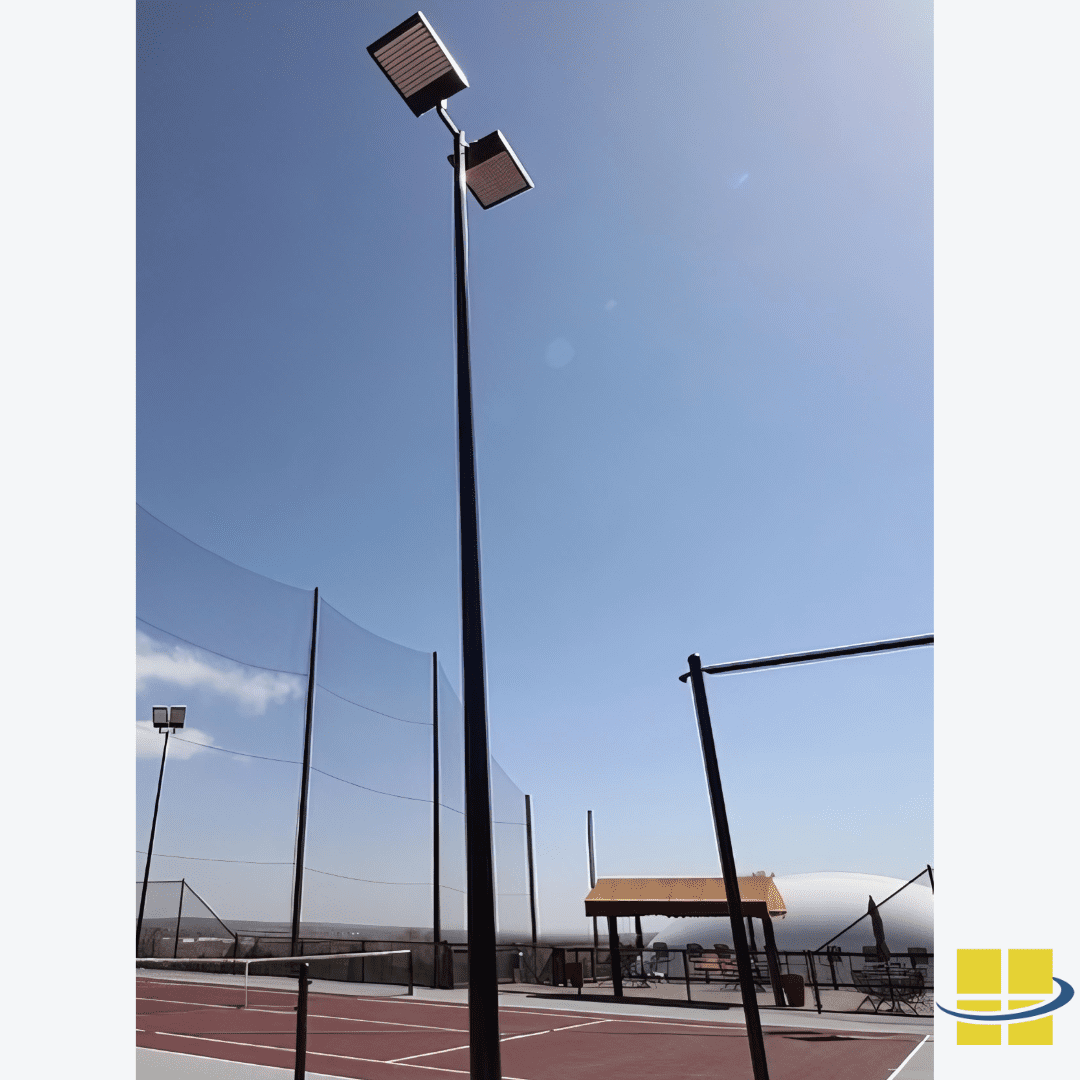

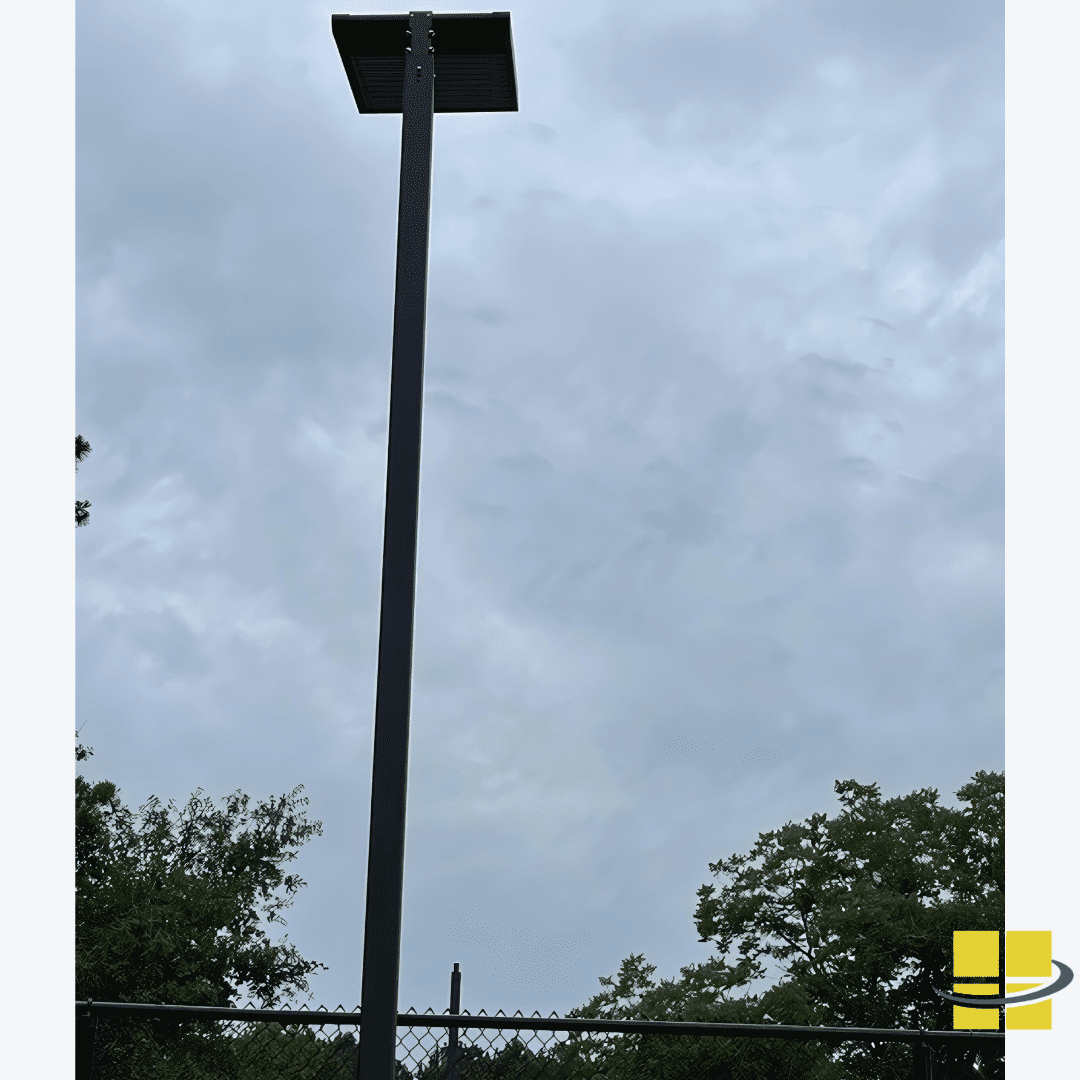

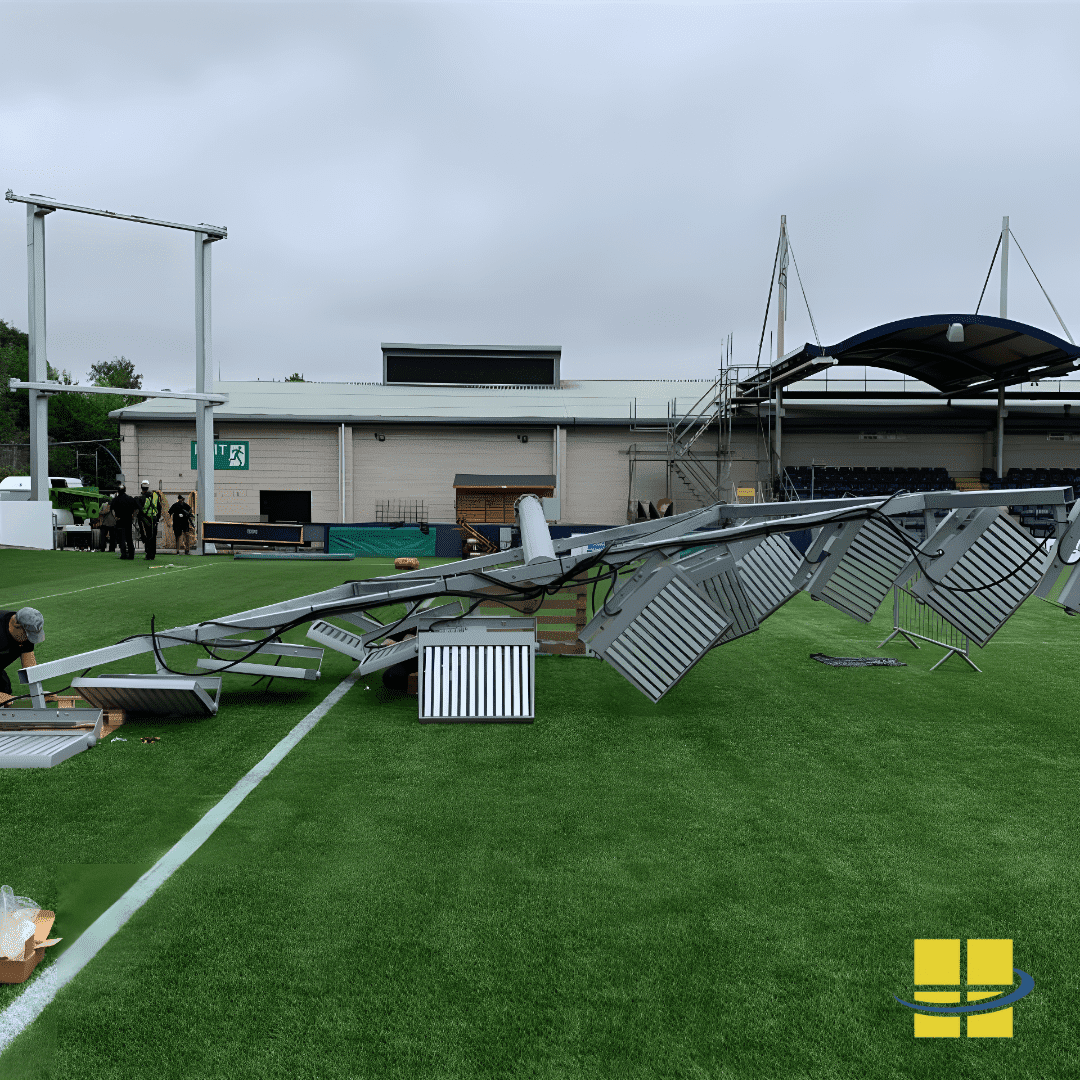

APTA LED sports lights are designed and manufactured to provide powerful & reliable lighting. With superior optics, spill light control design, lumen-per-watt output (LPW) of up to 160, and low weight/low effective projection area (EPA), APTAs are designed to provide long-lasting, superior quality, anti-glare light for all high-mast lighting applications.

EXTREME-LIFE: Exceptional heat sink design produces an EXTREME-LIFE rating of L70 @ 200,000 hours for years of virtually maintenance-free performance

Lasting Durability: APTAs feature an anti-corrosive, marine-grade finish, 10ka surge protection, and IP66 and IK10 impact resistance to withstand extreme weather conditions

Maximum Wattage and LPW: With up to 960 watts per light fixture and lumens per watt of up to 160, APTAs can provide over 150,000 lumens from a single light fixture



ARCI LED Bollard Light PDFARCI LED Bollard Light PDF

Lead Time: 3 to 4 Week Production, plus Shipping

In Stock

  • Black, Gray, Bronze, White and Green are standard colors. Custom RAL finishes are available at an up-charge with a minimum order quantity (MOQ).
  • 0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.
  • Large facilities may have birds living inside the building. Installing bird spikes on area/spot/flood lights stops the birds from nesting on the lights.
  • APTAs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.
  • Do you need the APTA to stay on when the power goes out? If yes, add the Emergency Power Supply.
  • This is a safety cable that will stop the light fixture from crashing to the floor is the primary mount ever becomes loose or disconnected.
  • Maximize energy savings and the life of the canopy light by adding a programable microwave control with an occupancy sensor and light sensor.
  • Adding a photocell prevents the need to manually turn on/off your area/spot/flood lights when it gets dark.

  • Total

SKU: AF88XPAD60L-L/T-SPT Categories: , , , , , , , , , , , , , , , , ,

Specifications

Weight 14.33 lbs
Dimensions 12.01 × 13.15 × 4.65 in
Application

, ,

Availability

3 to 4 Week Production, plus Shipping
Light Source

, , , ,

Available Finishes

Green [RAL6005], Black, Bronze, Gray, White, Custom RAL
Housing

High-Grade Aluminum
Light Source Included

LED Array Included
Listings

IK10, IP66, CB, CE, CuL Listed, DLC Listed, ENEC, ETL Listed, SAA
Mounting

L Mount, T Mount, U Mount
Product Family

APTA
Rated Life

L70 @ up to 200,000 Hours
System Watts

60
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty

Product Description

APTA 60 LED Sports Light Features:

  • 14.33 lbs
  • 12.01″ x 13.15″ x 4.65″
  • 100-277VAC
  • Nominal power 40W-960W
  • Superior patented high-efficiency spill light control system
  • High light output, low weight
  • Low effective project area (EPA)
  • Provides superior quality anti-glare illumination to large-scale areas
  • Constructed with high-grade aluminum
  • 8340 lumens
  • 700 mA
  • Ra70 standard, optional Ra80 or Ra90
  • <20% total harmonic distortion at full load
  • Imax 10KA surge protection
  • Exceptional heat sink design to ensure these fixtures will last, with a rating of L70 @ 200,000 hours of operation – making them virtually maintenance-free for a lifetime
  • T2S, T2M, T3S, T3M, T4VVSB, T4VS, T4VSB, T4S, T4SB, T4M, T4MB, T5M, T5W, T10D, T20D, T40D, T60D, T90D optics
  • Black, Gray, Bronze, White, Green or Custom RAL color options
  • L70 @ 200,000 hours
  • DLC, IP66 rated, IK10 rated, CUL, CE, CB, SAA, ENEC, TUV rated

APTA 60 LED Sports Light Options:

  • 2200K, 3000K, 4000K, 5000K, 5700K, 590nm Amber (wildlife & turtle friendly)
  • Optional remote LED drivers
  • 1-10v dimming

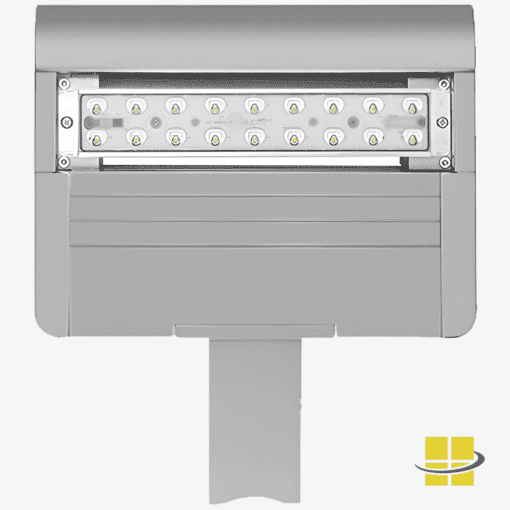

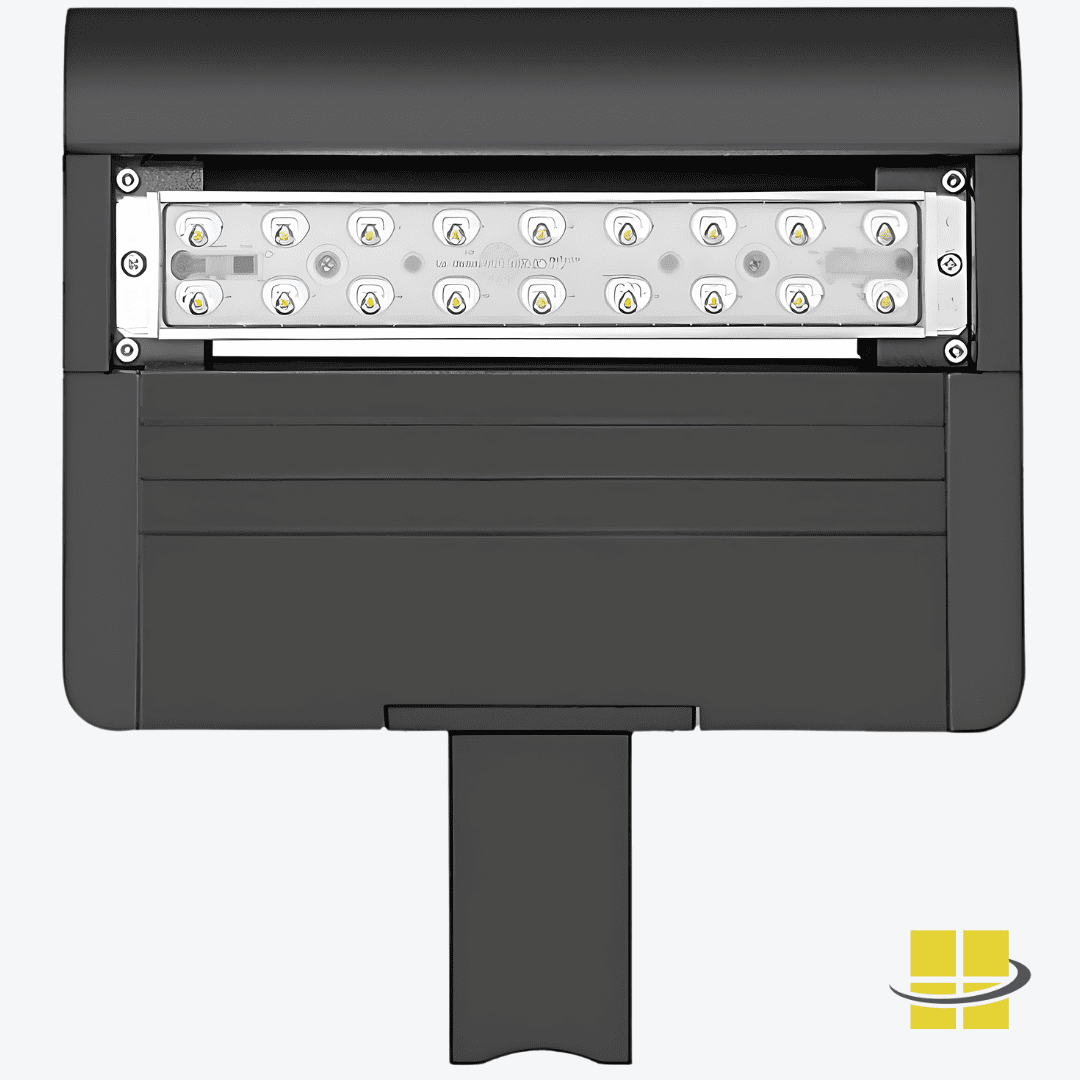

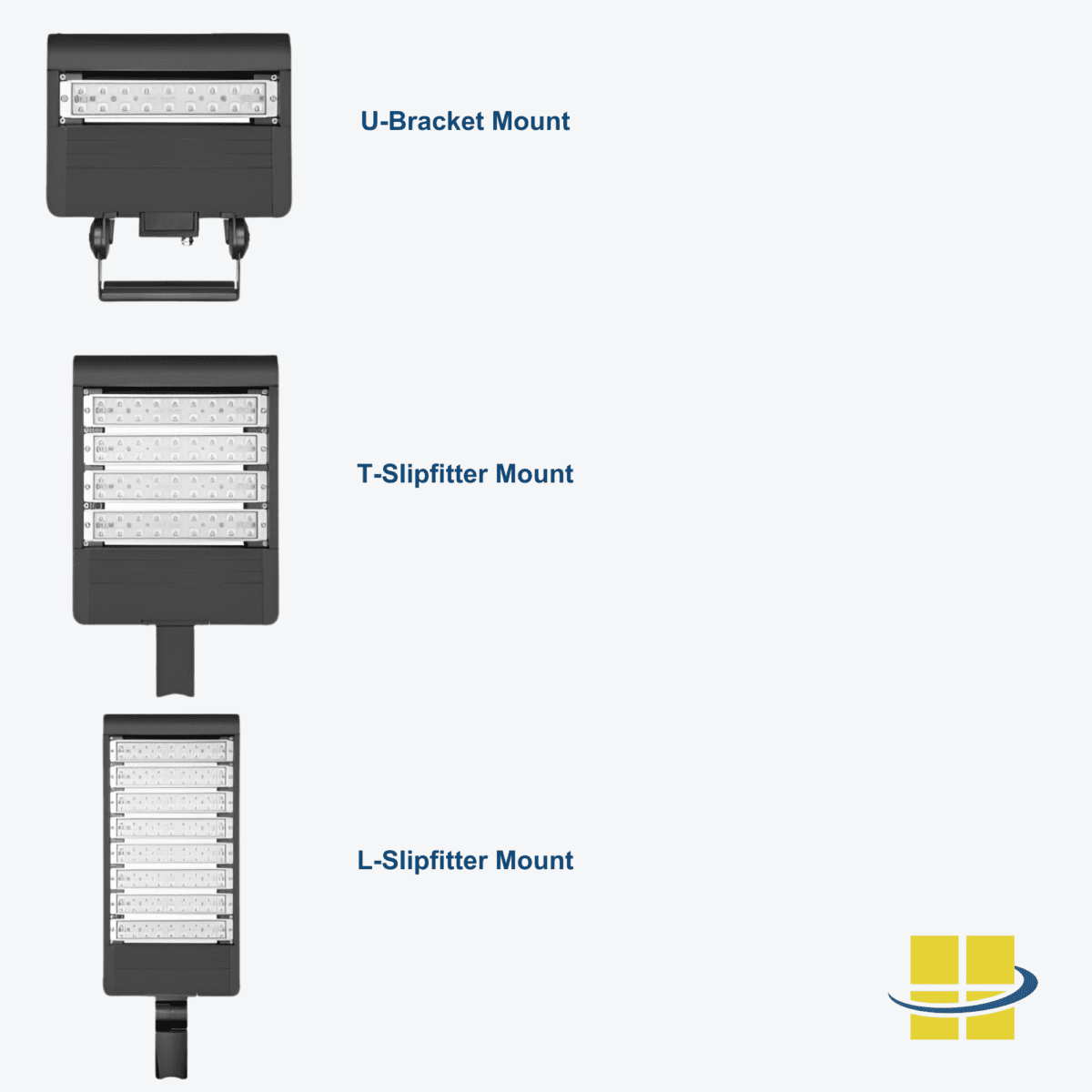

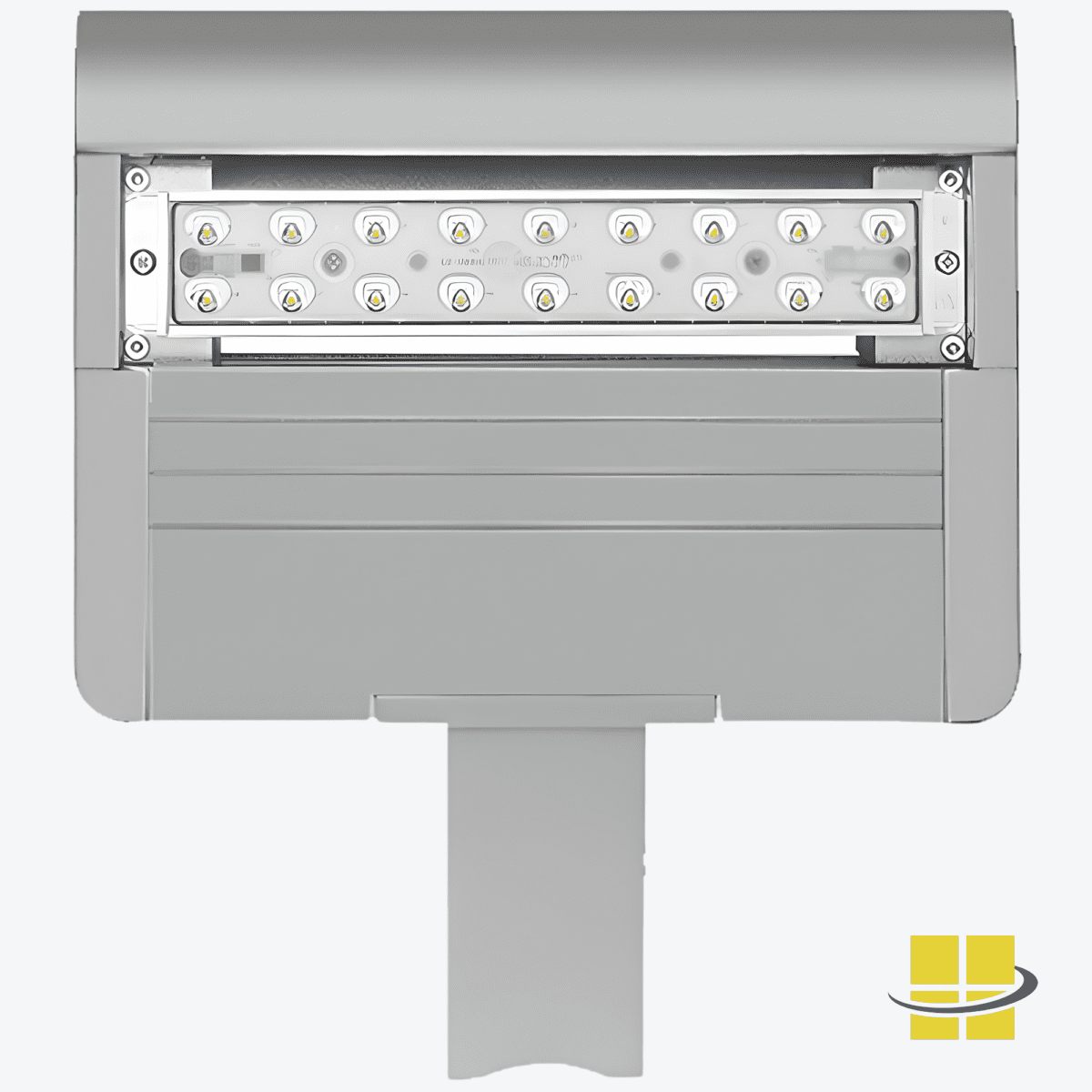

  • T Mount (fixed arm mount)

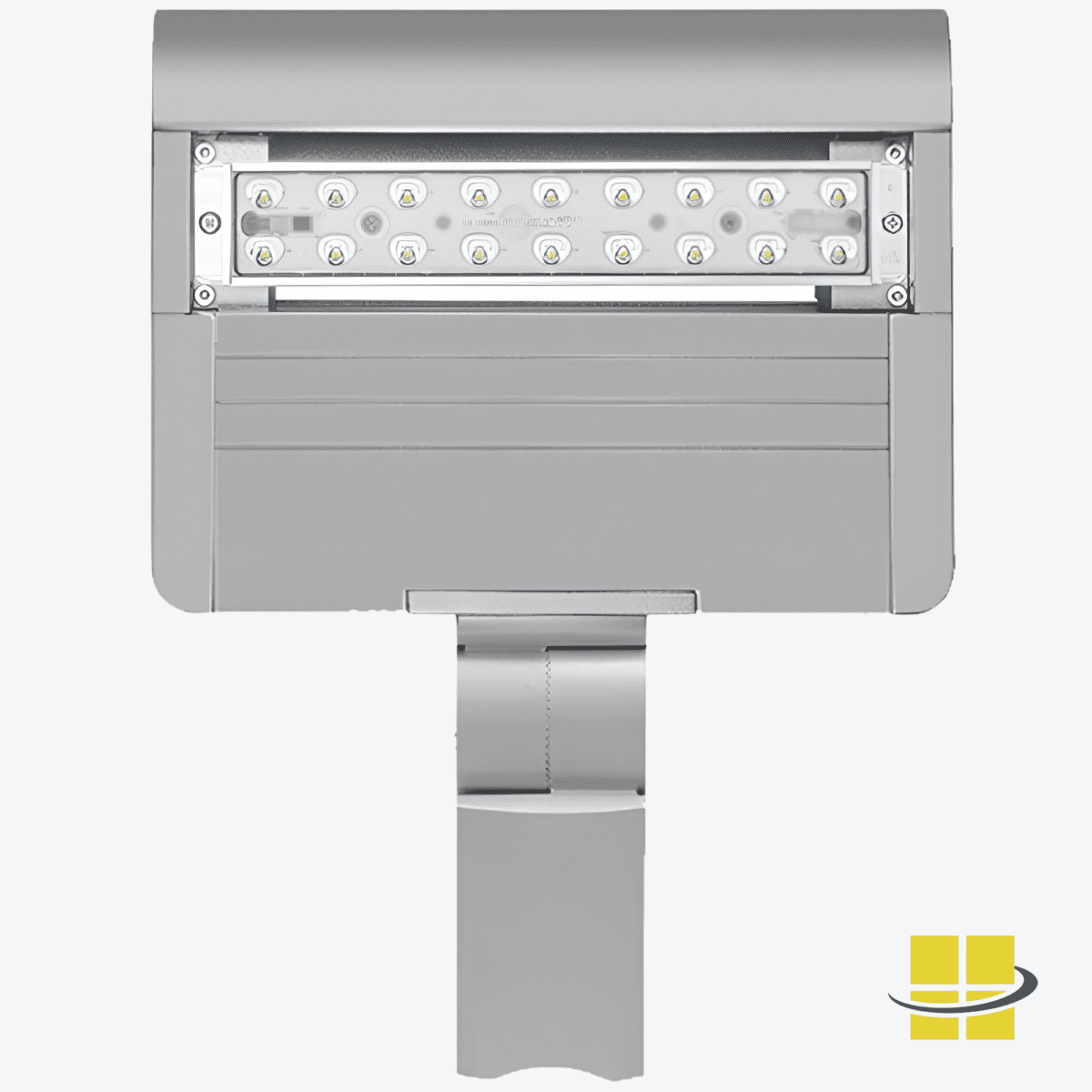

  • L Mount (Slip fitter mount)

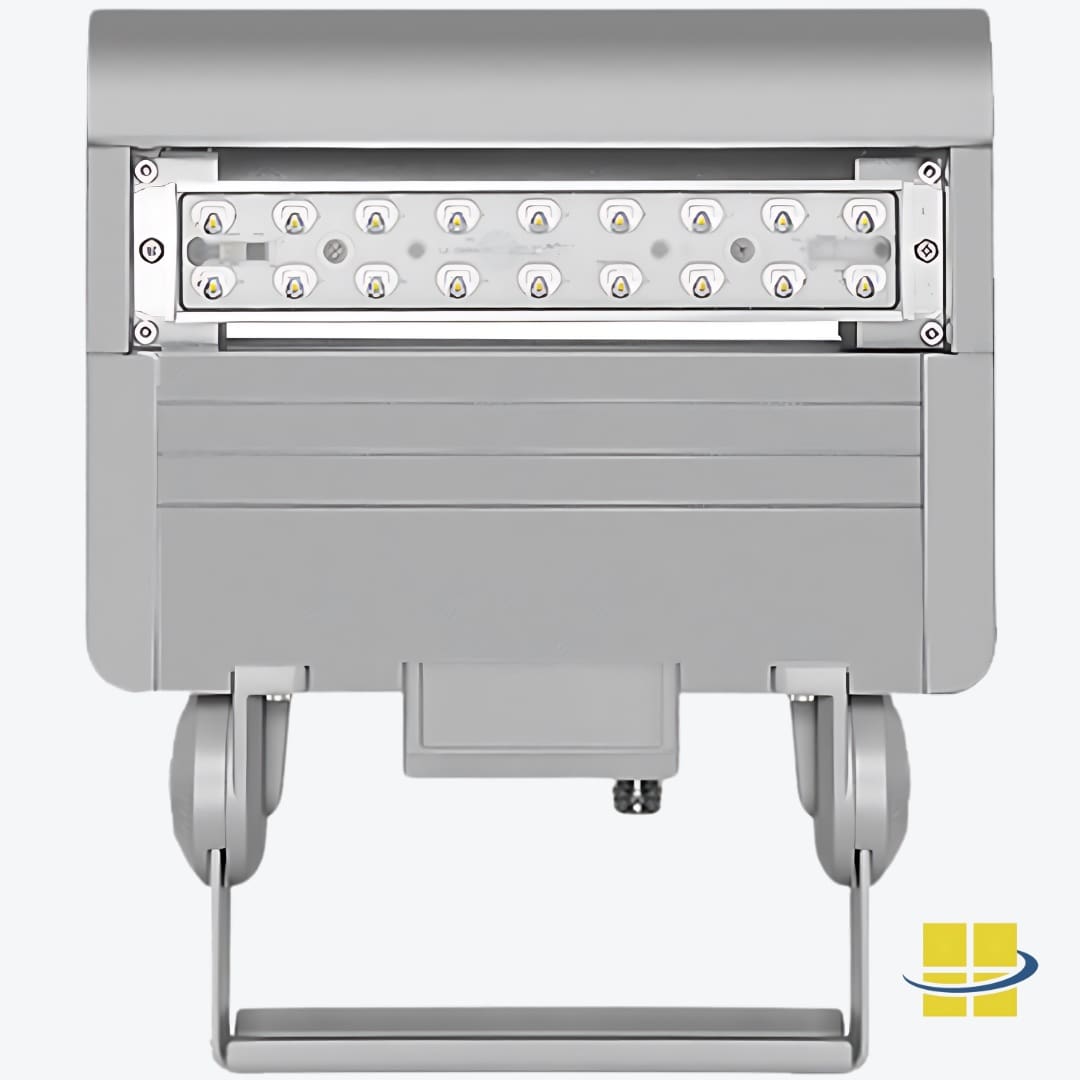

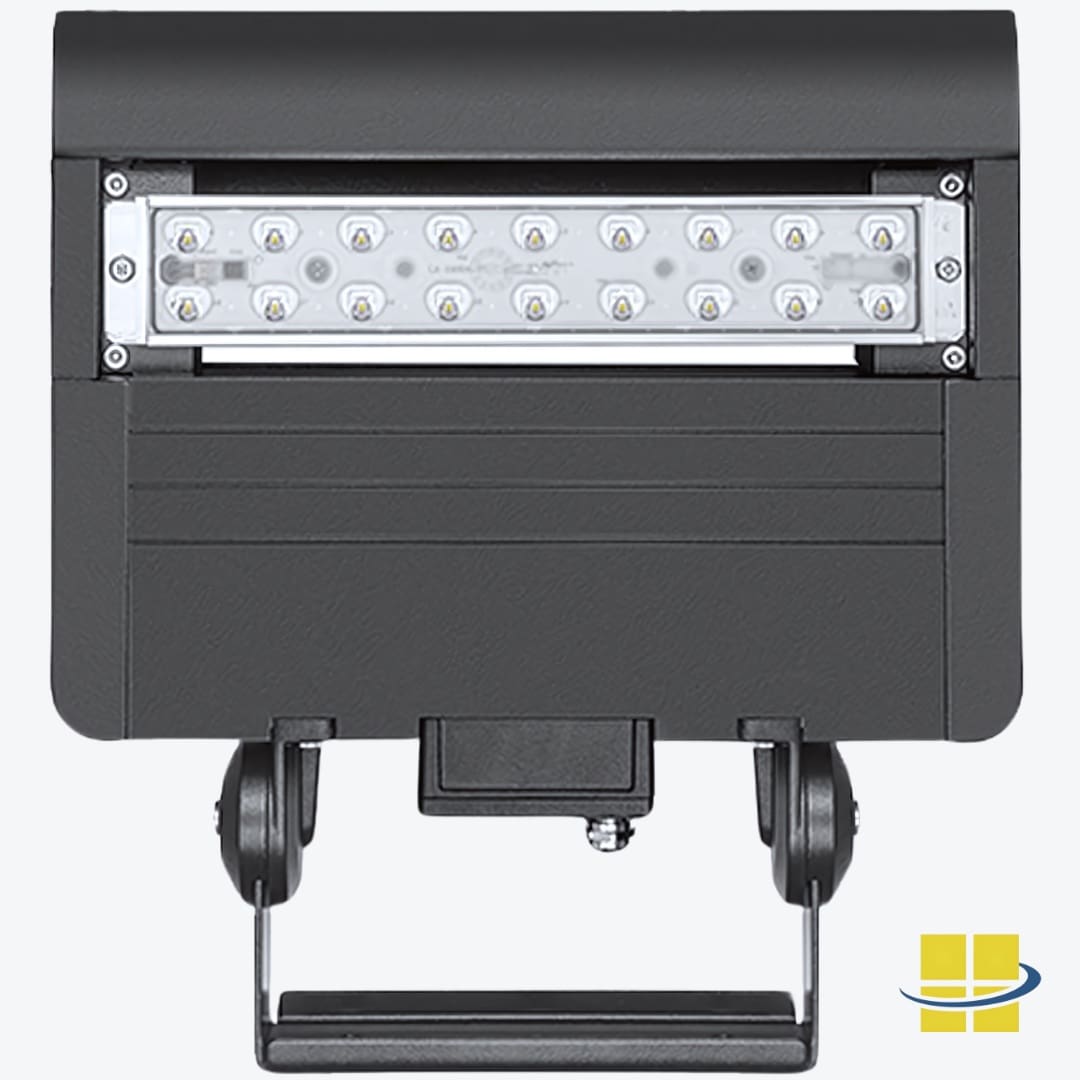

  • U Mount (bracket mount)
  • 10v PWM control
  • DALI control
  • DMX control
  • Microwave motion sensor
  • Photocell 3PIN, photocell 7PIN, Photocell MINI
  • Spill Control
  • Bird spikes
  • Optics rotated left
  • Optics rotated right
  • Emergency power supply

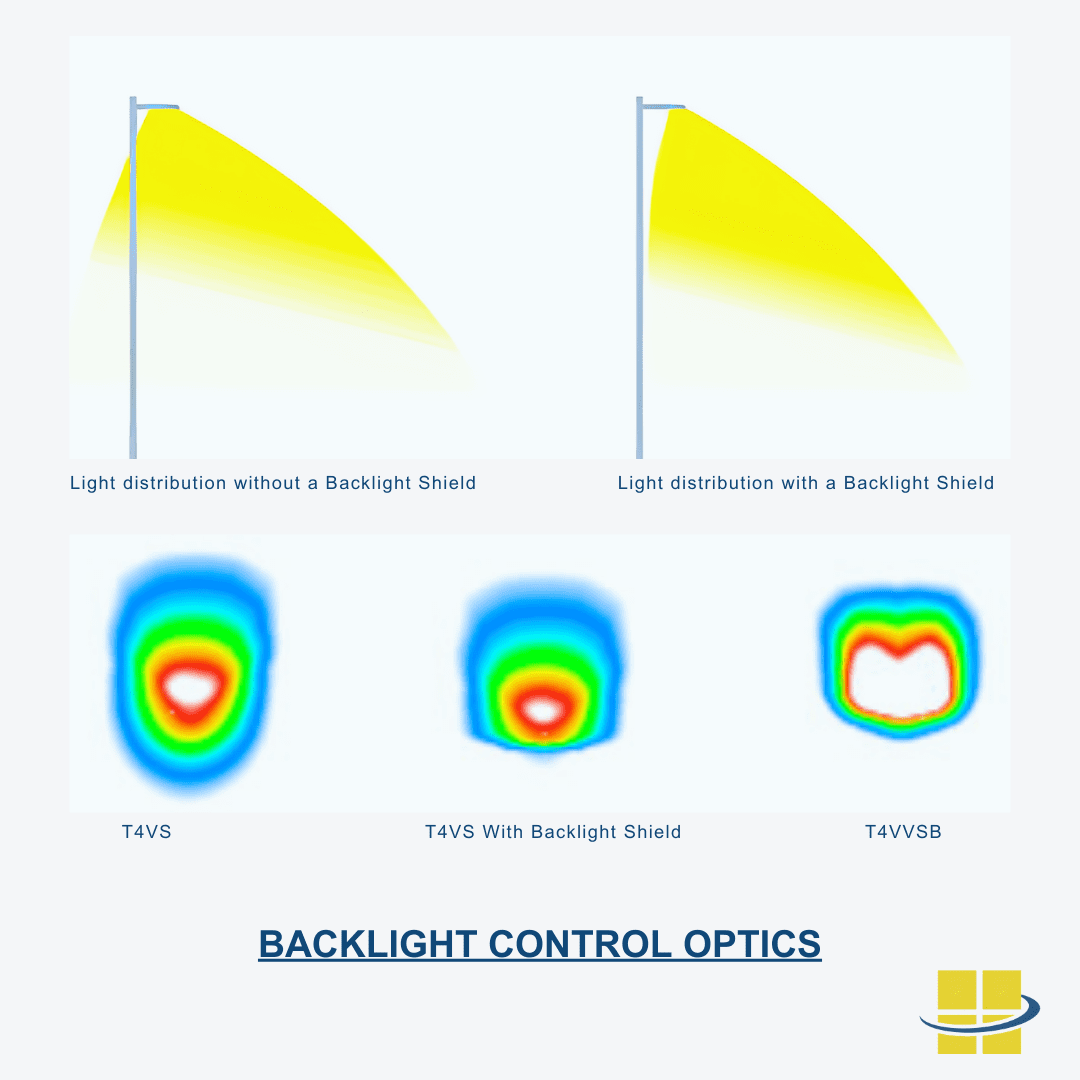

  • Backlight shield
  • Ra80+ or Ra90+ optional

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your APTA LED Sports Light Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
