APTA 960w LED Sports Lights, Superior Optics, EXTREME-LIFE

Name: APTA 960w LED Sports Lights, Superior Optics, EXTREME-LIFE
SKU: AF88XPBD960L-L/T-S
Availability: InStock

$3,199.87

APTA LED sports lights are designed and manufactured to provide powerful & reliable lighting. With superior optics, spill light control design, lumen-per-watt output (LPW) of up to 160, and low weight/low effective projection area (EPA), APTAs are designed to provide long-lasting, superior quality, anti-glare light for all high-mast lighting applications.

EXTREME-LIFE: Exceptional heat sink design produces an EXTREME-LIFE rating of L70 @ 200,000 hours for years of virtually maintenance-free performance

Lasting Durability: APTAs feature an anti-corrosive, marine-grade finish, 10ka surge protection, and IP66 and IK10 impact resistance to withstand extreme weather conditions

Maximum Wattage and LPW: With up to 960 watts per light fixture and lumens per watt of up to 160, APTAs can provide over 150,000 lumens from a single light fixture

Lead Time: 3 to 4 Week Production, plus Shipping

In Stock

Housing Color*
Black, Gray, Bronze, White and Green are standard colors. Custom RAL finishes are available at an up-charge with a minimum order quantity (MOQ).
Mounting Options*
Kelvin Temperature*
Dimming*
0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.
Voltage*
Color Rendering - Ra Rating*
Bird Spikes*
Large facilities may have birds living inside the building. Installing bird spikes on area/spot/flood lights stops the birds from nesting on the lights.
Optics*
Back Light Shield*
Vandal Resistant Screws*
Power Cord Length*
APTAs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.
Emergency Power Supply*
Do you need the APTA to stay on when the power goes out? If yes, add the Emergency Power Supply.
SAC Safety Cable*
This is a safety cable that will stop the light fixture from crashing to the floor is the primary mount ever becomes loose or disconnected.
MMS - Microwave Motion Sensor*
Maximize energy savings and the life of the canopy light by adding a programable microwave control with an occupancy sensor and light sensor.
Surge Protection*
Photocell*
Adding a photocell prevents the need to manually turn on/off your area/spot/flood lights when it gets dark.
Warranty*

Subtotal
$3,199.87
Options
$0.00
Total $3,199.87

Compare

SKU: AF88XPBD960L-L/T-S Categories: 2200 Kelvin Light Fixtures, 3000 Kelvin Light Fixtures, Arena Lights, Baseball Lights, Basketball Lights, Bocce Lights, Football Lights, Gym Lights, Hockey Lights, Horseshoes Lights, Pickleball Lights, Shuffleboard Lights, Soccer Lights, Sports Lights, Swim Lights, Tennis Lights, Volleyball Lights

Specifications

Weight	48.06 lbs
Dimensions	37.80 × 26.57 × 6.30 in
Application	Sports Luminaires
Availabilityi	3 to 4 Week Production, plus Shipping
Light Sourcei	590nm Amber, 2200K – Very Warm White, 3000K – Neutral White, 4000K – Cool White, 5000K – Bright White, 5700K – Cinematography
Available Finishesi	Black, Gray
Housingi	High-Grade Aluminum
Light Source Includedi	LED Array Included
Light Source Lumensi	115,200
Listingsi	IK10, IP66, CB, CE, CuL Listed, DLC Listed, ENEC, ETL Listed, SAA
Mountingi	L Mount, T Mount, U Mount
Product Familyi	APTA
Rated Lifei	L70 @ up to 200,000 Hours
System Wattsi	960
Voltagei	120v, 208v, 240v, 277v, 347v, 480v
Warrantyi	5-Year Limited Warranty

Product Description

APTA 960w LED Sports Light Features:

42.54 lbs
36.22L x 22.87W x 3.23H
100-277VAC or 277-480VAC, 50/60Hz
Nominal power 40W-960W
Superior patented high-efficiency spill light control system
High light output, low weight
Low effective project area (EPA)
Provides superior quality anti-glare illumination to large-scale areas
Constructed with high-grade aluminum
115,200 lumens
1050 mA
Ra70 standard, optional Ra80 or Ra90
<20% total harmonic distortion at full load
Imax 10KA surge protection
Exceptional heat sink design to ensure these fixtures will last, with a rating of L70 @ 200,000 hours of operation – making them virtually maintenance-free for a lifetime
T2S, T2M, T3S, T3M, T4VVSB, T4VS, T4VSB, T4S, T4SB, T4M, T4MB, T5M, T5W, T10D, T20D, T40D, T60D, T90D optics
Black or Gray color options
L70 @ 200,000 hours
DLC, IP66 rated, IK10 rated, CUL, CE, CB, SAA, ENEC, TUV rated

APTA 960w LED Sports Light Options:

2200K, 3000K, 4000K, 5000K, 5700K, 590nm Amber (wildlife & turtle friendly)
1-10v dimming

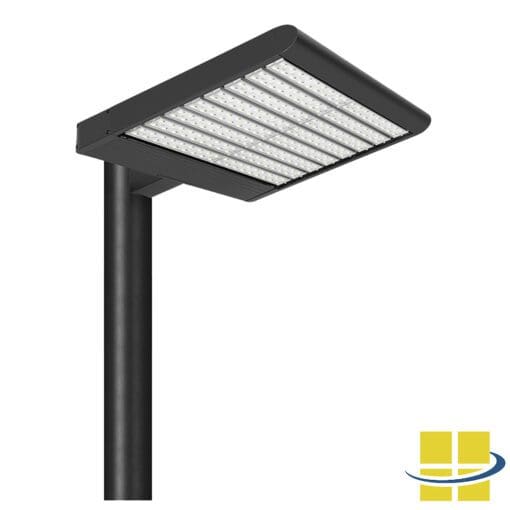

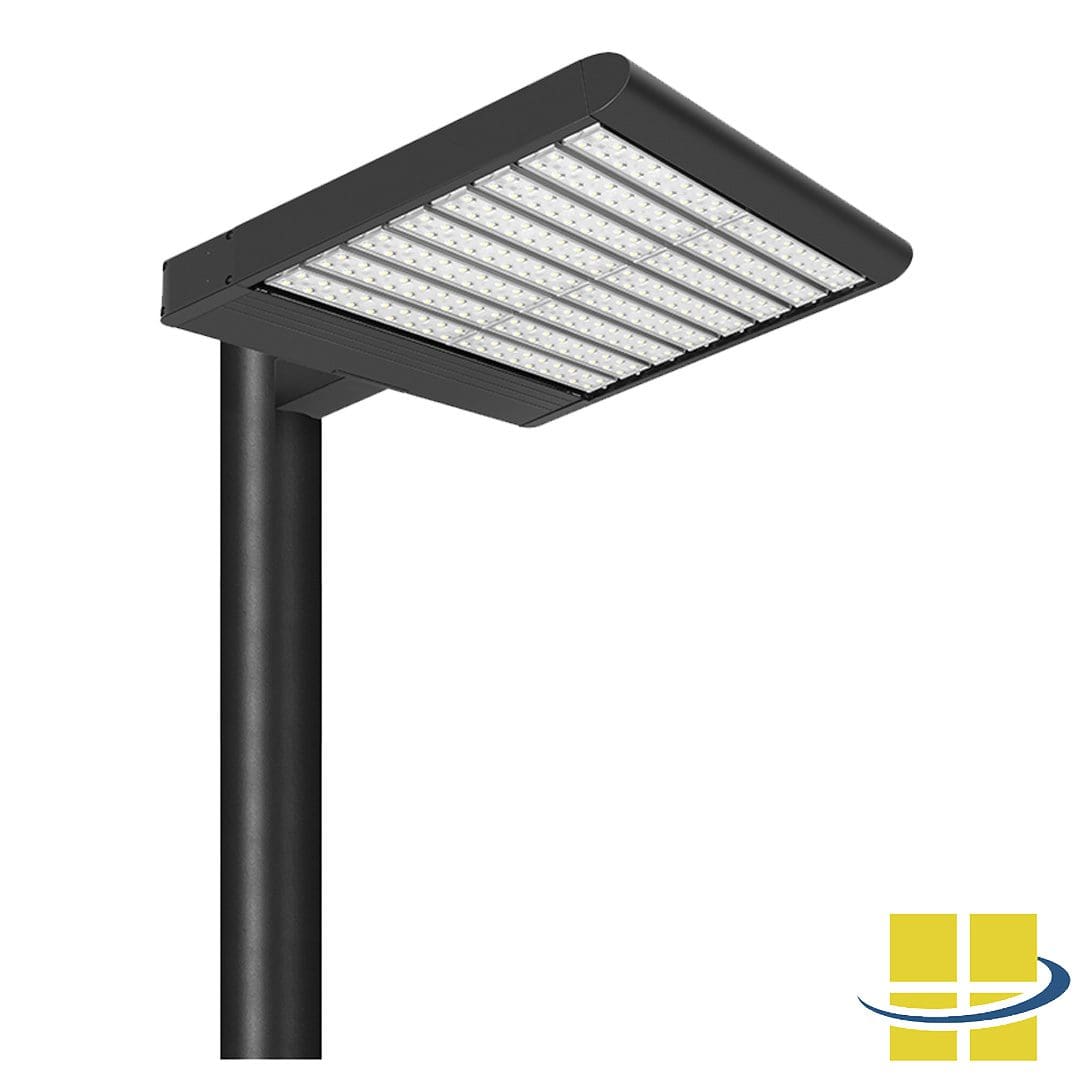

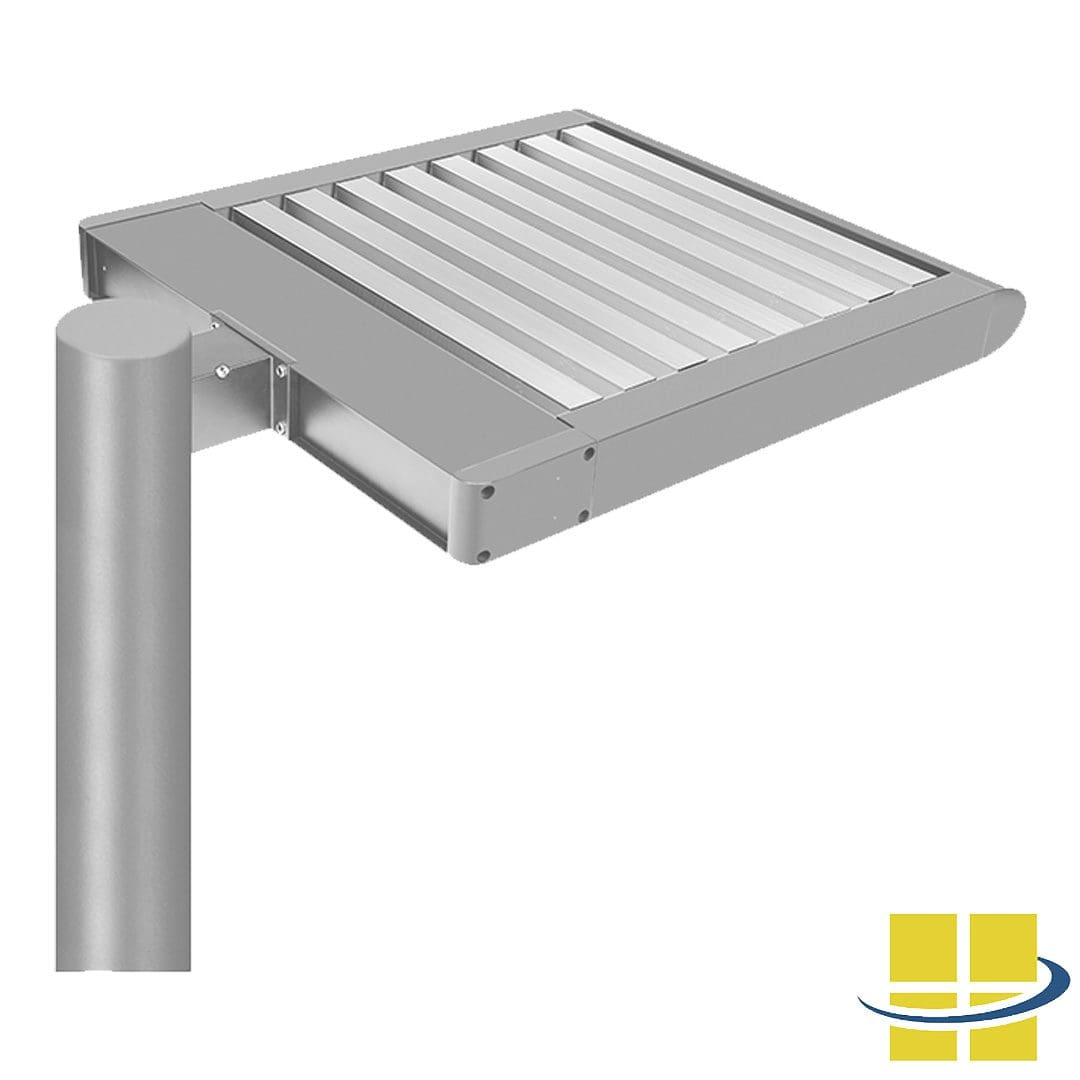

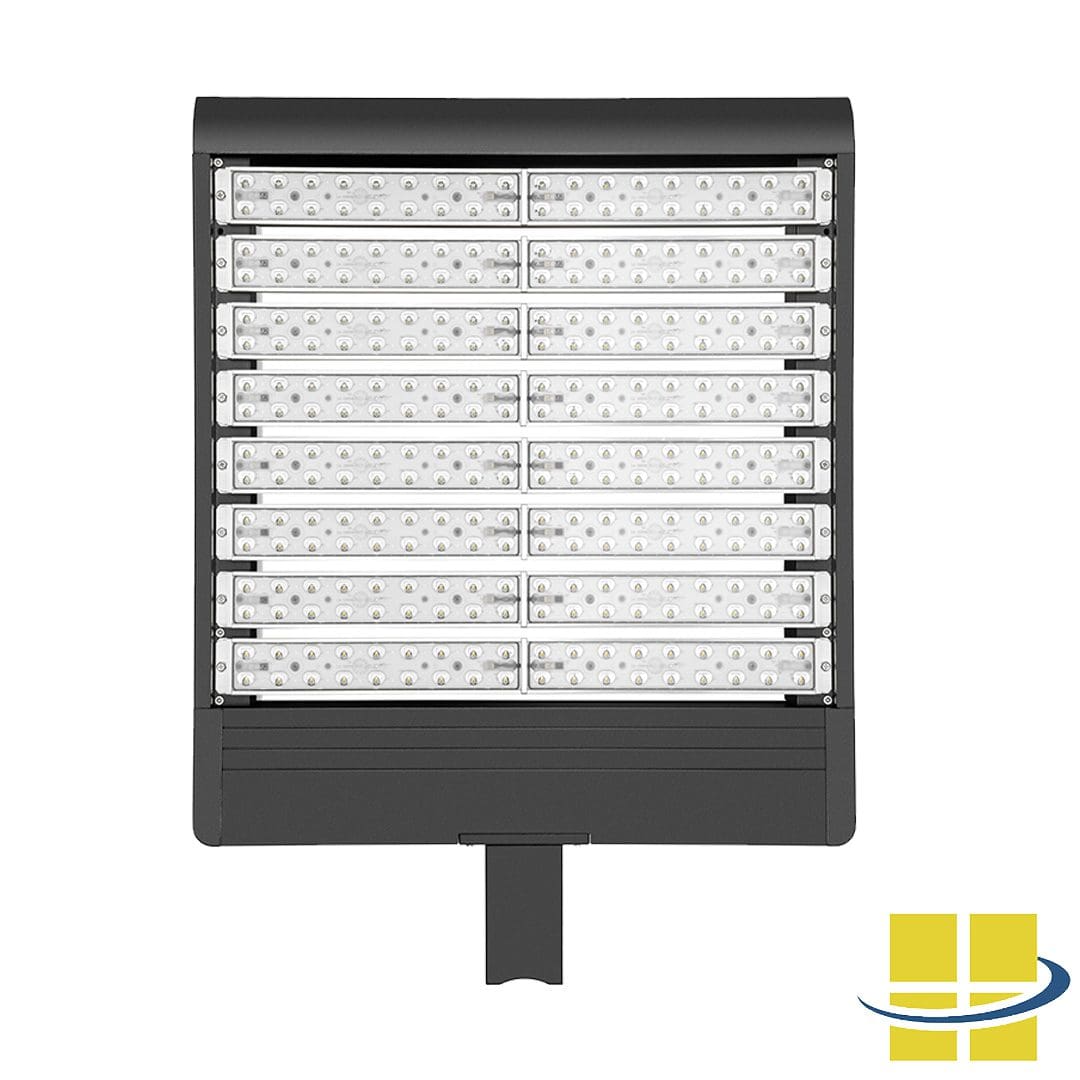

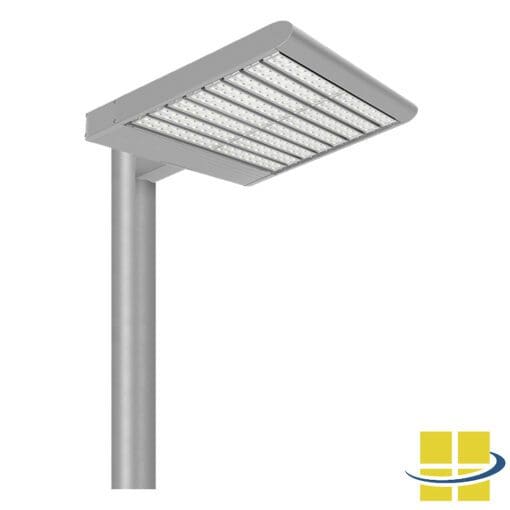

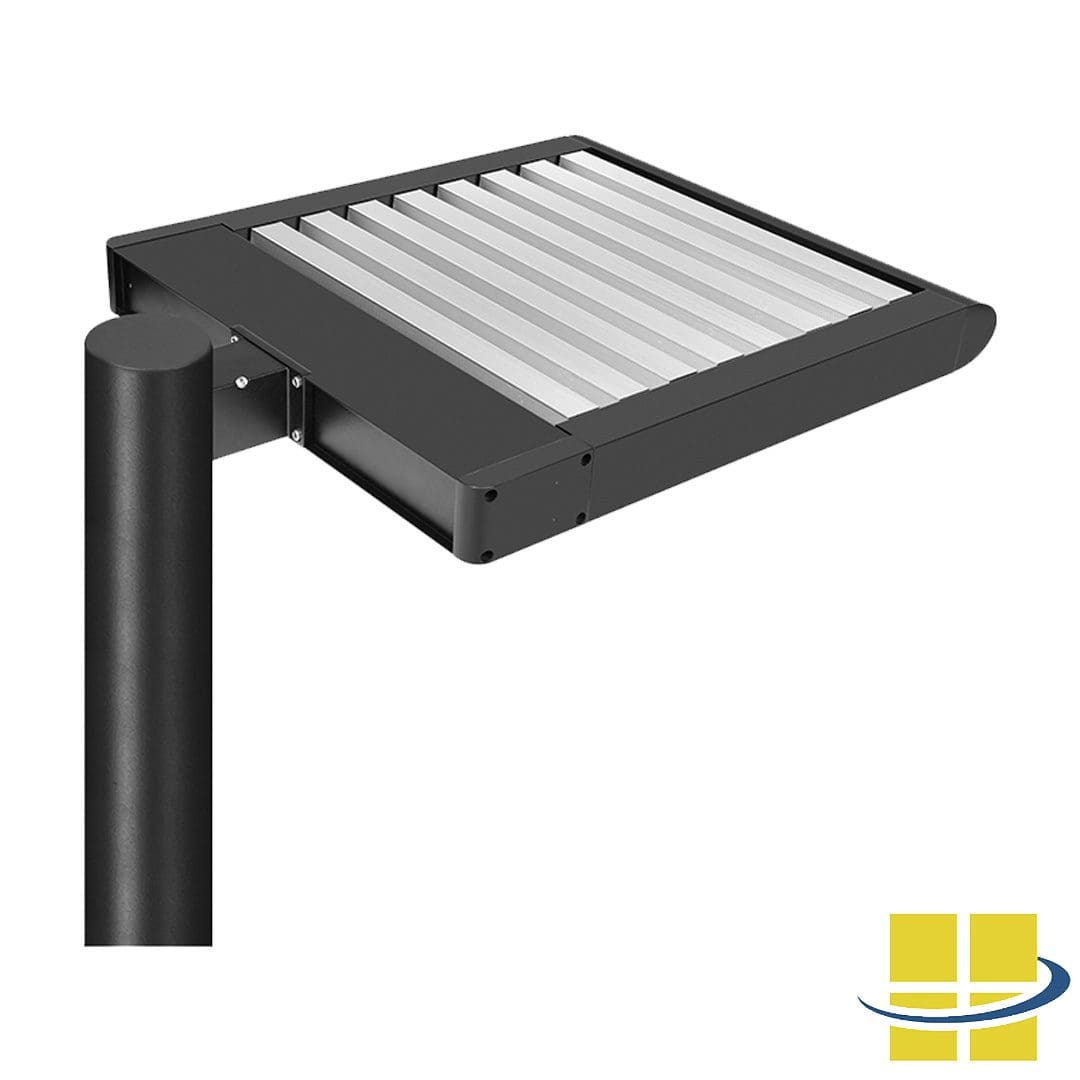

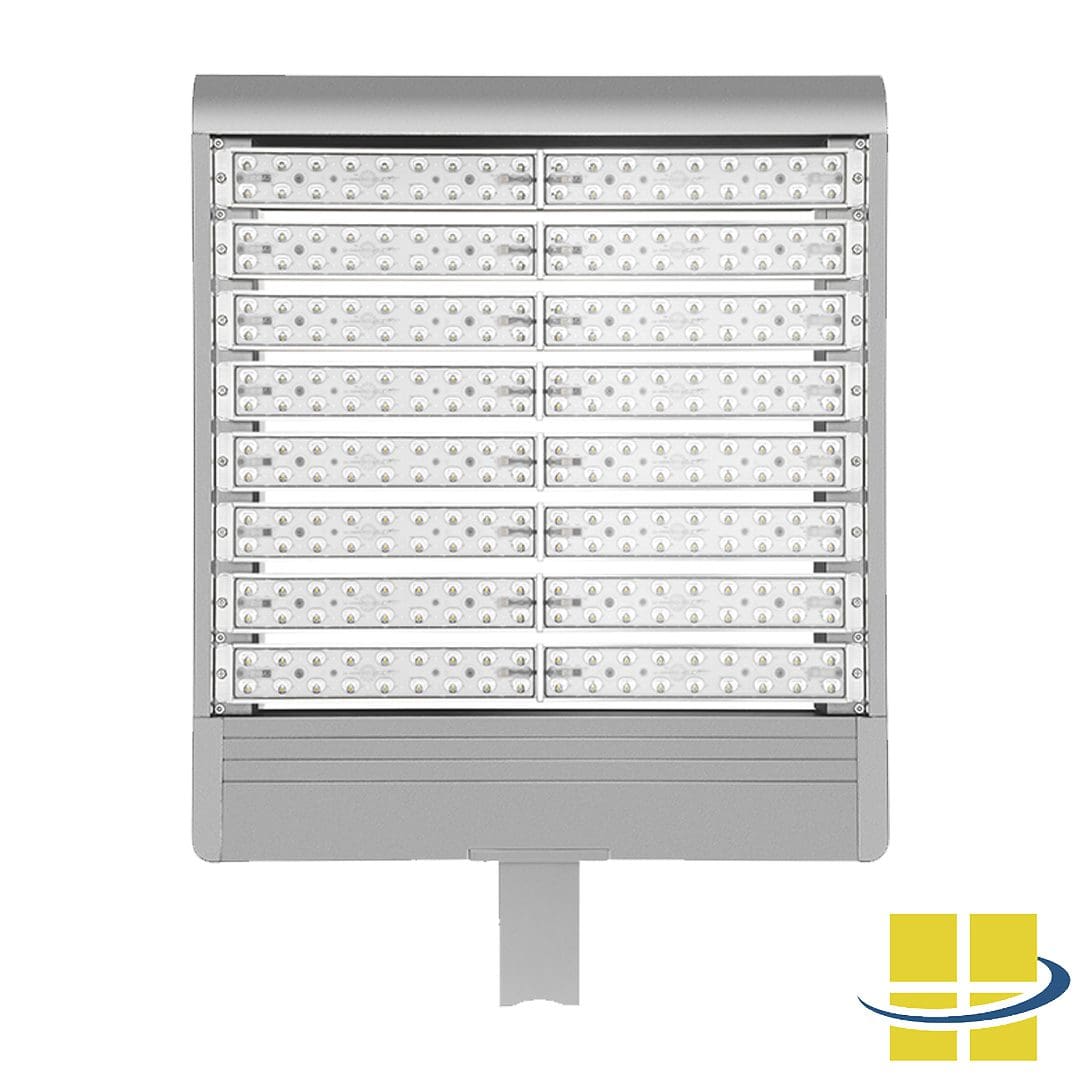

T Mount (fixed arm mount)

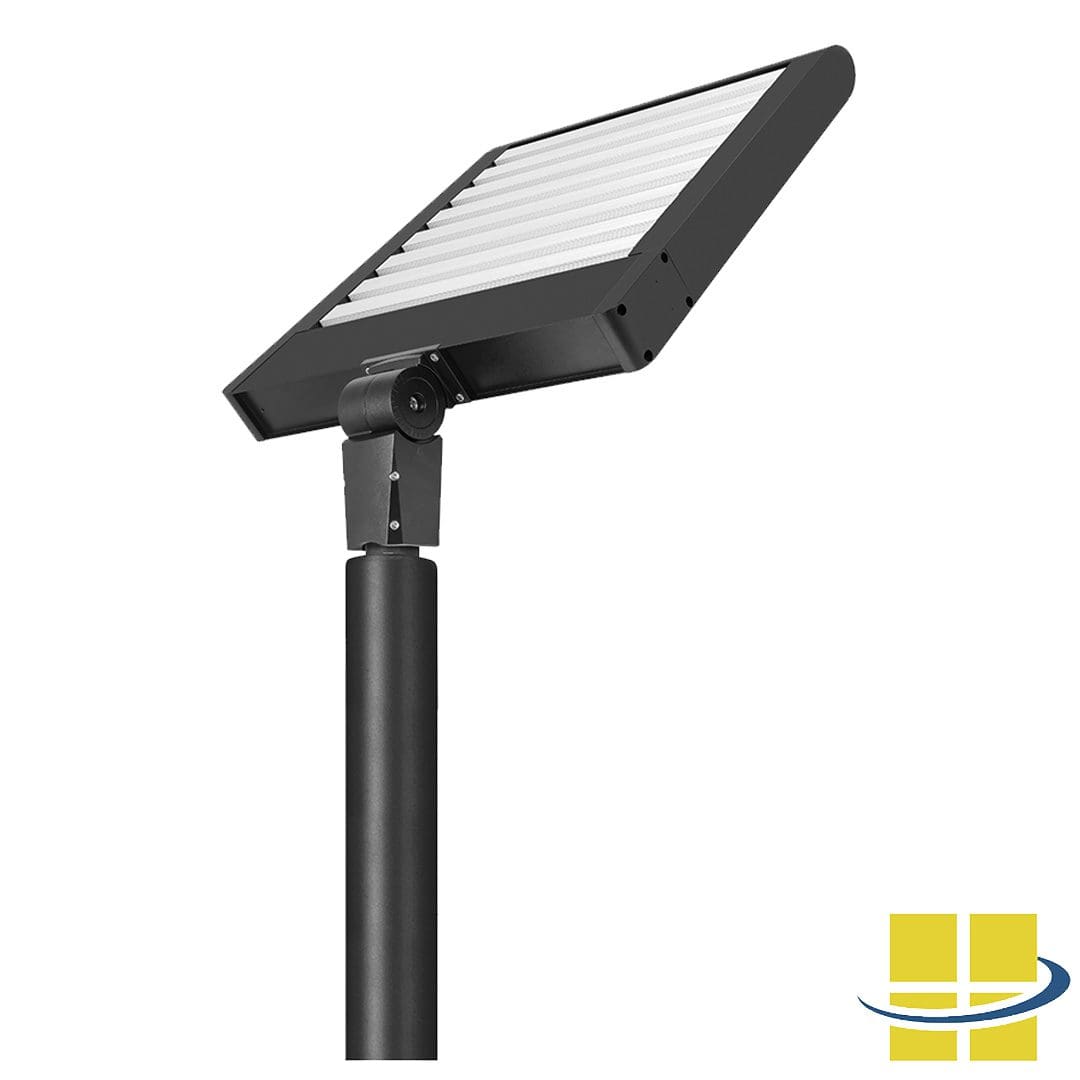

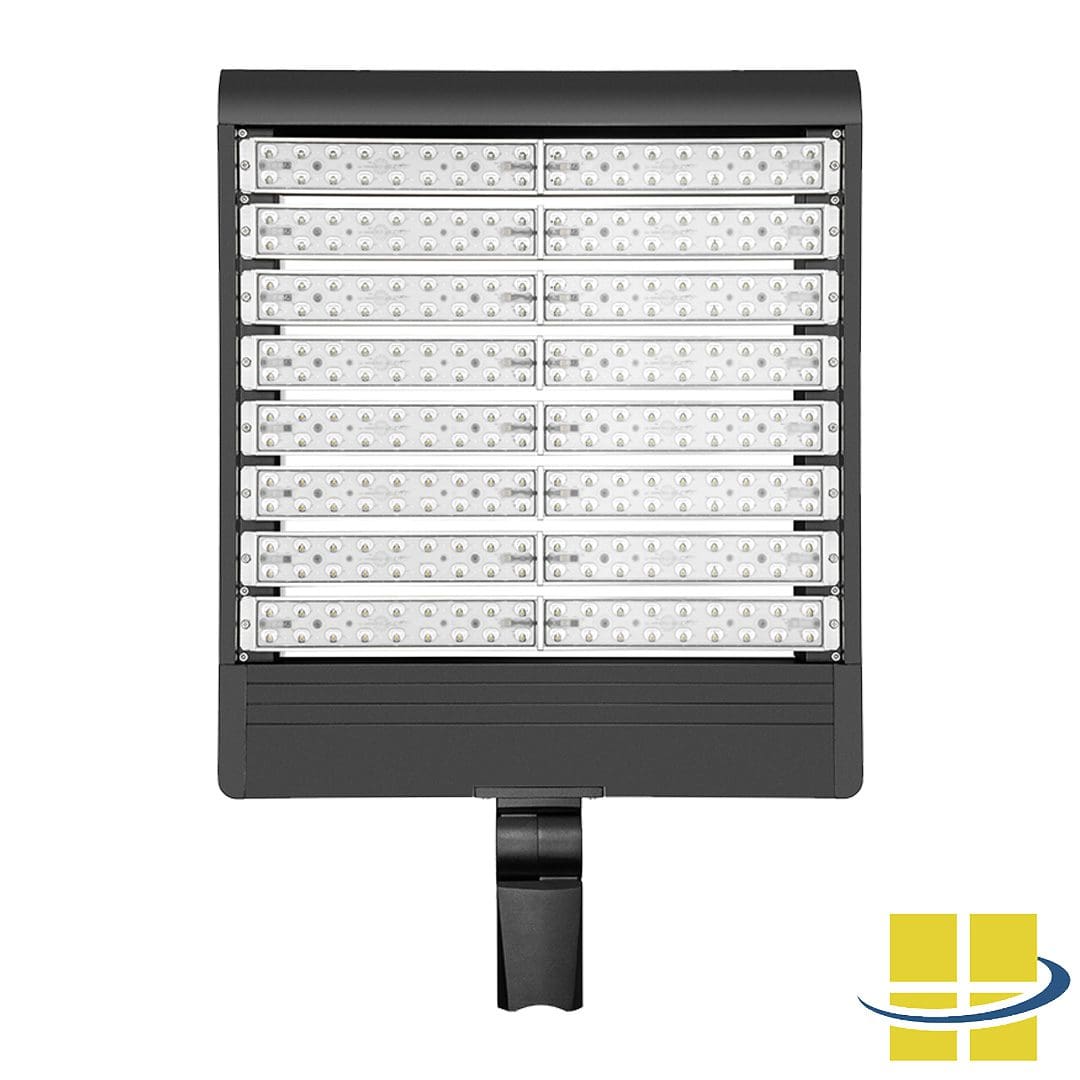

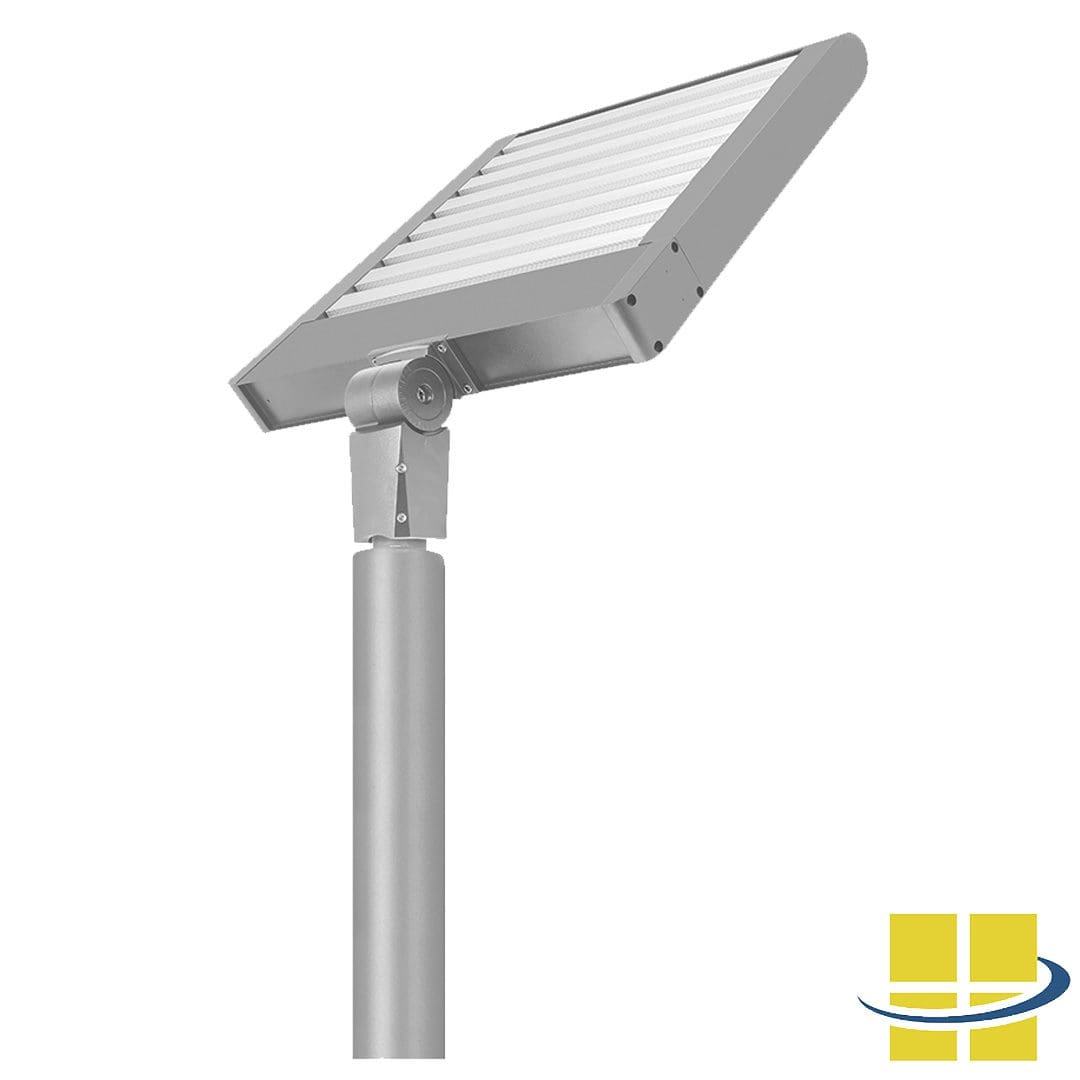

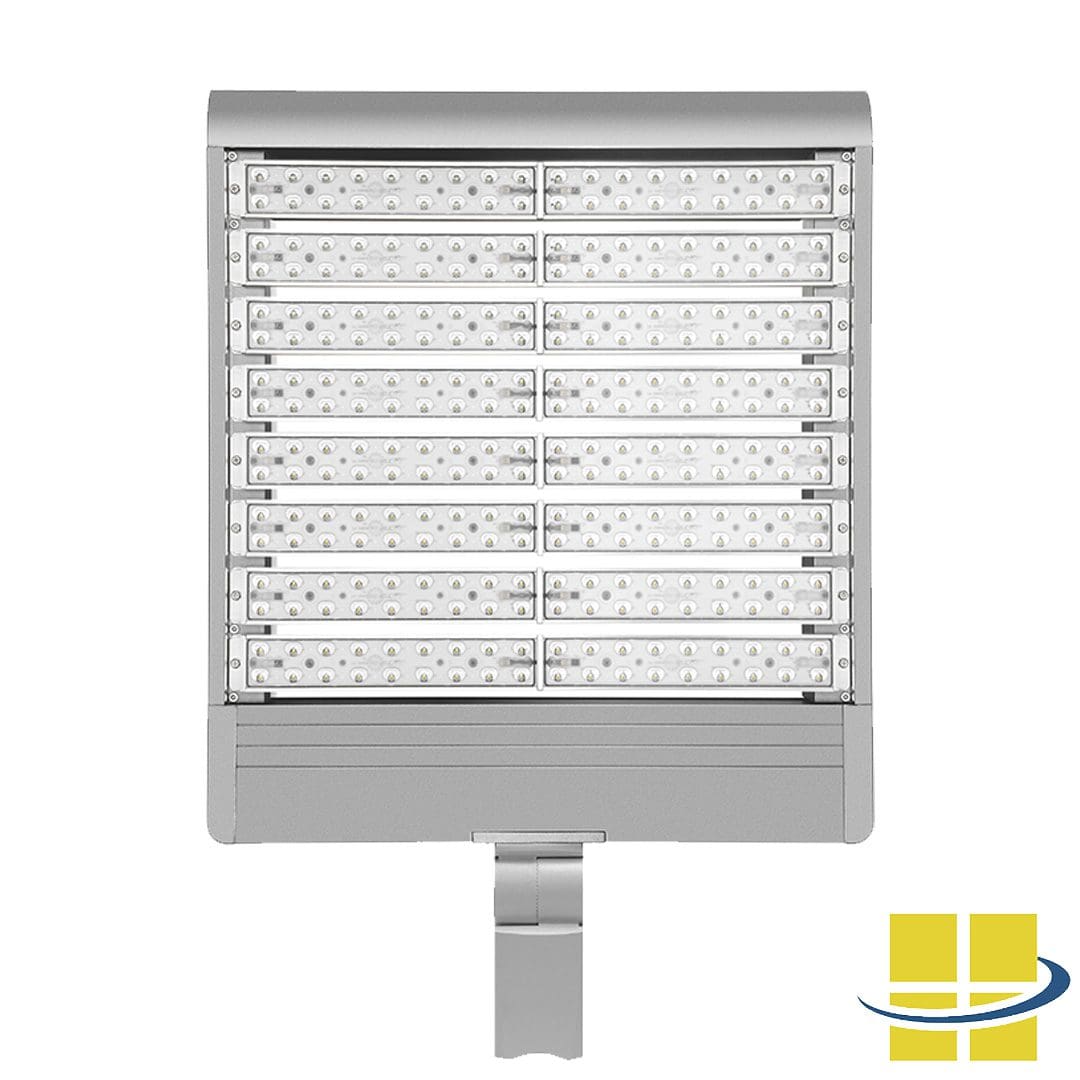

L Mount (slip fitter mount)

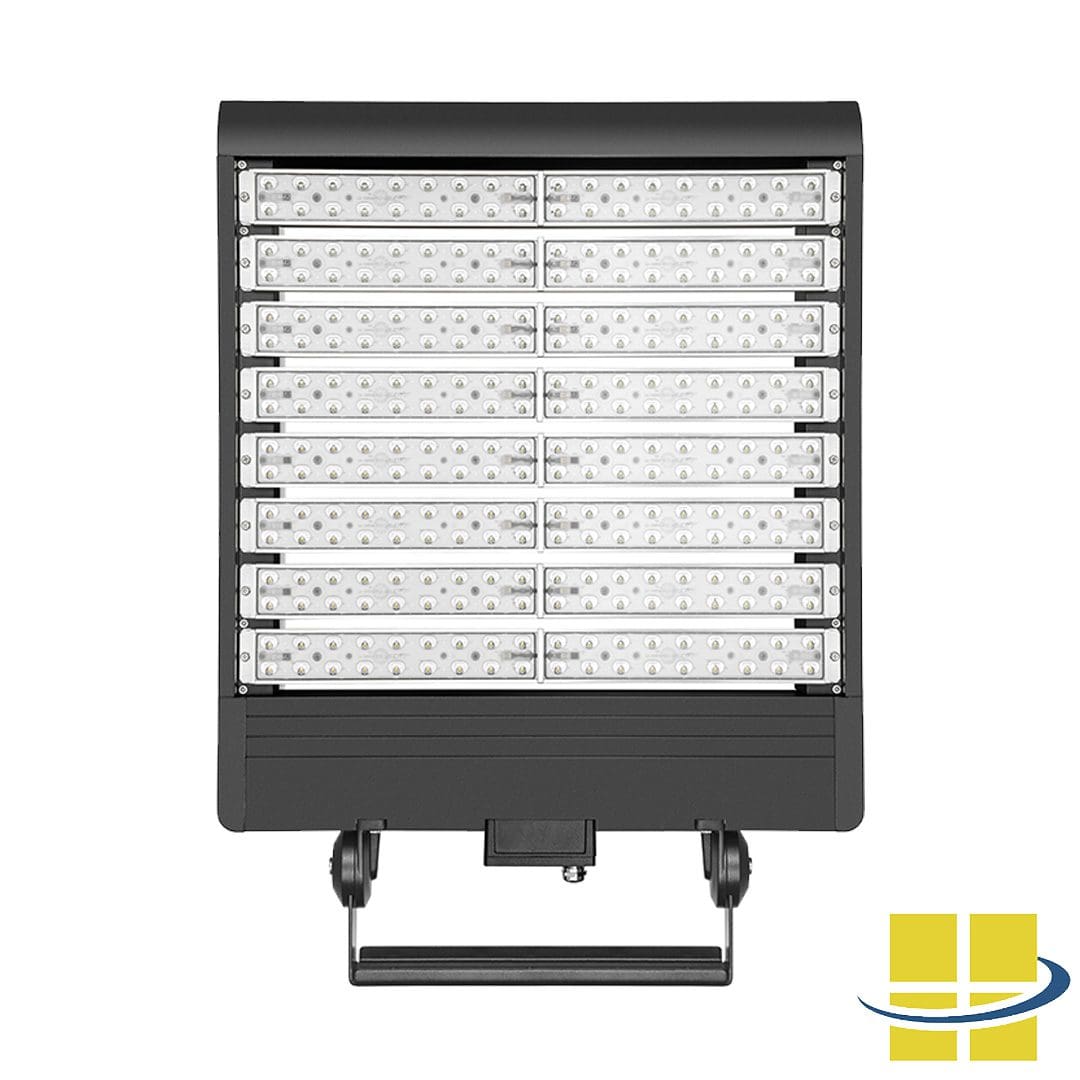

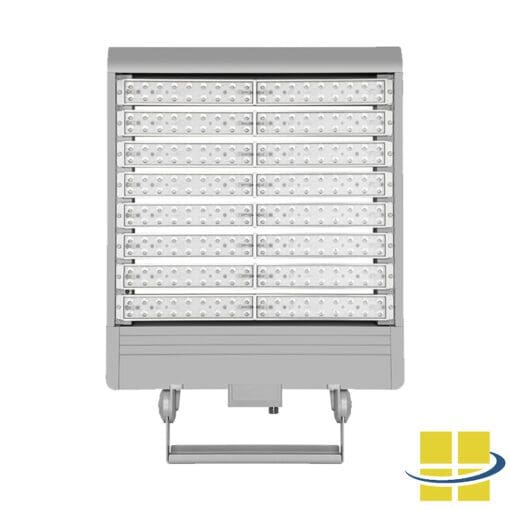

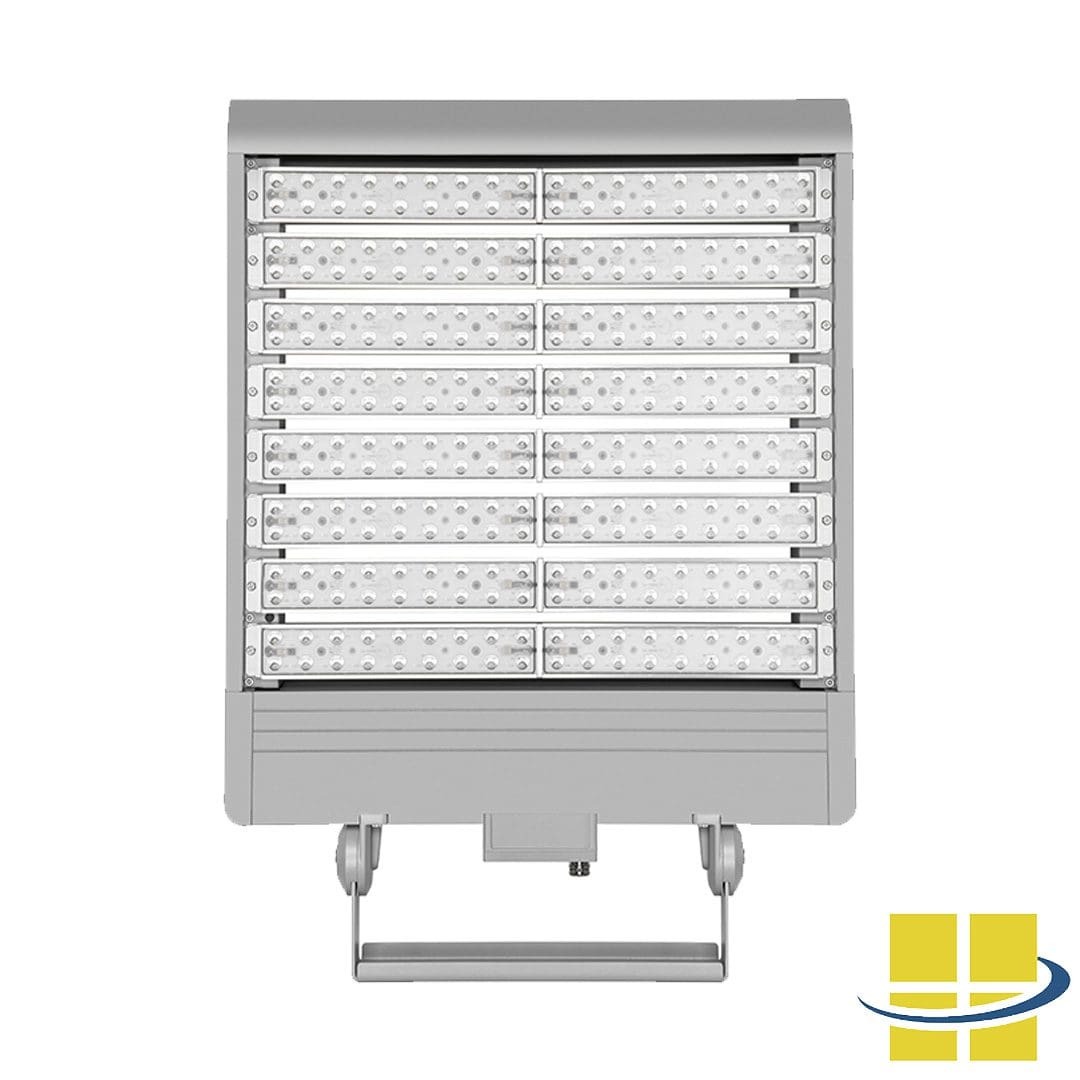

U Mount (bracket mount)
J Mount (mast mount)
Optional remote LED drivers
10v PWM control
DALI control
DMX control
Microwave motion sensor
Photocell 3PIN, photocell 7PIN, Photocell MINI
Spill Control
Bird spikes
Optics rotated left
Optics rotated right
Emergency power supply
Back light shield
Ra80 or Ra90 optional

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at sales@accessfixtures.com. Click here to view Access Fixtures' complete warranty policy.

Need a Photometric Analysis for Your APTA LED Sports Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
