APZA commercial grade, EXTREME-LIFE, LED post top light

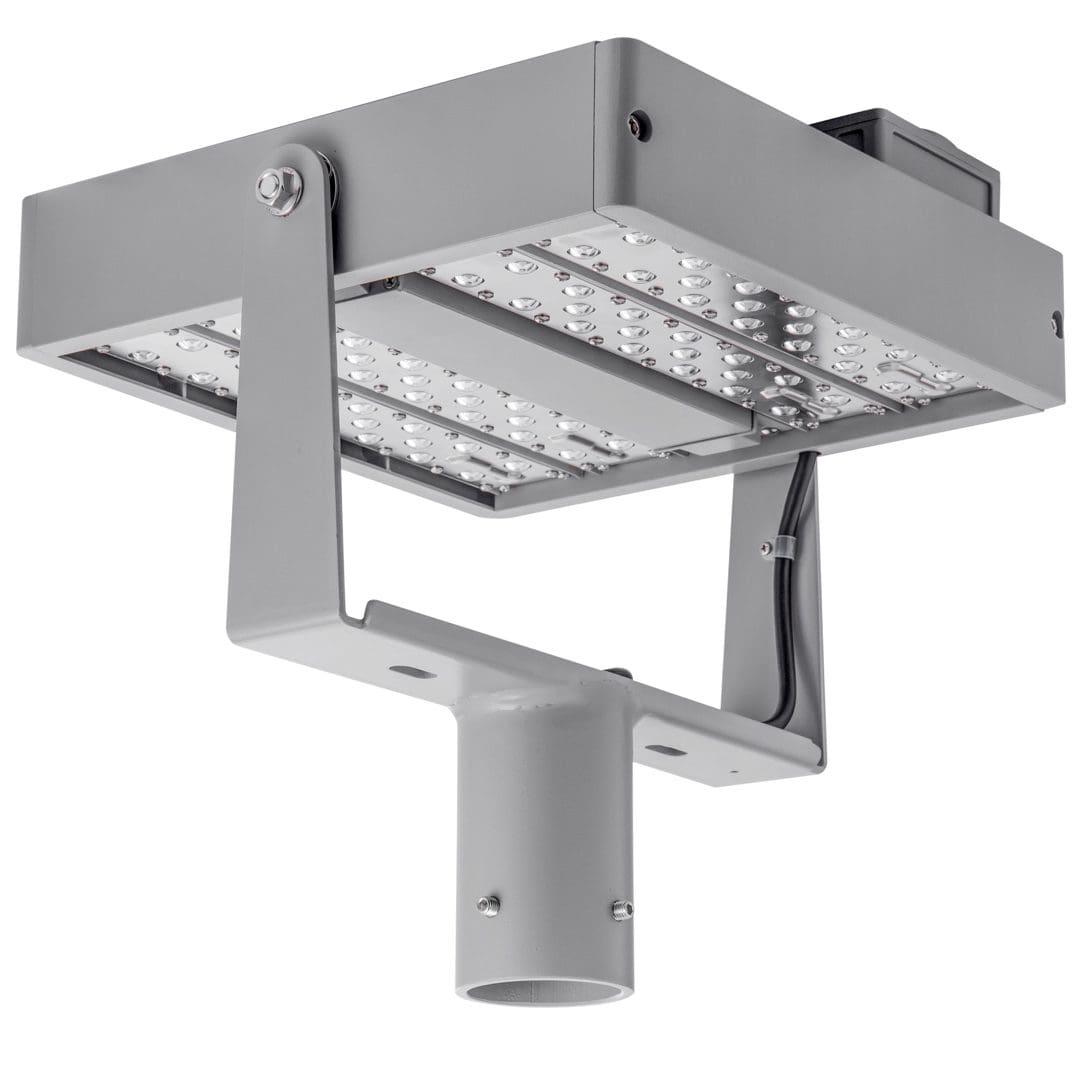

APZA LED post top light installed

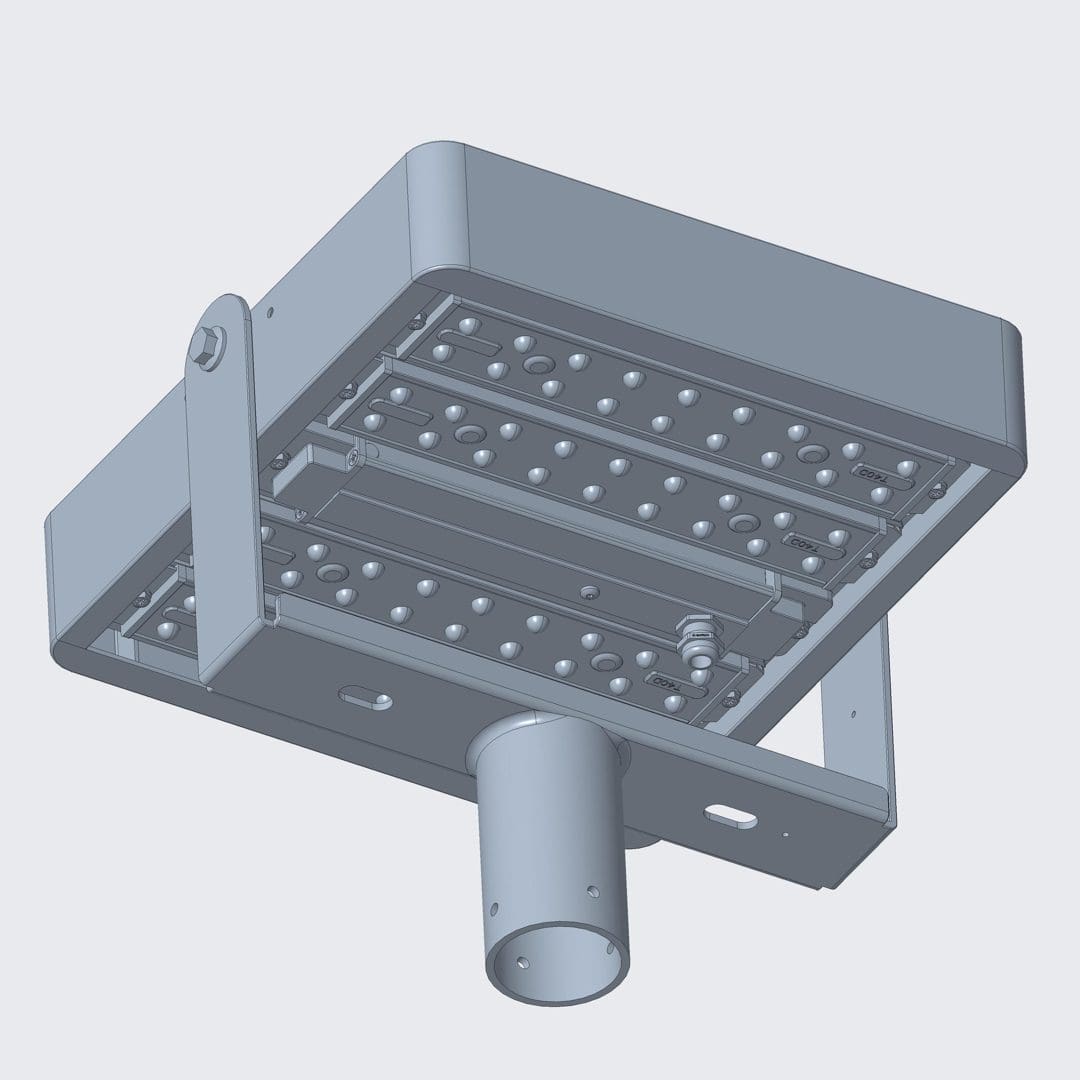

APZA LED post top light top view

APZA 60 LED Post Top Light, Vandal Resistant, EXTREME-LIFE

$489.87

APZA LED Post Top light fixtures are the most versatile and durable post top lights available. Works with mounting heights from 10’ to 100’ depending on wattage and optics.

EXTREME-LIFE: L70 @ 200,000 hours using open architecture for superior heat dispersion in hot climates

Dark Sky Compliant: Full cutoff light fixture and dark sky compliant when equipped with 2200 or 3000K LEDs

Selections and Options: Select housing color, Kelvin, and optics. Options include a photocell, programmable occupancy/daylight sensor, and custom RAL colors.

Notes:



  • APZA LED post top lights will vary from images provided based on wattage
  • APZA LED post top light dimensions are provided in the attached product pdf
  • Lumens per Watt may vary based on mA used to achieve wattage(LPW)



Lead Time: 2 to 4 Week Production, plus Shipping

In Stock

- Post Top - APZA White Light 230201

  • APZA can be mounted on either a 2 3/8" or 2 7/8" vertical tenon.
  • Standard colors shown. Custom RAL colors available with minimum order quantity (MOQ) and additional charge.
  • 1-10v dimming is required for microwave occupancy/daylighting sensor. 1-10v is recommended and does not have to be used.
  • For higher color rendering, the Kelvin must be 3000K or higher. This option is NOT for 2200K
  • This option is used to stop light trespass behind the light fixture.
  • Add vandal resistant screws to the APZA post top light
  • Stop birds from nesting on top of the light fixture. View Bird Spikes and How to Install Bird Spikes
  • Programmable Microwave Occupancy and Daylighting Sensor requires (1) APZA Remote Programmer to program sensor. APZA Remote Programmer is a separate line item.
  • The standard warranty is a 5-year limited warranty. There is a 10-year optional limited warranty available for purchase.

  • Total

SKU: AF88XBAD60-S-L Categories: , , , , , , ,

Specifications

Weight 14 lbs
Dimensions 17 × 17 × 10 in
Availability

2 to 4 Week Production, plus Shipping
Light Source

, , , ,

Available Finishes

Black, Bronze, Gray, White, Custom RAL
Color Rendering Index (CRI)

70+, 80+, 90+
Housing

Built-in heat sinks, Extruded aluminum housing
Lens

Polycarbonate
Light Source Included

LED Array Included
Light Source Lumens

9,000
Listings

IP67, ASTM B117/ISO 9227:2012, CE, CSA: Listed for wet locations, FCC Listed, IK08, SAA
Mounting

Mounts on 2 3/8" Verticle Tenon, Mounts on 7 7/8" Verticle Tenon
Product Family

APZA
Rated Life

200,000+ Hours
System Watts

60
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty, Optional 10-Year Limited Warranty

Product Description



APZA Vandal Resistant LED Post Top Light Notes:

  • APZA LED post top lights will vary from images provided based on wattage
  • APZA LED post top light dimensions are provided in the attached product pdf
  • Lumens per Watt may vary based on mA used to achieve wattage(LPW)
  • Low Kelvin reduces Lumens per Watt (LPW)
  • 5700K is about approximately 160 LPW
  • 5000K is about approximately 140 LPW
  • 3000K is about approximately 125 LPW
  • 2200K is about approximately 112 LPW

APZA Vandal Resistant LED Post Top Light Features:

  • Die-cast aluminum housing
  • IP66 wet location rated
  • 10KA Surge protection standard
  • L70 @ 200,000+ hours
  • CSA listed
  • >Color rendering of Ra>70 standard, Ra>80 and Ra>90 Optional
  • Operating temperature -40°C to +50°C, -40°F to 122°C
  • 1-10v Dimming
  • 5-Year limited warranty

APZA Vandal Resistant LED Post Top Light Selections:

  • Select Finish – bronze, black, white, or gray
  • Select Kelvin – 2200K, 3000K, 4000K, 5000K, or 5700K
  • Select Mount – 2 3/8″ or 2 7/8″ vertical tenon
  • Select Optics – Type I, Type III or Type V Diffuser Optics

APZA Vandal Resistant LED Post Top Light Options:

  • Option – Backlight blockers
  • Option – RAL finishes available with MOQ
  • Option – Ra>80 or Ra>90 (color rendering)
  • Option – Photocell
  • Option – Programable microwave occupancy/daylighting sensor
  • Option – Emergency power supply
  • Option – Works with DALI, PWM or DMX controls
  • Option – 10-Year limited warranty



Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Custom Photometric Analysis Project?

A photometric analysis is a custom computer simulation of your particular project. This service provides average footcandles at various heights, max/min (uniformity) ratios, minimum footcandles, light trespass levels, and more. For exacting lighting specifications, a photometric analysis helps you ensure light levels before making a big purchase. One of our lighting specialist will walk you through the process so you know exactly what you will be receiving. Call us at 800-468-9925 or [email protected] for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online or if you want additional information, give us a call at 800-468-9925.
Does your project require multiple fixtures? Ask us about quantity discounts.
