ARCI 24 Marine Grade Finish Bollard Light, EXTREME-LIFE

$569.87

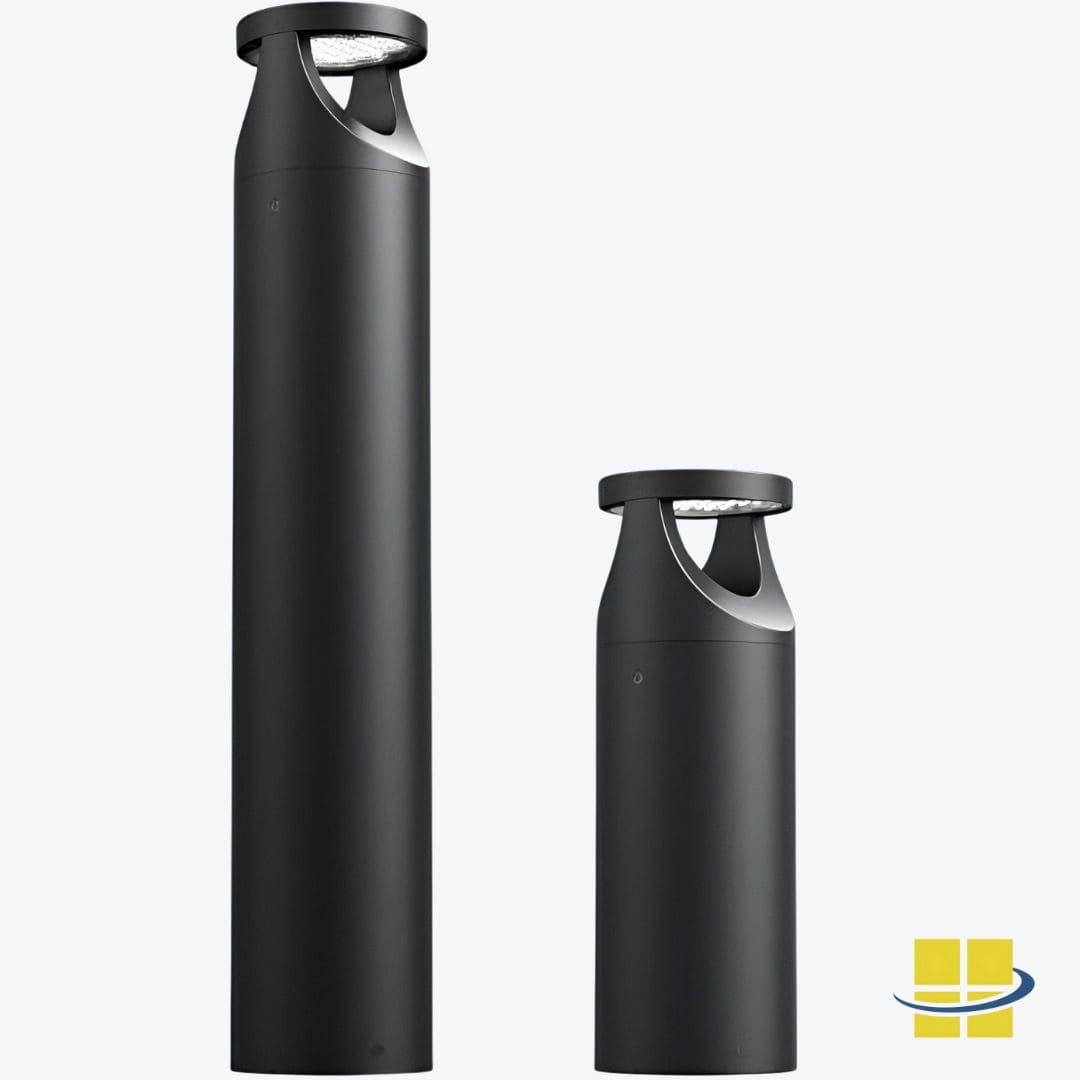

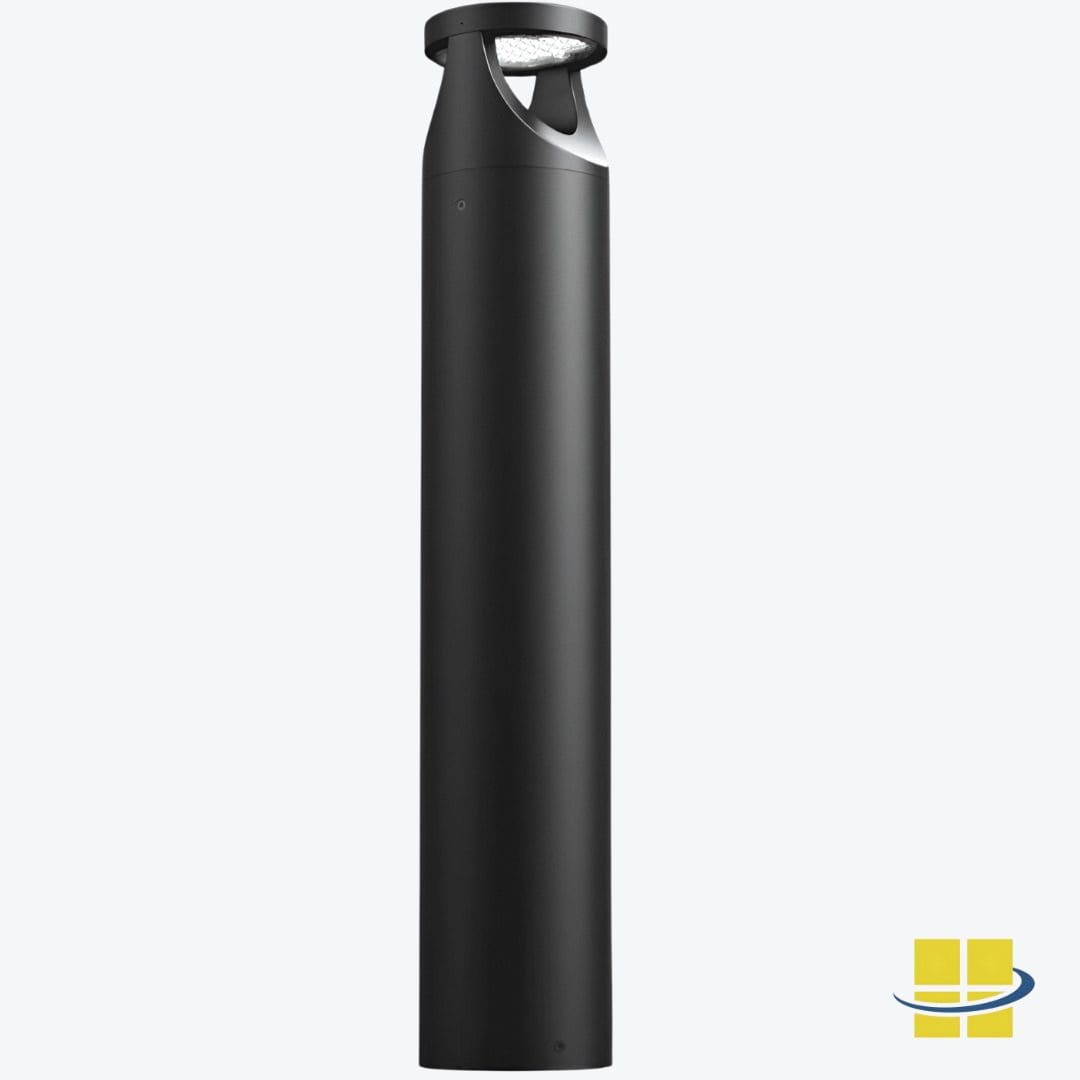

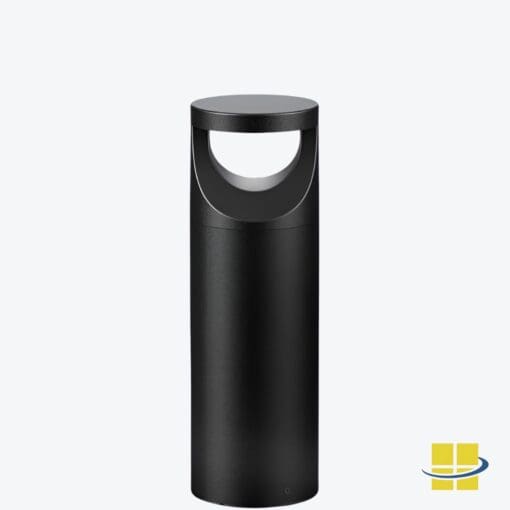

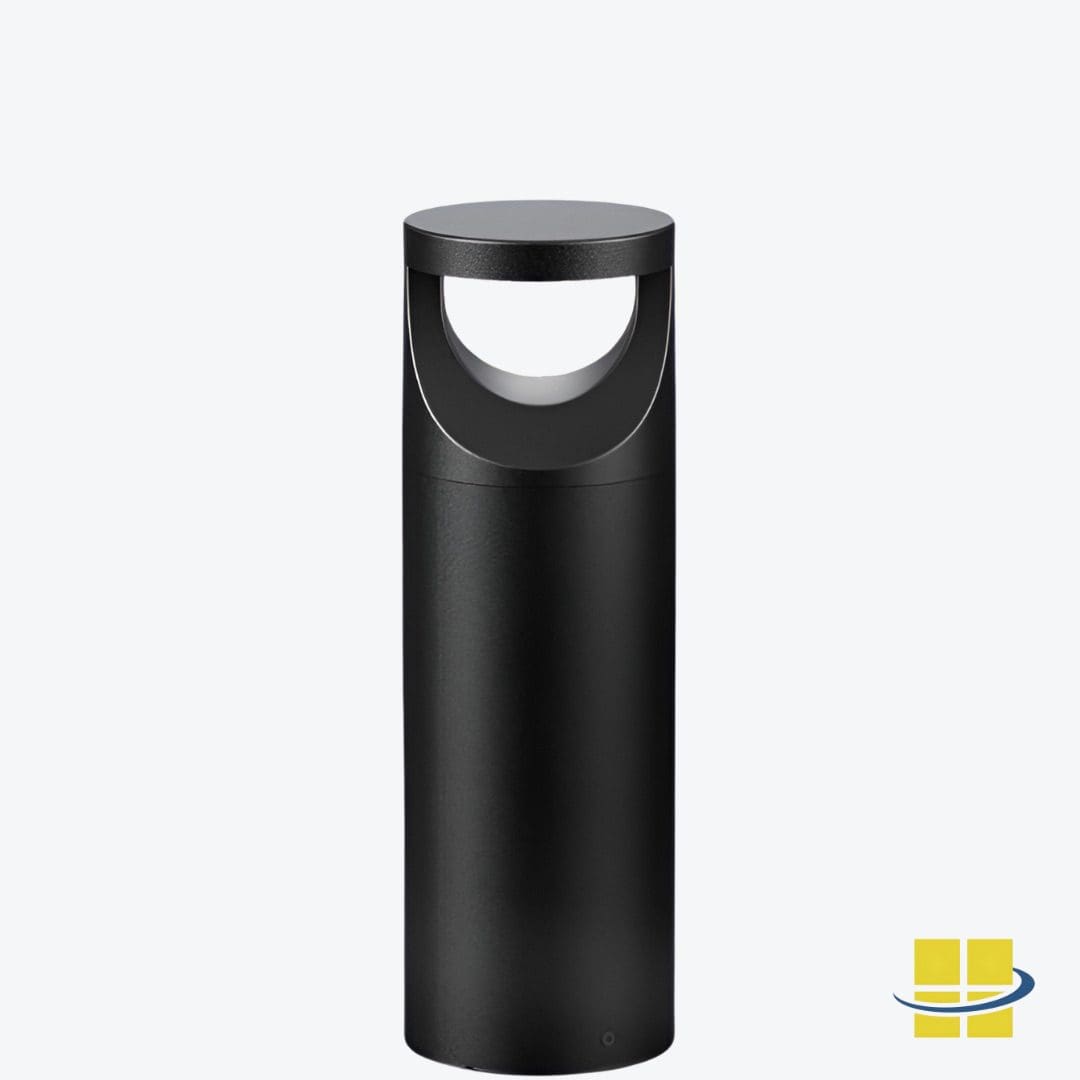

ARCI 24w LED Bollard Light, 19″, 35″ or 42″H, EXTREME LIFE, 120-277v is an LED bollard light standard with a Marine Grade Finish and an optional 120v GFCI outlet.

EXTREME-LIFE: This bollard light is L70 rated at over 120,000 hours for years of maintenance-free use.

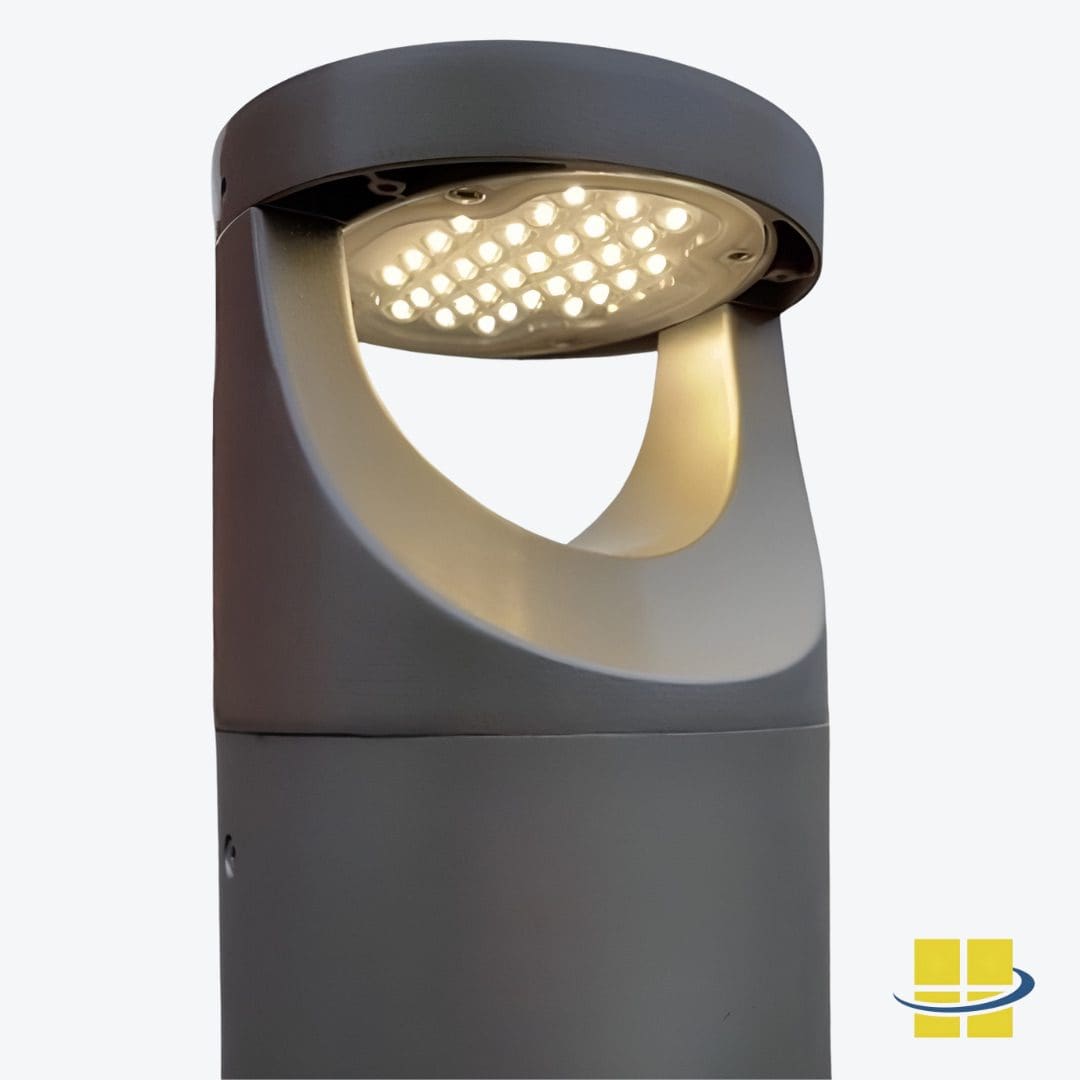

Durable Construction: ARCI has a die-cast aluminum head which protects a horizontally mounted shatterproof polycarbonate lens. It is IP66-rated.

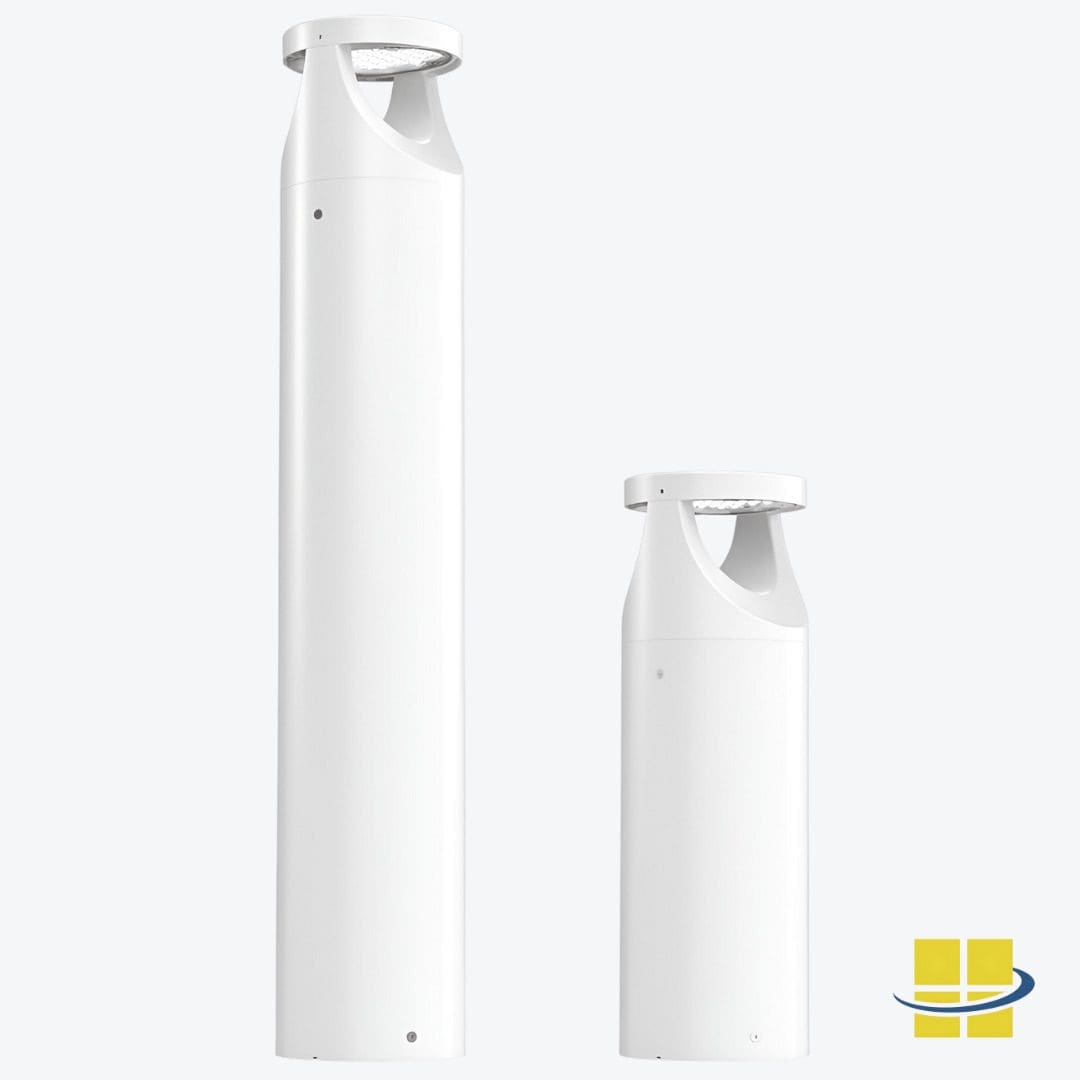

Marine Grade Finish: This bollard light is standard with a Black, White, Gray, or  Bronze Marine Grade Powdercoat finish for extra protection.

ARCI LED Bollard Light PDF

Questions? Contact a lighting specialist.



Call 800-468-9925

Lead Time: 4 to 6 Week Production, plus Shipping

In Stock

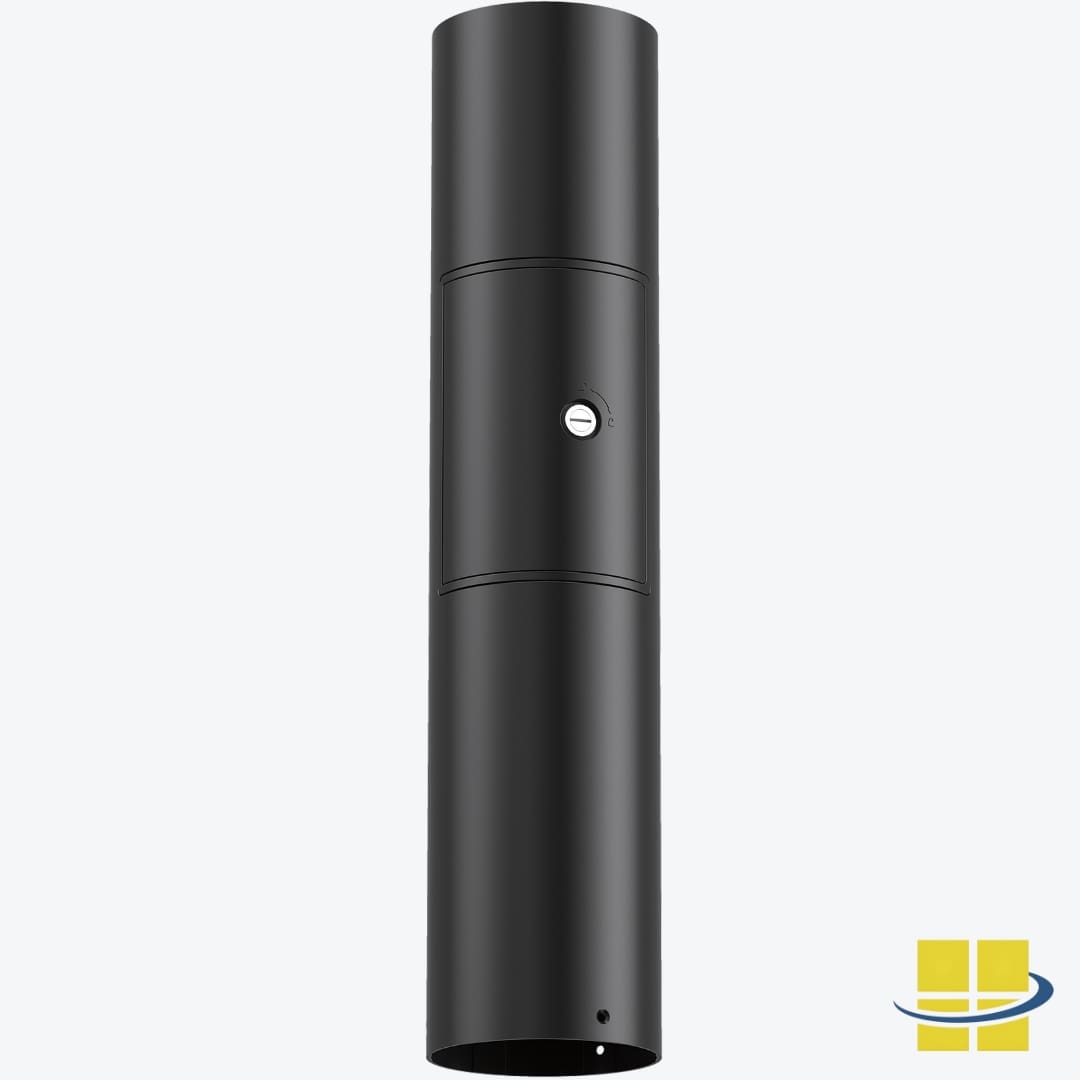

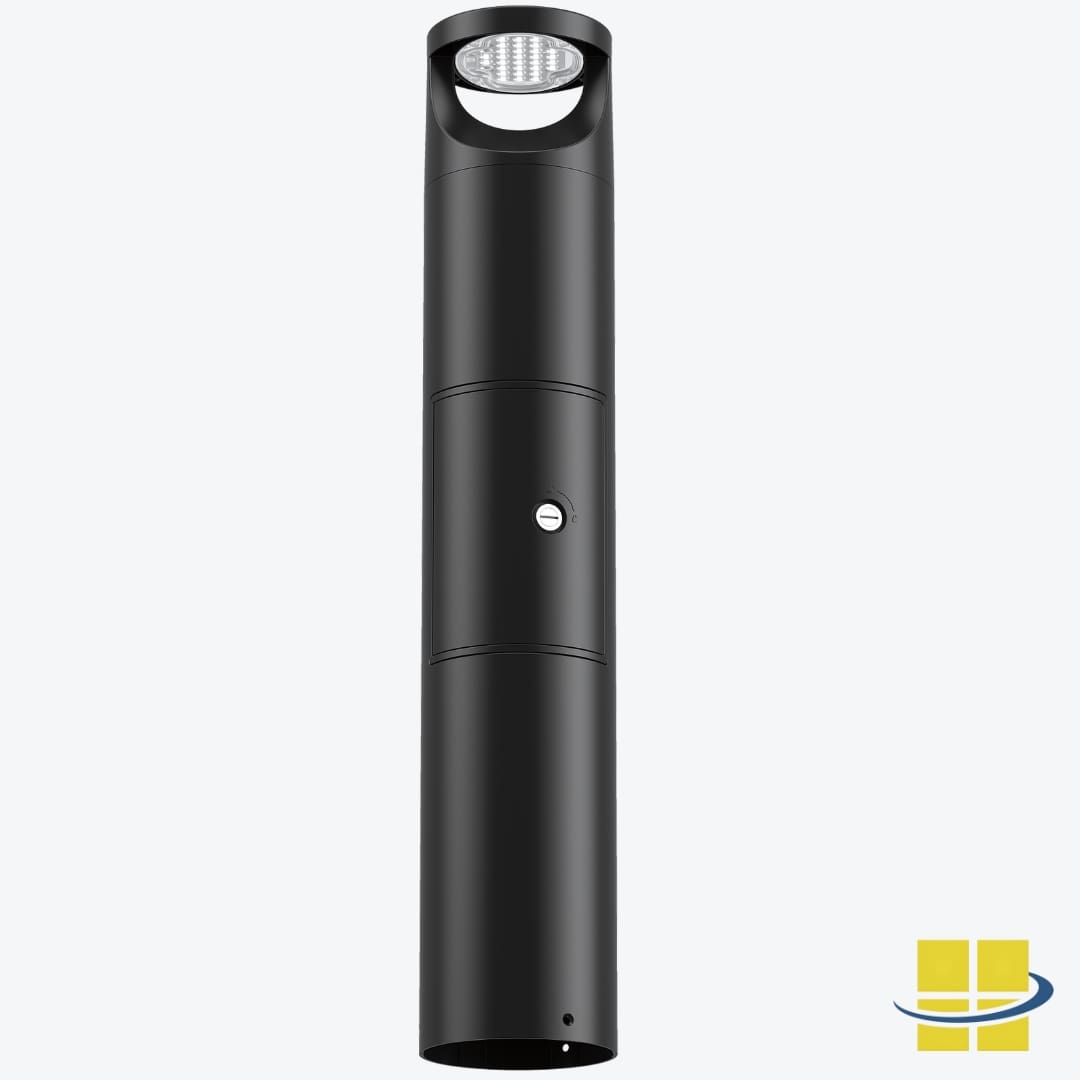

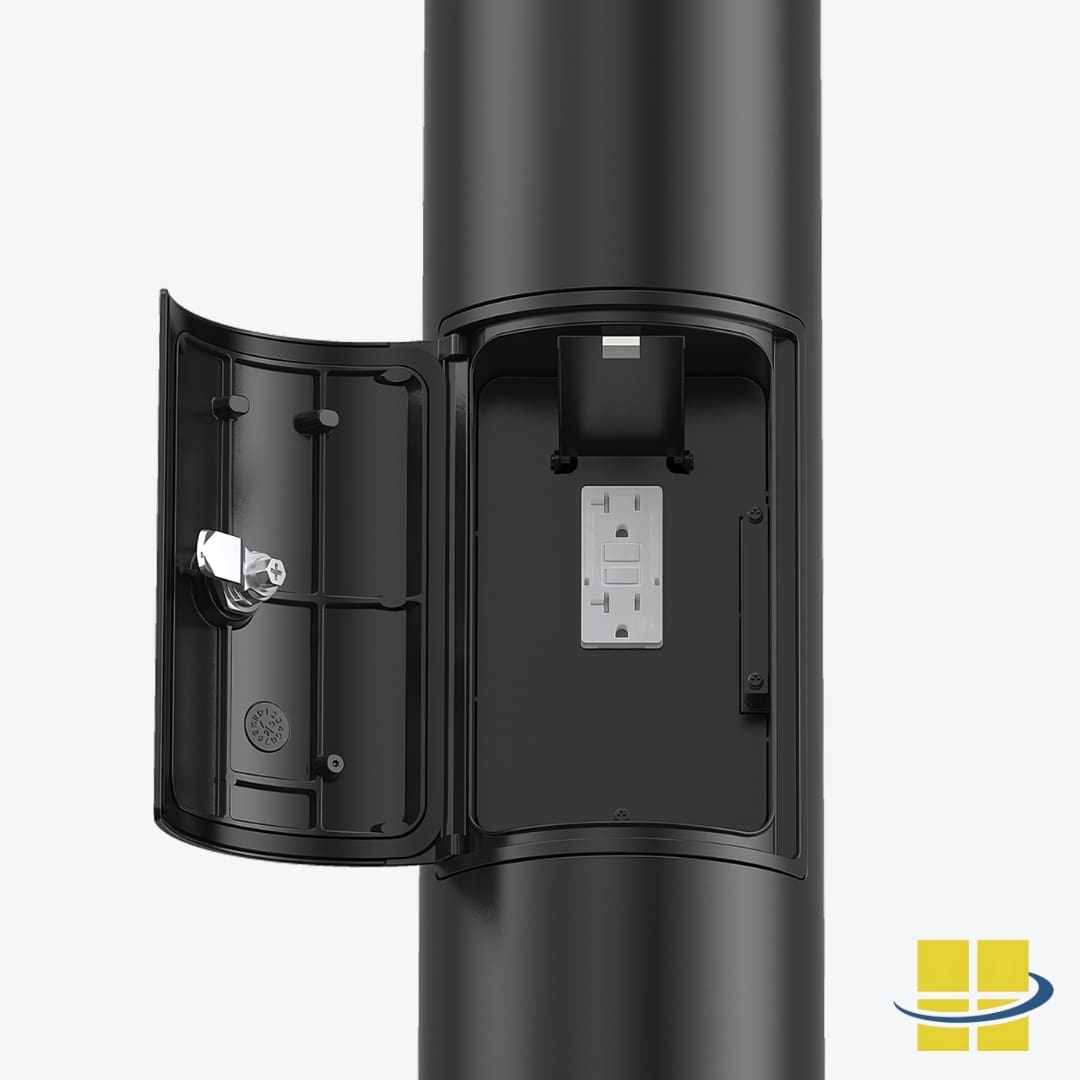

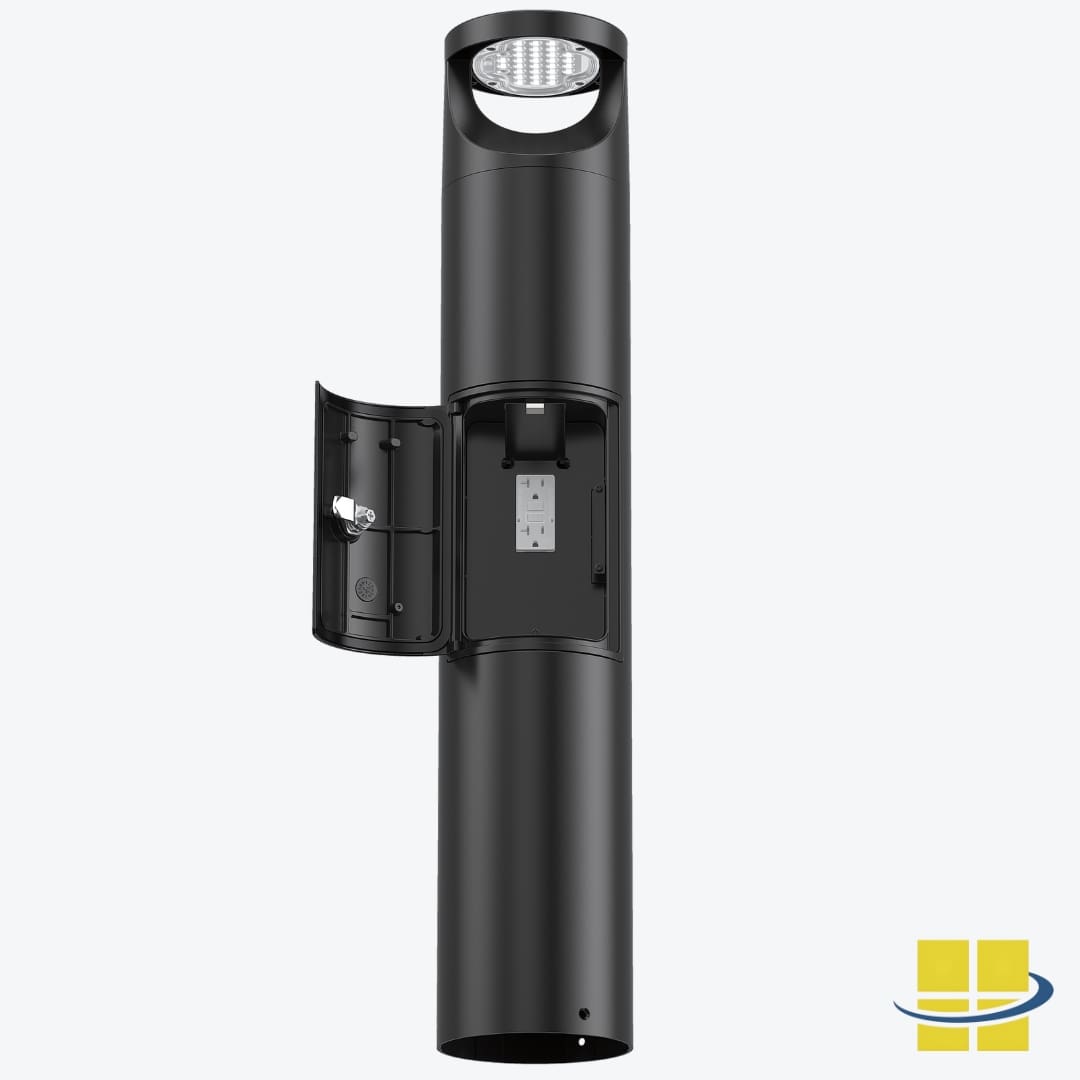

  • Please select this option if you would like the ARCI with a 120V GFCI outlet. This option is specifically for 120v configurations.
  • Select the color of the marine grade finish, MOQ may apply. Custom RAL colors are available with a mandatory MOQ of 50 pieces.
  • Type 5 optics are shown n the photometric study.
  • Select 19.6", 36" or 42" height.

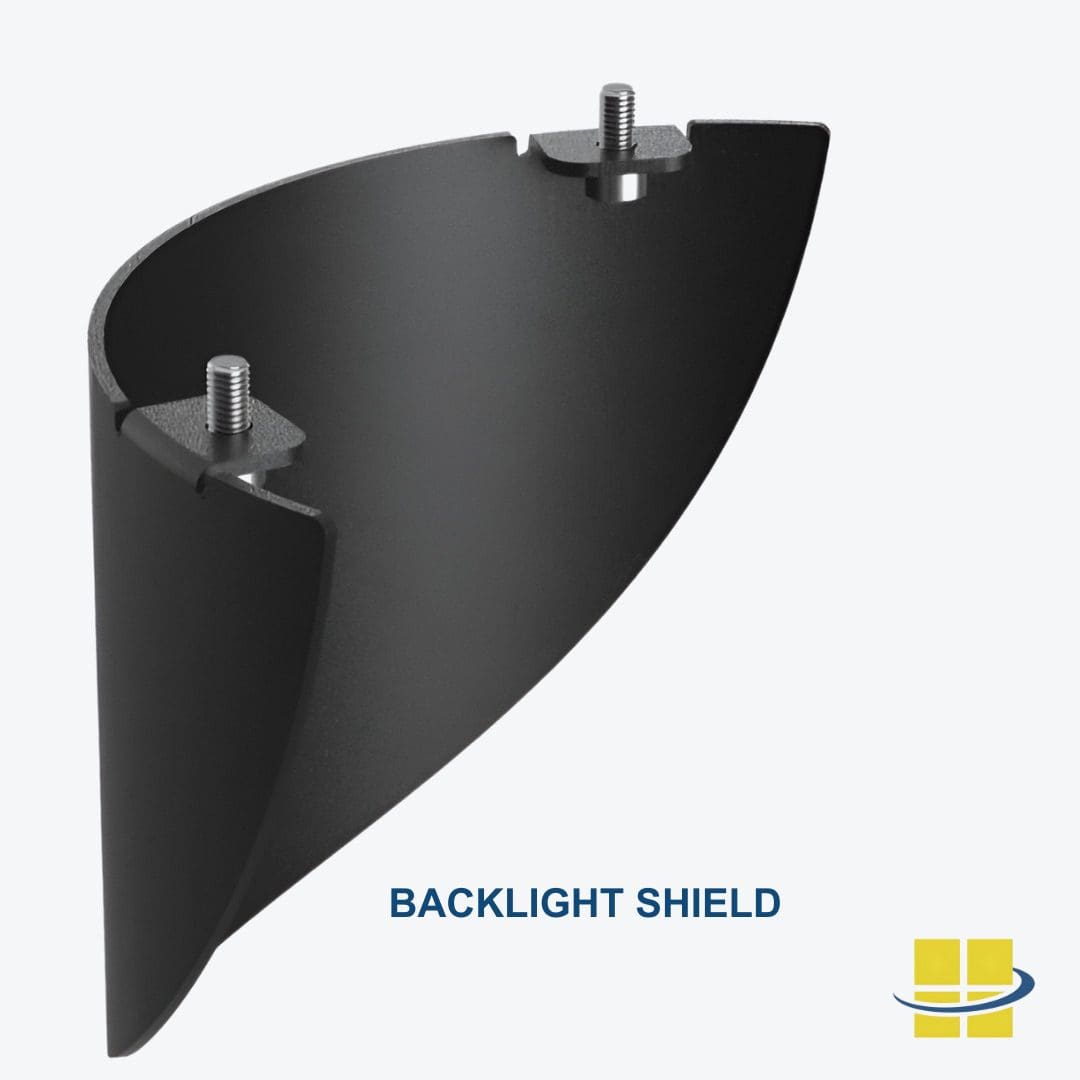

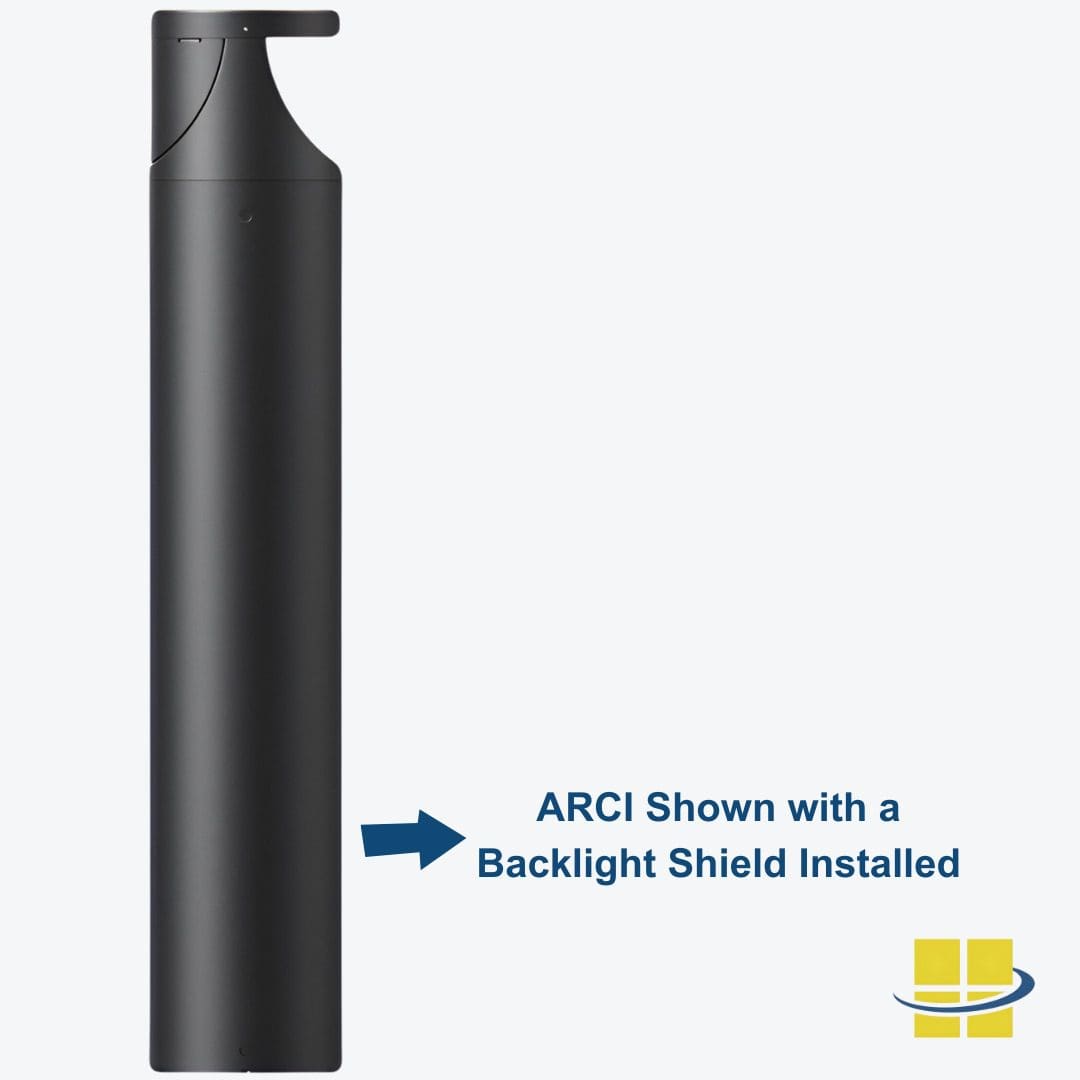

  • Backlight shield blocks light from emitting from the backside of the bollard light.
  • Recommended on islands or anyplace that has fluctuations in voltage. LED lights should never be on the same circuit as HID lights or machinery.

  • Total

SKU: AF59XELB-024*MarineGrade Categories: , , , ,

Specifications

Weight 25 lbs
Dimensions 40 × 11 × 11 in
Availability

4 to 6 Week Production, plus Shipping
Available Finishes

Black, Bronze, Gray, Marine Grade, White
BUG Rating

0, 0, 0
Housing

Die cast aluminum housing
Lens

Clear polycarbonate lens
Light Source

, , , ,

Light Source Included

LED Array Included
Light Source Lumens

1,920
Listings

IP66, RoHS Compliant, CuL Listed, DLC Listed, ETL Listed, UL Listed
Mounting

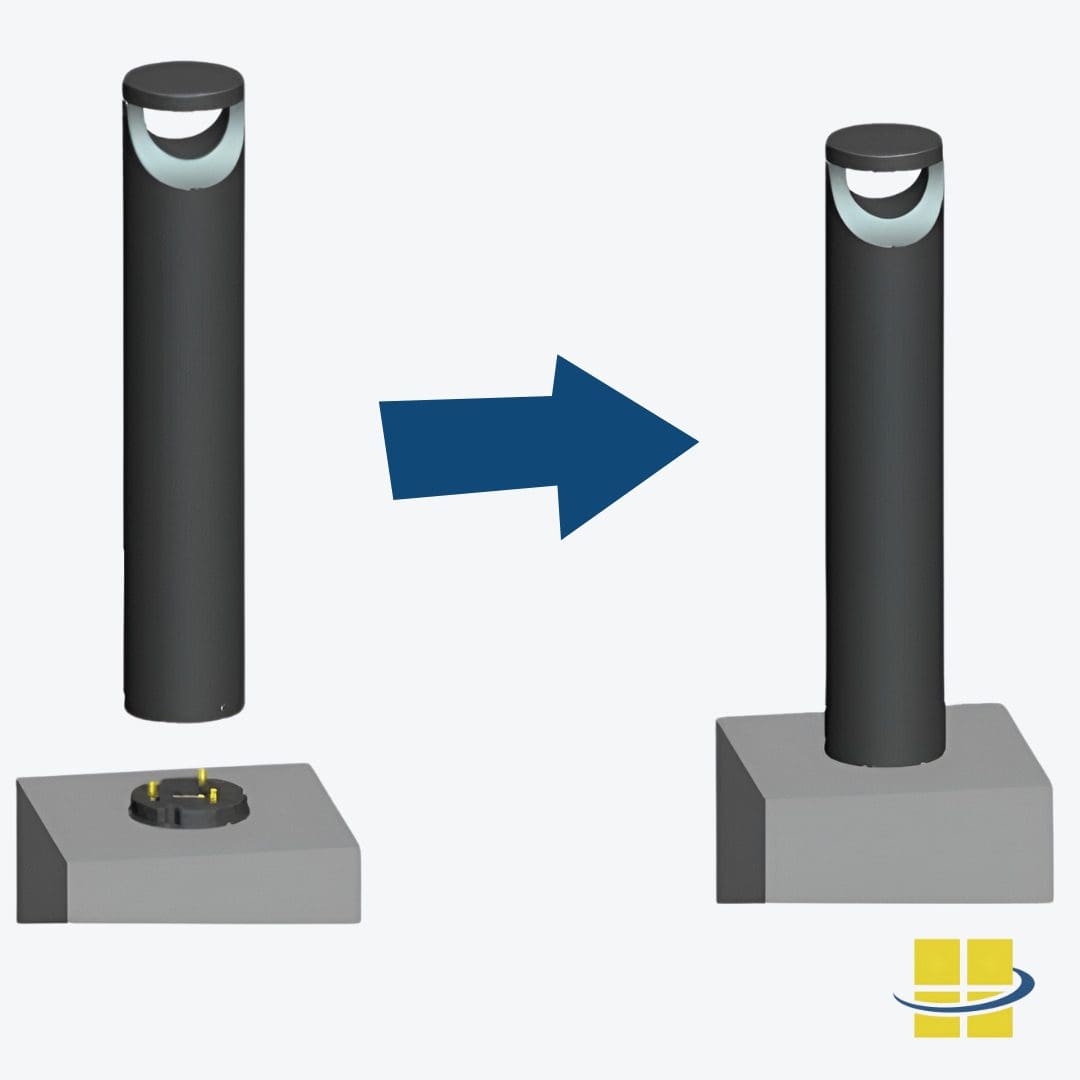

Mounting kit with anchor bolts Included.
Rated Life

120,000 Hours
Size

6.5"
Style

Open Top, Round Flat Top
System Watts

24
Voltage

120v, 208v, 240v, 277v
Warranty

5-Year Limited Warranty

Product Description

Features

  • 24 system watts
  • EXTREME-LIFE rated L70 @ 120,000 hours
  • UL, CuL, DLC, ETL, RoHS, CB, SAA listed
  • 80Ra
  • IP66-rated
  • BUG Rating: 0, 0, 0
  • Black, White, Gray, or  Bronze Marine Grade Powdercoat finish
  • Die-cast aluminum housing
  • Polycarbonate lens
  • -22°F to 122°F
  • 0-10v dimmable
  • 1,920 lumens
  • All mounting hardware including anchor bolts included
  • 6.5″ diameter

Options

  • 2200K, 2700k, 3000K, 4000K, or 5000K
  • Type III, Type IV, or Type V Optics
  • 19.7″, 35.43″, or 42″ height
  • Custom RAL colors available with MOQ
  • Surge protection
  • Backlight shield

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your ARCI 24 LED Marine Grade Finish Bollard Light Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
