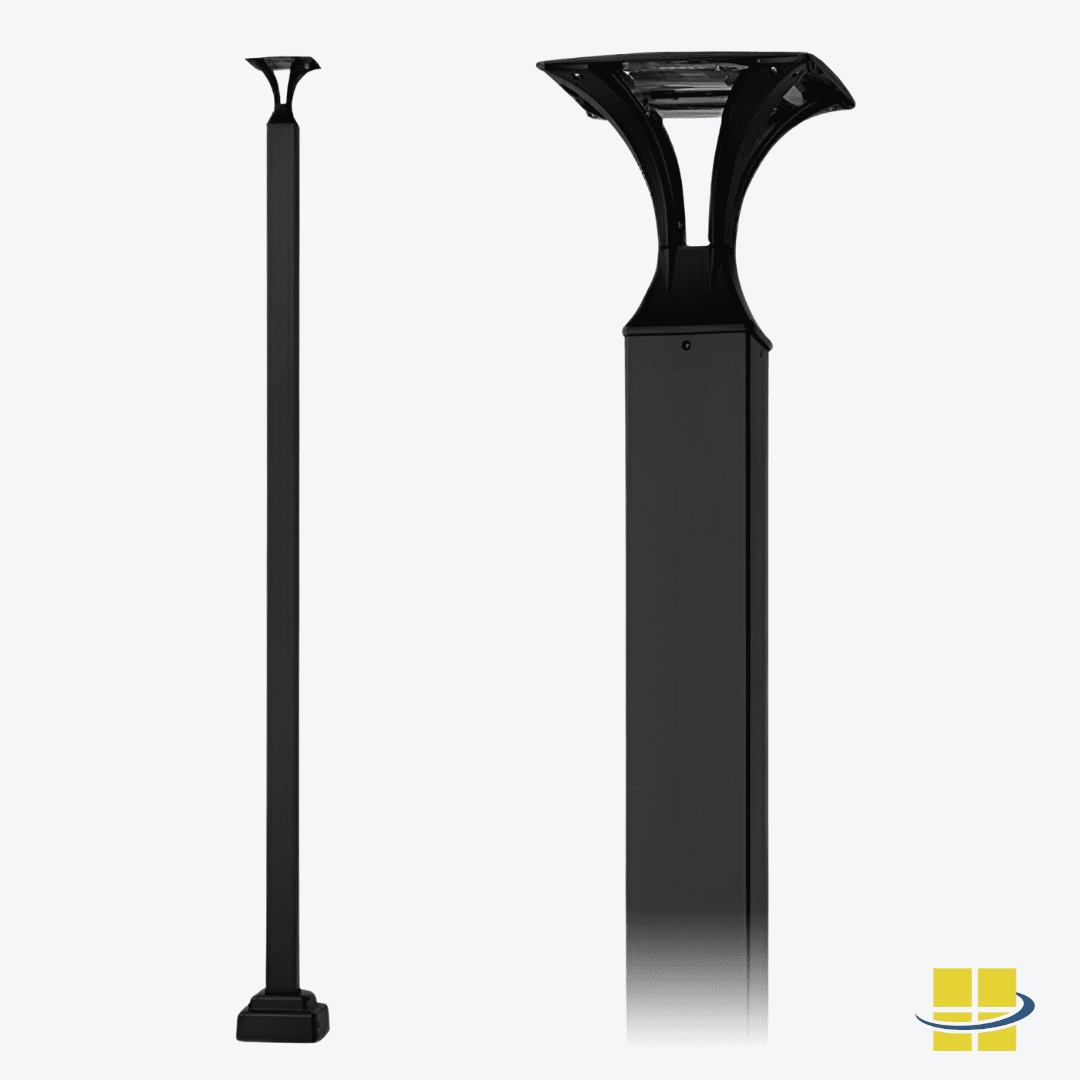

ATRI 18 EXTREME-LIFE Square Open Top LED Column Light, 120-277v

$3,329.87

The ATRI 18 Square Open Top LED Column Light is engineered to provide uniform illumination across expansive areas, eliminating the need for high mast lighting solutions.

EXTREME-LIFE:  With an L70 rating at 187,000 hours, this LED column light guarantees extensive and trouble-free operation for numerous years.

Rugged and Durable: The ATRI column lights boast an IP66 rating, ensuring suitability for commercial and industrial use cases.

Broad OPTICS: This column light provides broad Type V illumination, evenly dispersing light across a wide area.

Buy American Act Compliant

Lead Time: 7 to 10 Day Production, plus Shipping

In Stock

ATRI Tall Column Light

  • Select standard 12' column light height. Optional height is 10" or 8". For custom height speak with an Access Fixtures Lighting Specialist.
  • Total

Specifications

Weight 19 lbs

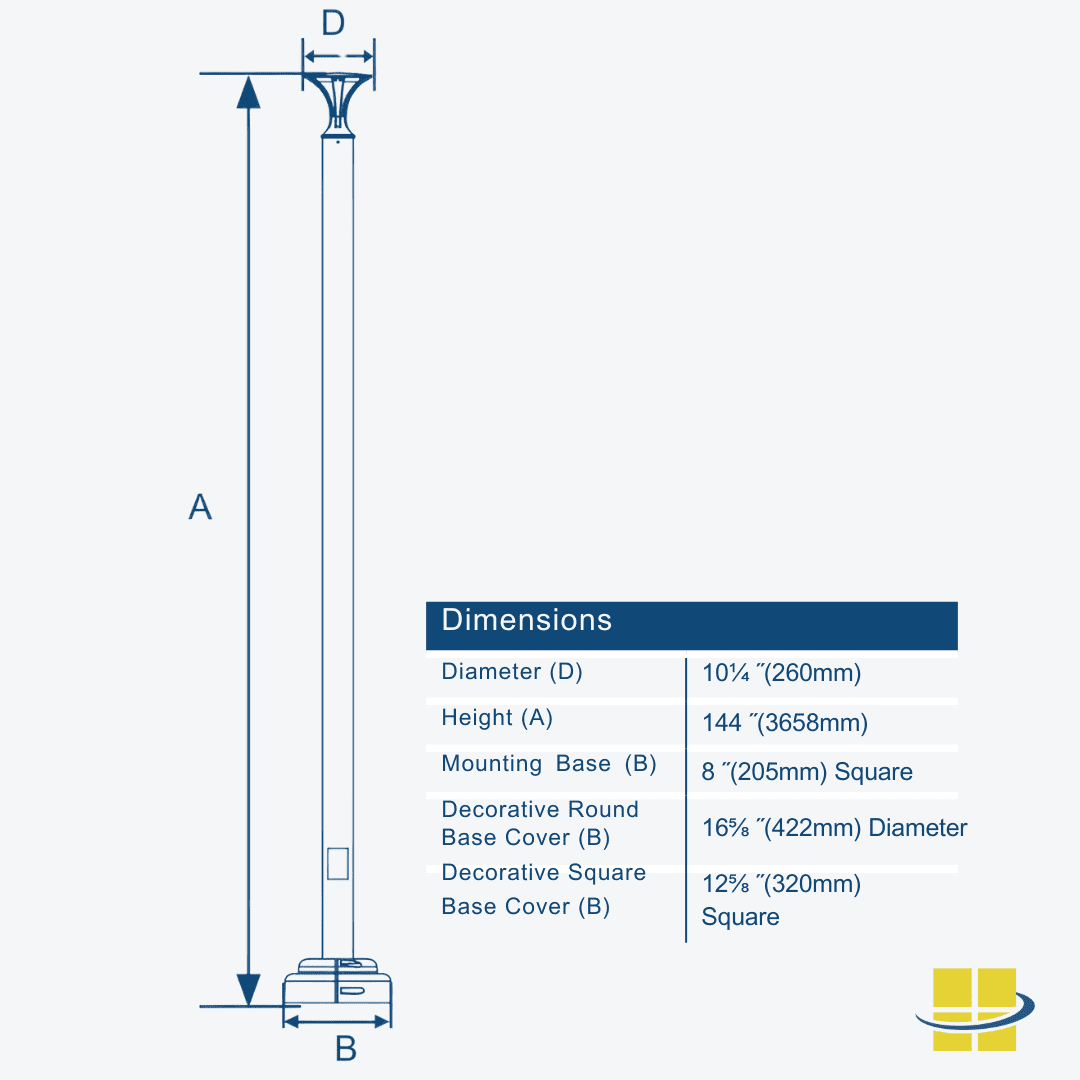

Dimensions 43.125 × 10.25 × 4.75 in
Availability

7 to 10 Day Production, plus Shipping

Available Finishes

Black

BUG Rating

1, 2, 1

Housing

Die cast aluminum housing

Lens

Clear polycarbonate lens, Opalescent polycarbonate diffuser lens

Light Source

, ,

Light Source Included

LED Array Included

Light Source Lumens

1,813

Listings

CSA – listed for wet Locations, IP66, ANSI/UL 1598, 8750

Mounting

Mounting kit with anchor bolts Included.

Product Family

ATRI

Rated Life

187,000 Hours

Size

5"

Style

Open Top, Square

System Watts

18

Voltage

120v, 208v, 240v, 277v

Warranty

5-Year Limited Warranty

Product Description

Features

  • 18w integrated LED array
  • Dimmable 0-10v
  • 120v-277v
  • Up to 1,813 lumens
  • L70 rated at 187,000 hours
  • Sturdy die-cast aluminum housing
  • 8″ anchor bolts, mounting templates included
  • BUG Rating: 1, 2,1
  • 12′ tall
  • IP66-rated
  • Black powdercoat finish
  • Type V Optics

Options

  • Choice of 3000K, 4000K, or 5000K
  • Optional base cover
  • Clear or opalescent lens
  • Standard height or custom height
  • Choice of shipping anchor bolts ahead of time or with bollard light
