Solar LED wall pack Sign and Billboard Light
BILI Solar LED Sign Light

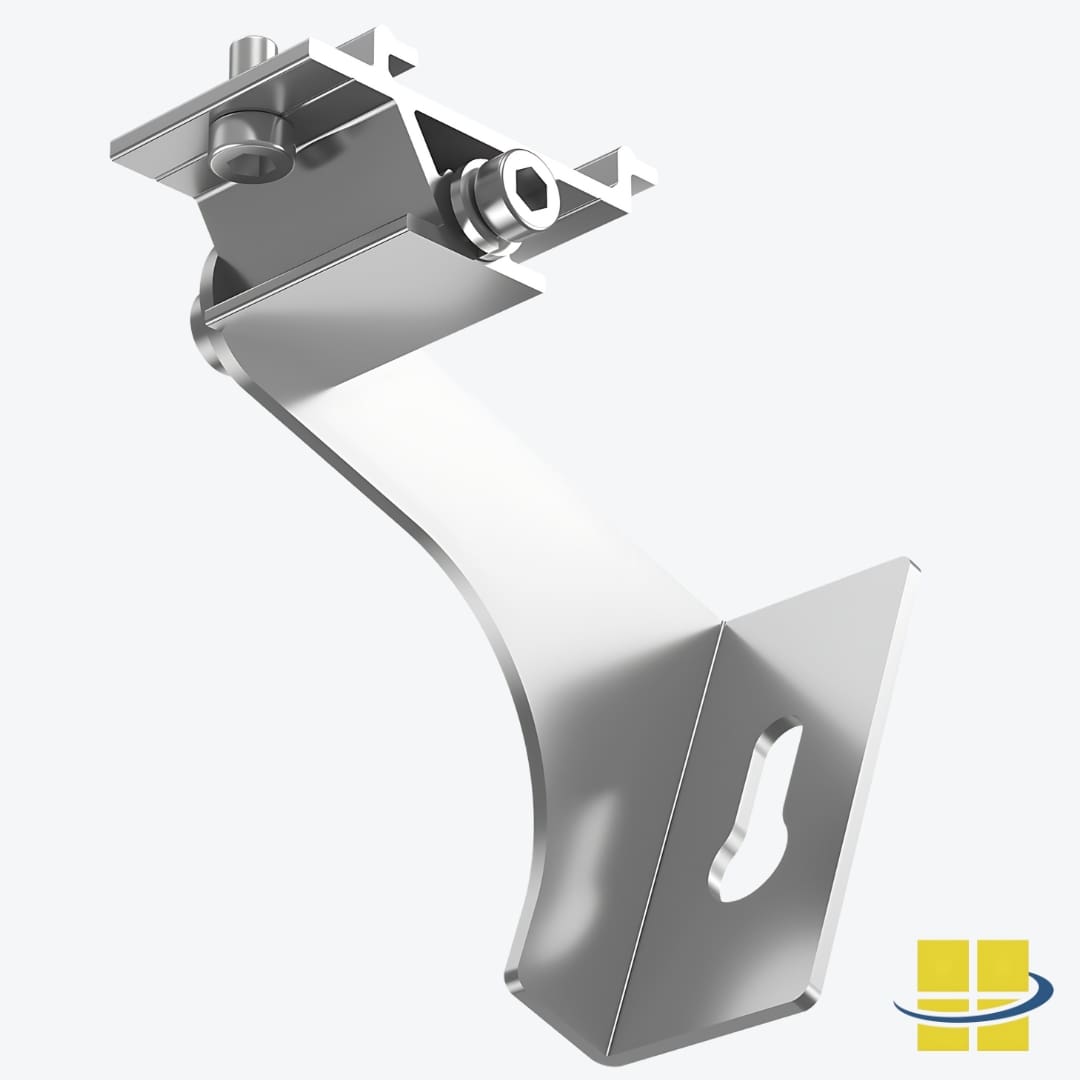

BILI solar sign light mounting bracket
Solar LED wall pack Sign and Billboard Light

BILI 5 Solar LED Sign Light

$299.87

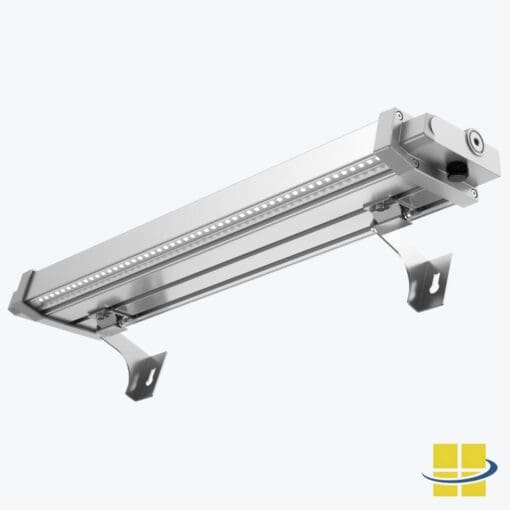

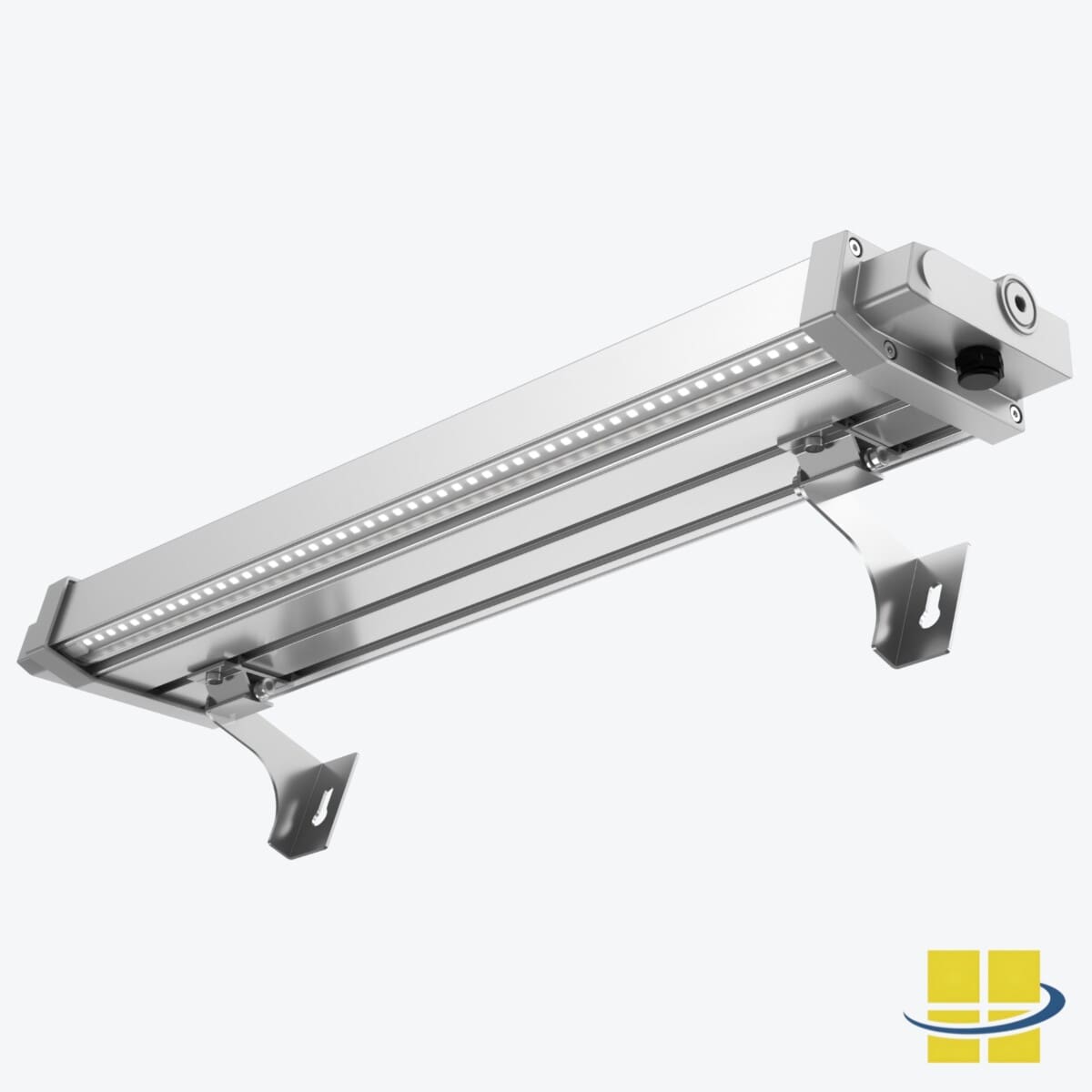

The BILI 5 is a solar-powered sign light designed to be mounted at the top of signs, reducing uplight and light pollution. With no need for external power, BILI efficiently illuminates entrance signs, wall-mounted signs, post-mounted signs, or billboards without costly electric bills. It comes with a standard bracket mount for easy attachment, allowing you to bolt it to the top of the sign and tilt it to direct the LED light exactly where it’s needed.

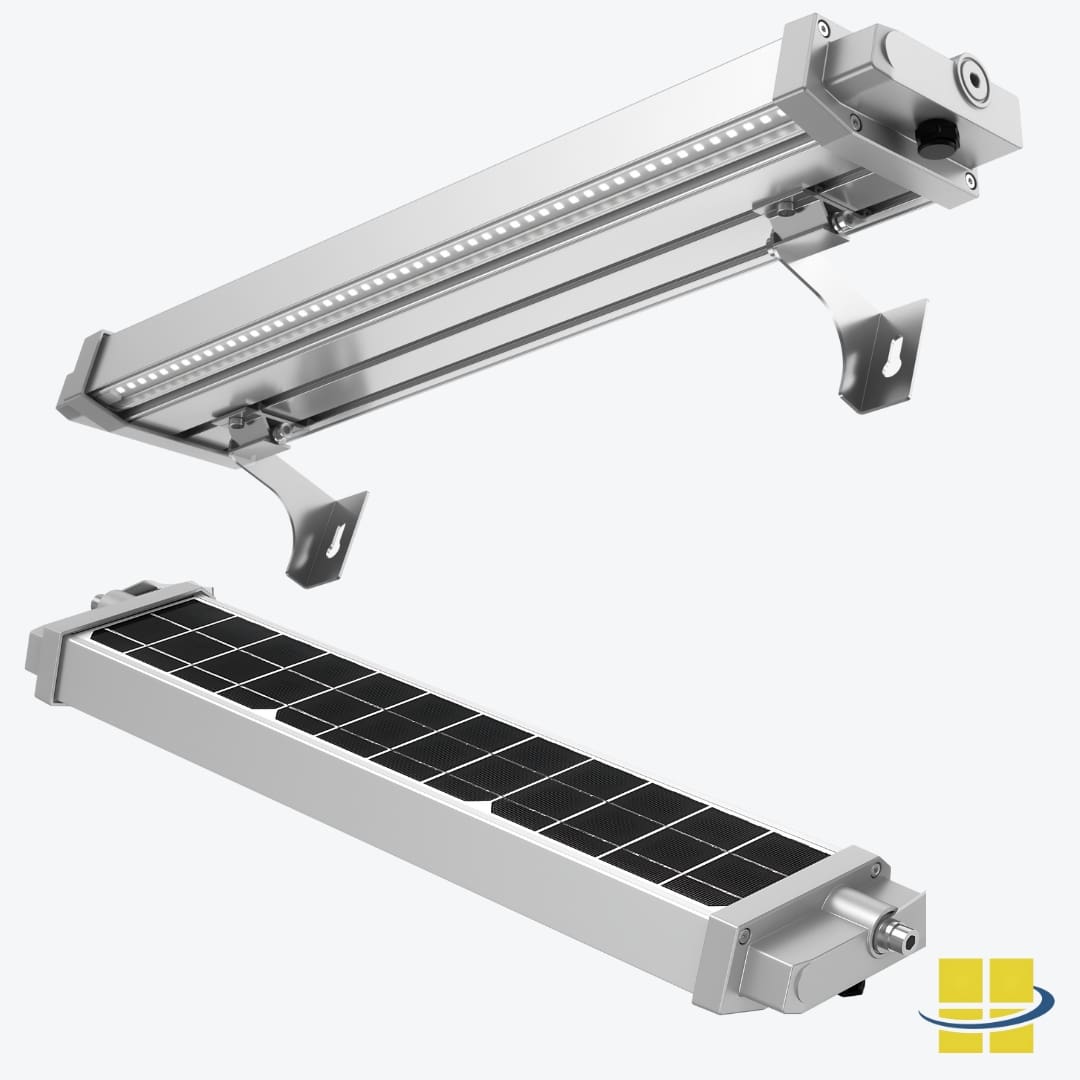

Versatile Illumination: With the solar panel on top, LEDs on the bottom, and a low-profile linear design, BILI is designed to emit the light down or down and out reducing uplight. Use the advanced rotatable mount to pivot BILI directing the light onto the sign for superb sign illumination.

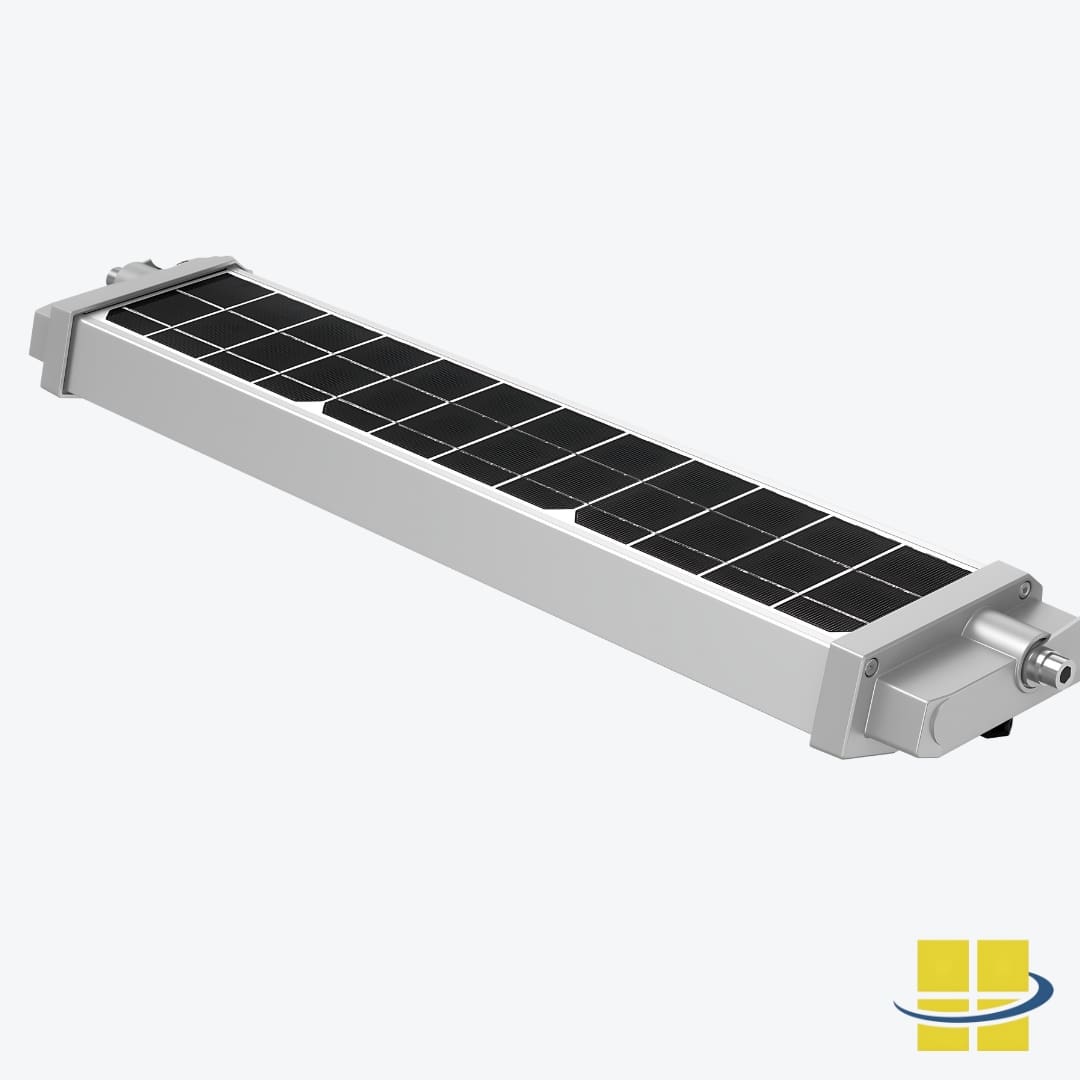

Sustainable Illumination: With a mono-crystalline photovoltaic solar panel on top and a long-life LiFeP04 battery, BILI sign lights provide sustainable and reliable off-grid illumination, reducing your facility’s carbon footprint.  Just 4 hours of charging each day ensures uninterrupted nighttime off-grid illumination.

Durable Illumination: BILI features an aluminum alloy body, a long-life LiFeP04 battery designed for 3,000 to 5,000 DOD cycles, LEDs with an L70 rating of 270,000 hours, an IP66 rated water resistance against powerful jet water sprays ensuring EXTREME-LIFE and consistent lighting quality throughout the fixture’s lifespan.

In Stock

  • Total

SKU: AF59XFL65-005-SL Categories: , , , , , , ,

Specifications

Weight 4.41 lbs
Dimensions 23.5 × 5.00 × 2.09 in
System Watts

5w
Availability

6 to 8 Week Production, plus Shipping
Application

, ,

Available Finishes

Silver (RAL9006)
Housing

Powdercoat finish, Alluminum Alloy
Lens

Polycarbonate Optical Lens
Light Source

, ,

Light Source Included

LED 2835
Light Source Lumens

850lm
Listings

IP66, C3 (ISO 9223:2012)
Mounting

Rotatable Mounting Bracket
Rated Life

270,000 hrs
Warranty

5-Year Limited Warranty

Product Description

Optic Information

  • LED Type: LED 2835
  • Luminous Flux (lm): Up to 850 lm
  • Efficacy (lm/W): Up to 170 lm/w
  • Correlated Color Temperature: 3000K, 4000K and 5000K
  • Color Rendering Index: Ra70
  • Beam Angle: (F00C66)100° (This Beam Angle is used for Sign Lighting applications) and  (F00165 + F00C66) 100° + 65° (This Beam Angle is our unique optic lens for Billboard Applications).
  • UGR Level: N/A

Electrical Information

  • Model No.: AF59XFL65-005
  • Power Consumption (W): 5w
  • Battery: LiFePO4 Battery
  • Battery Capacity (WH): 23.04
  • Solar Panel: Mono-crystalline
  • Solar Panel Wattage (W): 7.5
  • Charging Time (Hours): 3.6
  • Operating Time: Intelligent mode: 1 day
  • Solar Charge Controller: Pulse Width Modulation (PWM)

Dimensions and Mount

  • Mounting Option: Moveable Mounting Bracket (AFBC-F65-02)

Material

  • Fixture Material: Aluminum alloy
  • Optical Lens Material: Polycarbonate Lens
  • Finish: Powder coating
  • Fixture Color: Silver (RAL9006)
  • E P A(m²): 0.08

Protection Ratings

  • IK Rating: N/A
  • IP Rating: IP66
  • Category of Corrosion: C3 (ISO 9223:2012)

Lifespan and Warranty

  • Lifespan of LED @Ta=25°C (hours): L70 @ 270,000 hours

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your WULI 5w LED Solar Sign Light?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order your WULI 5w LED Solar Sign Light or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
