CARA 111w LED Area/Wall/Flood, Mounting Options, EXTREME-LIFE

Product Description

Features

• 99w, 111w, 133w, 167w, 183w, 199w, 225w, or 256w
• 3000K, 4000K, 5000K
• Type I
  • 4000K: 14,386 lumens
  • 5000K: 14,946 lumens
    • BUG rating: 3, 0, 2
• Type II
  • 4000K: 13,724 lumens
  • 5000K: 14,259 lumens
    • BUG rating: 2, 0, 2
• Type III
  • 3000K: 14,489 lumens
  • 4000K: 15,076 lumens
  • 5000K: 15,664 lumens
    • BUG rating: 3, 0, 3
• Type IV
  • 4000K: 15,282 lumens
  • 5000K: 15,877 lumens
    • BUG rating: 3, 0, 3
• Type V
  • 3000K: 13,821 lumens
  • 4000K: 14,381 lumens
  • 5000K: 14,941 lumens
    • BUG rating: 3, 0, 1
• 30° narrow beam
  • 5000K: 16,059 lumens
• Choice of Finish: Bronze or custom RAL colors available upon request
• Shielded IES Type V distribution
• Die-cast aluminum housing and front frame
• Integral heat sinking and driver compartment
• Photocell Adaptable
• Nickel-plated stainless steel hardware
• CSA listed for wet locations
• IP66 sealed LED compartment
• Textured architectural bronze powdercoat finish over a chromate conversion coating
• Tempered clear flat glass lens

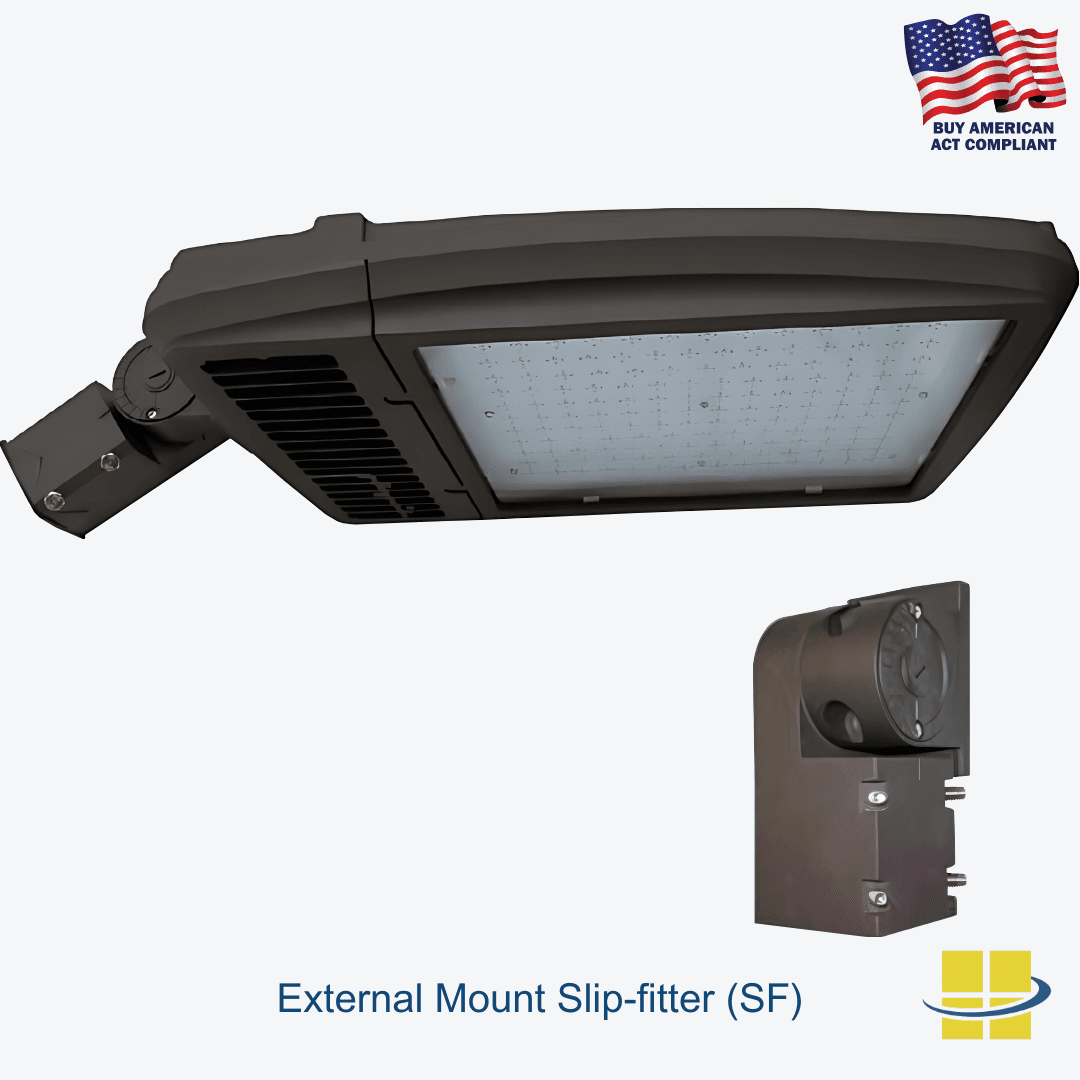

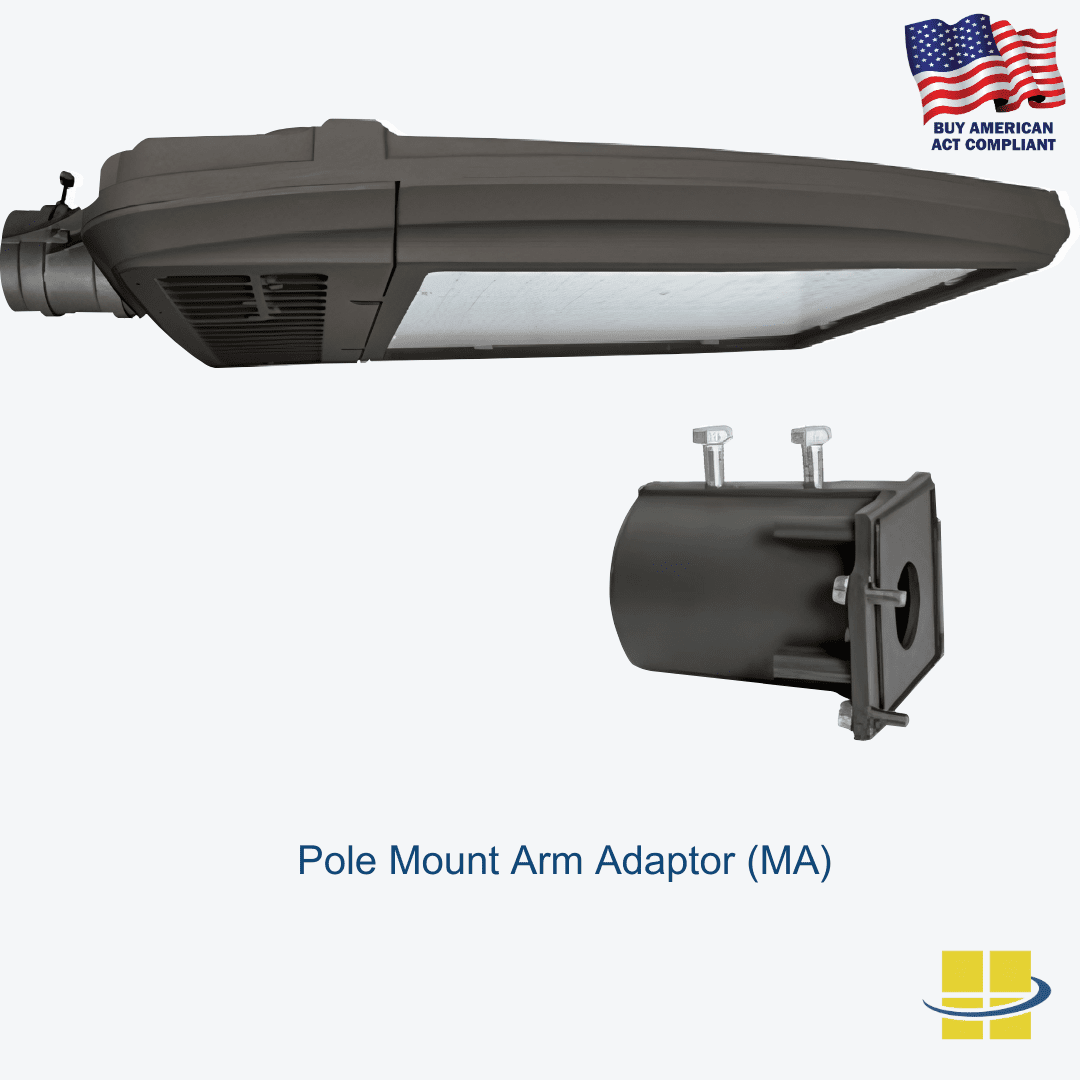

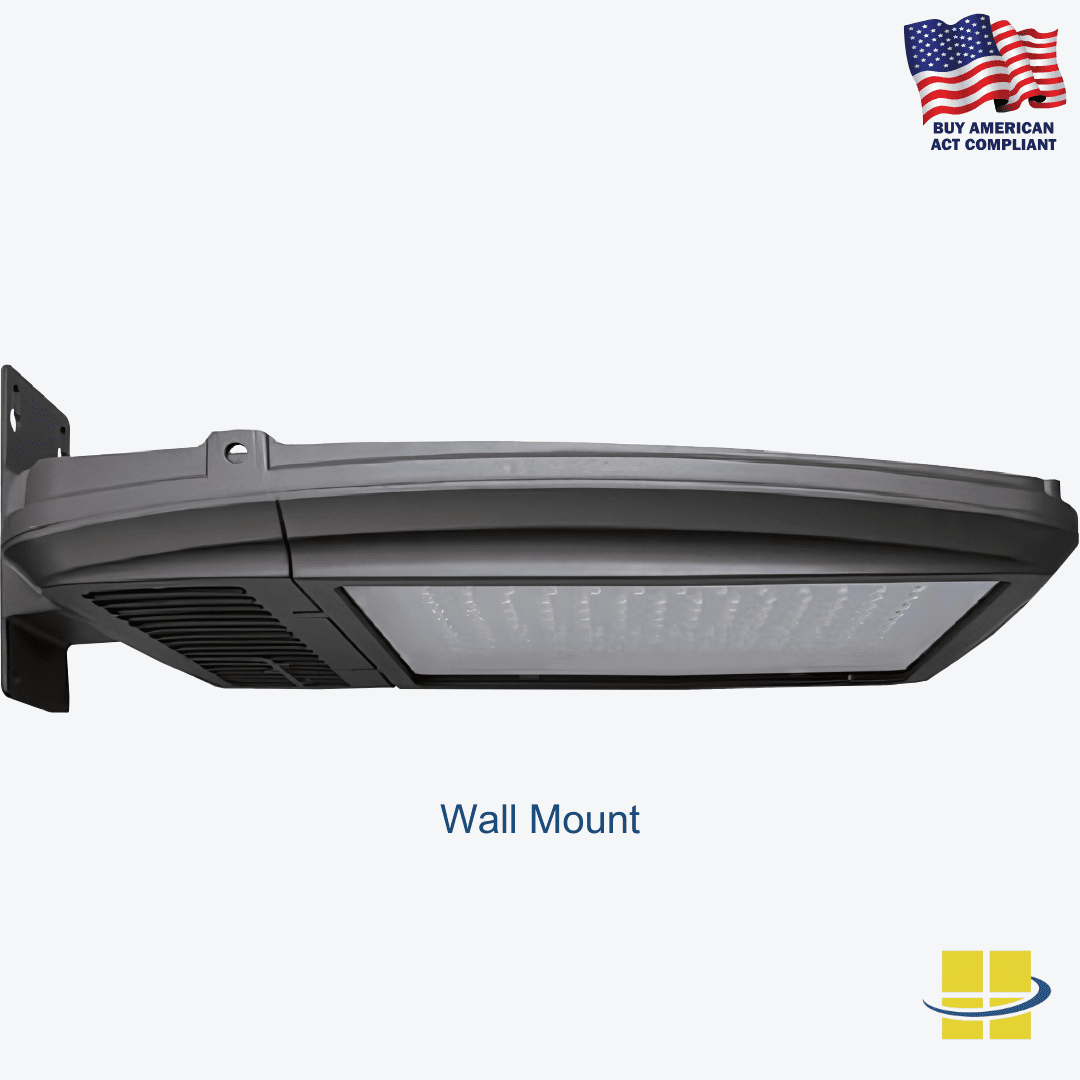

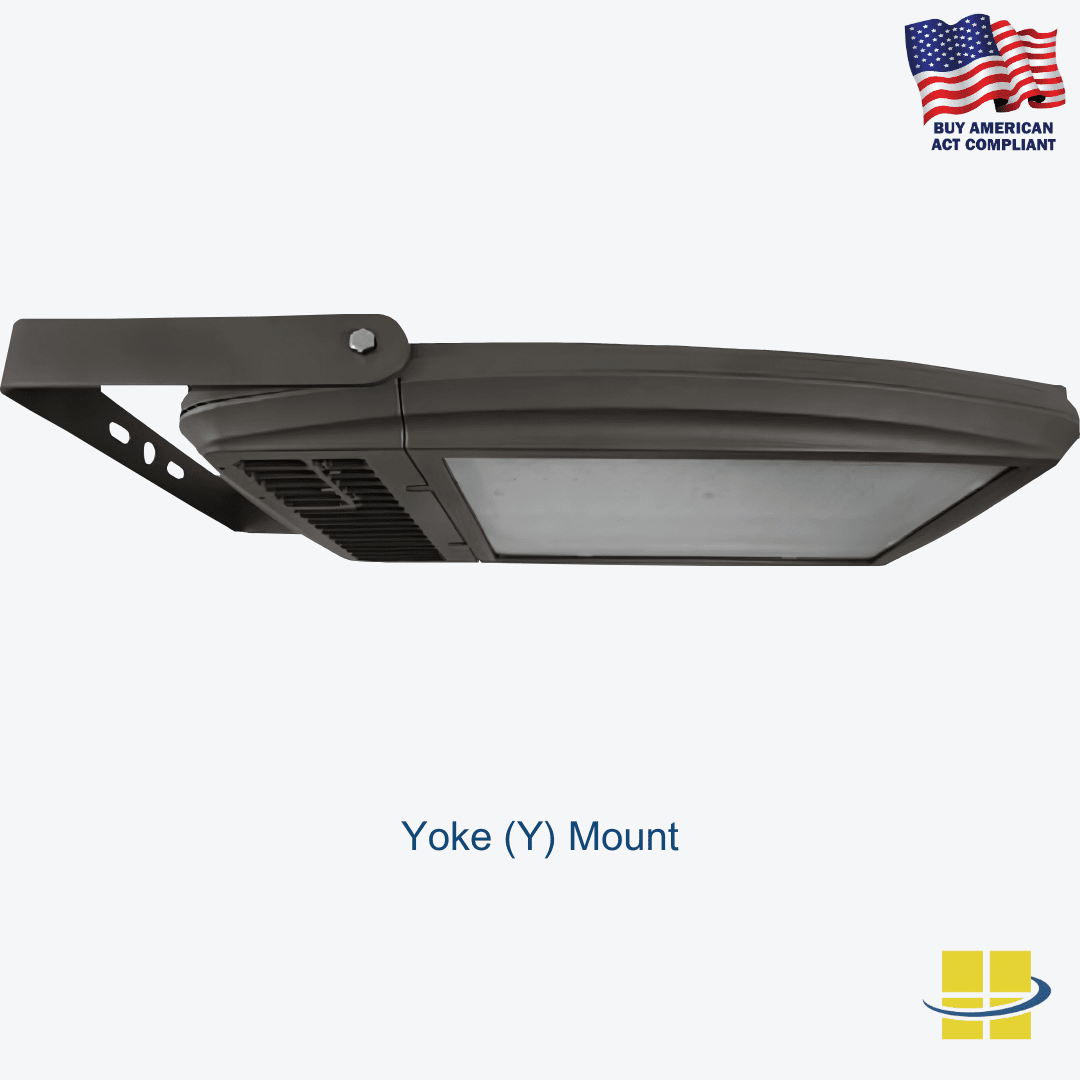

• Mounted with arm, adjustable slip fitter, 2⅜˝ Diameter Mounting Arm Adapter, yoke, or Easy Hang Wall Bracket (factory Installed)
• Electronic driver
• 120-277v, 347-480v
• 120-277VAC 10KA Surge Suppressor
• 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps
• Operating temperature: -40°C~+50°C environment

Options

• Choice of Finish: Bronze or custom RAL colors available upon request
• Motion sensors available for heights of 20′ – 35′ or 18f’ or less
• Photocell Adaptable
  • 120-277VAC Universal Twist Lock Photocell
  • 3-Pin Twist Lock Photocell Receptacle
  • 5-Pin Twist Lock Photocell Receptacle
  • 7-Pin ANSI C136.41—2013 Twist Lock Photocell Receptacle
• Aluminum glare shield
• Microwave motion sensor
  • Motion Sensor IR with Lens, 120-277V Only, for heights up to 40′
  • Motion Sensor IR with Lens, 120-277V Only, for heights up to 20′
  • Microwave Sensor with Dimming, 120-277V Only
  • Microwave On/Off Motion Sensor – NO Dimming, 120-277V Only
  • Internal Microwave Sensor with Dimming, 120-277V Only
  • Internal Microwave On/Off Motion Sensor – NO DIMMING, 120-277V Only
• 120-277VAC 10KA Surge Suppressor
• 347-480VAC 10KA Surge Suppressor
• Round Pole Adapter. Fits 4″ or 6″ O.D. Round Poles
• Die-Cast Wall Mount Adaptor
• Opal lens diffuser
• Prismatic diffuser lens
• Glare shield
