CARA 136w LED Area/Wall/Flood, Mounting Options, EXTREME-LIFE

$789.87

CARA LED Area/Flood/Wall lights are designed and manufactured to function as the perfect commercial lighting solution for those who need durable, reliable, long-lasting fixtures. CARA is available with a wide selection of mounting configurations and options to ensure you find the best solution for your space.

Premium Build: EXTREME-LIFE L70 @ 320,000 hours, IP66 rated against water jets, and die-cast aluminum housing for maximum life, durability, and years of virtually maintenance-free performance.

Optics & Lens: Choose standard optics, or 30° narrow beam optics to provide the light you need where you want it. Select the standard clear flat glass lens or opal diffuser lens.

Multiple Mounting Options: This fixture comes with several mounting solutions such as an arm-mount, easy-hang wall bracket mount, slipfitter mount, and knuckle mounting options.


Buy American Act Compliant

Lead Time: 7 to 10 Day Production, plus Shipping

In Stock

  • Maximize energy savings and the life of the lights by adding a motion sensor with IR Lens
  • Adding a photocell prevents the need to manually turn on/off your area/spot/flood lights when it gets dark.
  • Adding surge protection protects your light from unwanted power spikes that can damage the fixture
  • Reduces glare and limits spill light

  • Total

SKU: AF33XKH45Q*1X136 Categories: , , , , , , , ,

Specifications

Weight 12 lbs

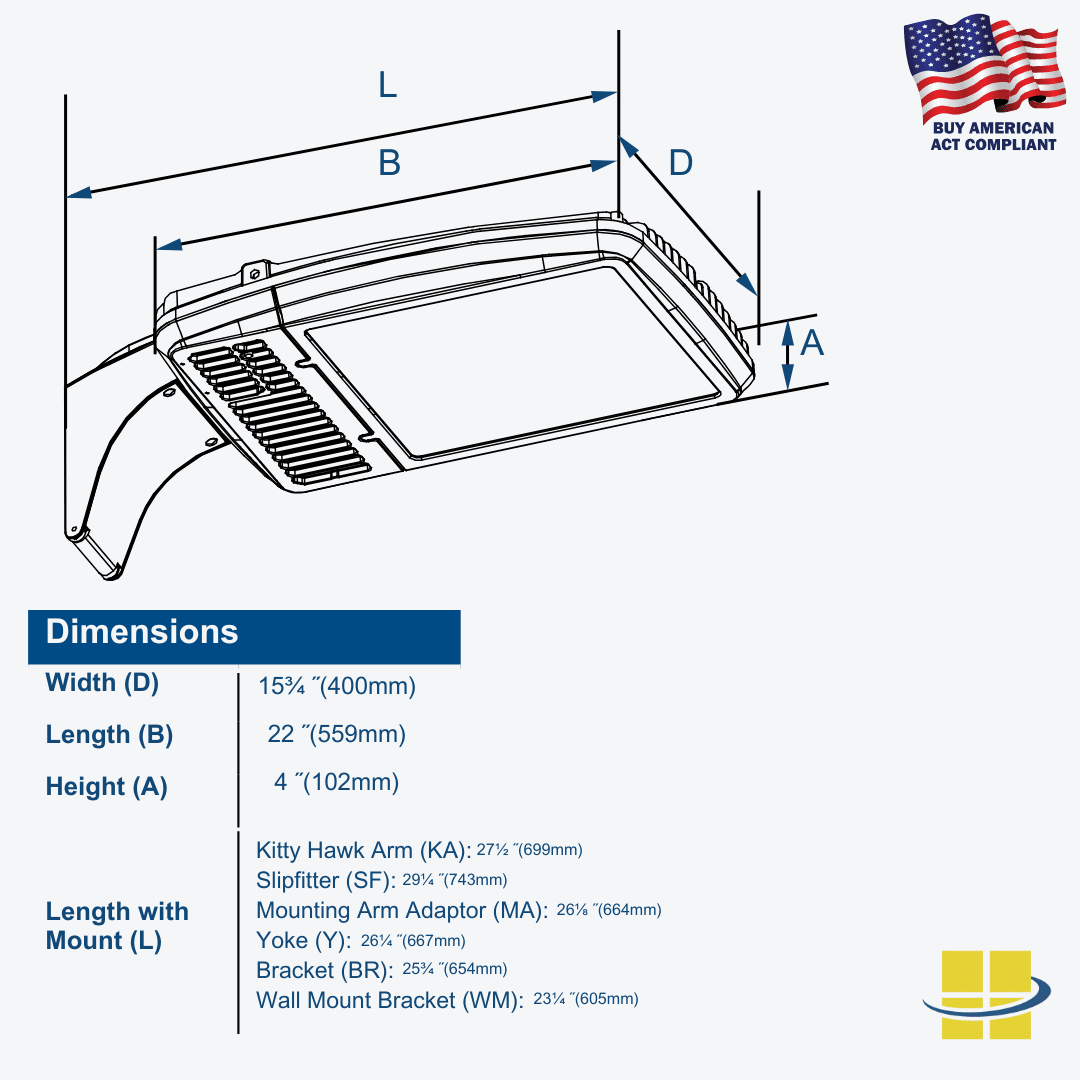

Dimensions 21 × 12 × 12 in
Application

, ,

Availability

7 to 10 Day Production, plus Shipping
Available Finishes

Bronze
BUG Rating

Type III: 3, 0, 3, Type IV: 3, 0, 4, Type V: 4, 0, 1
Housing

NIckel plated stainless steel hardware, Die cast aluminum housing
Lens

Clear flat tempered glass lens, Opal diffuser lens
Light Source

, ,

Light Source Included

LED Array Included
Light Source Lumens

22,487
Listings

CSA – listed for wet Locations, IP66
Mounting

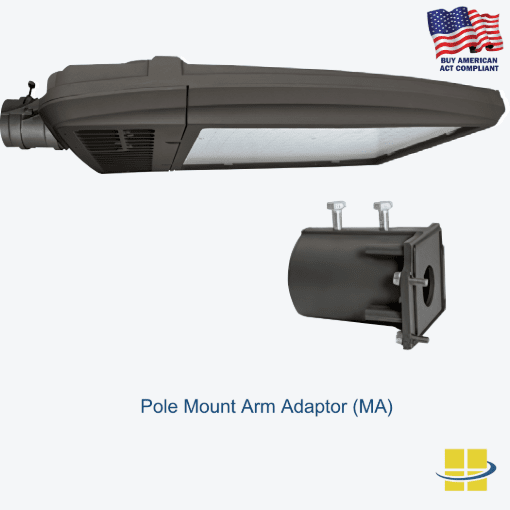

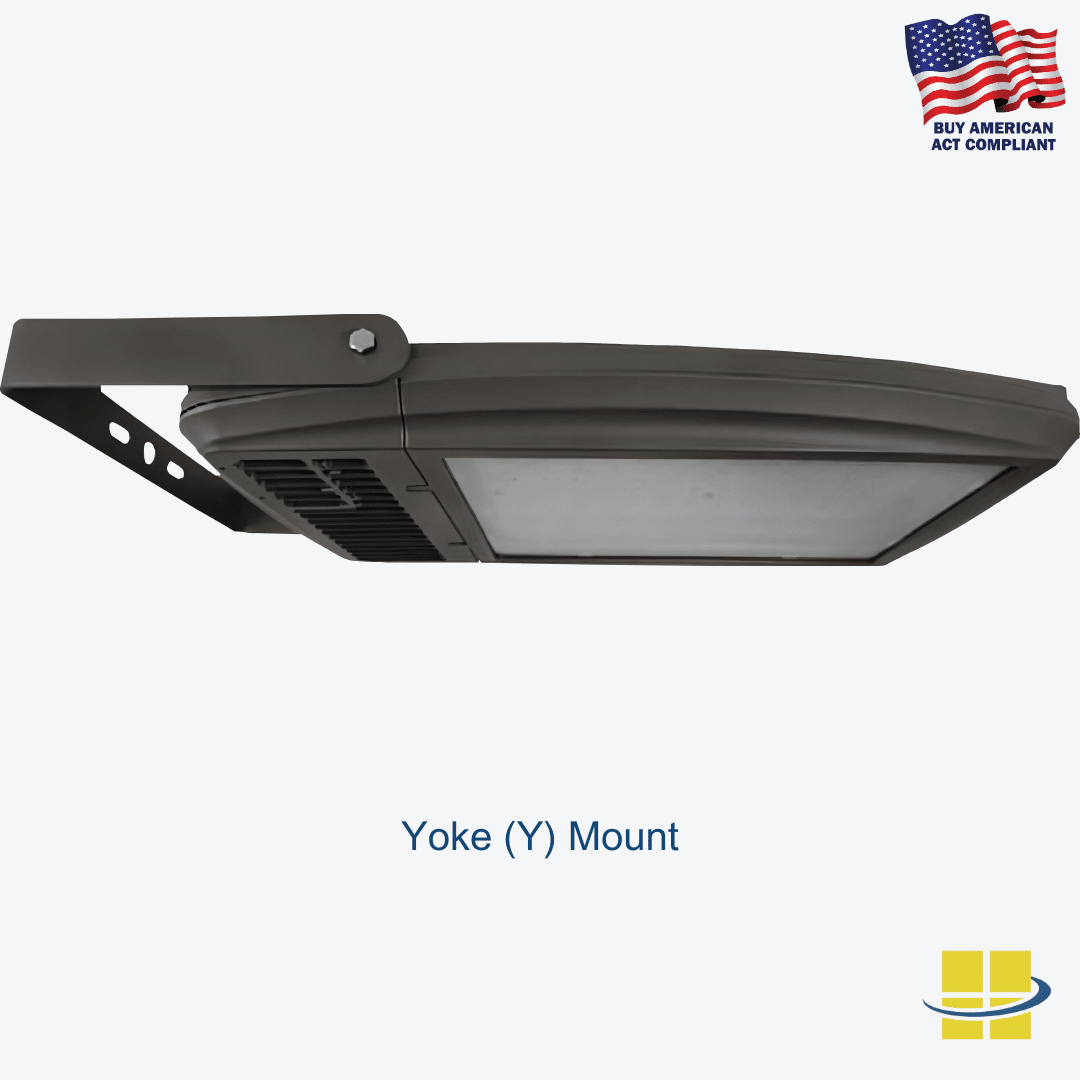

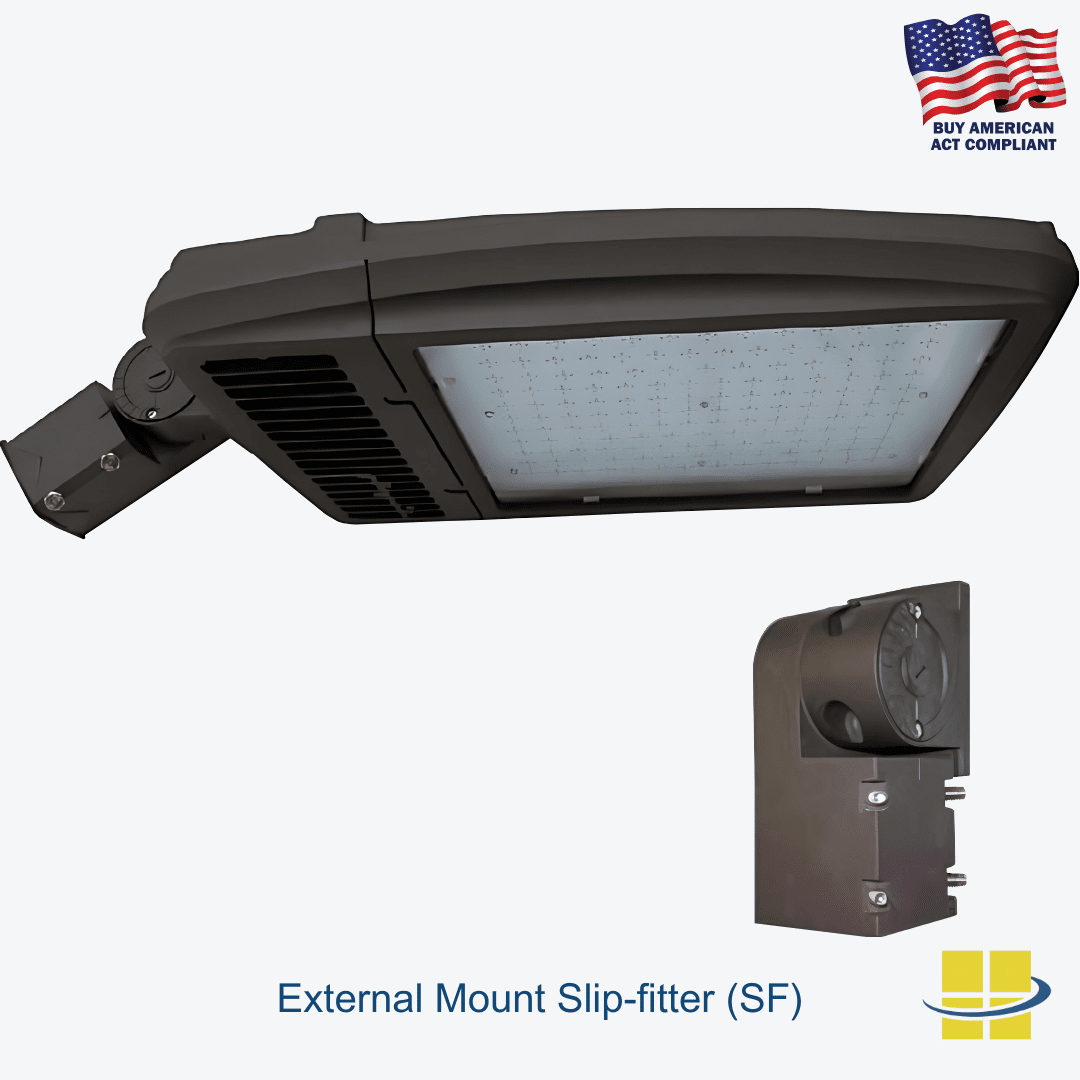

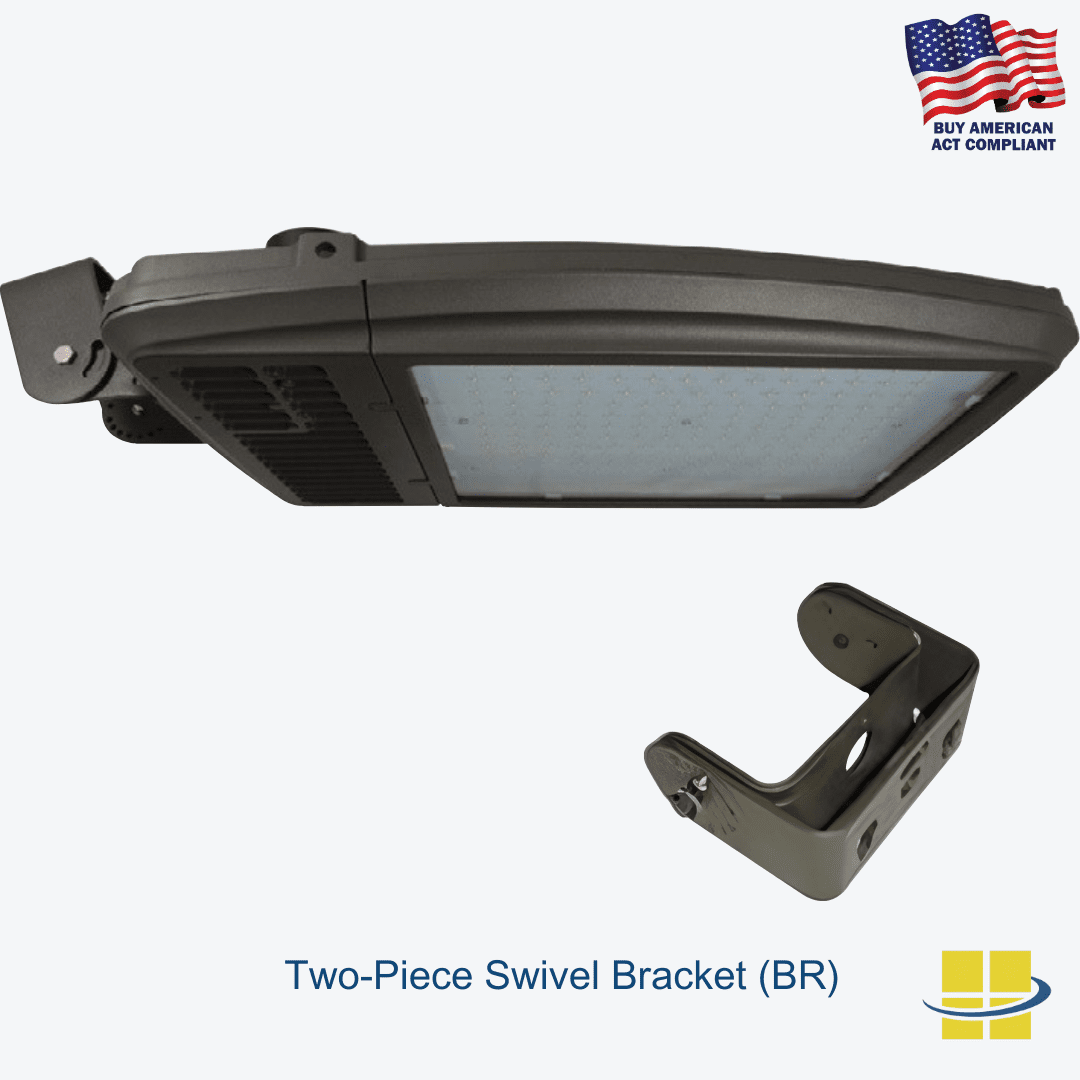

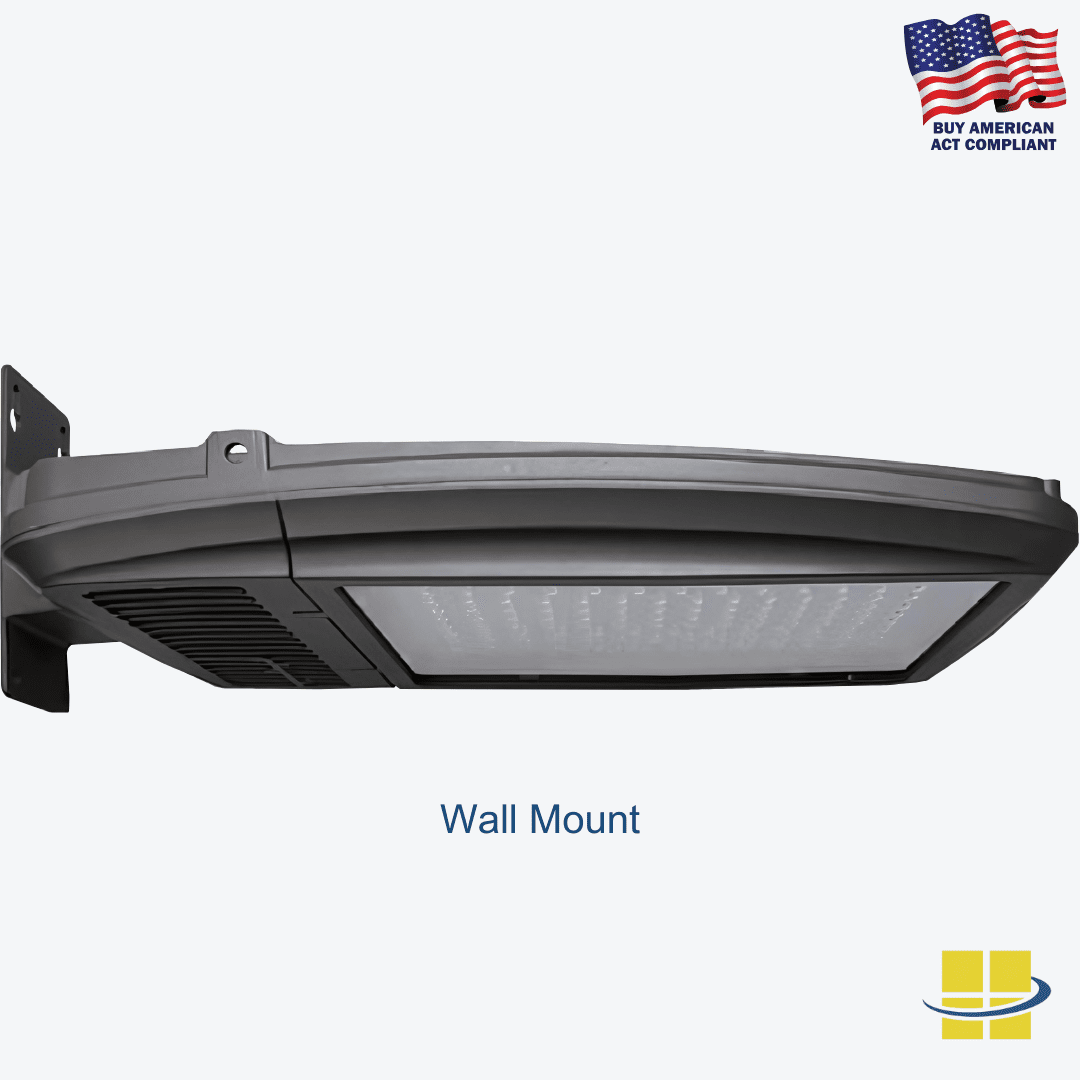

Knuckle Mount, Easy-hang wall bracket, Mounting Arm, Slipfitter for 2 3⁄8 ̋ tenons, Two-Piece Swivel Bracket, Yoke Mount/U-Bracket Mount
Product Family

CARA
Rated Life

L70 @ 320,000 hours
System Watts

136
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty

Product Description

Features

  • 99w, 111w, 133w, 167w, 183w, 199w, 225w, or 256w
  • 3000K, 4000K, 5000K
  • Type III
    • 4000K: 21,166 lumens
    • 5000K: 21,990 lumens
      • BUG rating: 3, 0, 3
  • Type IV
    • 4000K: 21,455 lumens
    • 5000K: 22,291 lumens
      • BUG rating: 3, 0, 4
  • Type V
    • 4000K: 20,190 lumens
    • 5000K: 20,976 lumens
      • BUG rating: 4, 0, 1
  • Choice of Finish: Bronze or custom RAL colors available upon request
  • Shielded IES Type V distribution
  • Die-cast aluminum housing and front frame
  • Integral heat sinking and driver compartment
  • Photocell Adaptable
  • Nickel-plated stainless steel hardware
  • CSA listed for wet locations
  • IP66 sealed LED compartment
  • Textured architectural bronze powdercoat finish over a chromate conversion coating
  • Tempered clear flat glass lens
  • Mounted with arm, adjustable slip fitter, 2⅜˝ Diameter Mounting Arm Adapter, yoke, or Easy Hang Wall Bracket (factory Installed)
  • Electronic driver
  • 120-277v, 347-480v
  • 120-277VAC 10KA Surge Suppressor
  • 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps
  • Operating temperature: -40°C~+50°C environment

Options

  • Choice of Finish: Bronze or custom RAL colors available upon request
  • Motion sensors available for heights of 20′ – 35′ or 18′ or less
  • Photocell Adaptable
    • 120-277VAC Universal Twist Lock Photocell
    • 3-Pin Twist Lock Photocell Receptacle
    • 5-Pin Twist Lock Photocell Receptacle
    • 7-Pin ANSI C136.41—2013 Twist Lock Photocell Receptacle
  • Aluminum glare shield
  • Microwave motion sensor
    • Motion Sensor IR with Lens, 120-277V Only, for heights up to 40′
    • Motion Sensor IR with Lens, 120-277V Only, for heights up to 20′
    • Microwave Sensor with Dimming, 120-277V Only
    • Microwave On/Off Motion Sensor – NO Dimming, 120-277V Only
    • Internal Microwave Sensor with Dimming, 120-277V Only
    • Internal Microwave On/Off Motion Sensor – NO DIMMING, 120-277V Only
  • 120-277VAC 10KA Surge Suppressor
  • 347-480VAC 10KA Surge Suppressor
  • Round Pole Adapter. Fits 4″ or 6″ O.D. Round Poles
  • Die-Cast Wall Mount Adaptor
  • Opal lens diffuser
  • Prismatic diffuser lens
  • Glare shield

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your CARA Area/Flood/Wall Light Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
