CARA 183w LED Area/Wall/Flood, Mounting Options, EXTREME-LIFE

Product Description

Features

• 99w, 111w, 133w, 167w, 183w, 199w, 225w, or 256w
• 3000K, 4000K, 5000K
• Type I
  • 4000K: 23,717 lumens
  • 5000K: 24,641 lumens
    • BUG rating: 4, 0, 3
• Type II
  • 4000K: 22,626 lumens
  • 5000K: 23,507 lumens
    • BUG rating: 3, 0, 3
• Type III
  • 3000K: 23,887 lumens
  • 4000K: 24,855 lumens
  • 5000K: 25,824 lumens
    • BUG rating: 3, 0, 3
• Type IV
  • 4000K: 23,545 lumens
  • 5000K: 24,462 lumens
    • BUG rating: 3, 0, 4
• Type V
  • 3000K: 22,785 lumens
  • 4000K: 23,709 lumens
  • 5000K: 24,633 lumens
    • BUG rating: 4, 0, 2
• 30° narrow beam
  • 5000K: 26,475 lumens
• Choice of Finish: Bronze or custom RAL colors available upon request
• Shielded IES Type V distribution
• Die-cast aluminum housing and front frame
• Integral heat sinking and driver compartment
• Photocell Adaptable
• Nickel-plated stainless steel hardware
• CSA listed for wet locations
• IP66 sealed LED compartment
• Textured architectural bronze powdercoat finish over a chromate conversion coating
• Tempered clear flat glass lens

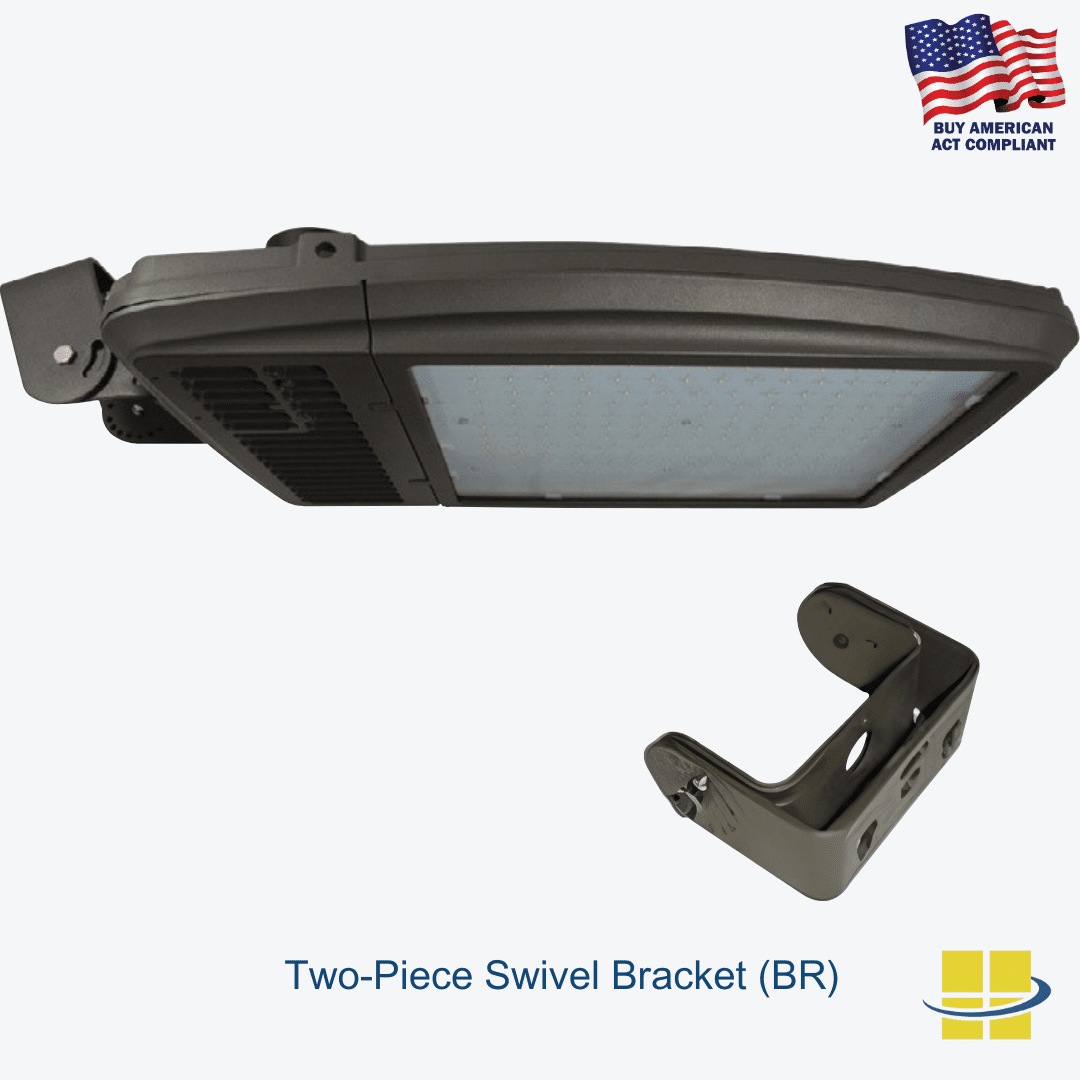

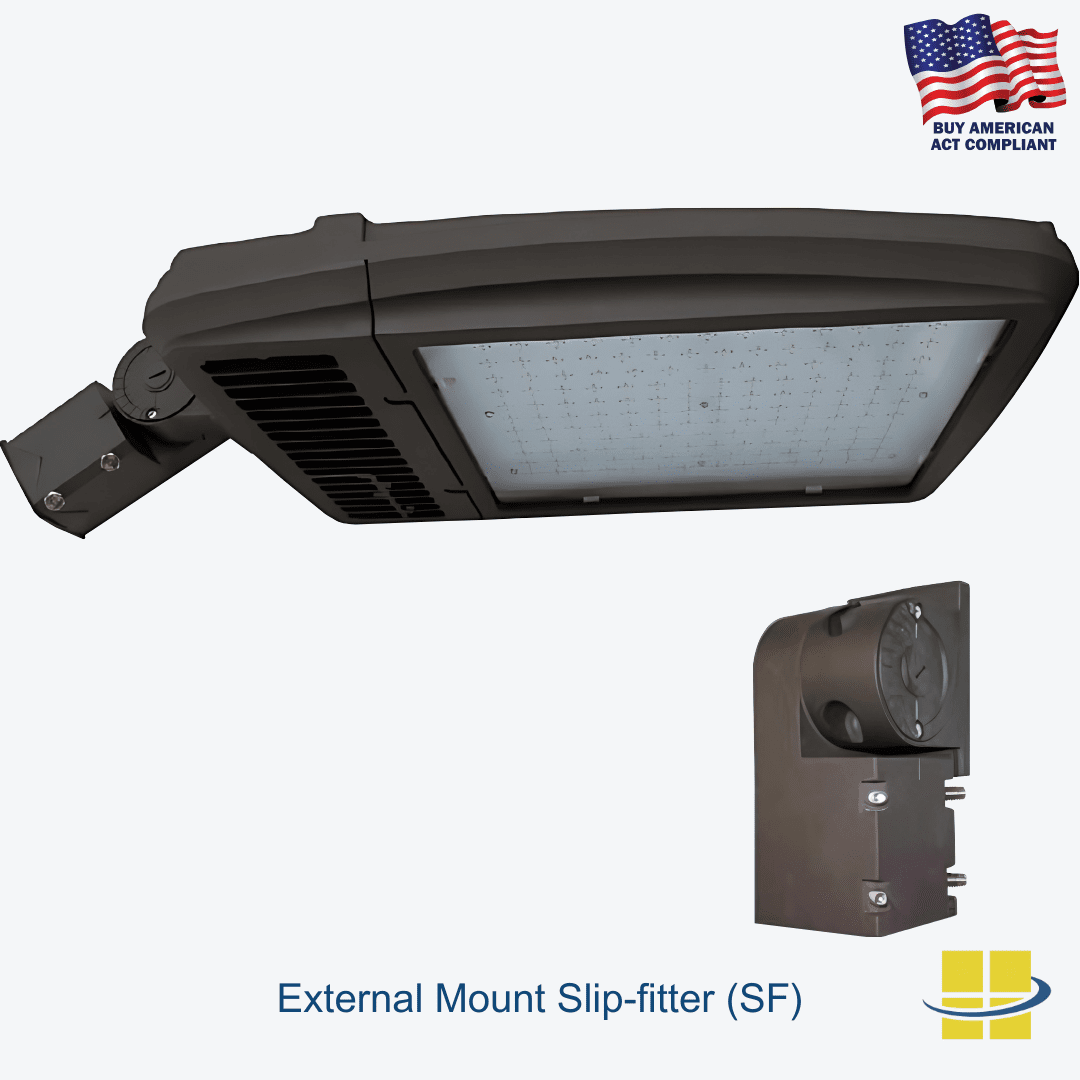

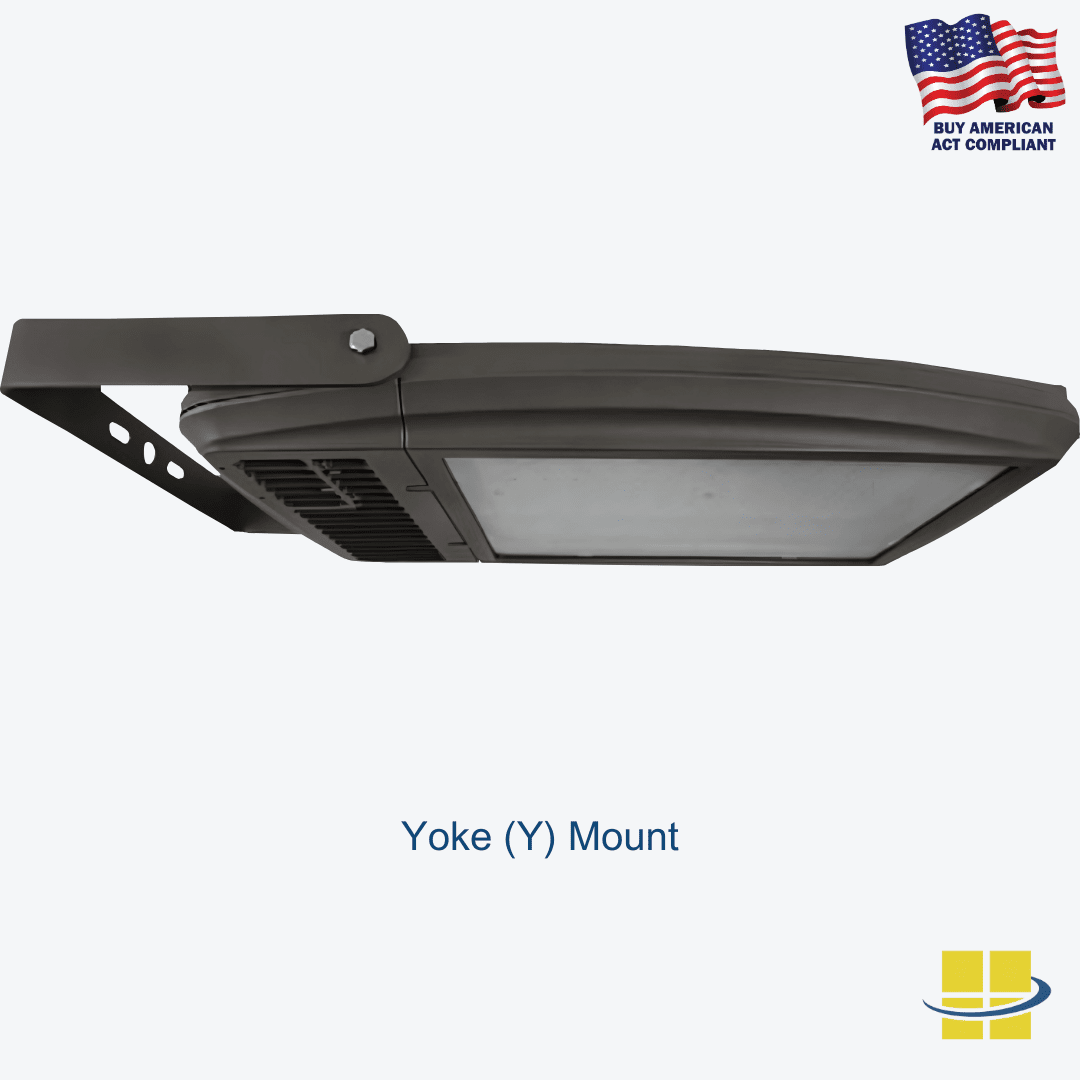

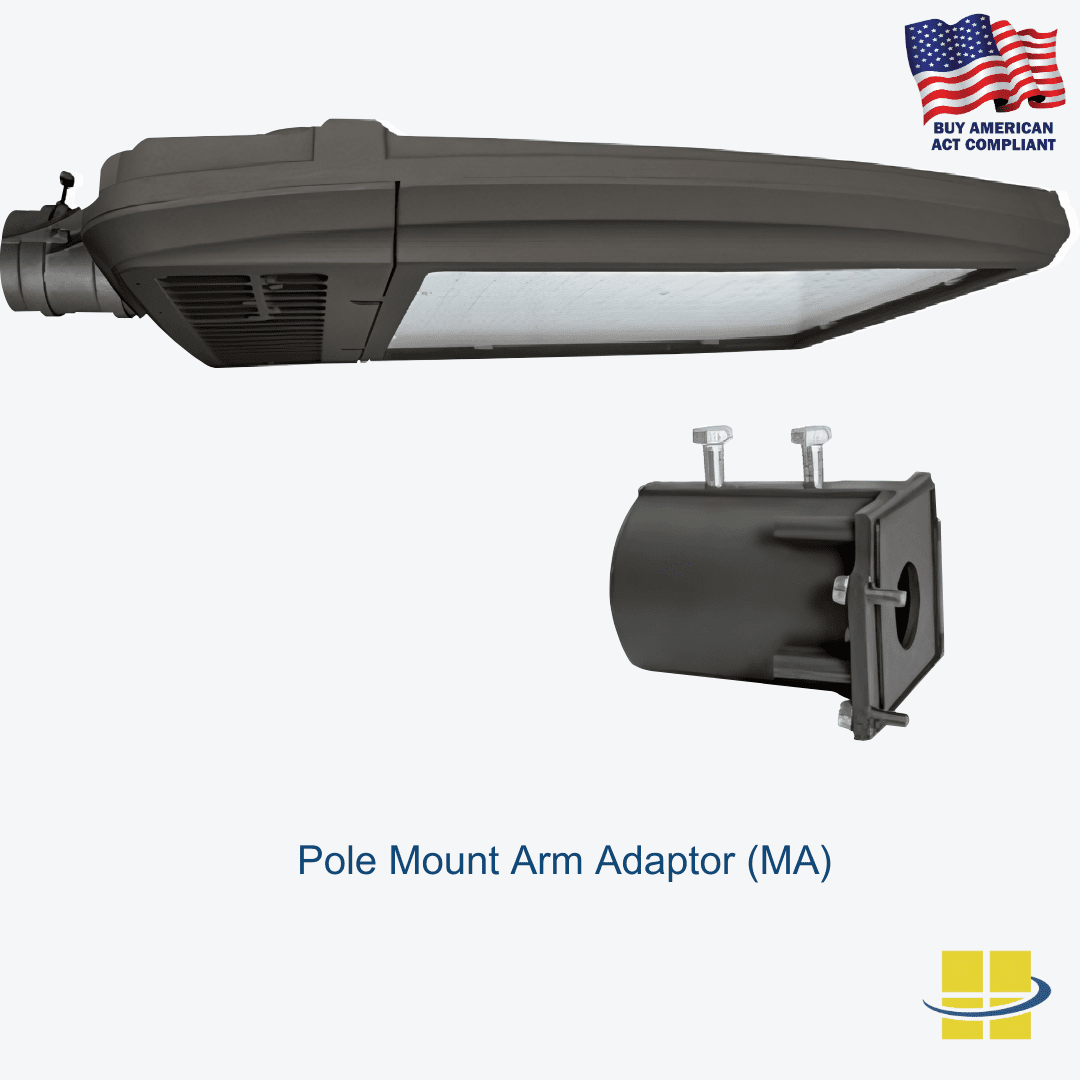

• Mounted with arm, adjustable slip fitter, 2⅜˝ Diameter Mounting Arm Adapter, yoke, or Easy Hang Wall Bracket (factory Installed)
• Electronic driver
• 120-277v, 347-480v
• 120-277VAC 10KA Surge Suppressor
• 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps
• Operating temperature: -40°C~+50°C environment

Options

• Choice of Finish: Bronze or custom RAL colors available upon request
• Motion sensors available for heights of 20′ – 35′ or 18′ or less
• Photocell Adaptable
  • 120-277VAC Universal Twist Lock Photocell
  • 3-Pin Twist Lock Photocell Receptacle
  • 5-Pin Twist Lock Photocell Receptacle
  • 7-Pin ANSI C136.41—2013 Twist Lock Photocell Receptacle
• Aluminum glare shield
• Microwave motion sensor
  • Motion Sensor IR with Lens, 120-277V Only, for heights up to 40′
  • Motion Sensor IR with Lens, 120-277V Only, for heights up to 20′
  • Microwave Sensor with Dimming, 120-277V Only
  • Microwave On/Off Motion Sensor – NO Dimming, 120-277V Only
  • Internal Microwave Sensor with Dimming, 120-277V Only
  • Internal Microwave On/Off Motion Sensor – NO DIMMING, 120-277V Only
• 120-277VAC 10KA Surge Suppressor
• 347-480VAC 10KA Surge Suppressor
• Round Pole Adapter. Fits 4″ or 6″ O.D. Round Poles

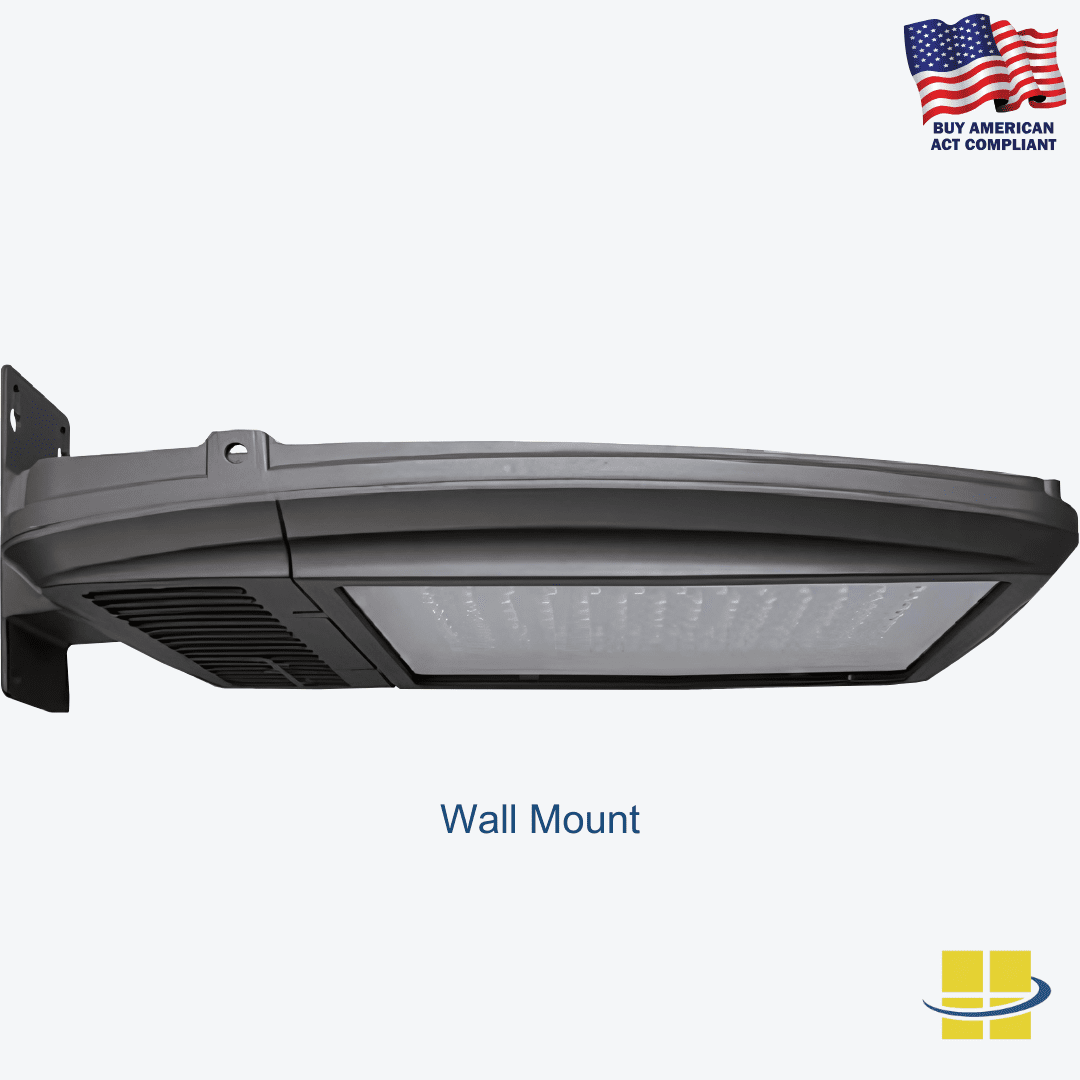

• Die-Cast Wall Mount Adaptor
• Opal lens diffuser
• Prismatic diffuser lens
• Glare shield

Need a Photometric Analysis for Your CARA Area/Flood/Wall Light Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
