FWC turtle safe area light

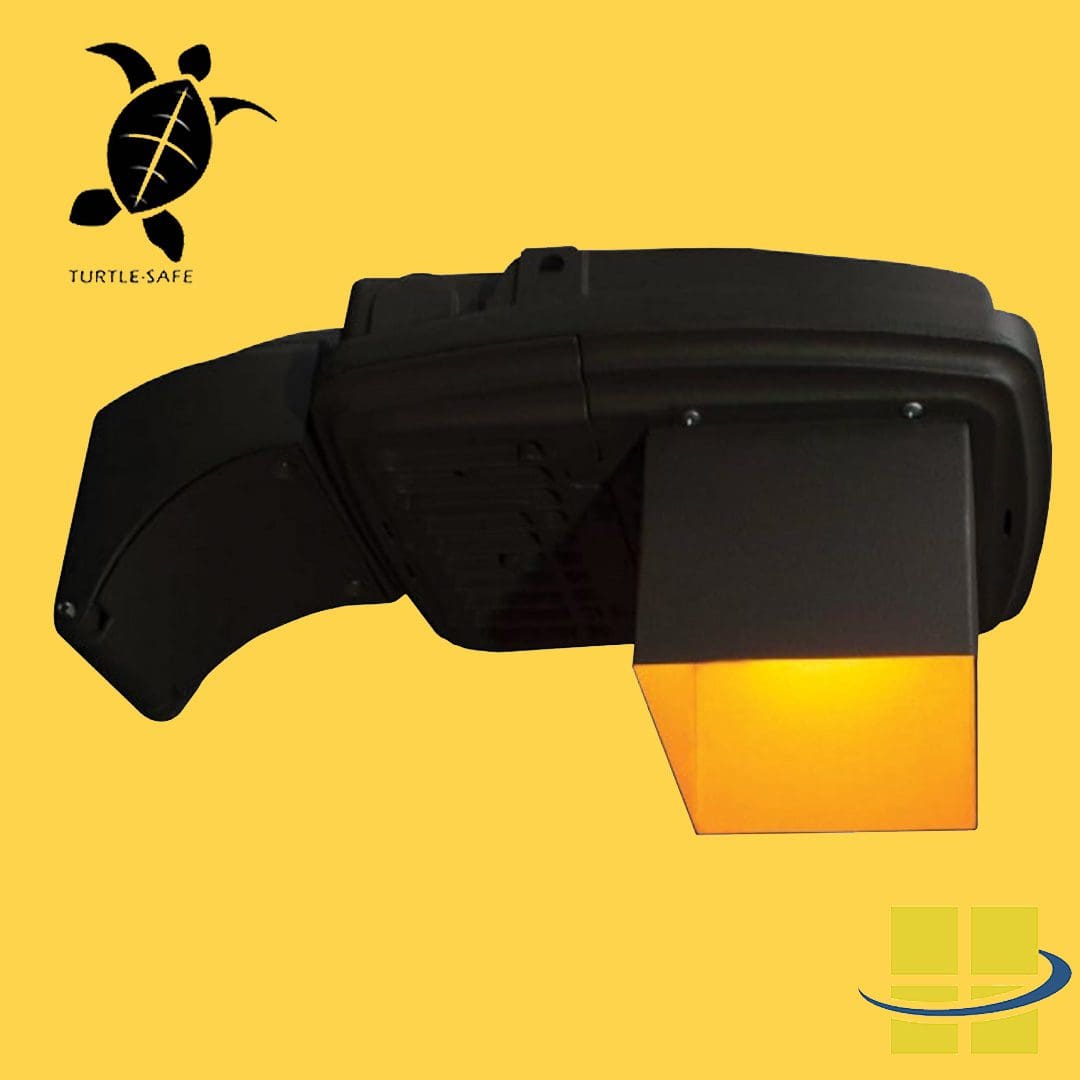

CARA LED FWC Certified Area/Flood/Wall Lights
CARA LED FWC Certified Area/Flood/Wall Lights

CARA 22w LED FWC Certified Area/Wall/Flood, EXTREME-LIFE

$639.87

CARA LED Area/Flood/Wall lights are Florida Wildlife Commission Certified and are designed and manufactured to function as the perfect commercial lighting solution for those who need durable, reliable, long-lasting fixtures with 590nm Amber LEDs. CARA is available with a wide selection of mounting configurations and options to ensure you find the best solution for your space.

Premium Build: EXTREME-LIFE L70 @ 320,000 hours, IP66 rated against water jets, and die-cast aluminum housing for maximum life, durability, and years of virtually maintenance-free performance

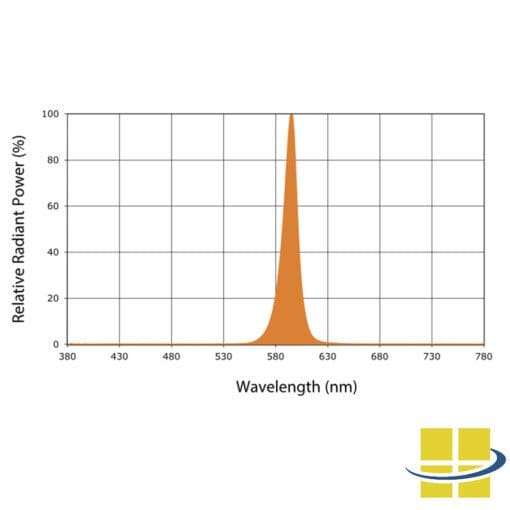

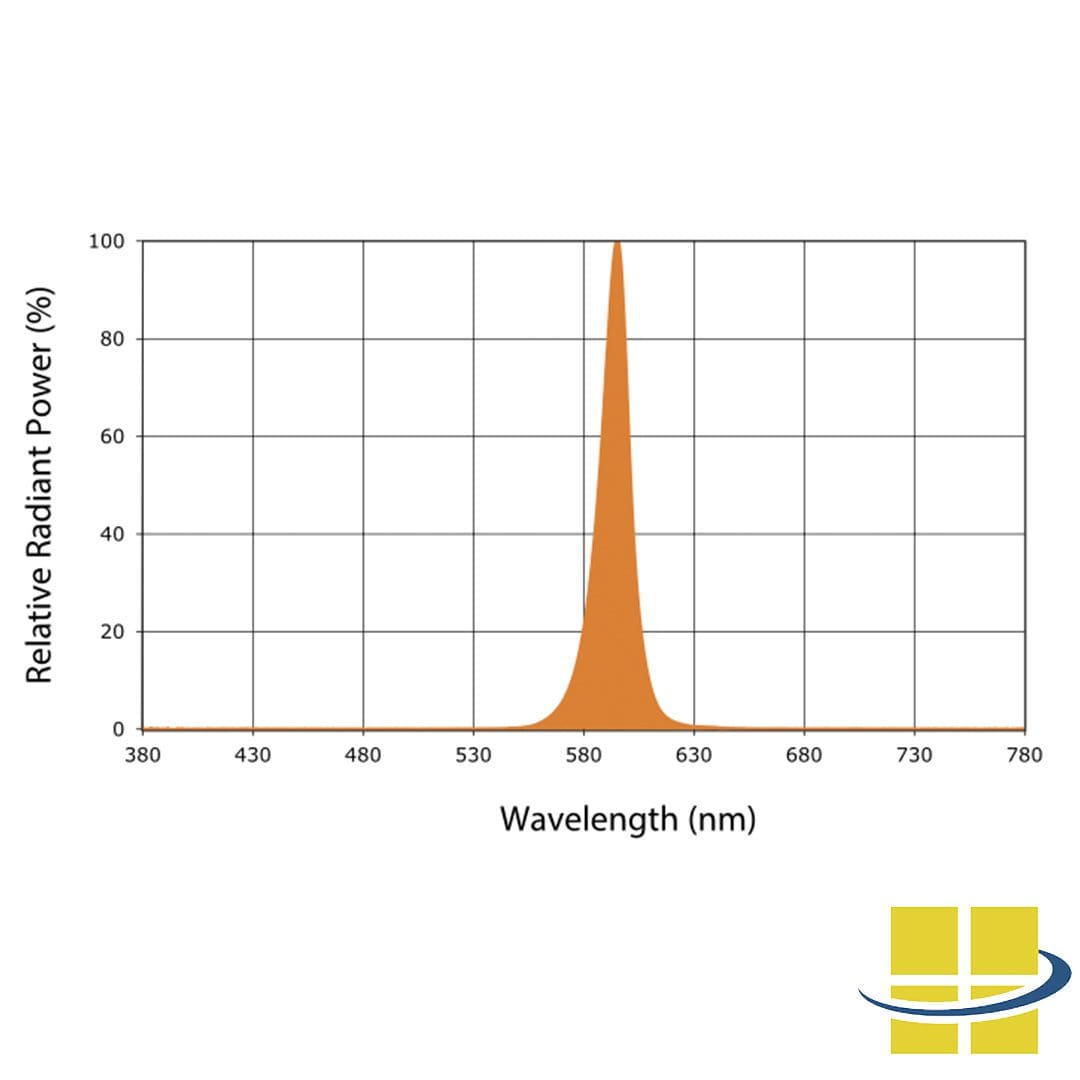

FWC Certified: This fixture emits light in 590 nanometers and comes with the full baffle required to maintain Florida Wildlife Commission certification.

Multiple Mounting Options: This fixture comes with several mounting solutions such as an arm-mount, easy-hang wall bracket mount, slipfitter mount, and knuckle mounting options.


Buy American Act Compliant

Lead Time: 7 to 10 Day Production, plus Shipping

In Stock

  • Maximize energy savings and the life of the lights by adding a motion sensor with IR Lens
  • Adding a photocell prevents the need to manually turn on/off your area/spot/flood lights when it gets dark.
  • Adding surge protection protects your light from unwanted power spikes that can damage the fixture

  • Total

SKU: AF33XKH15QF1X22 Categories: , , , , , ,

Specifications

Weight 12 lbs

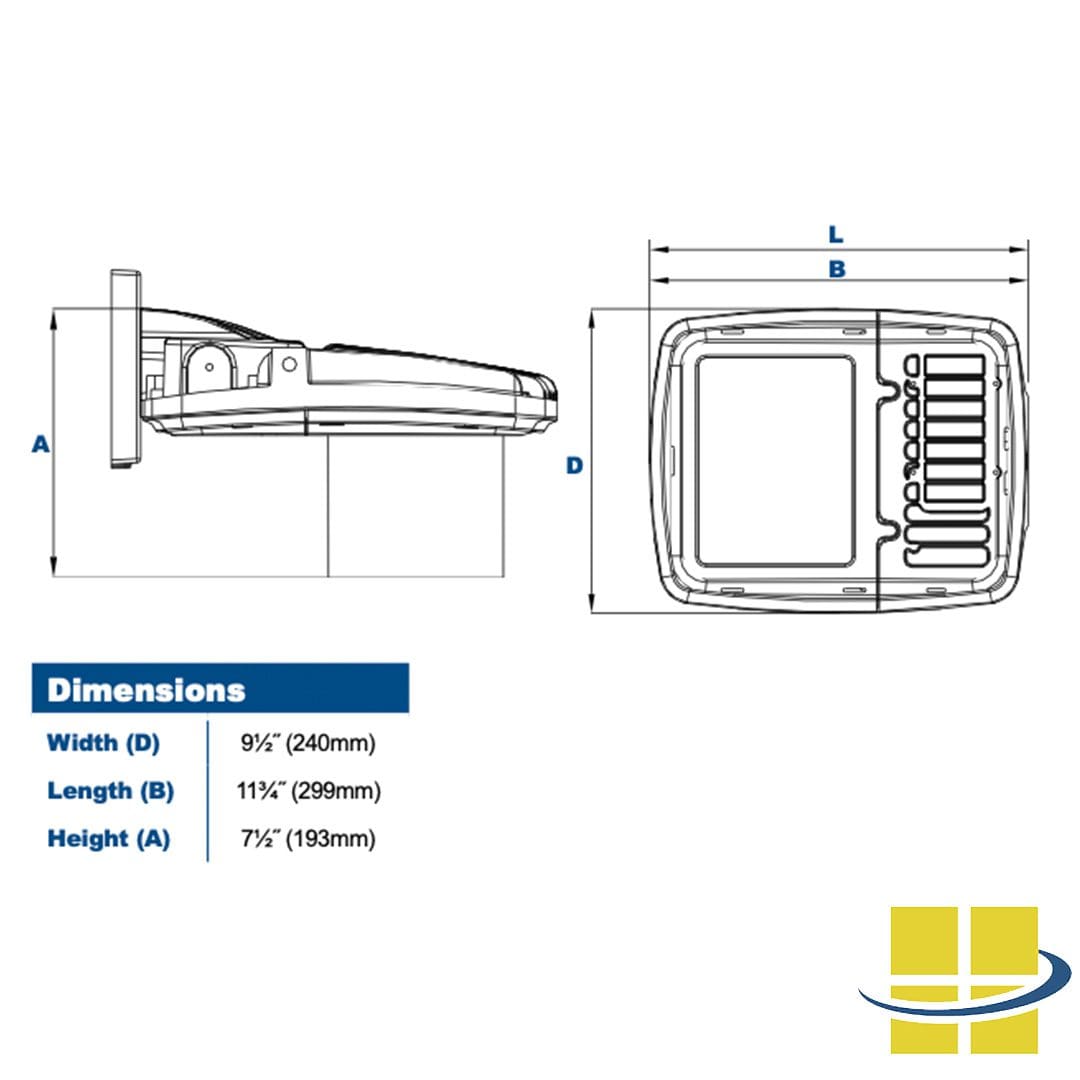

Dimensions 21 × 12 × 12 in
Application

, , , , ,

Availability

7 to 10 Day Production, plus Shipping
Available Finishes

Bronze
BUG Rating

0, 0, 0
Housing

NIckel plated stainless steel hardware, Die cast aluminum housing
Lens

Clear flat tempered glass lens
Light Source

Light Source Included

Aluminum Boards
Light Source Lumens

1159
Listings

CSA – listed for wet Locations, IP66
Mounting

Knuckle Mount, Easy-hang wall bracket, Mounting Arm, Slipfitter for 2 3⁄8 ̋ tenons, Two-Piece Swivel Bracket, Yoke Mount/U-Bracket Mount
Product Family

CARA
Rated Life

L70 @ 320,000 hours
System Watts

22w
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty

Product Description

Features

  • 22w and 37w
  • Florida Wildlife Commission Certified
  • Includes full baffle required to maintain FWC Turtle Lighting certification
  • 46 LPW
  • 1,159 lumens
  • BUG Rating: 0, 0, 0
  • Choice of Finish: Bronze or custom RAL colors available upon request
  • Horizontal cut-off mounting configurations
  • Shielded IES Type V distribution
  • Die-cast aluminum housing and front frame
  • Integral heat sinking and driver compartment
  • Photocell Adaptable
  • Nickel-plated stainless steel hardware
  • CSA listed for wet locations
  • IP66 sealed LED compartment
  • Textured architectural bronze powdercoat finish over a chromate conversion coating
  • Tempered clear flat glass lens
  • Mounted with arm, 2⅜˝ Diameter Mounting Arm Adapter, or Easy Hang Wall Bracket (factory Installed)
  • Electronic driver
  • 120-277v, or 347-480v (37w model only)
  • 120-277VAC 10KA Surge Suppressor
  • 347-480VAC 10KA Surge Suppressor
  • 0-10V Dimming Standard for a Dimming Range of 100% to 10%; Dimming Source Current is 150 Microamps
  • Operating temperature: -40°C~+50°C environment

Options

  • Choice of Finish: Bronze or custom RAL colors available upon request
  • Motion sensors available for heights of 20′ – 35’or 18’or less
  • Tempered clear flat lens or opal diffuser lens
  • Photocell Adaptable
    • Pencil photocell 120-277VAC
  • Die-cast adaptor for 3″ to 4″ poles for use with CARA mounting arm only
  • Die-cast wall mount adaptor for use with CARA mounting arm only
  • Single pole tenon spoke bracket, 2⅜″ Horizontal Mounting Arm
  • Twin pole tenon spoke bracket, 2⅜″ Horizontal 90° Mounting Arm
  • Twin Pole Tenon Spoke Bracket, 2⅜″ Horizontal 180° Mounting Arm
  • Triple Pole Tenon Spoke Bracket, 2⅜″ Horizontal 90° Mounting Arm
  • Triple Pole Tenon Spoke Bracket, 2⅜″ Horizontal 120° Mounting Arm
  • Quad Pole Tenon Spoke Bracket, 2⅜″ Horizontal 90° Mounting Arm
    • All brackets include hardware
  • Motion sensor
  • Surge protection

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your CARA Area/Flood/Wall Light Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
