Product Description

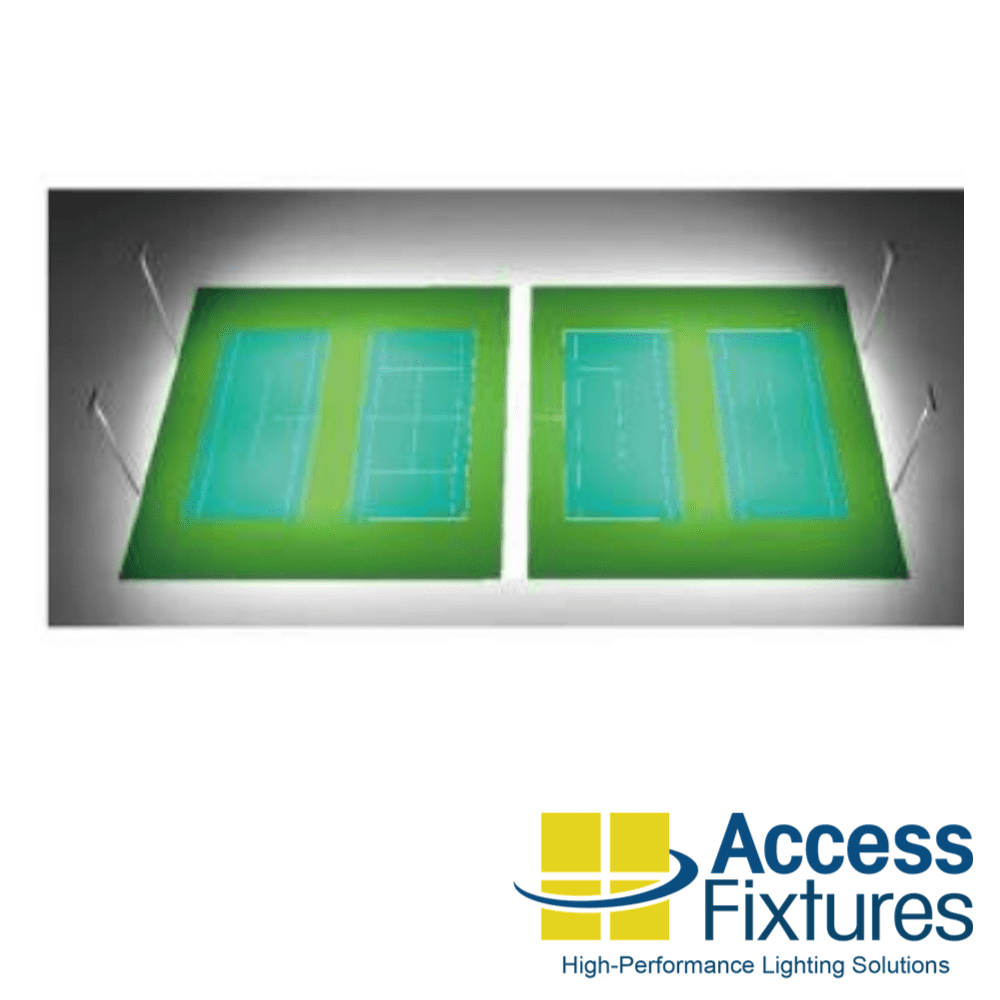

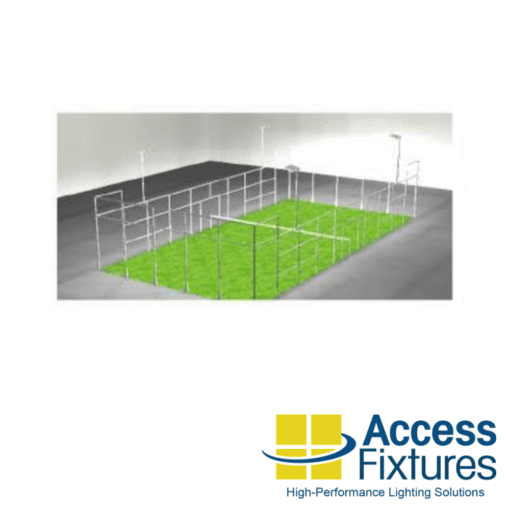

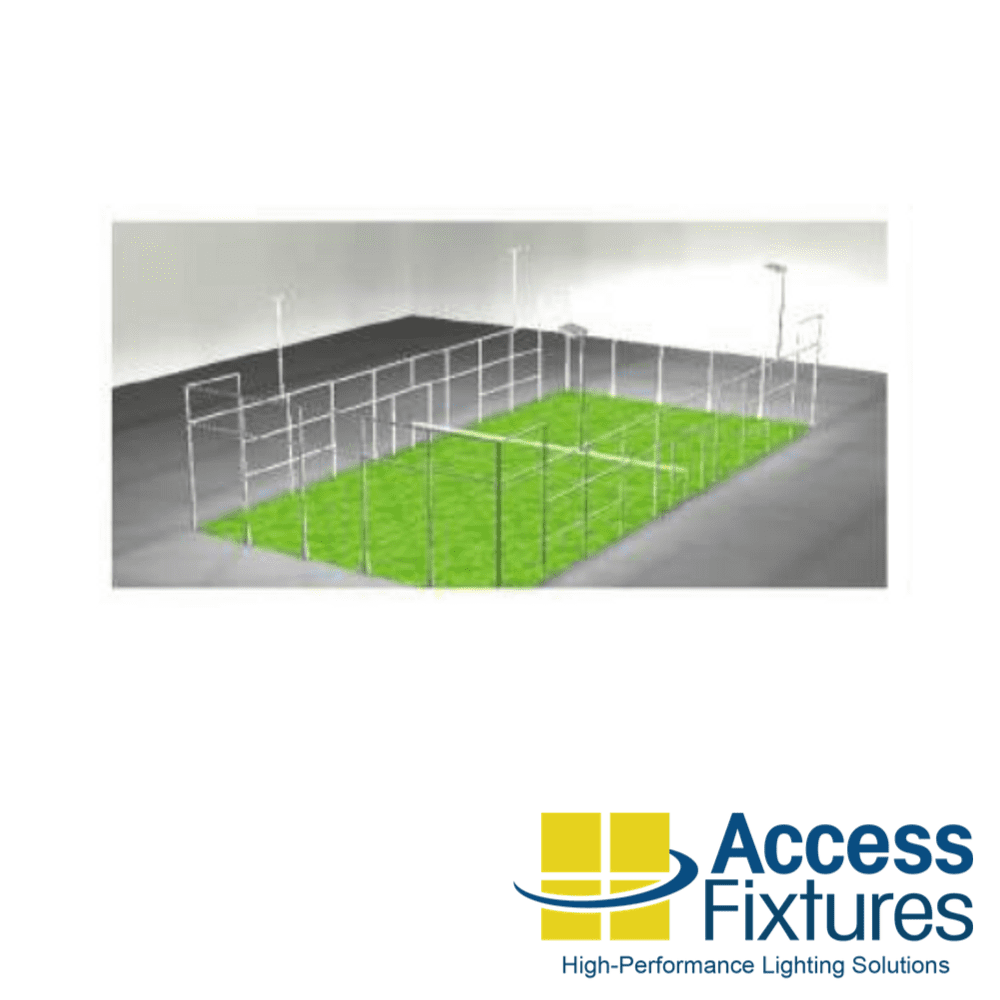

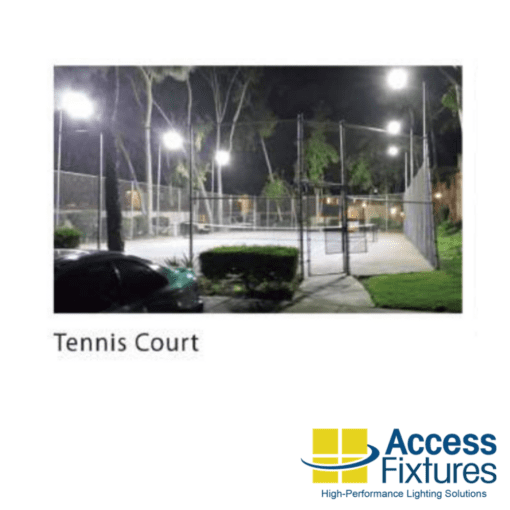

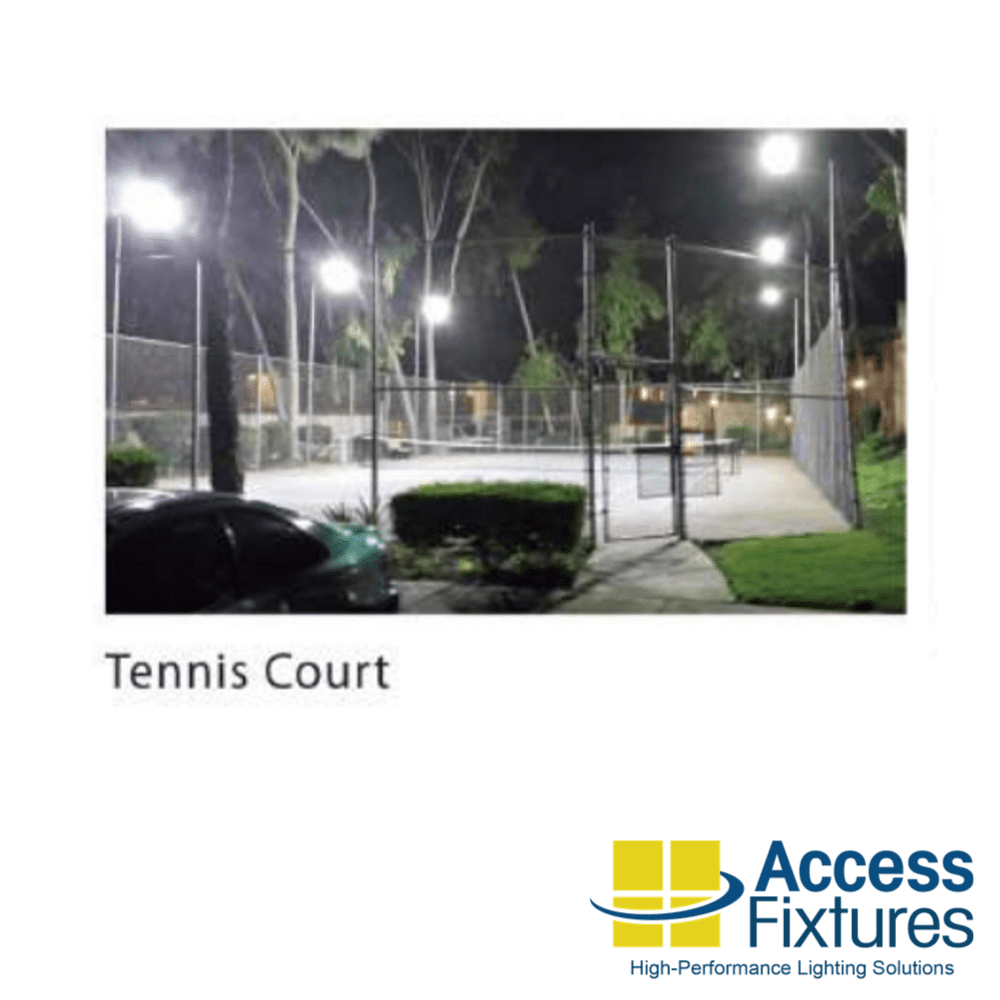

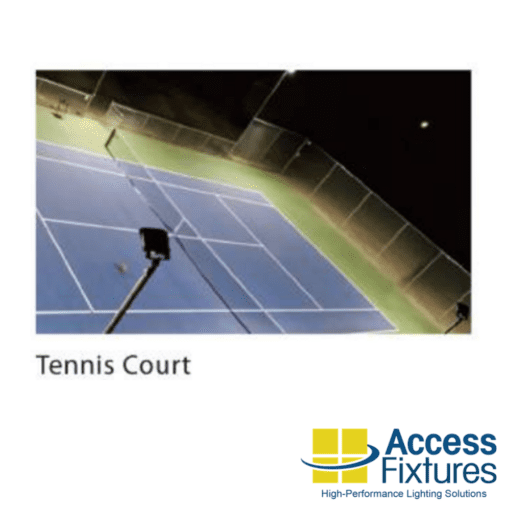

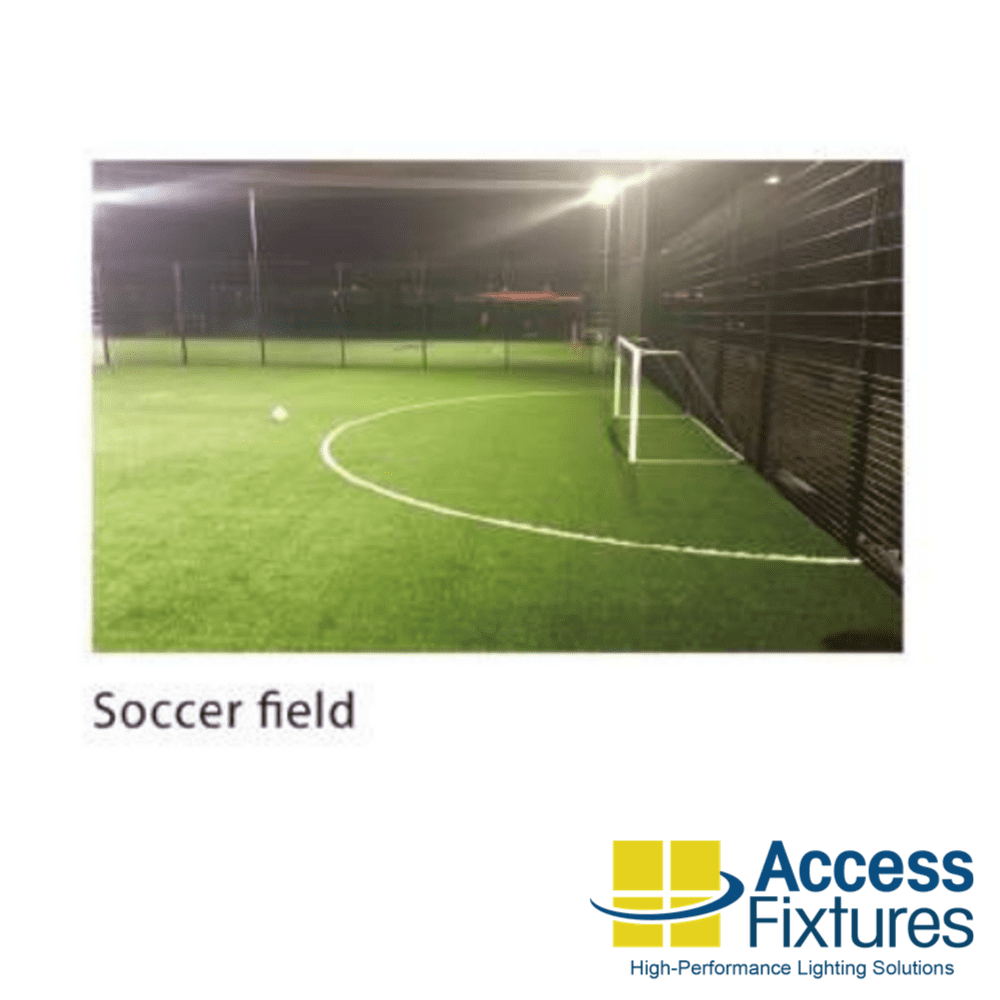

The CARI 420w LED Area Light, 347-480v is a game changer for lighting applications. The low profile and light weight design utilizes high performance LEDs and precise optics to produce superior levels of illumination and uniformity. Compared with typical HID court lighting systems, the energy load is reduced by 50% vs. 1000w metal hide. Typical lighting applications include area and flood lighting, parking lots, arenas, sports courts, and much more.
Extreme Life: The CARI 420w features an impressive L70 rated life of 150,000 hours. This means that after 150,000 hours, this fixture will still emit 70% or greater of its original lumens. That’s almost 22 years of sustained light.
Maximum Value: The CARI 420w LED Area Light is a high lumen output luminaire generating 59,220 lumens – that’s 140 lumens per watt output!
Optics: Quick change optics for extreme flexibility and precision engineered lens made of optical grade Mitsubishi polycarbonate – delivering low glare, smoother more uniform light output, and more light!
Features:
- Area light luminaire
- 420w integrated LEDs
- Die cast aluminum housing
- Precision engineered lens made of optical grade Mitsubishi polycarbonate
- Bronze finish with anti corrosion coating for added protection

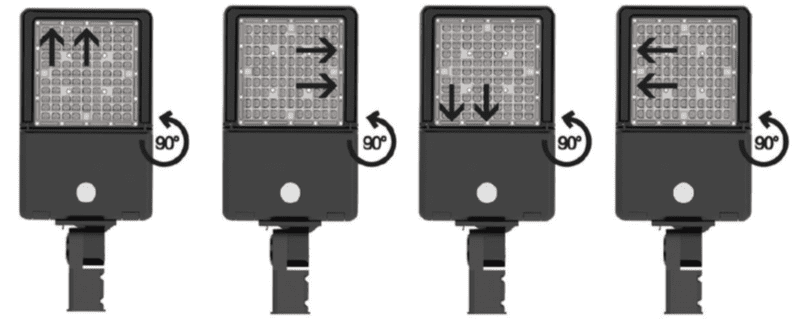

- Field changeable optics provide Type III, Type IV, and Type V options
- 5000K
- 70+ CRI
- Dimmable 0-10v
- 347-480v (also available in 120-277v)
- 59,220 lumens
- 150,000 hour L70 rated life
- IK08 Rated: protected against 5 joules of impact (the equivalent to the impact of a 4 lb. mass dropped from 1 ft. above the impacted surface)
- IP66 Rated: protected from total dust ingress; protected from high pressure water jets from any direction
- Built-in surge protection
- Tool free driver access panel
- Retrofit mounting

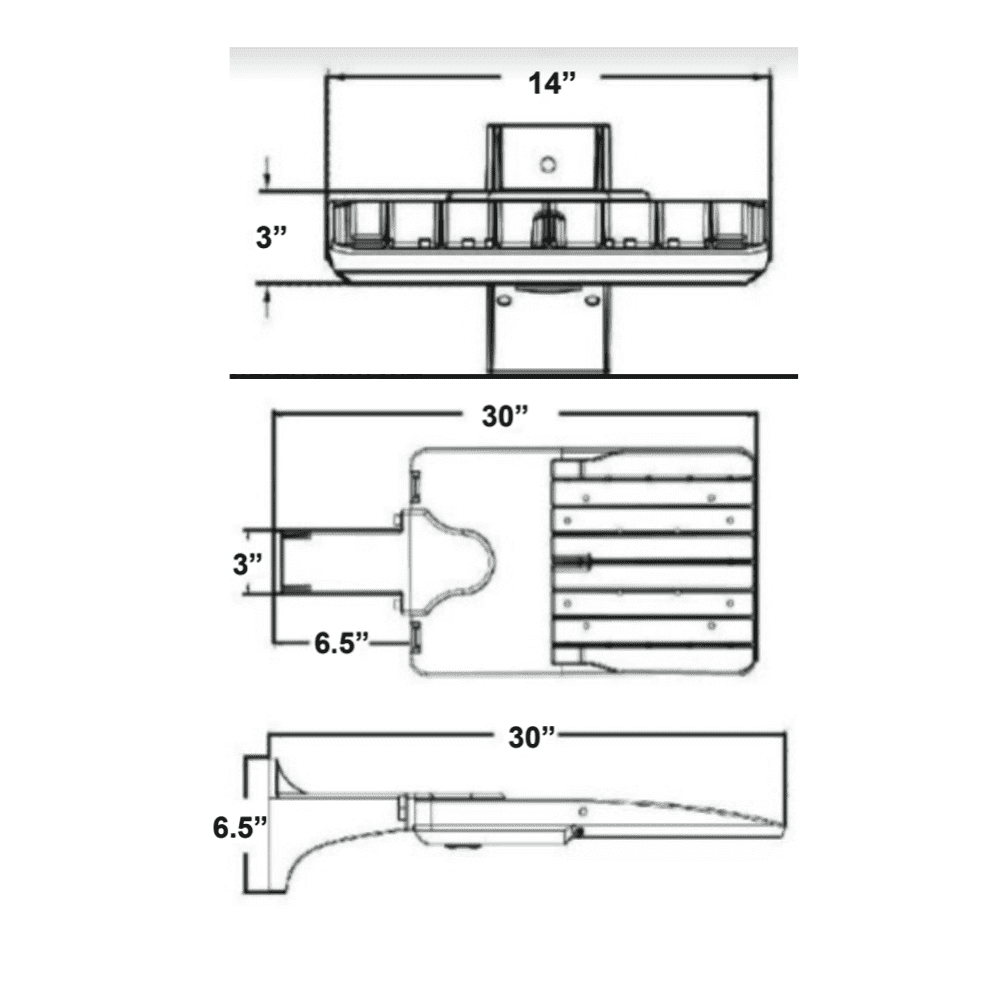

- 30″ x 14″ x 3″
- 23 lbs.
Options:

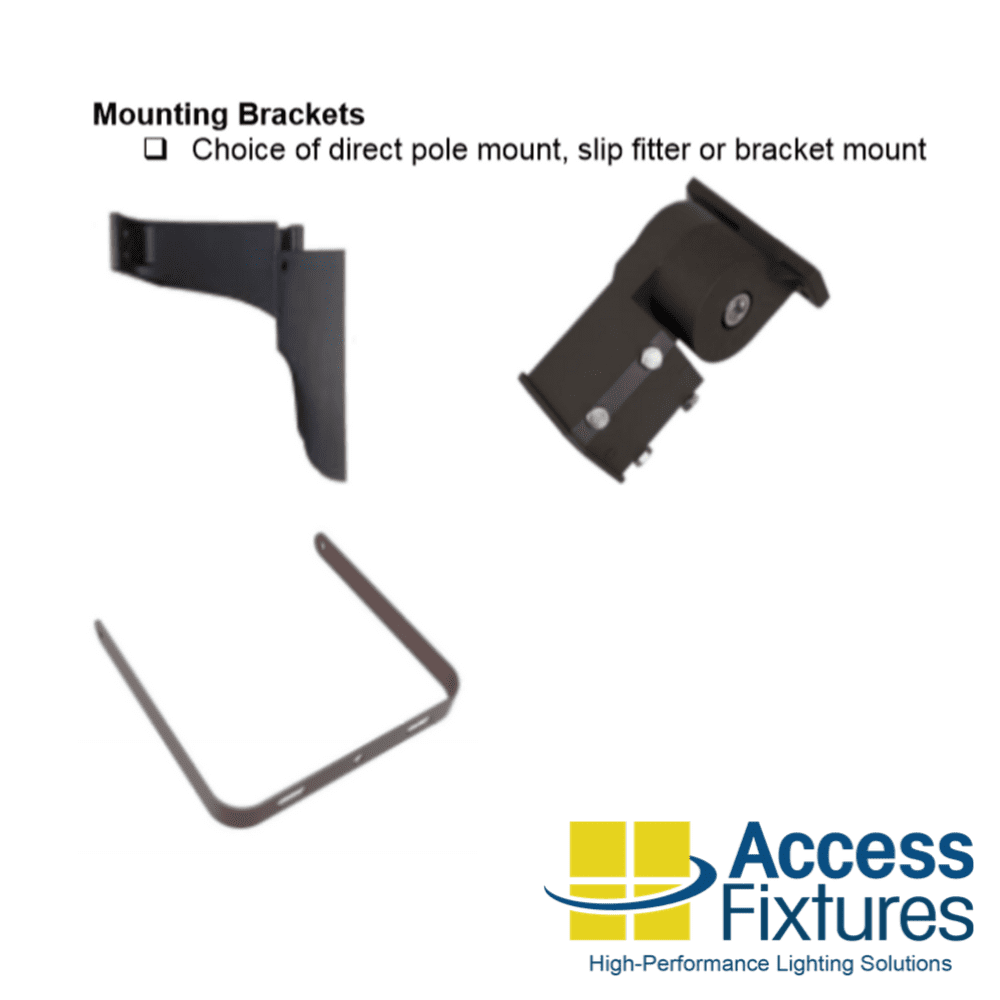

- Mounting Brackets: Choice of slip fitter mount, direct pole mount (fits both round & square poles), or yoke/U-bracket mount (fits both round & square poles)
- Photo-cell sensor: Switch automatically turns lights on at dusk and off at dawn. Save energy!
Access Fixtures 5-Year Warranty
All Access Fixtures products come with a 5-year warranty. If your product is found to have a manufacturing defect, we will replace components, the entire product, or issue a refund. We stand behind the quality of our products. Our customer service team, located in Worcester, MA, is happy to address any questions, comments, or concerns you may have. Please give us a call at 800-468-9925. Please view Access Fixtures’ return policy.
Need a Photometric Analysis for Your CARI 420w LED Area Light, 347-480v Project?
A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.
Ready to Order CARI 420w LED Area Light, 347-480v or Speak to a Lighting Specialist?
You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
