CIRF LED Round Bulkhead Wall Pack
CIRF LED Round Bulkhead Wall Pack
CIRF LED Round Bulkhead Wall Pack
Buy American

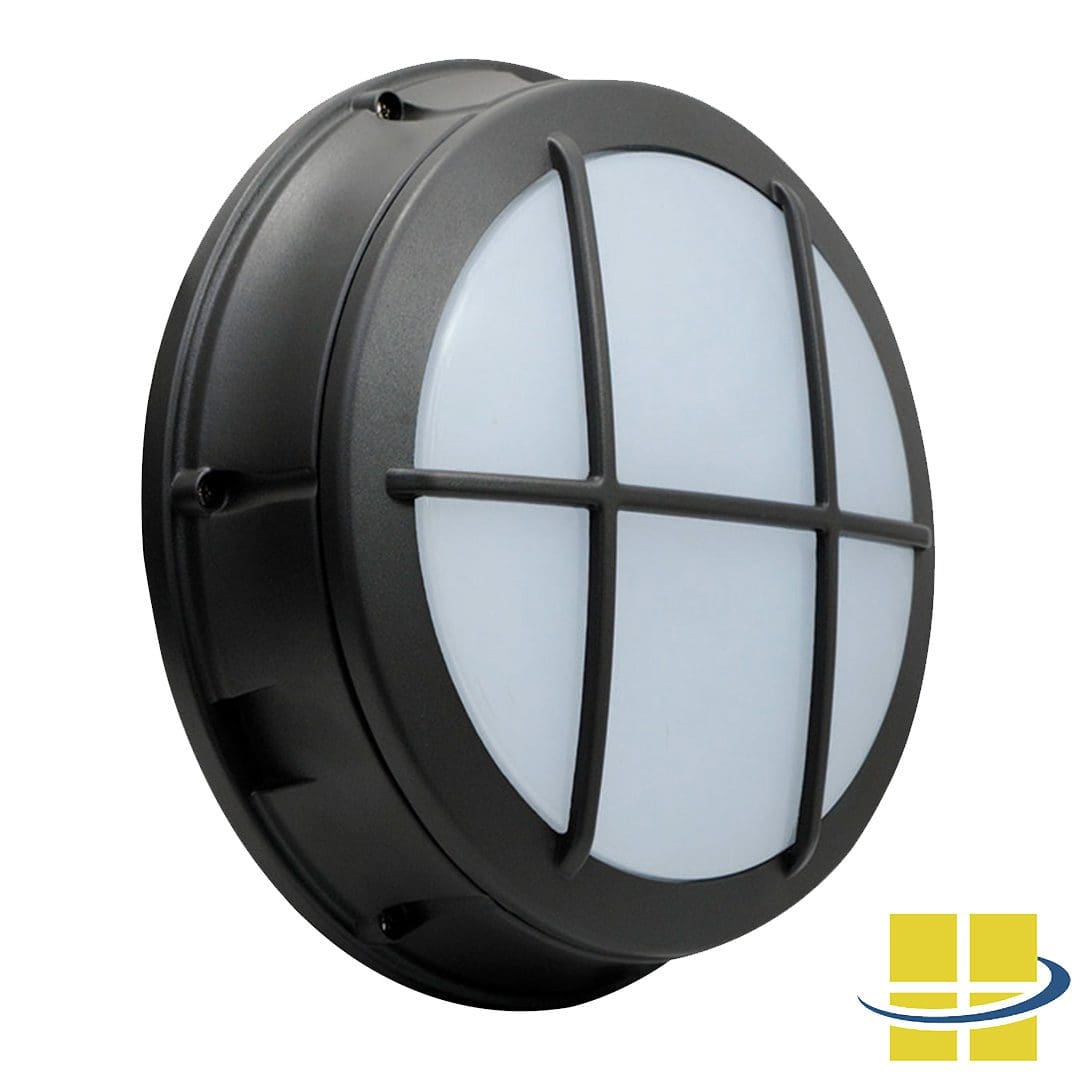

CIRF 18w LED Bulkhead Grid Frame Wall Pack, EXTREME-LIFE

$319.87

The CIRF 18w LED round bulkhead wall pack is designed with a built-in grid across the lens to prevent breakage and add an aesthetic touch. CIRF comes standard with a sturdy die-cast aluminum housing and its UV-stabilized polycarbonate opal lens is vandal-resistant and eliminates any LED hot spots. CIRF works for 8 to 20′ mounting heights.

EXTREME-LIFE: CIRF 18w round bulkhead open-frame wall pack features an impressive L70 rated life of 187,000 hours. This means that after 187,000 hours, this fixture will still emit 70% or greater of its original lumens. That’s almost 22 years of sustained light!

Vandal-Resistant: The CIRF wall pack features durable die-cast aluminum housing construction with a vandal-resistant stabilized polycarbonate opal lens for durability, resistance, and the elimination of hot spots. Architectural grade textured powder-coat finish with chromate conversion coating will protect the fixture from corrosion and erosion.

IP66 Rated: CIRF is fully protected against water jets, making this wall pack an ideal solution for any application where dust or water may be a concern.

Buy American Act Compliant

Lead Time: 7 to 10 Day Production, plus Shipping

In Stock

- Wall Pack - CIRF LED Round Bulkhead Grid-Frame Wall Pack 230604

  • For a custom RAL color, please speak to one of our lighting specialists
  • Adding surge protection protects your light from unwanted power spikes that can damage the fixture
  • Maximize energy savings and the life of the lights by adding a motion sensor
  • Adding a photocell prevents the need to manually turn on/off your wall packs when it gets dark.

  • Total

SKU: AF33XWPR25GRQF1X17 Categories: , ,

Specifications

Weight 15 lbs
Dimensions 15 × 15 × 6 in
Available Finishes

Bronze, White, Custom RAL
Availability

7 to 10 Day Production, plus Shipping
BUG Rating

1, 1, 0
Lens

UV-Stabilized Polycarbonate Opal Vandal-Resistant
Light Source

, ,

Light Source Included

Aluminum Boards
Light Source Lumens

2134
Listings

CSA – listed for wet Locations, IP66
Mounting

Surface Mount
Product Family

CIRF
Rated Life

187,000 Hours
System Watts

18
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty

Product Description

CIRF 18w LED Round Bulkhead Grid-Frame Wall Pack Features:

  • 18 system watts

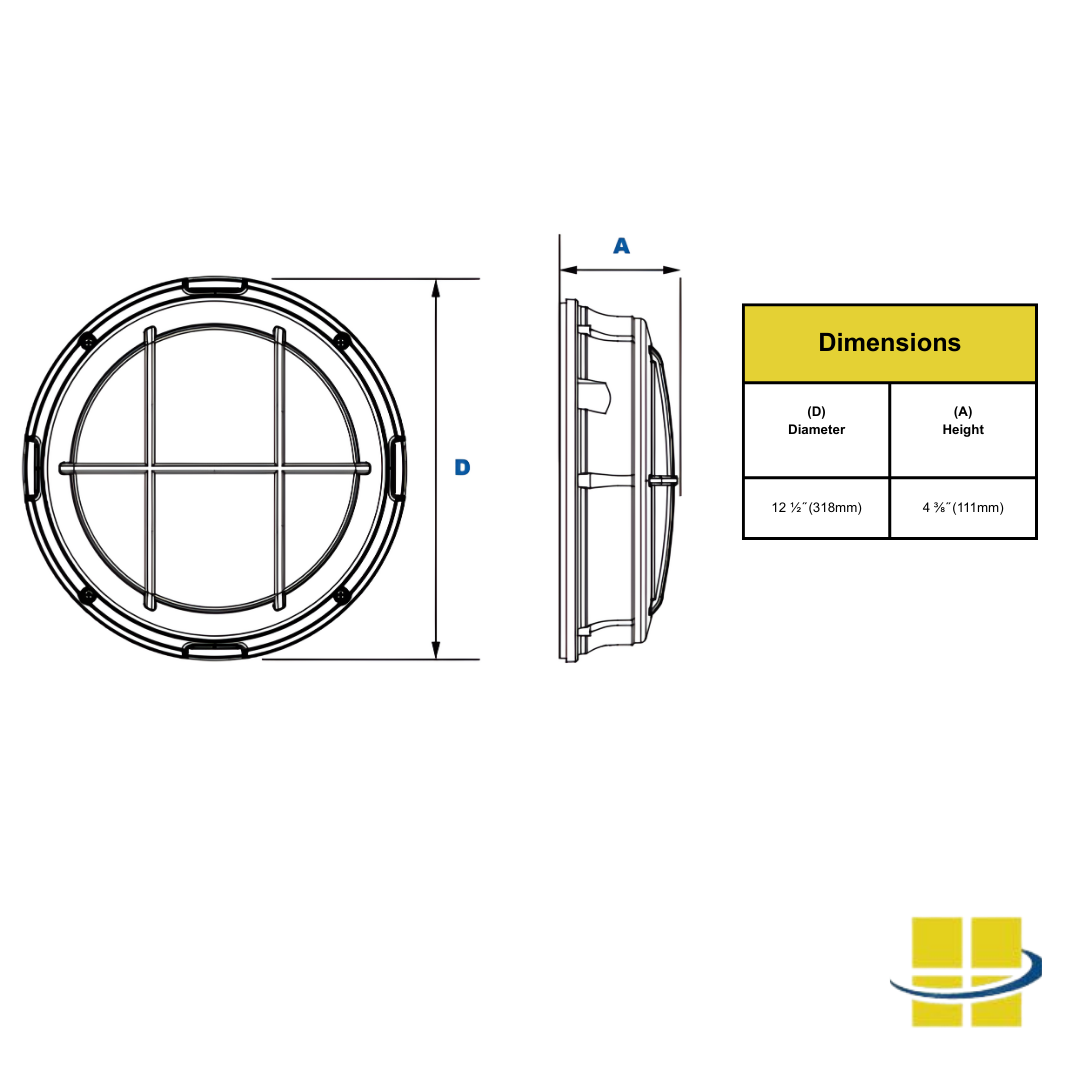

  • 12.5″ x 4 3⁄8″
  • Grid frame
    • helps protect the UV-stabilized polycarbonate lens
    • Adds a decorative element
  • 3000K, 4000K, 5000K
  • Bronze, White, Custom RAL Colors with MOQ
  • Lumen output:
    • 3000K – 1,888 lumens
    • 4000K – 2,048 lumens
    • 5000K – 2,134 lumens
  • BUG rating: 1, 1, 0
  • IP66 rated
  • L70 rated life of 187,000 hours – extreme life
  • Die-cast gasketed aluminum housing
  • Integral heat sinking and driver compartment
  • Textured architectural bronze powder-coat finish over chromate conversion coating
  • Surface mounting
  • 120-277VAC 20KA Surge Suppressor
  • Battery Backup, 90 Minutes (120-277v Only)
  • Photocell Adaptable
    • Pencil Photocell, 120-277VAC
  • Microwave Sensor with Dimming, 120-277V Only
  • Frosted vandal-resistant polycarbonate lens
  • CSA listed for outdoor use in wet locations

Options:

  • Finish: bronze, white, or custom RAL
  • Kelvin temperature: 3000K, 4000K, or 5000K
  • Battery backup (provides power to a fixture for 90 minutes after an outage)
  • Photocell
  • Microwave sensor with dimming
  • Surge protector

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

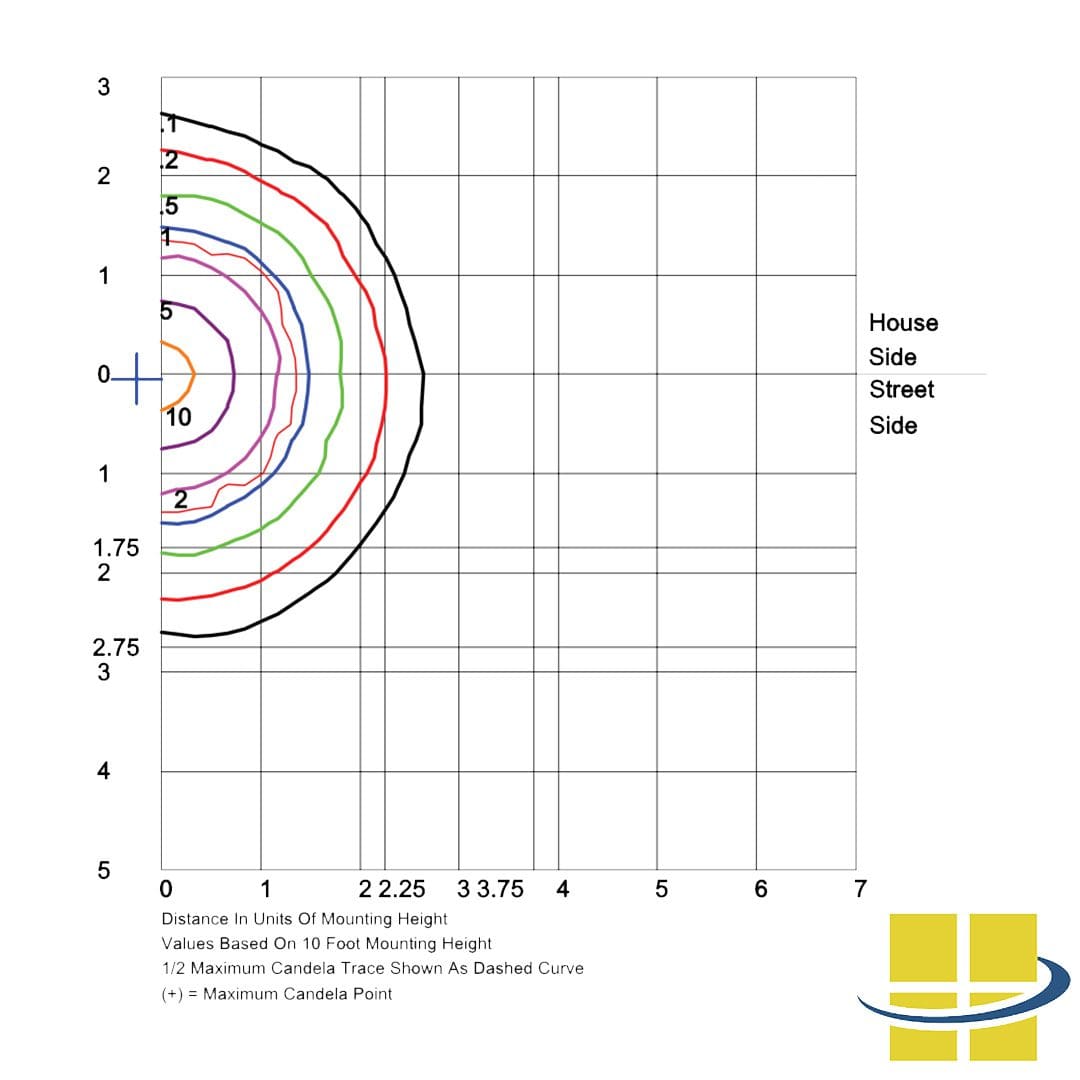

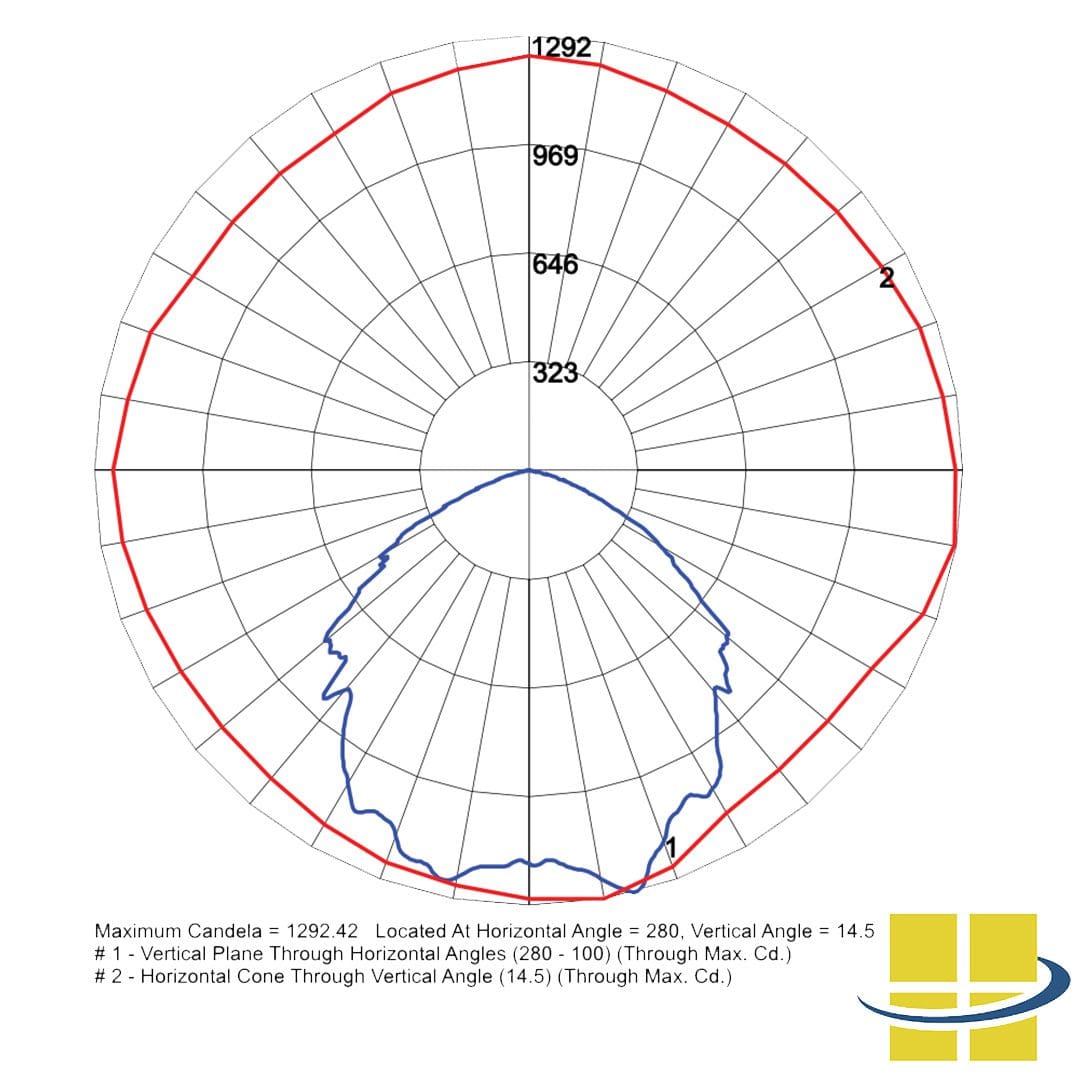

Need a Photometric Analysis for Your CIRF LED Wall Pack Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order a CIRF LED Wall Pack or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
