Product Description

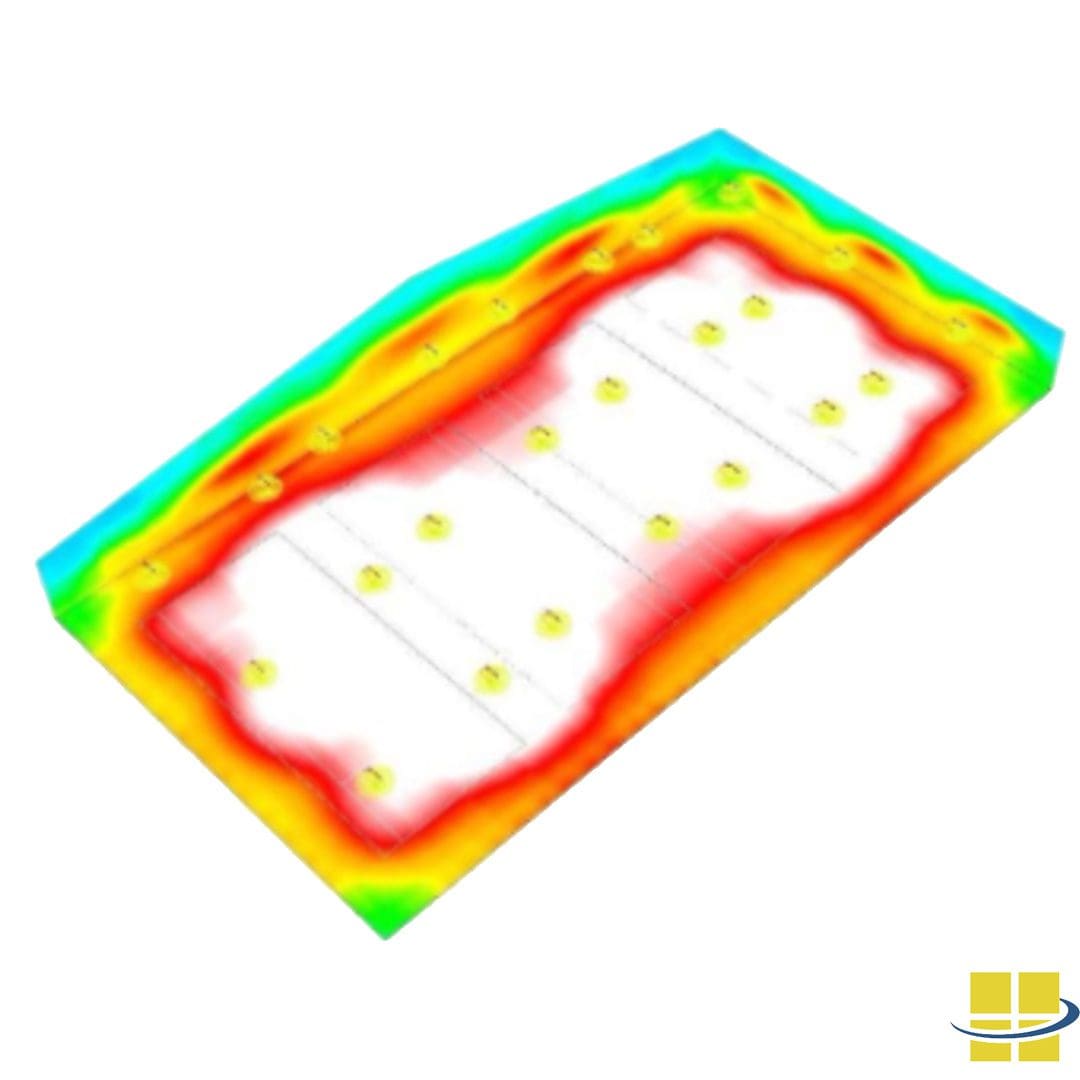

The photometric study models the delivery of light from the light fixtures. These courts use 6 x EPTA 160w LED linear light fixtures to illuminate each court. For club-level lighting, the courts need an average of over 30 footcandles and a max/min ratio of under 3.0. This lighting plan delivers an average of 31 footcandles of illumination and a max/min of 1.33 for each court. That is club-level lighting with perfectly even lighting. From an energy standpoint, EPTAs provide a super-effective 153 lumens per watt, which means they are very energy efficient. Each court uses only 924 watts of energy!
Club-Level Indoor Tennis Court LED Lighting Package:
The following parts and materials are included in this package:

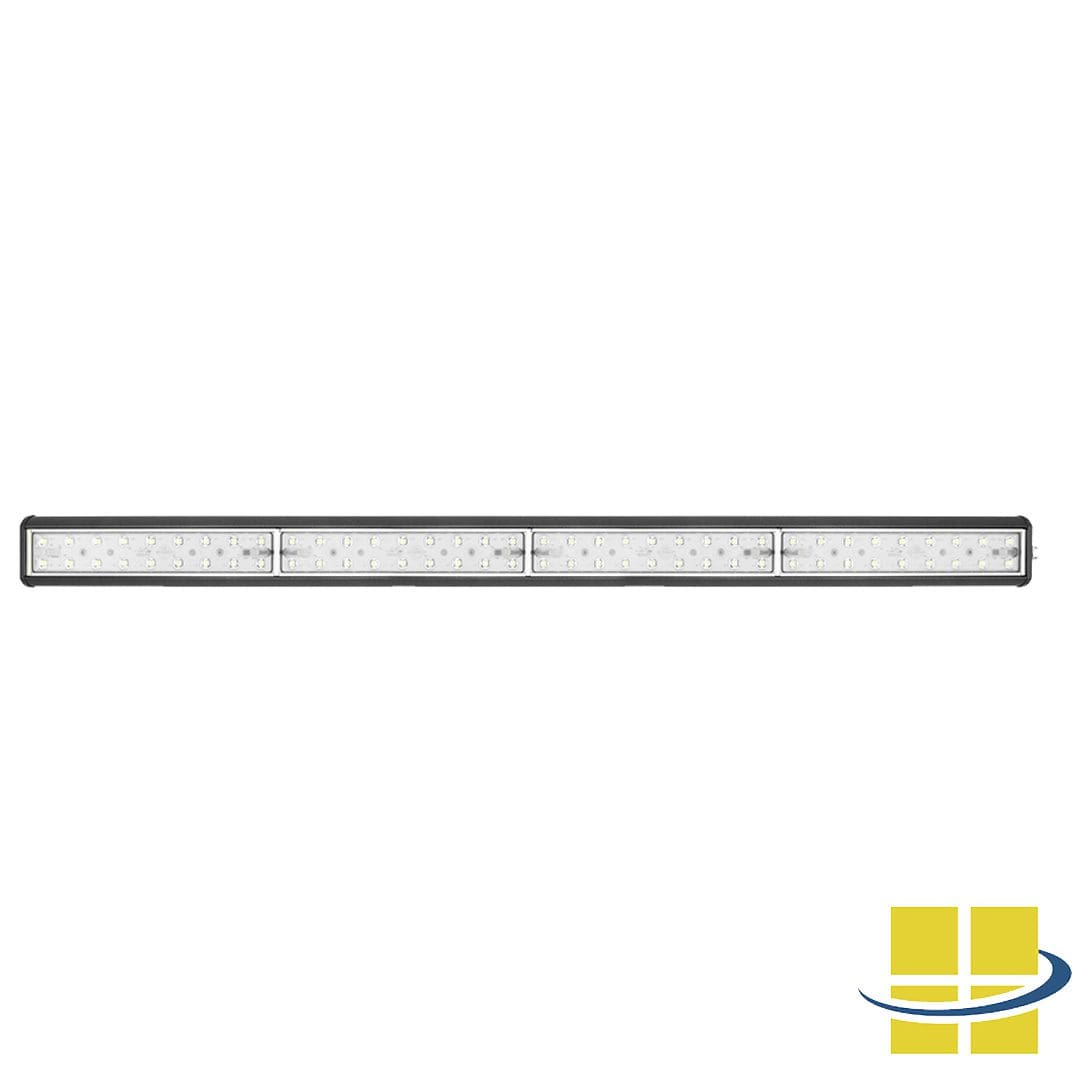

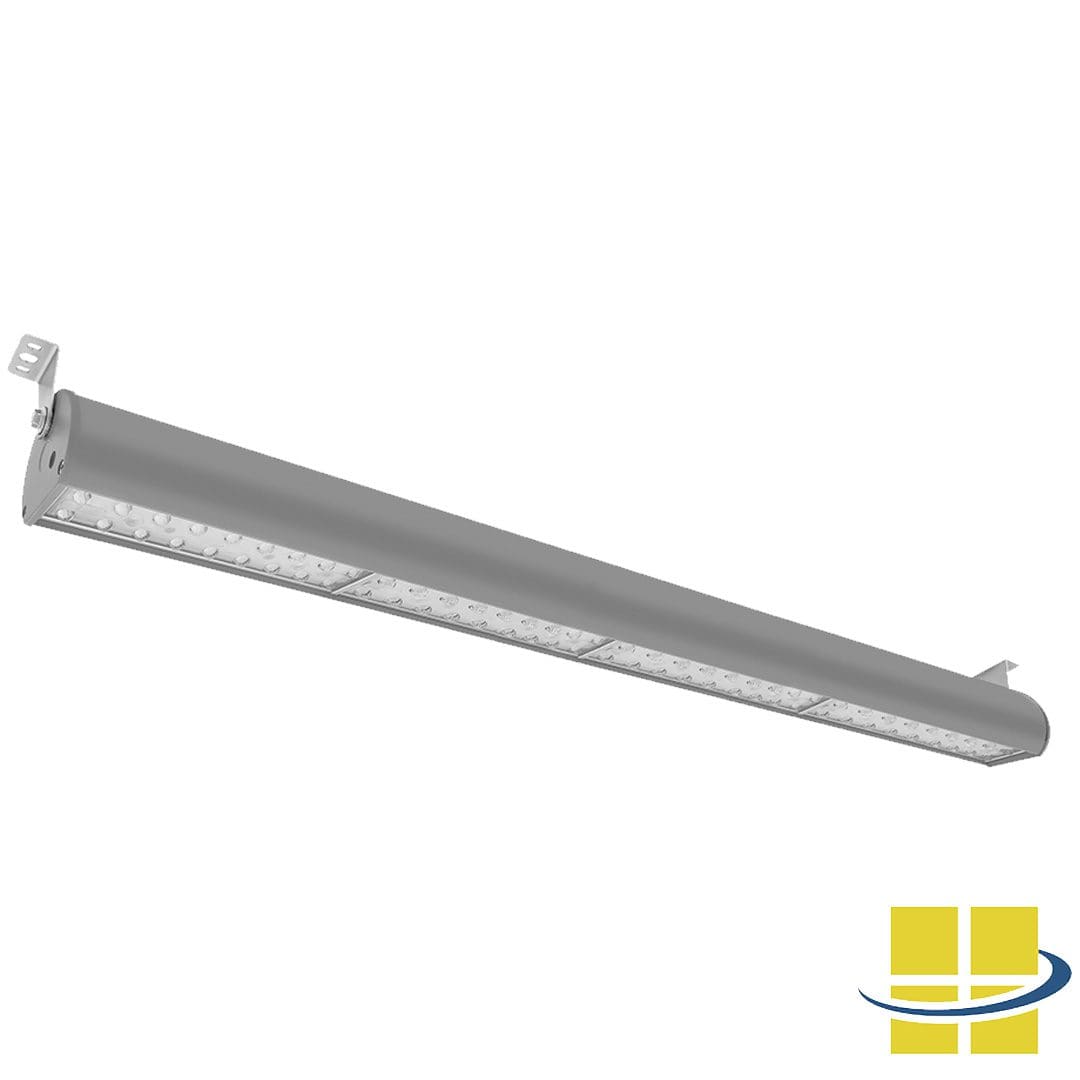

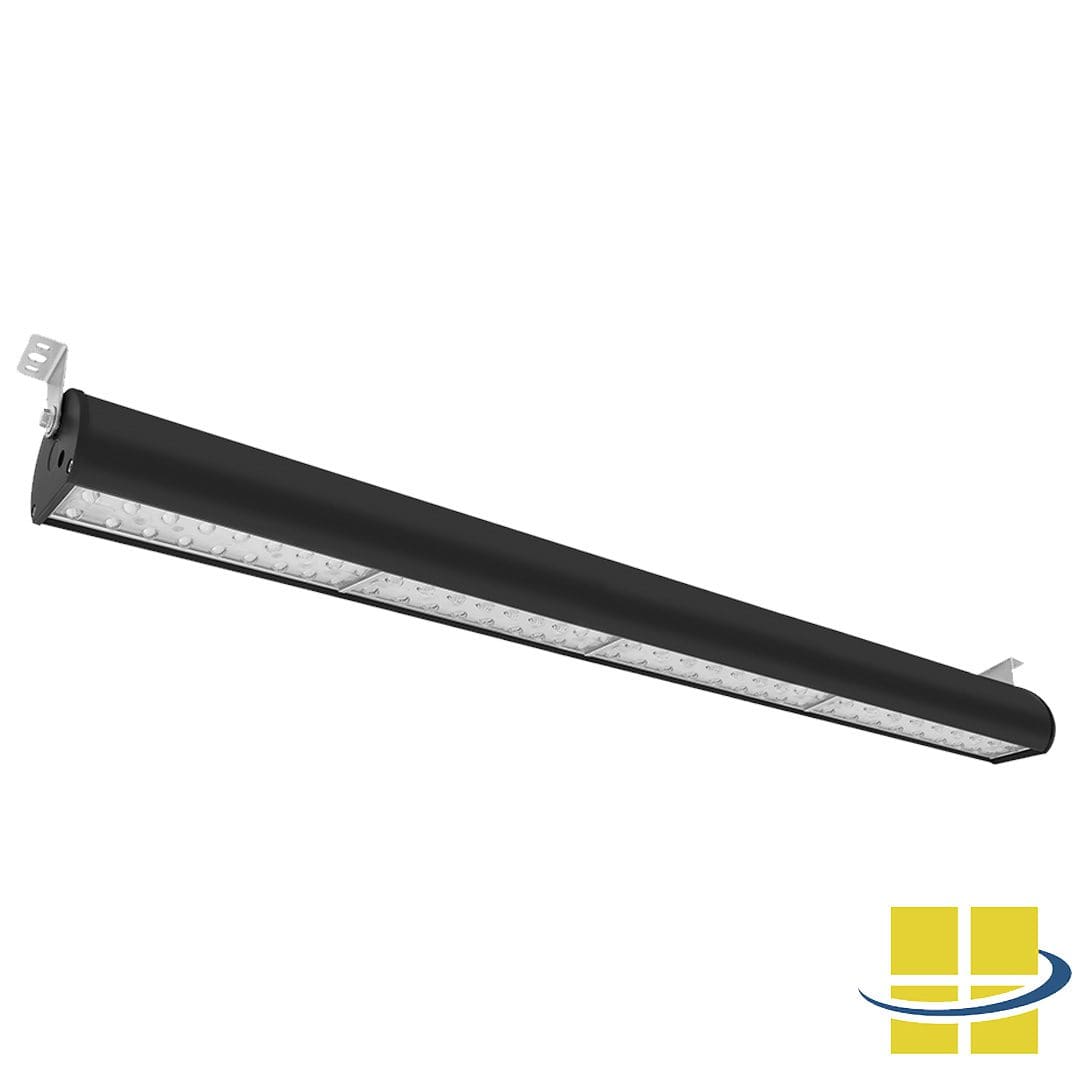

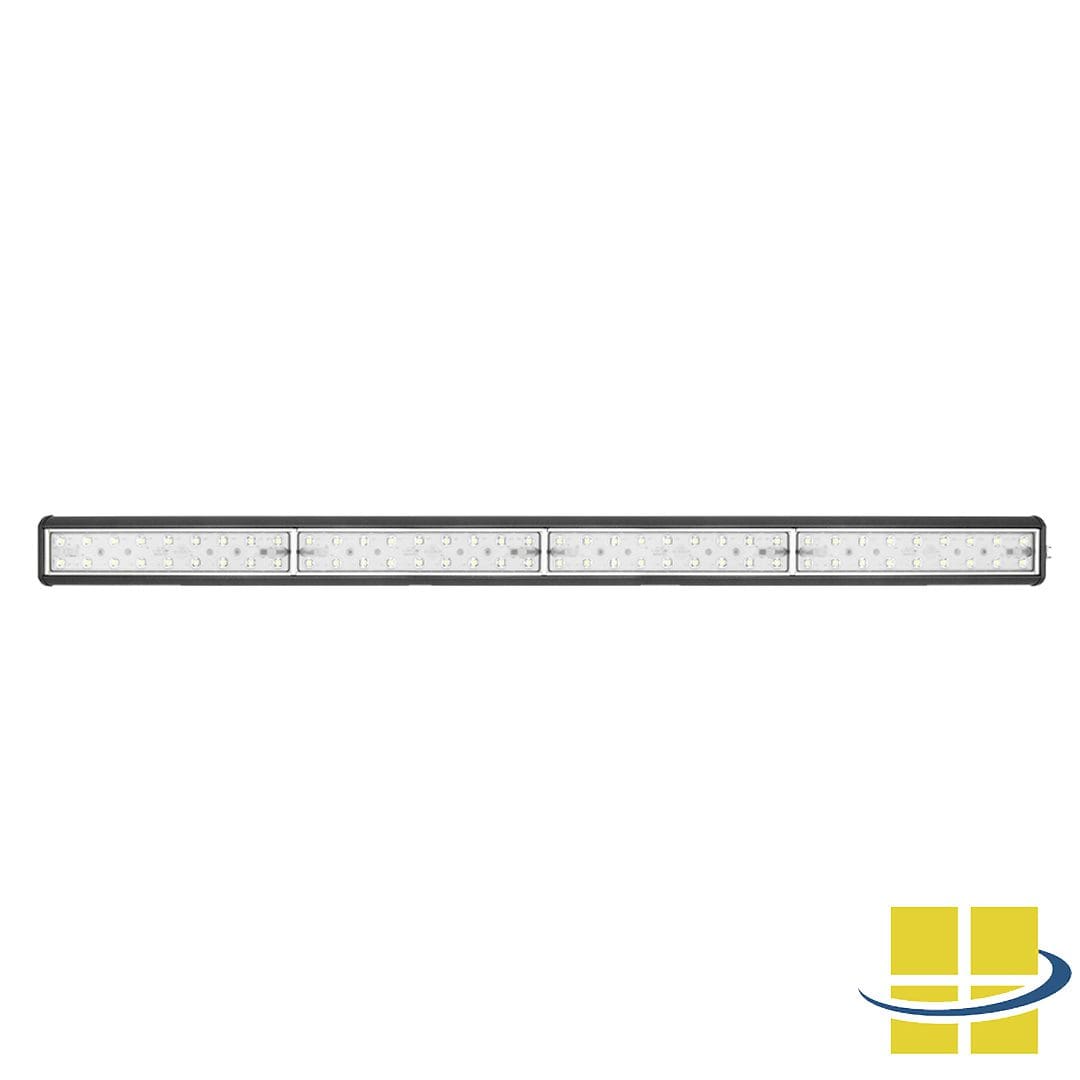

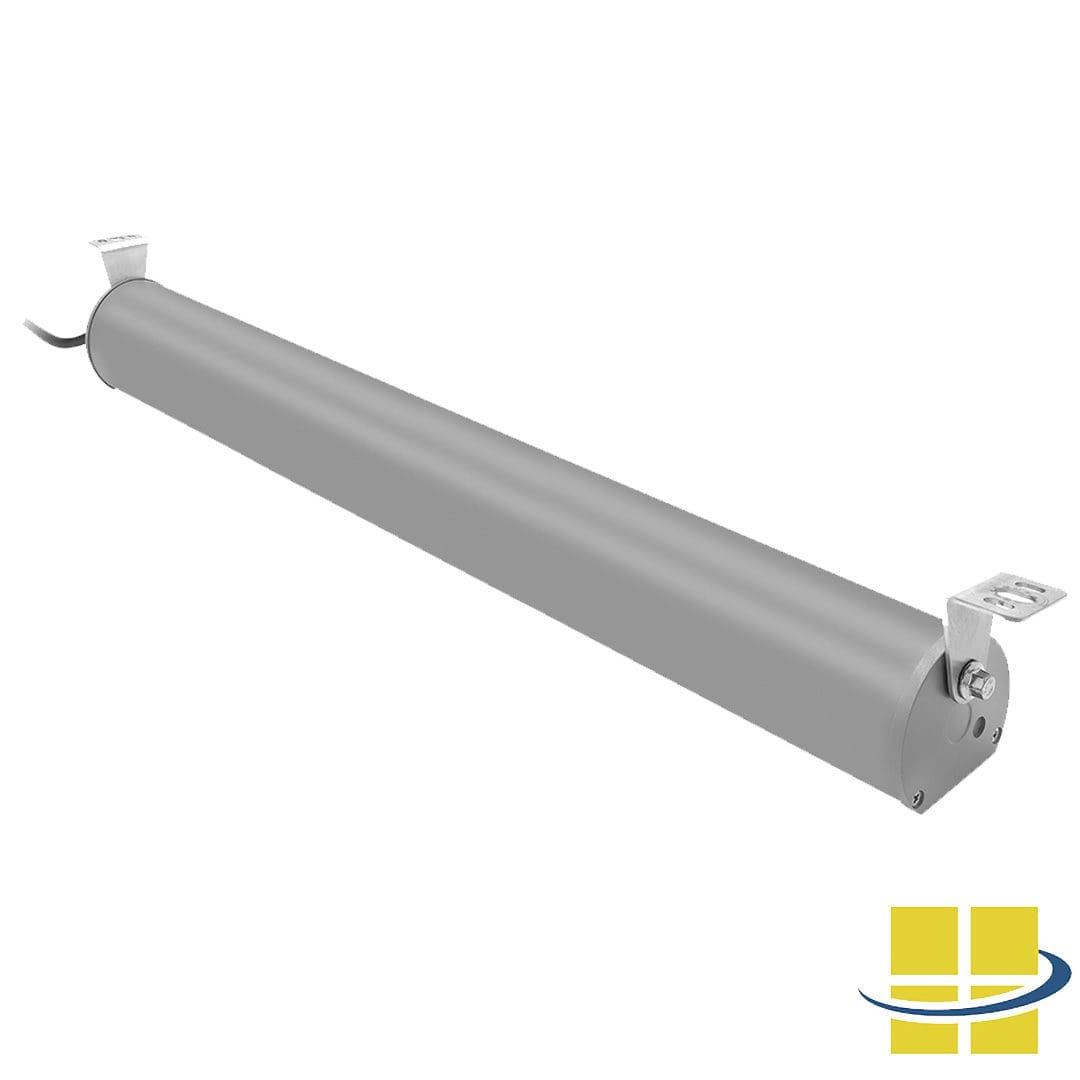

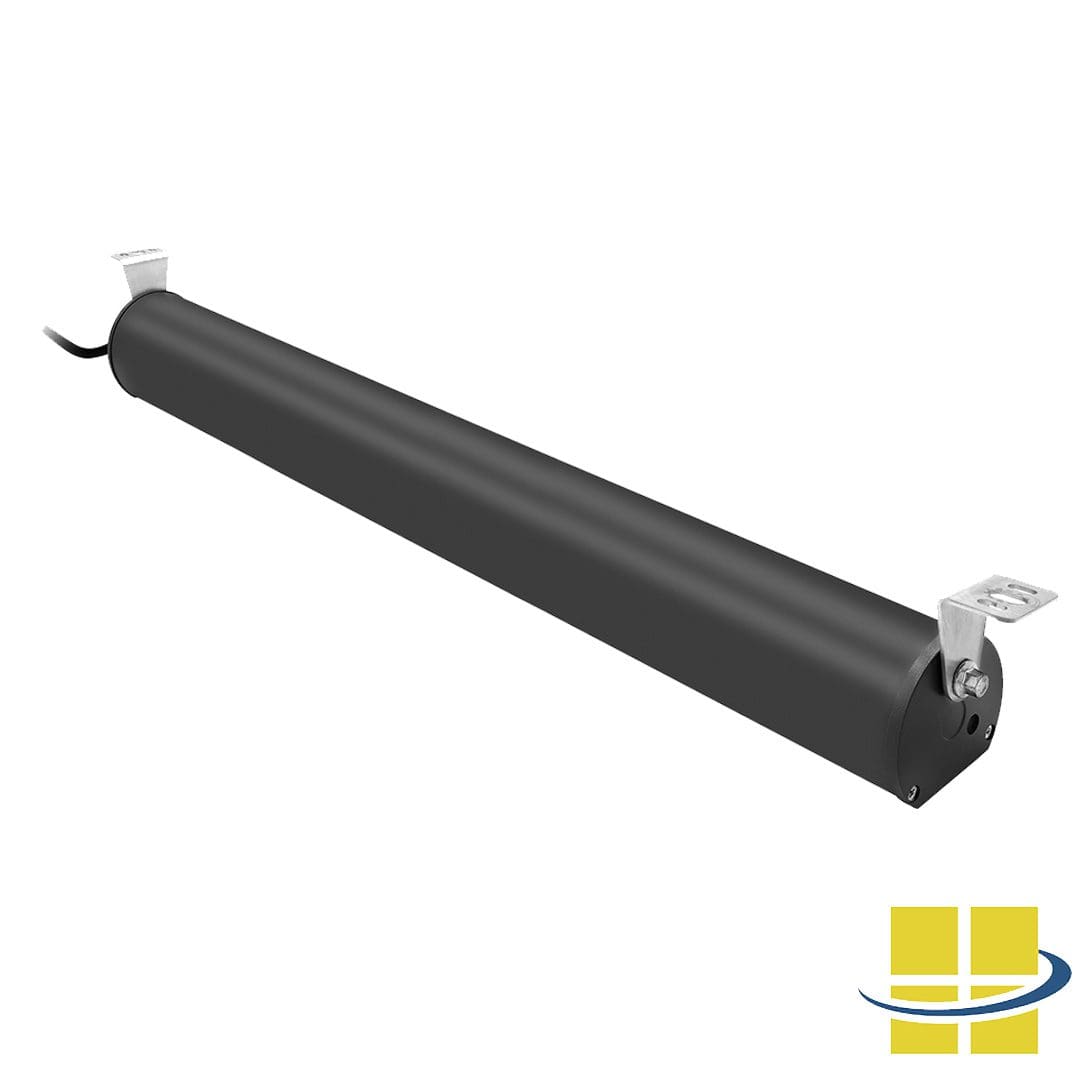

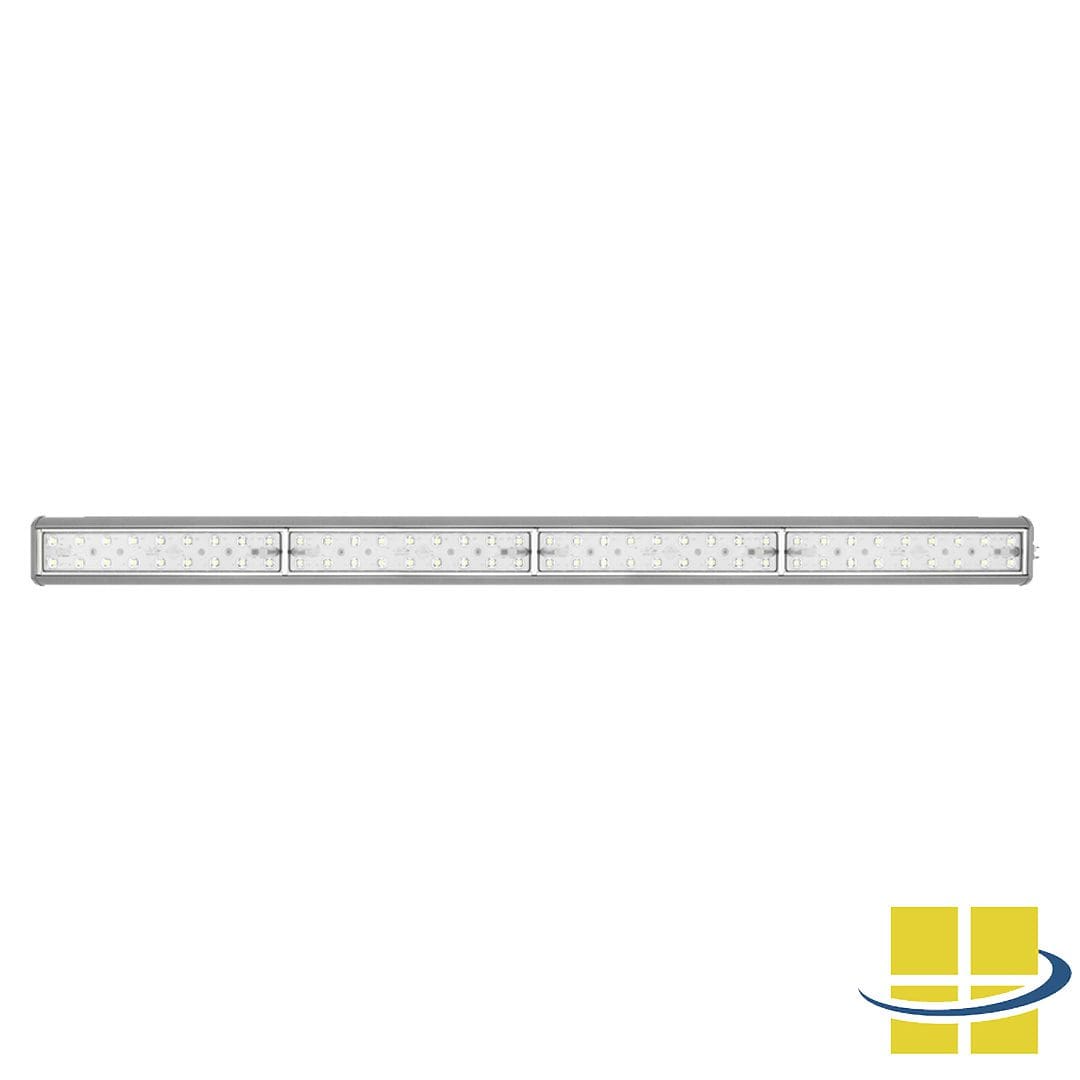

EPTA 160w LED Linear Lighting Features:
- 8.1 lbs
- 43.58L x 3.23W x 2.80H
- 100-277VAC 50/60Hz
- Nominal power 40W-160W
- High light output
- 153 LPW
- 24,480 lumens
- 700 mA
- Ra70 standard, optional Ra80 or Ra90
- Modular system – each fixture can be linked together. Contact for more info
- Marine grade finish – all exposed metal is 304 stainless steel meaning all fixtures can be installed at sea-side projects
- Surface-mounted, knuckle mount, or suspended
- End brackets, full brackets, wire pendant, or knuckle mount mounting
- Operating temperature: -40°C~+50°C
- T5M optics
- Black or Gray color options
- Finished in durable powder cost paint
- Corrosion-resistant polyester powder painted 100μm thickness
- Meets 1000-hour salt spray certification
- L70 @ 200,000 hours
- DLC, IP66 rated, IK08 rated, CUL, CE, CB, SAA, RoHS, TUV rated
EPTA 160w LED Linear Lighting Options:
- 1-10v dimming
- 347-480v
- 3000K, 4000K, 5000K, 5700K
- 3′, 6′, 12′, 18′ power cord
- Ra80 or Ra90 optional
If you have additional questions about the fixtures used in this package, please call us at 800-468-9925.
Prompt Delivery of Your Tennis Court LED Lighting Package
Everything in this package typically ships in 6-8 weeks. The fixtures are custom-built to order but we are almost always able to meet or exceed this estimated window. We’ll ship your poles from the factory location closest to you. Stock does fluctuate, so call 800-468-9925 for an exact lead time.
Access Fixtures Warranty
Access Fixtures is proud to assemble high-quality, long-lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures’Â complete warranty policy.
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.
Need a Custom Photometric Analysis for Your Tennis Court Project?
A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.
Ready to Order or Speak to a Lighting Specialist?
You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
