Club-Level LED Tennis Package: 8 x Fixtures, 36 Avg Footcandle, 1.65 Max/Min

$18,269.87

This Club-Level LED Tennis Package: 8 x STAM 300w Fixtures, 36 Avg Fc, 1.65 Max/Min is a recreational-level tennis package with a variety of options.

Great Value: This package features club-level performance at 36 average footcandles.

Glare-Free Optics: This package features STAM low glare technology for optimal visibility during games.

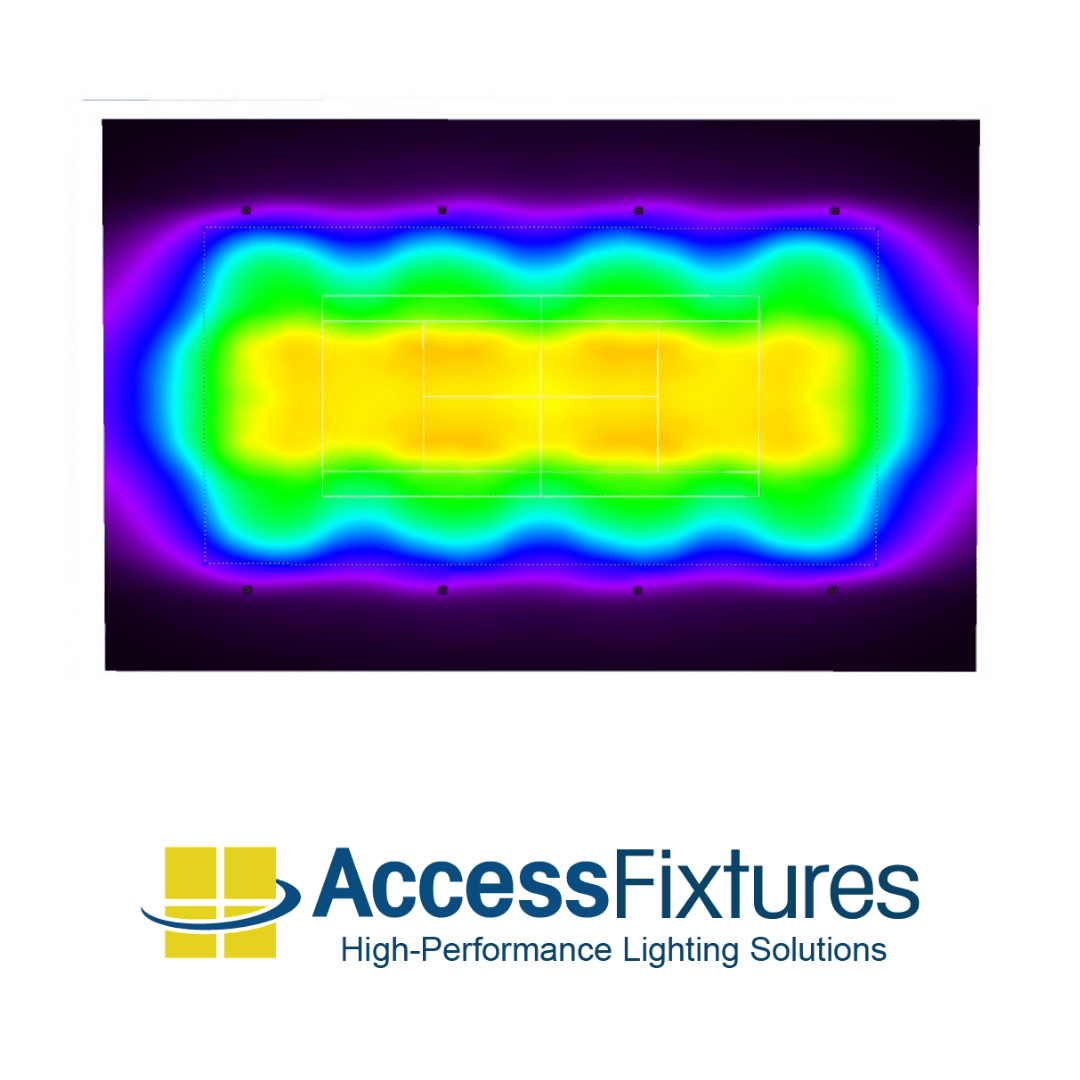

Even Lighting: This package features an optimal max/min ratio of 1.65 for extremely even lighting within the court perimeter.

Lead Time: 2 to 4 Week Production, plus Shipping

In Stock

  • Total

SKU: AF77XST-LHM300NU+AF33XPARS420AB Categories: ,

Specifications

Weight 100 lbs

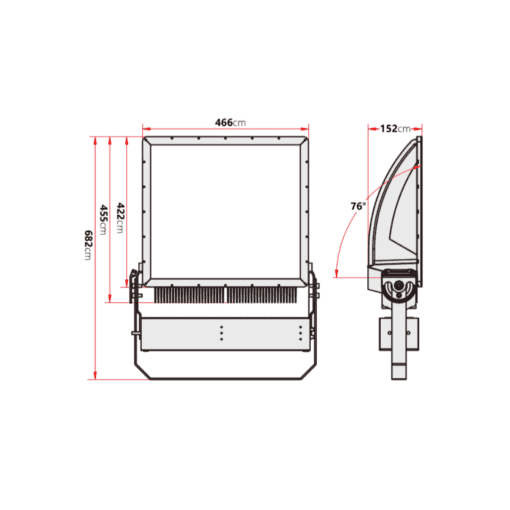

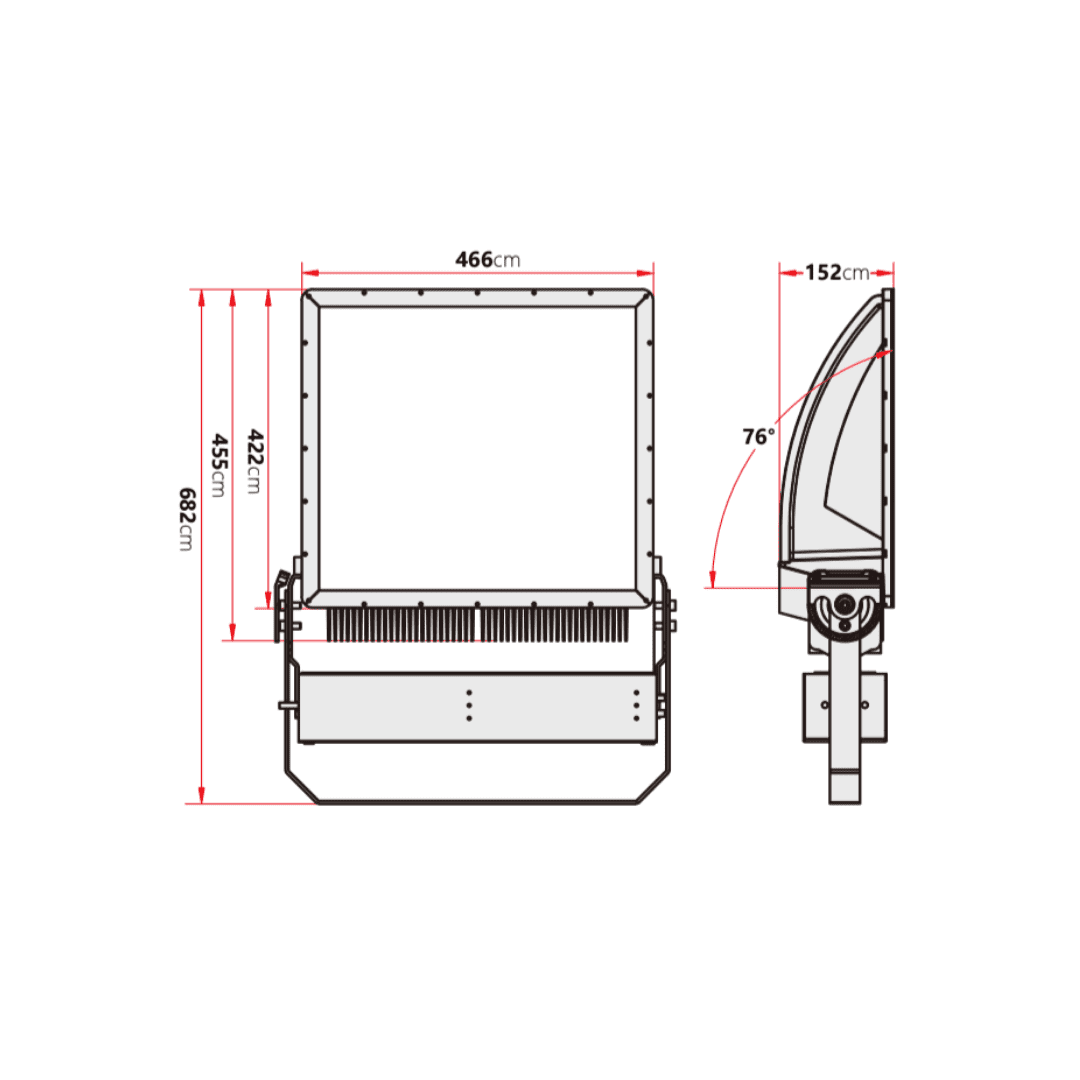

Dimensions 30 × 30 × 30 in
Light Source

Availability

2 to 4 Week Production, plus Shipping

Ballast/Driver

Electronic 50/60 Hz

Color Rendering Index (CRI)

70+

Housing

Die-cast aluminum housing with corrosion-resistant polyester powder. Finish meets 1,000-hour salt-spray certification per ASTM B117/ISO 9227:2012. Modular LED design with IP67 rating.

Listings

CE, CuL Listed, RoHS

Rated Life

50,000 Hours

Warranty

5-Year Limited Warranty

Sports Level of Play

Club

Pole Height

20 Feet

Number of Poles

8

Number of Courts

1

Average Footcandles

36

Number of Fixtures

8

Max/Min Uniformity

1.65

Product Family

STAM

Voltage

120v, 208v, 240v, 277v, 347v, 480v

Available Finishes

Bronze

Product Description

This Club-Level LED Tennis Package: 8 x STAM 300w Fixtures, 36 Avg Fc, 1.65 Max/Min is a recreational-level tennis package with a variety of options.

Great Value: This package features club-level performance at 36 average footcandles.

Glare-Free Optics: This package features STAM low glare technology for optimal visibility during games.

Even Lighting: This package features an optimal max/min ratio of 1.65 for extremely even lighting within the court perimeter.

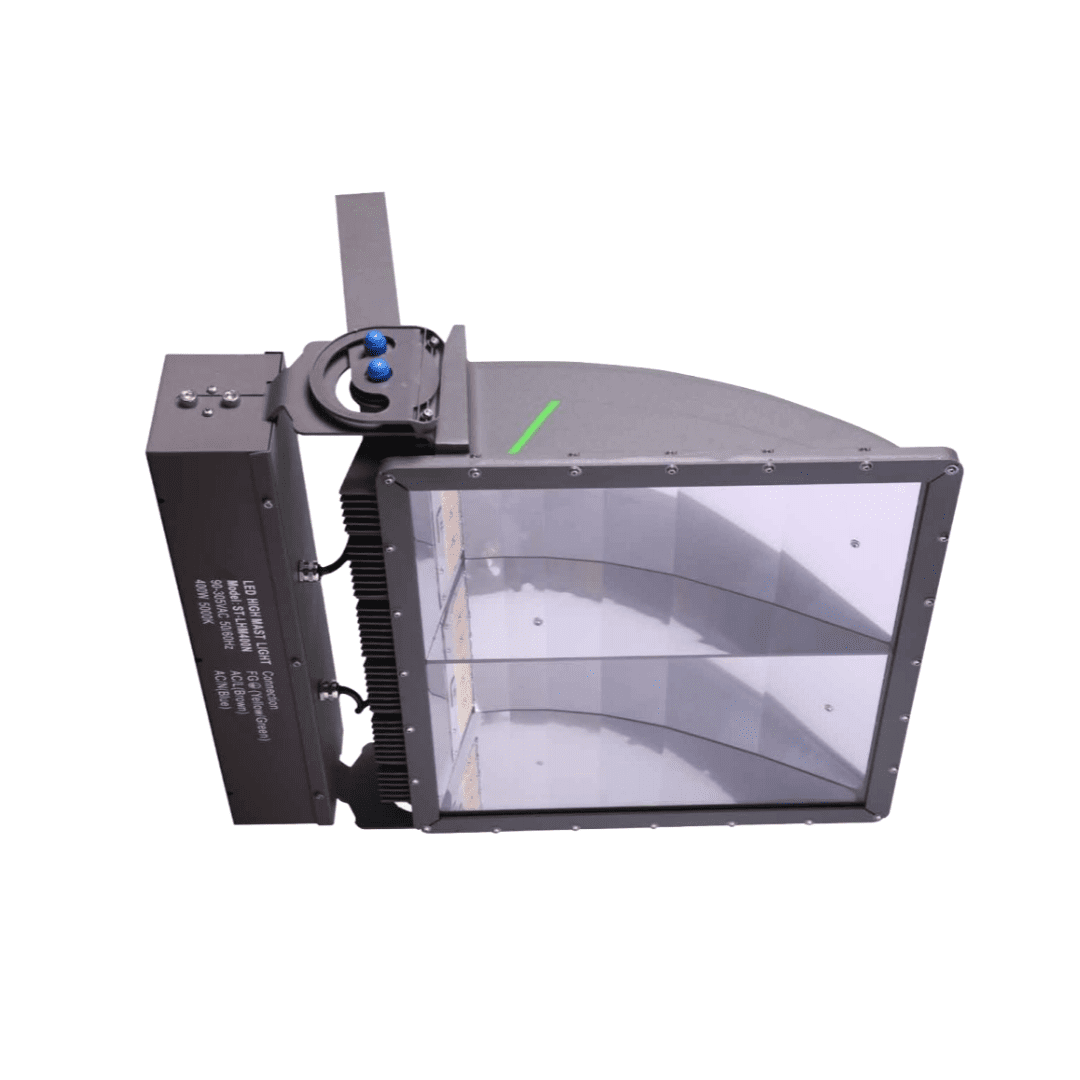

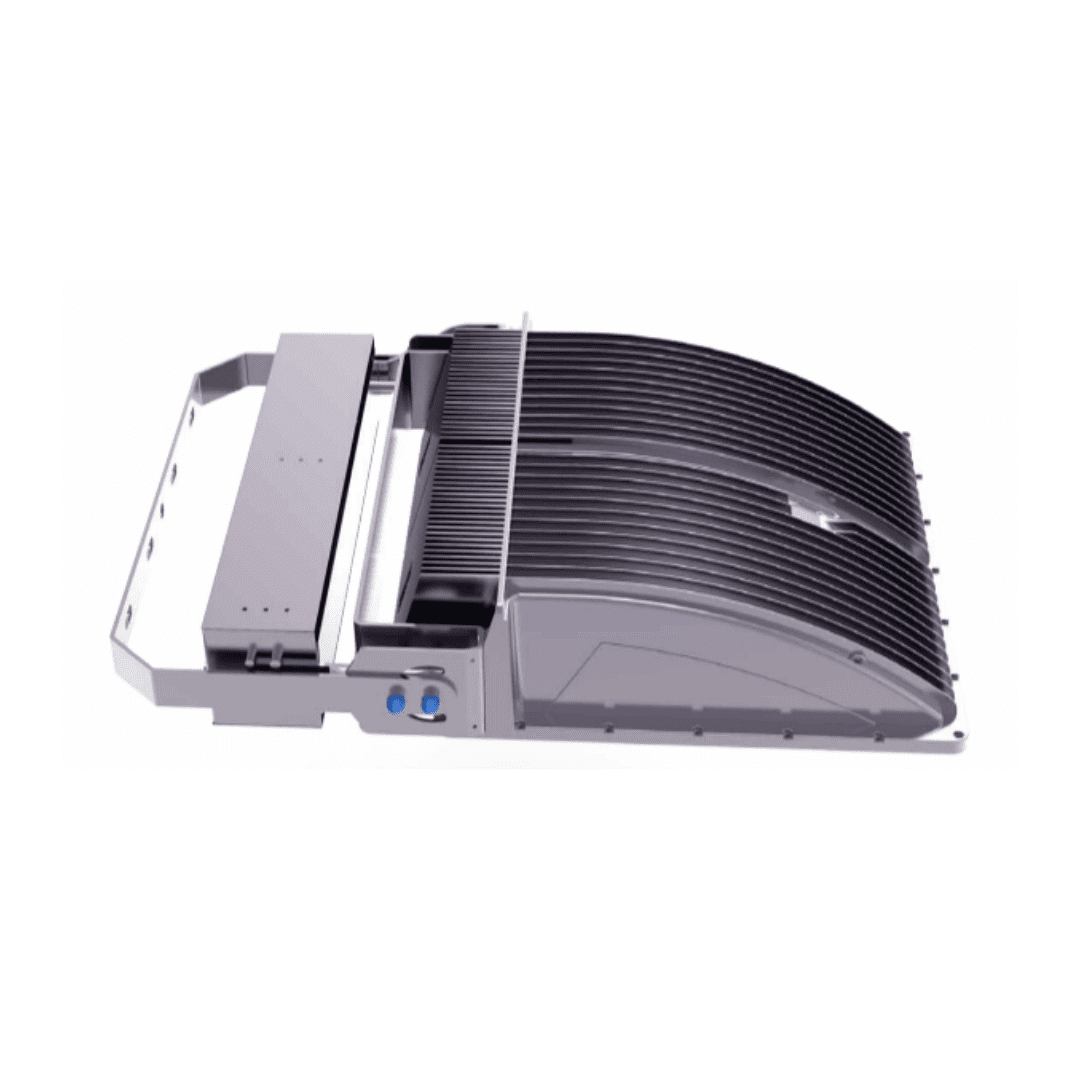

STAM Features:

  • Gray die cast aluminum finish
  • EPA of .81
  • Operates from -40 degrees Celsius to 50 degrees Celsius
  • 70+ CRI
  • DLC, UL, CUL, CE, RoHs listed

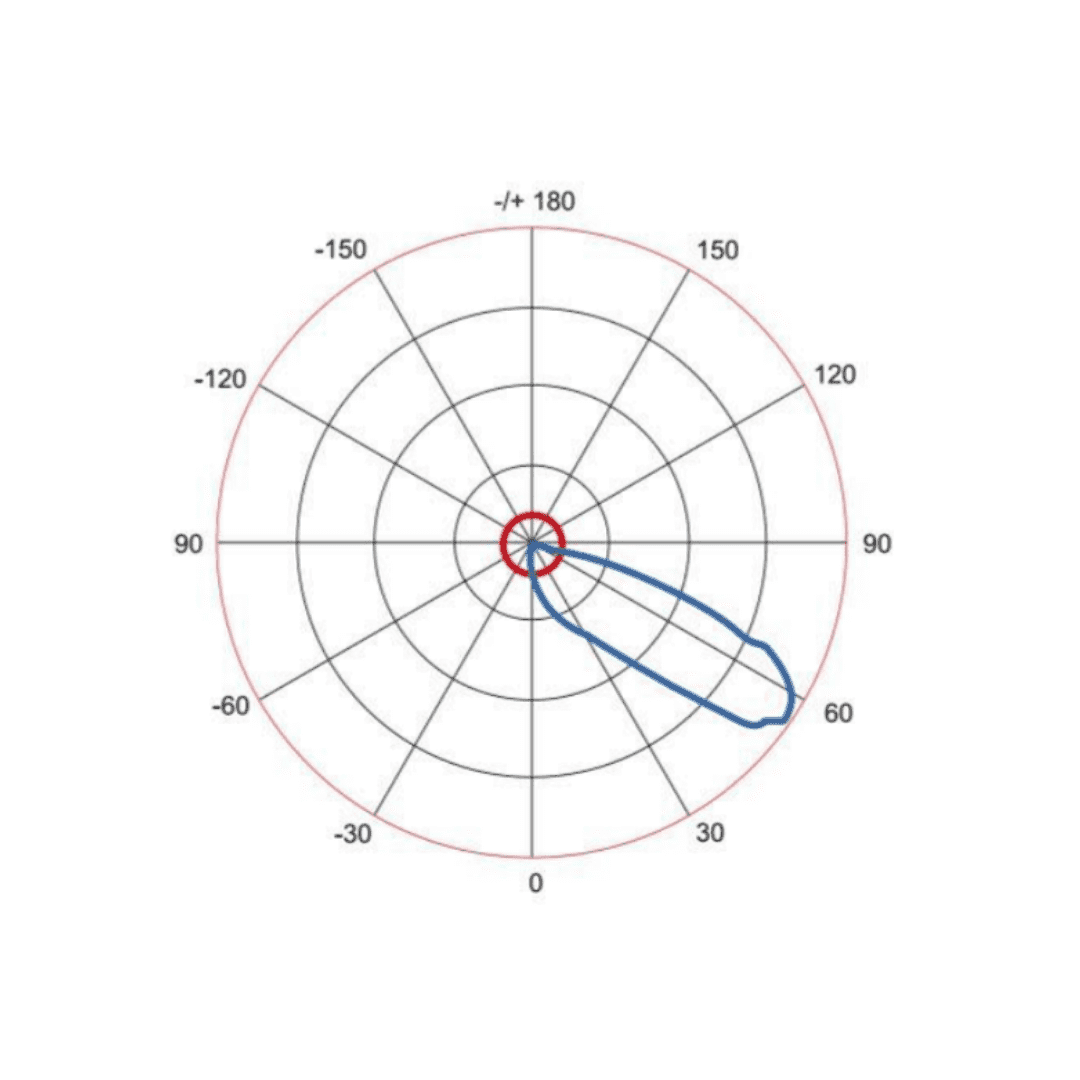

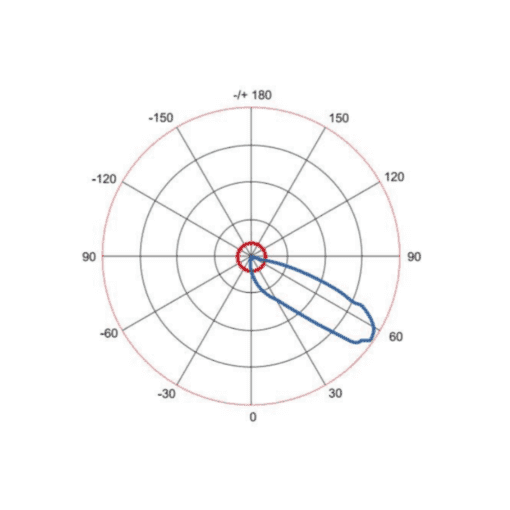

  • Unique asymmetric reflector
  • L70 @ 50,000 hours
  • 5000K

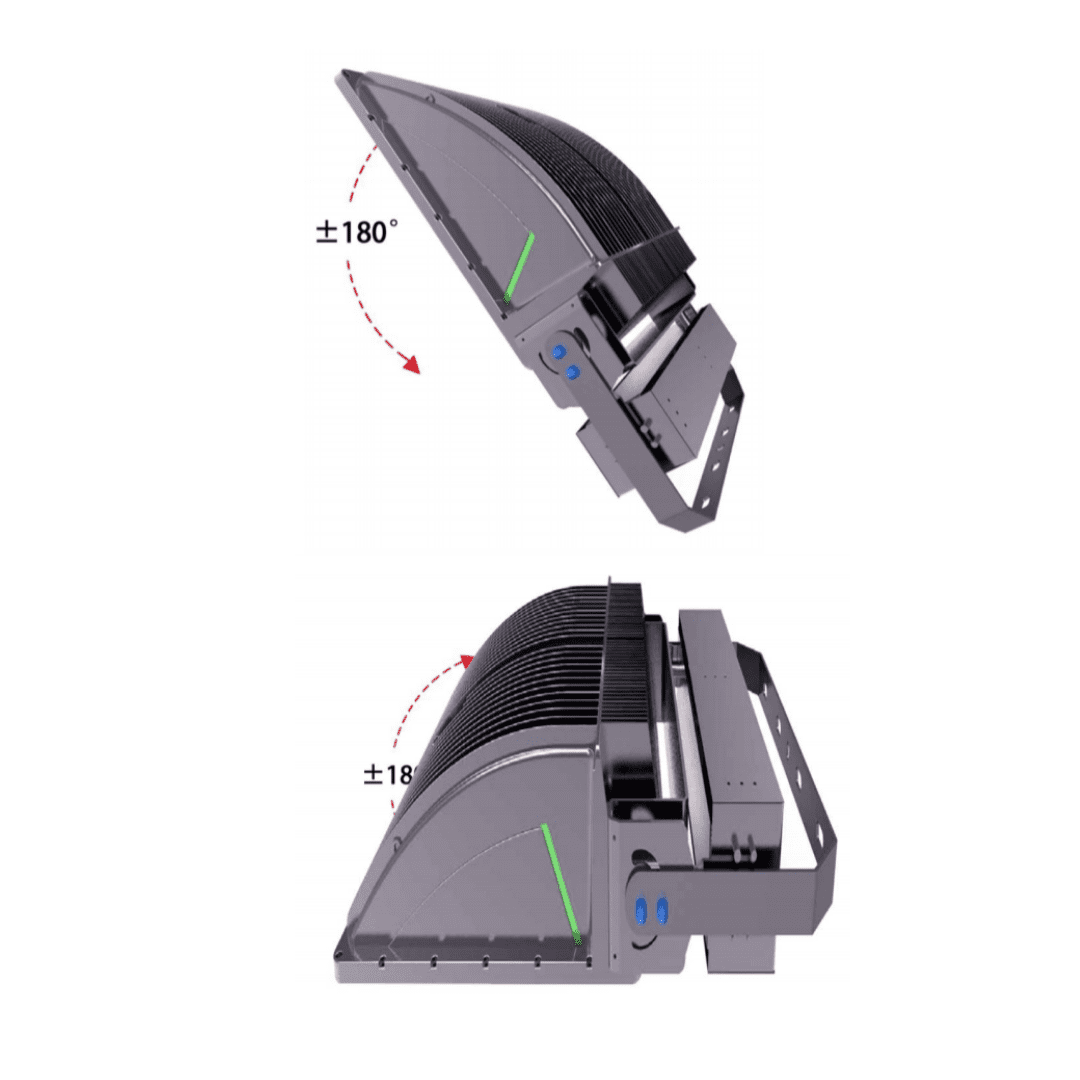

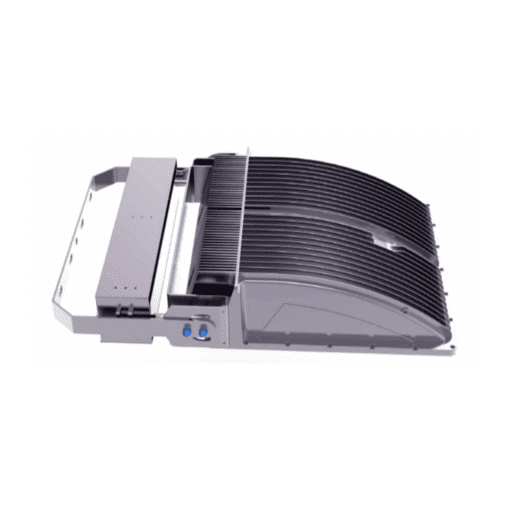

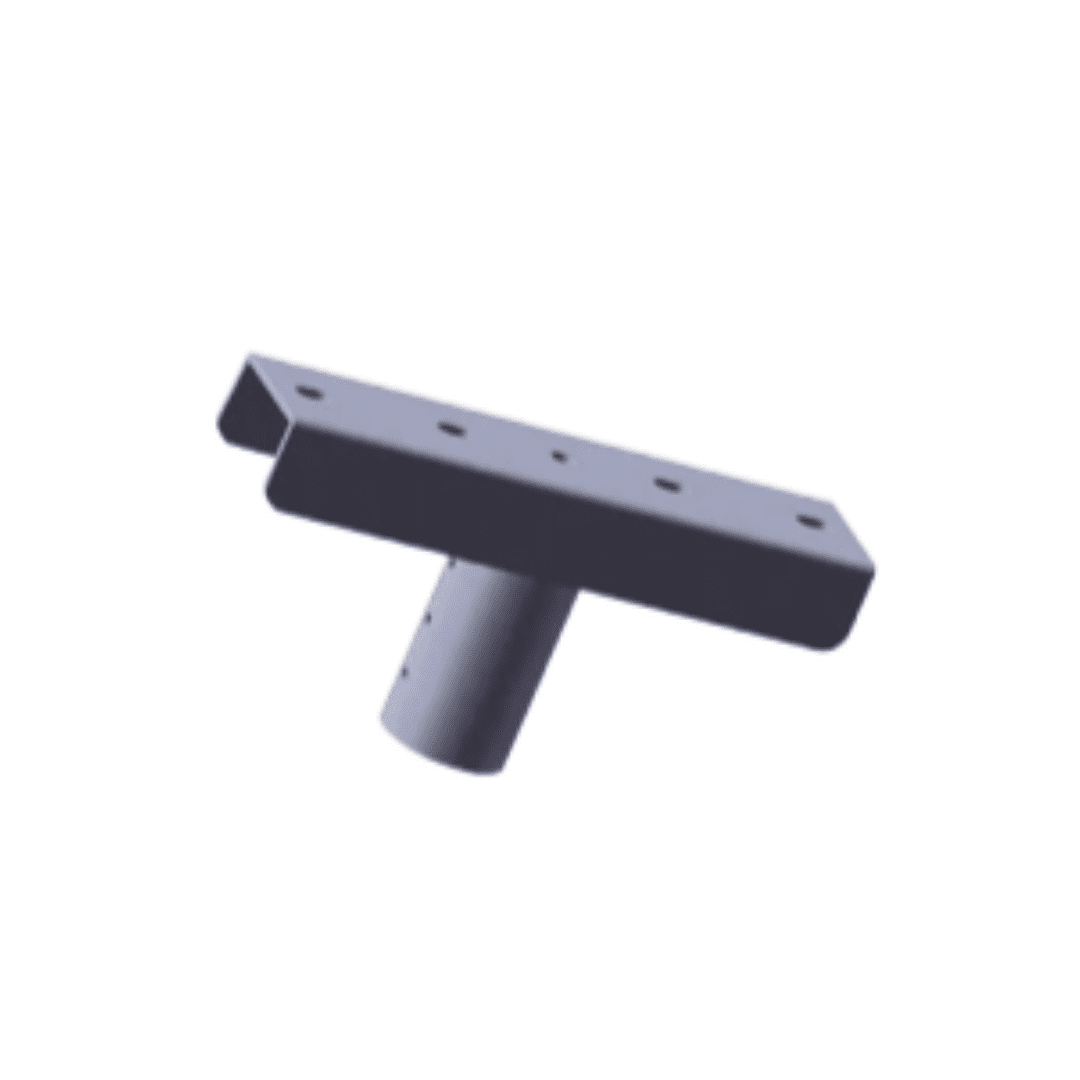

  • Standard bracket mount
  • 5-year warranty

Optional Poles

Club-Level LED Tennis Package: 8 Fixtures, 36 Avg Fc, 1.65 Max/Min comes with multiple pole options:

  • 20′ Smooth Aluminum Anchor Base Pole w/4″ Base Cover, 3/4″ Anchor Bolts
  • DIY – Select “No Poles” to provide your own!

All poles come with templates and necessary mounting hardware.

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your Club-Level LED Tennis Package: 8 Fixtures, 36 Avg Fc, 1.65 Max/Min Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order Club-Level LED Tennis Package: 8 Fixtures, 36 Avg Fc, 1.65 Max/Min or Speak to a Lighting Specialist?

You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high-performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
