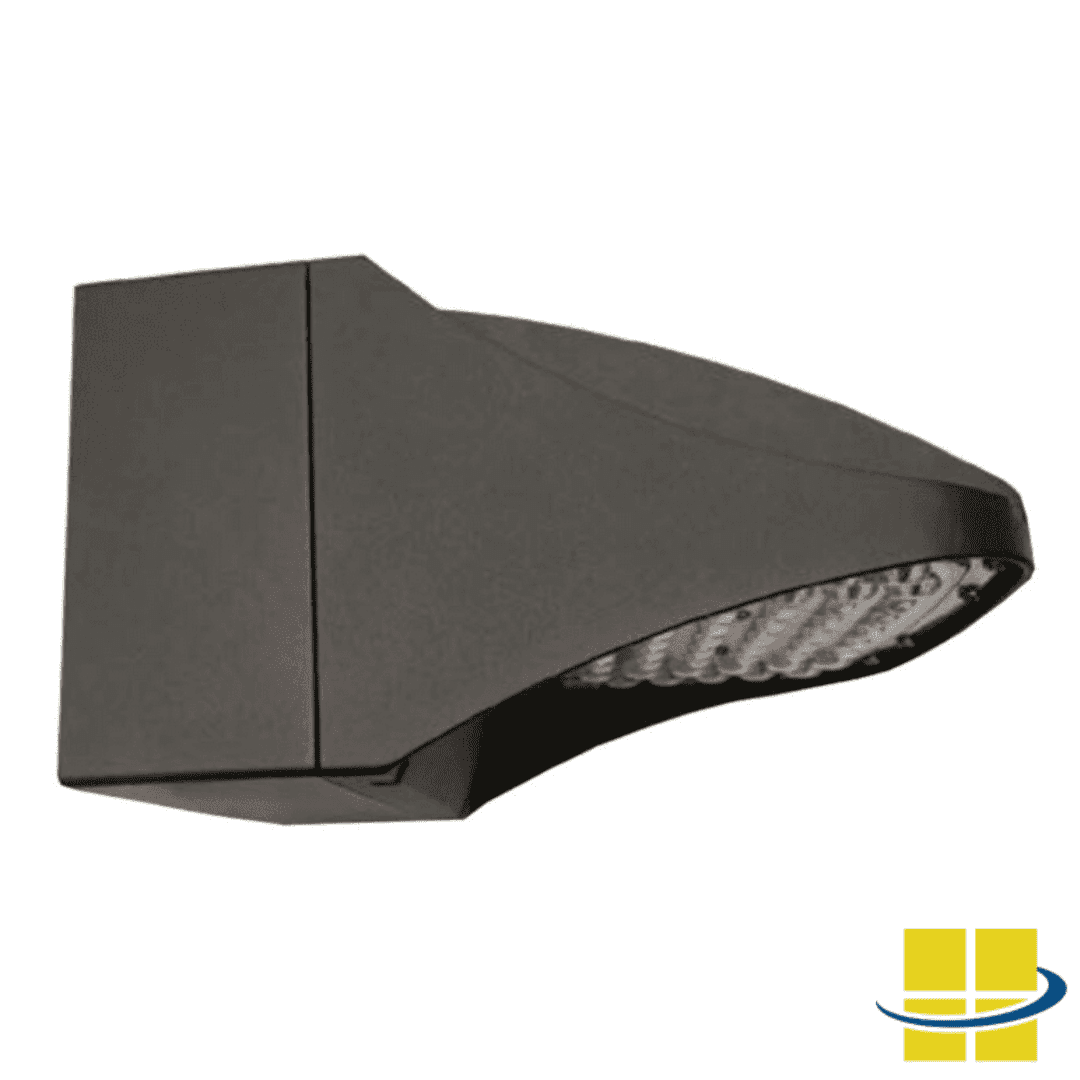

CUDL 42w LED Full Cutoff Wall Pack, Type 4 Optics, EXTREME-LIFE

$439.87

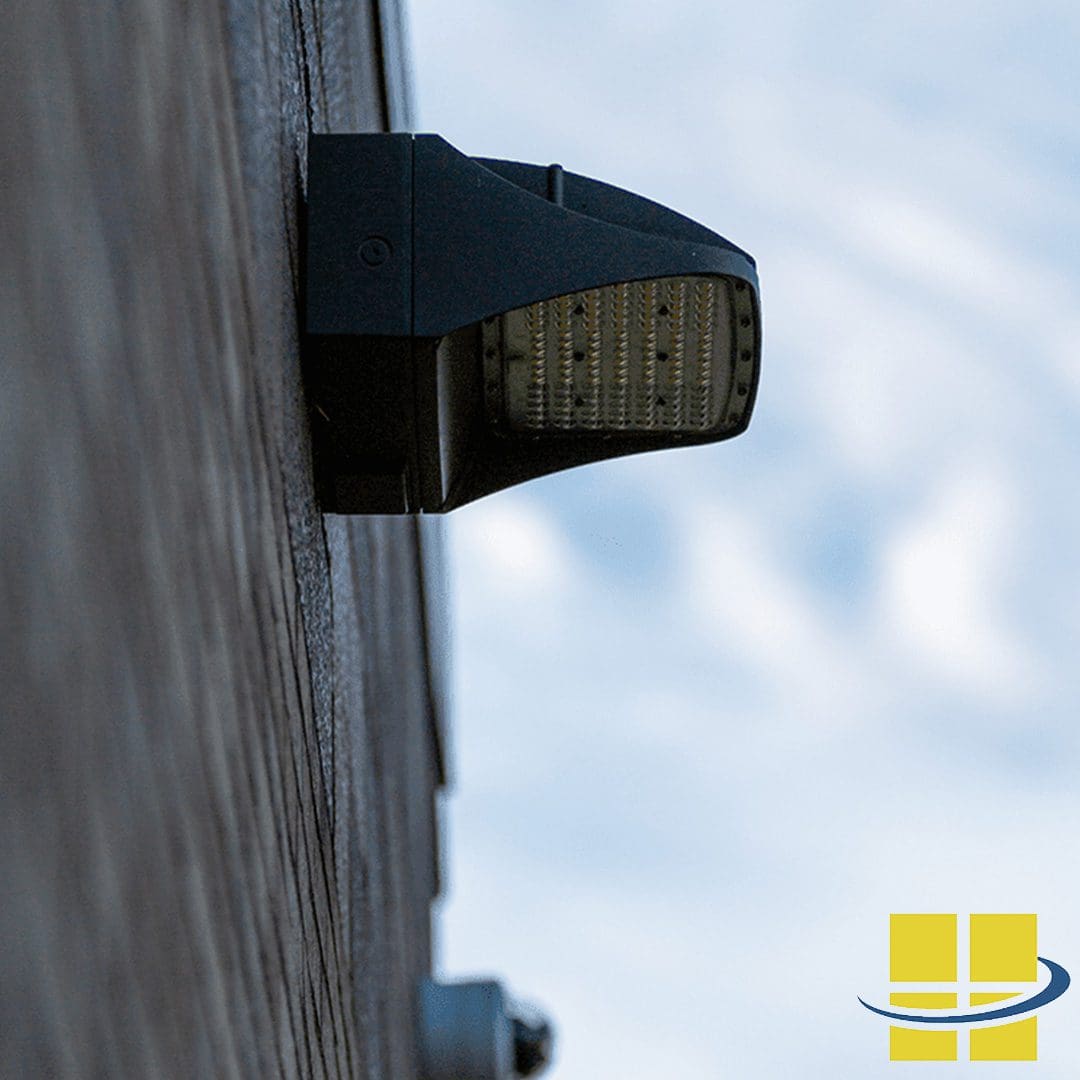

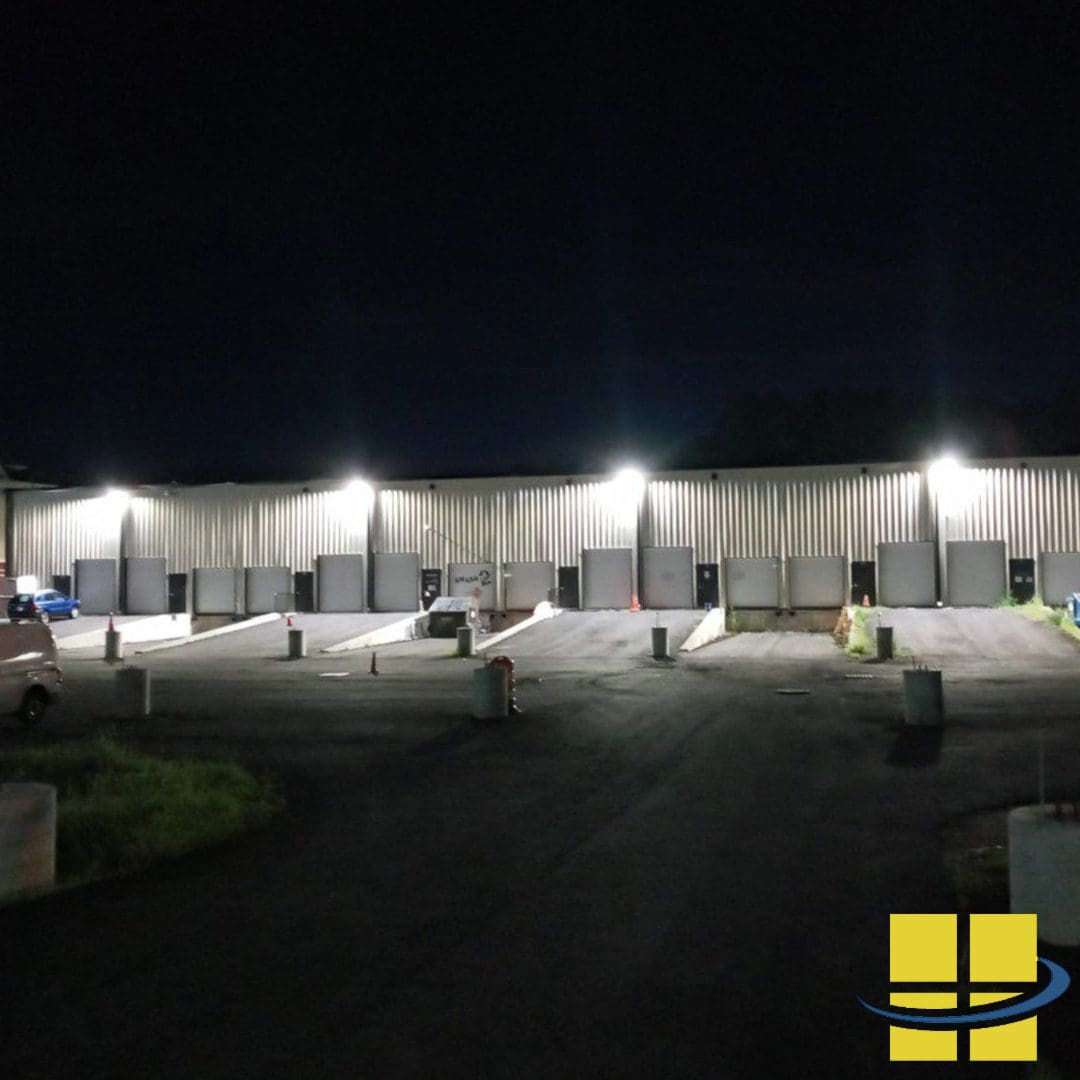

CUDL LED Full Cutoff Wall Pack features type 4 optics specially designed to maximize light distribution. With its EXTREME-LIFE of 646,000 hours at L70, the CUDL wall pack is built to perform, and built to last. CUDL offers an array of features and options and is a great choice for high walls, and commercial buildings such as airports and medical facilities, universities, schools, retail centers, and more.

Full Cutoff: The full cutoff design of this wall pack helps customers meet local lighting ordinances by minimizing up-light and light trespass.

EXTREME-LIFE: The CUDL is L70-rated at 646,000 hours, making it ideal for hot climates, hard-to-reach places, and other locations where reliability and longevity matter.

Type 4 Optics: Standard wide-angle type 4 optics maximize light distribution between wall packs and out across surface areas.


Buy American Act Compliant

Lead Time: 7 to 10 Day Production, plus Shipping

In Stock

  • Maximize energy savings and the life of the lights by adding a motion sensor with IR Lens
  • Adding a photocell prevents the need to manually turn on/off your area/spot/flood lights when it gets dark.
  • Adding surge protection protects your light from unwanted power spikes that can damage the fixture
  • Battery back up keeps the lights on when the power goes out.

  • Total

SKU: AF33XWPC44QD1X37 Categories: , ,

Specifications

Weight 10 lbs
Dimensions 11 × 8.75 × 5.75 in
Availability

7 to 10 Day Production, plus Shipping
Available Finishes

Bronze, Custom RAL
BUG Rating

1, 1, 1
Color Rendering Index (CRI)

80+
Housing

NIckel plated stainless steel hardware, Die cast aluminum housing
Lens

Clear One-Piece Molded Type 4 Polycarbonate Lens
Light Source

, ,

Light Source Included

LED Array Included
Light Source Lumens

4,604
Listings

CSA – listed for wet Locations, IP66, ANSI/UL 1598, 8750
Mounting

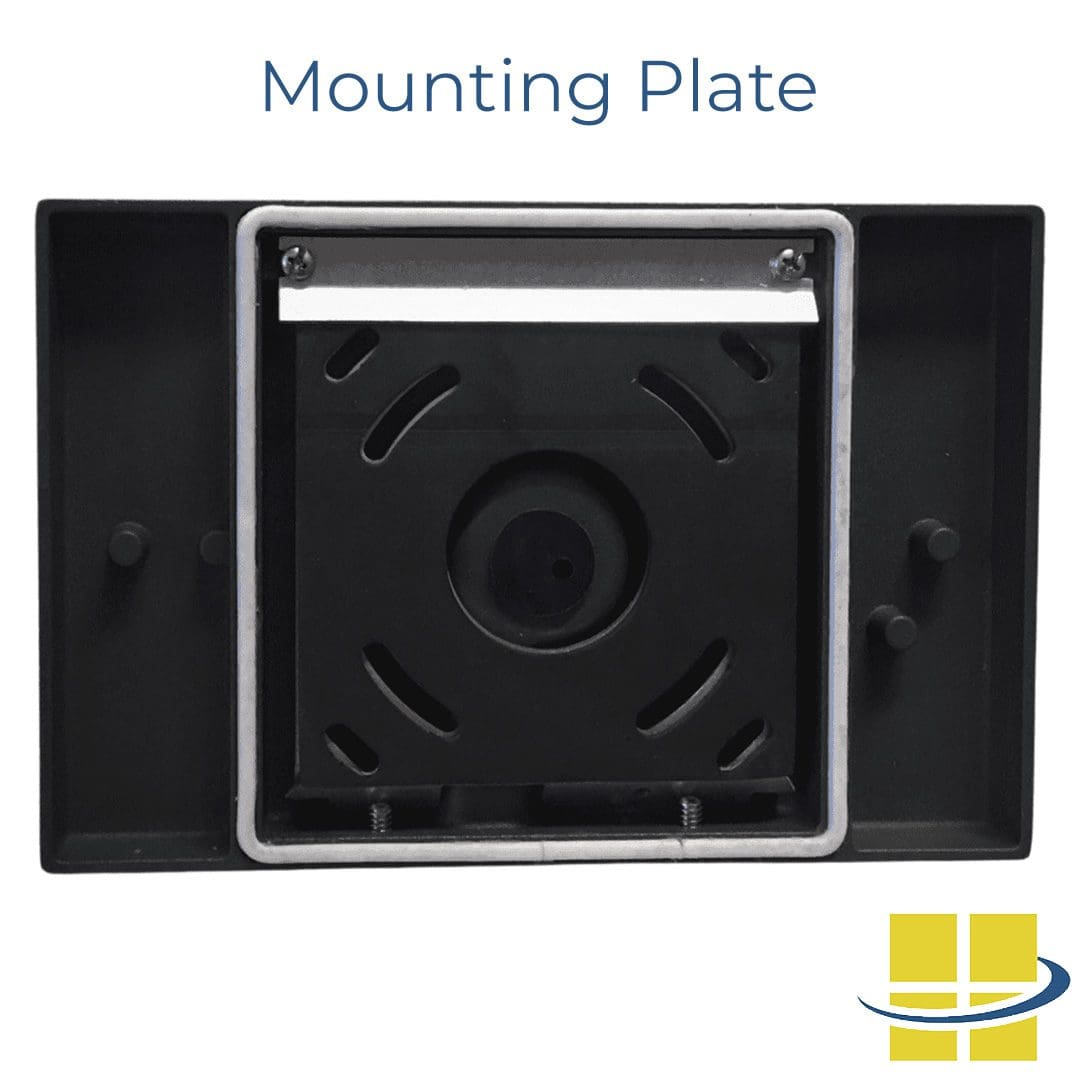

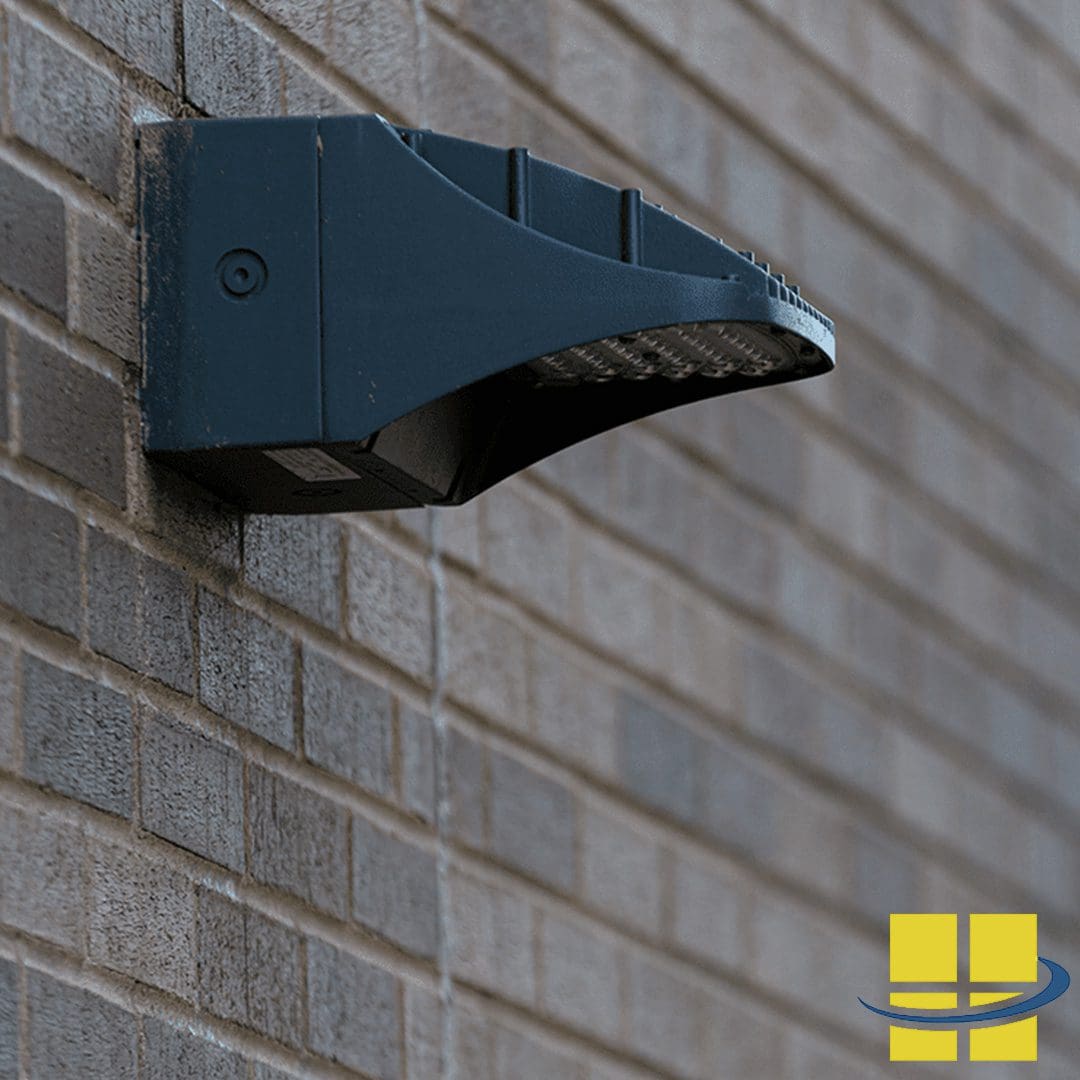

Built-in level, Easy-hang wall bracket, Mounts over 4-inch electrical box, Optional Trim Plate for retrofit applicatons
Mounting Height

10 ft., 15 ft., 20 ft., 25 ft.
Product Family

CUDL
Rated Life

646,000 Hours
System Watts

42
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty

Product Description

Features

  • 42w integrated LED
  • 11″ L x 8.75″ W x 5.75″ H
  • Dimmable 0-10v
  • 120-277v, 347-480v
  • L70 @ 646,000 hours
  • Die-cast aluminum housing with full cutoff front frame
    • Nickel-plated stainless steel hardware
  • Integral heat sinking and driver compartment
  • Twist-lock photocell adaptable
  • Clear one-piece molded type IV UV-stabilized polycarbonate lens
  • Lumen output:
    • 3000K: 4,259 lumens / BUG rating: 1, 1, 1 / LPW: 101
    • 4000K: 4,459 lumens / BUG rating: 1, 1, 1 / LPW: 106
    • 5000K: 4,604 lumens / BUG rating: 1, 1, 1 / LPW: 110
  • Great for 12-25 foot mounting heights based on light level and uniformity requirements
    • Mount directly over a 4″ recessed outlet box
    • Includes easy-hang wall mounting bracket with built-in level
  • Electronic driver
  • CSA listed for wet locations
  • IP66 rated against dust and water
  • 5-year warranty included

Options

  • Choice of 3000K, 4000K, or 5000K (learn more here)
  • Choice of bronze, or custom RAL
  • 120-277v, 347-480v
  • 120-277VAC 10KA Surge Suppressor
  • Microwave Sensor with Dimming, 120-277V Only.
  • 3-Pin Twist Lock Photocell Receptacle
  • Battery Backup, 90 Minutes

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your Project?

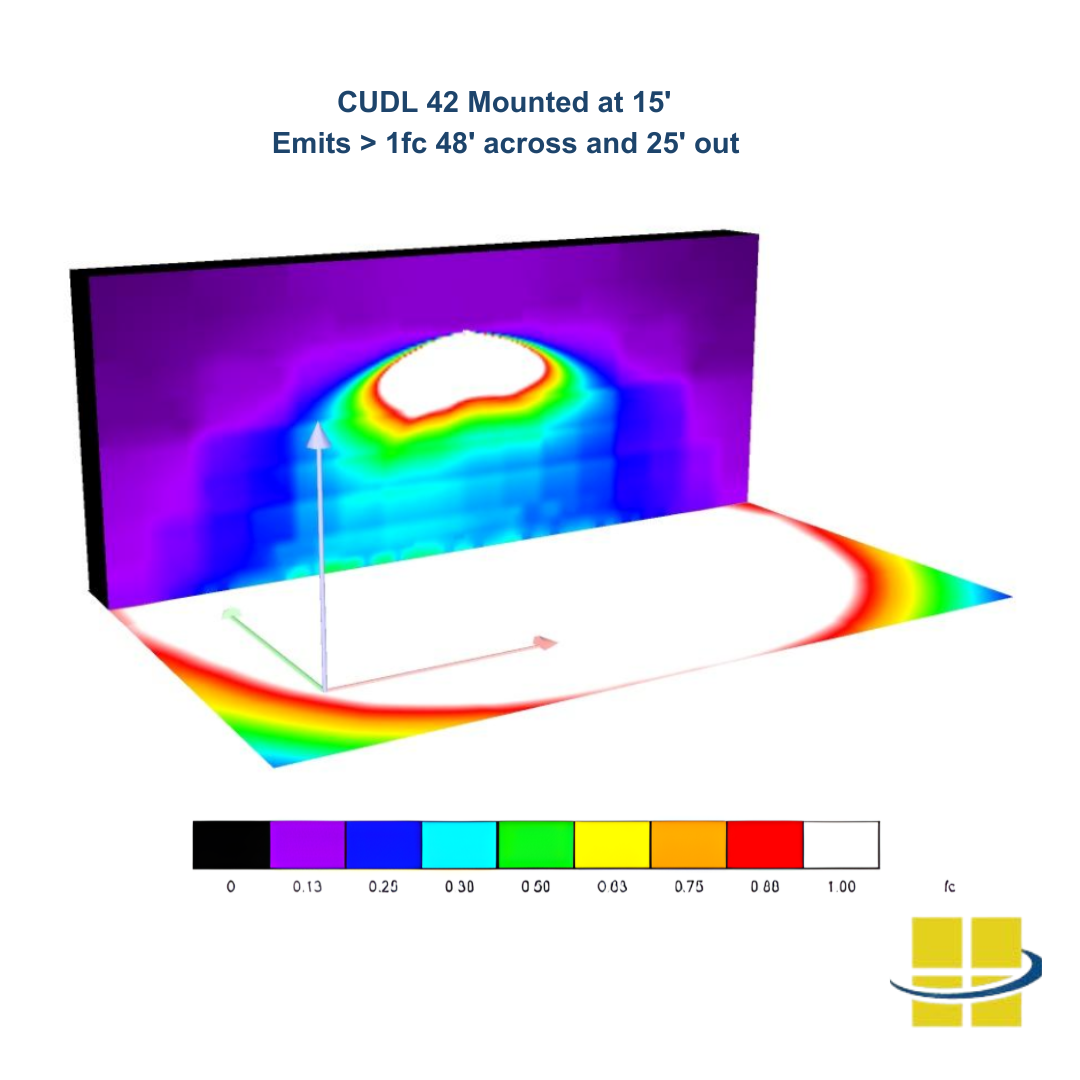

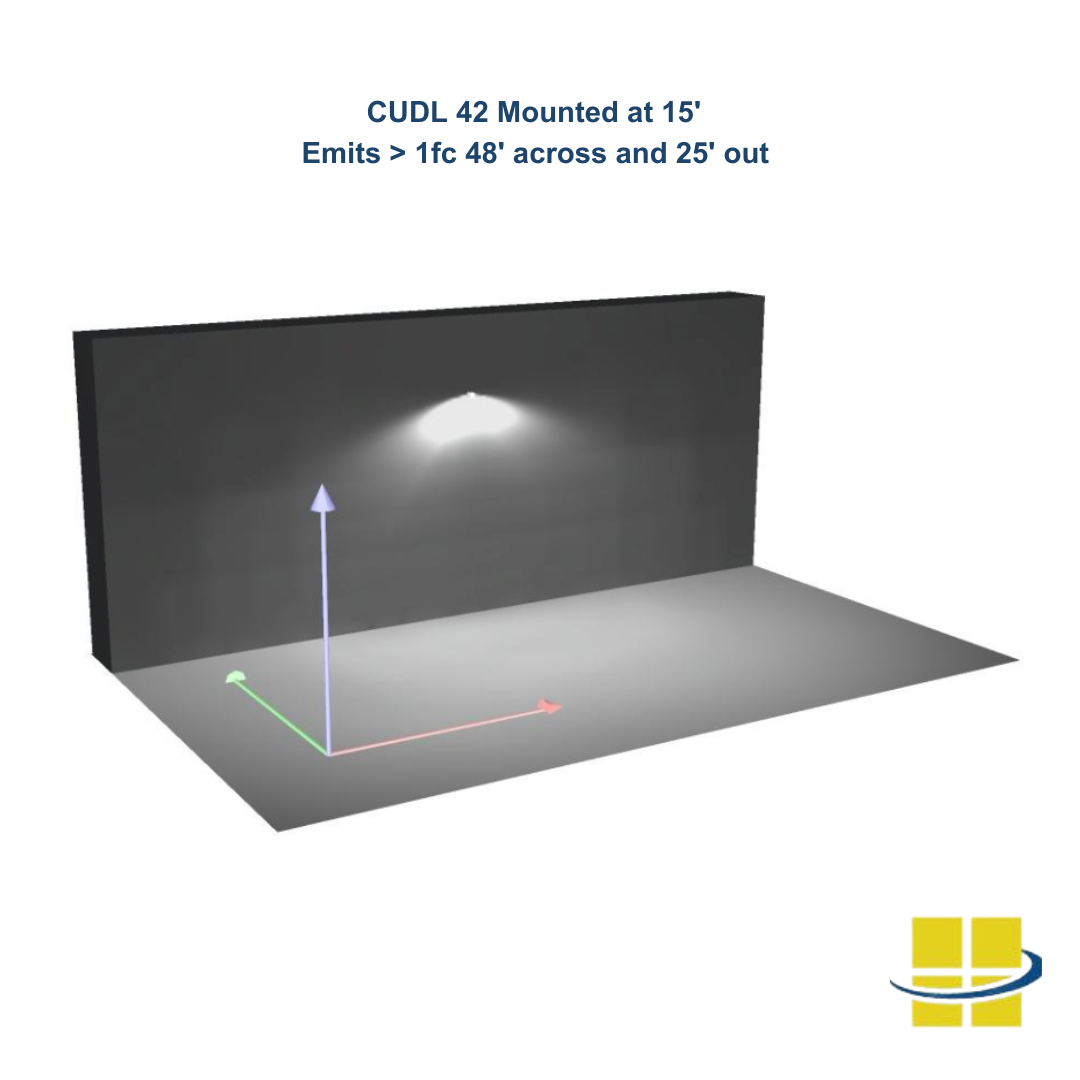

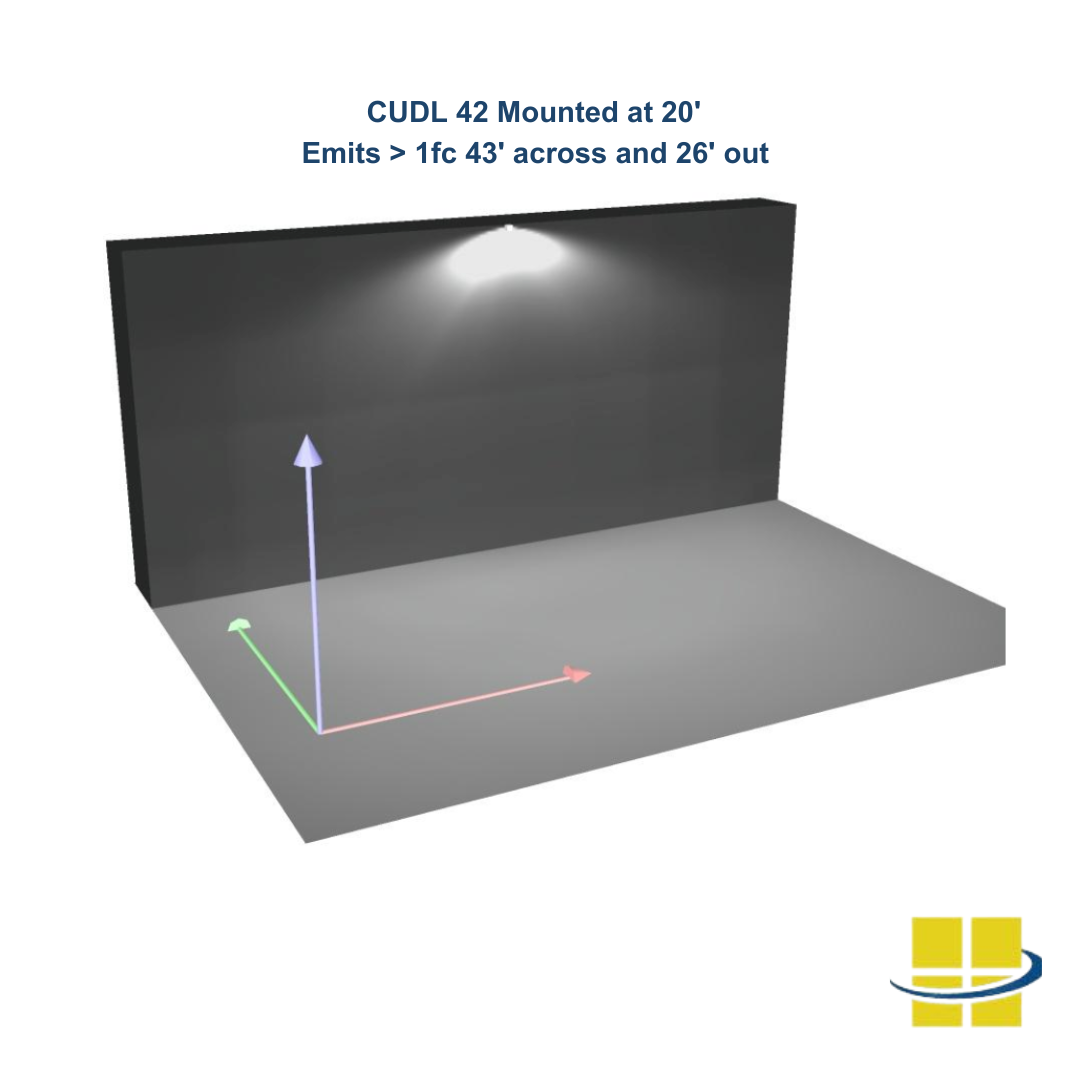

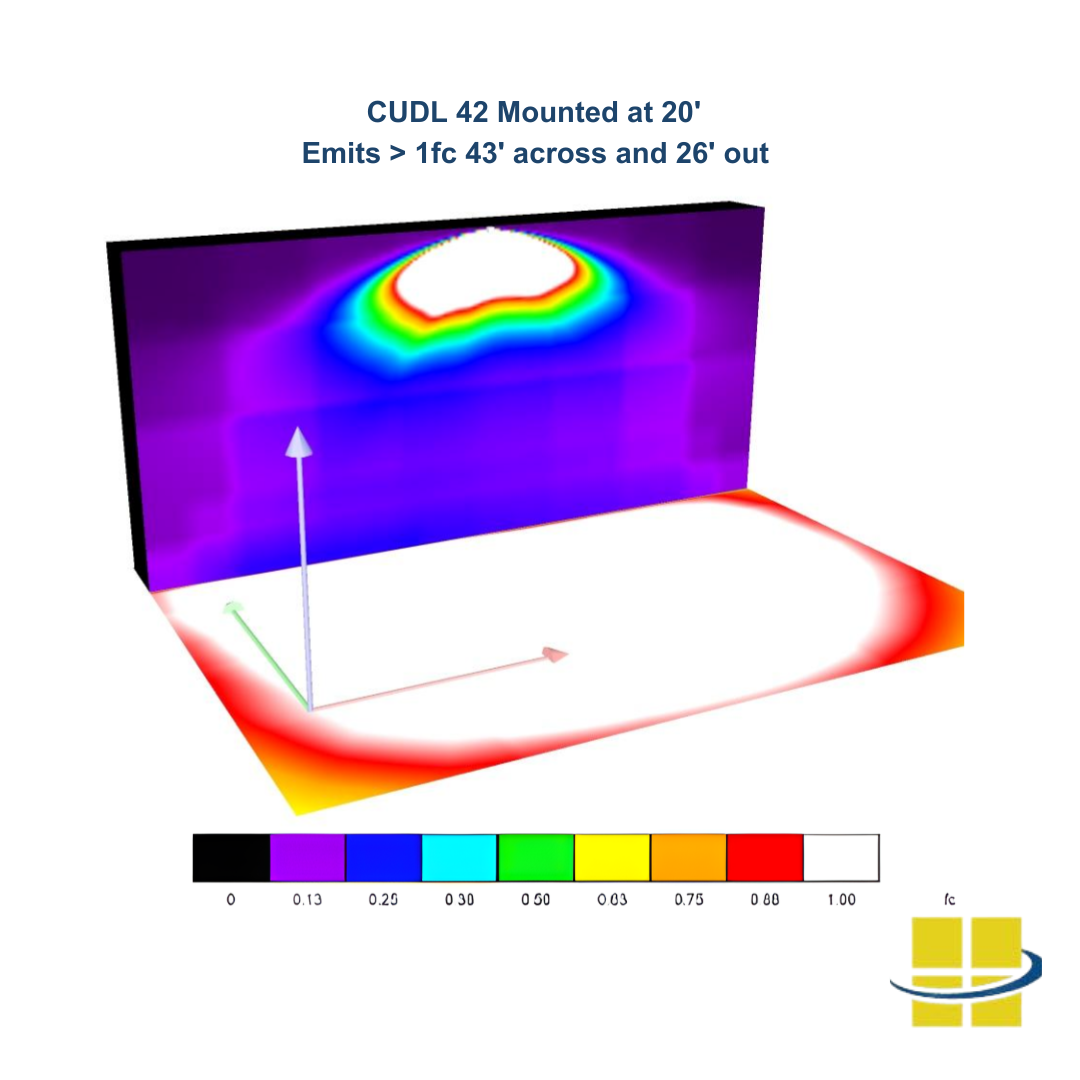

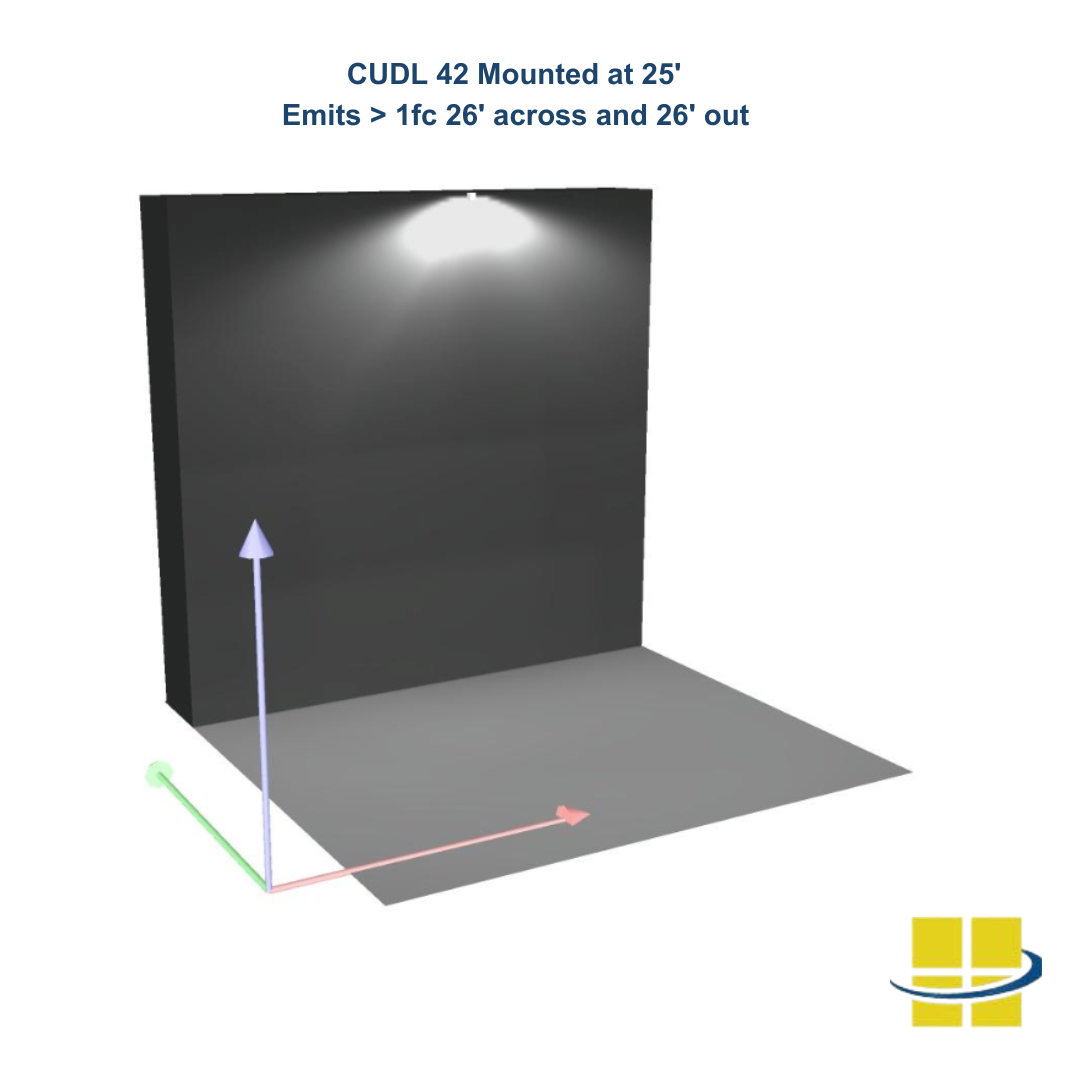

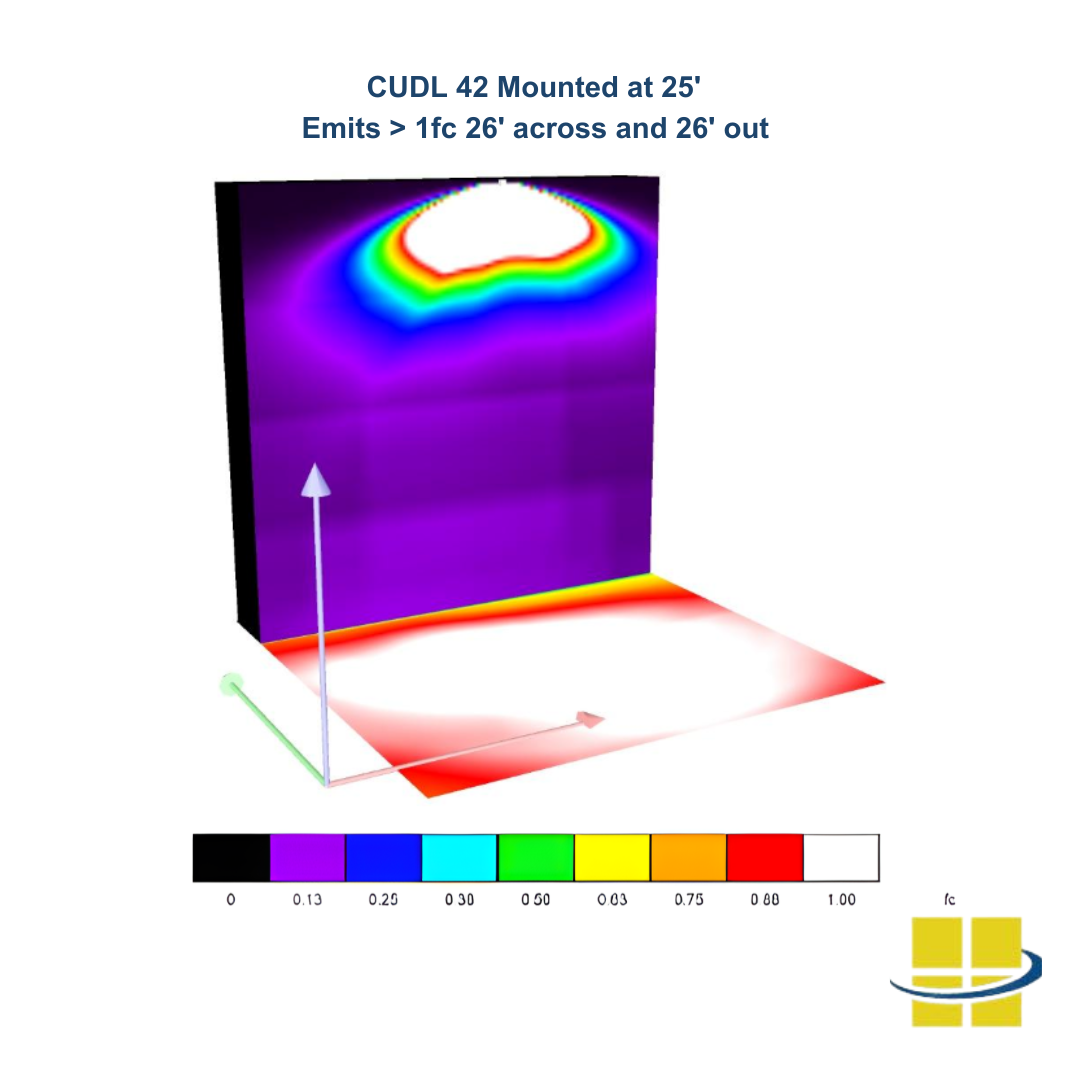

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
