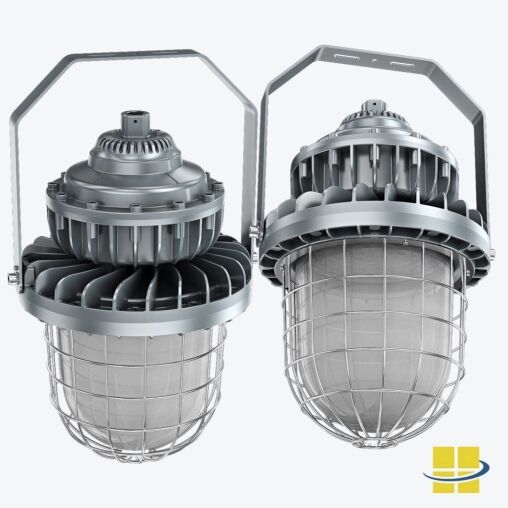

Product Description
Robust design: Built to endure extreme conditions like high humidity, dust, and temperature variations in various industries including food, mining, chemical, oil and gas, marine, aerospace, and metal treatment.
Durable construction: Crafted with aircraft-grade aluminum, tempered glass, and stainless steel, ensuring long-lasting performance against environmental factors and physical impact, with IP66 and IK10 ratings for protection.
Safety features: Holds UL844 hazardous location ratings and marine UL1598A marking, offering optional emergency functions like dimmable and battery backup, ensuring uninterrupted operation and safety compliance in hazardous environments.
EAHL Explosion Proof Ratings:
UL844 Marking (North American)
Class I, Div. 1, Groups C, D
Class I, Div. 2, Groups A, B, C, D
Class II, Div. 1, Groups E, F, G
Class II, Div. 2, Groups F, G
Class III
Marine Marking
UL 1598A
ABS
Other Ratings
IP 66
IK 10
Features:
- 5000K
- 100 system watts
- 100-277v
- 14,000 lm
- 140 lumens per watt
- Tempered glass lens
- Die-cast aluminum housing with gray powder coat finish
- Stainless steel hardware

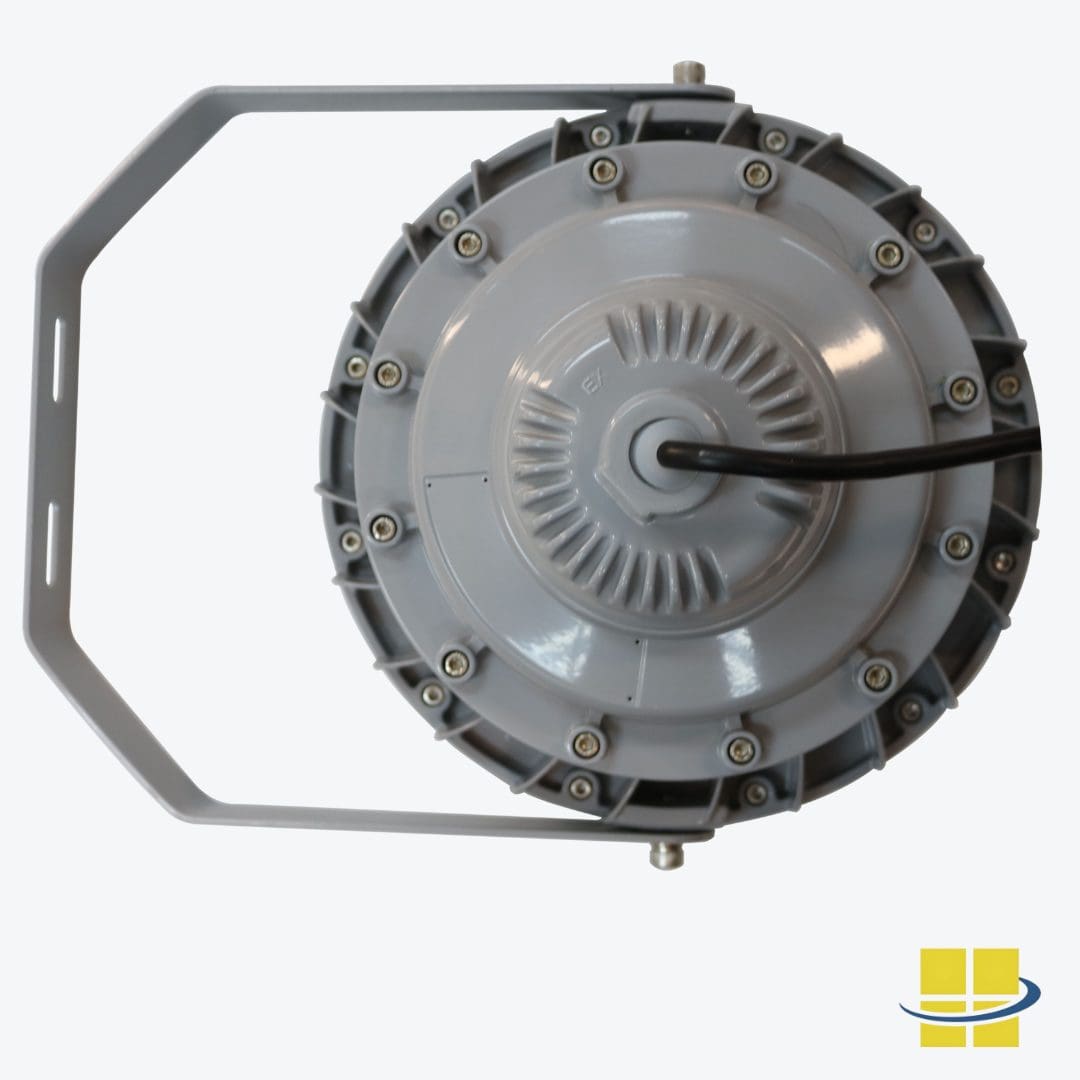

- Stainless Steel mounting bracket
- 120° beam
- 70+ CRI
- -40°F to 131°F

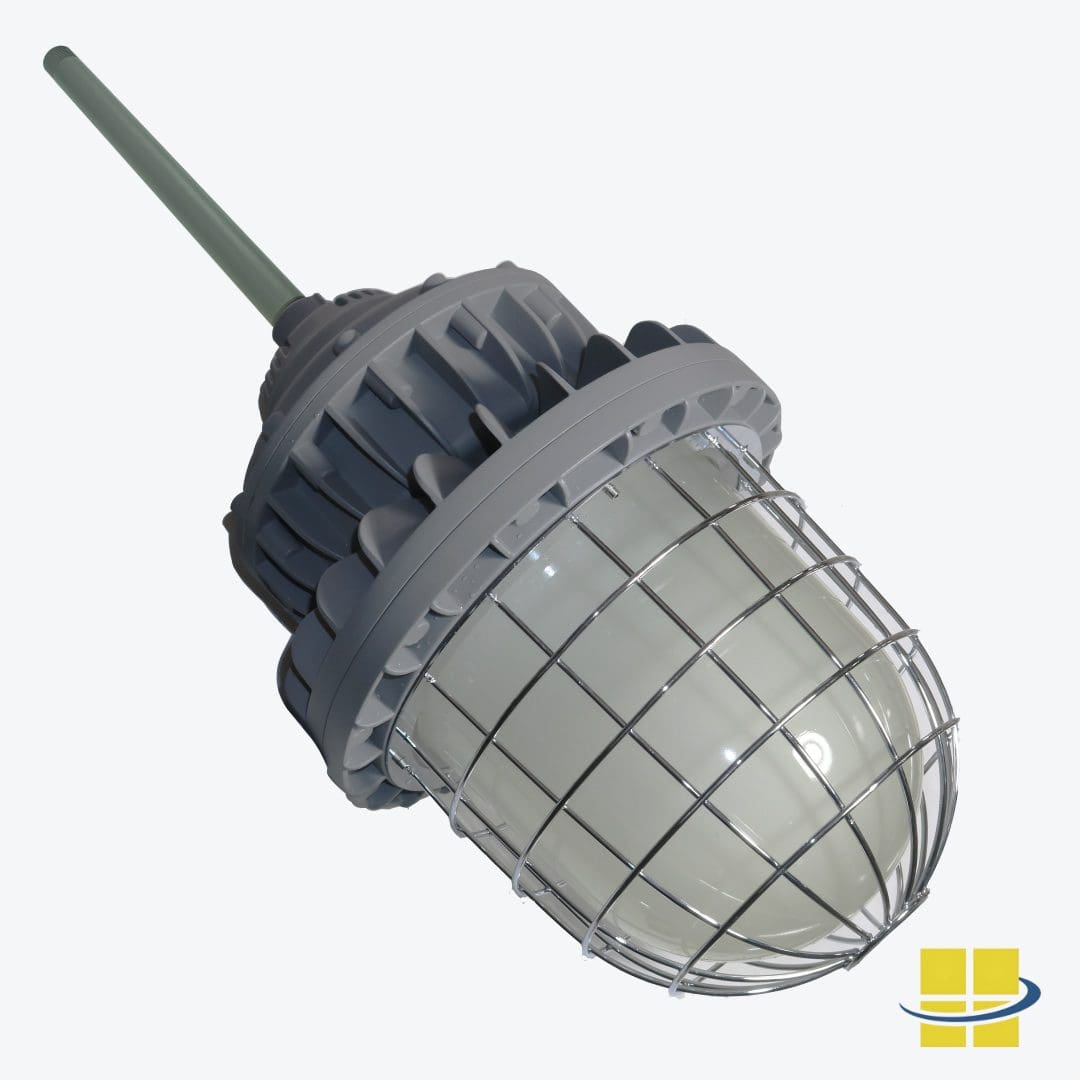

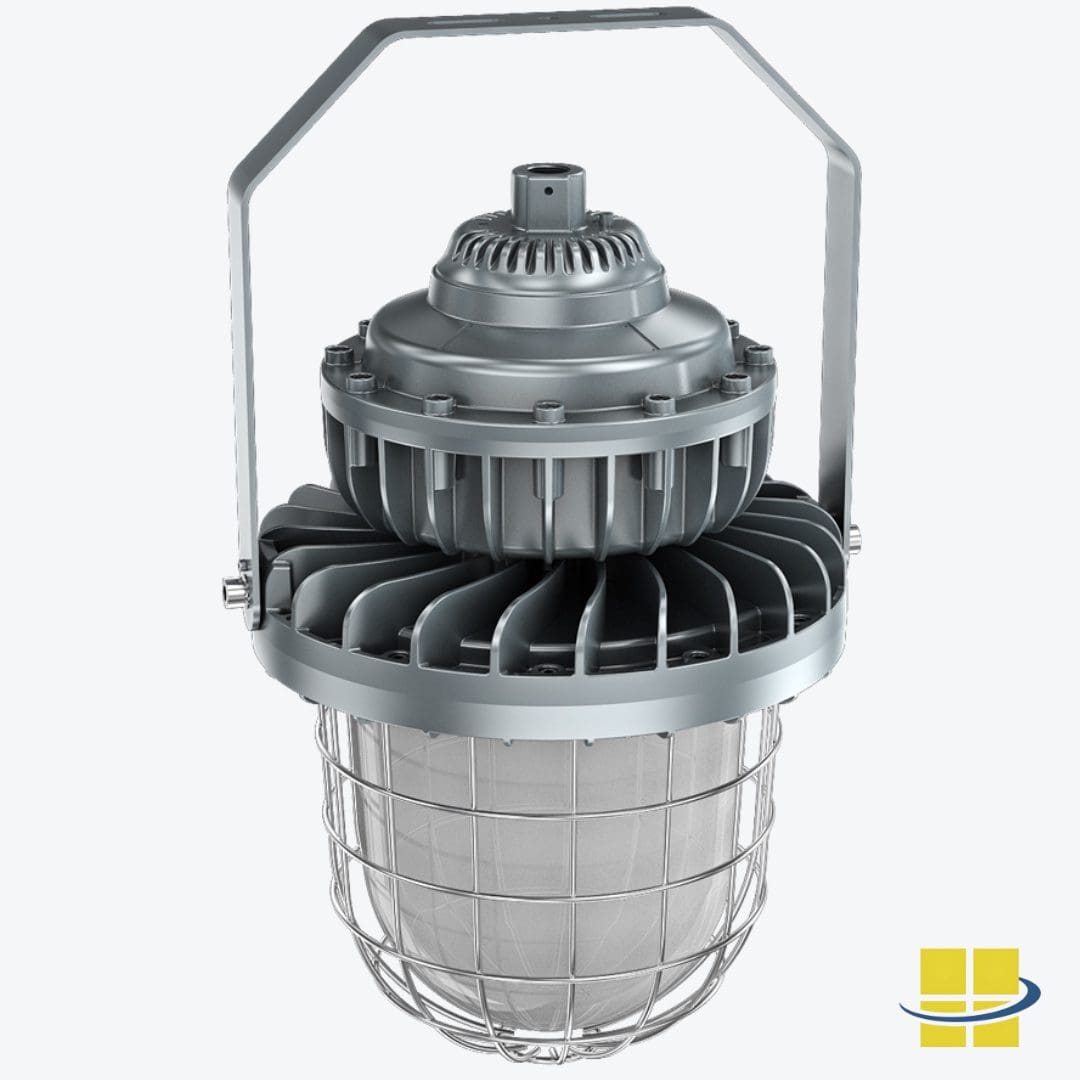

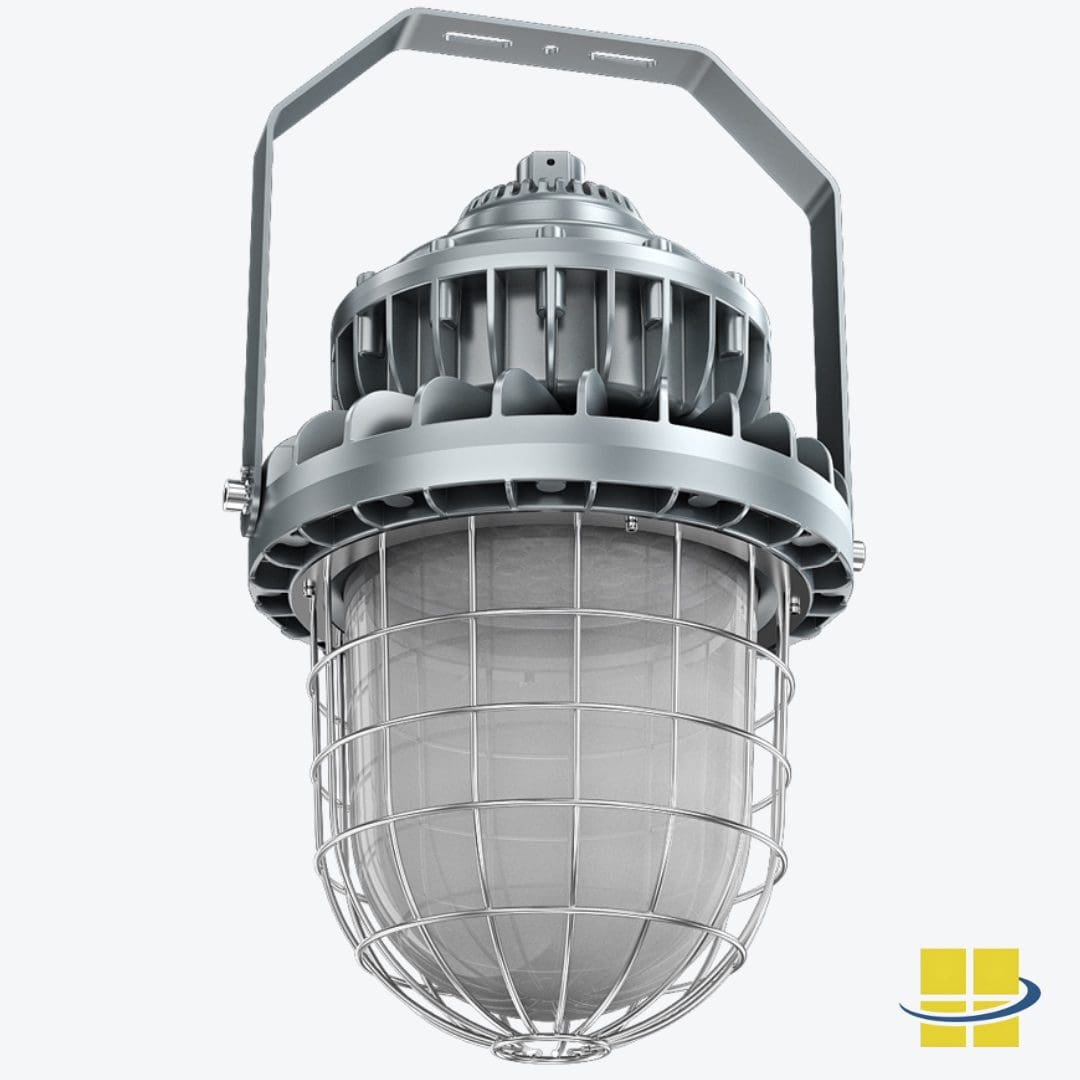

- Vapor-tight jelly jar lens with wire guard
**The shipping weight and dimensions vary depending on whether a flat glass or spherical glass configuration is chosen. The dimensions and weight for both configurations are outlined here. However, it’s important to note that the shipping weight displayed in the specifications section pertains to the fixture with flat glass.
AF87XE-Flat glass:Â
- Dimensions: 18.90″ x 19.88″ x 17.91″
- Shipping Weight: 37.48lbs

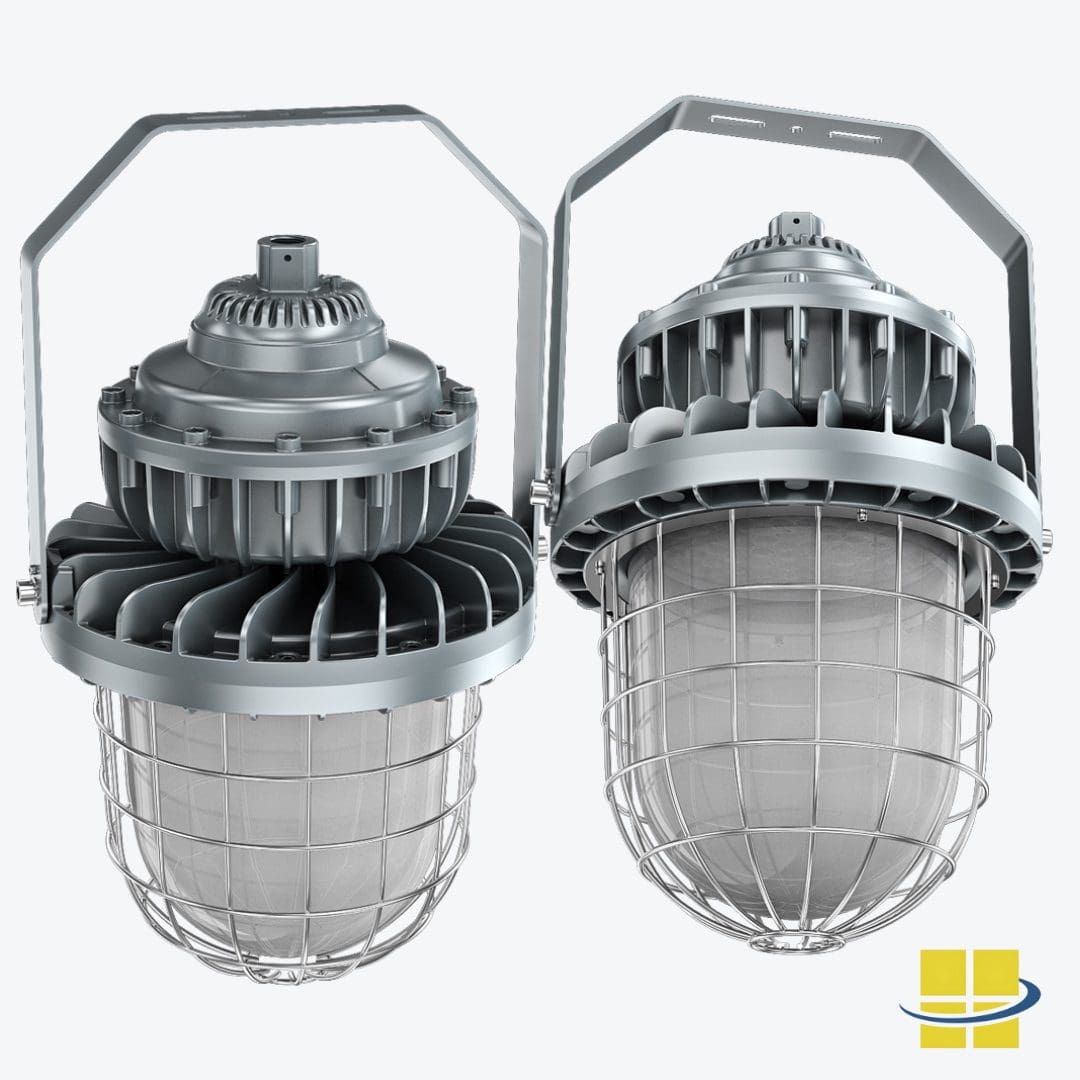

AF87XE-Spherical glass:Â
- Dimensions: 25.98″ x 19.88″ x 17.91″
- Shipping Weight: 49.60
