Product Description
Robust design: Built to endure extreme conditions like high humidity, dust, and temperature variations in various industries including food, mining, chemical, oil and gas, marine, aerospace, and metal treatment.
Durable construction: Crafted with aircraft-grade aluminum, tempered glass, and stainless steel, ensuring long-lasting performance against environmental factors and physical impact, with IP66 and IK10 ratings for protection.
Safety features: Holds UL844 hazardous location ratings and marine UL1598A marking, offering optional emergency functions like dimmable and battery backup, ensuring uninterrupted operation and safety compliance in hazardous environments.
EAHL Explosion Proof Ratings:
UL844 Marking (North American)
Class I, Div. 1, Groups C, D
Class I, Div. 2, Groups A, B, C, D
Class II, Div. 1, Groups E, F, G
Class II, Div. 2, Groups F, G
Class III
Marine Marking
UL 1598A
ABS
Other Ratings
IP 66
IK 10
Features:
- 5000K
- 150 system watts
- 100-277v
- 21,000 lumens
- 140 lumens per watt
- Tempered flat glass lens
- Die-cast aluminum housing with gray powder coat finish
- 120° beam
- 70+ CRI
- -40°F to 131°F
- Stainless steel hardware

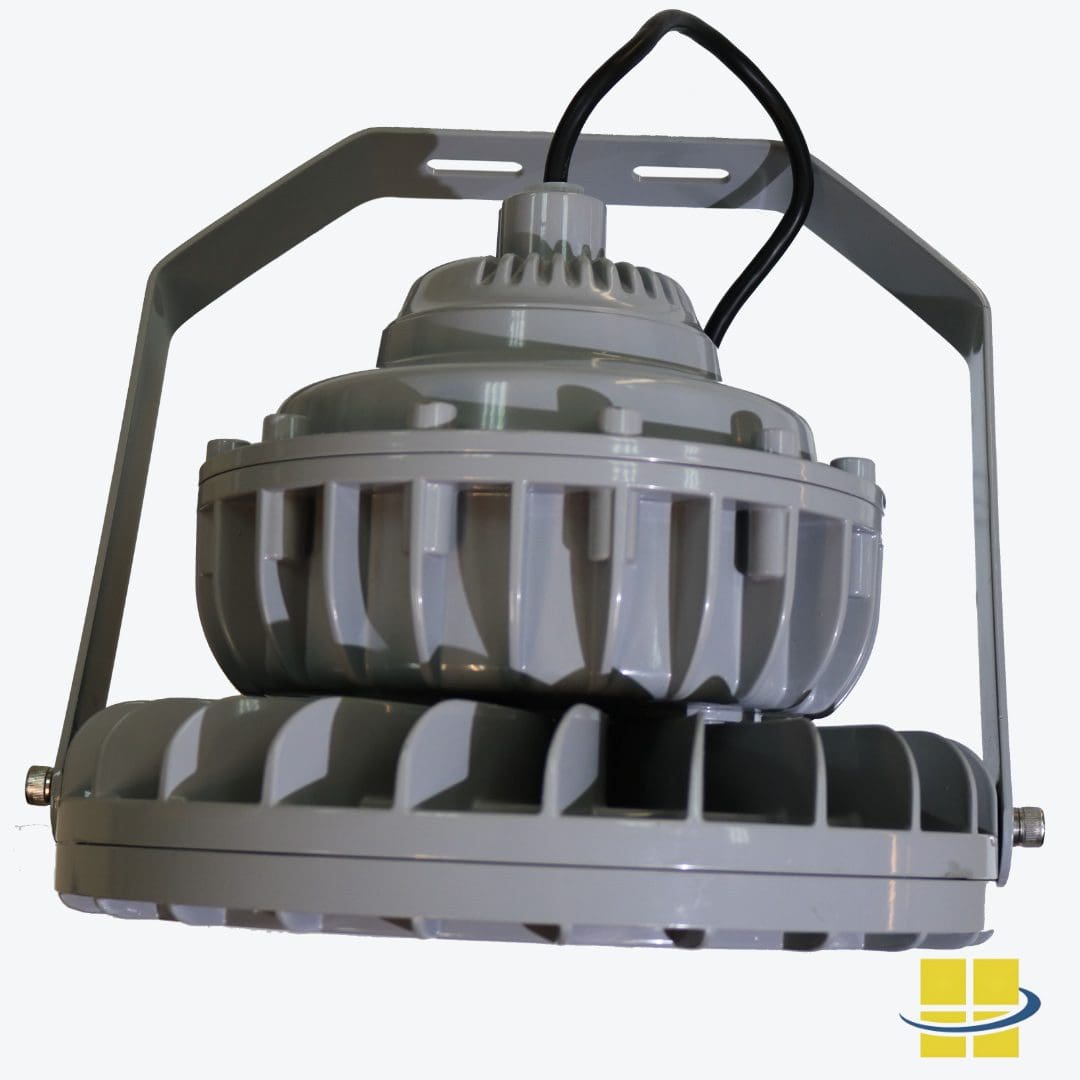

- Stainless steel U-bracket mount

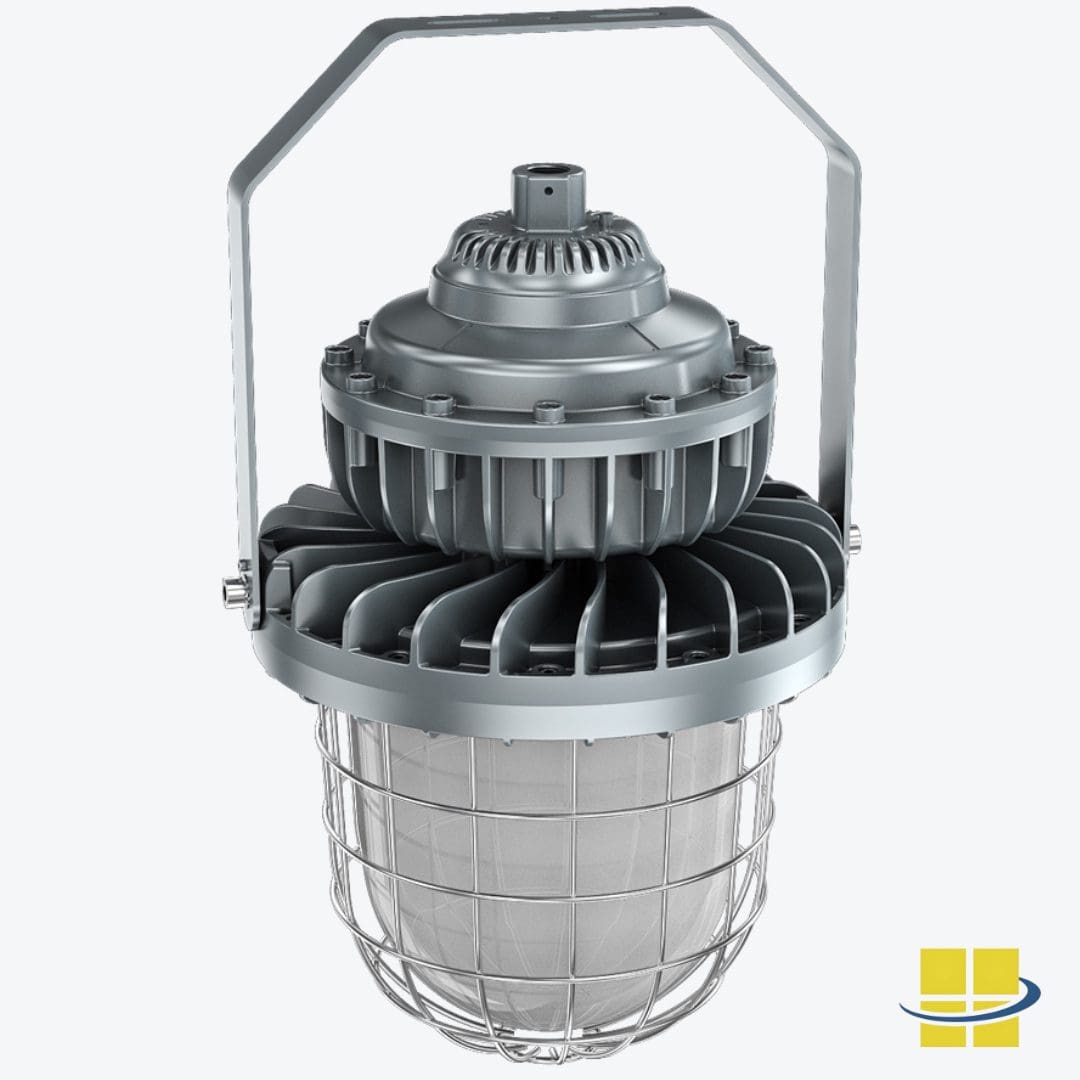

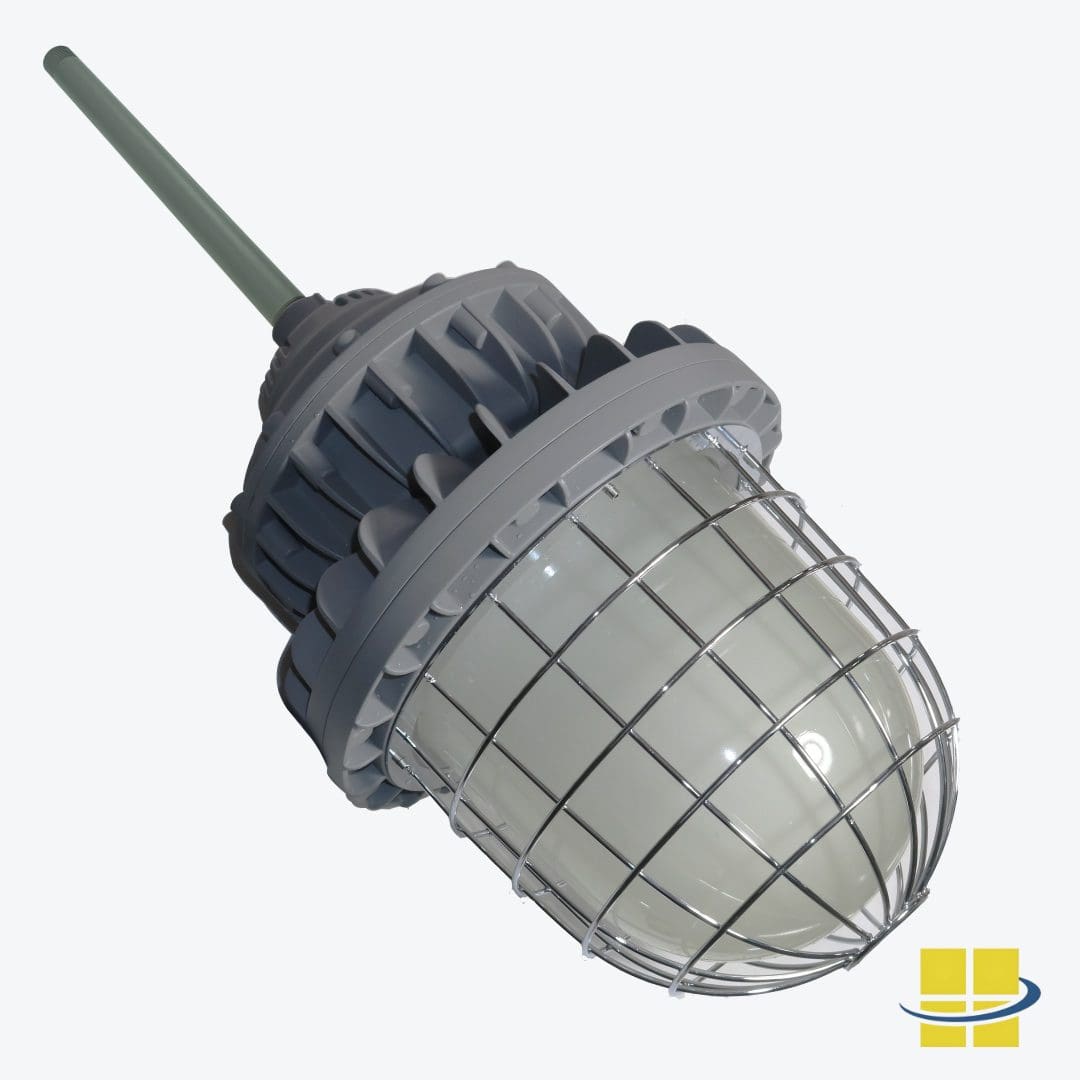

- Vapor-tight jelly jar lens with wire guard
**The shipping weight and dimensions vary depending on whether a flat glass or spherical glass configuration is chosen. The dimensions and weight for both configurations are outlined here. However, it’s important to note that the shipping weight displayed in the specifications section pertains to the fixture with flat glass.

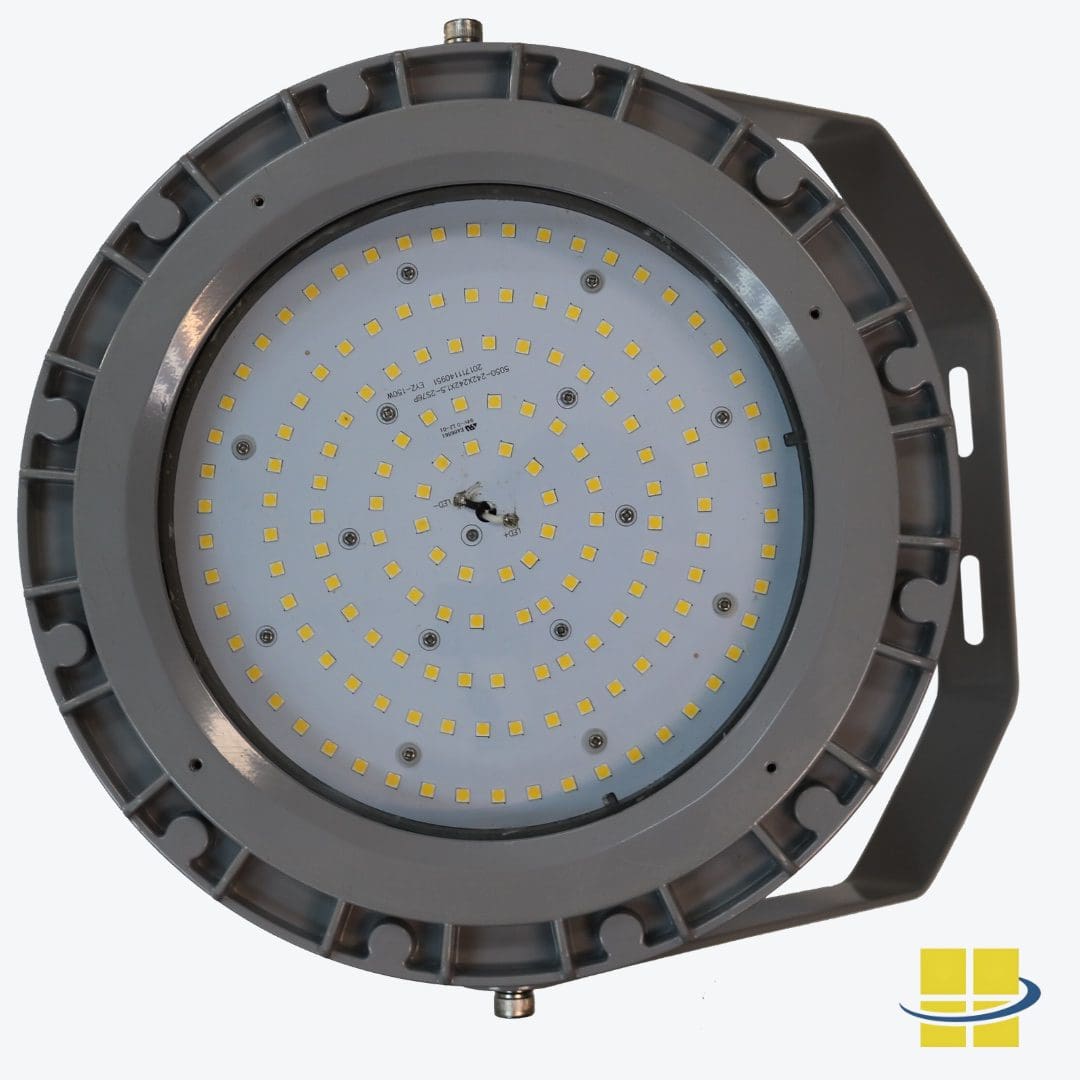

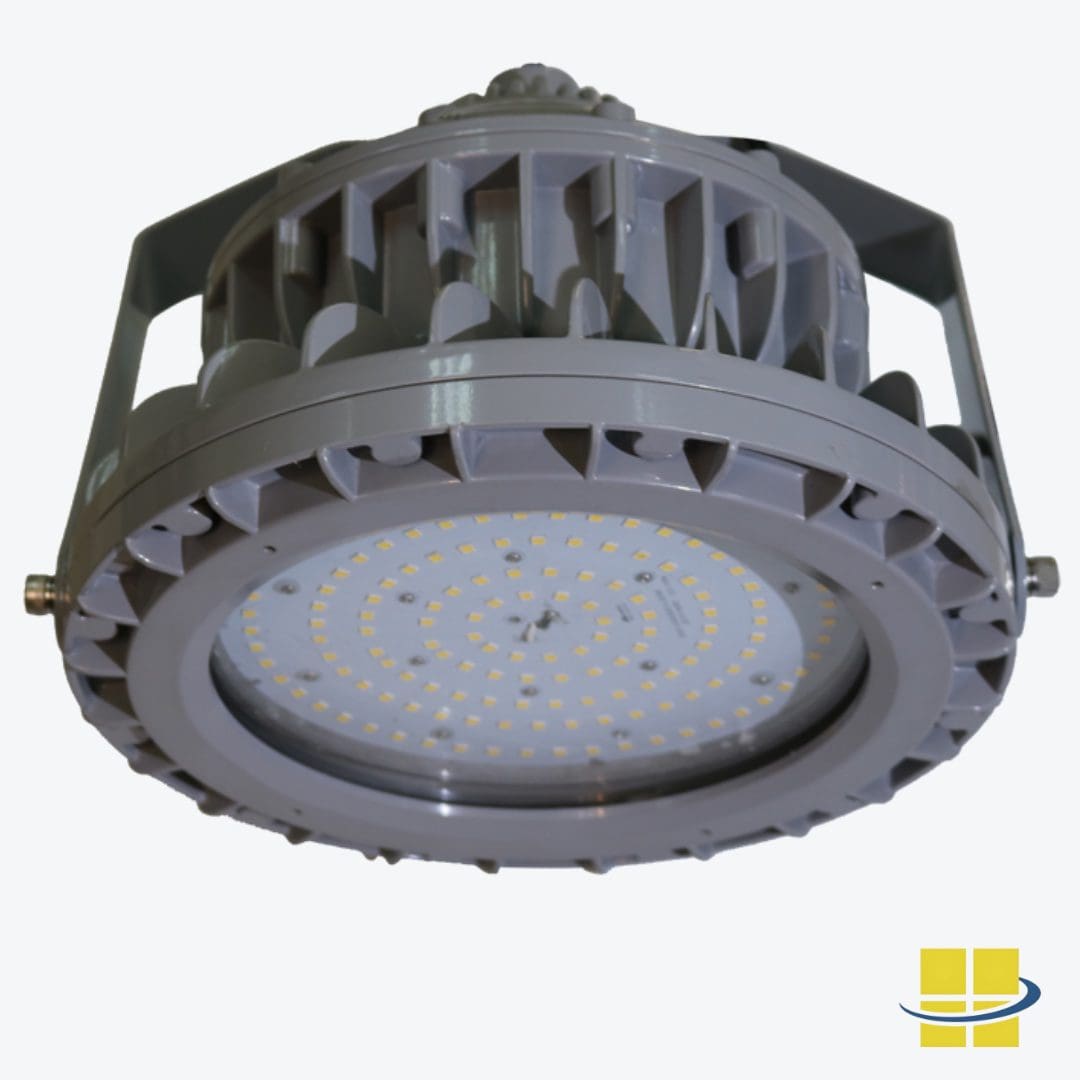

AF87XE-Flat glass:Â
- Dimensions: 18.90″ x 19.88″ x 17.91″
- Shipping Weight: 37.48lbs

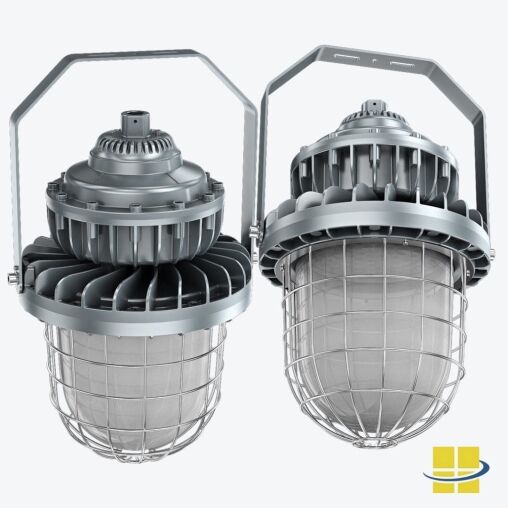

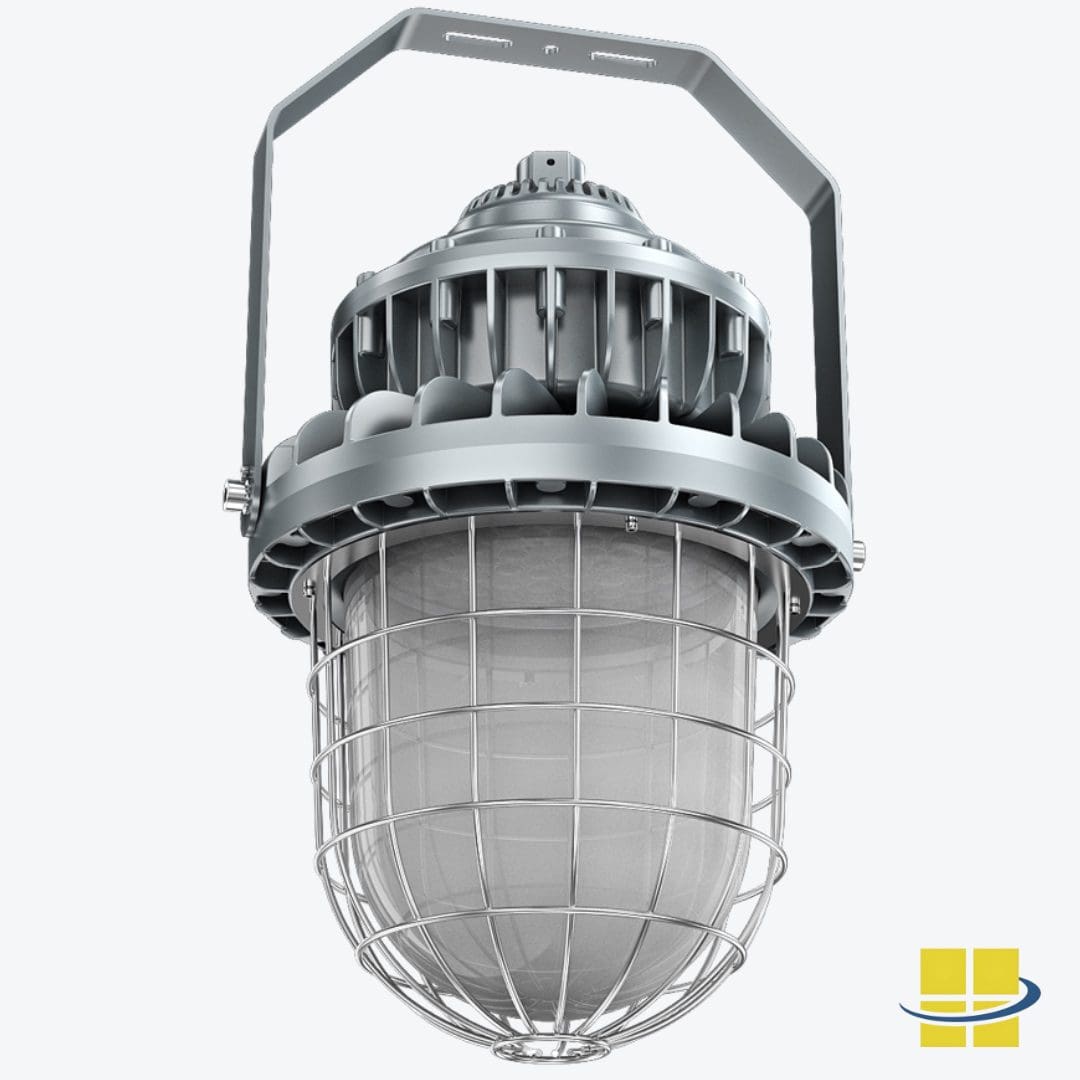

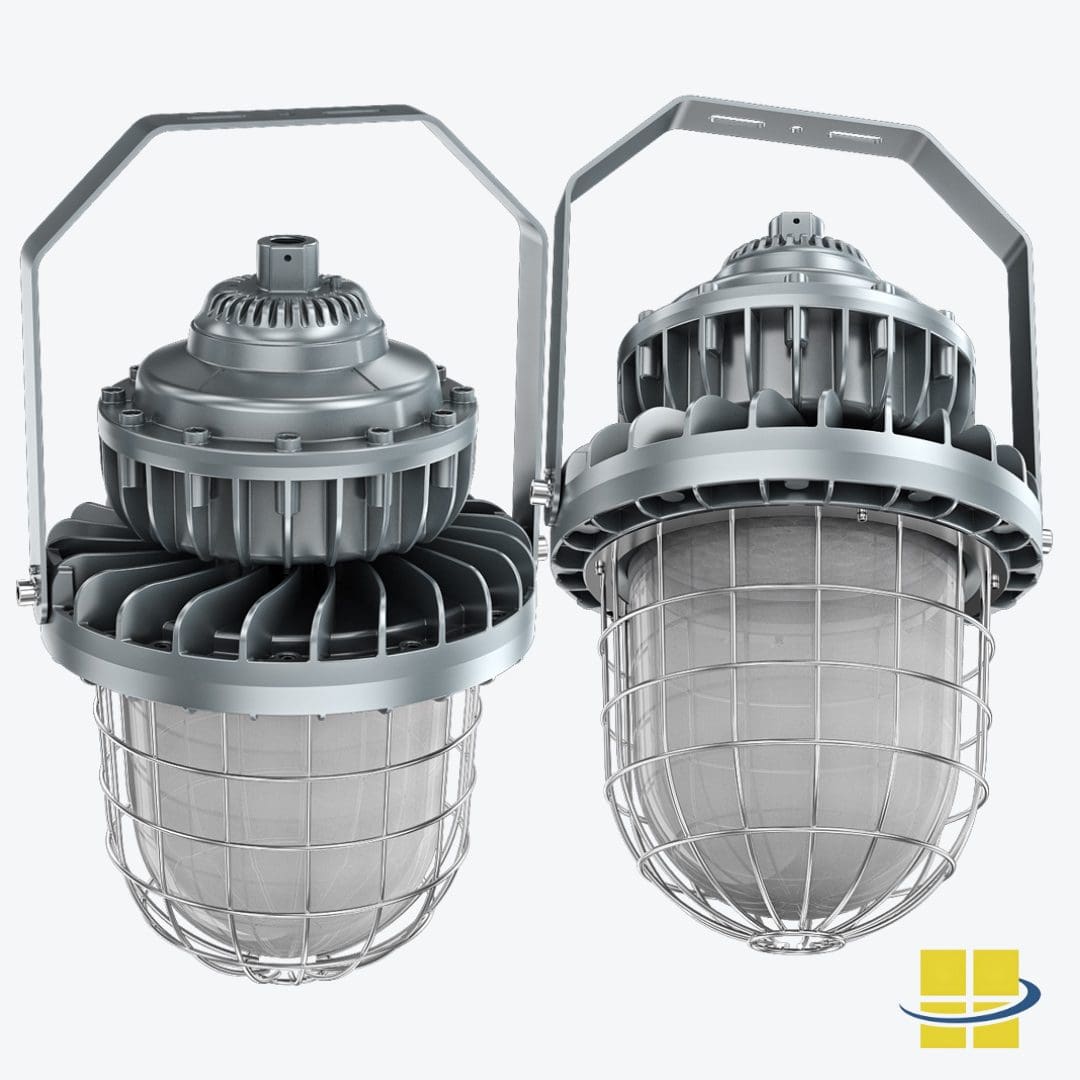

AF87XE-Spherical glass:Â
- Dimensions: 25.98″ x 19.88″ x 17.91″
- Shipping Weight: 49.60
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.
Get a Custom Photometric Analysis for Your EAHL 150 Explosion Proof Area Light Project
A photometric analysis is a custom computer simulation of your particular project. This service provides average footcandles at various heights, max/min (uniformity) ratios, minimum footcandles, light trespass levels, and more. For exacting lighting specifications, a photometric analysis helps you ensure light levels before making a big purchase. One of our lighting specialists will walk you through the process so you know exactly what you will be receiving. Call us at 800-468-9925 or [email protected]Â for more information about ordering a photometric analysis for your project.
Ready to Order EAHL 150 Explosion Proof Area Light Speak to a Lighting Specialist?
You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists is available to provide what you need to purchase fixtures and illuminate your project with confidence.
