EPTA 120w LED Linear Lights, High LPW, EXTREME-LIFE

$359.87

EPTA LED linear lights are designed and manufactured to function as task lighting, high bay lights, directional lights, and for multiple specific applications. Built to be durable and reliable, EPTA features superior optics, spill light control design, and lumen-per-watt output (LPW) of up to 160, low weight. EPTA has multiple ways to be mounted and can be linked together.
EXTREME-LIFE: Exceptional heat sink design produces an EXTREME-LIFE rating of L70 @ 200,000 hours for years of virtually maintenance-free performance
Flawless Light:  Choice of advanced optics, Kelvin, and color rendering of up to Ra>90 facilitates premium anti-glare illumination
Maximum Wattage and LPW: With lumens per watt of up to 153, EPTAs can provide up to 25,000 lumens from a single light fixture

ARCI LED Bollard Light PDF



Lead Time: 3 to 4 Week Production, plus Shipping

In Stock

  • Black and Gray are standard colors. Custom RAL finishes are available at an up charge with a minimum order quantity (MOQ).
  • Select a Marine Grade finish to protect against extreme environments where there are harsh conditions, such as areas where chemicals are being used or coastal areas with high amounts of salt
  • 0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.
  • EPTAs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.
  • Maximize energy savings and the life of the canopy light by adding a programable microwave control with an occupancy sensor and light sensor.
  • Adding a photocell prevents the need to manually turn on/off your area/spot/flood lights when it gets dark.

  • Total

SKU: AF88XLEC120L Categories: , , , , , , , , , ,

Specifications

Weight 7.71 lbs
Dimensions 37.60 × 4.53 × 5.12 in
Application

Availability

3 to 4 Week Production, plus Shipping
Light Source

, , ,

Available Finishes

Black, Gray
Housing

Extruded aluminum housing
Light Source Included

LED Array Included
Light Source Lumens

18240
Listings

IP66, RoHS Compliant, CB, CE, CuL Listed, DLC Listed, IK08, SAA
Mounting

Knuckle Mount, Surface Mount, Suspension Mounting
Product Family

EPTA
Rated Life

L70 @ up to 200,000 Hours
System Watts

120
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty

Product Description

EPTA 120w LED Linear Lighting Features:

  • 6.3 lbs
  • 32.83L x 3.23W x 2.80H
  • 100-277VAC 50/60Hz
  • Nominal power 40W-160W
  • High light output
  • 152 LPW
  • 18249 lumens
  • 700 mA
  • Ra70 standard, optional Ra80 or Ra90
  • Modular system – each fixture can be linked together. Contact for more info
  • Marine grade finish – all exposed metal is 304 stainless steel meaning all fixtures can be installed at sea-side projects

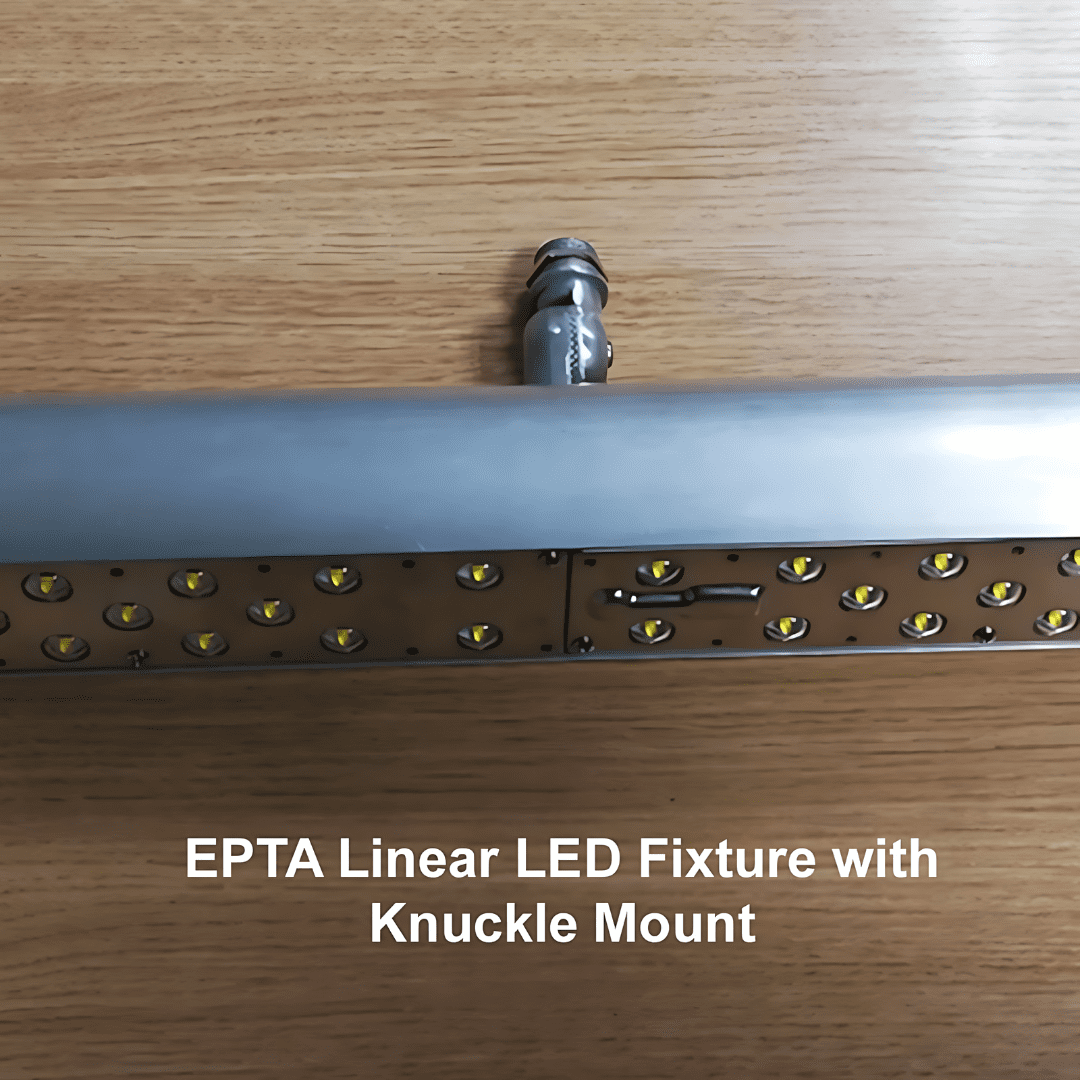

  • Surface-mounted, knuckle mount or suspended

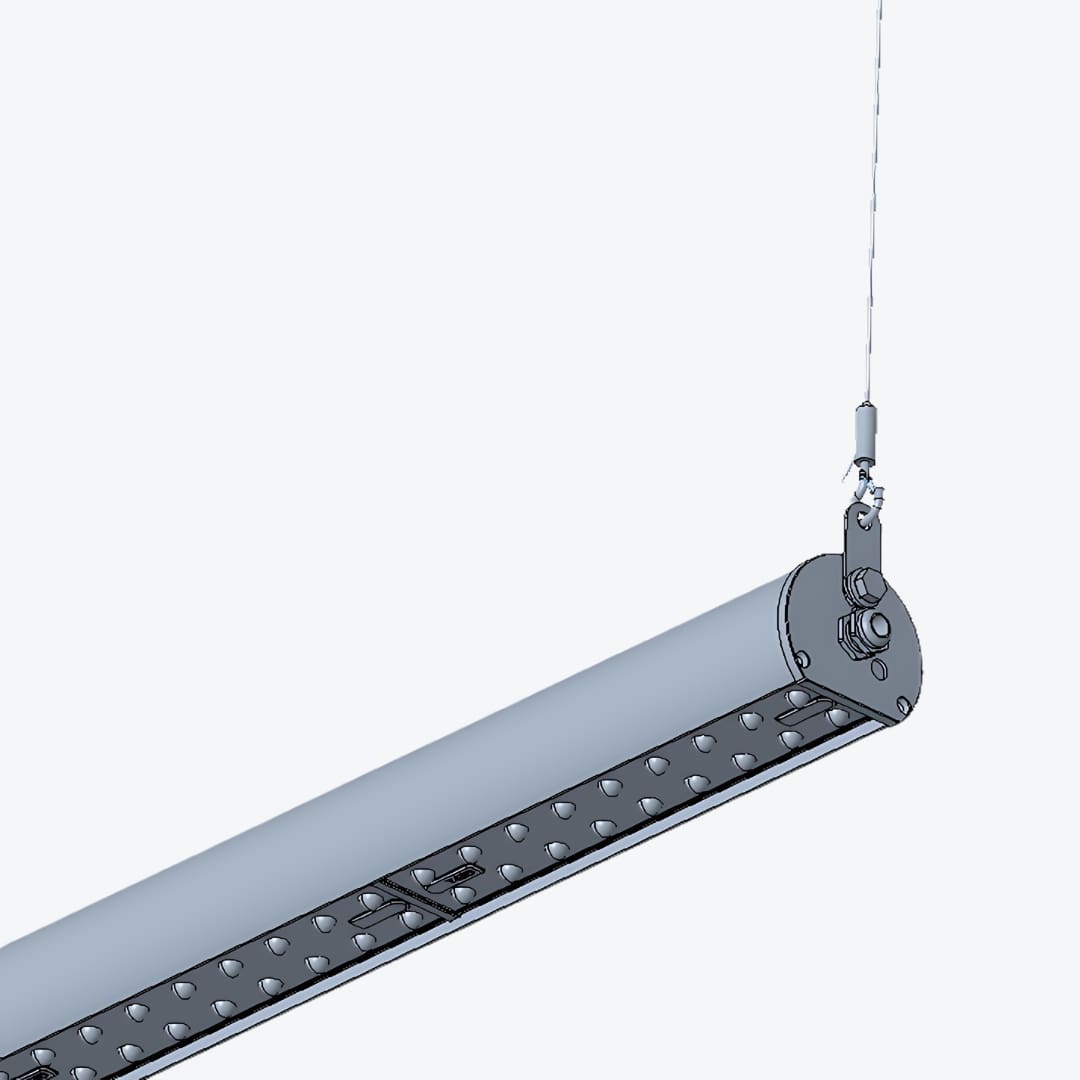

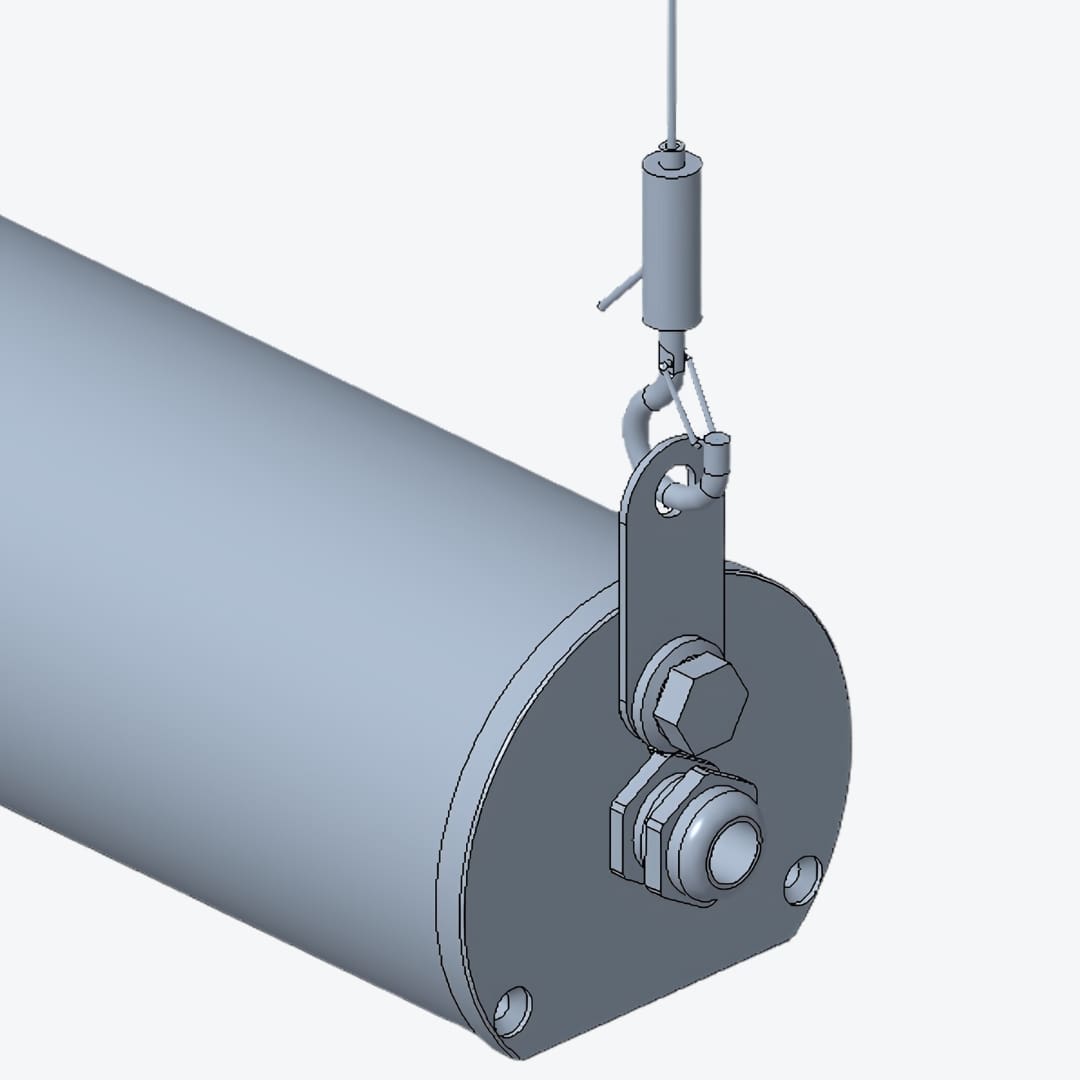

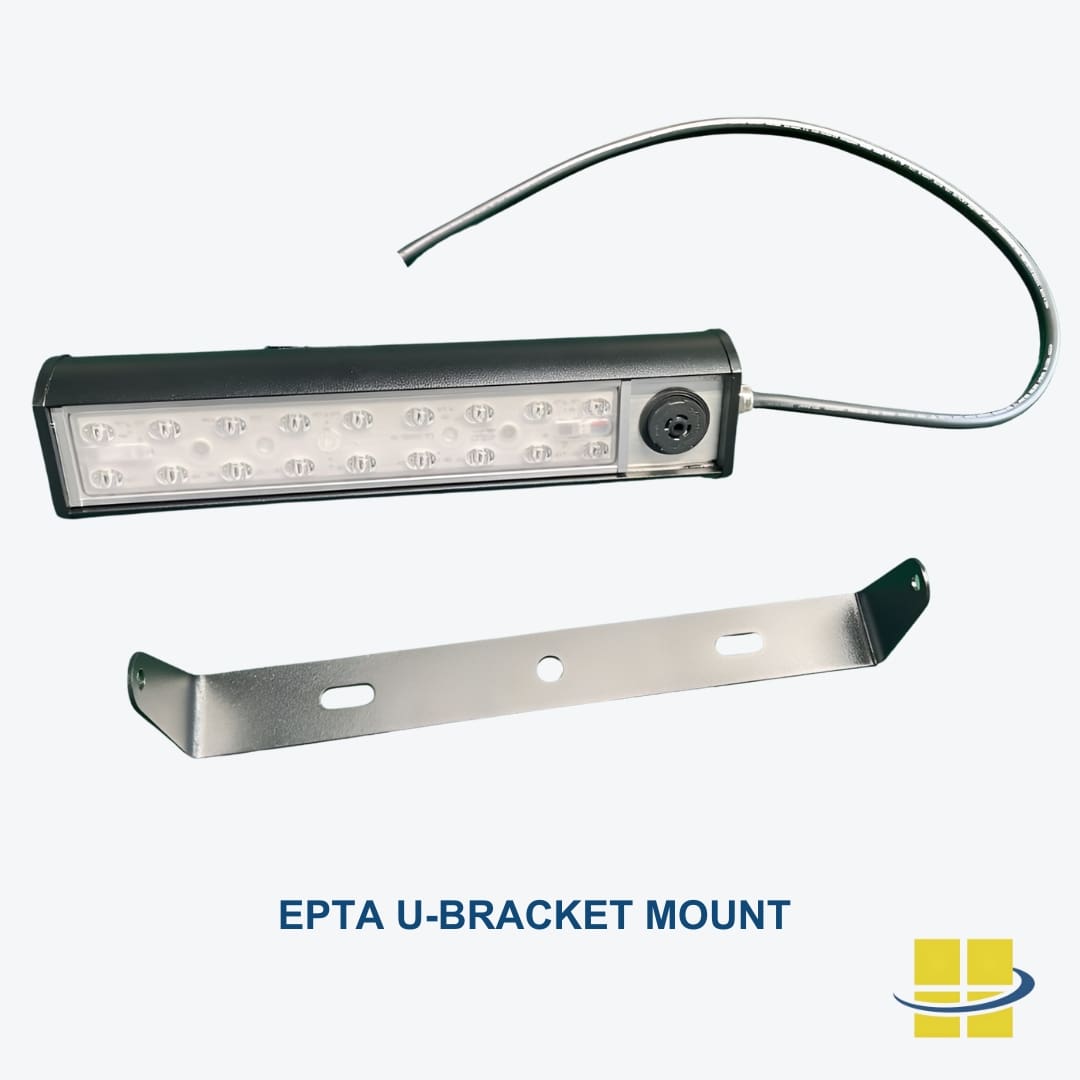

    • End brackets, full brackets, wire pendant, or knuckle mount mounting
  • Operating temperature: -40°C~+50°C
  • T1S, T5M, T5W, T40D, T60D, T90D optics
  • Black or Gray color options
  • Finished in durable powder cost paint
  • Corrosion-resistant polyester powder painted 100μm thickness
  • Meets 1000-hour salt spray certification
  • L70 @ 200,000 hours
  • DLC, IP66 rated, IK08 rated, CUL, CE, CB, SAA, RoHS, TUV rated

EPTA 120w LED Linear Lighting Options:

  • 1-10v dimming
  • 347-480v
  • 2200K, 3000K, 4000K, 5000K
  • No UV option
  • Microwave motion sensor
  • Photocell MINI
  • 3′, 6′, 12′, 18′ power cord
  • Back light shield
  • Ra80 or Ra90 optional

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your EPTA LED Linear Lighting Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
