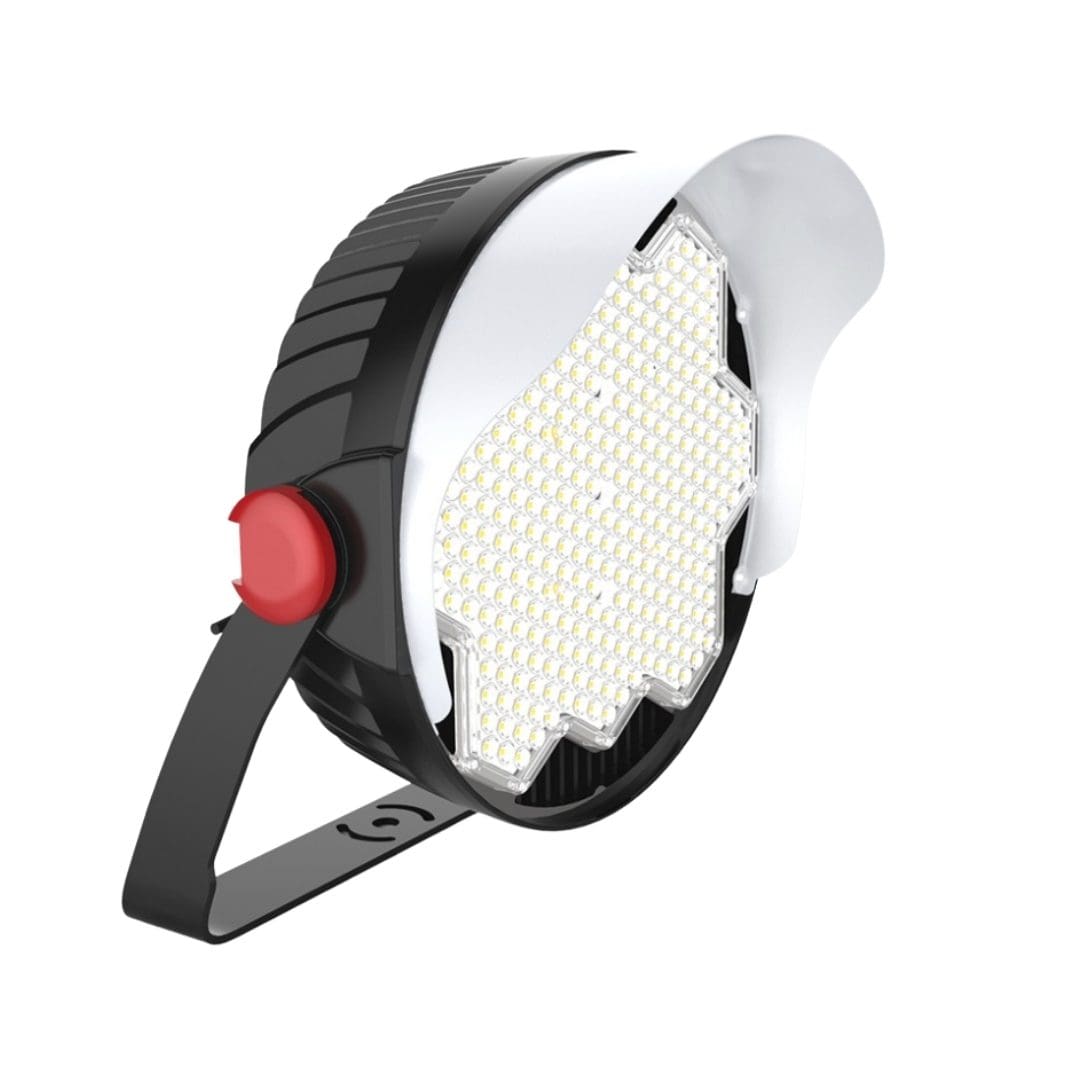

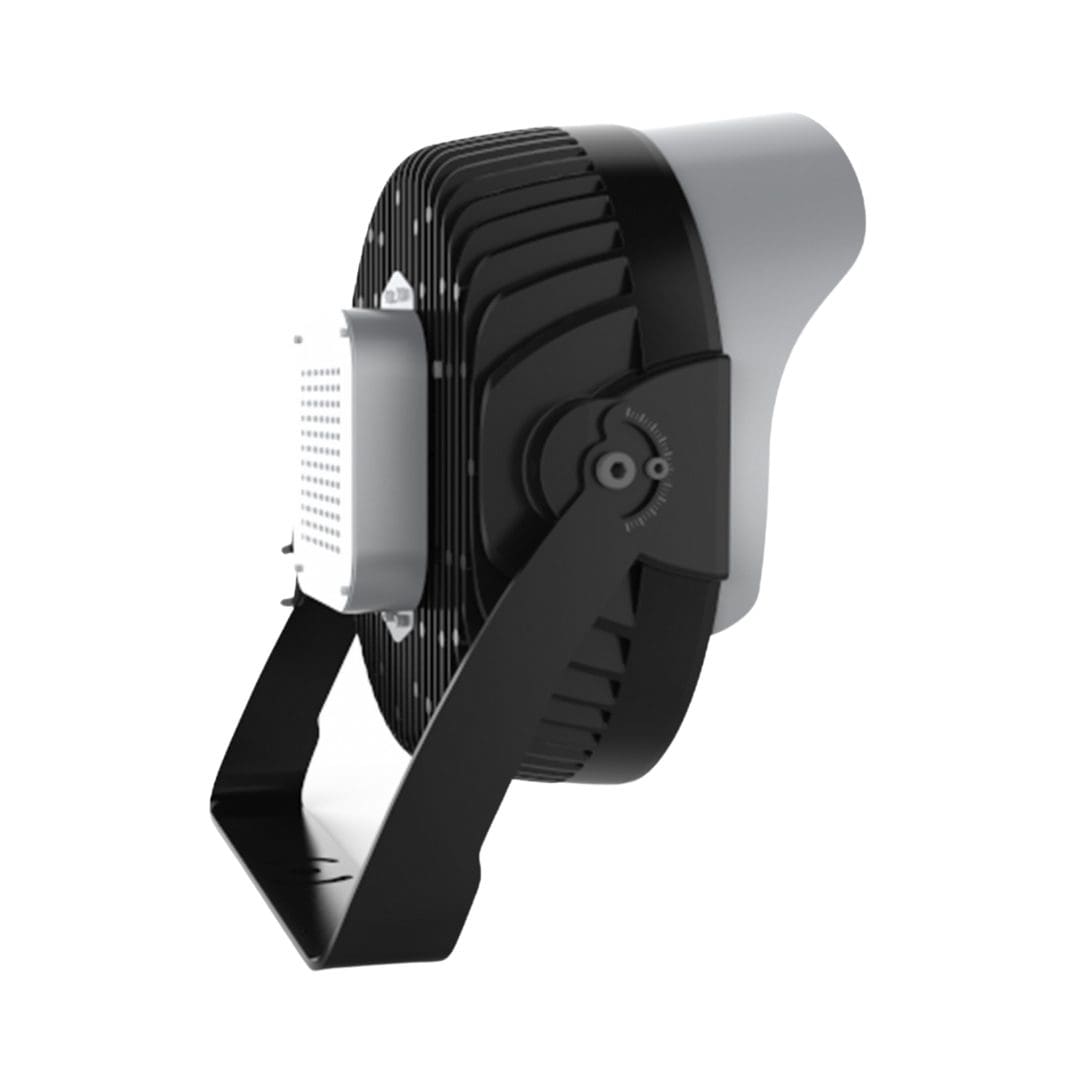

STAJ LED sports light side view

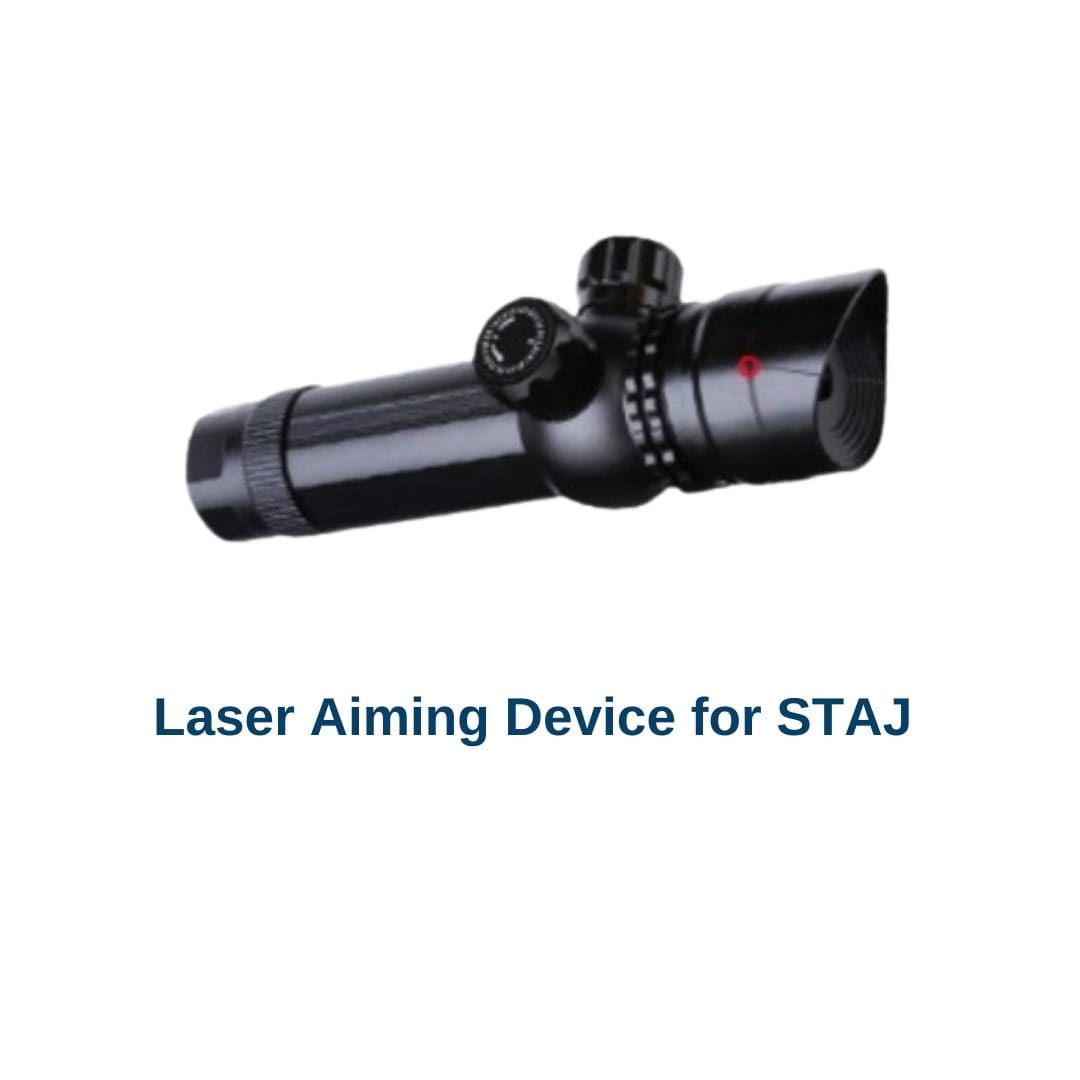

STAJ laser aiming device

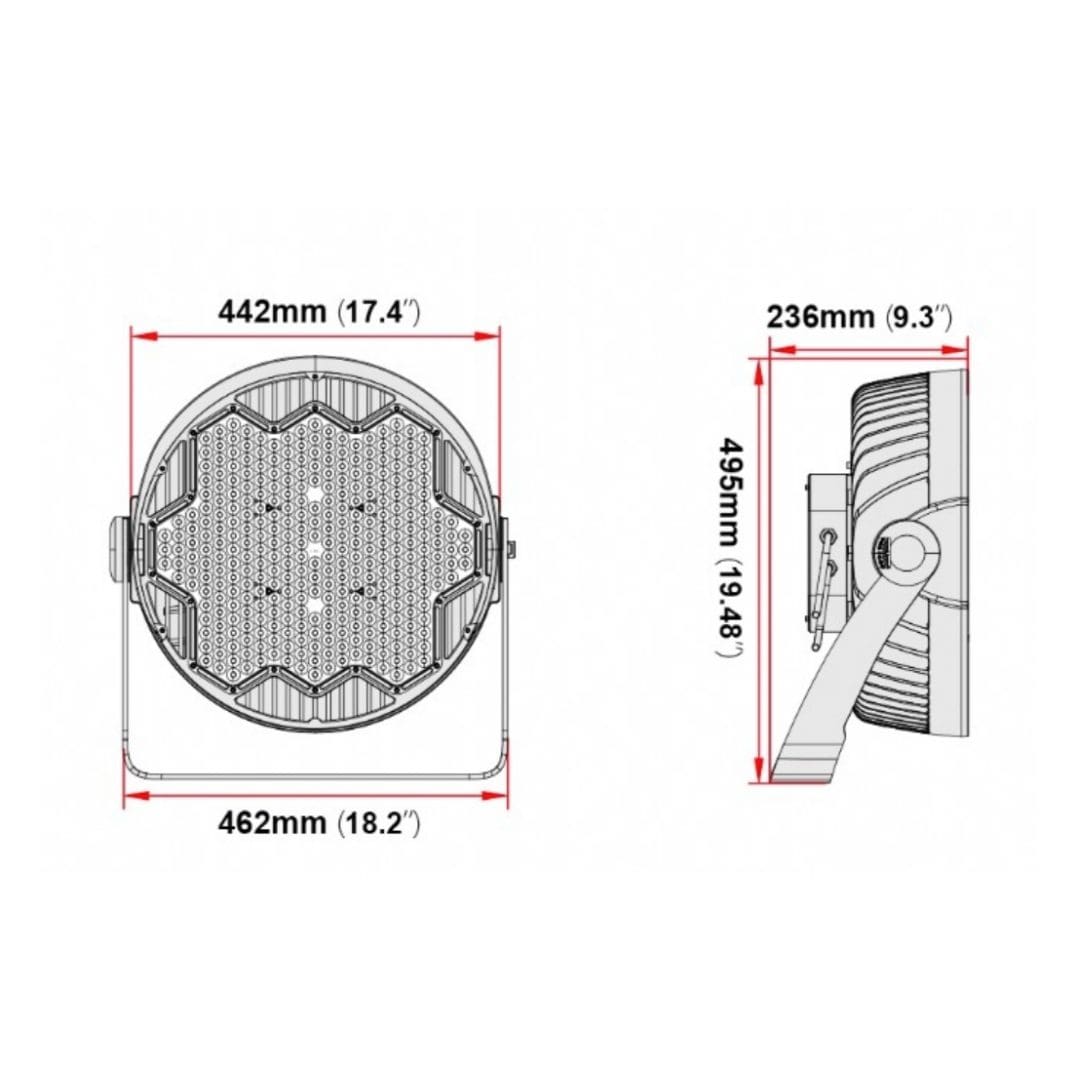

STAJ LED sports light dimensions

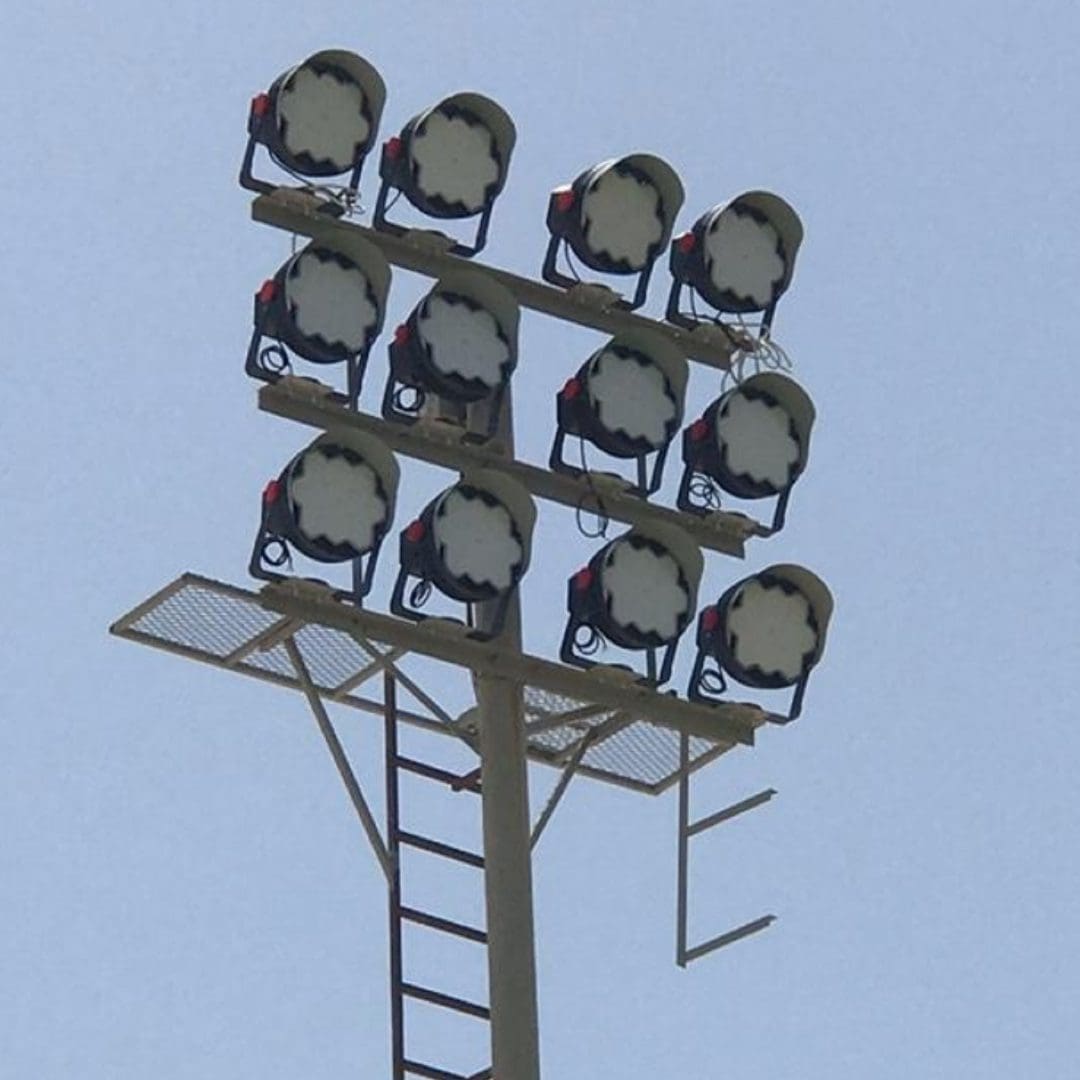

STAJ light fixtures on pole

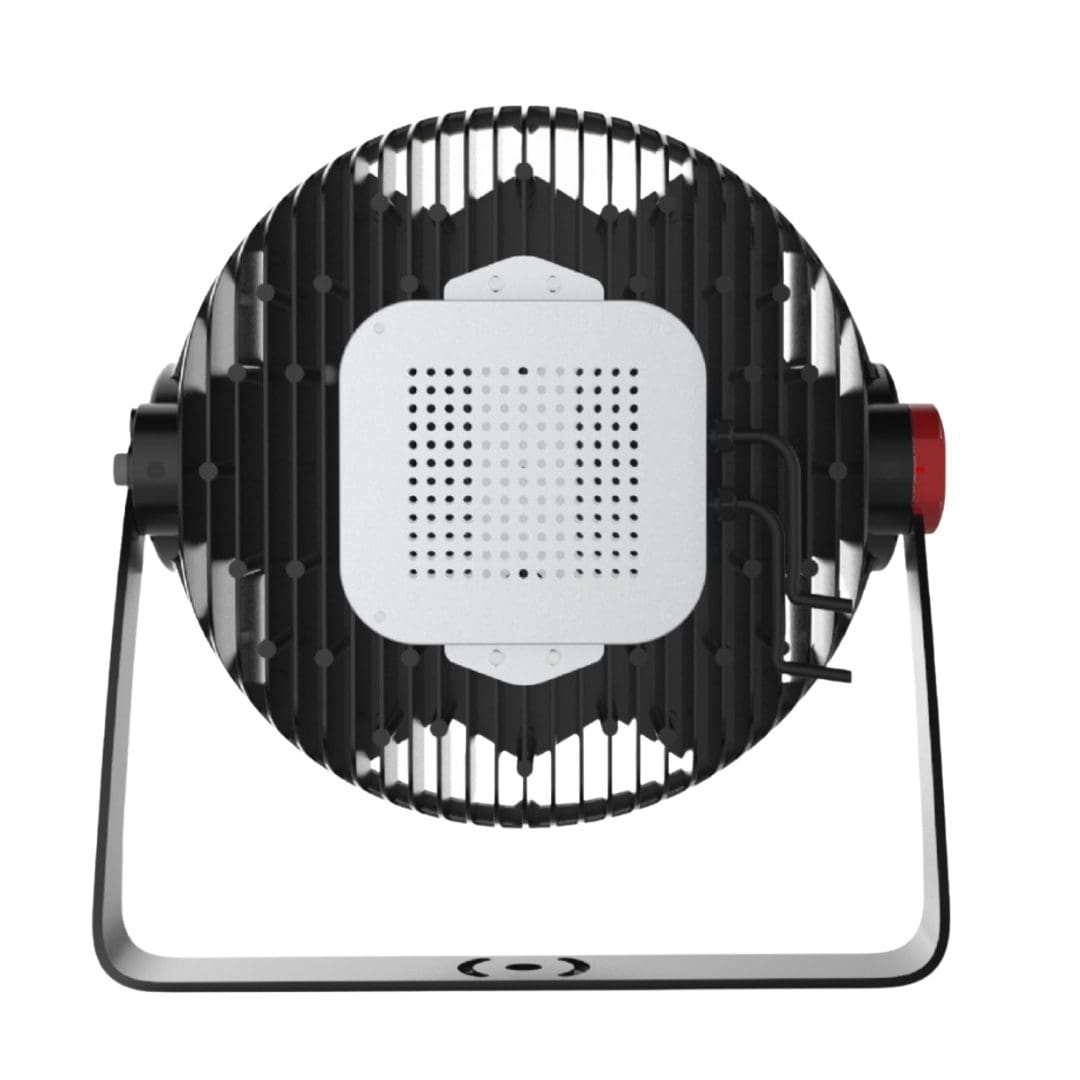

STAJ LED sports light driver view

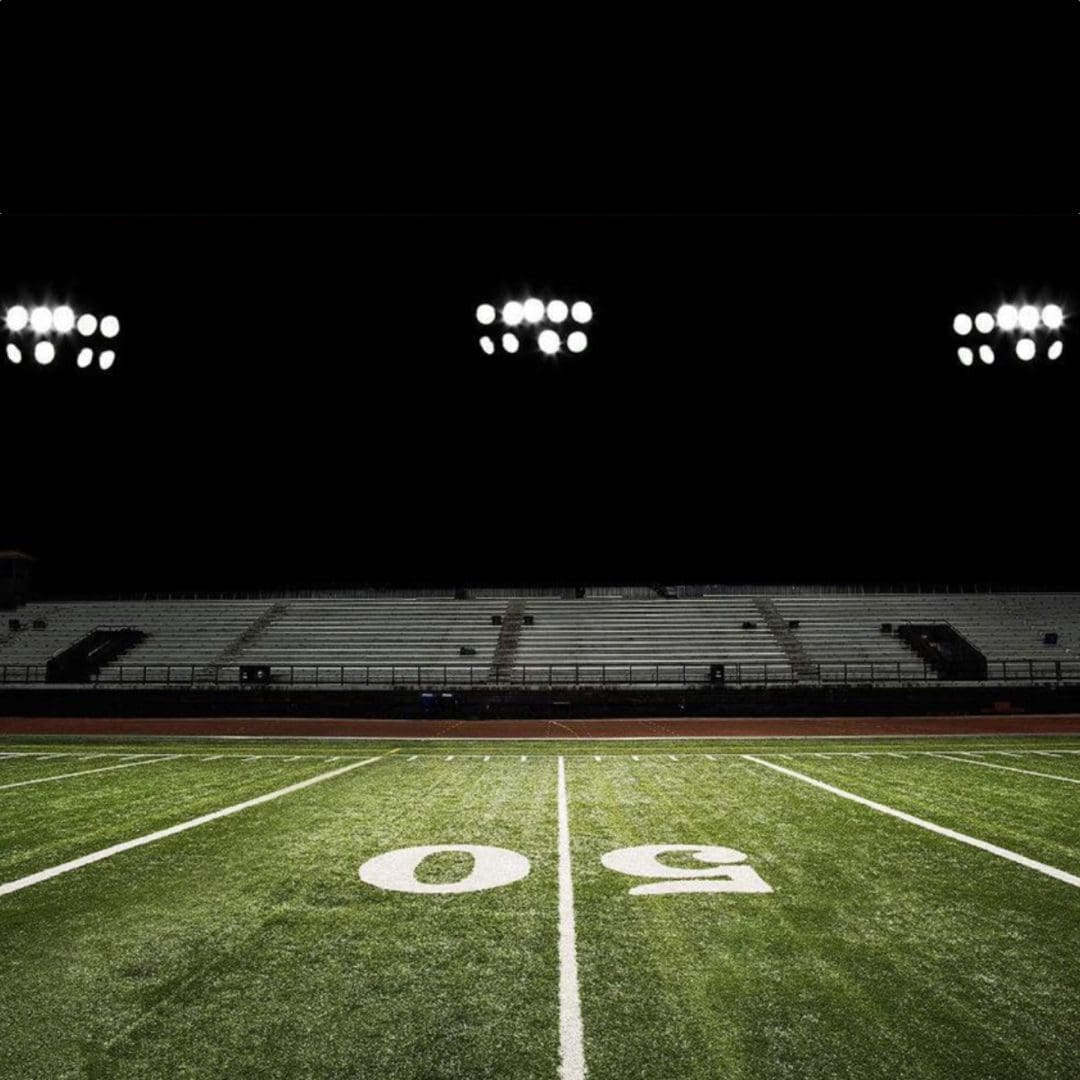

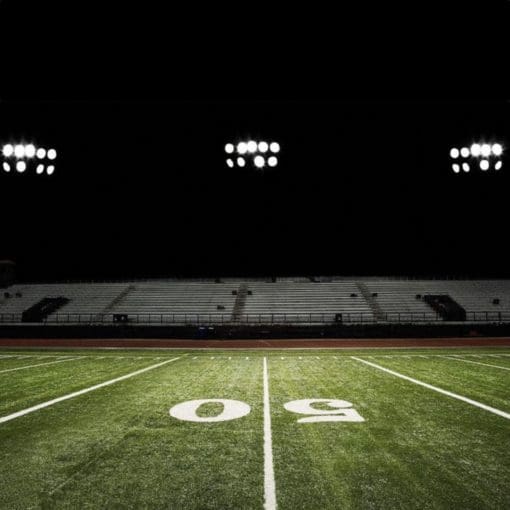

STAJ football field lighting

Football Field Lighting, 360′ x 160′, 4 70′ Poles, 32fc, 1.98 max/min

$115,195.32

This Football Field Lighting, 360′ x 160′, 4 70′ Poles, 32fc, 1.98 max/min utilizes 36 STAJ 800 fixtures to light a standard size high school football field evenly.

Lightweight and Durable: The STAJ boasts a small overall size, light weight and open architecture for low EPA that facilitates replacement of HID using most existing poles.

Maximum Light Output: High lumens per watt and premium optics design provide maximum light output with minimal glare and overall superior performance.

Precision Optics: This football field lighting package is available with 15° and 25° precision optics and an optional laser to help you position the light exactly where it’s needed.





Questions? Contact a lighting specialist.



Call 800-468-9925

Lead Time: 2 to 4 Week Production, plus Shipping

In Stock

SKU: AF77XXST-RSL800N(36) Categories: ,

Specifications

Weight 100 lbs
Dimensions 10 × 10 × 10 in
Application

Availability

2 to 4 Week Production, plus Shipping
Available Finishes

Black
Ballast/Driver

Electronic 50/60 Hz
Color Rendering Index (CRI)

80+
Light Source

Housing

Die cast aluminum housing
Lens

Clear polycarbonate lens
Light Source Included

LED Array Included
Listings

CSA – listed for wet Locations, IP65 sealed LED compartment, ANSI/UL 1598, 8750
Mounting

Yoke Mount/U-Bracket Mount
Number of Fixtures

36
Number of Poles

4
Pole Height

70
Product Family

STAJ
Rated Life

50,000 Hours
Average Footcandles

32
Sports Level of Play

Recreation
Max/Min Uniformity

1.98
Vendor

AF82X, AF77X
Voltage Filter

120v, 208v, 240v, 277v
Warranty

5-Year Limited Warranty
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Light Source Lumens

3,602,480

Product Description

This Football Field Lighting, 360′ x 160′, 4 70′ Poles, 32fc, 1.98 max/min utilizes 36 STAJ 800 fixtures to light a standard size high school football field evenly.

Lightweight and Durable: The STAJ boasts a small overall size, light weight and open architecture for low EPA that facilitates replacement of HID using most existing poles.

Maximum Light Output: High lumens per watt and premium optics design provide maximum light output with minimal glare and overall superior performance.

Precision Optics: This football field lighting package is available with 15° and 25° precision optics and an optional laser to help you position the light exactly where it’s needed.

Features:

  • Luminaires: STAJ 800
  • Number of Luminaires: 36
  • Number of Poles: 4
  • Number of Masts: 4
  • Pole Height: 70′
  • Max/Min Ratio: 1.98
  • Average Footcandles: 32
  • Total Light Source Lumens: 3,456,000
  • Fixture Wattage: 800w
  • Lens: Clear polycarbonate
  • Rated Life (L70): 50,000 hours
  • Weight: 72 lbs each
  • Kelvin: 5000K
  • Housing: Die-cast aluminum housing with corrosion resistant black powdercoat
  • Listings: IP65 rated – IP rating system
  • Voltage Compatibility: 120-277v
  • Mounting: Bracket mount
  • Warranty: 5-Year Warranty

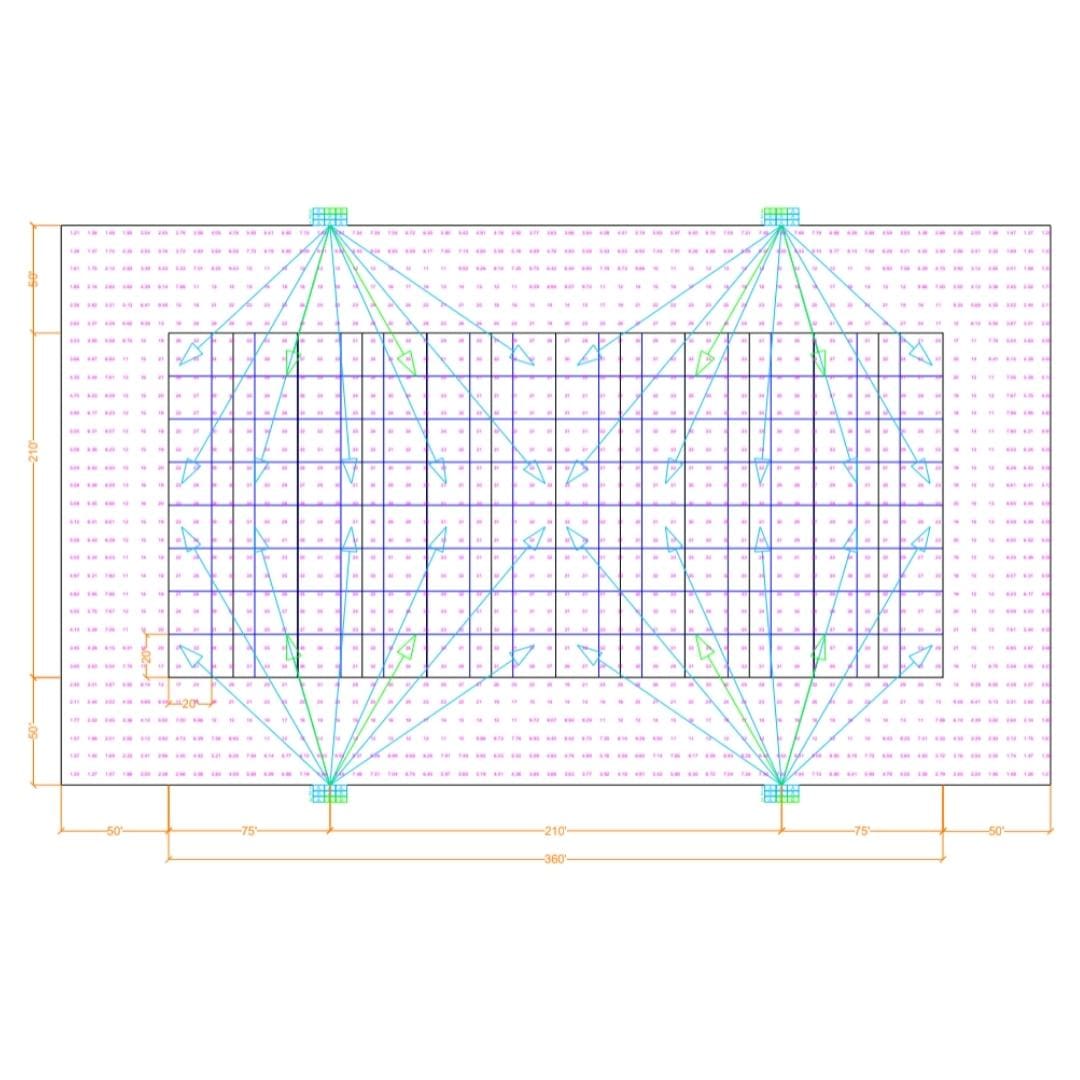

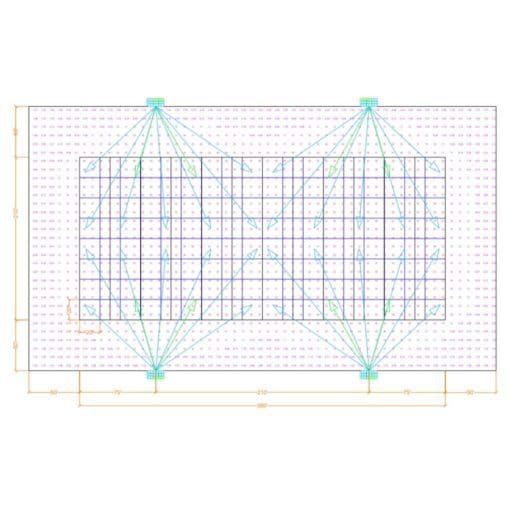

This package includes (4) 70 foot direct burial fiberglass poles that are recommended by the photometric analysis as well as four masts.



Access Fixtures Football Field Lighting, 360′ x 160′, 4 70′ Poles, 32fc, 1.98 max/min Provides Exactly What You Need

Access Fixtures high performance lighting specialists use the most advanced photometric software to ensure you get the perfect football field lighting. Few football fields have identical needs. If you have any questions, our knowledgeable high performance lighting specialists in Worcester, MA are available to walk you through your football field LED lighting project. Call us today at 800-468-9925 to discuss your project. You can also email us at [email protected].

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Ready to Order Football Field Lighting, 360′ x 160′, 4 70′ Poles, 32fc, 1.98 max/min?

You can place your order online here. Or, if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
