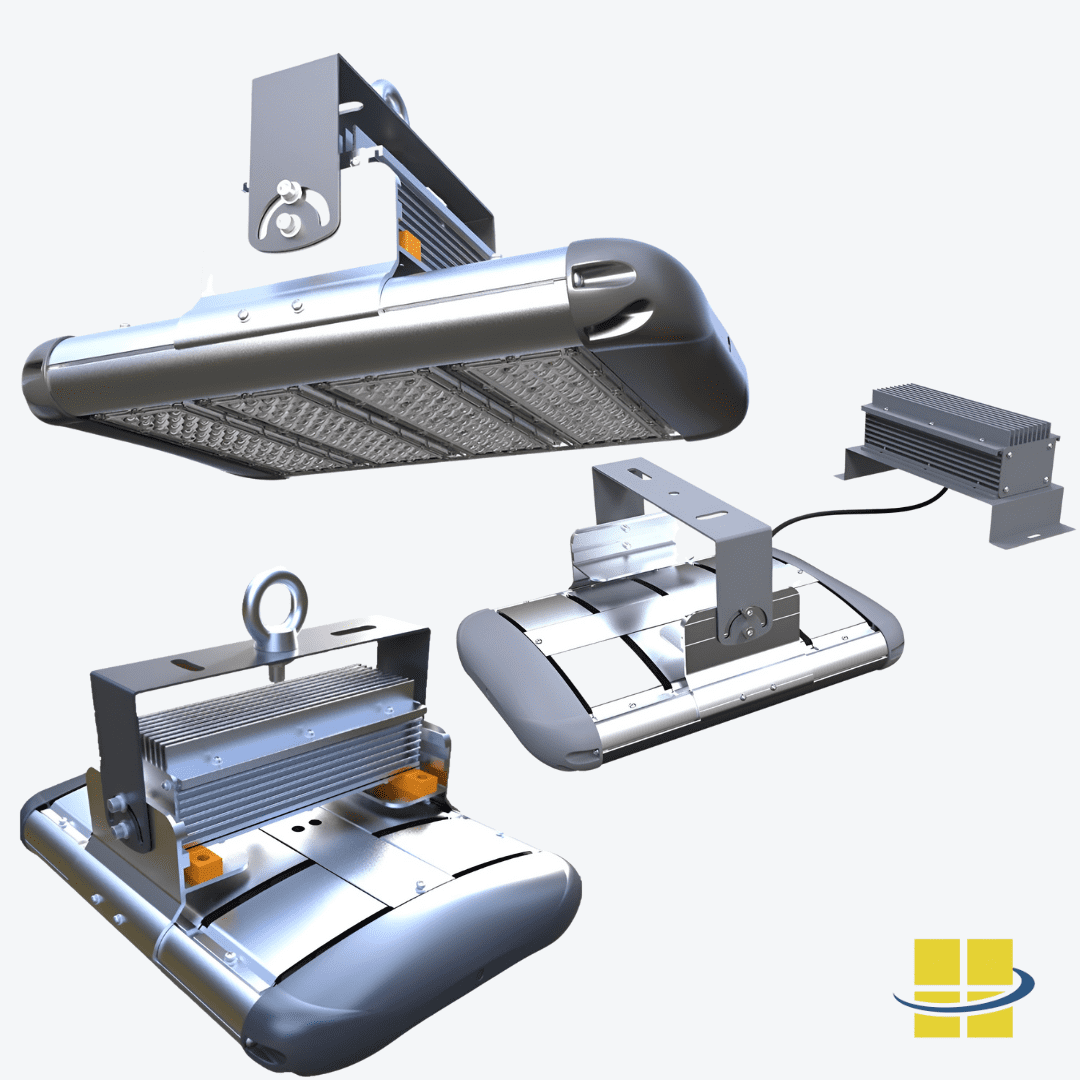

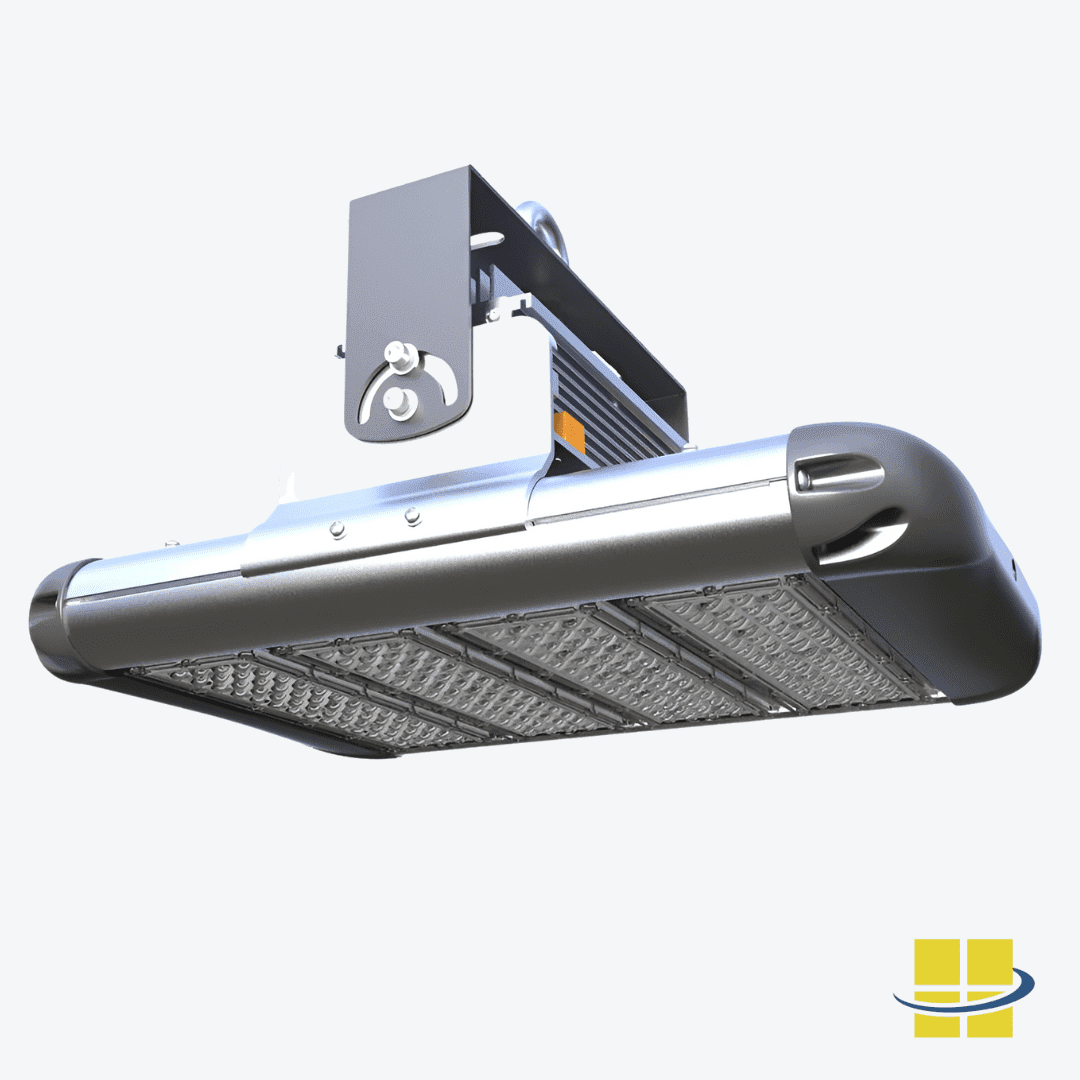

HAWT 300 Heat Resistant – LED High Bay Light – EXTREME-LIFE

$1,099.87

The HAWT LED high bay fixtures are specifically engineered to function in environments with ambient maximum temperatures reaching up to 100°C/212°F with a remote driver and 80°C/176°F with an attached driver. Designed to thrive in harsh conditions, the HAWT boasts a maintenance-free and worry-free performance, thanks to its reliable, durable, shock-resistant, vibration-resistant, and vandal-resistant design. With a variety of customizable options, the HAWT proves to be the perfect lighting solution for a range of industrial applications, including manufacturing, water and wastewater facilities, metals and mining operations, power generation plants, oil and gas installations, and beyond.

EXTREME-LIFE: L70 @ 100,000 hours at 80°C/176°F with attached LED driver and 100°C/212°F with a remote LED driver

Industrial Strength: Field repairable and rated IP66 for wet location, IK10 impact resistance, and 3G or 5G for vibration

Custom Optics: Photometric design service and 15 different optics available to get the light on the work surface where it is needed

*Note: Minimum order quantity of 10 fixtures required.

Lead Time: 2 to 4 Week Production, plus Shipping

In Stock

  • The HAWT equipped with an integrated LED driver has a maximum temperature rating of 80°C/176°F, while the HAWT with a separate remote driver is rated for a maximum temperature of 100°C/212°F.

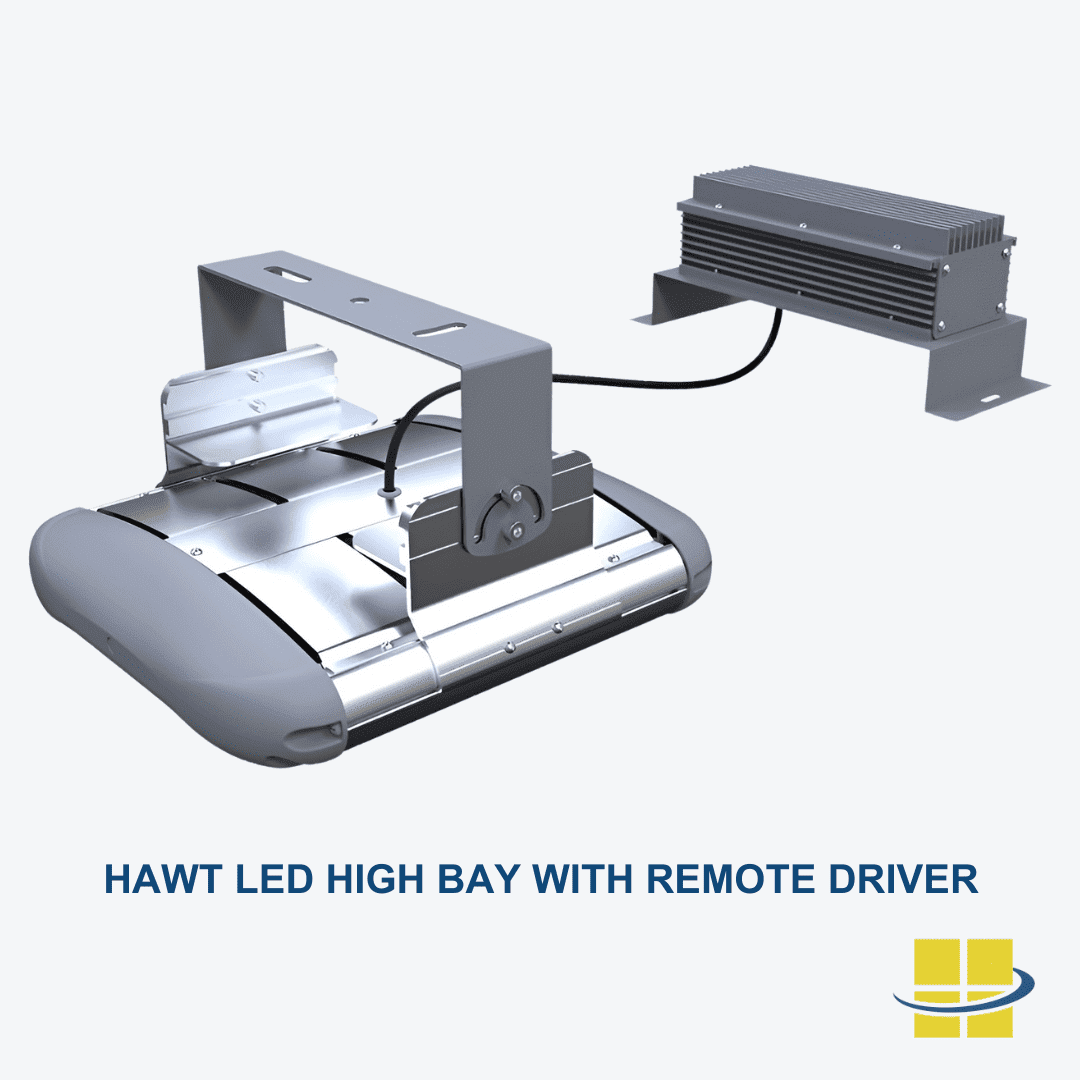

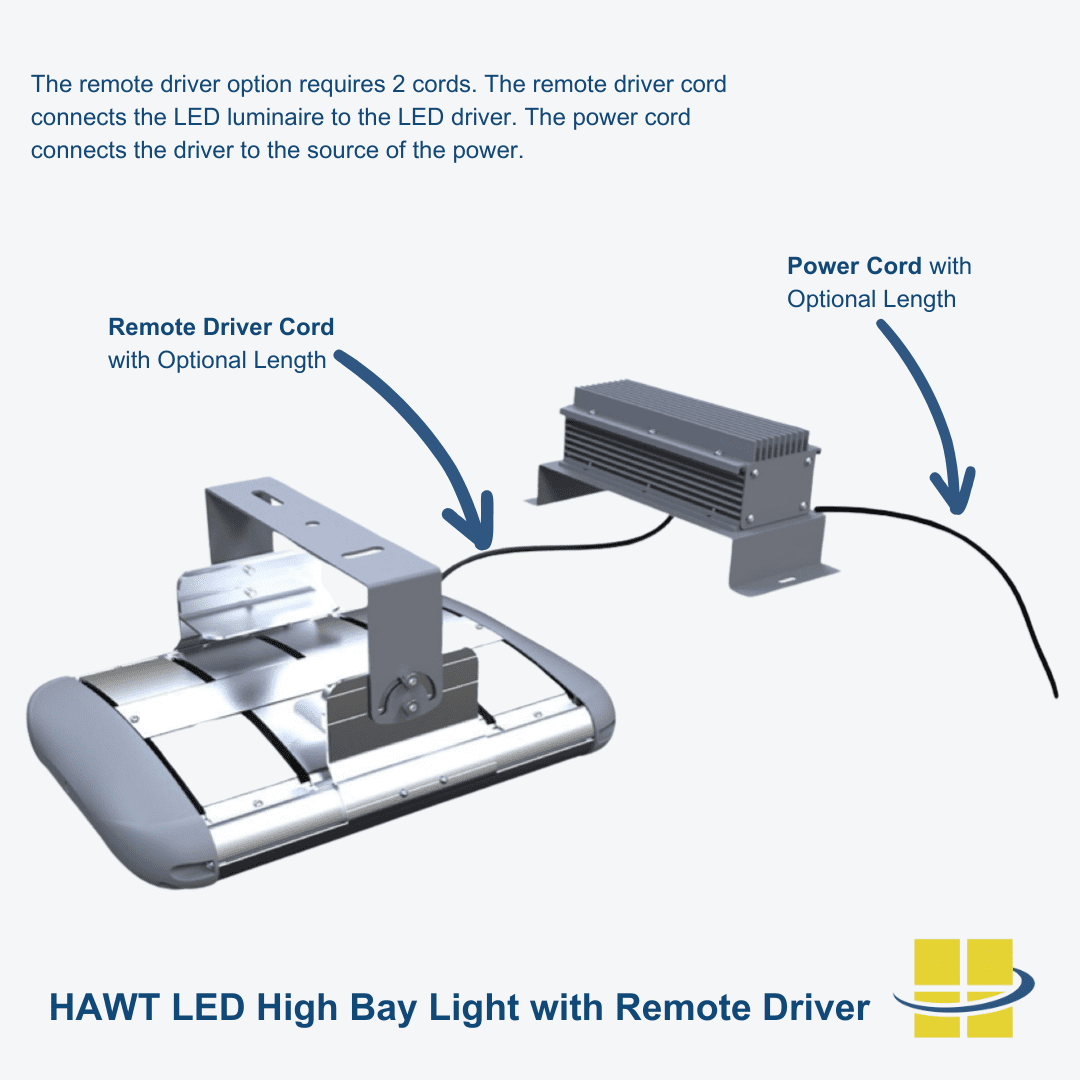

  • Remote LED drivers require a power cord that connects the light fixture to the remote driver. if you need a remote driver, select the length of the Remote Driver Cord using this dropdown. The maximum distance between the LED driver and the light fixture is 80 ft.
  • HAWT are manufactured with a 3' power cord exiting the driver to connect to your power supply. Use this dropdown to add additional length to the power cord.

  • Total

SKU: AF44XEO-ED-300HT80 Categories: ,

Specifications

Weight 37 lbs
Dimensions 27 × 15 × 10 in
Application

,

Availability

2 to 4 Week Production, plus Shipping
Available Finishes

Gray
Housing

Aluminum alloy
Light Source

, , , ,

Light Source Included

LED Array Included
Light Source Lumens

39,000
Listings

IK10, IP66, RoHS Compliant, CB, CE, DLC Listed, ETL Listed, UL Listed
Product Family

HAWT
System Watts

300
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty

Product Description

HAWT LED High Heat High Bay Features:

  • 2700K, 3000K, 3500K, 4000K, 4500K, 5000K
    • 5700K, 6500K available on request
  • 26.9″ x 14.4″ x 9.6″ inches
  • 36.4 lbs
  • Gray
  • IP66 rated for wet locations
  • IK10 impact resistant for harsh environments
  • ETL, DLC, CB, CE, RoHS listed
  • Designed to work in environments with temperatures up to 100°C/212°F
    • Max to 80°C/176°F, fixture with driver together
    • Max to 100°C/212°F, fixture with remote driver
  • Vandal-resistant
  • 3G or 5G vibration rated for challenging applications
  • Choose from 15 types of optics lens
  • Heavy-duty
  • L70 rated @ 100,000 hours
  • Mounting for all types of indoor and outdoor installation:

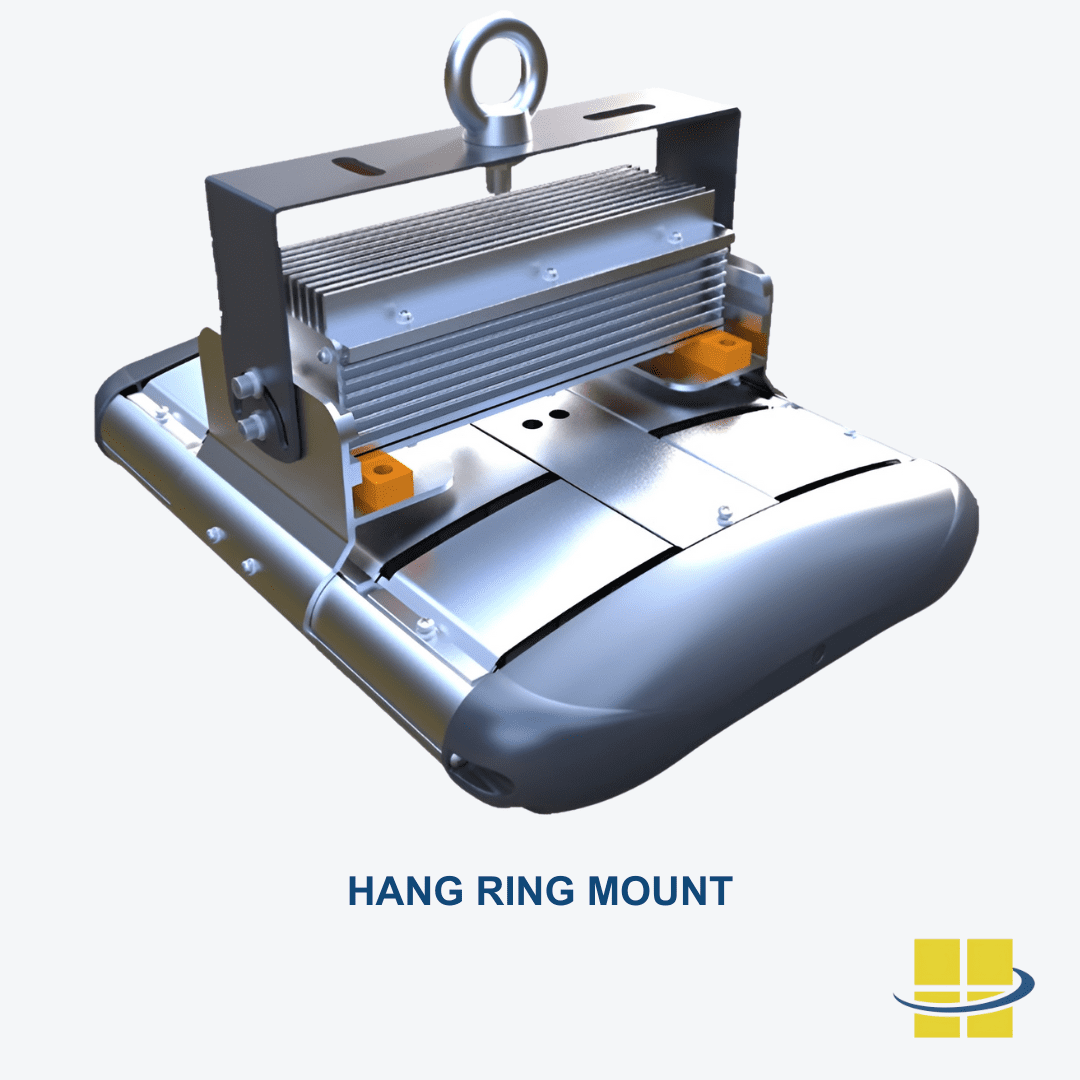

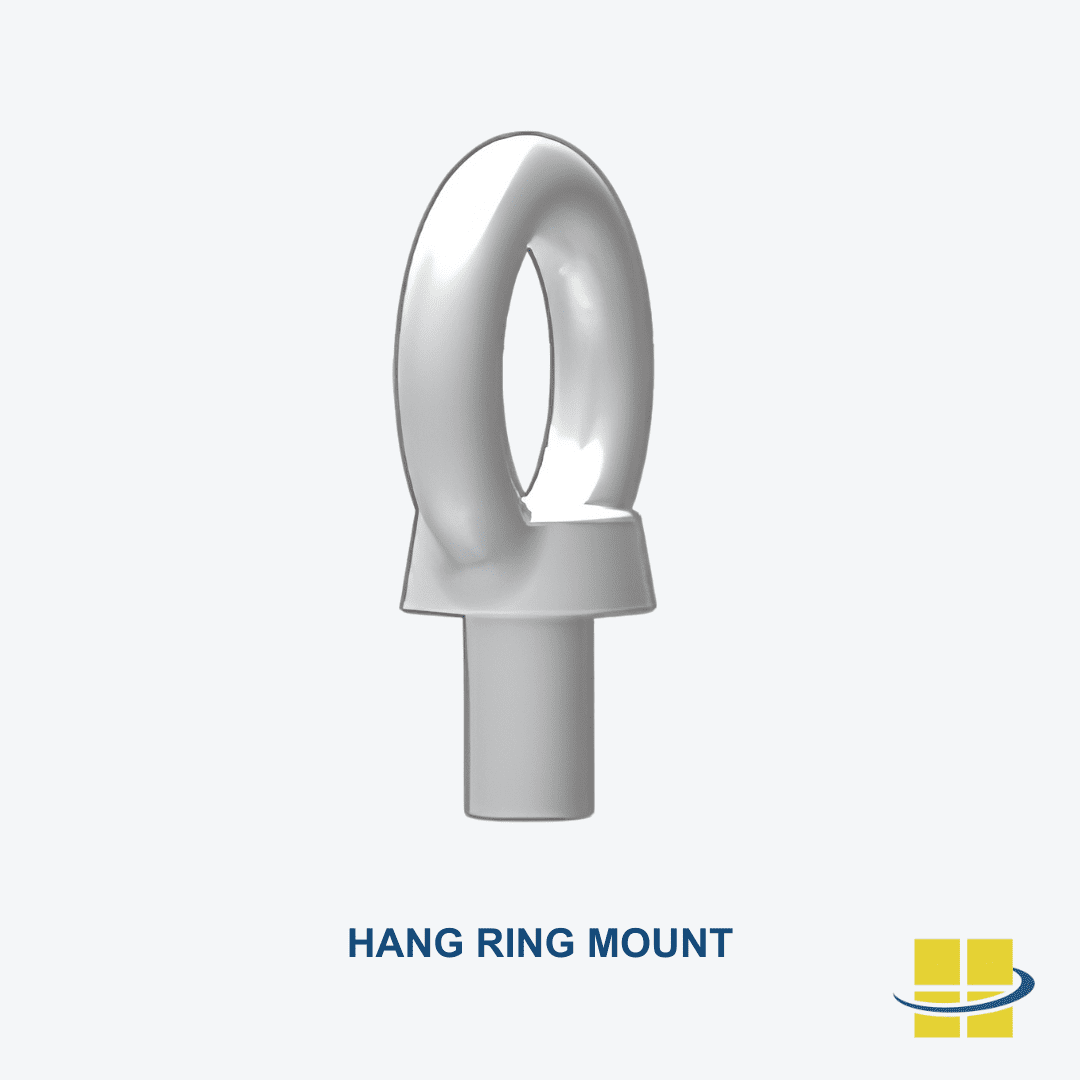

    • Hanging ring

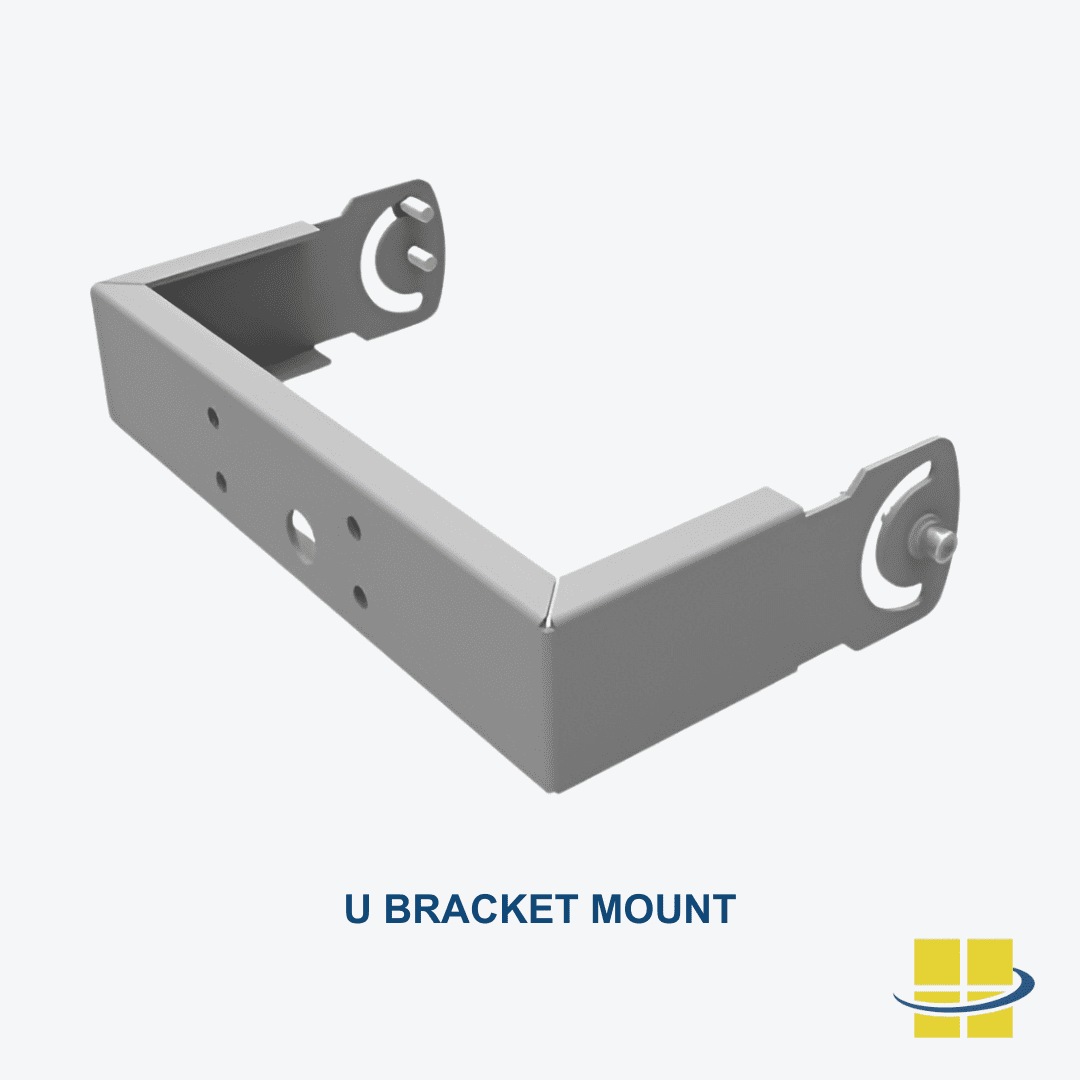

    • U bracket
  • Longer hanging cords available:
    • 6′, 12′ 18′
    • Custom lengths available on request
  • CRI: 70+
  • Aluminum alloy housing
  • Beam angle:
    • Type I
      • 30×100°
      • 60×100°
      • 130×70°
    • Type II
      • 70×135°
      • 75×145°
    • Type III
      • 60×150°
    • Type IV
      • 73×133°
    • Type V
      • 20°
      • 30°
      • 50°
      • 90°
      • 110°
      • 150°
  • 100-277v, 277-480v
  • Lumen output:
    • 140 LPW
    • 39,000 lumens
  • Detection area: 10/50/75/100% – can be customized
  • Hold time: 5s/30s/1min/5min/10min/20min/30min – can be customized
  • Standby period: 0s/10s/1min/5min/10min/30min/1h+ – can be customized
  • Standby dimming level: 10%, 20%, 30% 50% – can be customized
  • Microwave motion sensor
  • Dimming 0-10v driver
  • Suitable for high ambient temperature industrial applications such as chemical and petrochemical, oil and gas, metals and mining, power generation, pulp and paper, manufacturing, water, and wastewater.
  • 5-year warranty.



HAWT LED High Bay Options:

  • Beam angle: 20° / 30° / 50° / 90° / 110° / 150° / 30×100° / 60×100° / 130×70° / 70×135° / 75×145° / 60×150° / 73×133°
  • 120-277v or 347-480v
  • Microwave sensor
  • Photocell
  • Remote control

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your HAWT LED High Bay Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
