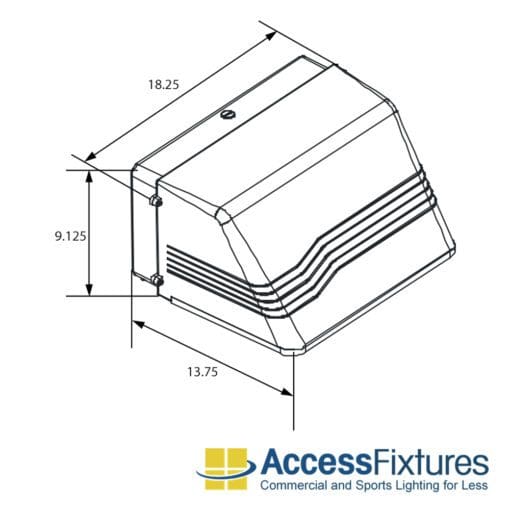

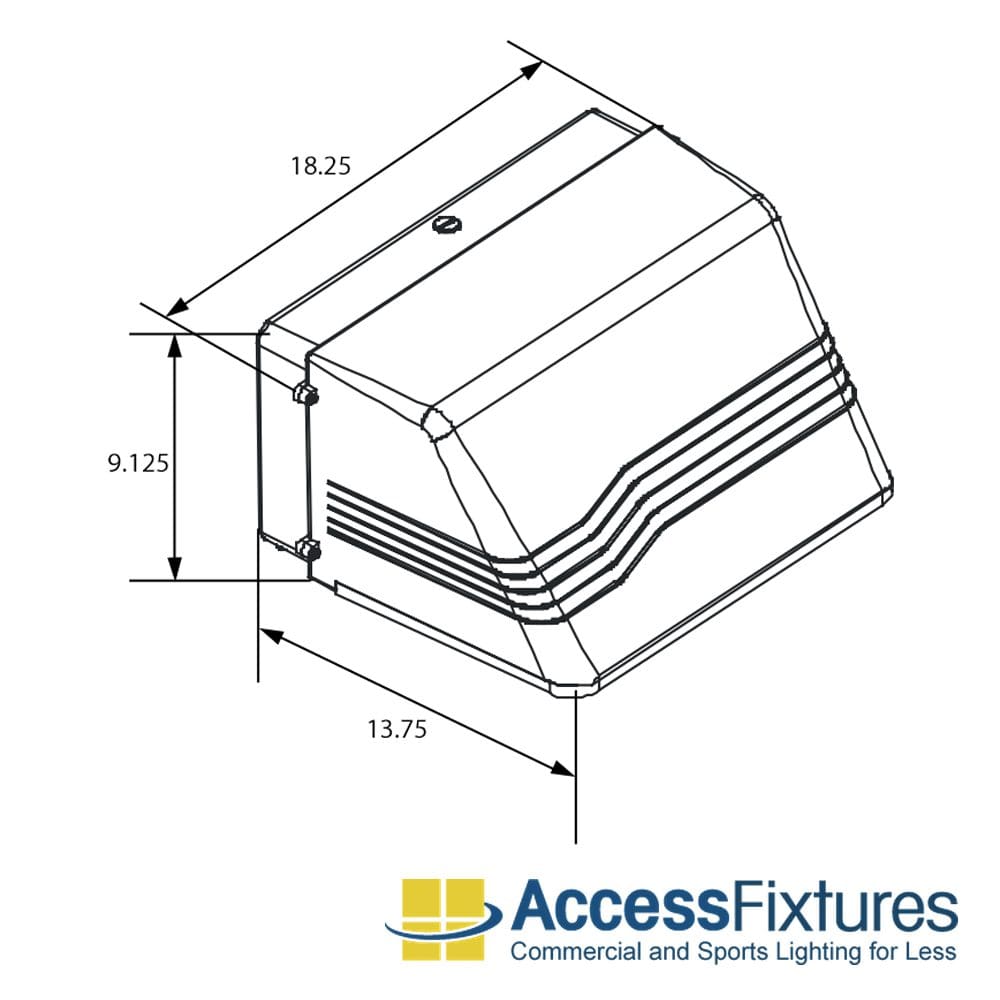

63w Full Cutoff Wall Pack Dimensions

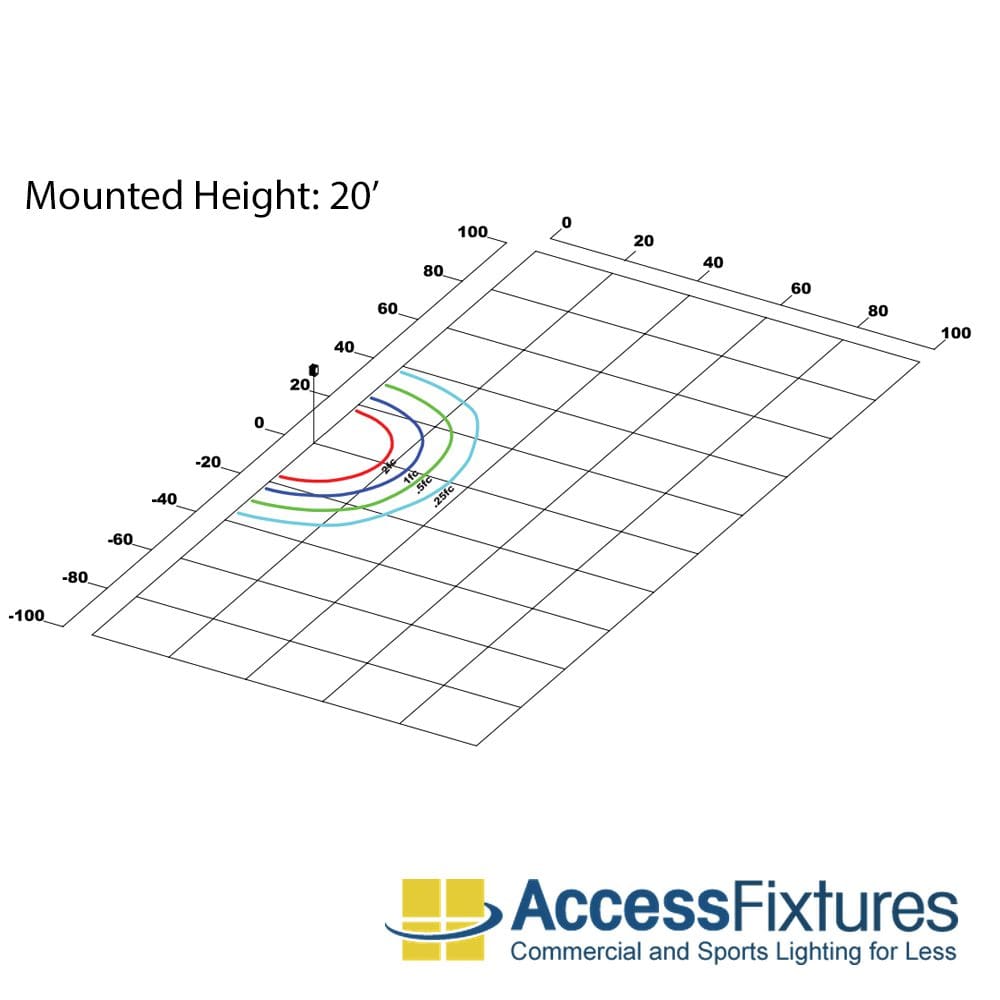

63w Full Cutoff Wall Pack Photometric

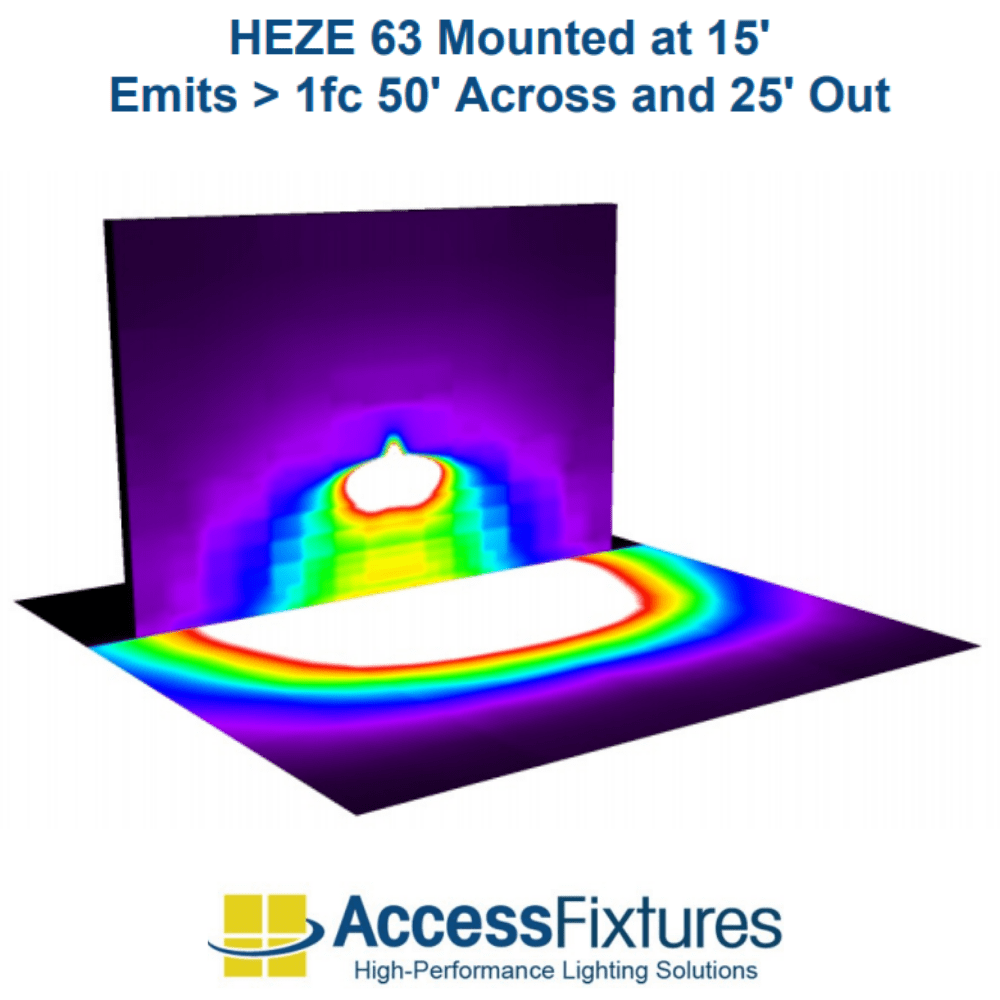

HEZE 63 photometrics image

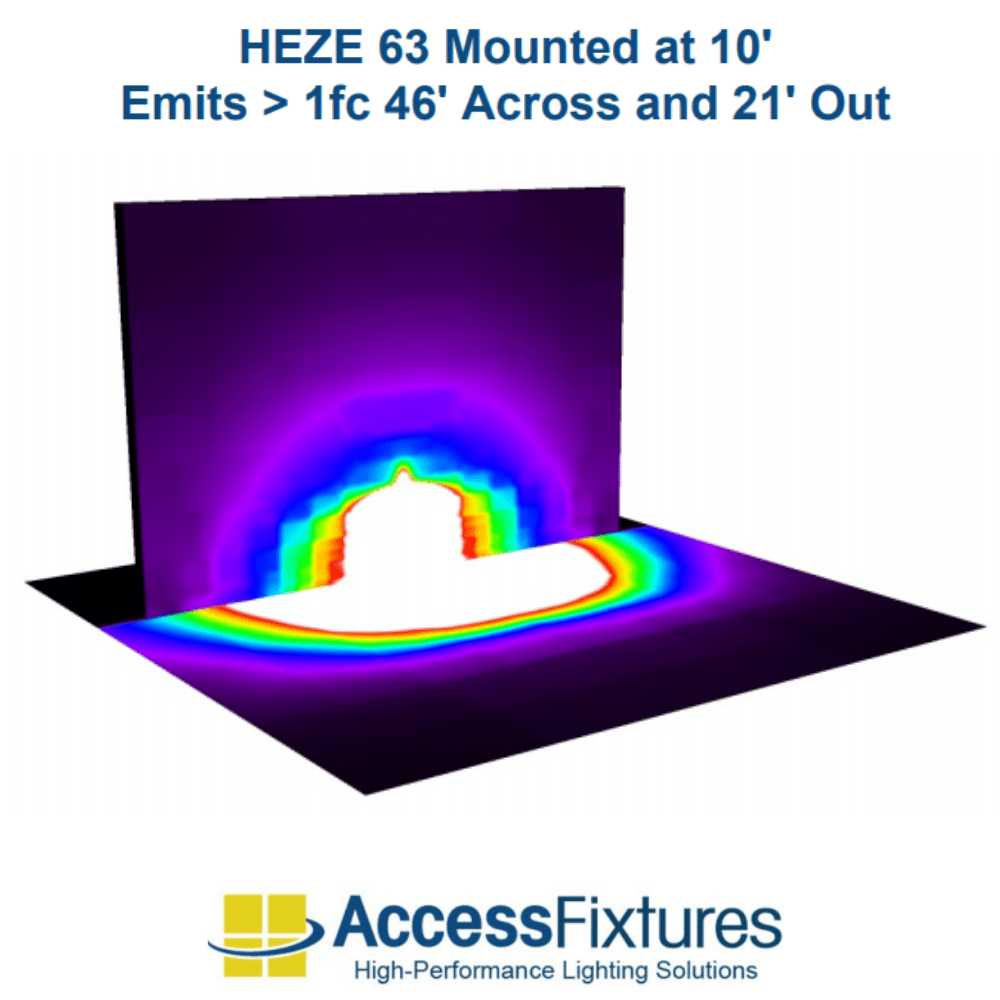

HEZE 63 photometrics image

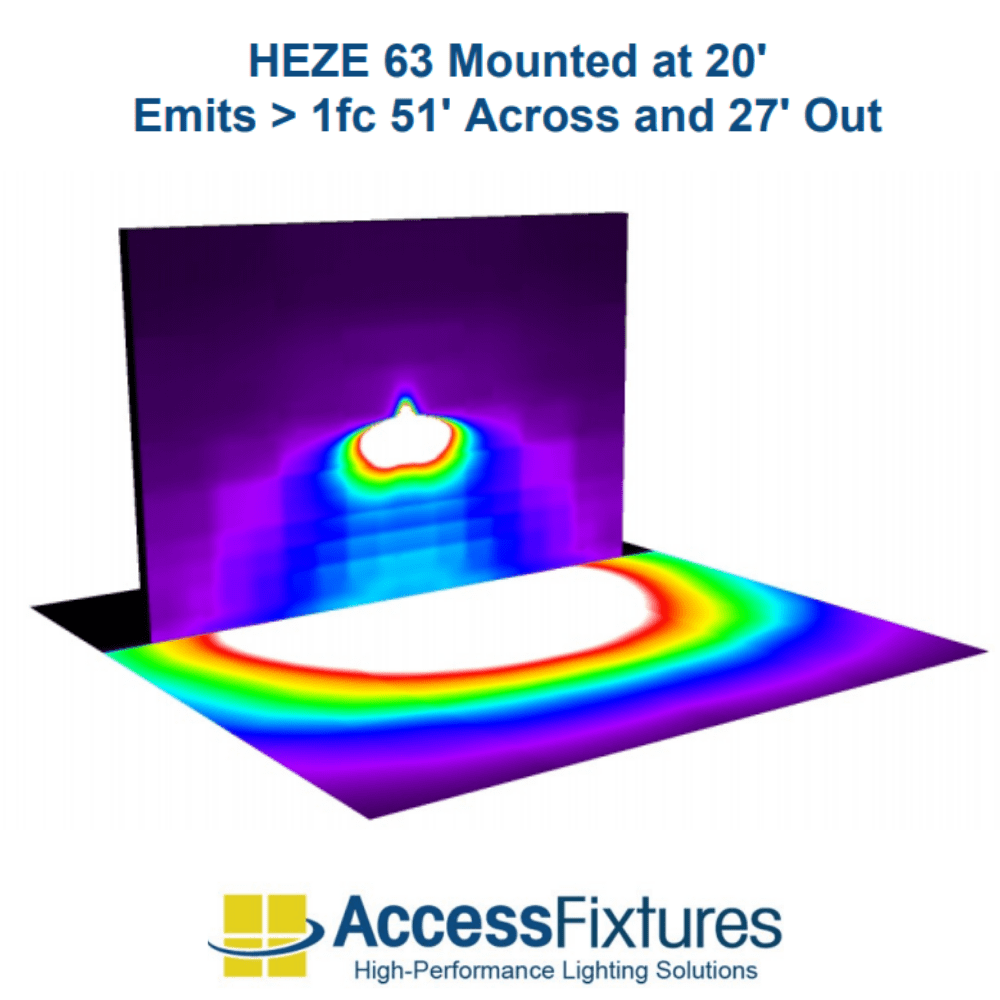

HEZE 63 photometrics image
Buy American

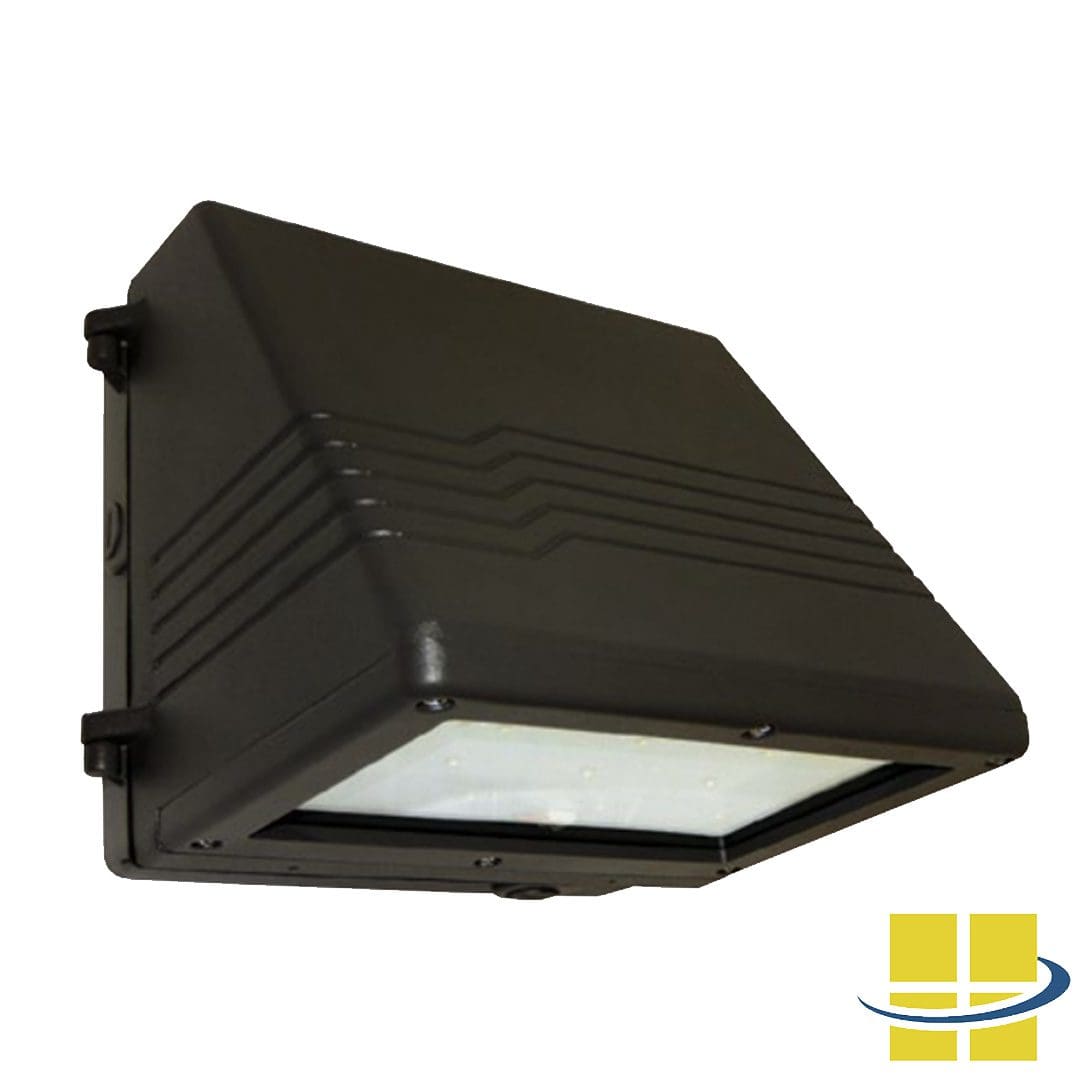

BAA HEZE 61 LED Full Cutoff Wall Pack

$499.87

The HEZE 61 LED Full Cutoff Wall Pack is a perfect commercial lighting solution for those who need a durable, long-lasting wall pack. HEZE comes standard with a full cutoff design, type V or type III optics, durable die-cast aluminum housing, and is EXTREME-LIFE rated @ 196,000 hours. HEZE not only boasts an appealing appearance but also excels in performance.

Full Cutoff: This wall pack’s full cutoff design helps meet local lighting ordinances by minimizing light trespass – also making it neighbor and dark-sky friendly.

Extreme Life: L70 rated life of 196,000 hours. This means that after 196,000 hours this fixture will still deliver 70% or more of its initial lumens – making it virtually maintenance-free.

Durable Construction: This HEZE wall pack fixture is made of die-cast aluminum and IP65-rated against water and dust.


Buy American Act-compliant

Lead Time: 7 to 10 Day Production, plus Shipping

In Stock

  • Total

SKU: AF33XWPC20QF1X56U Categories: ,

Specifications

Weight 20 lbs
Dimensions 10 × 15 × 10 in
Availability

7 to 10 Day Production, plus Shipping
Available Finishes

Bronze, Custom RAL
BUG Rating

Type III: 2, 2, 2, Type V: 2, 2, 1
Color Rendering Index (CRI)

80+
Housing

Die cast aluminum housing
Lens

Clear flat glass lens, Clear prismatic glass lens
Light Source

,

Light Source Included

LED Array Included
Light Source Lumens

6525
Listings

CSA: Listed for wet locations, IP65
Mounting

Includes template for mounting directly over 4-inch electrical box
Mounting Height

10 ft., 15 ft., 20 ft.
Product Family

HEZE
Rated Life

201,000 Hours
Style

Full Cutoff
System Watts

61
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty

Product Description

HEZE 61 LED Full Cutoff Wall Pack Features:

  • 61w integrated LEDs
  • Die-cast hinged and gasketed aluminum front frame and housing with ½” coin plugs
  • 120-277v
  • 6,525 lumens
  • L70 rated life of 201,000 hours
  • BUG Rating:
    • Type III Optics: 2, 2, 2
    • Type V Optics: 2, 2, 1
  • 80+ CRI
  • IP65 rated
  • CSA listed for wet locations, ANSI/UL 1598, 8750
  • Dimmable driver
  • 16 lbs.
  • 18.25 x 13.75 × 9.125 in
  • Mounts over a 4″ recessed outlet box; nickel-plated stainless steel hardware
  • Mountable at multiple heights

Options:

  • Available in textured architectural bronze powdercoat finish over a chromate conversion coating or custom RAL color – learn more here.
  • Available in 4000K and 5000K (learn more here)
  • Clear glass lens or prismatic glass lens
  • Surge protection
  • Photocell
  • Battery back-up

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your HEZE 61 LED Full Cutoff Wall Pack, EXTREME-LIFE Project

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order HEZE 61 LED Full Cutoff Wall Pack, EXTREME-LIFE, or Speak to a Lighting Specialist?

You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high-performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
