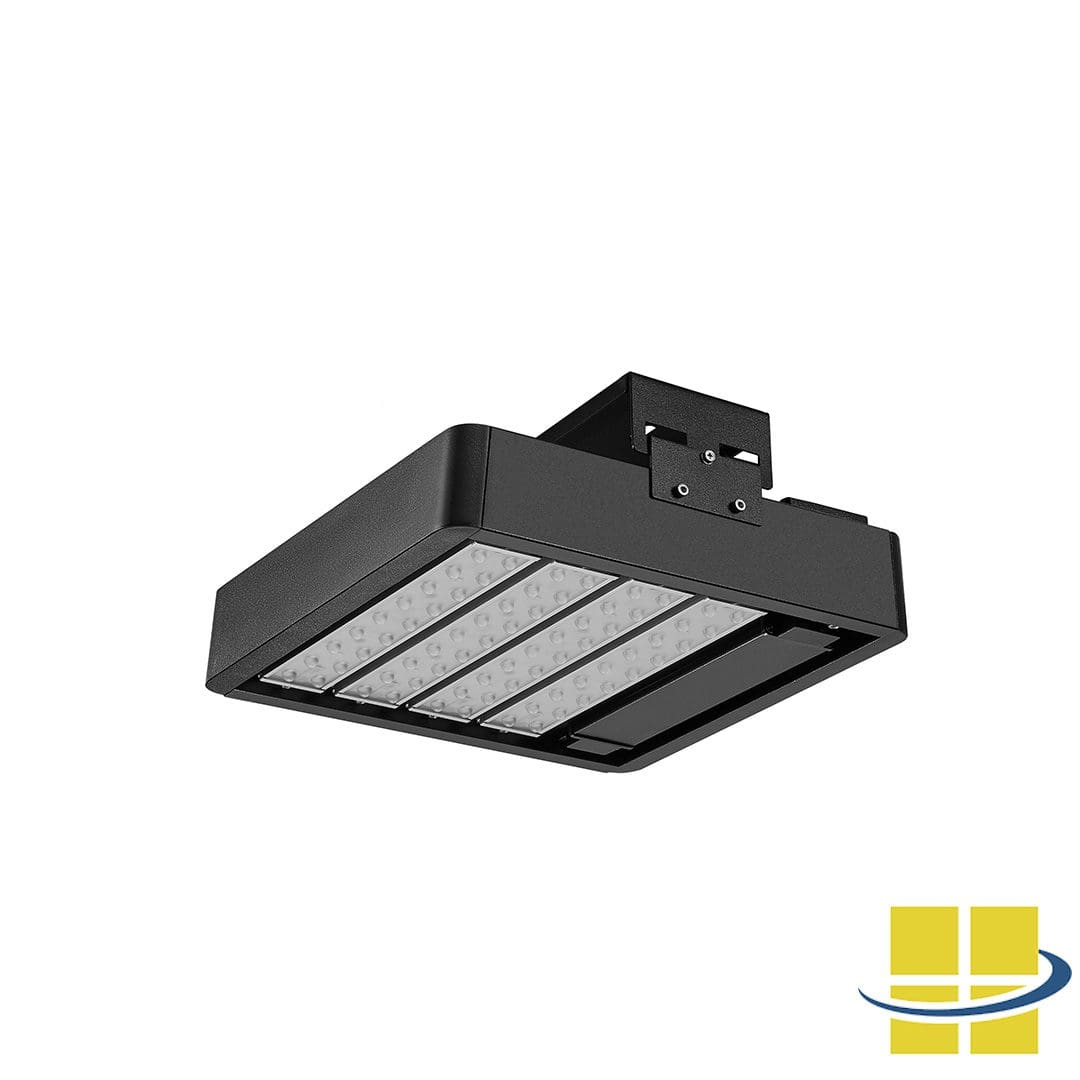

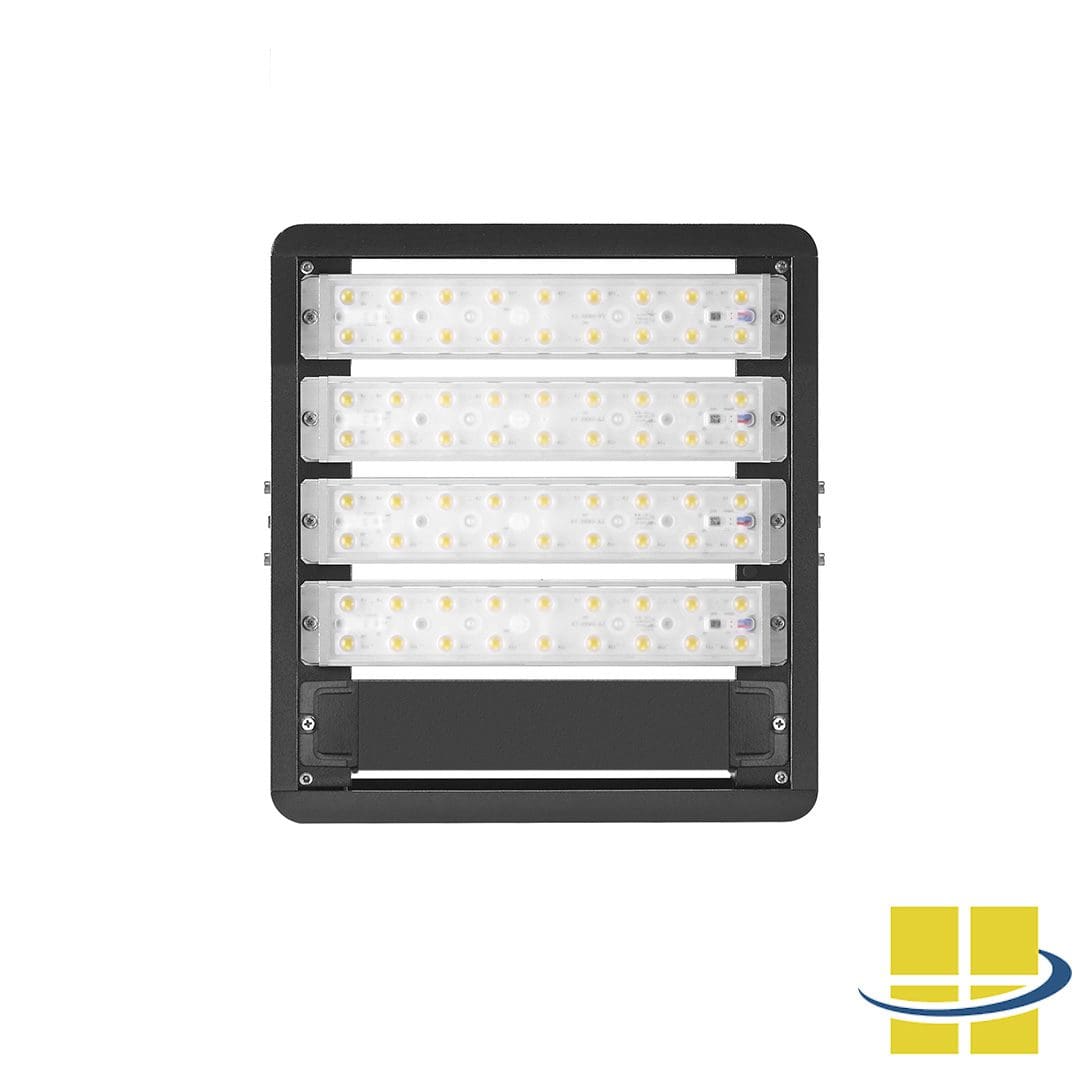

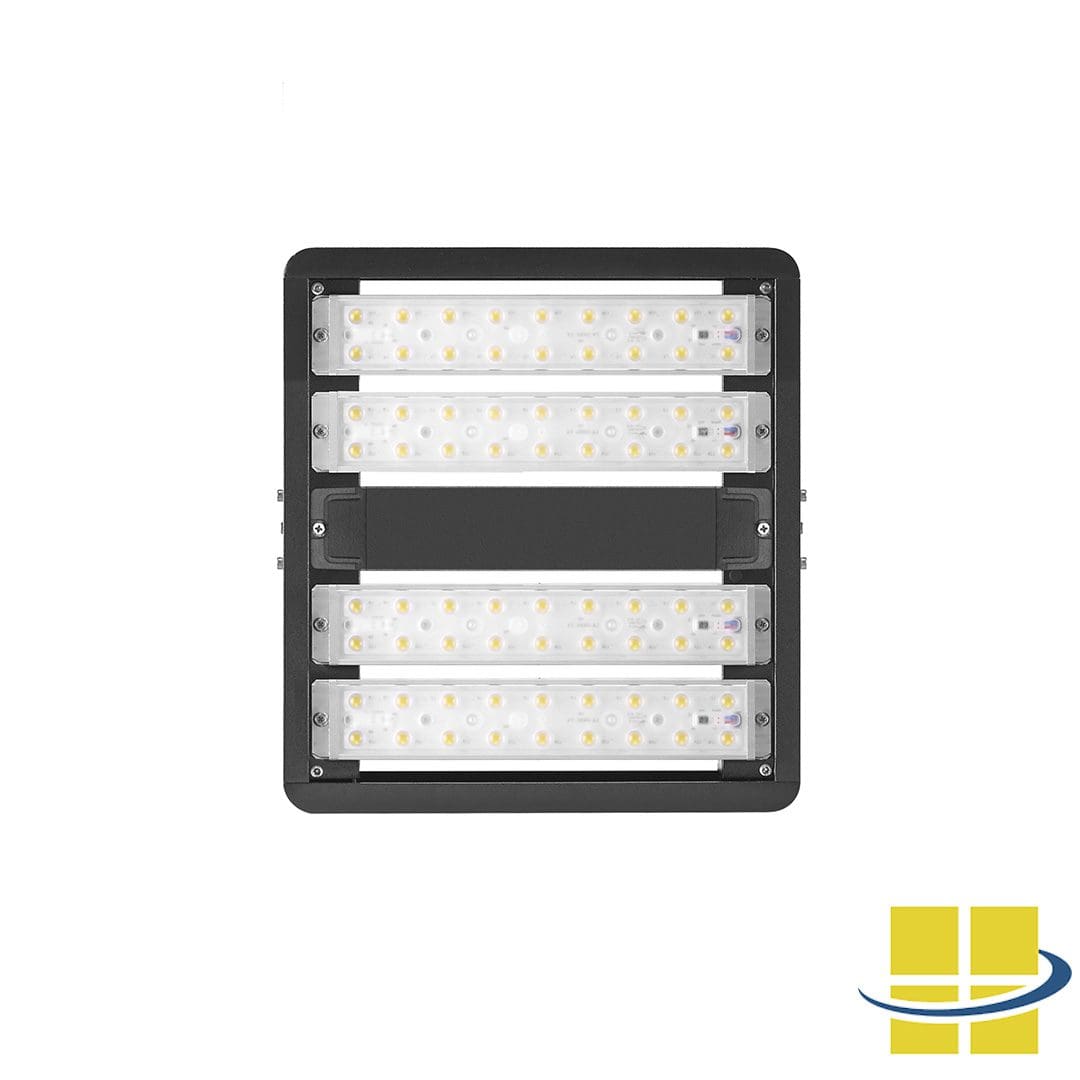

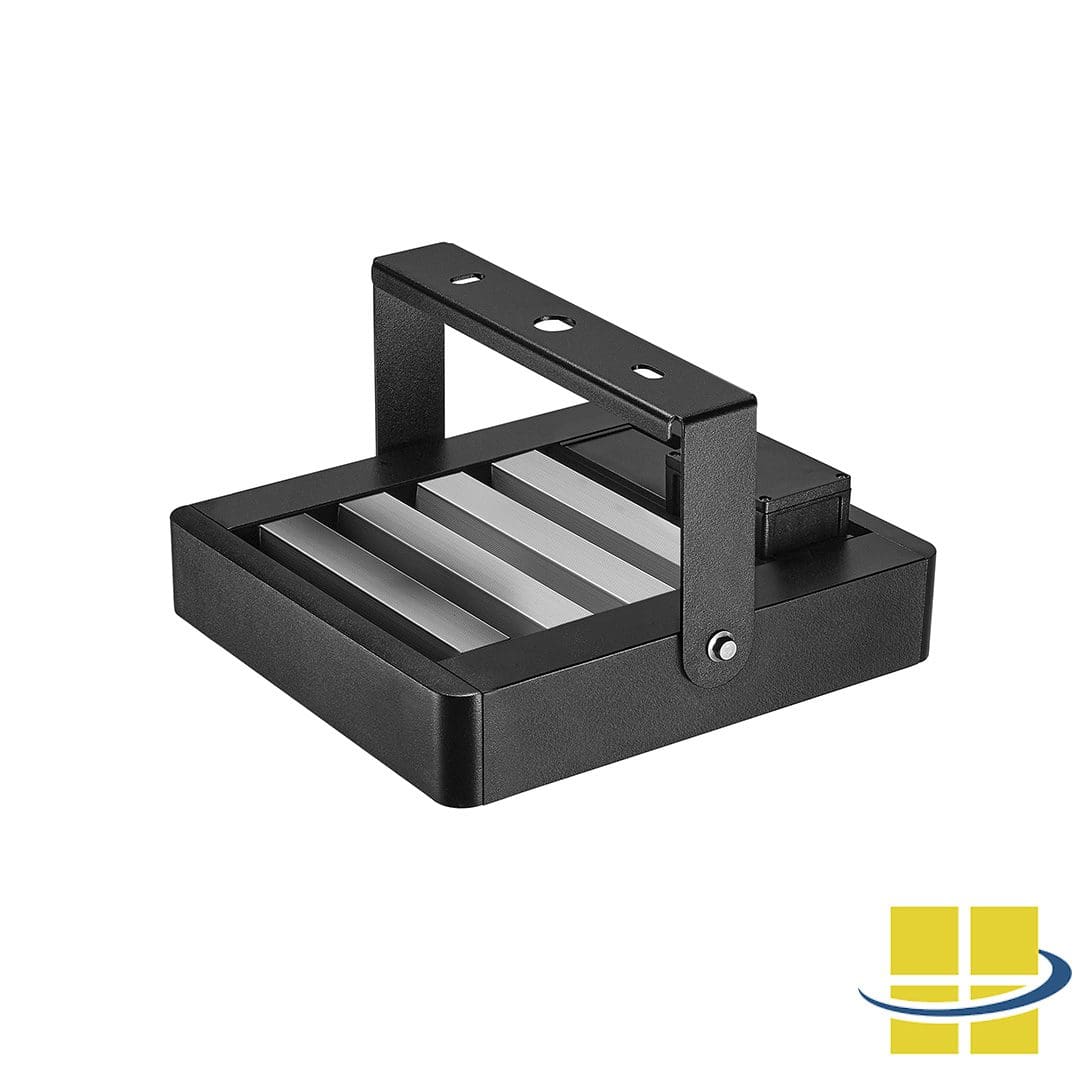

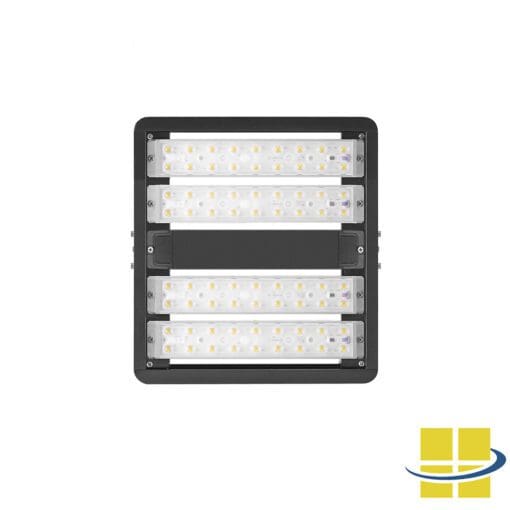

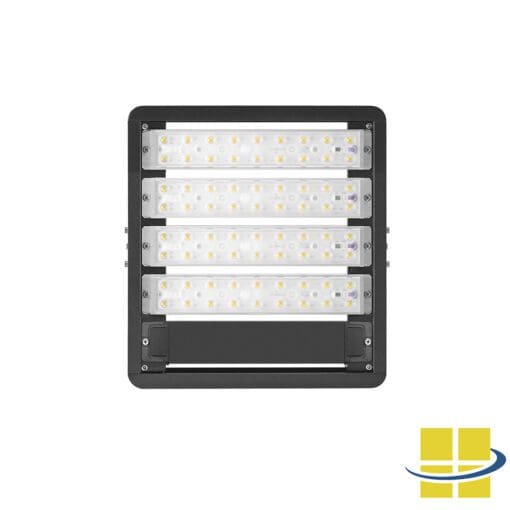

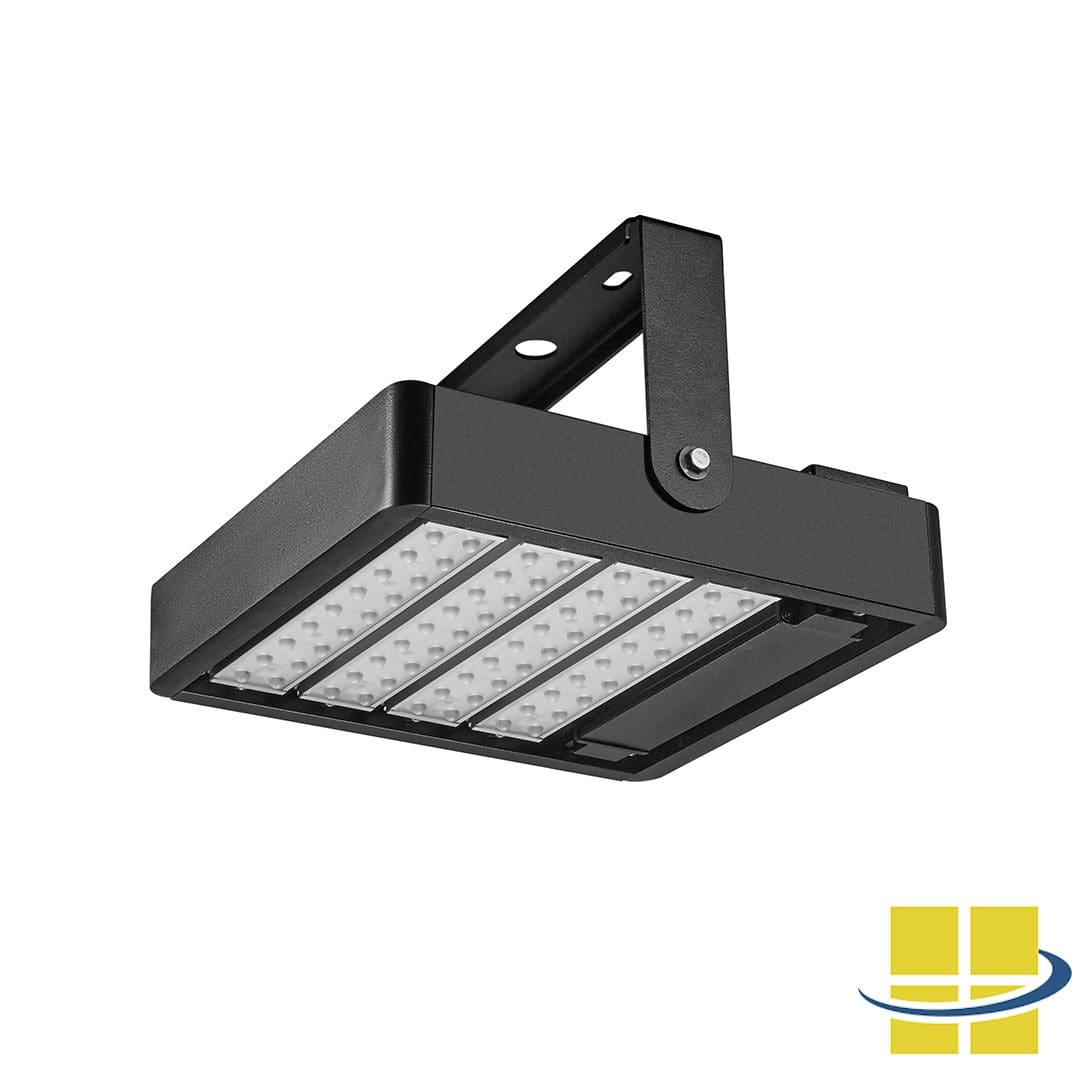

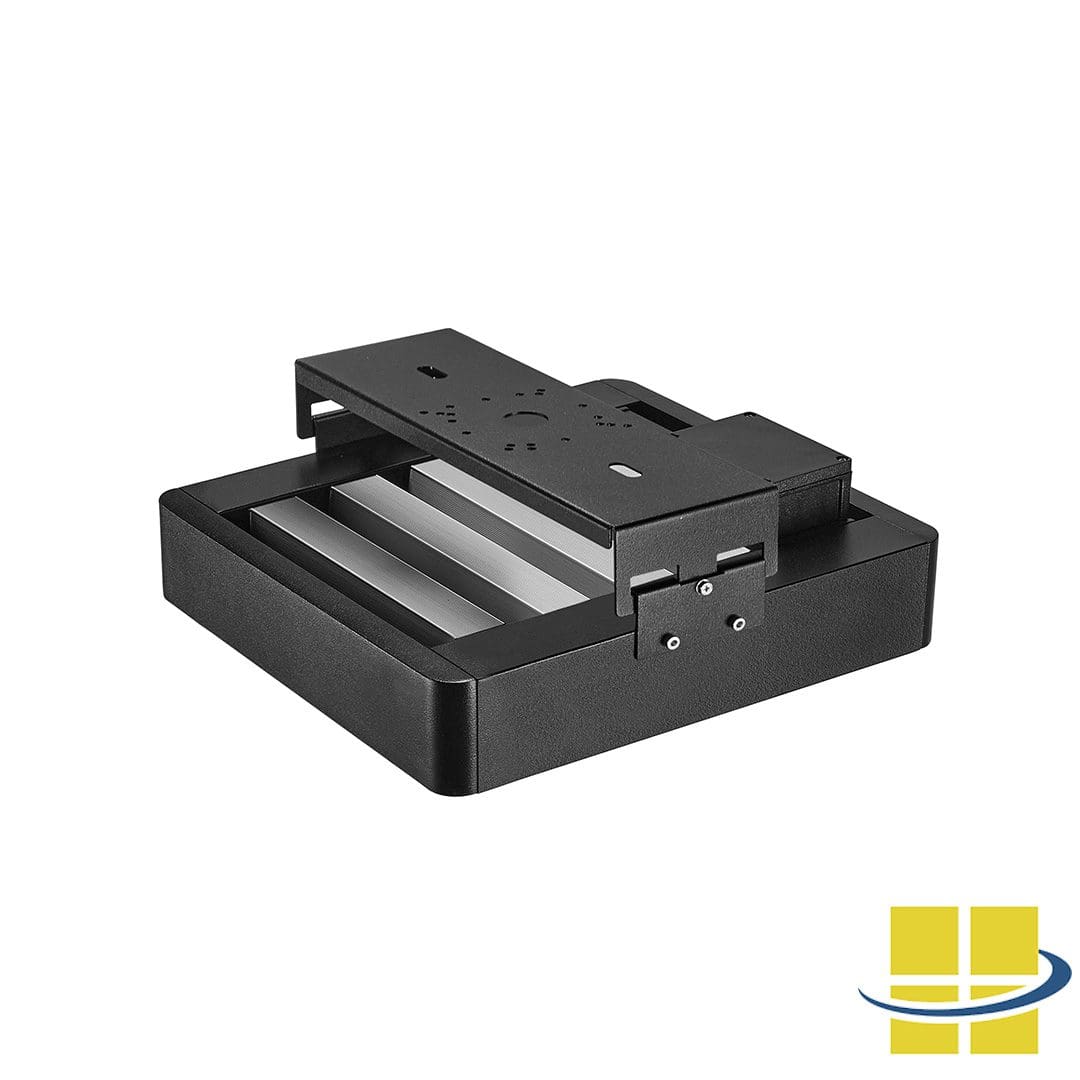

OCTA 160w LED Canopy Lights, Vandal Resistant, EXTREME-LIFE

$649.87

OCTA is specifically designed with advanced optics and heat management to provide the most powerful and reliable LED canopy lighting available. Applicable uses are facilities with high footcandle requirements, and very large facilities such as hangars, sports facilities, convention centers, stadiums, and commercial/industrial buildings with clear heights of 60 feet and more. Using a superior patented, high-efficiency spill light control system, high lumen-per-watts of up to 160LPW, OCTAs are designed to provide uniform anti-glare illumination in bright and large-scale areas. The exceptional heat sink design insures EXTREME-LIFE, virtually maintenance-free performance for years, which reduces the downtime and expense of servicing hard to reach light fixtures.

EXTREME-LIFE: Exceptional heat sink design produces an EXTREME-LIFE rating of L70 @ 200,000 hours for years of virtually maintenance-free performance

Flawless Light:  Choice of advanced optics, Kelvin, and color rendering of up to Ra>90 facilitates premium anti-glare illumination

Maximum Wattage and LPW: With up to 960 watts per canopy light fixture and lumens per watt of up to 160, OCTAs can provide over 150,000 lumens from a single canopy

 ARCI LED Bollard Light PDFARCI LED Bollard Light PDF



Lead Time: 3 to 4 Week Production, plus Shipping

In Stock

  • Custom RAL finishes are available at an up charge with a minimum order quantity (MOQ).
  • 0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.
  • Large facilities may have birds living inside the building. Installing bird spikes on canopy lights stops the birds from nesting on the lights.
  • OCTAs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.
  • Do you need the OCTA to stay on when the power goes out? If yes, add the Emergency Power Supply.
  • This is a safety cable that will stop the light fixture from crashing to the floor is the primary mount ever becomes loose or disconnected.
  • Maximize energy savings and the life of the canopy light by adding a programable microwave control with an occupancy sensor and light sensor.
  • Adding a photocell prevents the need to manually turn on/off your canopy lights when it gets dark.
  • Adding a backlight shield prevents light trespass.

  • Total

SKU: AF88XBAC160LC Categories: , , , , , , ,

Specifications

Weight 18.5 lbs
Dimensions 21.06 × 16.73 × 6.30 in
Application

, ,

Availability

3 to 4 Week Production, plus Shipping
Light Source

, , , ,

Available Finishes

Black, Gray
Housing

High-Grade Aluminum
Lens

Type I, Type V
Light Source Included

LED Array Included
Light Source Lumens

24,960
Listings

IK10, IP66, CB, CE, CuL Listed, DLC Listed, ETL Listed, SAA
Mounting

D Type Mounting, H Type Mounting, U Type Mounting
Product Family

OCTA
Rated Life

L70 @ up to 200,000 Hours
System Watts

160
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty

Product Description

OCTA 160w LED Canopy Light Features:

  • 15.8lbs
  • 14.29L x 13.15W x 5.20H
  • 100-277VAC or 277-480VAC, 50/60Hz
  • D mount
  • Nominal power 40W-960W
  • Superior patented high-efficiency spill light control system
  • High light output, low weight
  • Provides superior quality anti-glare illumination to large-scale areas
  • Constructed with high-grade aluminum
  • 156 LPW
  • 24,960 lumens
  • 700 mA
  • Ra70 standard, optional Ra80 or Ra90
  • <20% total harmonic distortion at full load
  • Imax 10KA surge protection
  • Exceptional heat sink design to ensure these fixtures will last for more than 20 years or 200,000 hours of operation – making them virtually maintenance-free for a lifetime
  • Type I or Type V optics
  • Black or Gray color options
  • L70 @ 200,000 hours
  • DLC, IP66 rated, IK10 rated, CUL, CE, CB, SAA rated

OCTA 160w LED Canopy Light Options:

  • 2200K, 3000K, 4000K, 5000K or 5700K
  • 1-10v dimming
  • 10v PWM control
  • DALI control
  • DMX control
  • Motion sensor
  • Emergency power supply
  • Back light shield
  • Ra80 or Ra90 optional

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your OCTA LED Canopy Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
