Square Pyramid Top LED Bollard Light
Square LED Bollard Light
Square LED Bollard Light
Square LED Bollard Light

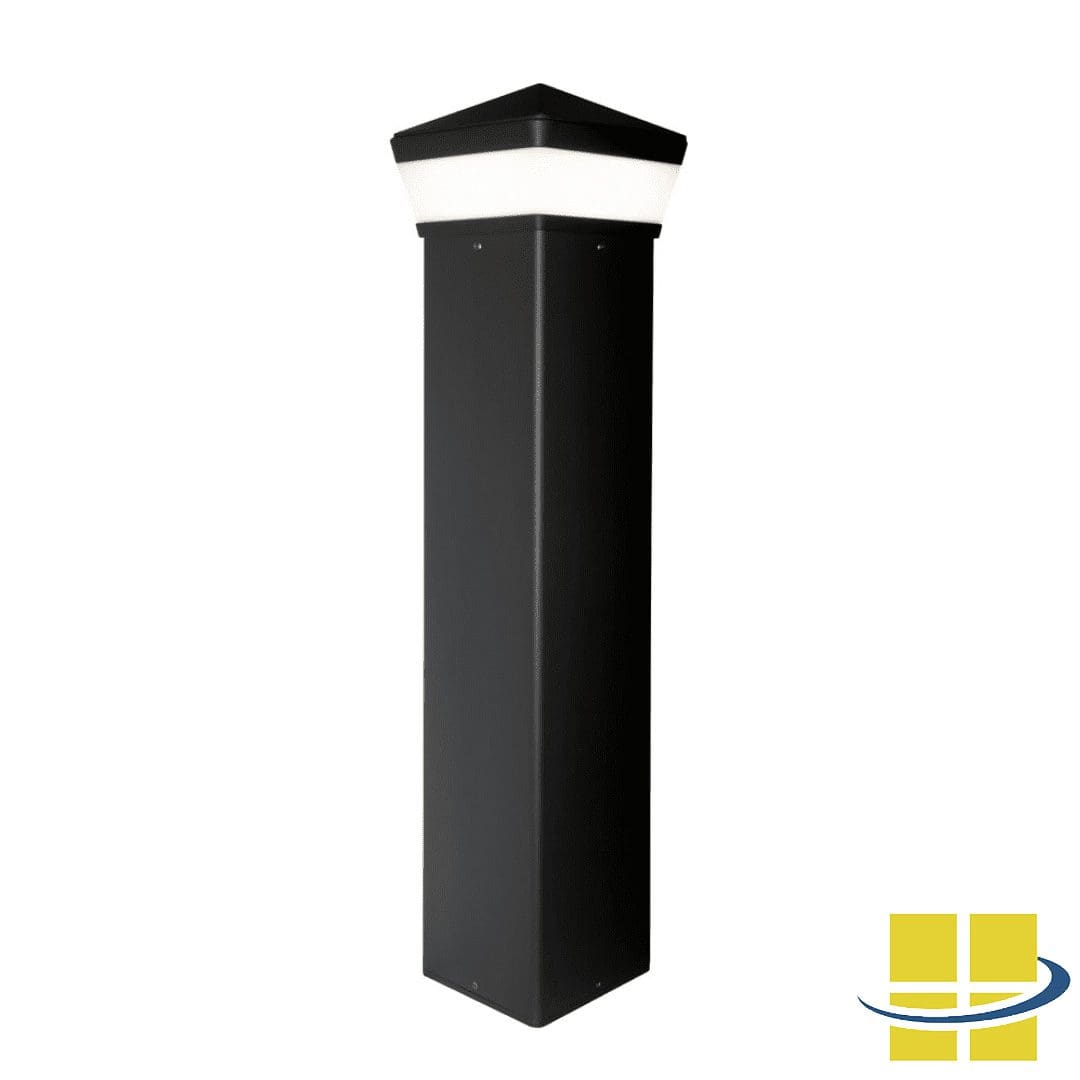

OPPE 25w Square Pyramid Top LED Bollard Light, EXTREME-LIFE

$679.87

The OPPE 25w Round Flat Top LED Bollard Light is an excellent way to light pathways, sidewalks, gardens, entryways, steps, ramps, retail centers, schools, airports, office buildings, and more. OPPE 25w comes standard with an extruded aluminum housing, 0-10v dimming, vandal-resistant screws, and standard internal surge protection. OPPE distributes 1 footcandle of light, up to 9 feet away from the fixture (18′ foot diameter).

EXTREME-LIFE: OPPE bollard light is rated L70 @ 187,000 hours, guaranteeing years and years of maintenance-free use.

Durable Construction: This bollard light comes equipped with a durable extruded aluminum exterior, vandal-resistant screws, and is CSA & IP66 rated against water and dust.

Choice of Lens: With OPPE you can choose from a clear UV-stabilized polycarbonate or upgrade to a no-glare Opal UV-stabilized polycarbonate vandal-resistant lens

Lead Time: 7 to 10 Day Production, plus Shipping

In Stock

- Bollard - OPPE 25w Round & Square Bollard Light 230803

  • Select the standard clear polycarbonate lens or upgrade to the no-glare opal polycarbonate lens.
  • Select standard colors or contact a lighting specialist to discuss custom RAL finishes.
  • Select the standard height of 34 3/4" or a custom height for an additional charge.
  • Recommended on islands or anyplace that has fluctuations in voltage. LED lights should never be on the same circuit as HID lights or machinery.
  • Ground Fault Circuit Interrupt 15A, 120V

  • Total

SKU: AF33XB2CQF1X23 Categories: , , ,

Specifications

Weight 30 lbs
Dimensions 8 × 8 × 40 in
Availability

7 to 10 Day Production, plus Shipping
Light Source

,

Available Finishes

Black, Bronze, Custom RAL
Lens

Clear polycarbonate lens, Opalescent polycarbonate lens
Light Source Included

LED Array Included
Light Source Lumens

3263
Listings

CSA – listed for wet Locations, IP66
Mounting

Mounting kit with anchor bolts Included.
Housing

Extruded aluminum with flush-mounted base, vandal-resistant screws, powdercoat finish over chromate conversion coating, internal driver tray
Rated Life

187,000 Hours
Reflector

White polycarbonate cone reflector
Size

7"
Style

Cone Reflector, Pyramid Top, Square
System Watts Filter

20w – 49w
System Watts

25
Voltage

120v, 208v, 240v, 277v, 347v
Warranty

5-Year Limited Warranty

Product Description

OPPE 25w Square Pyramid Top LED Bollard Light Features:

  • 25w integrated LED
  • Bronze, black, or custom RAL colors available
  • 9.75″ Width, 7″ Diameter, height:
    • Flat top: 35.75″
    • Dome top: 38.125″
    • Pyramid top: 38.125″
  • Extruded aluminum housing with flush mounting base and vandal-resistant screws
    • Mounting kit with 8″ zinc-plated anchor bolts included
  • Internal driver tray for easy maintenance
  • CSA list for wet locations
  • IP66 rated
  • ANSI/UL 1598, 8750
  • Textured architectural bronze or black powder coat finish over a chromate conversion coating
  • Reflective white UV-Stabilized polycarbonate cone reflector
  • Clear UV-Stabilized polycarbonate or Opal UV-Stabilized polycarbonate vandal-resistant lens
  • Electronic driver 120-277, 50/60Hz or 347v, 50/60Hz
  • Standard internal surge protection 2kV
  • Dimmable 0-10v
  • Cone reflector optics
  • EXTREME LIFE – L70 @ 187,000 hours
  • Up to 2,175 lumens
  • 5-Year Warranty for -20°C to +40°C Environment.



OPPE 25w Square Pyramid Top LED Bollard Light Options:

  • Choice of Kelvin – 3000K or 4000K
  • Choice of Lens – clear shatter-resistant polycarbonate or opal shatter-resistant polycarbonate
  • Choice of height – Standard 34 3/4″ height or 30″ height
  • Choice of Finish – Black, bronze, and custom RAL colors available upon request
  • Add surge protection or a GCFI outlet
  • Choice of shipping anchor bolts ahead of time or with bollard light

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your LED Bollard Light Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric study include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
