LED High Bay Light

OTAM 320 3-ft Linear LED High Bay, 120-277v – HID Replacement

$449.87

The OTAM Linear LED High Bay is a low-profile, high-performance lighting solution designed to replace HID systems ranging from 250W to 1000W. It features a wide optical distribution and optional motion sensors or emergency battery backup for added functionality. Ideal for commercial indoor applications such as arenas, warehouses, schools, and more, it supports mounting heights from 10 to 45 feet, depending on lighting and uniformity requirements.

Durable Lens Design: Engineered with high-efficiency LEDs protected by polycarbonate lenses and encapsulated in high-temperature silicone epoxy for enhanced durability.

High CRI Performance: With a CRI of 80+, the OTAM ensures superior visibility and accurate color rendering for demanding industrial environments.

Cost-Effective Efficiency: Delivering an impressive 143 lumens per dollar, the OTAM sets a new standard for cost-effective lighting.

Lead Time: 7 to 10 Day Production, plus Shipping

In Stock

  • Safeguards the fixture from power surges, ensuring long-term reliability and preventing damage from electrical spikes.
  • Provides efficient motion detection, automatically adjusting lighting based on movement, making it ideal for spaces with variable occupancy or where energy savings are a priority.
  • Selecting the appropriate cord option based on distance and connection type simplifies installation. Twist-lock plugs ensure secure connections, preventing disconnections in high-vibration environments. SEOOW cords are highly durable, with resistance to oil, water, and extreme temperatures, making them ideal for tough industrial or outdoor conditions.
  • The Emergency Battery Backup ensures the fixture continues to operate during power outages, providing reliable lighting for up to 90 minutes. This feature is crucial for maintaining safety and visibility in emergency situations, especially in areas where uninterrupted lighting is required.

  • Total

SKU: AF33XHBLC332X105K Categories: , ,

Specifications

Weight 39 lbs
Dimensions 3.25 × 16 × 36.25 in
Product Weight

30 Lbs.
Light Source

Availability

7 to 10 Day Production, plus Shipping
Available Finishes

Gray
Ballast/Driver

Electronic 50/60 Hz
Color Rendering Index (CRI)

80+
Housing

Extruded aluminum housing
Lens

Clear polycarbonate lens
Light Source Included

LED Array Included
Light Source Lumens

44,485
Listings

ANSI/UL 1598, 8750, DLC Listed, IP54, Rated for Damp Locations, UL
Mounting

V-Hook
Product Family

OTAM
Rated Life

71,000 Hours
System Watts

320
Voltage

120v, 208v, 240v, 277v
Warranty

5-Year Limited Warranty

Product Description

Housing:

  • Constructed with extruded aluminum rails for LEDs.
  • UV-stabilized polycarbonate lenses.
  • Potted with high-temperature silicone epoxy.
  • Stamped steel driver housing.

Certification & Listings:

  • ETL Listed for dry locations.
  • ANSI/UL 1598, 8750 standards.
  • IP54 rating.

Finish:

  • Platinum powder coat over a chromate conversion coating for durability.

Mounting Options:

  • Includes V-hangers for mounting.
  • Comes with a 3-foot, 3-wire cord with leads.

Wattage and Equivalents:

  • 320W: Replaces 400W – 1000W HID.

Driver:

  • Electronic driver supporting 120–277V, 50/60Hz.
  • <20% Total Harmonic Distortion (THD), Power Factor >0.90.
  • 6kV surge protection included.
  • Standard 0–10V dimming from 100% to 10%.

Controls:

  • Factory-installed options for photocell or motion sensors.
  • Internally wired for switching or 1–10V dimming.

Warranty:

  • 5-year warranty.
  • Operational range: -40°C to +50°C.

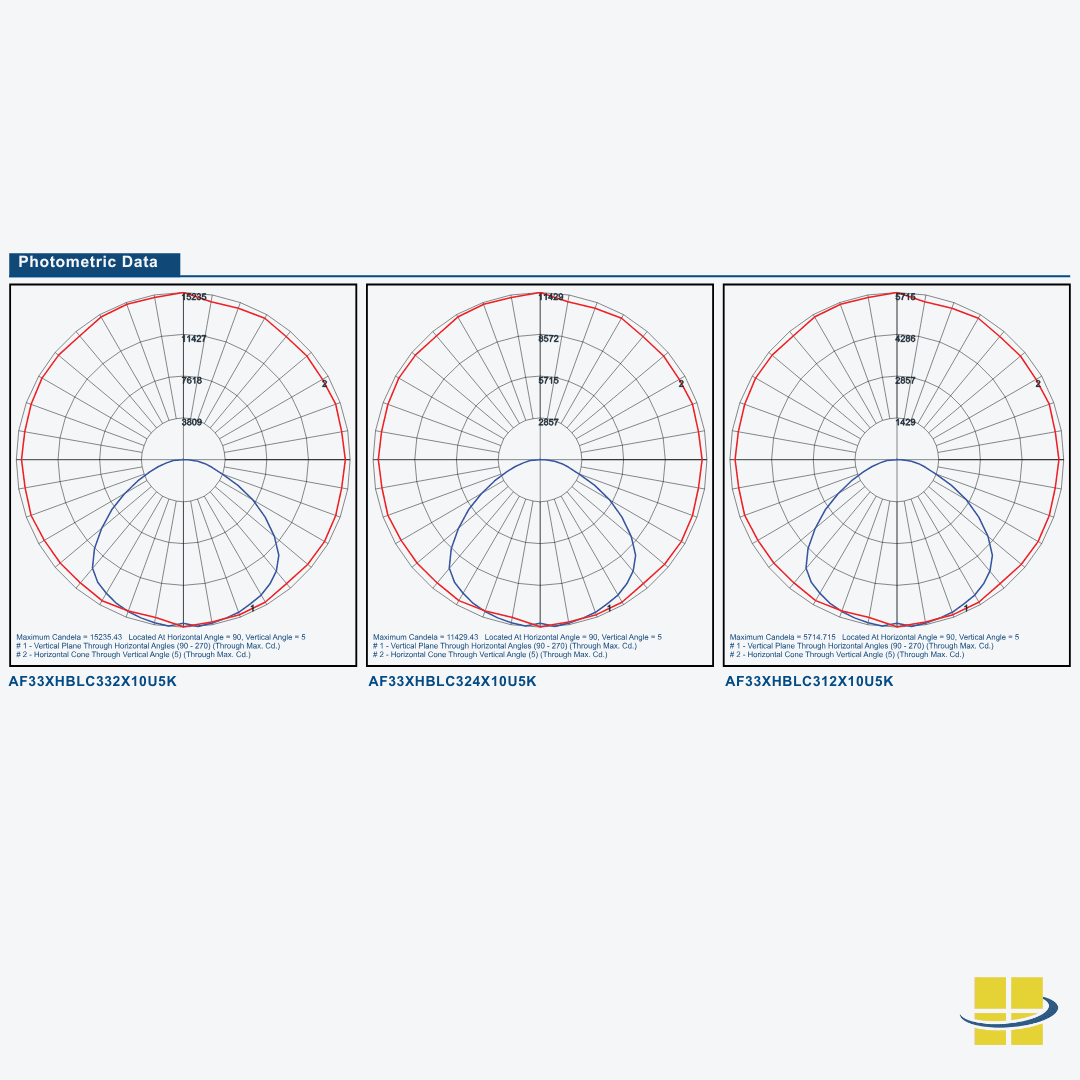

Performance and Photometric Data:

  • Lumen output: 44,485 lumens.
  • Efficacy: 143 lumens per watt.
  • Wide beam optics (100°).
  • L70 life expectancy: 71,000 hours at 25°C.

LED Technology:

  •  Cool Copper COB (Chip-on-Board) LED.
  • Available CCT: 5000K with 80 CRI.

Options:

  • Surge Protection (SP): Enhanced safety for power surges.
  • Microwave Sensor (M3): For mounting heights ≥20 feet.
  • Cord Options: Multiple lengths and plug types (e.g., twist-lock plugs).

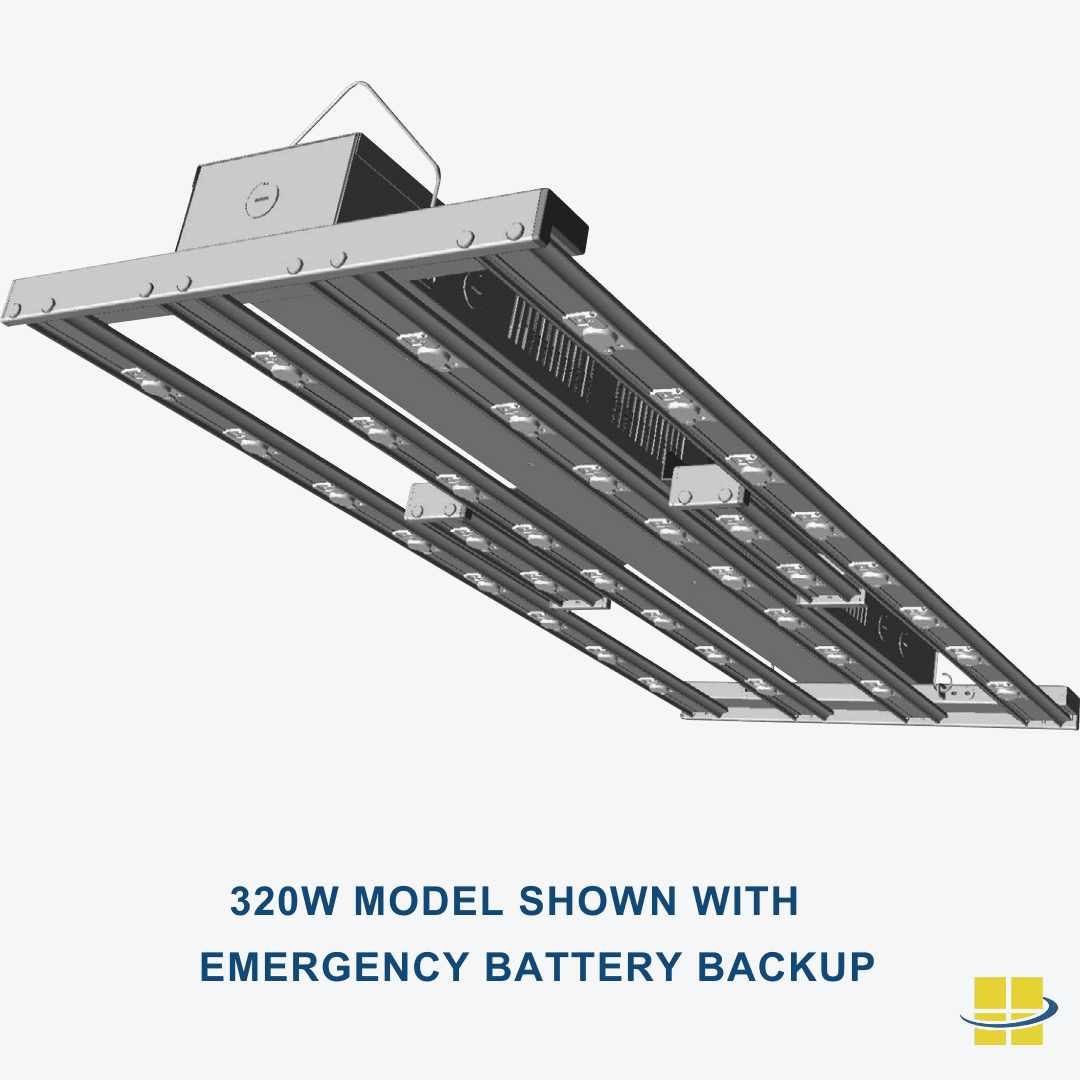

  • Battery Backup (BU): 90-minute emergency operation.
  • Cold Start Battery Backup (BUC): For -20°C conditions.

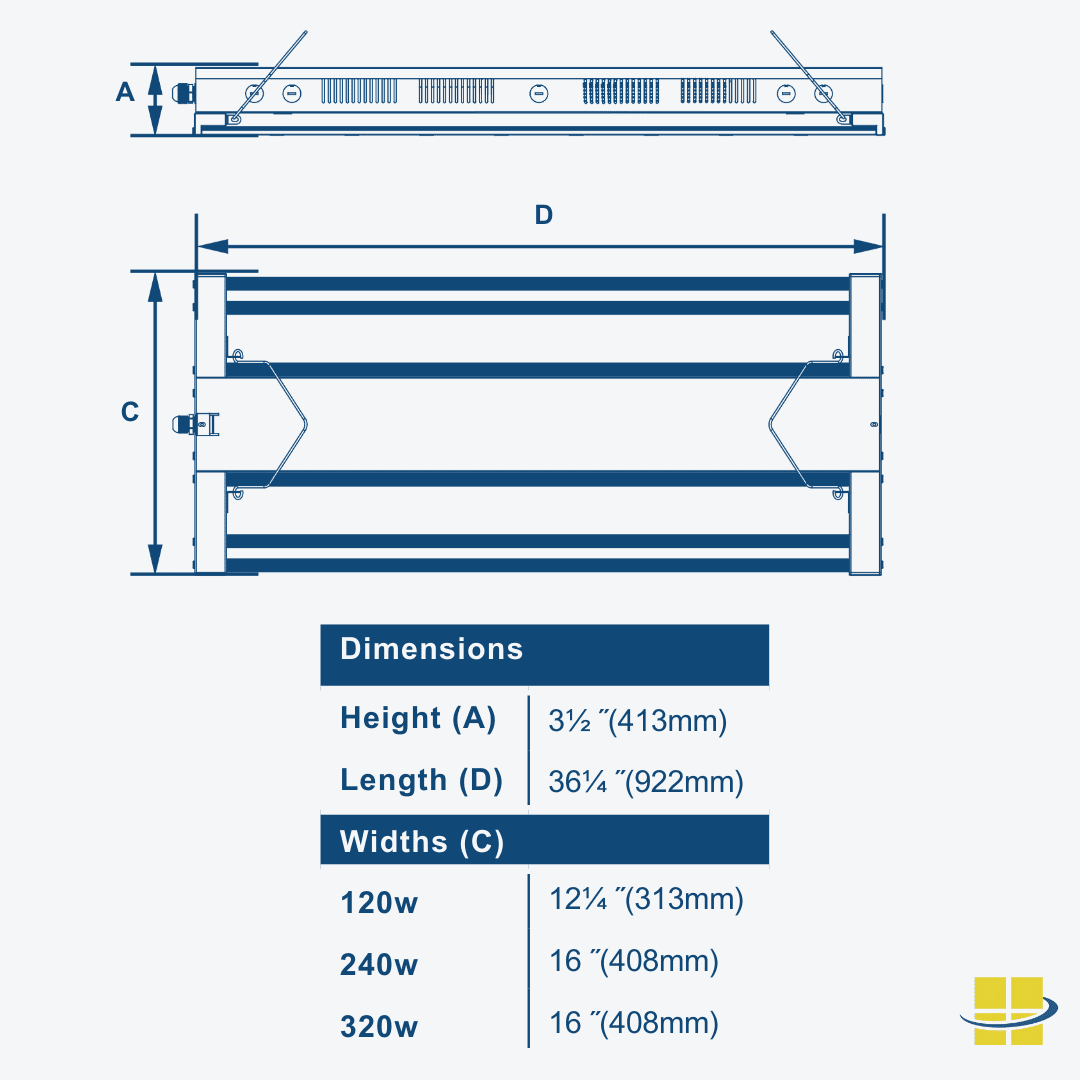

Dimensions:

  • Height: 3.5″ (413mm).
  • Length: 36.25″ (922mm).
  • Widths:
  • 120W: 12.25″ (313mm).
  • 240W/320W: 16″ (408mm).

Applications:

  • Warehouses, manufacturing facilities, gymnasiums, indoor sports arenas, and retail/big-box stores.
  • Mounting heights: 10–45 feet based on light level and uniformity needs.

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your OTAM 320 3-ft Linear LED High Bay Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order OTAM 320 3-ft Linear LED High Bay or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
