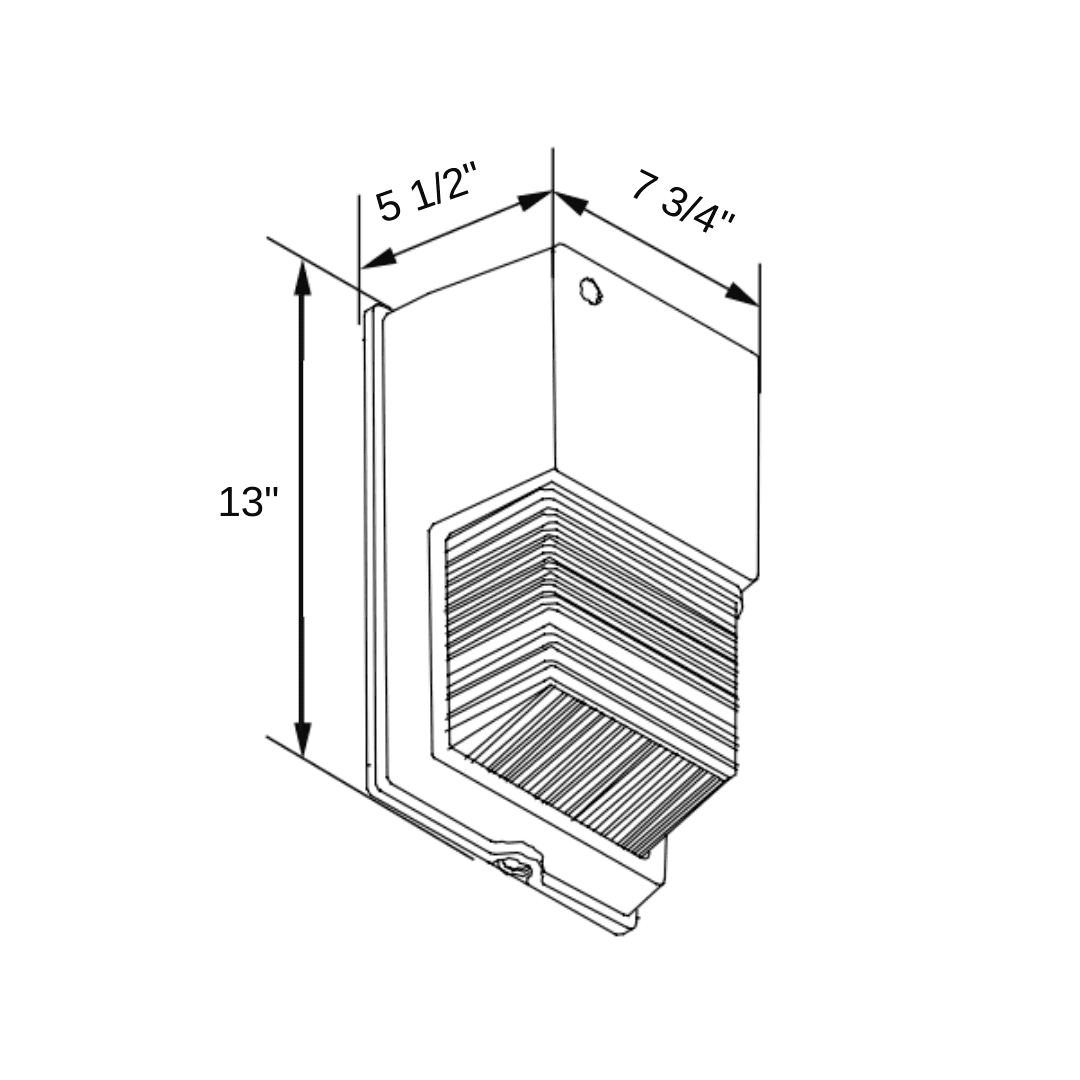

22w wall pack dimensions
Buy American

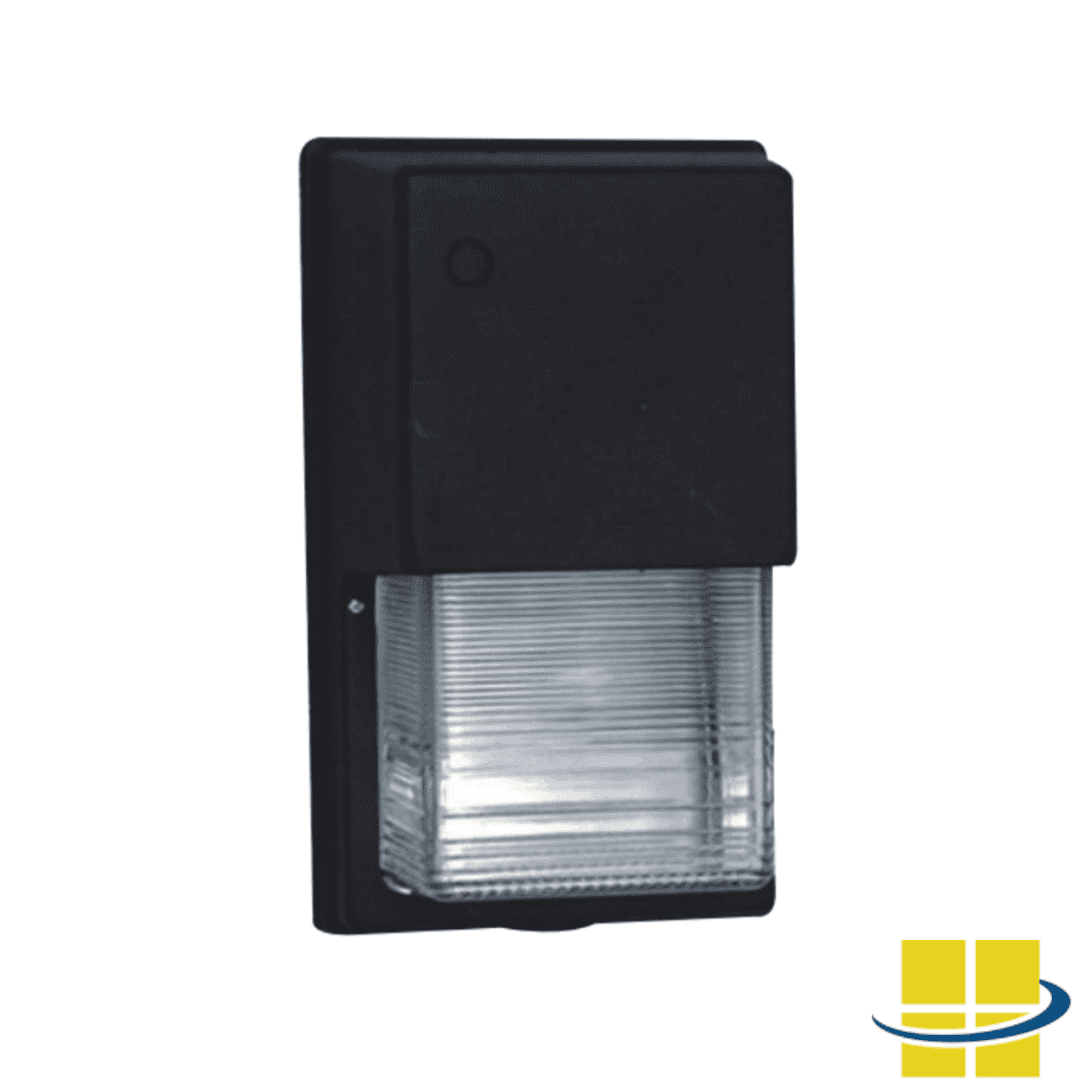

SHYR 22w LED Forward Throw Wall Pack, Extreme Life, 120-277v

$291.99

The SHYR 22w LED Forward Throw Wall Pack, Extreme Life, 120-277v is a forward throw wall pack for any application.

Extreme Life: SHYR is L70 rated at over 138,000 hours, meaning years of maintenance-free life.

Durable and Reliable: This wall pack is IP65-rated against water and dust and comes with an optional wire guard.

Glare-Free: This wall pack has a borosilicate glass lens which diffuses light and prevents glare.


Buy American Act Compliant

Lead Time: 7 to 10 Day Production, plus Shipping

In Stock

  • Total

SKU: AF33XWP13QF1X19 Categories: ,

Specifications

Weight 15 lbs
Dimensions 14 × 10 × 8 in
Availability

7 to 10 Day Production, plus Shipping
Available Finishes

Bronze, Custom RAL
BUG Rating

0, 3, 3
Color Rendering Index (CRI)

80+
Housing

Die cast aluminum housing
Lens

Molded prismatic borosilicate glass lens
Light Source

Light Source Included

LED Array Included
Light Source Lumens

1,543
Listings

ANSI/UL 1598, 8750, CSA: Listed for wet locations, IP65
Mounting

Includes template for mounting directly over 4-inch electrical box
Mounting Height

10 ft., 15 ft.
Product Family

SHYR
Rated Life

138,000 Hours
Style

Forward Throw
System Watts

22
Voltage

120v, 208v, 240v, 277v
Warranty

5-Year Limited Warranty

Product Description

Features:

  • Die-cast aluminum housing
  • 138,000 hour L70 rated life
  • 22w integrated LEDs

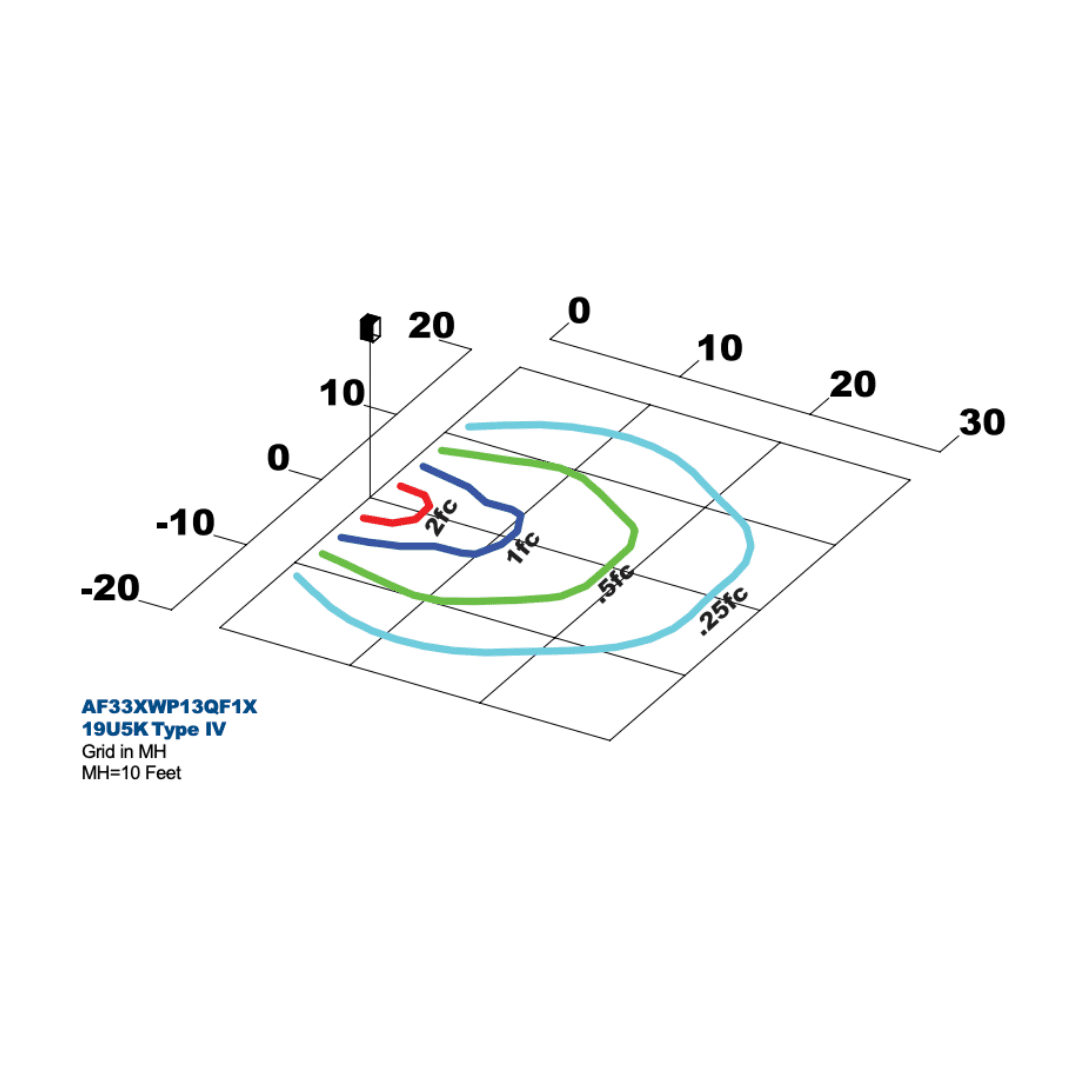

  • Type IV optics
  • 120-277v
  • 5000K
  • 1,543 lumens
  • Borosilicate glass lens
  • BUG Rating: 0, 3, 3
  • IP65 rated
  • CSA listed for wet locations, ANSI/UL 1598, 8750
  • 80+ CRI (learn more about Color Rendering Index here)
  • 13″ x 7.75″ x 5.5″
  • Mounts over a 4″ recessed outlet box

Options:

  • Available in Bronze or Custom RAL
  • Photocell available
  • Stainless steel wire guard available
