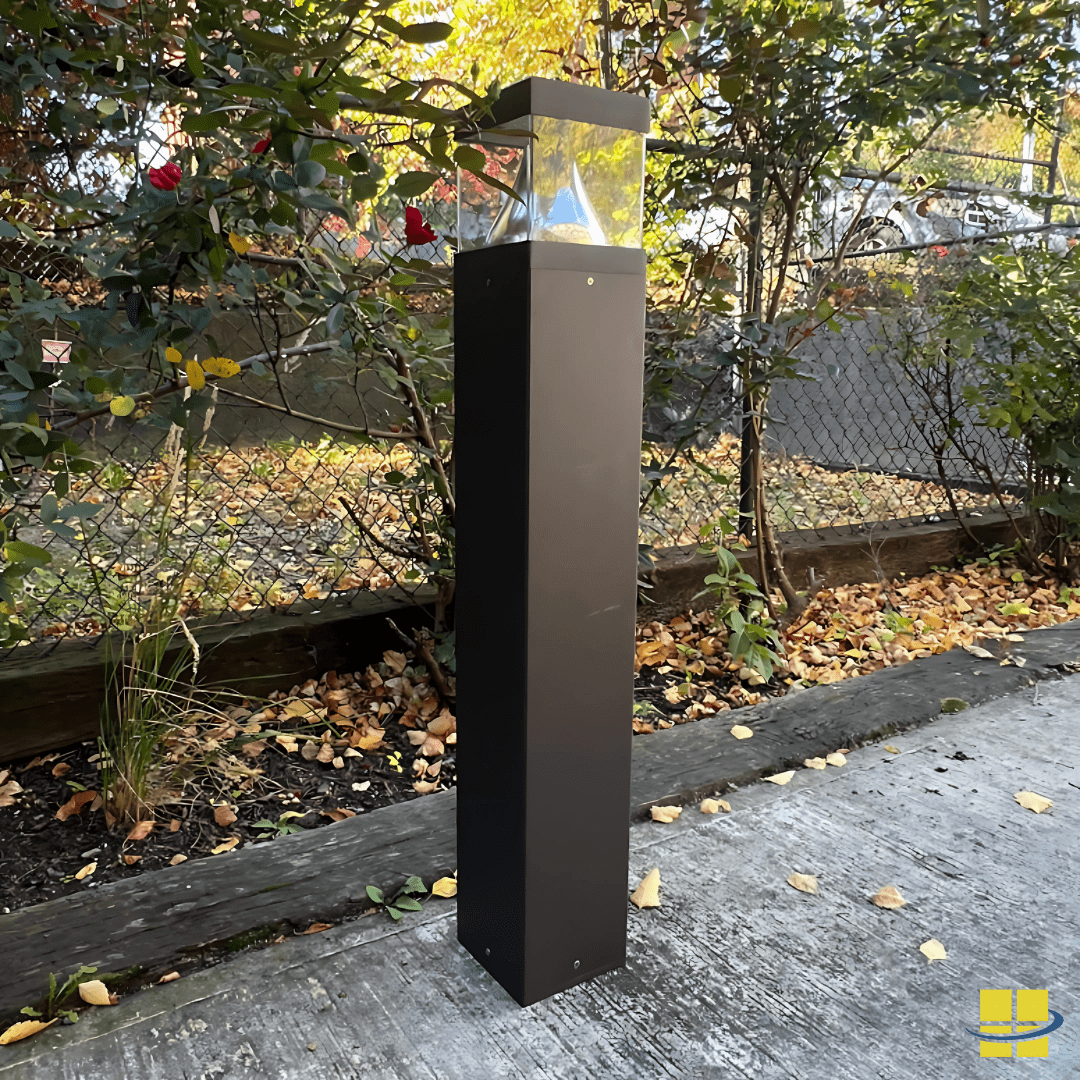

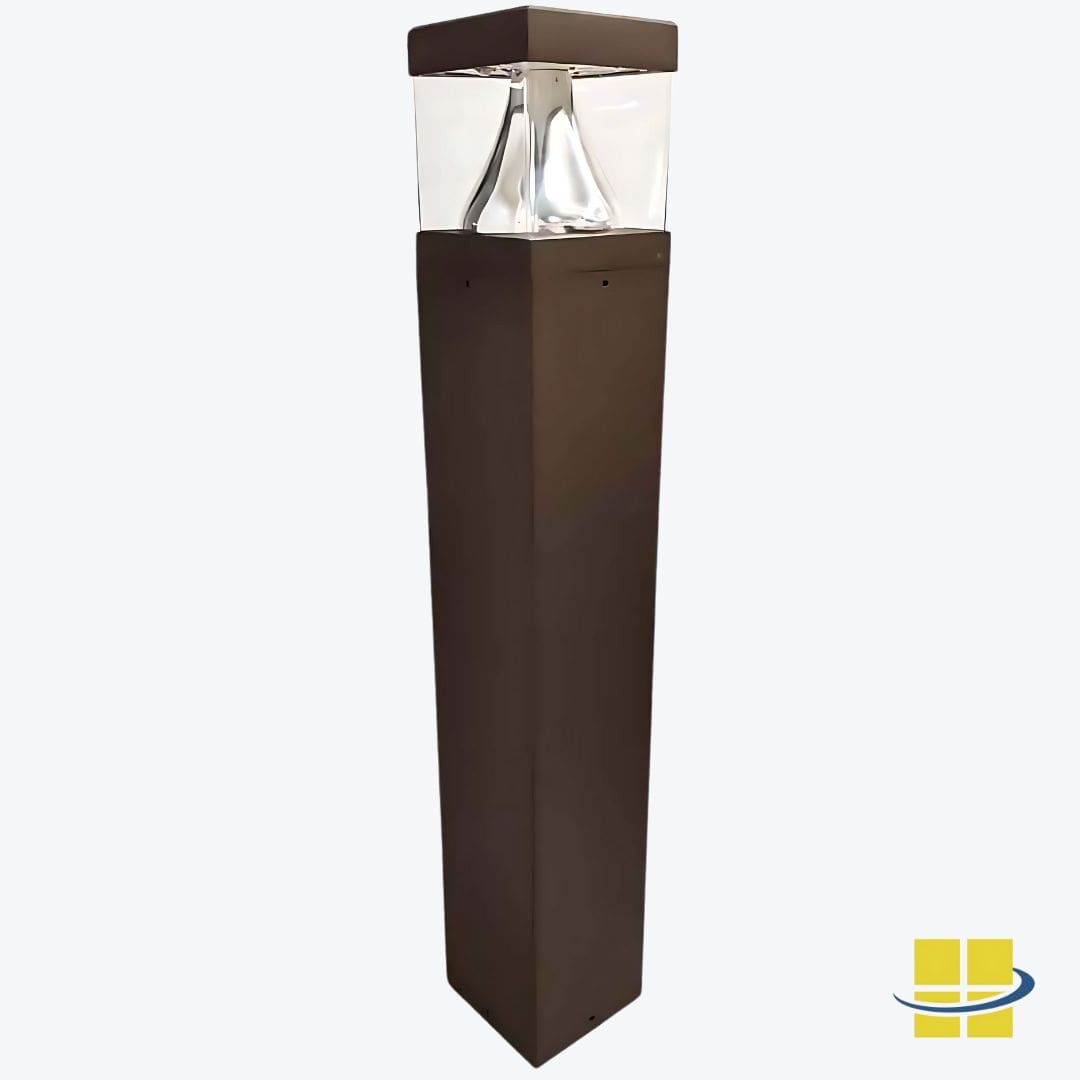

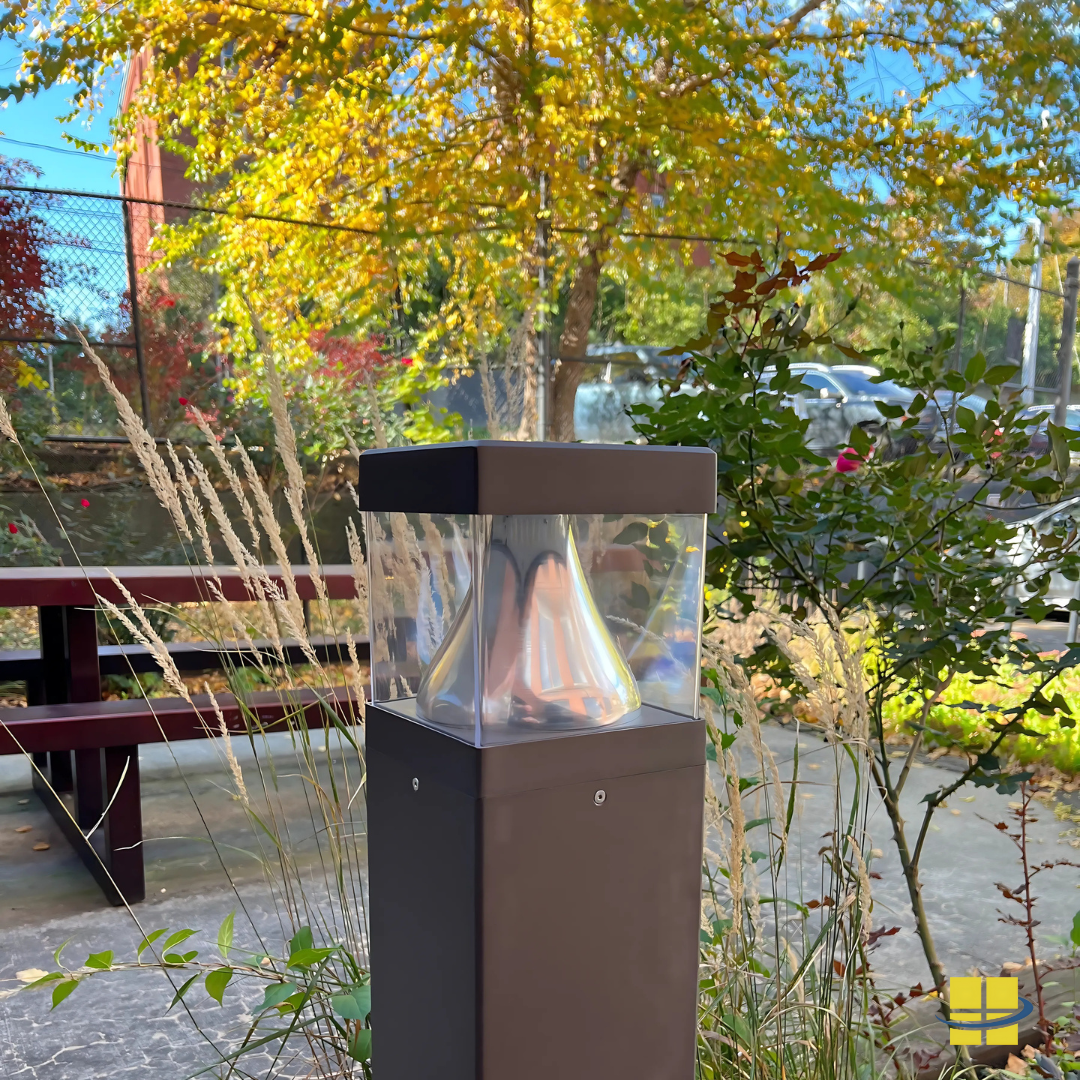

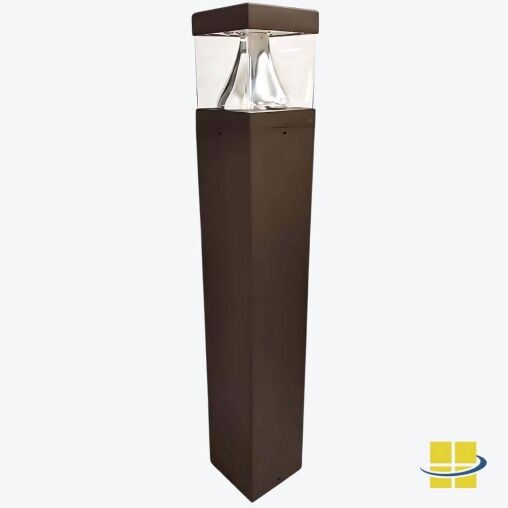

SQOR combines a sleek, contemporary design with high-performance lighting, seamlessly integrating into various landscapes and architectural styles. Its smooth lines, compact form, and bronze finish add a touch of elegance to entrances, pathways, and walkways, enhancing visual appeal without overpowering the surroundings.

Field-configurable: Allows on-site customization of light output, enabling persons to adjust brightness with a simple switch. This flexibility ensures lighting meets specific environmental needs, from softer illumination to high brightness for safety.

Selectable Kelvin: Allows users to customize the color temperature of light output to achieve the desired ambiance for a space. By choosing from Neutral White Light (3000K), Cool White Light (4000K), and Bright White Light (5000K), users can tailor lighting to suit the specific environment or application.

Construction: Certified to meet DLC Premium, UL, FCC, and RoHS standards, the SQOR bollard is designed for energy efficiency and compliance with stringent safety and environmental regulations. Crafted from die-cast aluminum with a UV-resistant powder coating, it resists corrosion, discoloration, and weather damage, IP66-rated construction ensures reliability in wet locations.

Specifications

Weight	15 lbs
Dimensions	40.96 × 6.35 × 6.35 in
Availability	7 to 10 Day Production, plus Shipping
Application	Bollard Lights, Landscape Lights, LED Parking Lot Lights, Park Lights
Available Finishes	Bronze
Ballast/Driver	Electronic 50/60 Hz
Color Rendering Index (CRI)	70+
Components	Cylinder Housing Ground Anchors
Housing	Die-cast aluminum housing with UV resistant powder coating
Light Source Included	LED Array Included
Light Source	3000K – Neutral White, 4000K – Cool White, 5000K – Bright White
Lens	Anti-UV clear polycarbonate lens
Listings	CuL Listed, DLC Premium, FCC Listed
Light Source Lumens	1960 to 4200 lumens
Product Family	SQOR
Rated Life	50,000 Hours
System Watts	seleletable wattage 14w/19w/24w
Voltage	120v, 277v
Warranty	5-Year Limited Warranty

Product Description

Lighting Performance

Lumen Output: 1960 to 4200 lumens
Efficacy: 140 lm/W
Correlated Color Temperature (CCT): 3-CCT Selectable (3000K, 4000K, 5000K)
Color Rendering Index (CRI): >70
Dimming: 0-10V dimmable
Lifespan (L70): 50,000 hours

Electrical

Input Voltage: 120-277V, 120-347V options
Input Frequency: 50/60 Hz
Wattages: 3 selectable wattages, with a maximum of 24W
Power Factor: >0.9
Total Harmonic Distortion (THD): <20%
Dimming: 0-10V
Operating Temperature: -40°F to 113°F (-40°C to 45°C)

Construction

Housing Material: Die-cast aluminum
Finish: UV-resistant powder coating

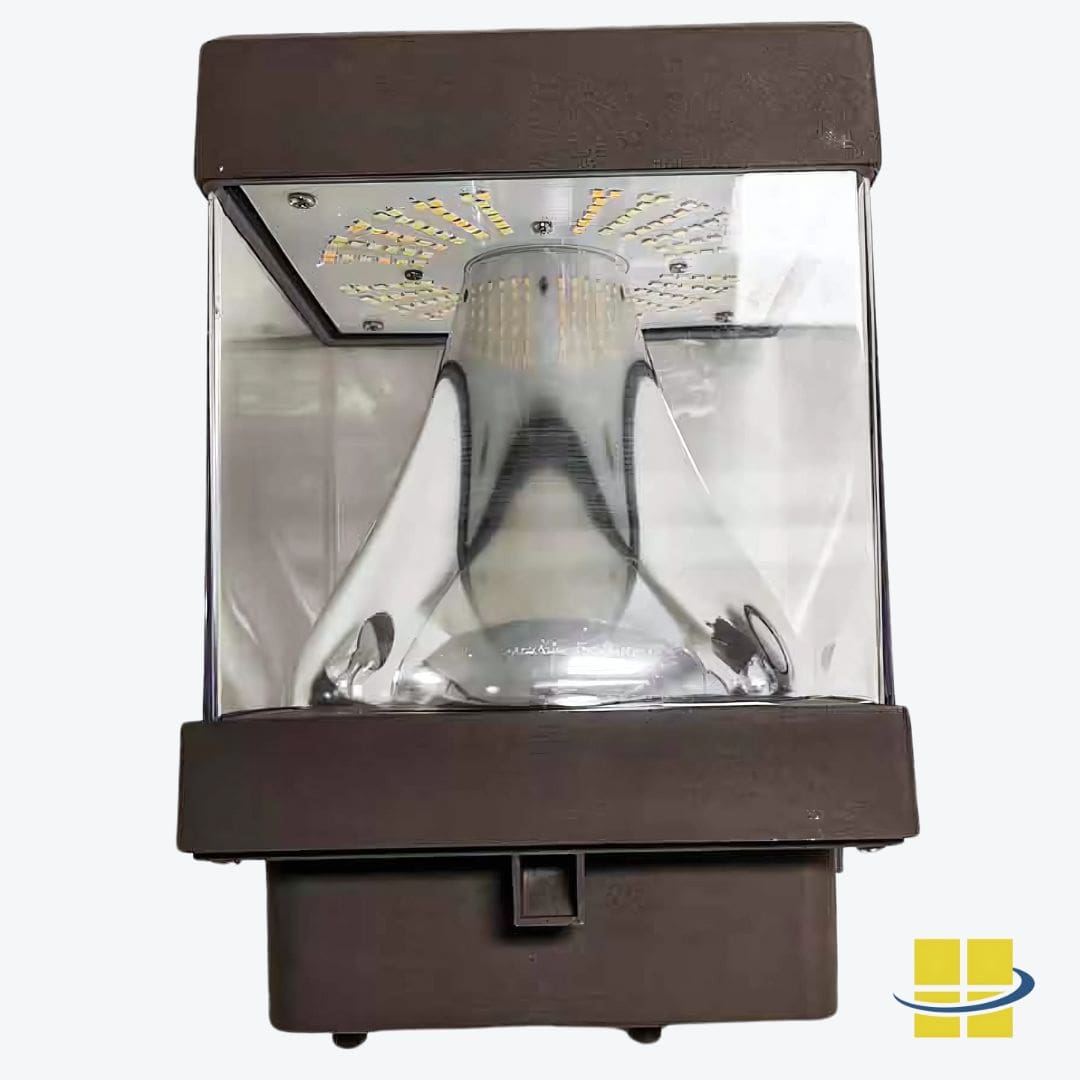

Lens: Anti-UV clear polycarbonate lens
Optics Options: Cone Reflector 360° Optics
Mounting: Ground installation standard
Physical Dimensions:
- Square Housing: 40.96”L x 6.35”W x 6.35”D

Environmental Ratings

Water Resistance: Wet Location rated (IP66)
Corrosion Resistance: Resistant to water, salt, and corrosion

Listings and Certifications

DLC Premium: Listed for high energy efficiency and performance standards
UL Certification: Meets U.S. and Canadian standards
FCC Compliance: Meets Federal Communications Commission standards
RoHS Compliance: Meets standards for hazardous substance restrictions

Emergency Options

Emergency Backup Battery Driver: Available for continuous lighting during power outages

Warranty

Duration: 5 years, exclusive limited warranty
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

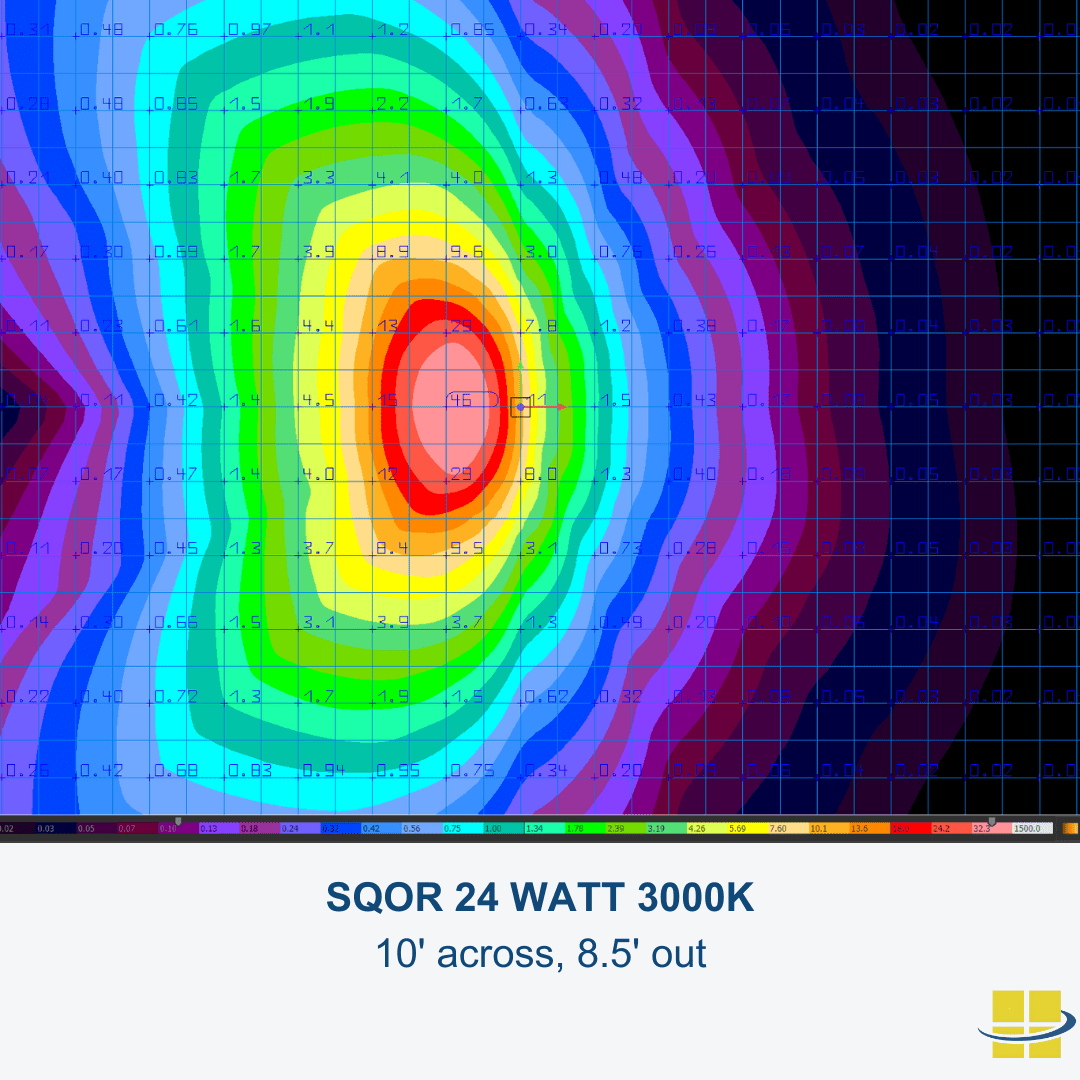

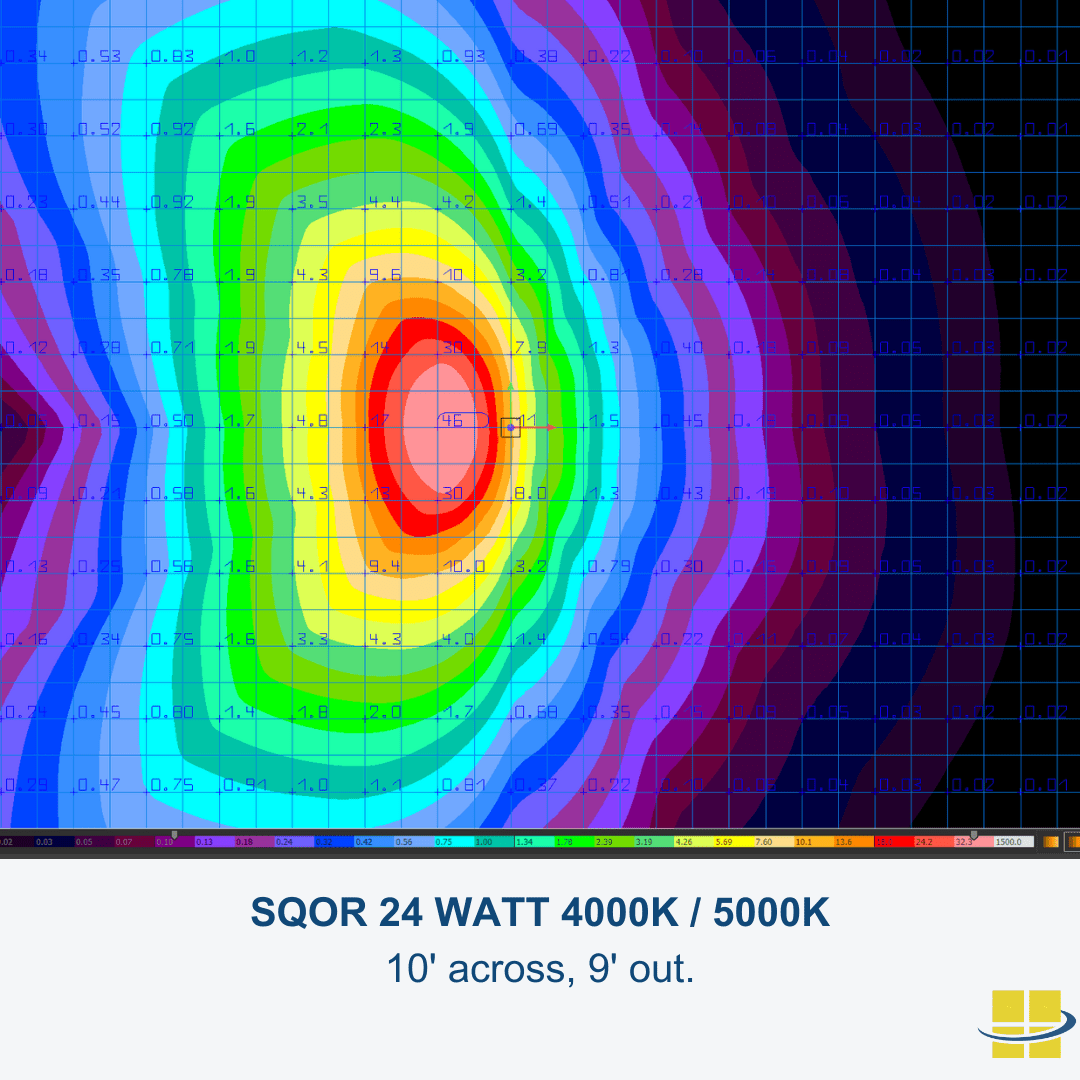

Need a Photometric Analysis for Your LEDO Bollard Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the study cost is refunded to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high-performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
