SWIS Classic European Style LED Post-Top Light
SWIS 10w Classic European Style Post-Top Light - Image 2
SWIS 10w Classic European Style Post-Top Light - Image 3
SWIS 10w Classic European Style Post-Top Light - Image 4

SWIS 10w Classic European Style Post-Top Light

$1,980.87

Elevate public and private outdoor venues with SWIS 10w. This exquisite luminaire seamlessly blends timeless European elegance with advanced state-of-the-art LED technology and optics. Built-to-order, SWIS is designed and manufactured to meet lighting requirements while delivering striking ambiance and unparalleled performance.

CLASSIC DESIGN: SWIS LED post top luminaires blend historic European elegance with modern performance. Inspired by early lighting, SWIS evokes old-world charm while delivering high performance illumination.

BABA CERTIFIED: SWIS is designed and manufactured in the USA, and meets Build America Buy America requirements.

CUSTOMIZABLE: Built to order, SWIS has a choice of Kelvin, lenses, finish color, wattage, and optics to meet design and illumination requirements.

SWIS 10w Classic European Style Post-Top Light PDF

Lead Time: 2 to 4 Week Production, plus Shipping

In Stock

  • Total

SKU: AF33XPMCON1= Categories: , , , , , , ,

Specifications

Weight 42 lbs

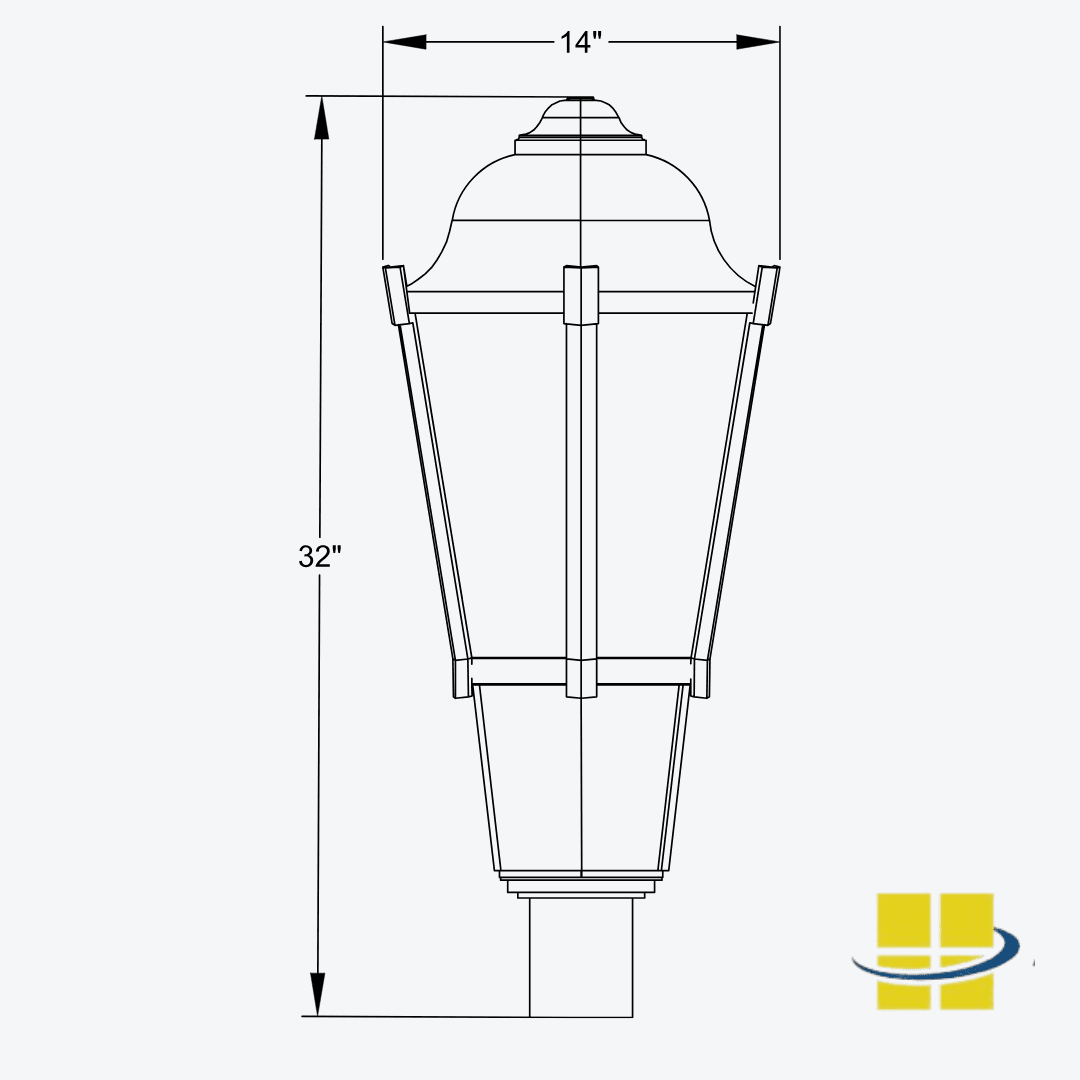

Dimensions 32 × 14 in
System Watts

10, 15, 30, 20, 40, 50, 60
Application

, , , , , , ,

Availability

2 to 4 Week Production, plus Shipping
Listings

IP66, ETL Listed to UL 1598 Standard for Wet Location
Ballast/Driver

Electronic 50/60 Hz, LED Driver
Light Source

, , ,

Available Finishes

Dark Bronze, Green, Light Gray, Silver Metallic, Textured Black, Black, Bronze, White, Custom RAL
Housing

Decorative Aluminum Capital Housing Choices with 3” Slip Fitter
Lens

Clear polycarbonate lens, Frosted polycarbonate lens, Frosted Acrylic Lens, White Opal Acrylic Lens, White Opal Polycarbonate Lens
Optics

IV, ll, lll, V
Product Family

SWIS
Light Source Included

LED Array Included
System Watts Filter

1w – 19w, 20w – 49w, 50w – 99w
Color Rendering Index (CRI)

80+
Build America Buy America

BABA Qualified Lights/Poles
L70 Rating

100,000
Product Weight

42 lbs
Indoor/Outdoor

Outdoor
Mounting

Post-Top Plate
Vendor

AF33X
Vendor Code

AF33XPMCON1
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Voltage Filter

100v, 120v, 208v, 240v, 277v, 347v, 480v
Rated Life

100,000 Hours
Warranty

5-Year Limited Warranty

Product Description

Electrical Specifications:

  • Wattage Options: 10w/15w/20w/30w/40w/50w/60w
  • AC Input Voltage: 120-277V or 347-480V
  • 0-10v Dimmable Driver
  • Standard Surge Protection included (6kV) 10k-V available

Optical Specifications

  • Kelvin Temperature: 3000K, 4000K, 5000K, (2700K and 1800K) Available.
  • Standard Colors Available: Black, Bronze, Dark Bronze, White, Green, Silver Metallic, Light Gray, Textured Black
  • Light Distribution: Type II,  Type III, Type IV, Type V
  • Lens Options: Clear Acrylic, Frosted Acrylic, White Acrylic, Pattern Acrylic, Clear Polycarbonate, Frosted Polycarbonate, White Polycarbonate.

Mechanical and Design Features

  • Finish: Super Durable Polyester Powder Coat Finish, Custom Finishes Available Including Patinas and All RAL Colors.
  • Housing Material: Decorative Aluminum Capital Housing choices with 3” slip Fitter
  • Controls (Optional) Button Eye Photo Control and House Side Shield
  • ETL Listed to UL1598 Standard for Wet Location
  • IP Rating: IP66 (Water resistant against powerful jets).
  • EPA: 2.1
  • Lifetime: 100,000 Hours
  • Installation mounting Options: Two mount bases (2 3/8 inch and 3 inches). Installation Step: Remove screws, attach mount base, connect power cords, slip over the pole, and tighten screws.
  • Packaging: Packaging Dimensions: 32″ x 14″
  • Weight: 42 lbs (Max)
  • Warranty: 5 Year Limited Warranty

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures’ complete warranty policy.

Need a Photometric Analysis for Your Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high-performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
