Product Description
Electrical Specifications:
- Wattage Options: 10w/15w/20w/30w/40w/50w/60w
- AC Input Voltage: 120-277V or 347-480V
- 0-10v Dimmable Driver
- Standard Surge Protection included (6kV) 10k-V available
Optical Specifications
- Kelvin Temperature: 3000K, 4000K, 5000K, (2700K and 1800K) Available.
- Standard Colors Available: Black, Bronze, Dark Bronze, White, Green, Silver Metallic, Light Gray, Textured Black
- Light Distribution: Type II, Type III, Type IV, Type V
- Lens Options: Clear Acrylic, Frosted Acrylic, White Acrylic, Pattern Acrylic, Clear Polycarbonate, Frosted Polycarbonate, White Polycarbonate.
Mechanical and Design Features
- Finish: Super Durable Polyester Powder Coat Finish, Custom Finishes Available Including Patinas and All RAL Colors.
- Housing Material: Decorative Aluminum Capital Housing choices with 3” slip Fitter
- Controls (Optional) Button Eye Photo Control and House Side Shield
- ETL Listed to UL1598 Standard for Wet Location
- IP Rating: IP66 (Water resistant against powerful jets).
- EPA: 2.1
- Lifetime: 100,000 Hours
- Installation mounting Options: Two mount bases (2 3/8 inch and 3 inches). Installation Step: Remove screws, attach mount base, connect power cords, slip over the pole, and tighten screws.

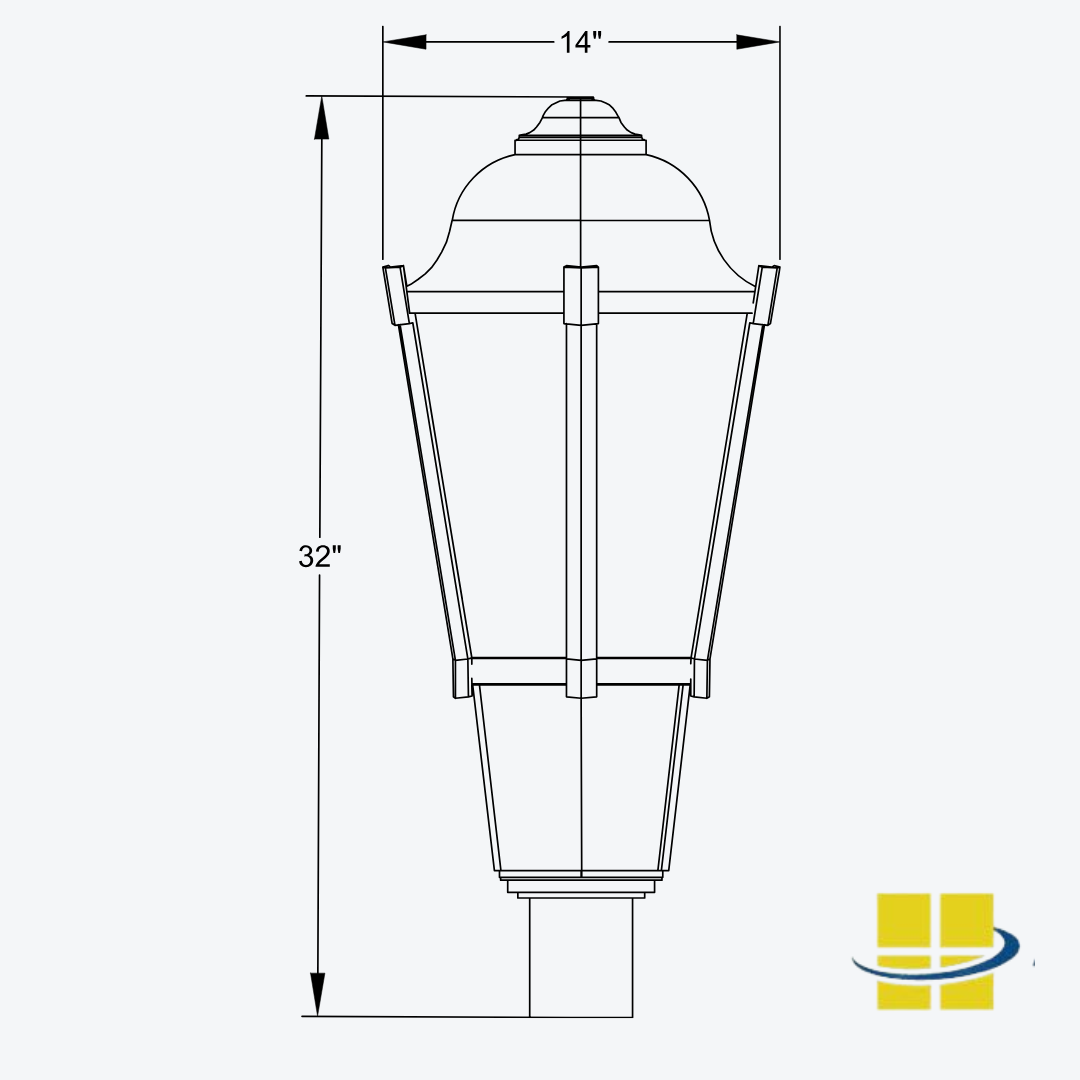

- Packaging: Packaging Dimensions: 32″ x 14″
- Weight: 42 lbs (Max)
- Warranty: 5 Year Limited Warranty
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures’ complete warranty policy.
Need a Photometric Analysis for Your Project?
A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.
Ready to Order or Speak to a Lighting Specialist?
You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high-performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
