UPTA 160 No UV – No Light Under 450nm LED Lights, EXTREME-LIFE

$719.87

UPTA LED high bay lights are engineered for optimal performance in demanding environments like hangars, sports arenas, convention centers, stadiums, and large commercial/industrial spaces with clear heights exceeding 60 feet. With advanced optics and heat management, they deliver powerful and reliable illumination while minimizing glare. Thanks to a patented spill light control system and exceptional heat sink design, UPTA lights offer uniform anti-glare illumination and extreme longevity with minimal maintenance, reducing downtime and servicing costs.

EXTREME-LIFE: The robust heat sink design ensures an extraordinary lifespan, with an L70 rating of 200,000 hours, providing maintenance-free performance for years.

Flawless Light: The selection of advanced optics, Kelvin options, and color rendering capabilities of up to Ra>90 enables top-tier anti-glare illumination.

No UV – No Light Below 450nm: Opting for more diversified spectral options, with one being equivalent and three offering a broader spectrum of light.



Lead Time: 3 to 4 Week Production, plus Shipping

In Stock

  • Black and Gray are standard colors. Custom RAL finishes are available at an up charge with a minimum order quantity (MOQ).
  • 0-10v Dimming is suggested and is no additional cost. If dimming is not used, simply cap the 2 low voltage dimming wires.
  • Large facilities may have birds living inside the building. Installing bird spikes on high bay lights stops the birds from nesting on the lights.
  • UPTAs are manufactured with a 3' power cord exiting the light fixture. You may add additional length to the power cord.
  • Do you need the UPTA to stay on when the power goes out? If yes, add the Emergency Power Supply.
  • This is a safety cable that will stop the light fixture from crashing to the floor is the primary mount ever becomes loose or disconnected.
  • Maximize energy savings and the life of the high bay light by adding a programable microwave control with an occupancy sensor and light sensor.

  • Total

SKU: AF88XBAC160L-NOUV Categories: , , , , , ,

Specifications

Weight 18.5 lbs
Dimensions 21.06 × 16.73 × 6.30 in
Application

, ,

Availability

3 to 4 Week Production, plus Shipping
Light Source

, , ,

Available Finishes

Black, Gray
Housing

High-Grade Aluminum
Lens

Type I, Type V
Light Source Included

LED Array Included
Light Source Lumens

24,960
Listings

IK10, IP66, CB, CE, CuL Listed, DLC Listed, ETL Listed, SAA
Mounting

D Type Mounting, H Type Mounting, U Type Mounting
Product Family

UPTA
Rated Life

L70 @ up to 200,000 Hours
System Watts

160
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty

Product Description

UPTA 160w LED High Bay Light Features:

  • 15.8lbs
  • 14.29L x 13.15W x 5.20H
  • No UV – No Light Under 450nm
  • 100-277VAC or 277-480VAC, 50/60Hz
  • Nominal power 40W-960W
  • Superior patented high-efficiency spill light control system
  • High light output, low weight
  • Provides superior quality anti-glare illumination to large-scale areas
  • Constructed with high-grade aluminum
  • 700 mA
  • Ra70 standard, optional Ra80 or Ra90
  • <20% total harmonic distortion at full load
  • Imax 10KA surge protection
  • Exceptional heat sink design to ensure these fixtures will last for more than 20 years or 200,000 hours of operation – making them virtually maintenance-free for a lifetime
  • Choose from T1S, T5M, T5W, T10D, T20D, T40D, T60D, T90D optics
  • Black or Gray color options
  • L70 @ 200,000 hours
  • DLC, IP66 rated, IK10 rated, CUL, CE, CB, SAA rated

UPTA 160w LED High Bay Light Options:

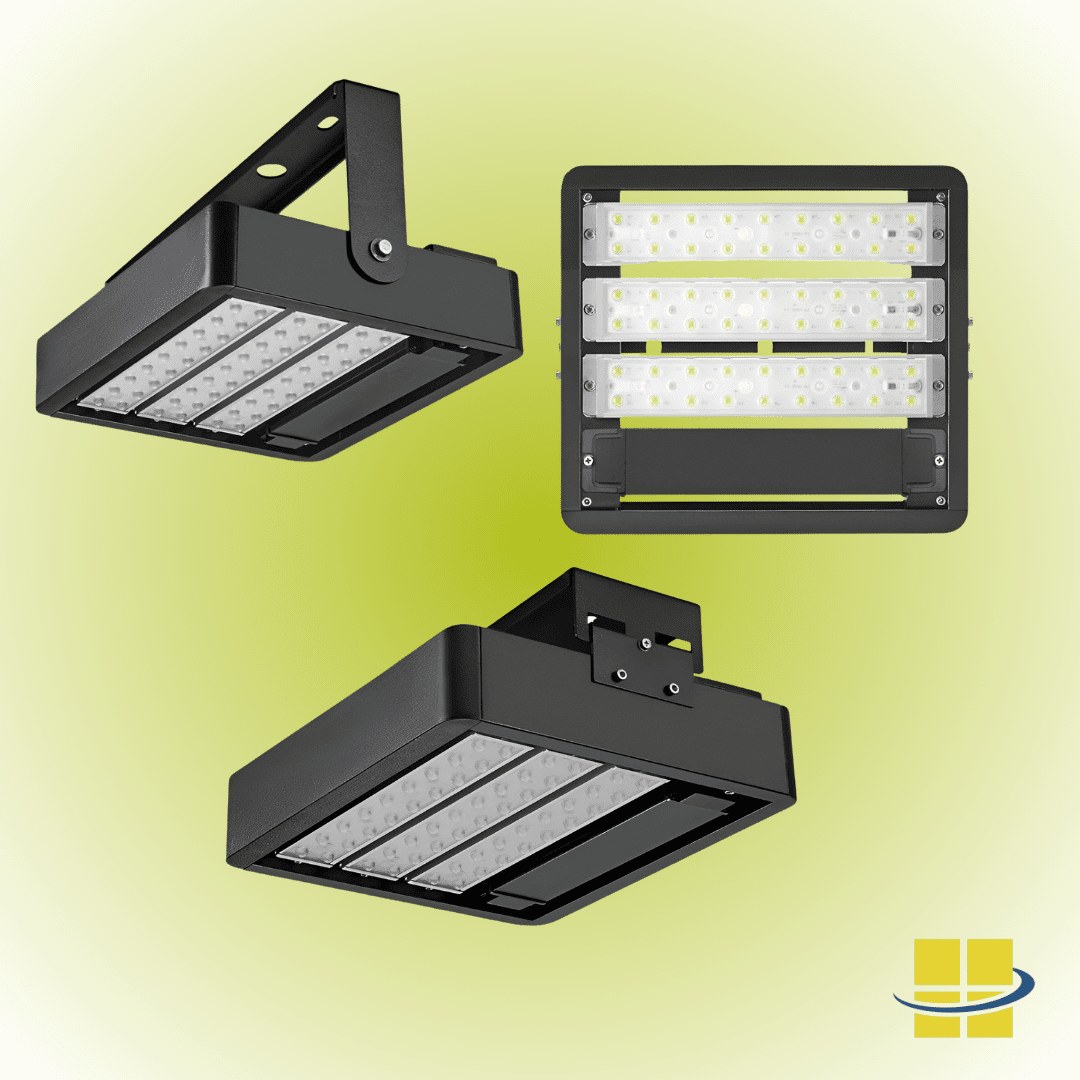

  • D type mounting
  • U type mounting
  • H type mounting
  • 1-10v dimming
  • 10v PWM control
  • DALI control
  • DMX control
  • Motion sensor
  • Emergency power supply
  • Backlight shield
  • Ra80 or Ra90 optional

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your UPTA LED High Bay Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
