URZO 39w LED Outdoor Post-Top Light, EXTREME-LIFE

$779.87

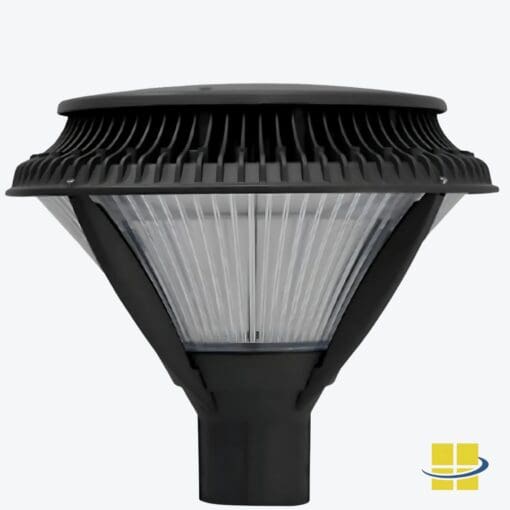

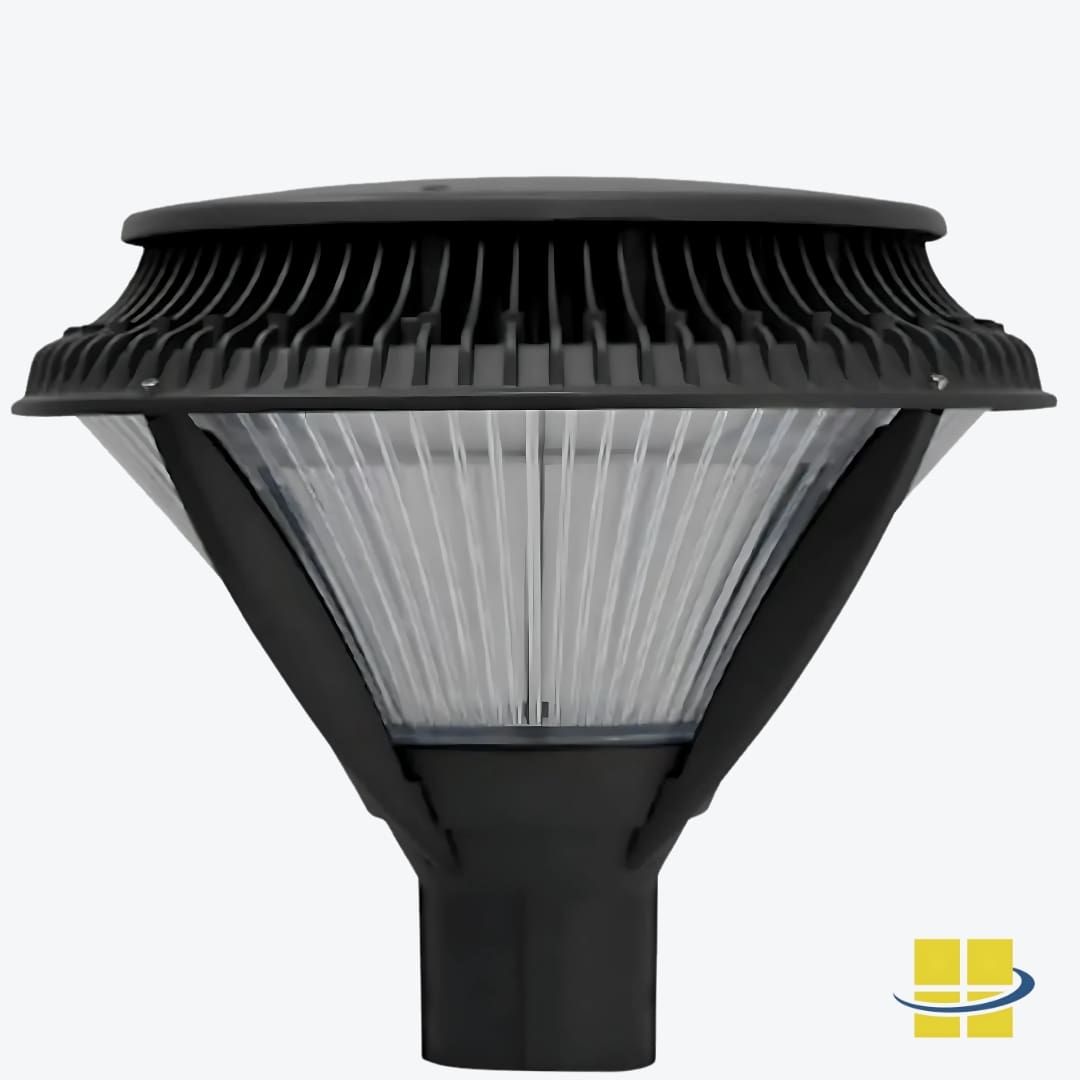

URZO LED post-top light is designed and manufactured for reliability, durability, as well as easy maintenance. Its vandal-resistant clear or opal UV-stabilized polycarbonate lens provides significant glare reduction and superior visibility for your pathways, parking areas, and street lighting. URZO is IP66 and CSA-rated for maximum durability in extreme weather environments.

EXTREME-LIFE: URZO’s exceptional design produces an EXTREME-LIFE rating of L70 @ 473,000 hours for years of virtually maintenance-free performance.

Lens Options: URZO has three different lens options: Clear or Opal UV-stabilized polycarbonate Array Lens to Seal LED Array, with a vandal-resistant outer conical lens.

Premium Build – IP66 rated against water jets, CSA listed for wet locations, surge protection, and die-cast aluminum housing for maximum life and durability to withstand extreme weather conditions.


Buy American Act Compliant

BAHB LED Post-Top Light

Lead Time: 4 to 6 Week Production, plus Shipping

In Stock

  • Protect your fixtures from power surges.

  • Total

SKU: AF33XPF71QF1X37 Categories: , , , , ,

Specifications

Weight 100 lbs
Dimensions 75 × 22 × 22 in
Light Source

, ,

Available Finishes

Black
Ballast/Driver

Electronic 50/60 Hz
Components

LED Post-Top Luminaire
Housing

Die-Cast Aluminum Housing with Built-In Heat Sink
Lens

Clear array lens, Opal Array Lens
Light Source Included

LED Array Included
Listings

IP66, CSA: Listed for wet locations
Mounting

Round Pole Mount
Rated Life

473,000 Hours
System Watts

39
Voltage

120v, 208v, 240v, 277v, 347v, 480v
Warranty

5-Year Limited Warranty
Light Source Lumens

3,062
Availability

4 to 6 Week Production, plus Shipping

Product Description

URZO LED Post-Top Light Features

  • 39w
  • 120-277v 50/60Hz, 347-480v 50/60Hz
  • 3000K, 4000K, 5000K

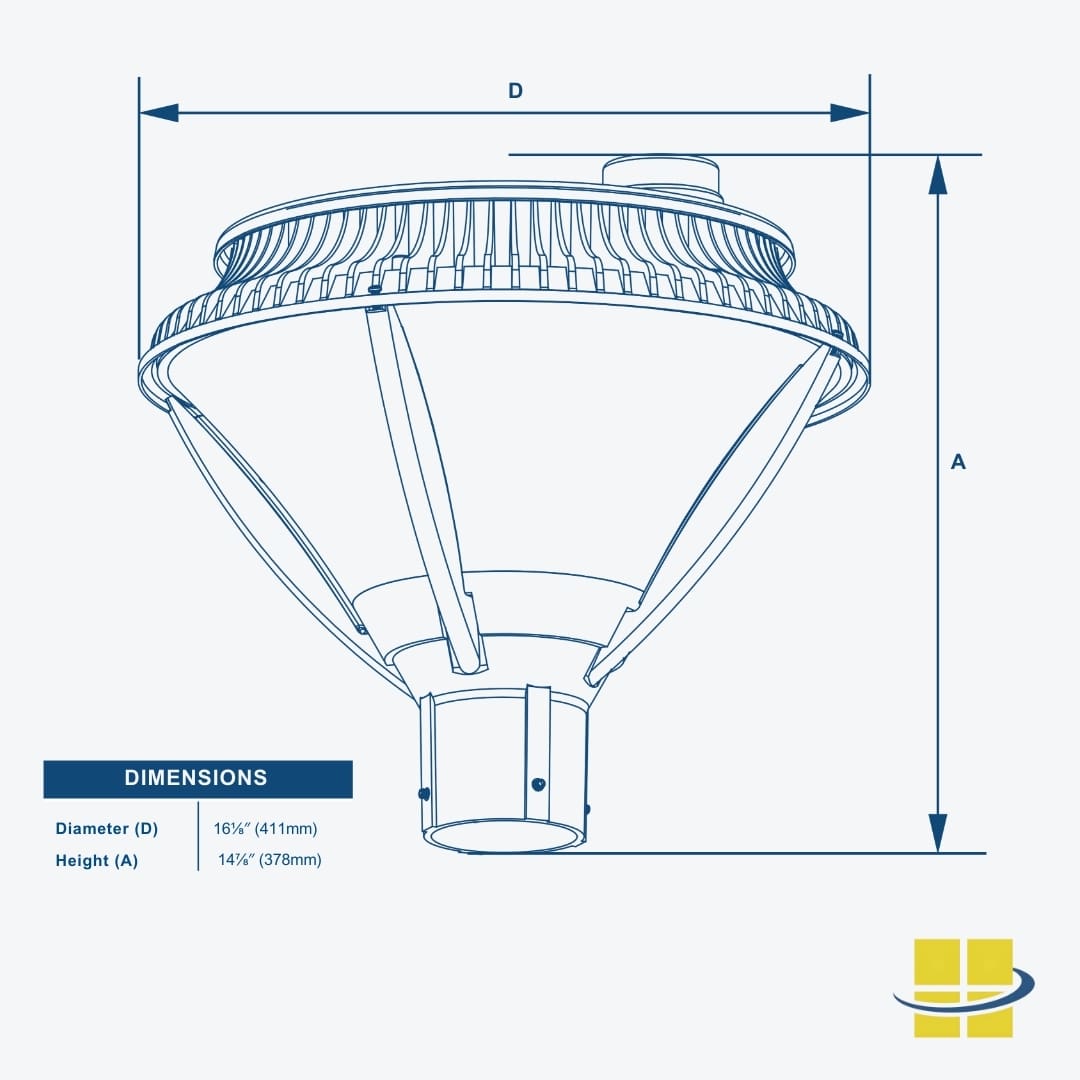

  • 16.125″D x 14.875″H inches
  • Bronze, Black, Custom RAL
  • Integral heat sinking
  • Photocell Adaptable
  • CSA listed for wet locations
  • ANSI/UL, 1598, 8750;
  • IP66 rated
  • Mounting heights of 12 to 20 feet can be used based on light level and uniformity requirements.
  • Die-cast aluminum housing
  • Textured architectural bronze or black powder coat finish over a chromate conversion coating
    • Custom RAL colors available on request
  • Clear or opal UV-stabilized polycarbonate vandal-resistant array lens
  • Accommodates  2 7⁄8′′ O.D. x 3′′ Tenons
  • Standard internal surge protection 6kV
  • 0-10v Dimming
  • Motion sensor
  • EPA: 14 lbs / 0.48 sq. ft.
  • Lumen output:
    • 4000K: 6,951 lumens, 81 LPW, BUG rating: 2,2,1
    • 5000K: 5,994 lumens, 70 LPW, BUG rating: 2,2,1
  • 5-year Access Fixtures warranty

Options

  • 3000K, 4000K, or 5000K
  • Clear or opal UV-stabilized polycarbonate lens
  • 3-pin, 5-pin, 7-pin photocell
  • Motion sensor
  • Photocell
  • Contact a lighting specialist about custom RAL colors

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.

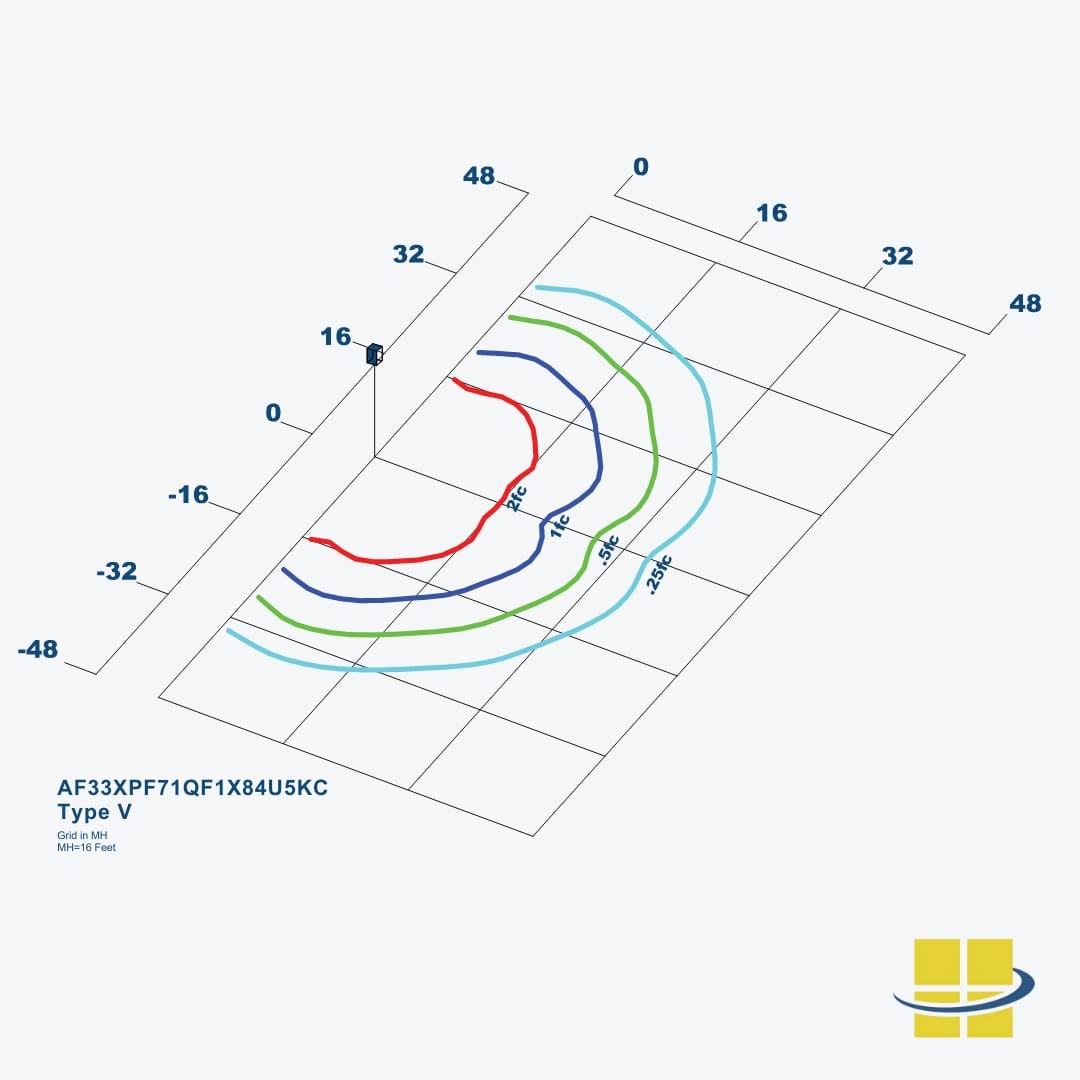

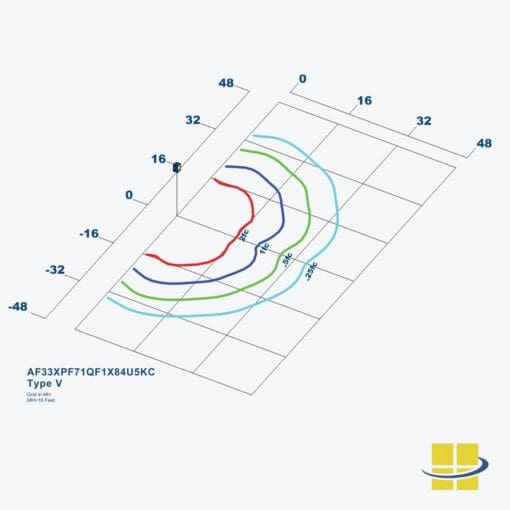

Need a Photometric Analysis for Your URZO 39w LED Outdoor Post Light Project?

A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometrics include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.

Ready to Order URZO 39w LED Outdoor Post Light or Speak to a Lighting Specialist?

You can place your order online or if you want additional information, give us a call at 800-468-9925. Our team of friendly, expert high-performance lighting specialists are available to provide what you need to purchase fixtures and illuminate your project with confidence.
