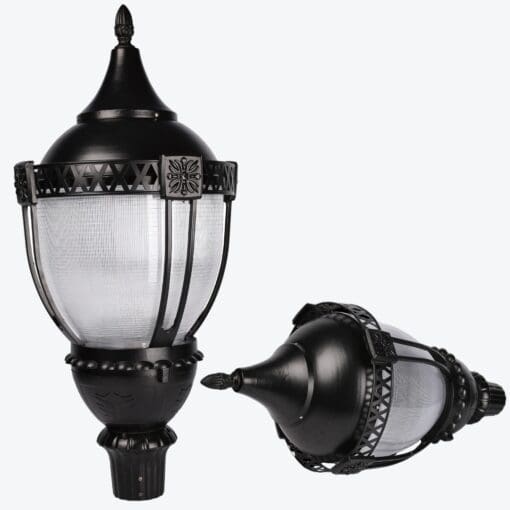

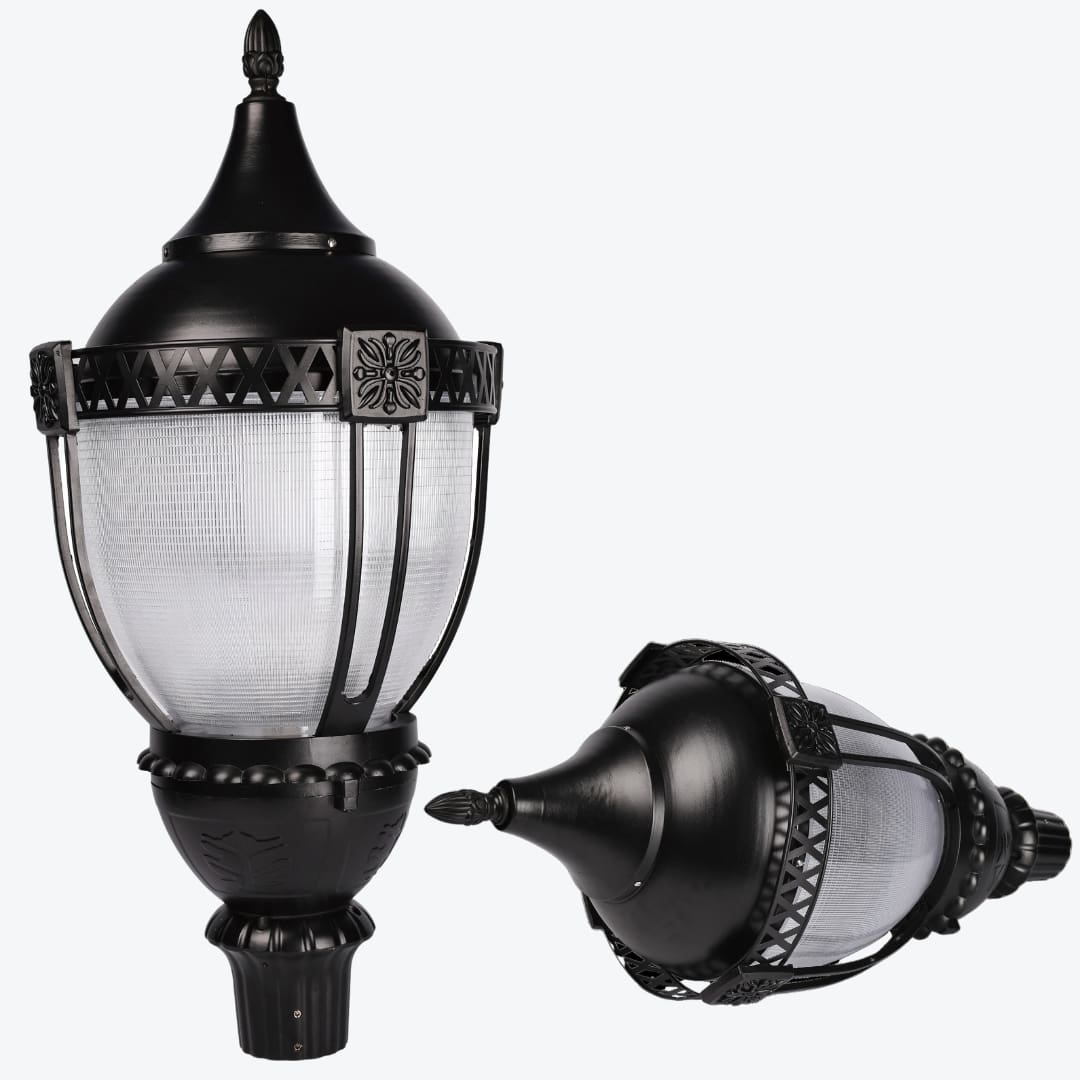

Product Description
Key Features
- Button Photocell Sensor (Optional): Allows automatic on/off functionality based on ambient light levels.
- 3CCT Selectable: The ability to choose between three color temperature settings—3000K, 4000K, and 5000K.

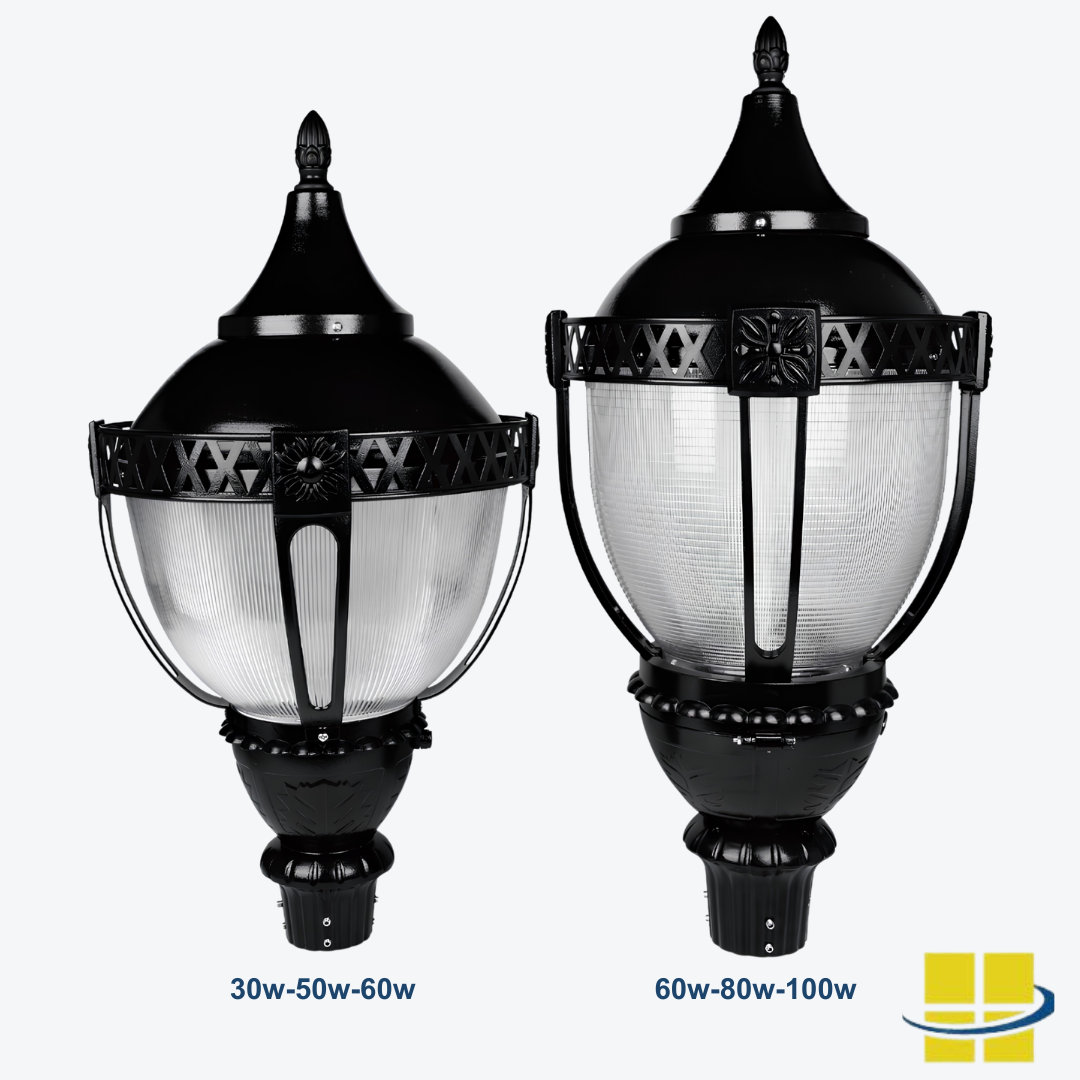

- Power Selectable: Adjustable wattage options range from 60W-80W-100W to customize power usage based on specific lighting needs.
- Acrylic/PC Diffuser (Optional): Standard Polycarbonate Lens and Acrylic/PC Diffuser options are available to help soften and evenly distribute light.

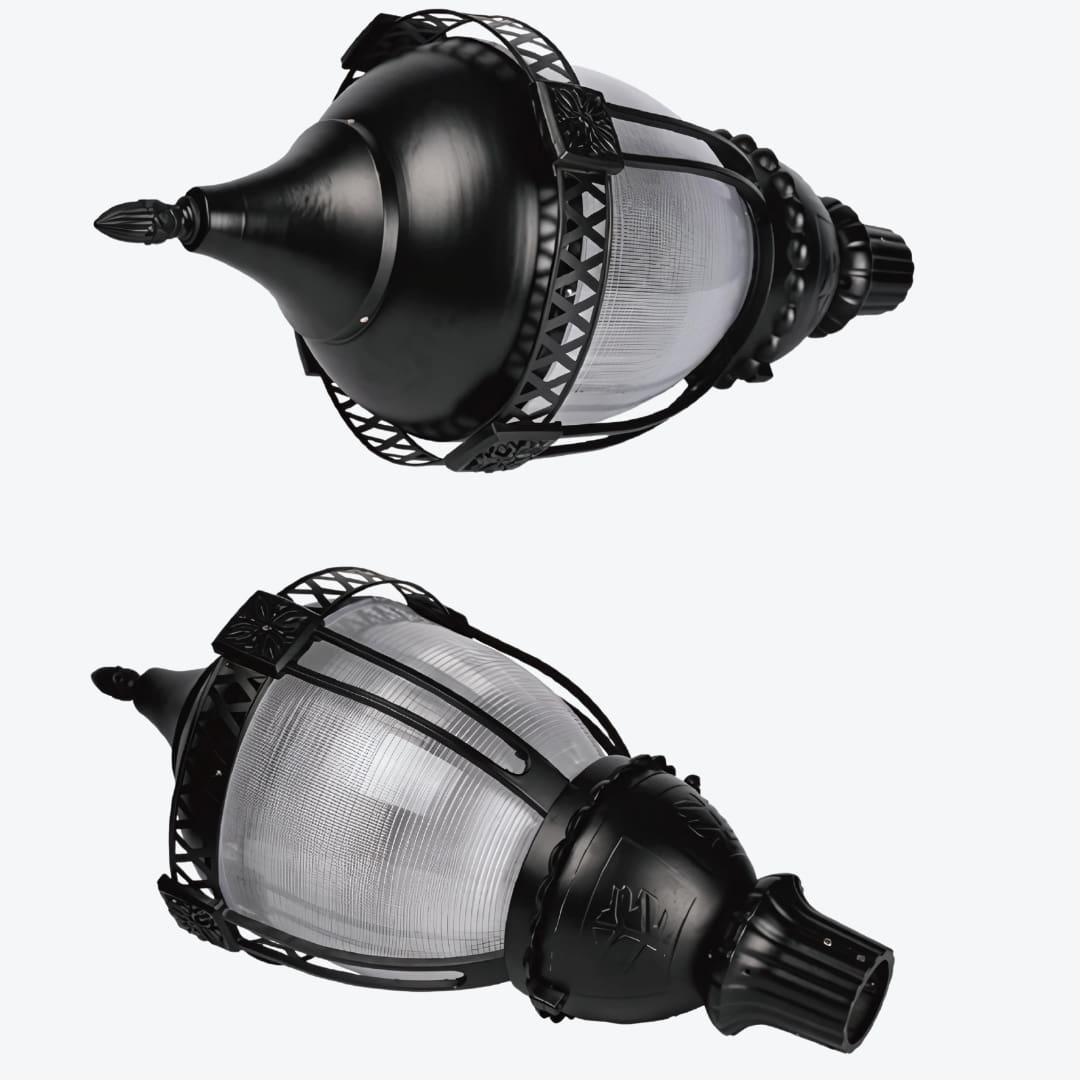

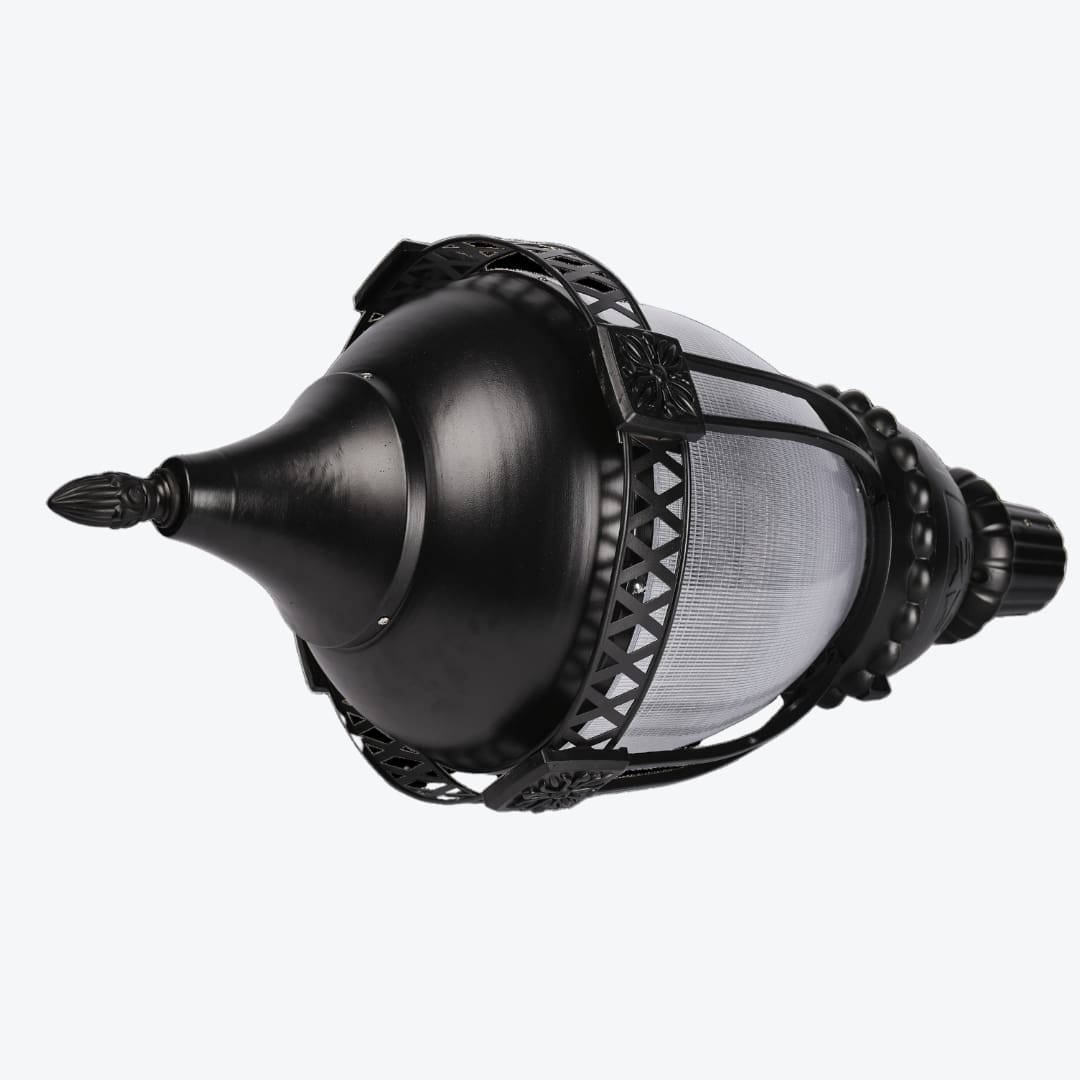

- ADC12 Die-Cast Housing: Ensures durability and resistance to harsh weather and external conditions.
Specifications:
- Light Output:
- Max 11,000 lumens (higher wattage models).
- Wattage:
- 60W, 80W, 100W (higher power range).
- Efficacy: 110 lumens per watt (customizable for higher efficacy).
- CCT (Color Temperature): 3000K, 4000K, 5000K (3CCT selectable).
- AC Input Voltage:
- 120-277V (standard applications).
- Light Distribution: Type V, uniform spread over a large area.
- Mounting Option: Mounts on a 2/7″ Vertical Tenon.
- Total Harmonic Distortion (THD): Less than 20%.
- Surge Protection: Built-in 4/6V surge protection
- Lifetime: 50,000 hours.
- IP Rating: IP65 (protection against dust and water).
- Ambient Temperature: Operational range from -40°C to +45°C (-40°F to +113°F).

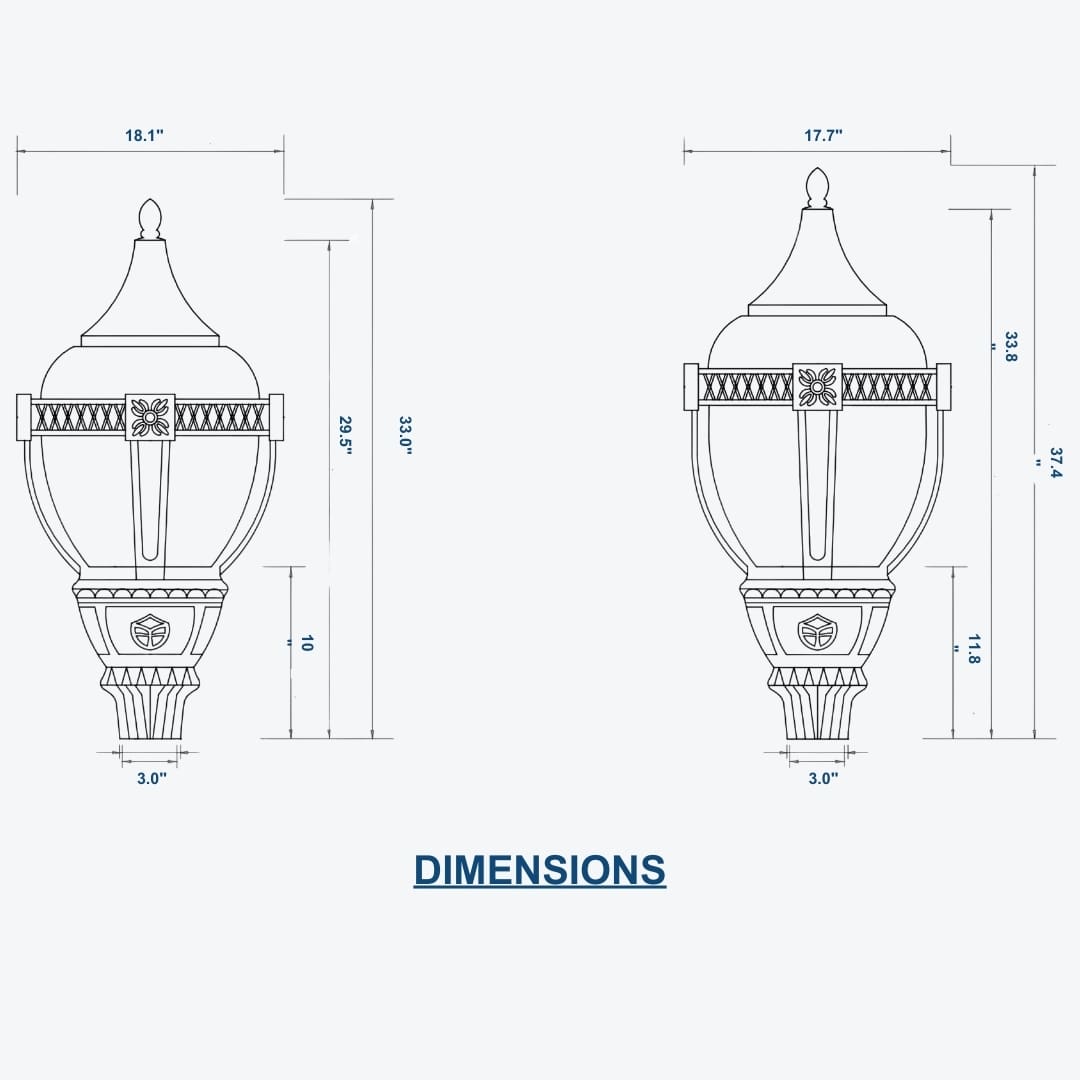

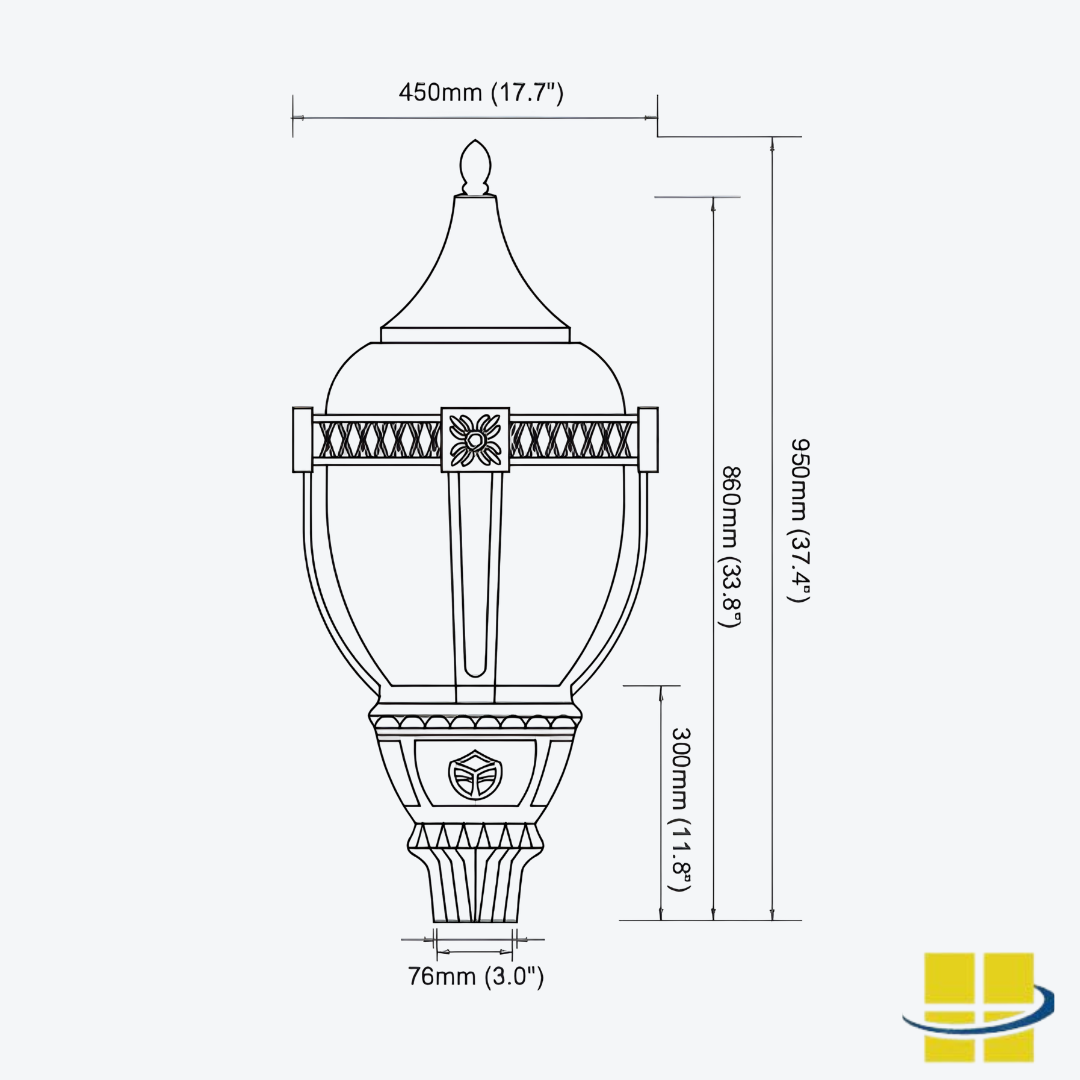

- Dimensions:
- Fixture sizes include (37.4” x 11.8”) and (33.0” x 10.0”).
- Packaging Information:
- Carton dimensions: (21.26” x 21.26” x 38.58”).
- Certifications: UL and DLC Listed
Access Fixtures Warranty
Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.
Need a Photometric Analysis for Your Lighting Project?
A photometric analysis creates a computer simulation of a particular project. No matter what you are lighting, a photometric analysis is an easy way to quantify light levels before purchasing. When a report is generated, a lighting specialist will walk you through it so you know exactly what you will be receiving. Photometric studies include average and minimum footcandles, uniformity ratios, spacing, light trespass info, and more. Plus, the cost of the study is refunded back to you when you purchase the fixtures. Call us at 800-468-9925 for more information about ordering a photometric analysis for your project.
