LED Wall Pack
30w Wall Pack Light
ZIKO LED Wall Pack, Selectable Kelvin and Wattage 62-92-100 Photocell - Image 3
ZIKO LED Wall Pack, Selectable Kelvin and Wattage 62-92-100 Photocell - Image 4
ZIKO LED Wall Pack, Selectable Kelvin and Wattage 62-92-100 Photocell - Image 5
ZIKO LED Wall Pack, Selectable Kelvin and Wattage 62-92-100 Photocell - Image 6

ZIKO LED Wall Pack, Selectable Kelvin and Wattage 62-92-100 Photocell

$139.87

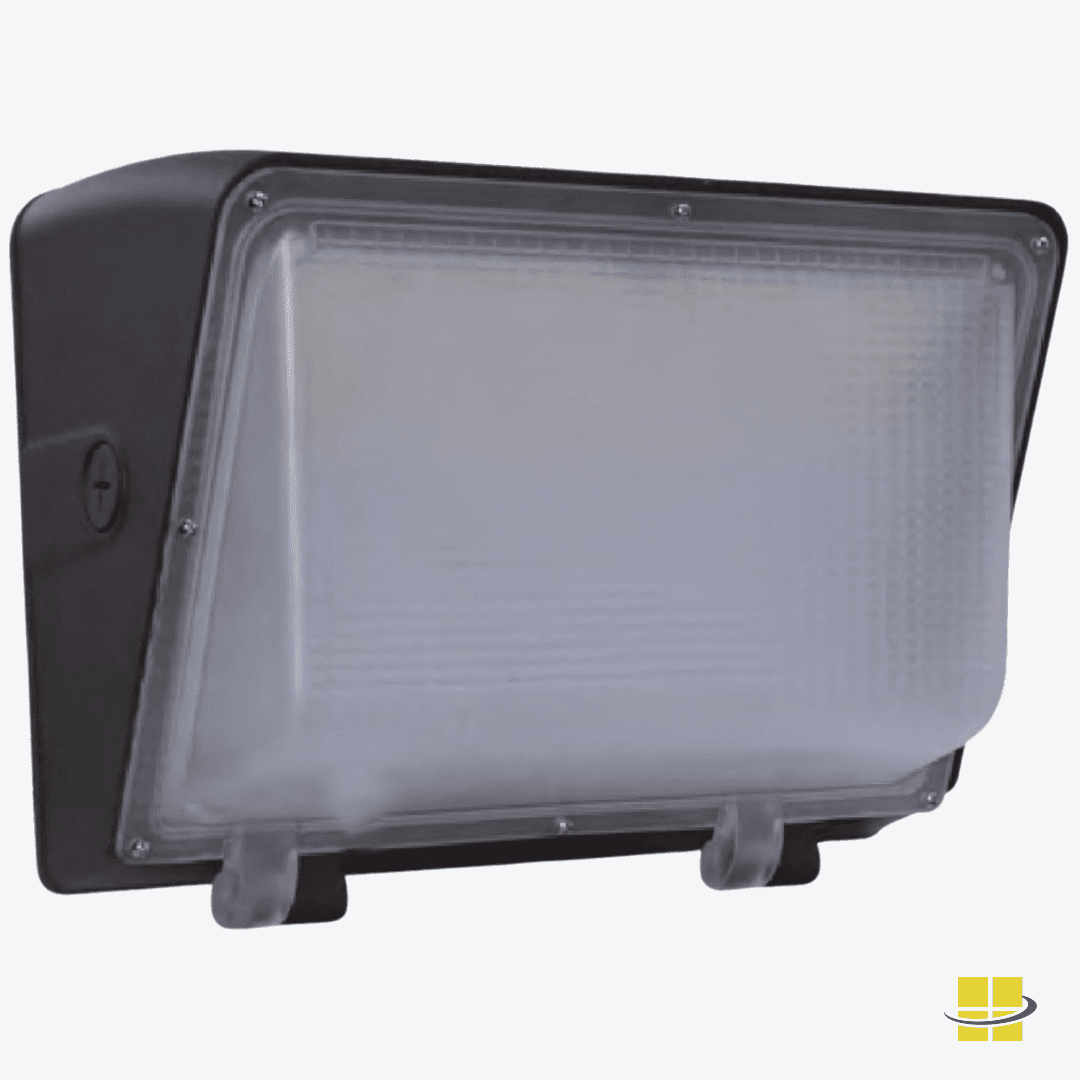

ZIKO is a direct one-to-one replacement for traditional forward throw wall packs, offering the same form factor and function with enhanced features. It boasts selectable Kelvin to customize the light color and selectable wattage to adjust the light output, ensuring the perfect illumination every time. Unlike typical forward-throw wall packs, the ZIKO features a high-quality diffuser lens that reduces glare for a smoother, more comfortable lighting experience. Field-configurable and versatile, it provides tailored lighting solutions for any space.

Selectable Kelvin: Achieve your desired Kelvin setting effortlessly on-site with the simplicity of a switch. Select precisely from 3000K, 4000K, or 5000K to tailor the lighting to your preferences.

Selectable Wattage: Achieve your preferred illumination level by utilizing the selectable wattage options of 62, 92, or 100 watts.

Built-in Photocell: The ZIKO features a built-in photocell that automatically turns on at dusk, providing consistent, broad light distribution for enhanced safety and visibility.

Lead Time: 5 to 7 Day Production, plus Shipping

In Stock

  • Do you need your ZIKO to stay on when the power goes out? If yes, add the Emergency Power Supply!
  • Adjusts lighting levels based on occupancy, providing the perfect balance of illumination and savings.

  • Total

SKU: AF55XLED6590L448345P Categories: , , , , ,

Specifications

Weight 8.5 lbs
Dimensions 16 × 11 × 9 in
Application

Availability

5 to 7 Day Production, plus Shipping
Available Finishes

Bronze, Custom RAL
L70 Rating

50,000 Hours
BUG Rating

2, 5, 5
Housing

Die cast aluminum housing
Lens

High-impact polycarbonate lens
Light Source

, ,

Light Source Included

LED Array Included
Light Source Lumens

14,723
Listings

RoHS Compliant, CUL, DLC Listed, UL
Mounting

Quick-mount
Product Family

ZIKO
System Watts

62, 92, 100
Voltage

120v, 208v, 240v, 277v
Warranty

5-Year Limited Warranty

Product Description

Features

Electrical Specifications:

  • Nominal Wattage: 62W-100W (Field Selectable: 62W/92W/100W).
  • Input Voltage: 120-277V.
  • Efficacy: 138 lm/W.
  • Dimming Capability: 0-10V dimmable.
  • Starting Temperature: -40°C to +40°C.
  • BUG Rating: B:2, U;5, G:5

Optical Specifications:

  • Color Temperature (CCT): Selectable (3000K, 4000K, 5000K).
  • Color Rendering Index (CRI): ≥80.
  • Lens Type: High-impact polycarbonate lens with anti-glare properties.
  • Lumens Output (Based on Highest Wattage at 5000K): 100W: 14075 lm.

Mechanical Specifications:

  • Housing: Die-cast aluminum with UV-stabilized powder coating for durability.
  • Finish Options: Bronze.

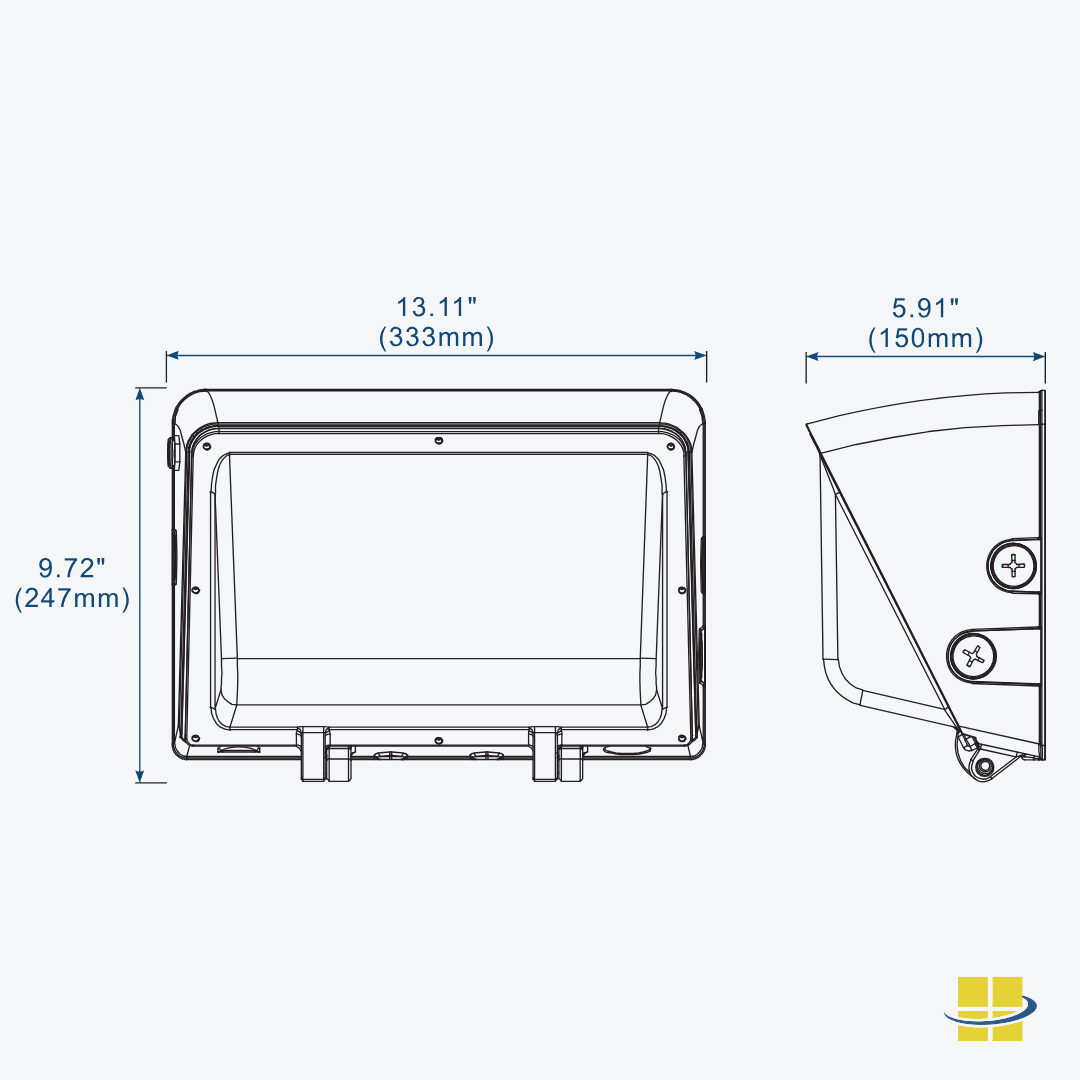

  • Dimensions:
    • Length: 13.11″ (333mm).
    • Width: 5.91″ (150mm).
    • Height: 9.72″ (247mm).

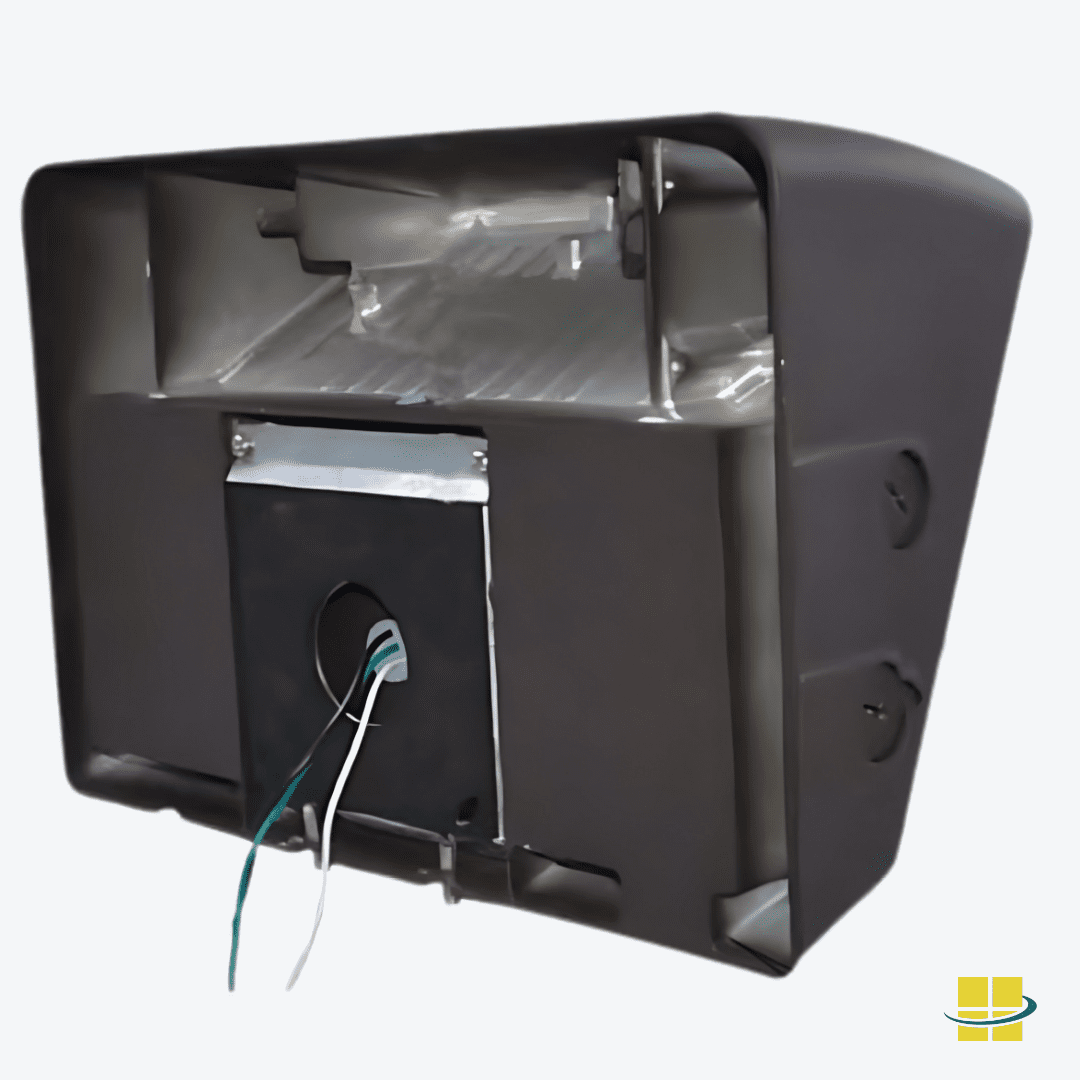

  • Mounting System: Quick Mount Plate for easy installation.
  • Hinge Design: Allows for easy opening for maintenance.

Environmental Specifications:

  • Ingress Protection: Vaporproof, suitable for wet and harsh environments.
  • Certifications:
    • UL and cUL Listed.
    • DLC 5.1 Certified.
    • FCC Compliance.

Optional Features:

  • Photocontrol Sensor: Enables automatic operation based on ambient light.
  • Occupancy Sensor: For motion-based activation and energy savings.

Access Fixtures Warranty

Access Fixtures is proud to assemble high quality, long lasting lighting products which are covered by a 5-year warranty. In accordance with our warranty policy, we will offer repair, replacement, or refund for qualifying claims. Please contact our friendly customer service team, located in Worcester, MA, to address any questions or concerns you may have. We can be reached at 800-468-9925 Monday-Friday 9-5 EST or via email at [email protected]. Click here to view Access Fixtures' complete warranty policy.


Need a Photometric Analysis for Your ZIKO LED Wall Pack Project?

A photometric analysis offers a straightforward way to assess light levels before purchasing your project. The generated report includes details such as average and minimum footcandles, uniformity ratios, spacing, and light trespass information. Additionally, the cost of the study is refundable upon purchasing the fixtures. If you need any additional feel free to contact us to order a photometric analysis, feel free to call us at 800-468-9925.

Ready to Order or Speak to a Lighting Specialist?

You can place your order online, here. Or, if you want additional information, give us a call at 800-468-9925. Does your project require multiple fixtures? Ask us about quantity discounts. Our team of friendly expert lighting specialists is available to provide what you need to purchase fixtures and illuminate your project with confidence.
